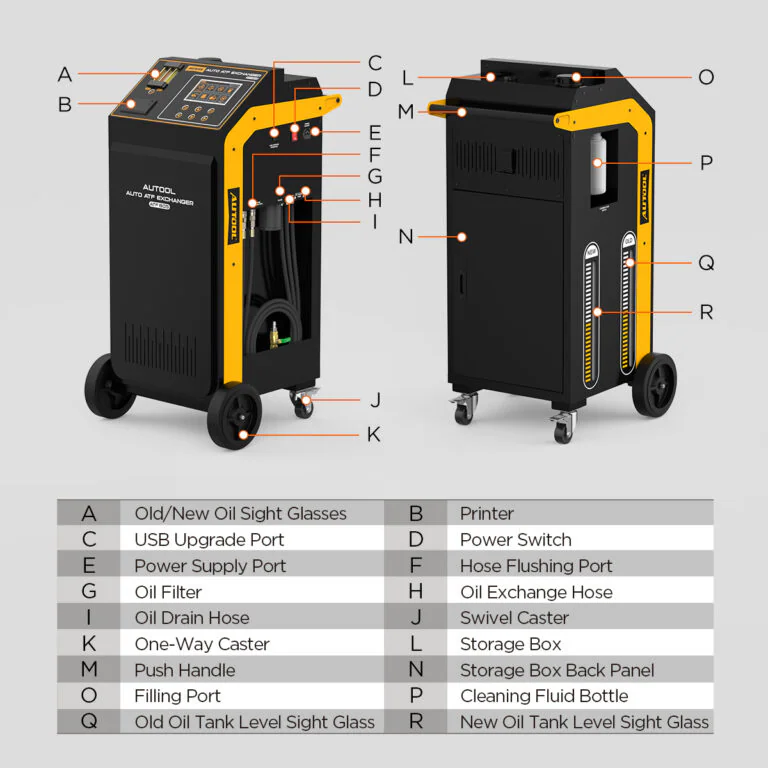

AUTOOL ATF805 Fully Automatic ATF Exchanger
US$3,999.00
Key Features
- 20 L Dual-Pump Exchange
- 20–80°C Heating + Sampling
- 7-Inch ATF Service Screen
- Printed Service Record
- 20 L Dual-Pump Exchange: Use separate pumps for new-fluid delivery and used-fluid recovery with automatic direction identification, equal-volume exchange, and a 20 L tank.
- 20–80°C Heating + Sampling: Condition fresh fluid from 20°C to 80°C, monitor temperature, and inspect through the sampling window.
- 7-Inch ATF Service Screen: Control service data and status from the 7-inch IPS screen.
- Printed Service Record: Create a report from the completed service with the integrated printer.
- USB-Updatable Database: Use the vehicle-selection database and update it through USB.
- 3-Year Warranty Main unit 3 years · Accessories 1 year
- 90-Day Returns Eligible returns within 90 days
- Official Store Genuine products · Direct support

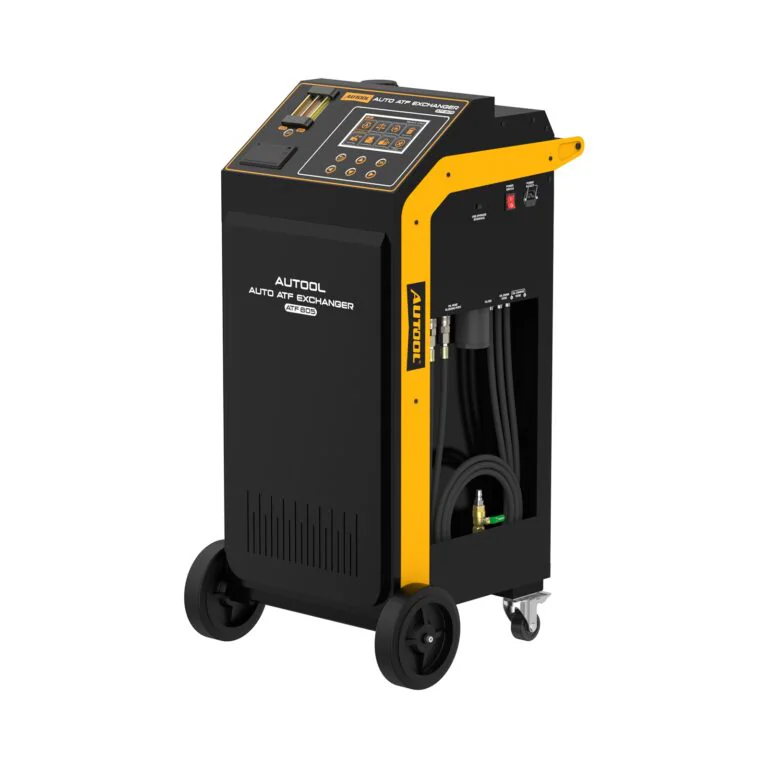

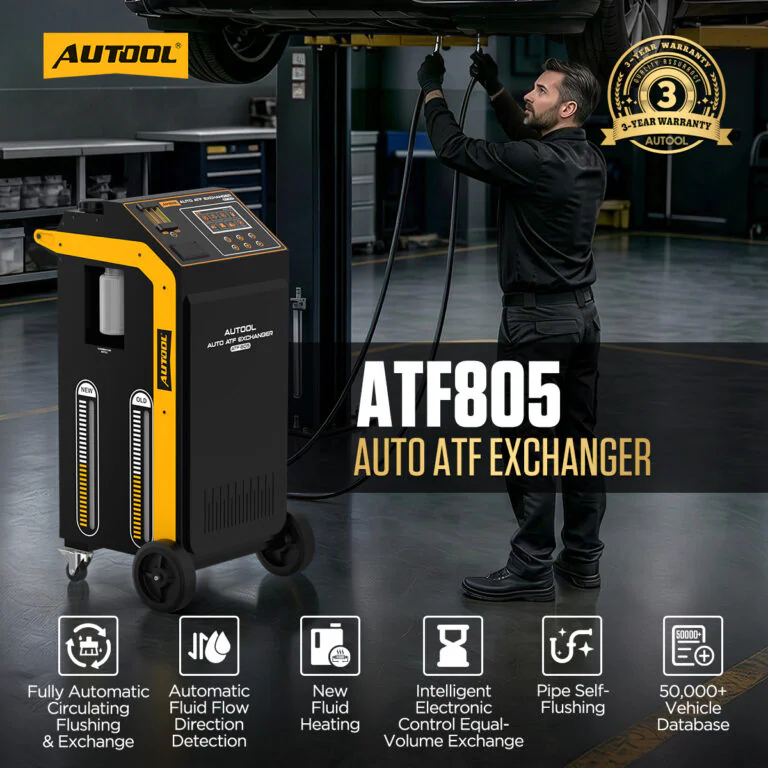

AUTOOL ATF805 · Heated Automatic Transmission Fluid Exchanger with Printer
Heat, Exchange, Sample and Print the Service
Condition fresh ATF, automatically identify flow direction, balance new-fluid delivery with used-fluid recovery through the dual-pump exchange, and print a completed service record—all on one ATF exchange machine. ATF805 adds guided control on a 7-inch screen, heats new fluid from 20°C to 80°C, and provides temperature and sampling visibility during service. Its USB-updatable vehicle database supports repeated workshop use.
- Dual-Pump Automatic Exchange
- 20–80°C Fresh-Fluid Heating
- 7-Inch IPS Guidance
- Service Report Printer
- 20 L Fluid Tank
Key Features
Dual Pumps with Heating and Reporting

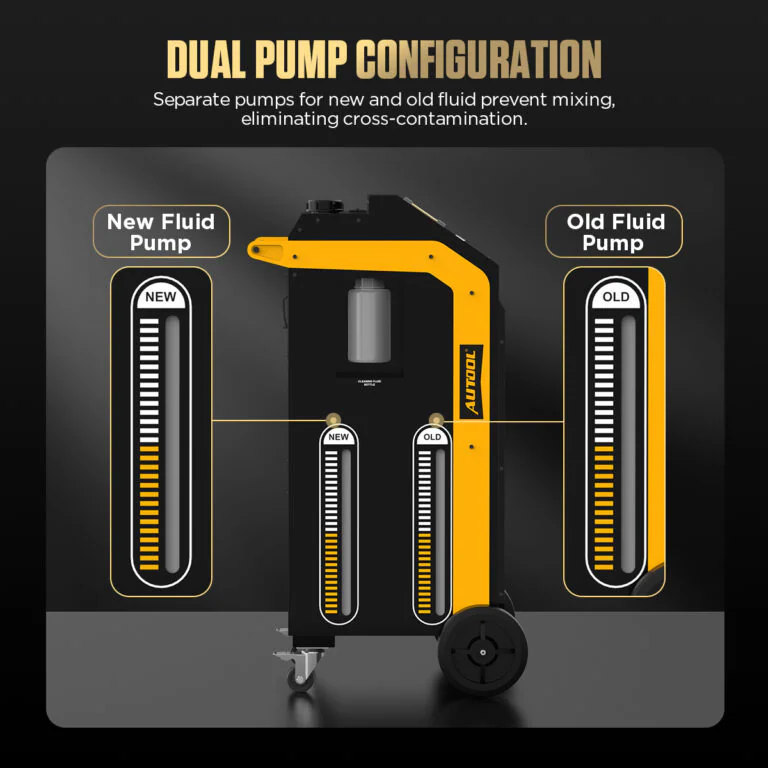

Dual-Pump Automatic Exchange
Separate pumps manage new-fluid delivery and used-fluid recovery during automatic service.

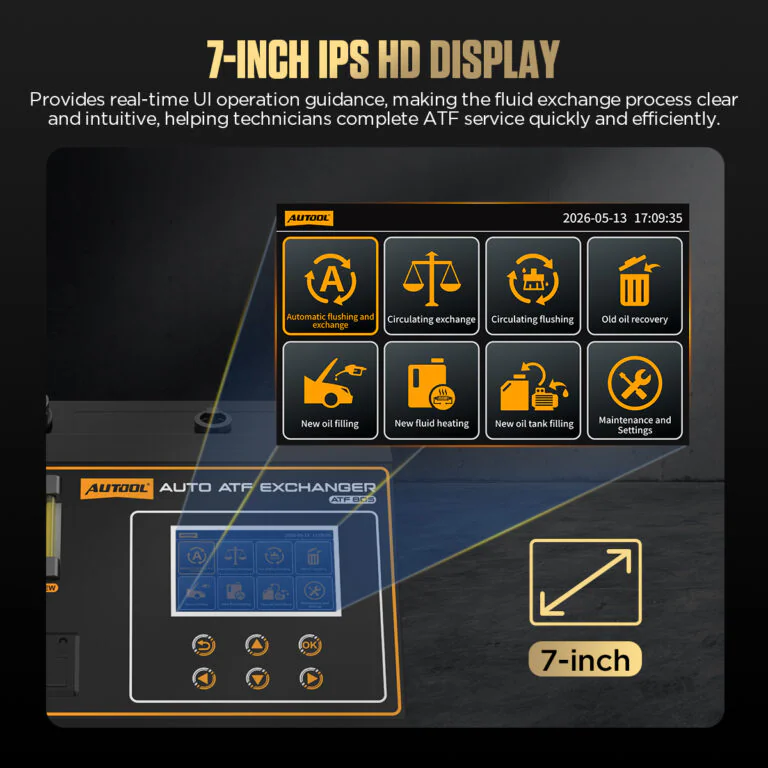

7-Inch IPS Interface
The larger screen provides guided control, data entry and service status.

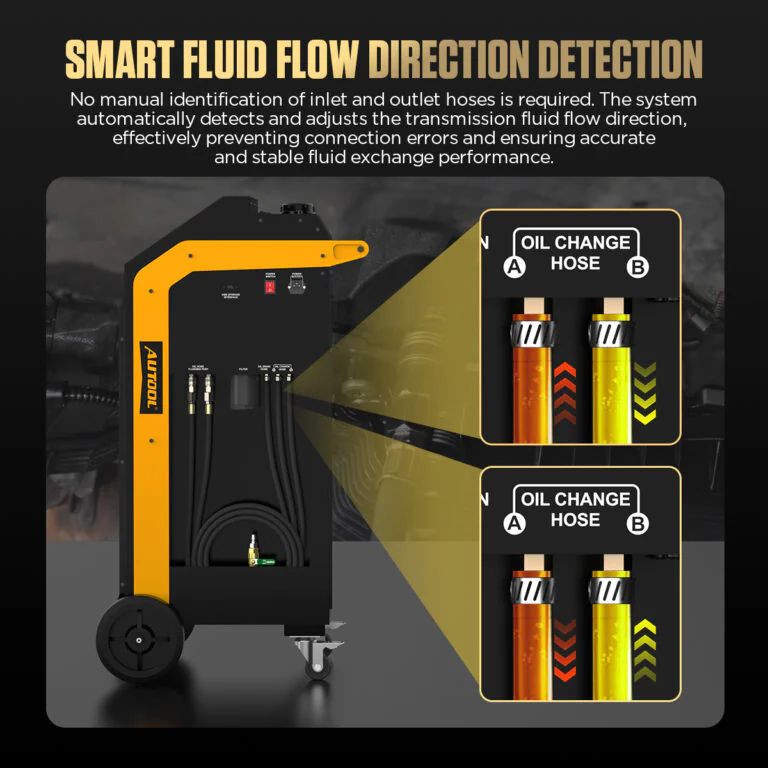

Automatic Flow Direction
The machine identifies the connected inlet and return direction.

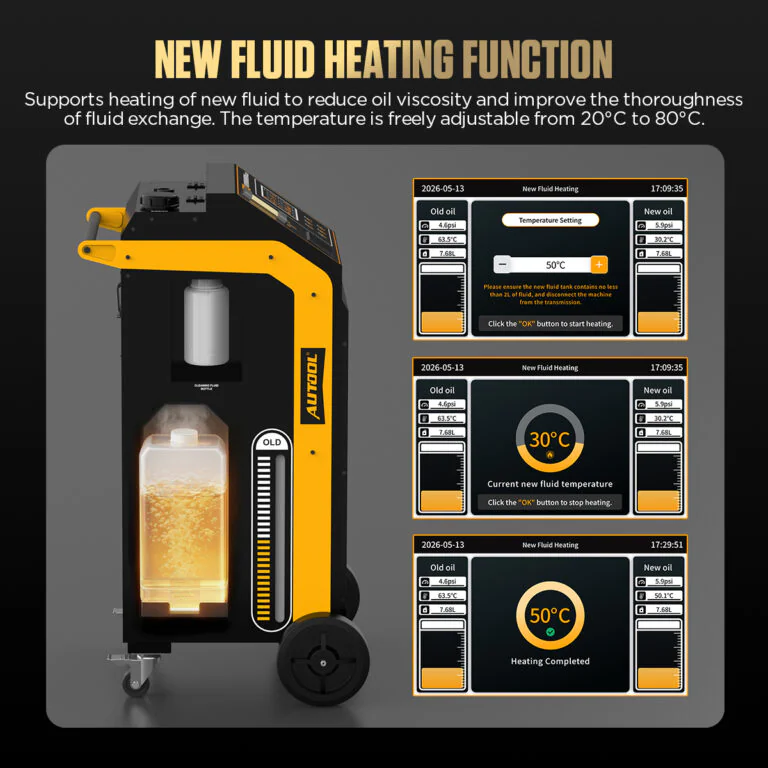

20–80°C Fresh-ATF Heating
The fresh-fluid circuit supports adjustable heating from 20–80 °C for procedures that call for conditioned fluid.
Temperature Display and Sampling
Fluid temperature and a sampling window add direct process checks.

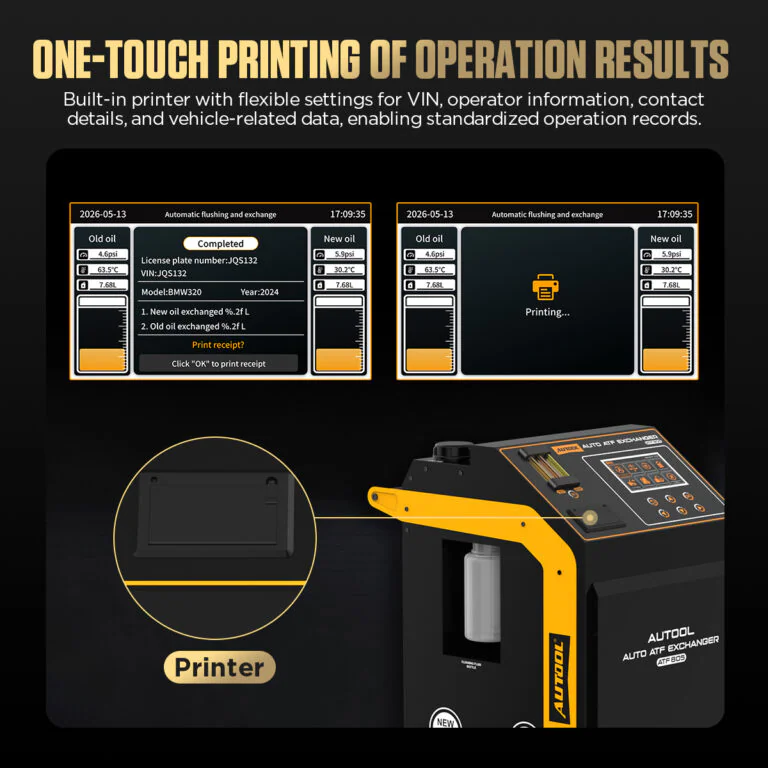

Service Report Printing
The integrated printer creates a record from the completed service.

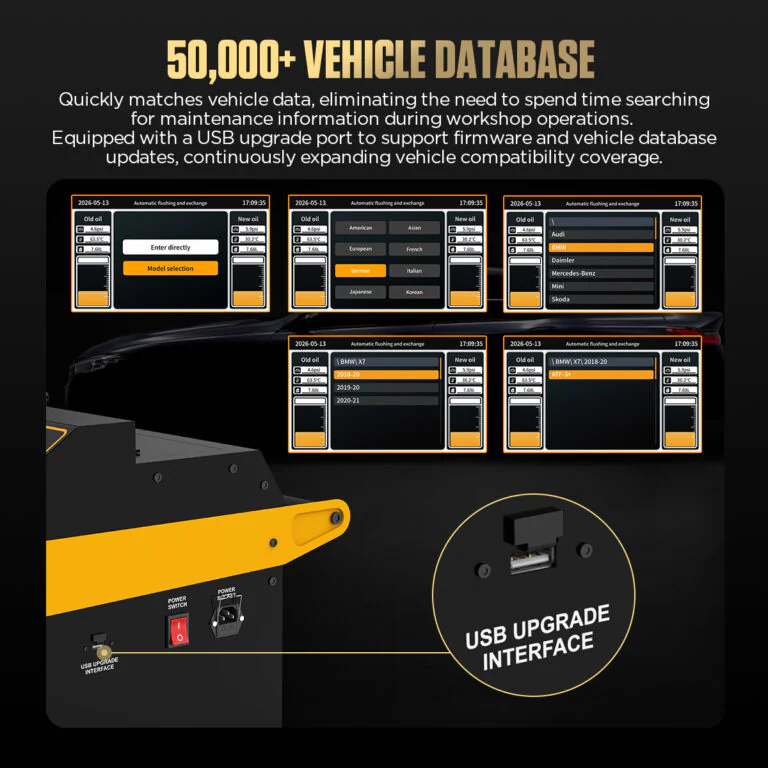

Vehicle Database and USB Updates
The database supports vehicle selection and can be updated by USB.

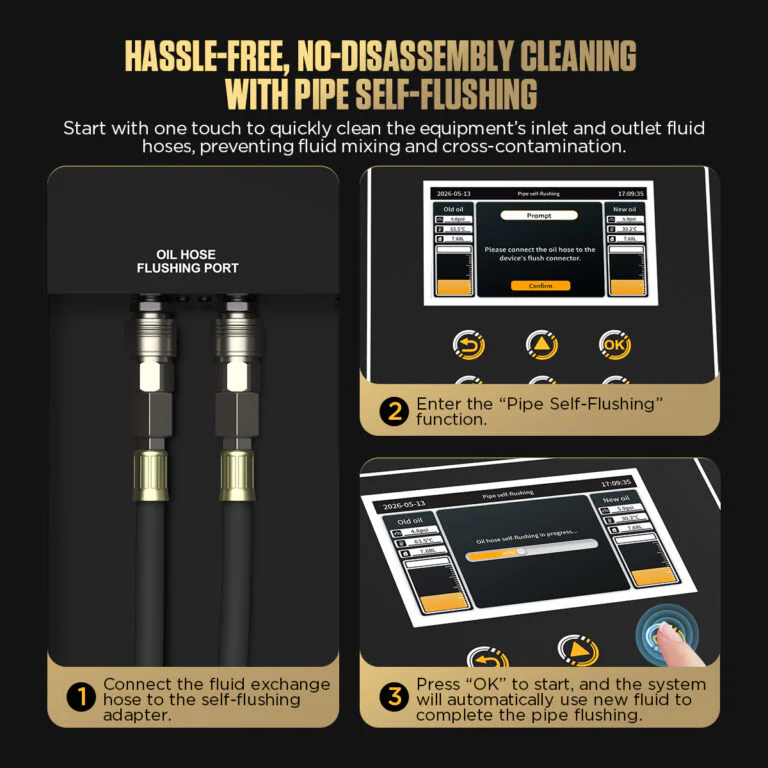

Transmission Fluid Line Self-Cleaning
A dedicated function helps clear residual fluid from service lines between compatible fluids.

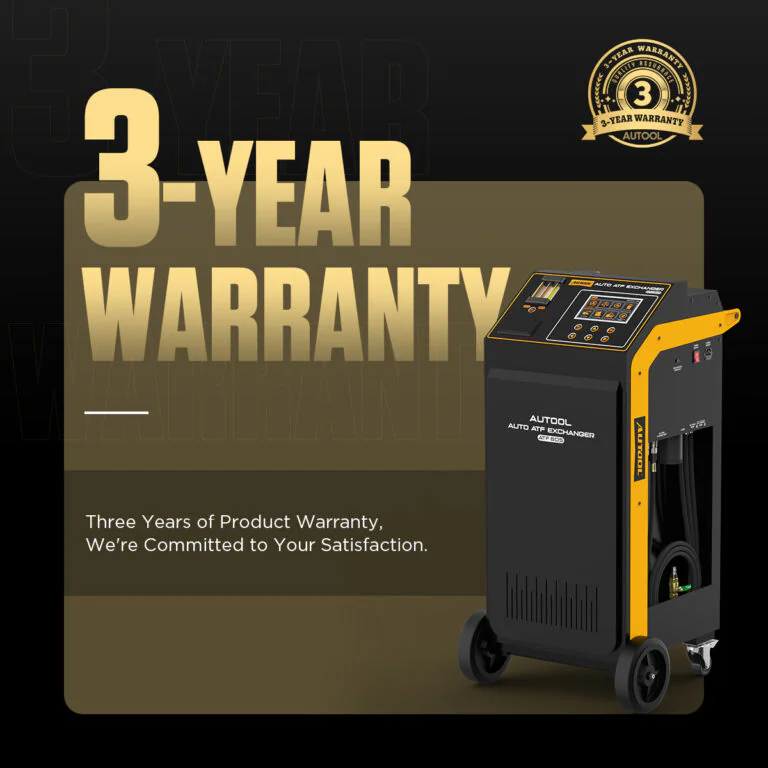

3 Years Warranty Support
Main unit: 3-year warranty. Standard accessories: 1-year warranty. Warranty Policy.
Service Workflow
Prepare, Heat, Exchange, Sample and Record
Step progress1 / 5
01
Confirm Vehicle Procedure
Verify that the vehicle procedure supports a cooler-line exchange and identify the correct connection route.
02
Prepare Fluid and Adapters
Load the specified ATF, select the matching adapters and keep new and recovered fluid paths separate.
03
Connect and Check for Leaks
Secure the vehicle, connect the inlet and return lines and inspect every joint before starting.
04
Run the Selected Function
Use the screen-guided exchange, circulation, recovery or refilling function while monitoring pressure, flow and tank level.
05
Restore and Verify
Reconnect the vehicle circuit, set the final fluid level by the vehicle procedure and inspect for leaks.
Safe Use
Control Temperature, Routing and Final Level
Order the Correct Voltage
Choose the 110 V or 220 V AC version that matches the workshop supply and confirm the machine label before connection.
Confirm the Fluid Route
Trace the transmission fluid route and install the adapter specified for that circuit and service method.
Prevent Cross-Contamination
Identify the ATF and clear the machine paths before introducing a different compatible fluid.
Monitor the Service
Watch pressure, fluid windows and tank level throughout the operation.
Complete the Final Level Check
Set the transmission fluid level with the vehicle-specified temperature and procedure after service.
Result Guide
Verify Transfer, Level and Reconnection
Verify the Result
Use the fluid windows as a process aid, then restore the circuit, set the final fluid level by the vehicle procedure and inspect for leaks.

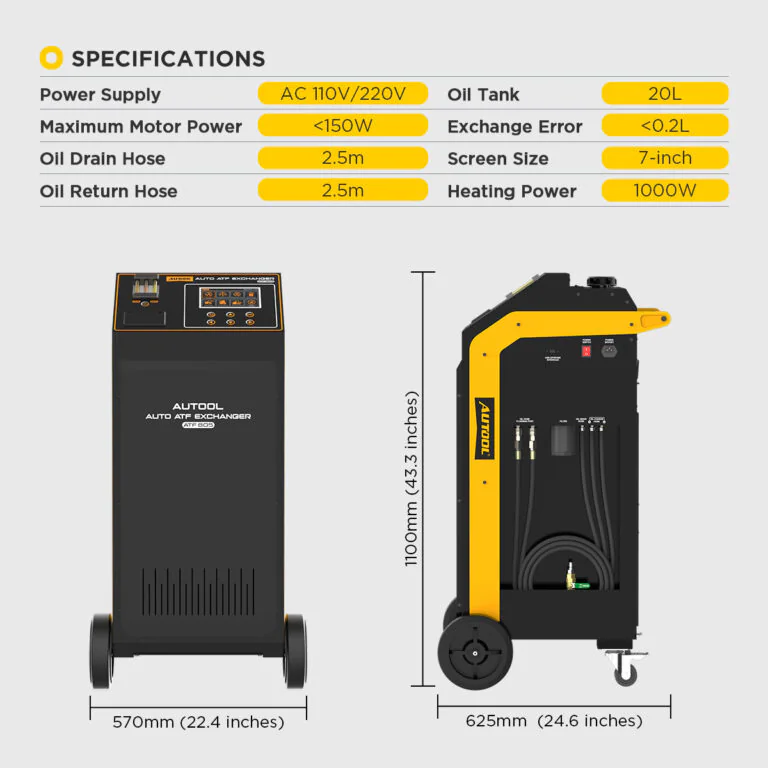

Specifications
Power, Tank and Exchange Specifications
| Specification | Value |
|---|---|
| Power Supply | 110 V / 220 V AC |
| Maximum Power | <150 W |
| Fluid Tank | 20 L |
| Screen | 7-inch IPS |
| Oil Pump | Dual oil pump |
| New-Fluid Heating | 20–80 °C |
| Exchange Error | Exchange error: <0.2 L (manufacturer value; test conditions not provided). |
Compare Models
Compare Exchange and Heating Functions
Model Guide
Choose one or more models. ATF805 is selected by default.
1 model selected
No model is selected. Choose a model to compare.
| Product Model | ATF702 | ATF705 | ATF802 | ATF805 |
|---|---|---|---|---|
| Core Exchange & Automation | ||||
| Operation Method | Mechanical Control | Electronic Control | Electronic Control | Electronic Control |
| Operation Guide | × | ✓ | ✓ | ✓ |
| Smart Exchange | × | ✓ | ✓ | ✓ |
| Smart Cleaning Exchange | × | × | × | ✓ |
| Automatic Identification of Oil Inlet and Outlet | × | ✓ | ✓ | ✓ |
| Pipeline Self-Flushing | × | ✓ | ✓ | ✓ |
| Circulating Flushing | Manual | Manual | Automatic | Automatic |
| Circulating Oil Exchange (Equal Volume Exchange) | Manual | Automatic | Automatic | Automatic |
| New Oil Refilling | Manual | Automatic | Automatic | Automatic |
| Used Oil Recovery | Manual | Automatic | Automatic | Automatic |
| New Oil Tank Emptying | Manual | Automatic | Automatic | Automatic |
| Old Oil Tank Emptying | Manual | Automatic | Automatic | Automatic |
| New Oil Tank Electric Refilling | Manual | Manual | Automatic | Automatic |
| Power & Physical Setup | ||||
| Power Supply | DC12V | Match the selected power configuration | 110V/220V | 110V/220V |
| Maximum Power | <150W | <150W | <150W | <150W |
| Noise | <70 dB | <70 dB | <70 dB | <70 dB |
| Oil Tank | 20L | 20L | 20L | 20L |
| Net Weight | 45.8KG | 47KG | 53KG | 56KG |
| Gross Weight | 54.2KG | 59.5KG | 77.5KG | 82KG |
| Oil Exchange Hose | 2.5m | 2.5m | 2.5m | 2.5m |
| Oil Drain Hose | × | 1.5m | 1.5m | 1.5m |
| Power Cord | 3m | 3m | 3m | 3m |
| Fluid Control & Visibility | ||||
| Oil Pump | Single Oil Pump | Single Oil Pump | Dual Oil Pump | Dual Oil Pump |
| Pressure Gauge | 2 Mechanical Pressure Gauge 10kg/cm² | 1 Mechanical Pressure Gauge 10kg/cm² | 2 Mechanical Pressure Gauge 10kg/cm² | Electronic 10kg/cm² |
| New Fluid Heating | × | × | × | ✓ |
| Oil Temperature Display | × | × | × | ✓ |

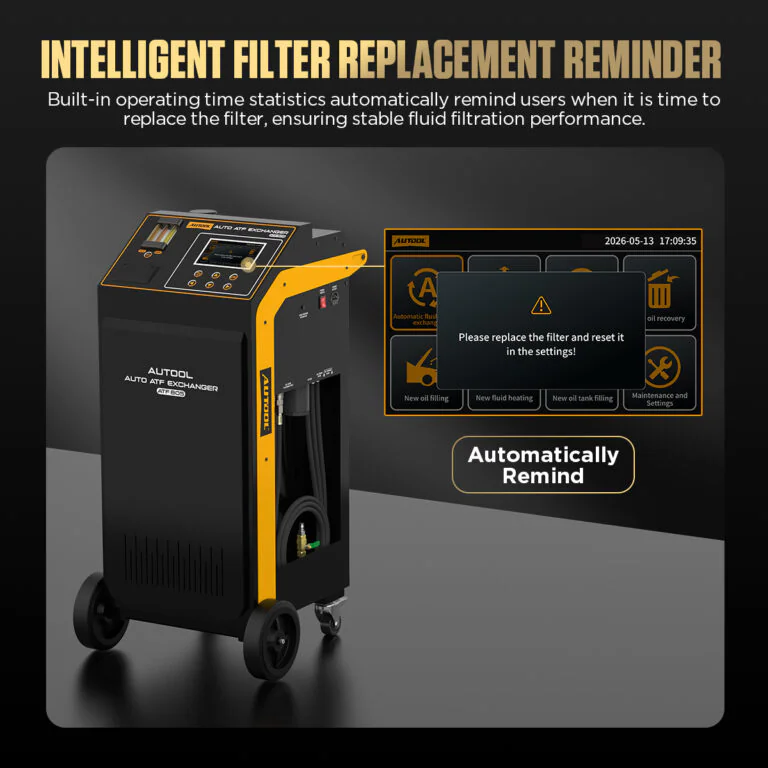

| Oil Filter and Replacement Reminder | No Replacement Reminder | No Replacement Reminder | ✓ | ✓ |
| Real-Time Display of Oil Tank Level | × | ✓ | ✓ | ✓ |
| Oil Exchange Window | ✓ | ✓ | ✓ | ✓ |
| Liquid Level Window | ✓ | ✓ | ✓ | ✓ |
| Sampling Window | × | × | × | ✓ |
| Oil Exchange Window Backlight | × | ✓ | ✓ | ✓ |
| Liquid Level Window Backlight | ✓ | ✓ | ✓ | ✓ |
| Interface, Records & Software | ||||
| Screen | × | 5-inch IPS Screen | 5-inch IPS Screen | 7-inch IPS Screen |
| Data Printing | × | × | × | ✓ |
| Buzzer Alert | × | ✓ | ✓ | ✓ |
| Data Entry Keyboard | × | × | × | ✓ |
| Oil Exchange Database | × | × | ✓ | ✓ |
| System Update | × | × | USB Update | USB Update |
| Language Settings | × | Chinese, English, Spanish, French, German, Russian, Portuguese, Vietnamese, Malaysian | Chinese, English, Spanish, French, German, Russian, Portuguese, Vietnamese, Malaysian | Chinese, English, Spanish, French, German, Russian, Portuguese, Vietnamese, Malaysian |
Manual & Support
Find the Manual and Fitment Guidance
AUTOOL ATF805 User Manual
Open the PDF manual for AUTOOL ATF805 heated dual-pump ATF exchange, guided operation, sampling, report printing, database updates, fluid safety and troubleshooting support.

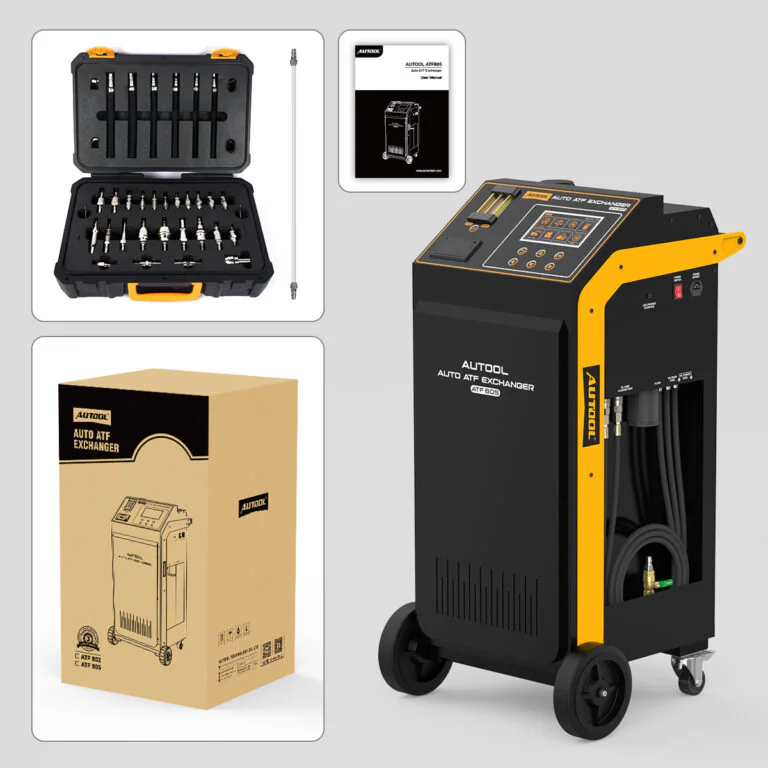

Package Contents
See What Comes in the Box
- Main UnitAUTOOL ATF805 transmission fluid exchanger

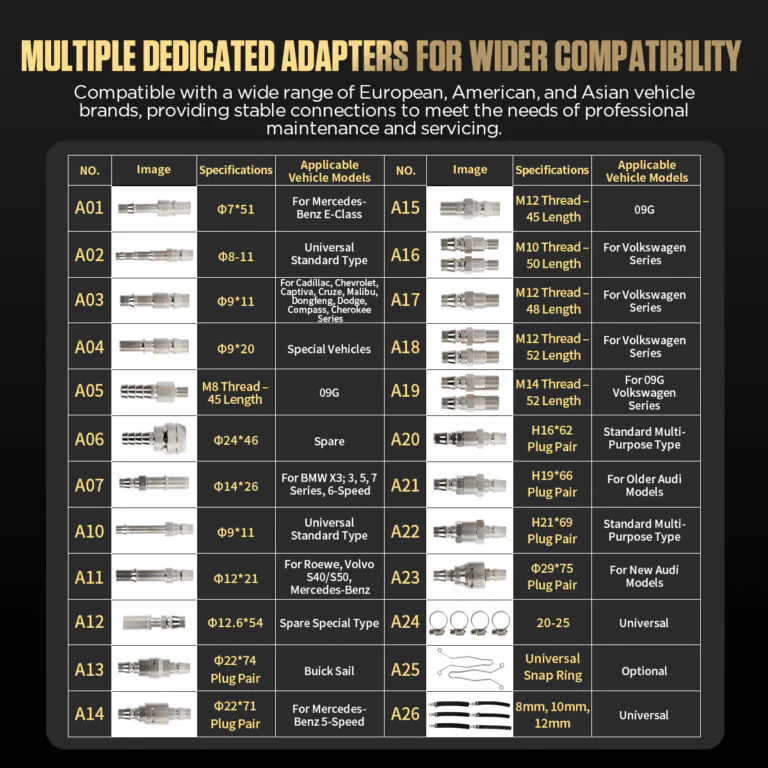

- Service ConnectionsTransmission-fluid hoses and adapter configuration supplied with the selected order
- User ManualAUTOOL ATF805 operation manual
- Order CheckConfirm voltage, adapter package and included accessories before purchase
Buyer Questions
ATF Setup, Fit and Service Questions
What service is ATF805 designed for?
It supports automatic transmission fluid exchange through a compatible transmission-fluid circuit, with the functions listed for this model.
How should I confirm vehicle compatibility?
Check the vehicle service procedure, transmission connection route and the adapter set supplied with the machine.
Does the machine replace the final fluid-level procedure?
No. Restore the vehicle fluid circuit and set the final level using the vehicle-specified temperature and procedure.
Which voltage should I order?
Choose the AC version that matches the workshop supply and verify the machine label before use.
How do I avoid mixing fluids?
Identify the required ATF, keep new and recovered fluid separate and use the machine cleaning procedure before changing to another compatible fluid.
