AUTOOL SVB403 Automotive Engine Borescope Camera

(9 customer reviews)

Price range: US$229.00 through US$249.00

Secure checkoutFast supportBulk ready
AUTOOL SVB403

Product Overview

The AUTOOL SVB403 automotive engine borescope camera is designed for nondestructive visual inspection in narrow, curved, and hard-to-reach areas such as automotive evaporators, combustion chambers, intake and exhaust passages, catalytic sensor areas, mechanical cavities, and pipe interiors. With a 6.5mm dual-lens probe, 210° two-way articulation, front / side camera switching, 4.3-inch HD display, 32GB storage, IP67-rated probe protection, and high-temperature alert, SVB403 helps technicians inspect internal problems without unnecessary disassembly.

Dual-Lens Camera 210° Articulation 4.3-inch Display IP67 Probe
6.5mmDual Lens
1280×720Resolution
32GBStorage
3 YearsWarranty

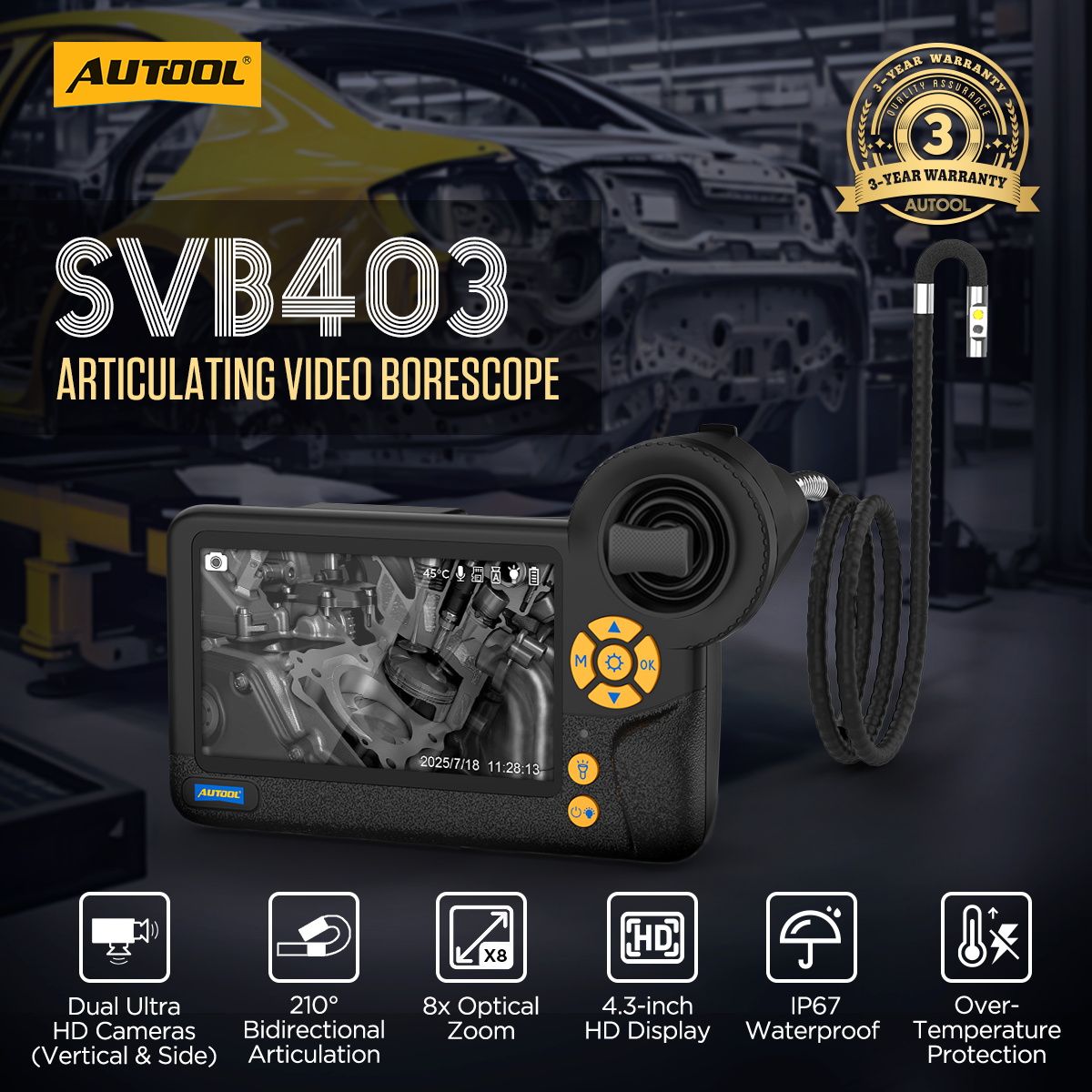

AUTOOL SVB403 automotive engine borescope camera main product image Click to enlarge

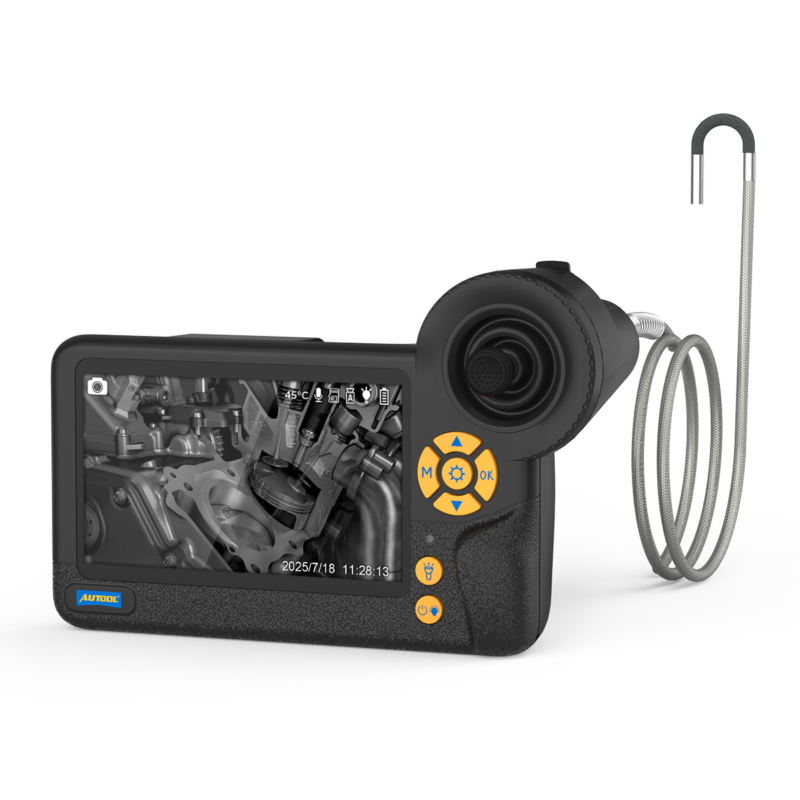

AUTOOL SVB403 automotive borescope white background product image Click to enlarge
Safety And Installation Notes

Safety And Installation Notes

The SVB403 probe is designed for automotive inspection, but the lens and cable should not be used in high-temperature engine conditions. Use the camera after the engine has cooled, and avoid prolonged direct contact with water, oil, or corrosive liquids.

Use Below 75°C Recommended

The inspection camera lens is not resistant to high temperatures. For safer use and longer service life, inspect under cold conditions and use below 75°C whenever possible.

Over-Temperature Alert Above 80°C

The smart sensor triggers an alarm and displays a warning when the temperature exceeds 80°C. The image resumes once the temperature drops.

Do Not Exceed Manual Limit

Do not place the probe in an environment above 85°C. High-temperature damage is considered abnormal damage and is not covered by free warranty.

Cool Engine Before Inspection

When an engine has just stopped, its temperature can reach 80°C to 100°C or higher. It is recommended to wait 1-2 hours for the engine to cool down.

IP67 Probe, Not Full Device Immersion

The probe / lens area is IP67-rated for water, oil, and dust resistance, but the host should not be soaked or exposed to water, oil, or corrosive liquids for long periods.

Keep The Borescope Clean

Keep the articulating borescope clean, avoid prolonged exposure to direct sunlight, and protect the device from corrosive liquids and harsh storage conditions.

Key Features

Key Features

SVB403 improves inspection efficiency with dual cameras, 210° articulation, onboard display, built-in storage, over-temperature warning, and inspection-friendly detail design.

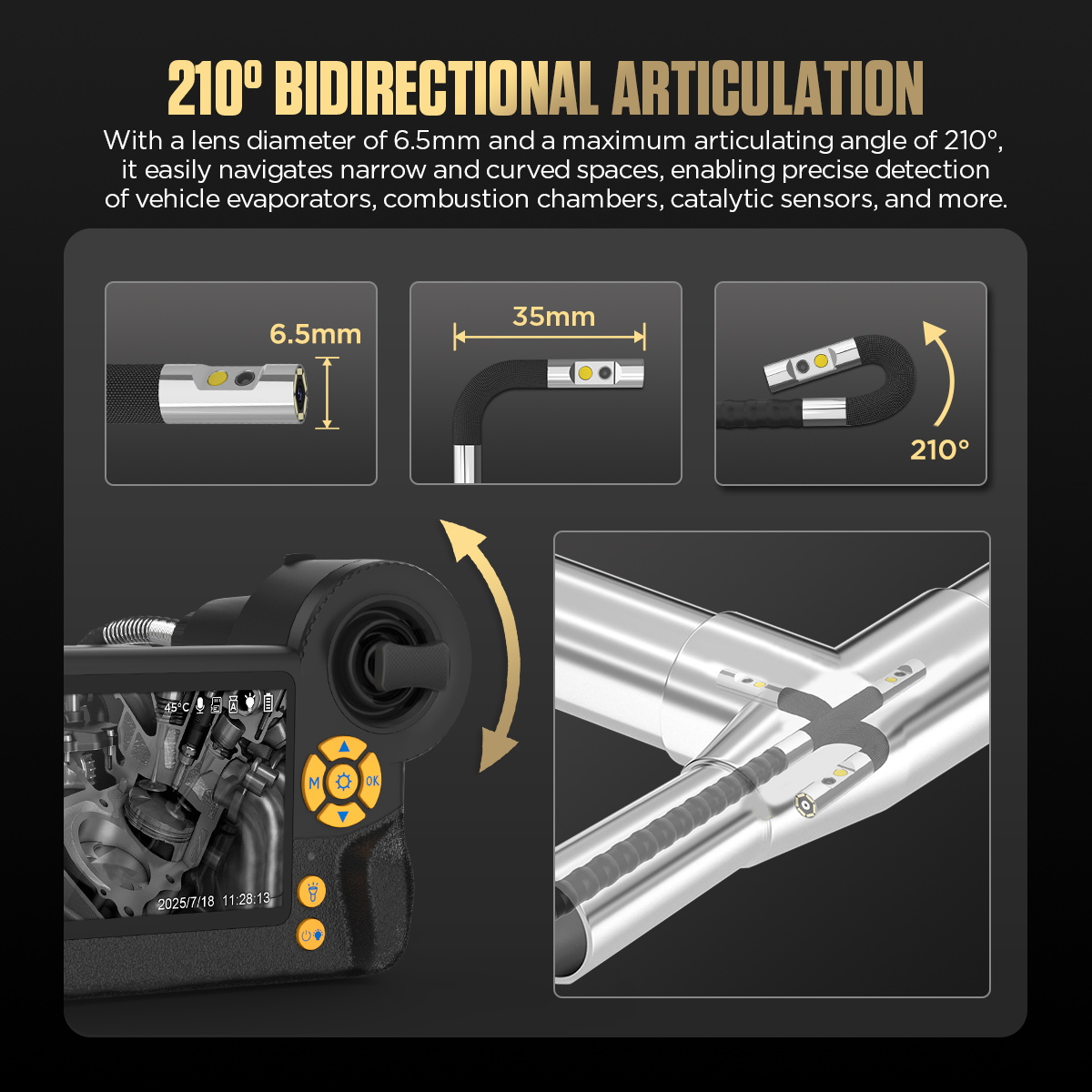

210° Bidirectional Articulation

The 6.5mm probe supports up to 210° two-way rotation with a 35mm bending radius, helping navigate tight and curved automotive spaces.

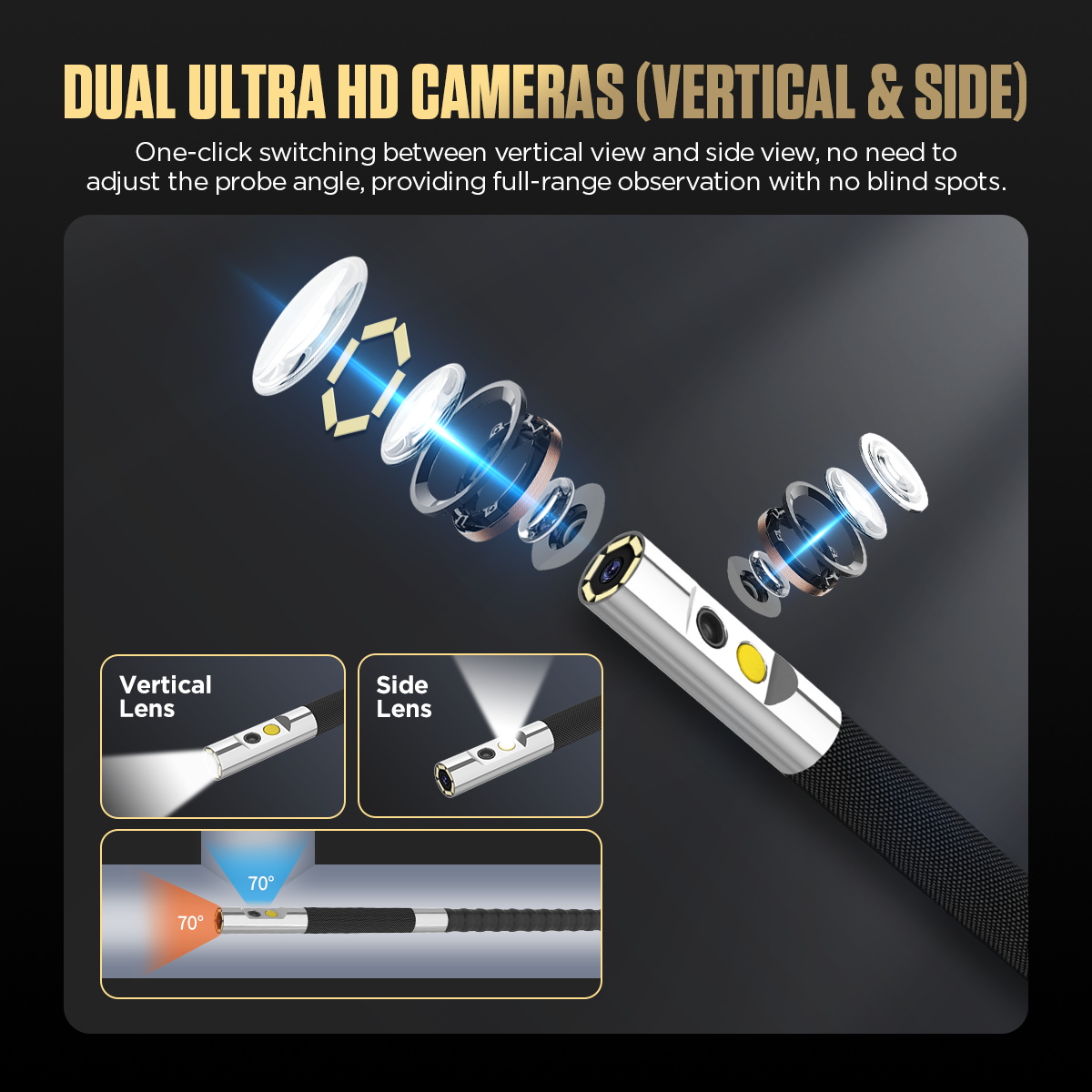

Dual Ultra HD Cameras

Front and side lenses allow vertical and side-view inspection. Press and hold the M key for about 2 seconds to switch lenses.

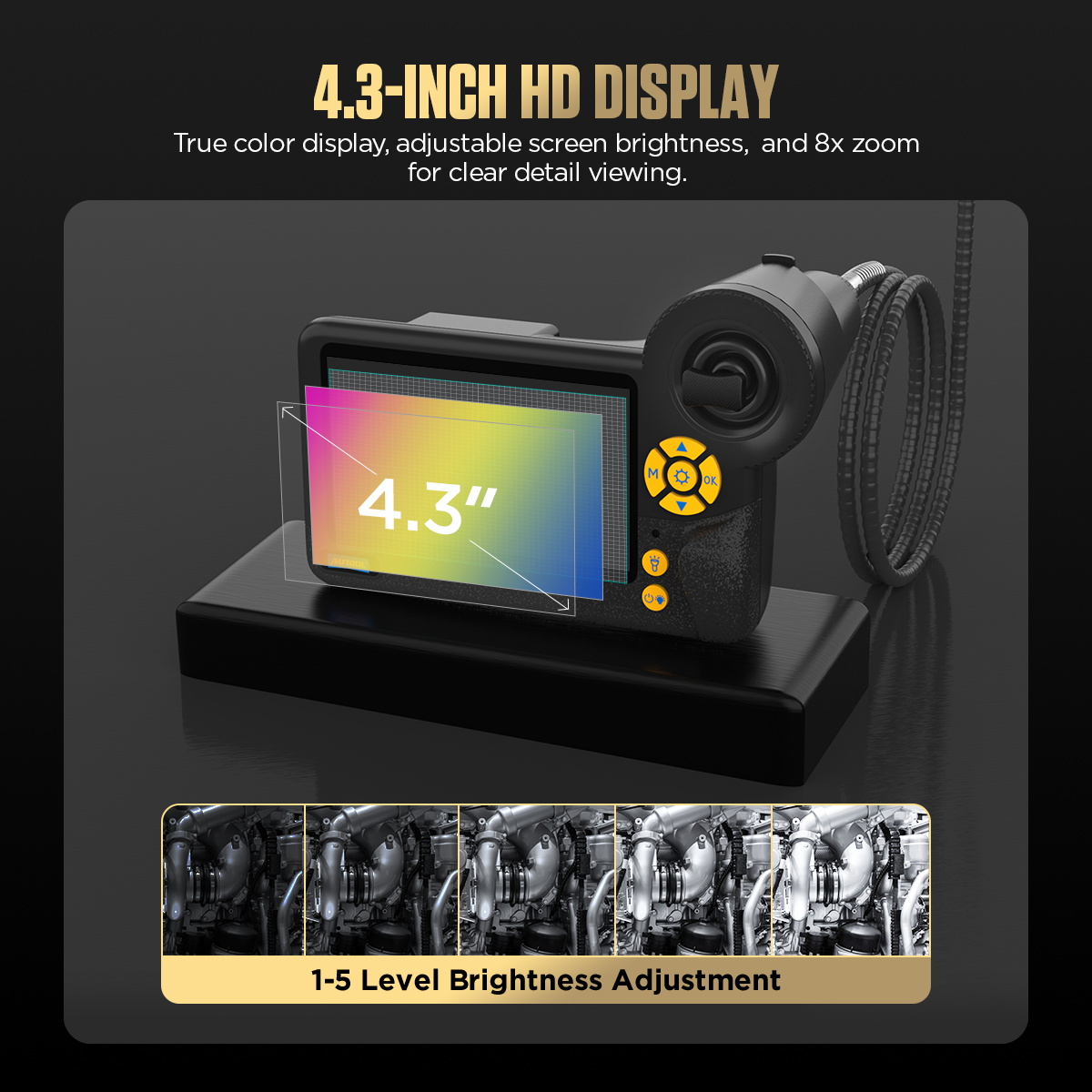

4.3-inch HD Display

The 4.3-inch display provides true color representation and adjustable screen brightness for clearer inspection in different lighting conditions.

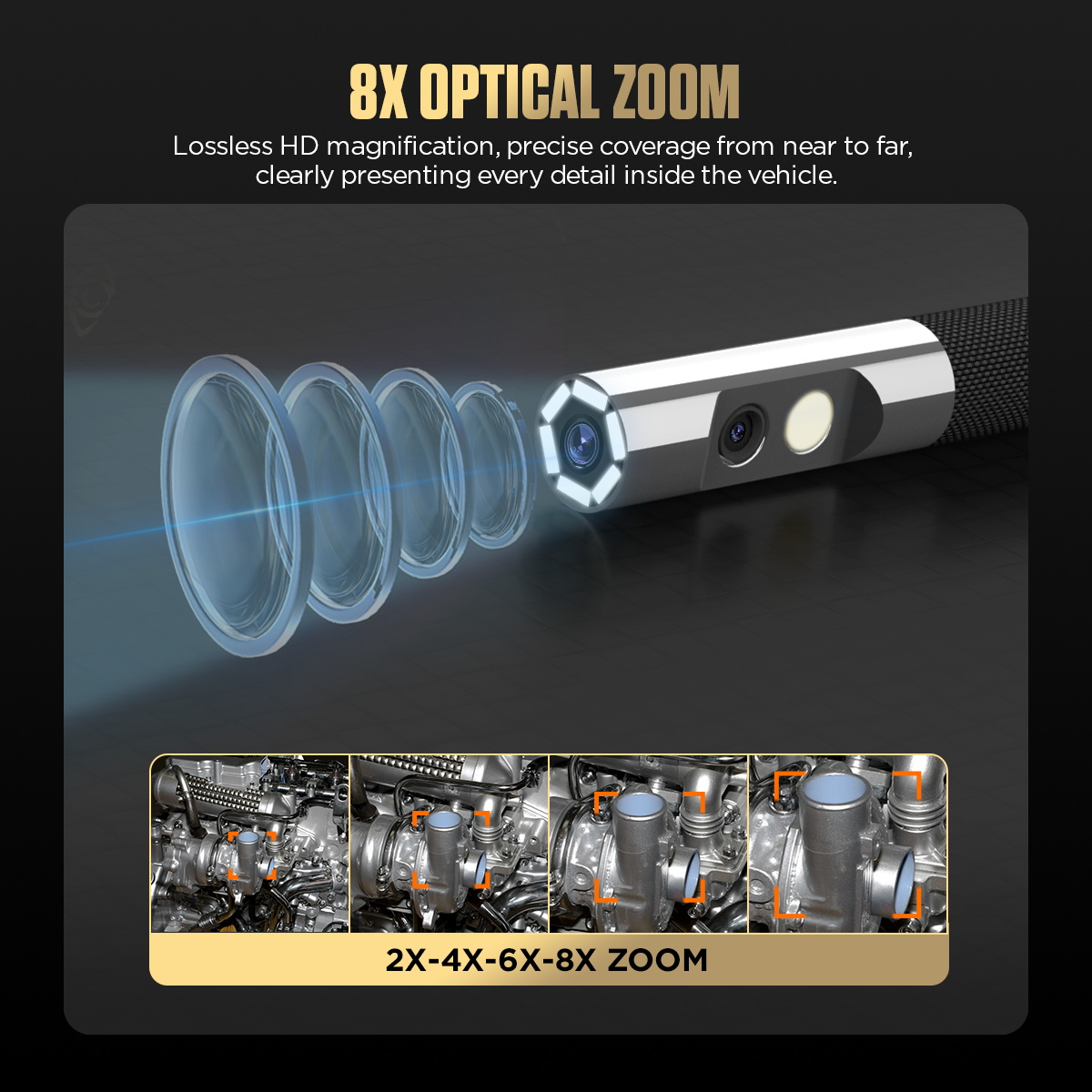

8× Zoom

The zoom function helps enlarge inspection details from near to far, making internal defects easier to observe during automotive diagnosis.

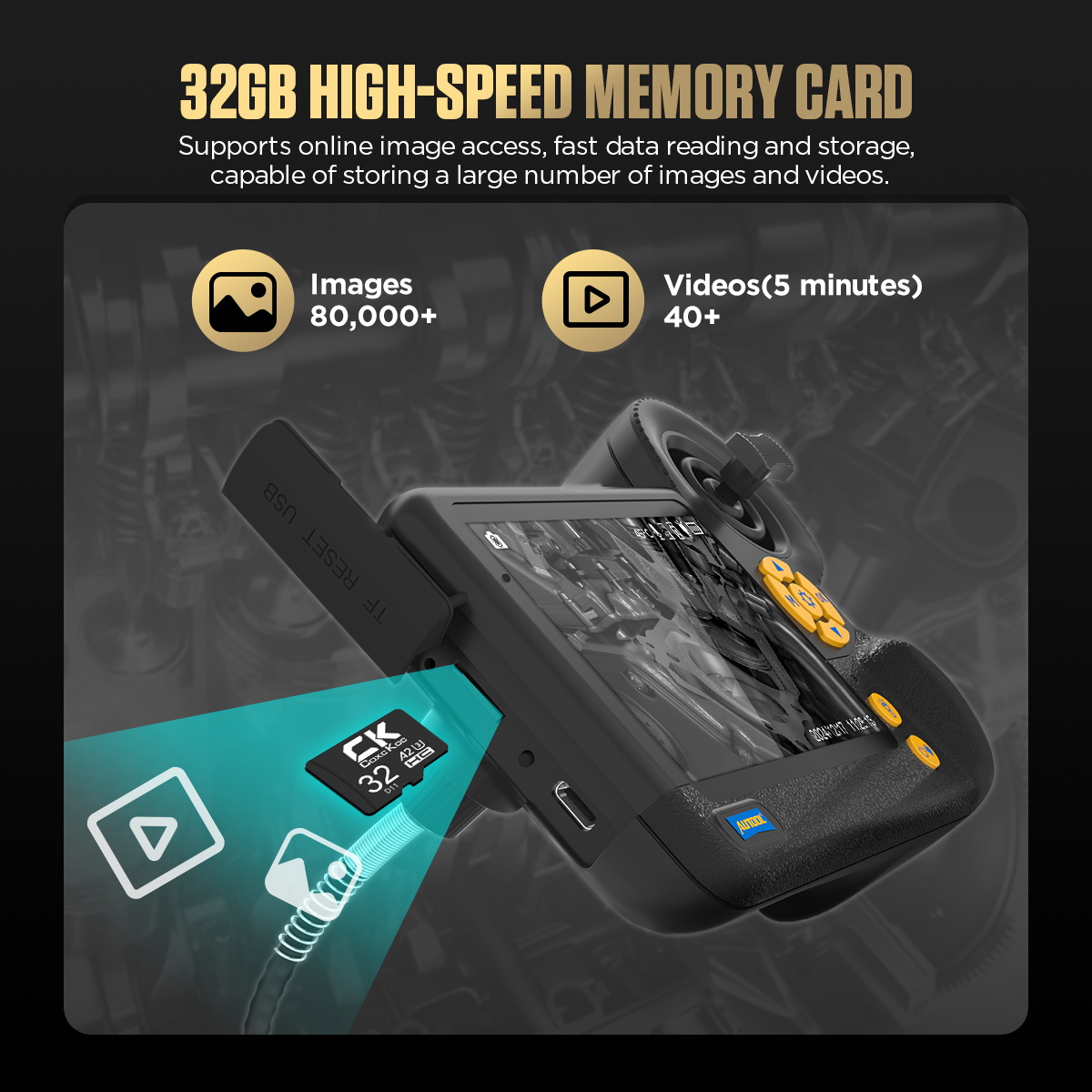

32GB Memory Card

The included 32GB memory card can store over 80,000 images and more than 40 five-minute videos for inspection records.

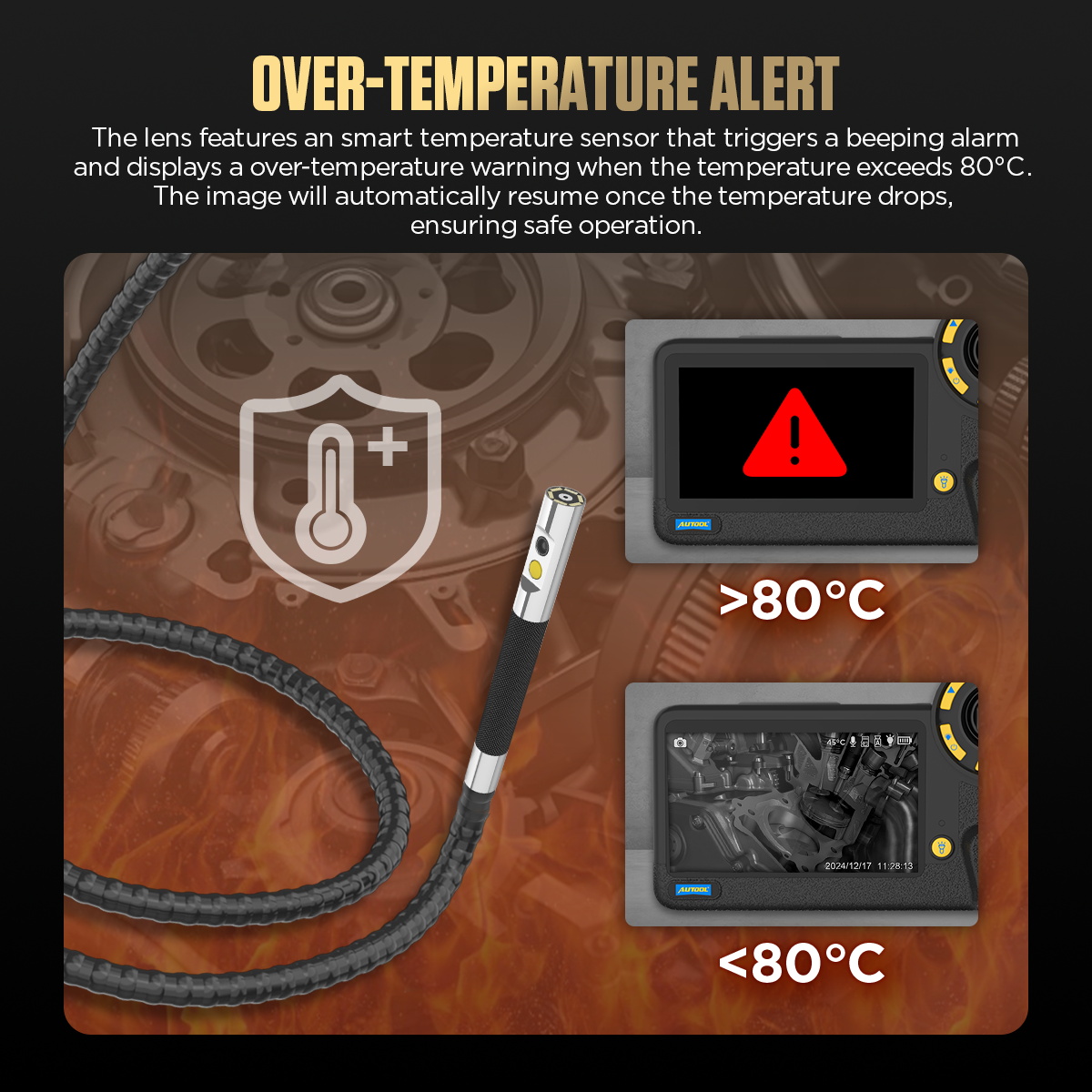

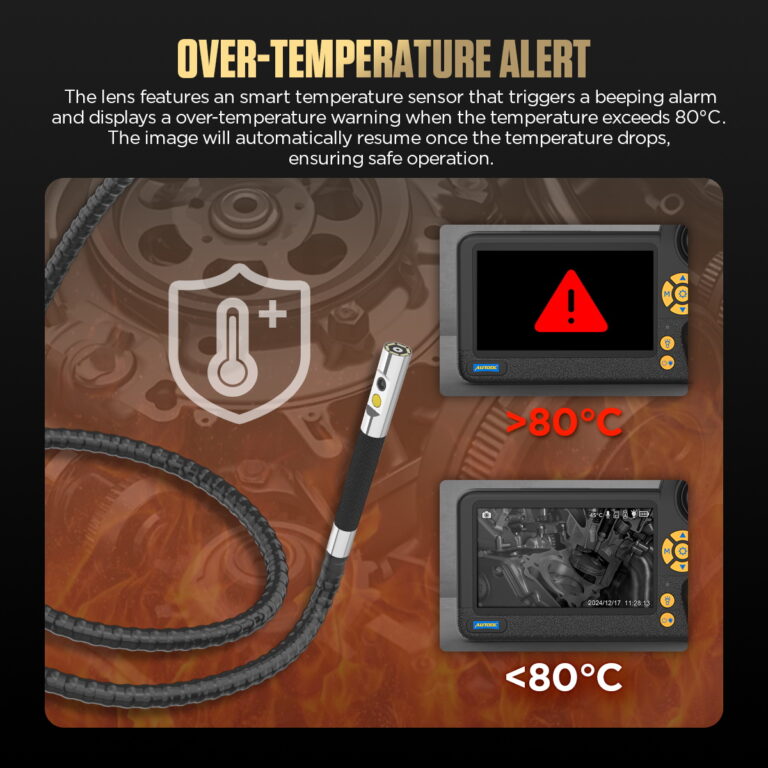

Over-Temperature Alert

The lens includes a smart temperature sensor that alarms above 80°C and resumes image display after temperature drops.

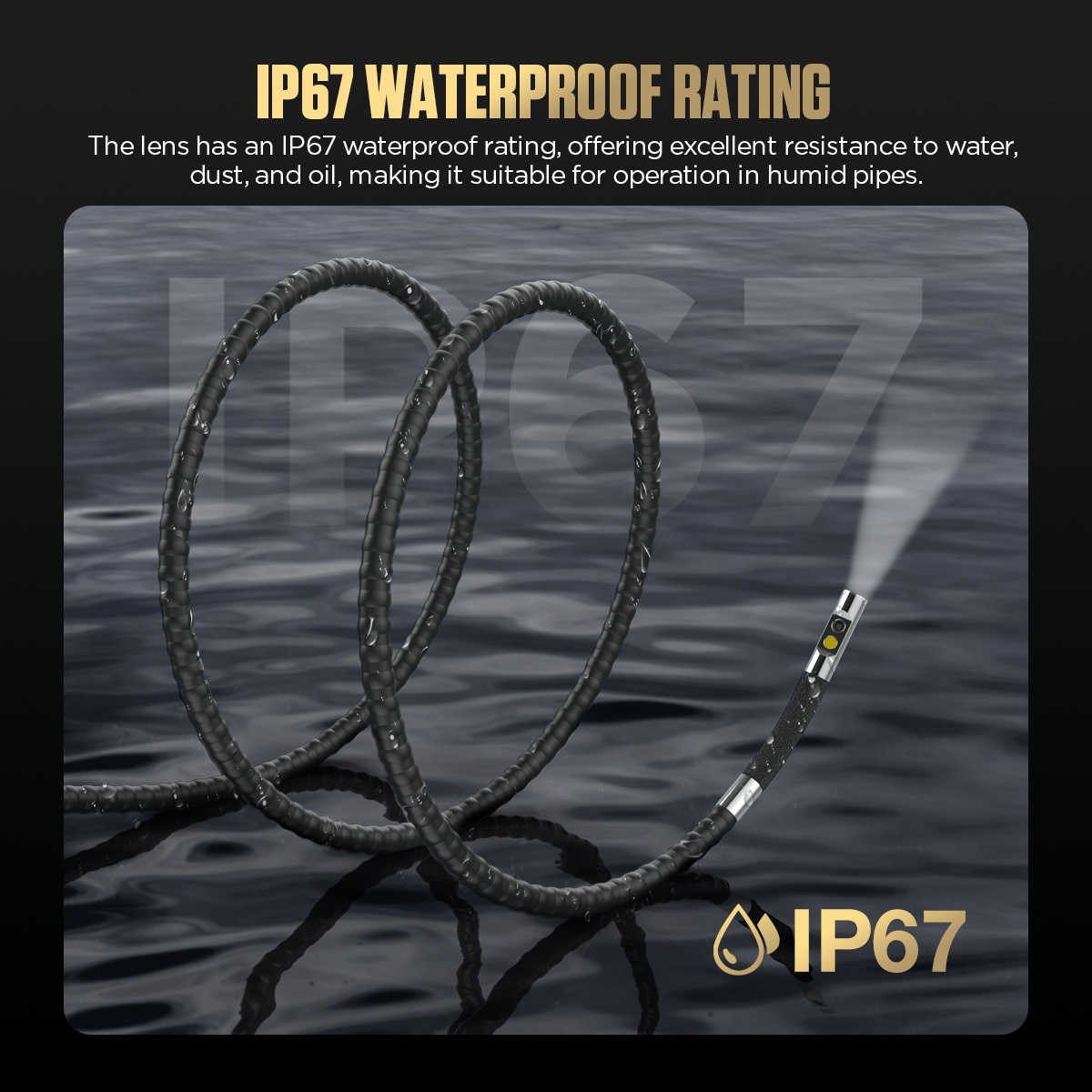

IP67 Probe Protection

The probe is rated IP67 for water, oil, and dust resistance, suitable for wet pipe and oily inspection environments when used properly.

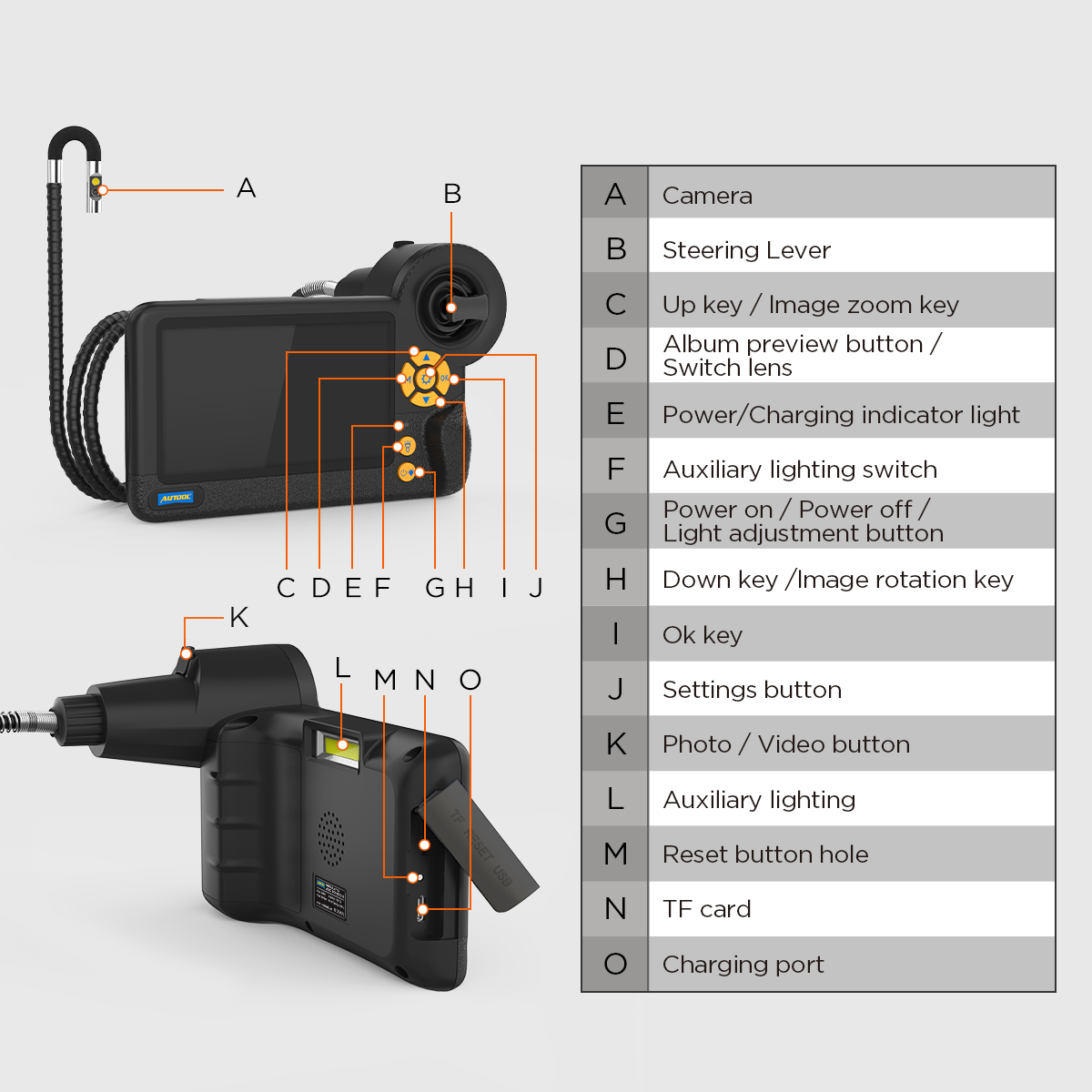

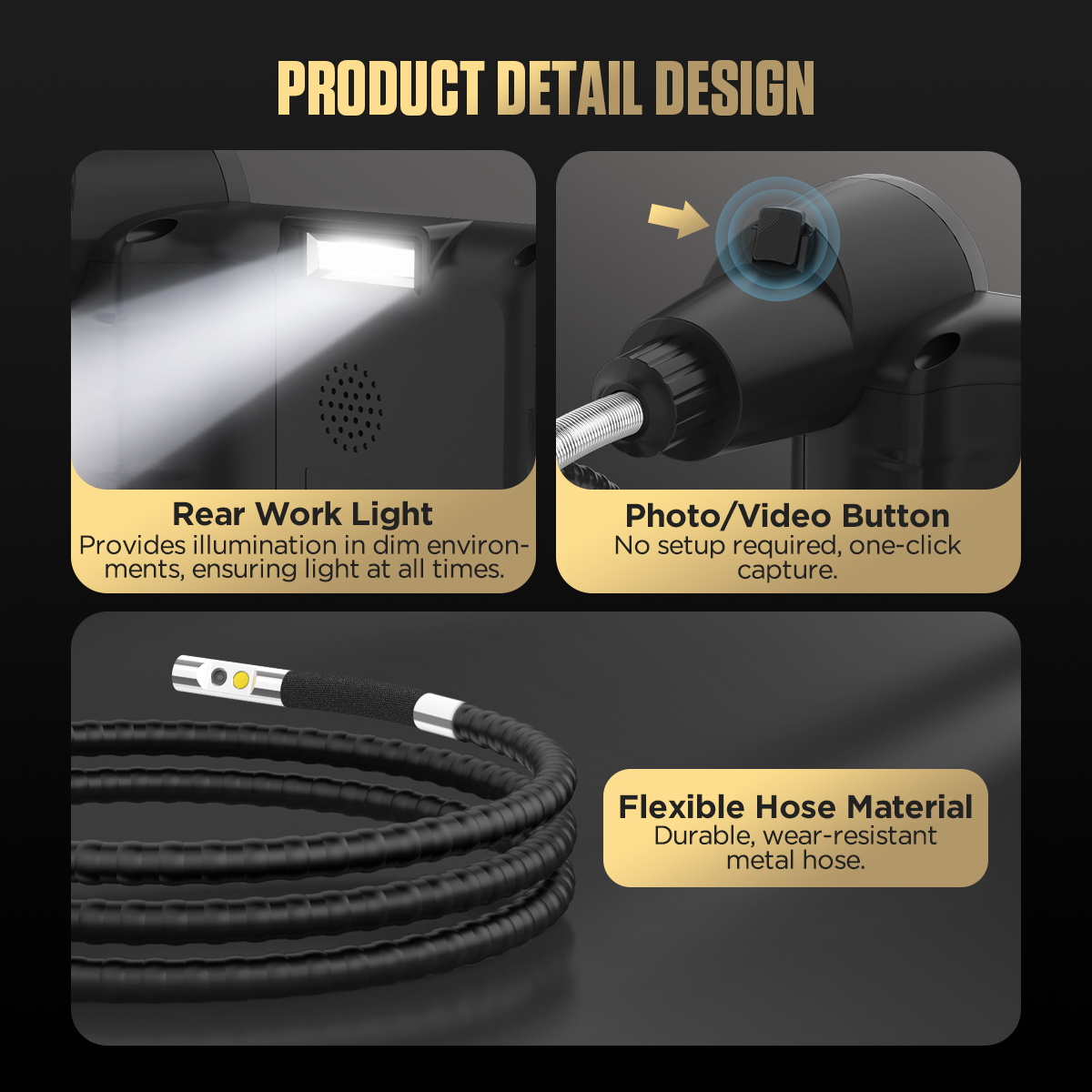

Detail Design

Rear work light, photo / video button, wear-resistant flexible metal hose, Type-C charging, removable battery, and 2000mAh battery improve daily use.

Specifications

Specifications

Review lens, display, battery, articulation, storage, temperature, waterproof, and language specifications before ordering.

1>
Camera And Display
ProductAUTOOL SVB403 Articulating Video Borescope
Camera DiameterDual-lens 6.5mm
ResolutionFront lens 1280×720; side lens 1280×720
Screen Size4.3 inches
Field Of View70°
Depth Of FieldFront lens 25-100mm; side lens 15-60mm
Camera Light Source6 LEDs for main view; 1 LED for side view
Brightness AdjustmentManual three-level adjustment
Probe And Articulation
Flexible Hose MaterialWear-resistant metal flexible hose
Flexible Hose Length1m
Articulation DirectionTwo directions
Articulation AngleMaximum 210°
Bending Radius35mm
Waterproof RatingIP67 probe / lens area
Power, Storage And Support
Power Supply5V
Battery Capacity2000mAh lithium battery
Usage DurationAbout 180 minutes
ChargingType-C charging support
Storage32GB memory card

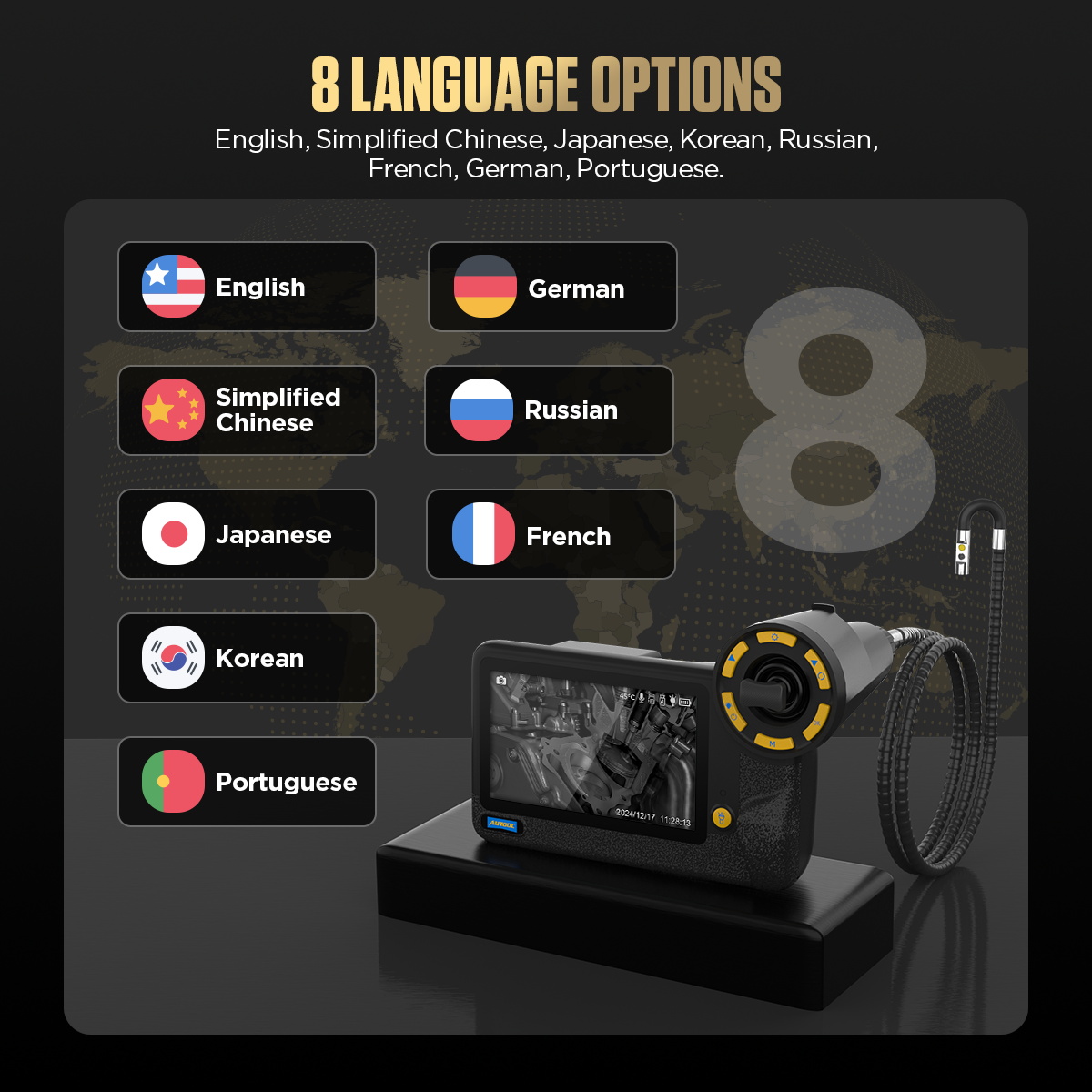

LanguagesEnglish, Simplified Chinese, Japanese, Korean, Russian, French, German, Portuguese
Over-Temperature ProtectionSmart temperature alert / protection
Warranty3-year warranty for eligible non-human damage cases

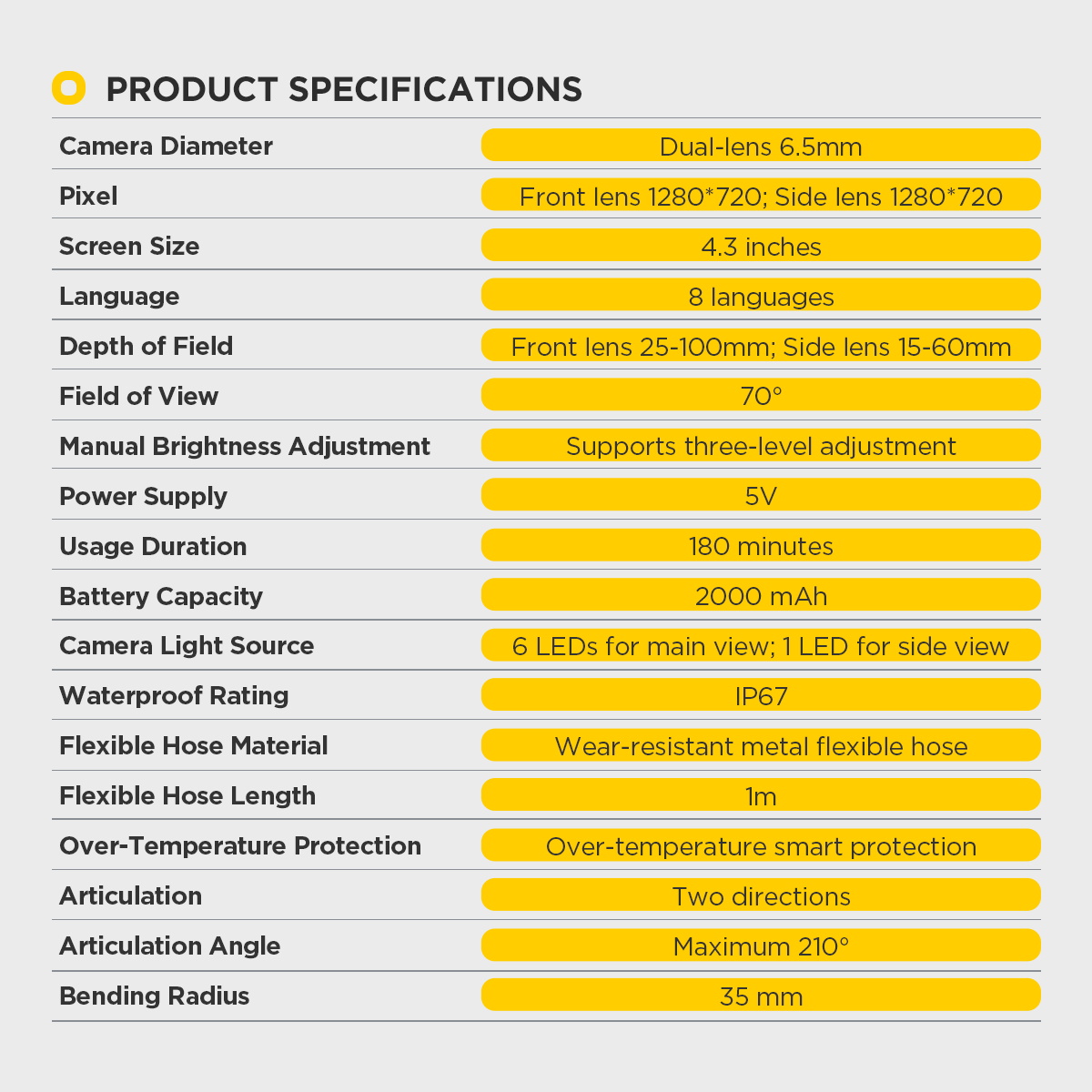

AUTOOL SVB403 specification parameter image Click to enlarge
Camera And Display
ProductAUTOOL SVB403 Articulating Video Borescope
Camera DiameterDual-lens 6.5mm
ResolutionFront lens 1280×720; side lens 1280×720
Screen Size4.3 inches
Field Of View70°
Depth Of FieldFront lens 25-100mm; side lens 15-60mm
Light Source6 LEDs for main view; 1 LED for side view
BrightnessManual three-level adjustment
Probe And Articulation
Flexible HoseWear-resistant metal flexible hose
Hose Length1m
DirectionTwo directions
AngleMaximum 210°
Bending Radius35mm
WaterproofIP67 probe / lens area
Power, Storage And Support
Power Supply5V
Battery2000mAh lithium battery
Usage DurationAbout 180 minutes
ChargingType-C charging support
Storage32GB memory card
LanguagesEnglish, Simplified Chinese, Japanese, Korean, Russian, French, German, Portuguese
Temperature AlertSmart temperature alert / protection
Warranty3-year warranty for eligible non-human damage cases
Applications

Applications

SVB403 is suitable for automotive, motorcycle, mechanical, appliance, pipe, circuit, and air conditioning inspection where direct visual access is difficult.

Automotive Repair

Inspect combustion chambers, evaporators, catalytic sensor areas, internal engine parts, intake areas, and narrow vehicle spaces without unnecessary disassembly.

Motorcycle Repair

Check small engine spaces, curved passages, and hard-to-see mechanical areas in motorcycles and compact power equipment.

Mechanical Repair

Inspect internal cavities, gears, housing areas, bearings, and mechanical assemblies that cannot be directly viewed.

Pipe Repair

Use the slim probe to observe pipe interiors, wet channels, and narrow passages with proper IP67 probe handling.

Appliance And Circuit Repair

Support visual inspection inside appliances, housings, and circuit maintenance areas where direct observation is limited.

Air Conditioning Repair

Inspect automotive evaporators, air-conditioning passages, and other hidden areas while avoiding high-temperature environments.

AUTOOL SVB403 multiple application scenarios image Click to enlarge
Product Comparison

Product Comparison

Compare AUTOOL SVB borescope models before choosing the right articulation direction, lens size, display size, camera resolution, zoom, and narrow-space capability.

SVB403 Focus210° two-way articulation, dual lenses, 4.3-inch display, 6.5mm lens, 32GB storage, and front / side view inspection
SVB405 Focus360° four-way articulation, 2MP camera, 4.5-inch display, and 8× zoom for users who need higher camera resolution and more directional control
SVB408 Focus360° four-way articulation with a 3.9mm ultra-thin probe for extremely narrow spaces
SVB305 / SVB308SVB305 uses 210° two-way articulation, while SVB308 adds 360° four-way articulation and magnetic / detachable design
Decision CheckCompare steering angle, number of lenses, lens diameter, display size, zoom, bending radius, screen design, and target inspection space before ordering
AUTOOL articulating borescope comparison chart Click to enlarge
Manual And Downloads

Manual And Downloads

Download the AUTOOL SVB403 Articulating Video Borescope user manual for setup, operation, warnings, specifications, and safe-use instructions.

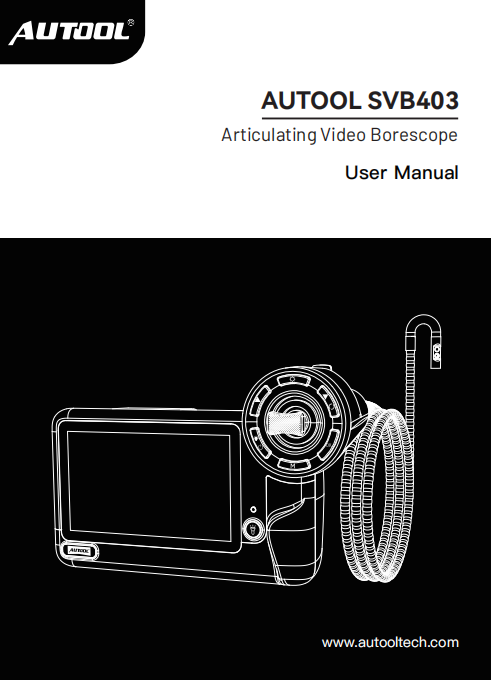

AUTOOL SVB403 user manual cover preview Click to enlarge

AUTOOL SVB403 User Manual

Open the PDF manual for SVB403 operation, precautions, temperature limits, specifications, and language guidance.

Download Manual
Related Products

Related Products

Compare related AUTOOL automotive inspection cameras and borescopes before choosing the right steering angle, lens diameter, display design, and inspection function.

Questions And Answers

These answers cover SVB403 / SVB405 / SVB408 differences, dual lenses, safe temperature, IP67 use, front / side lens switching, and other AUTOOL borescope model comparisons.

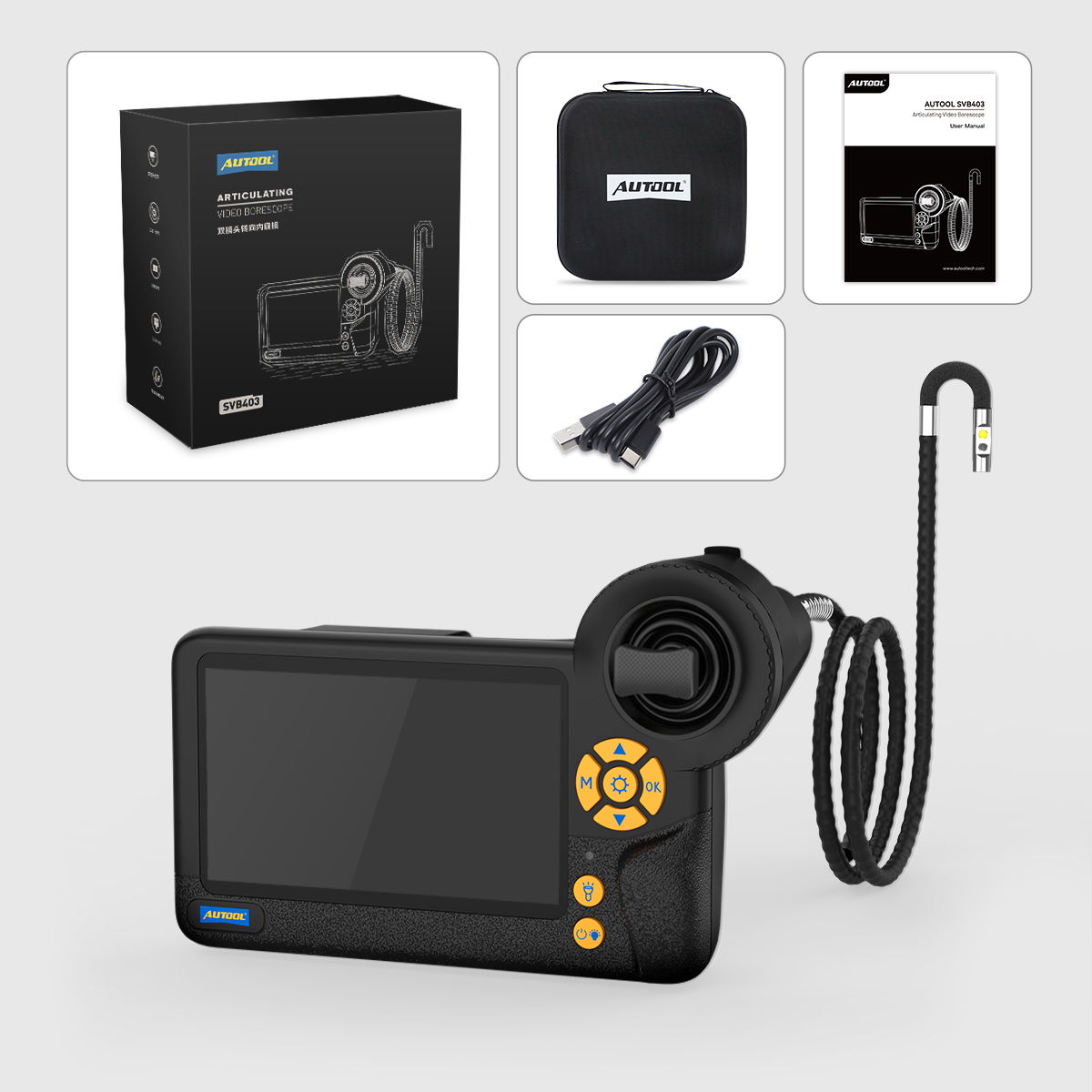

AUTOOL SVB403 packing list package contents image Click to enlarge
What Is In The Box

What Is In The Box

The SVB403 package includes the main articulating video borescope, storage accessories, manual, cable, and inspection probe shown in the packing list image.

Main UnitAUTOOL SVB403 articulating video borescope
Storage BagProtective carrying case
ManualSVB403 user manual
CableType-C charging cable
Storage32GB memory card
ProbeDual-lens 6.5mm flexible metal hose probe
Related Guides

Related Guides

Use this related guide to understand why automotive endoscope cameras are useful in inspection and diagnosis work.

Automotive Endoscope Camera-Important Tool guide image
Guide / 2024-07-03

Automotive Endoscope Camera-Important Tool

With the rapid development of automotive endoscope cameras, the role and importance of endoscope cameras in automobile maintenance have become increasingly.

Warranty And Contact

Warranty And Contact

For SVB403 setup, manual support, temperature warning, high-temperature damage confirmation, lens switching, probe / hose / camera issues, SVB403 / SVB405 / SVB408 model selection, or warranty support, contact AUTOOL Store directly.

Pre-Sales And Product Support

Use support if you need help confirming whether SVB403 is the right borescope for your inspection scenario, understanding safe temperature limits, switching lenses, checking package contents, or comparing AUTOOL borescope models.

  • SVB403 setup and manual support
  • Temperature warning / high-temperature damage confirmation
  • Lens switching support
  • Probe / hose / camera issue support
  • SVB403 / SVB405 / SVB408 model selection
  • 3-year warranty support for eligible non-human damage cases
