AUTOOL SPT360 Spark Plug Tester Automotive Diagnostic
US$59.00
Key Features
- Five Test Holes
- Real-Time RPM
- Adjustable Height
- Five Test Holes: The bench can test up to five spark plugs at once for faster comparison work.
- Real-Time RPM: The digital color display supports live RPM adjustment so users can control test intensity more clearly.
- Adjustable Height: Adjustable test hole height helps accommodate longer spark plug ends.
Secure checkoutFast supportBulk ready
AUTOOL SPT360
Product Overview

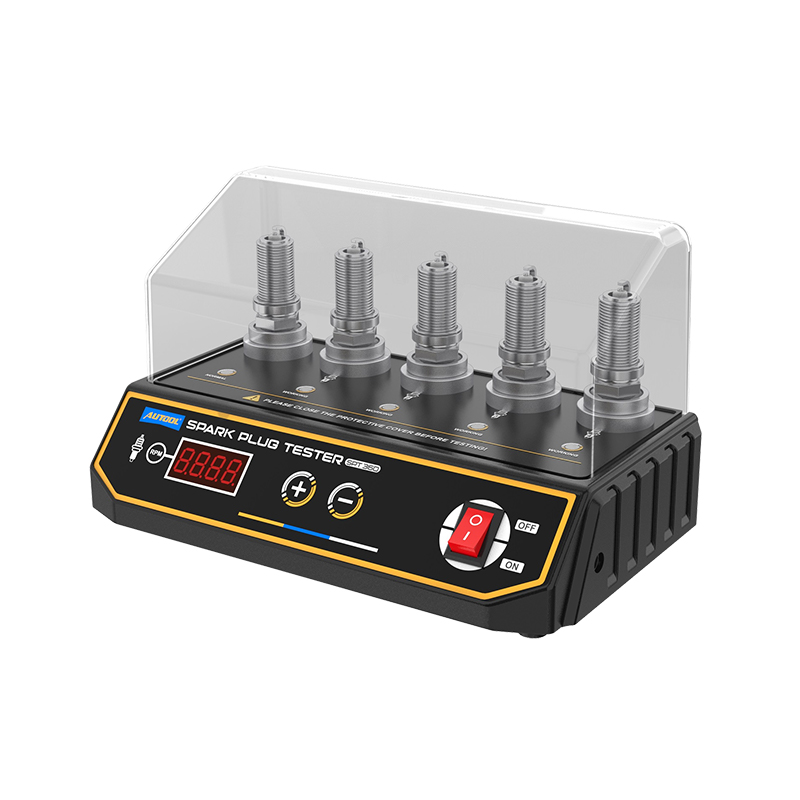

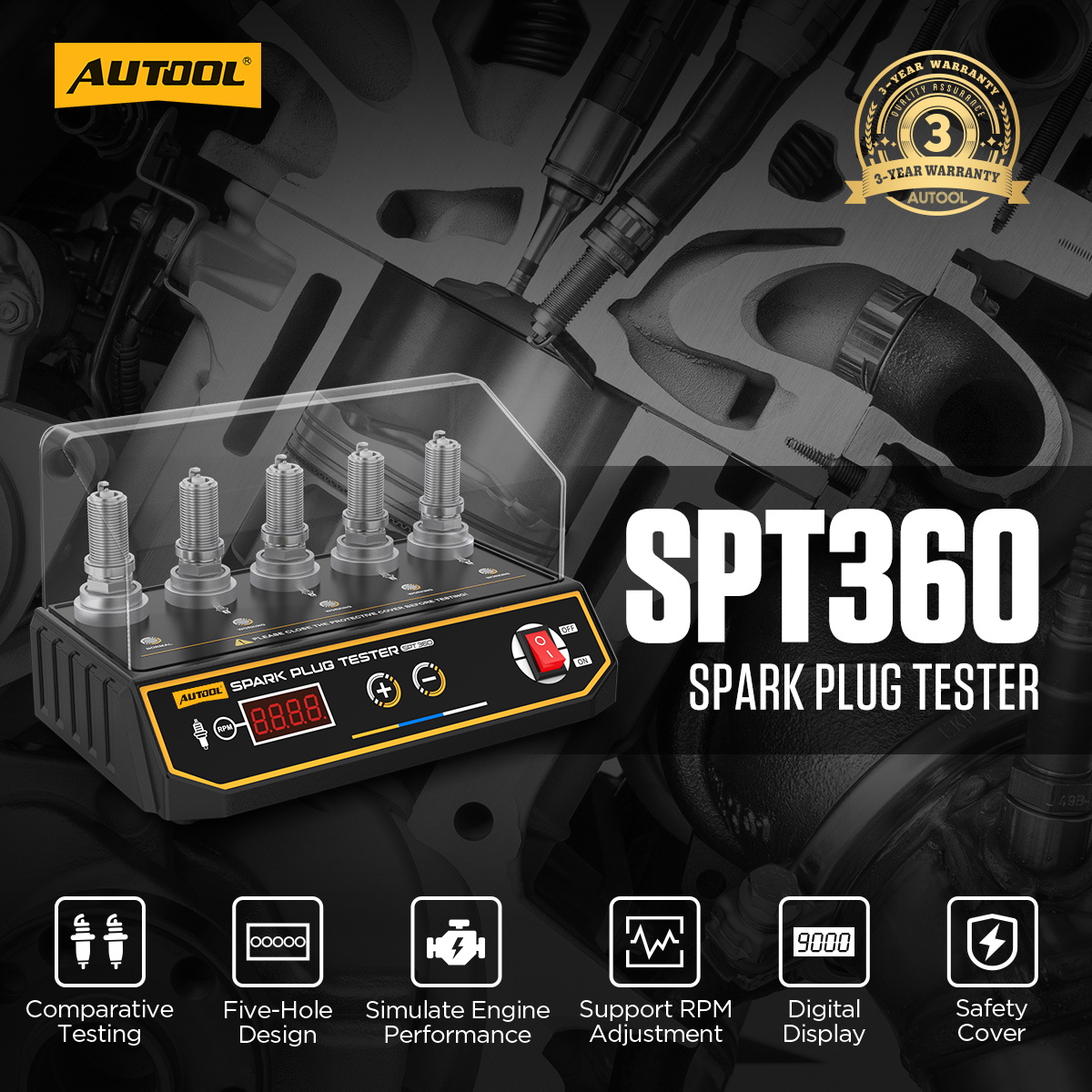

The AUTOOL SPT360 is a five-hole digital high-frequency spark plug tester for comparing spark plug performance and ignition strength under simulated engine speed. It supports digital RPM adjustment up to 9000 rpm, LCD backlit display control, long spark plug testing, and simultaneous comparison of up to five spark plugs for crankshaft engine and motorcycle spark plug checks.
Five-Hole Testing
200-9000 RPM
LCD Digital Display
Long Spark Plug Support
Safety Cover
5Test Holes
200-9000Simulated RPM
110V / 220VInput Voltage
3 YearsMain Unit Warranty
Click to enlarge
Click to enlargeBefore You Order And Use
Before You Order And Use
SPT360 is a high-frequency ignition tester. Review the protective cover, power-off handling, high-voltage warning, storage, and inspection notes before testing spark plugs.
Close The Protective Cover
Close the transparent protective cover before testing. Do not run the spark plug tester with the cover open.
Power Off Before Handling
Do not insert or remove spark plugs while the power supply is connected. Turn off the power first.
High Voltage Warning
During operation, spark plug voltage can reach tens of thousands of volts. Do not touch the spark plugs directly with bare hands.
Use A Safe Environment
Use the tester in a suitable dry environment. Avoid hot, humid, or non-ventilated storage conditions.
Inspect Connections
Regularly check parts that need tightening or connection. Tighten loose parts in time to keep the equipment safe.
Maintain The Circuit
Check the circuit section thoroughly during maintenance and replace aging wires or worn parts when needed.
Care Reminders
- Do not overload the equipment during testing.
- Keep safety guards complete and reliable.
- Avoid rubbing the housing against rough surfaces.
- Avoid contact with corrosive liquids.
- Store the product in a dry place when not in use.
Key Features
Key Features
SPT360 is built for fast comparative spark plug checks with five test holes, digital sensing, LCD RPM control, long spark plug support, working condition simulation, and simple plug-and-play operation.

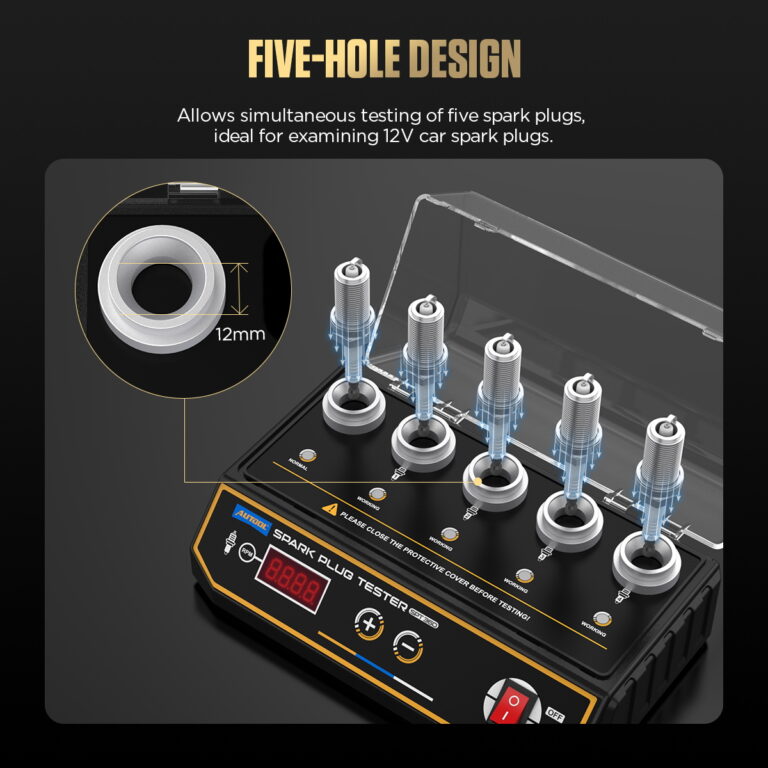

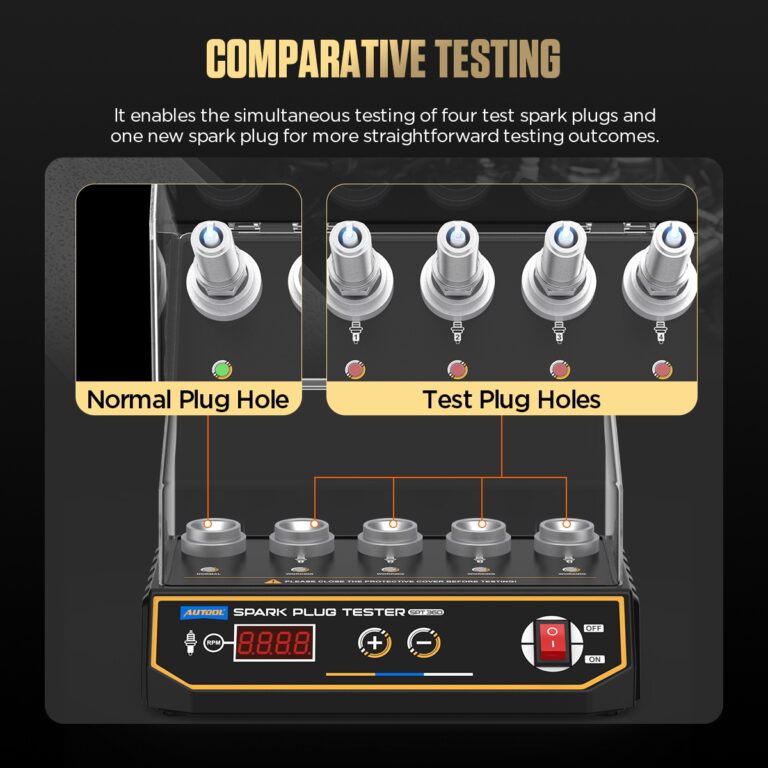

Five-Hole Comparative Testing
Test up to five spark plugs at the same time. Use one standard spark plug and compare the remaining test plugs for clearer performance judgment.

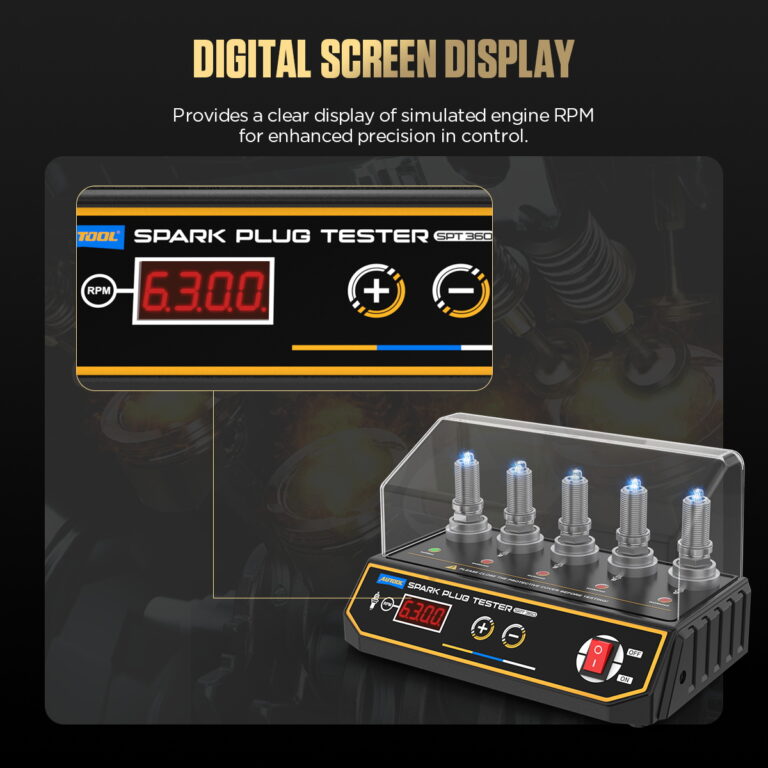

Digital RPM Display
The LCD digital backlit screen displays the simulated speed setting, helping users adjust and observe test conditions more precisely.

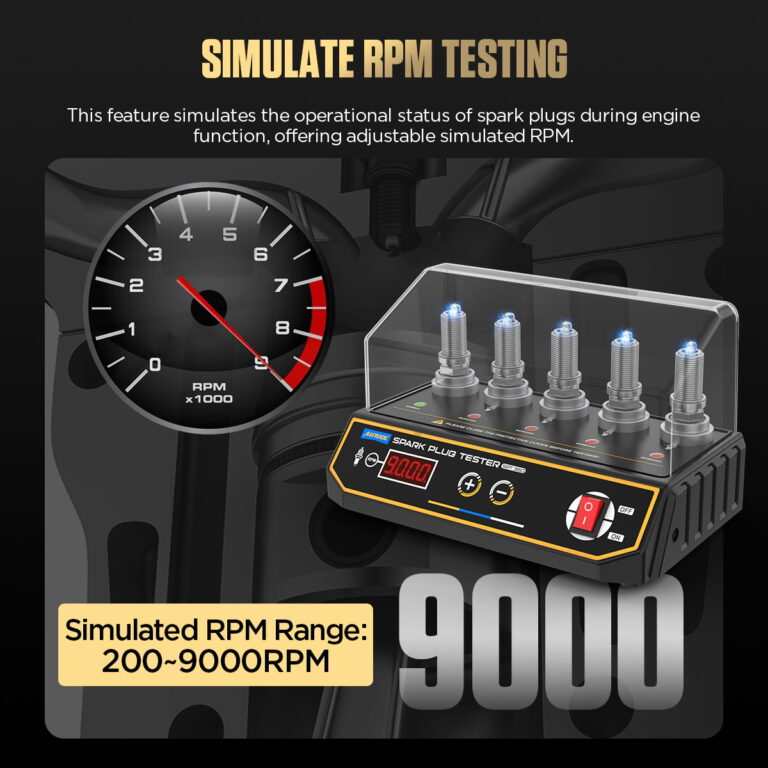

200-9000 RPM Simulation
The tester simulates engine speed from 200 to 9000 rpm. Higher frequency produces stronger spark plug intensity for comparison.
Adjustable Test Hole Height
The adjustable hole position height helps the SPT360 support testing of long spark plugs.

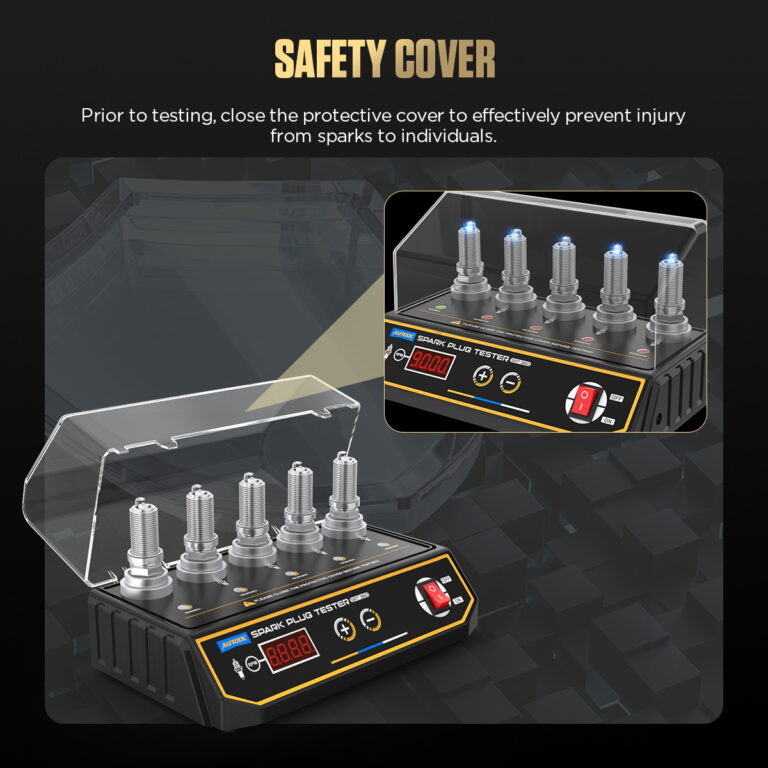

Safety Protection Cover
The transparent protective cover helps improve safety and allows users to observe spark behavior during testing.
Simple Operation
Insert the spark plugs, connect power, close the cover, turn on the switch, and adjust the working frequency with the RPM buttons.

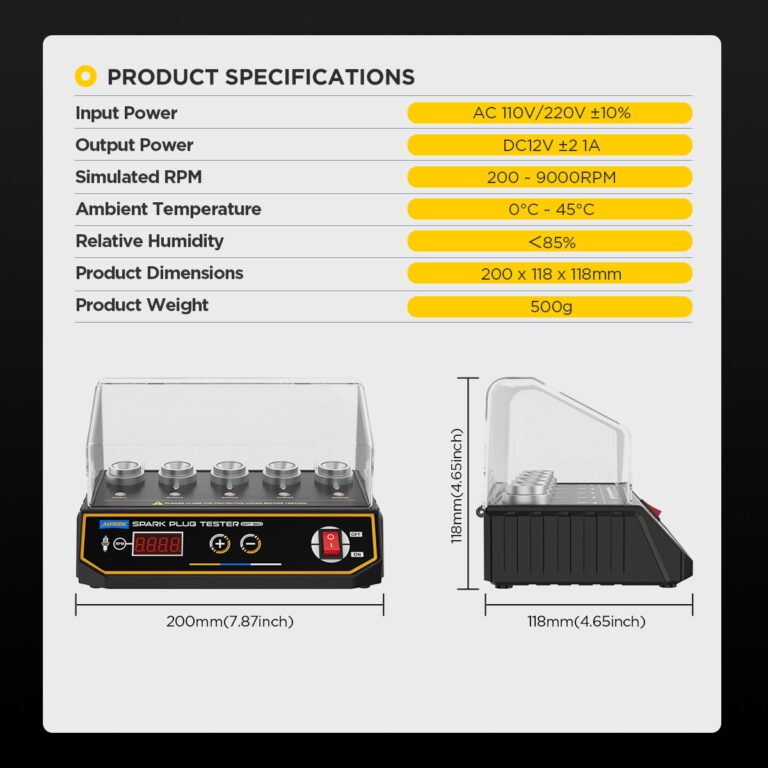

Specifications
SPT360 Product Specifications
SPT360 uses digital sensing, AC 110V/220V input power, DC 12V output power, 200-9000 rpm analog speed, and five test hole positions for high-frequency spark plug comparison.
| Core Specifications | |
| Product | AUTOOL SPT360 Spark Plug Tester |
| Working Principle | Digital sensing |
| Input Power | AC 110V / 220V ±10% |
| Output Power | DC 12V ±2V, 1A |
| Analog / Simulated Speed | 200-9000 rpm |
| Test Hole Position | 5 |
| Display | LCD digital backlit screen |
| Adjustable Hole Position Height | Supported |
| Long Spark Plug Testing | Supported |
| Working Condition Simulation | Supported |
| Safety Protection Cover | Supported |
| Ambient Temperature | 0°C-45°C |
| Relative Humidity | <85% |
| Main Unit Warranty | 3 years for eligible non-human damage cases |
Click to enlargeCore Specifications
ProductAUTOOL SPT360 Spark Plug Tester
Working PrincipleDigital sensing
Input PowerAC 110V / 220V ±10%
Output PowerDC 12V ±2V, 1A
Analog / Simulated Speed200-9000 rpm
Test Hole Position5
DisplayLCD digital backlit screen
Adjustable Hole Position HeightSupported
Long Spark Plug TestingSupported
Working Condition SimulationSupported
Safety Protection CoverSupported
Ambient Temperature0°C-45°C
Relative Humidity<85%
Main Unit Warranty3 years for eligible non-human damage cases
How To Use
How To Use
Use the SPT360 by inserting the standard spark plug and test plugs, connecting the power adapter, closing the protective cover, and adjusting the RPM frequency with the control buttons.
Insert Spark Plugs
Insert the standard spark plug into the standard test hole, then insert the spark plugs to be tested into the remaining test holes.
Connect Power
Plug the power adapter into the side power port on the tester. Confirm that the indicator light turns on.
Close The Cover
Close the transparent protective cover before testing to reduce exposure to high-voltage spark activity.
Start And Adjust RPM
Turn on the power switch and press the RPM “+” or “-” buttons to adjust the working frequency.
Compare Spark Performance
Observe the spark intensity of each plug. The higher the frequency, the stronger the spark plug intensity during the simulated test.
Use Notes
- Turn off the power before inserting or removing any spark plug.
- Do not touch spark plugs directly during operation.
- Keep the protective cover closed while testing.
- Use the standard test hole for the reference spark plug and compare test plugs against it.
- Use the digital RPM controls to adjust frequency gradually.
Product Comparison
Product Comparison
Compare SPT101, SPT105, SPT301, and SPT360 before choosing the right test hole quantity, RPM range, LCD display, adjustable height support, and long spark plug compatibility.
SPT101Two test holes, 0-6000 rpm, safety cover, adjustable simulated RPM, no LCD digital backlit screen, and no long spark plug support.
SPT105Two test holes, 0-6000 rpm, adjustable hole position height, safety cover, adjustable simulated RPM, and support for long spark plugs.
SPT301Three test holes, 200-9000 rpm, LCD digital backlit screen, adjustable hole position height, safety cover, and long spark plug support.
SPT360Five test holes, 200-9000 rpm, LCD digital backlit screen, adjustable hole position height, safety cover, and long spark plug support.
Decision CheckChoose SPT360 if you need the highest comparison capacity in this group and want to test up to five spark plugs at the same time.
Click to enlargeRelated Products
Related Products
Review related AUTOOL spark plug testers before choosing the right number of test holes, RPM range, display type, and long spark plug support.
- Select options This product has multiple variants. The options may be chosen on the product page
AUTOOL SPT101 Spark Plug Tester Spark Plug Checker
From US$40.00 - Select options This product has multiple variants. The options may be chosen on the product page
AUTOOL SPT105 Spark Plug Tester Tool Adjustable Spark Tester
From US$33.00 - Select options This product has multiple variants. The options may be chosen on the product page
AUTOOL SPT301 Car Spark Tester Automotive Diagnostic
From US$59.00 - Select options This product has multiple variants. The options may be chosen on the product page
AUTOOL SPT360 Spark Plug Tester Automotive Diagnostic
From US$59.00
Manual And Downloads
Manual And Downloads
Download the SPT360 user manual for cautions, product structure, technical specifications, operating instructions, maintenance guidance, warranty access, and return or exchange service information.

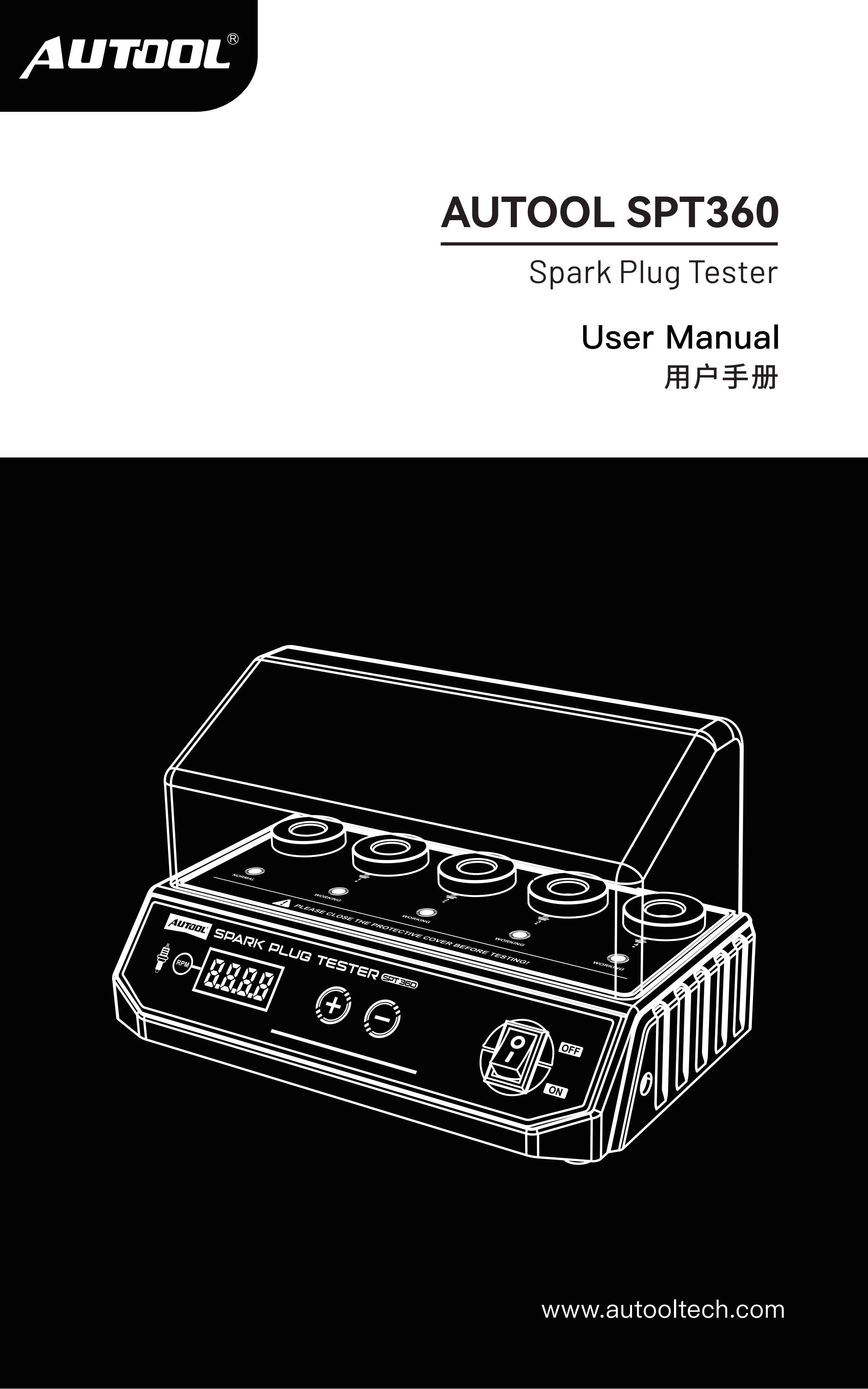

Click to enlargeAUTOOL SPT360 User Manual
Open the PDF manual for setup, operation, safety warnings, maintenance, warranty, and service policy details.
Download ManualNeed Setup Confirmation?
Contact AUTOOL Store before ordering if you need to confirm spark plug compatibility, long spark plug testing, voltage version, RPM adjustment, safety use, package contents, or model selection.
Questions And Answers
These answers cover SPT360 spark plug tester capacity, RPM range, long spark plug support, power input, operation, safety, model selection, package confirmation, and warranty support.
The AUTOOL SPT360 is used to test and compare spark plug performance and ignition strength. It simulates engine speed, displays the RPM setting digitally, and allows users to compare multiple spark plugs at the same time.
SPT360 has five test holes and can compare up to five spark plugs at the same time. For clearer comparison, place a standard spark plug in the standard test hole and place the spark plugs to be tested in the remaining holes.
SPT360 supports 200-9000 rpm simulated speed adjustment. The higher the working frequency, the stronger the spark plug intensity during the test.
Yes. SPT360 supports adjustable test hole position height and is suitable for testing long spark plugs.
Insert the standard spark plug into the standard test hole and insert the spark plugs to be tested into the other holes. Connect the power adapter, close the protective cover, turn on the power switch, and use the RPM “+” and “-” buttons to adjust the working frequency.
SPT360 uses AC 110V / 220V ±10% input power. Confirm the correct voltage version and power adapter before use.
Close the protective cover before testing. Turn off the power before inserting or removing spark plugs. Do not touch the spark plugs during operation because the voltage can reach tens of thousands of volts.
SPT101 and SPT105 are two-hole 0-6000 rpm testers. SPT105 adds adjustable height and long spark plug support. SPT301 has three test holes, 200-9000 rpm, LCD display, and long spark plug support. SPT360 has five test holes, 200-9000 rpm, LCD display, adjustable height, and long spark plug support.

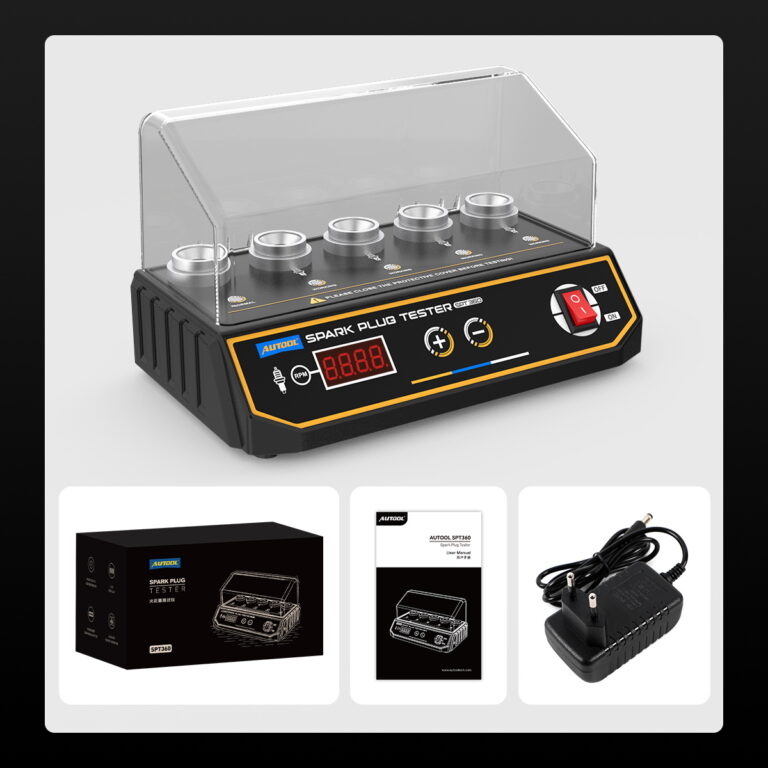

If package contents or accessories are important for your order, contact AUTOOL Store before ordering. Package contents may vary by batch or sales channel, and support can help confirm the current SPT360 packing details.
AUTOOL provides 3-year main unit warranty support for eligible non-human damage cases. Accessories are covered for one year according to the user manual. Contact support with photos, videos, and order details if service is needed.
Warranty And Contact
Warranty And Contact
For SPT360 model selection, spark plug compatibility, long spark plug testing, RPM adjustment, voltage version confirmation, package contents, safety use, manual support, or after-sales service, contact AUTOOL Store directly.
Pre-Sales And Product Support
Use support if you need help confirming whether SPT360 is the right spark plug tester for your workshop, whether you need a two-hole, three-hole, or five-hole model, or how to safely compare old and new spark plugs.
- SPT101 / SPT105 / SPT301 / SPT360 model selection
- Five-hole comparative testing explanation
- Long spark plug and adjustable height confirmation
- 110V / 220V voltage version confirmation
- RPM adjustment and LCD display setup support
- Package contents and accessory confirmation
- High-voltage safety and protective cover reminders
- 3-year main unit warranty support for eligible non-human damage cases
