In the automotive repair industry, more workshops are emphasizing wheel alignment because precise alignment improves customer satisfaction and brings more consistent revenue. For fast, accurate, and efficient alignment work, both an alignment machine and a lift are required.Making these two pieces of equipment work as a coordinated golden duo is a key concern for every shop owner and technician. A wheel alignment machine measures geometry and vehicle angles, while a lift creates the working platform needed to unload the wheels, access adjustment points, and keep the service process stable.
Planning 01
Alignment bay fundamentals
Why Choose the Lift and Alignment Machine Together?
Do not buy the positioning device or lift separately without considering how they will work together. Simply put, a four-wheel alignment machine is a measuring tool, while a lift is a working platform.
To do professional wheel alignment in a repair shop, both the alignment machine and the vehicle lift must work together. One alone is not enough.

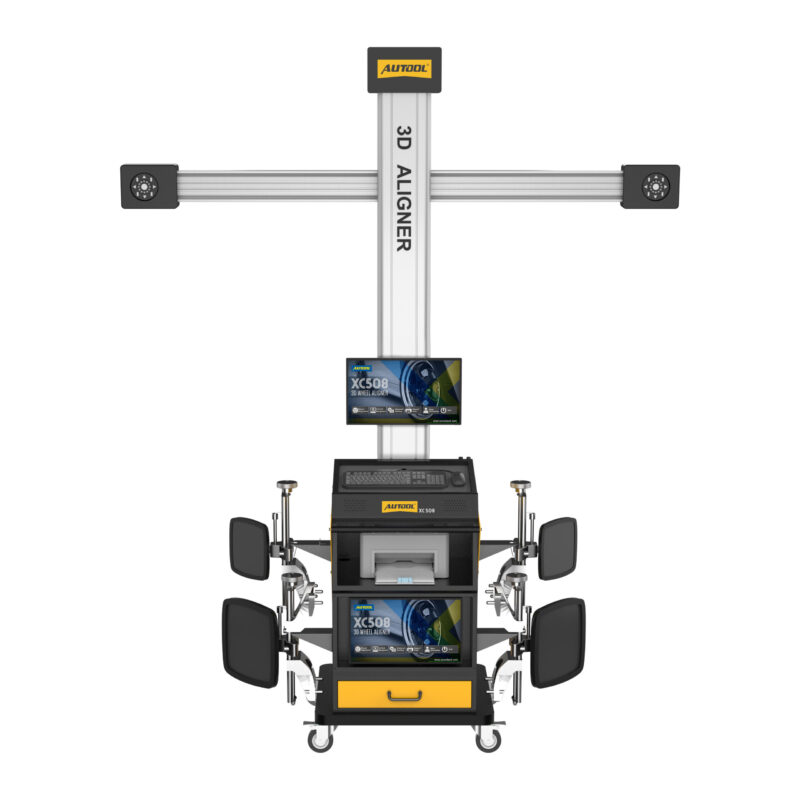

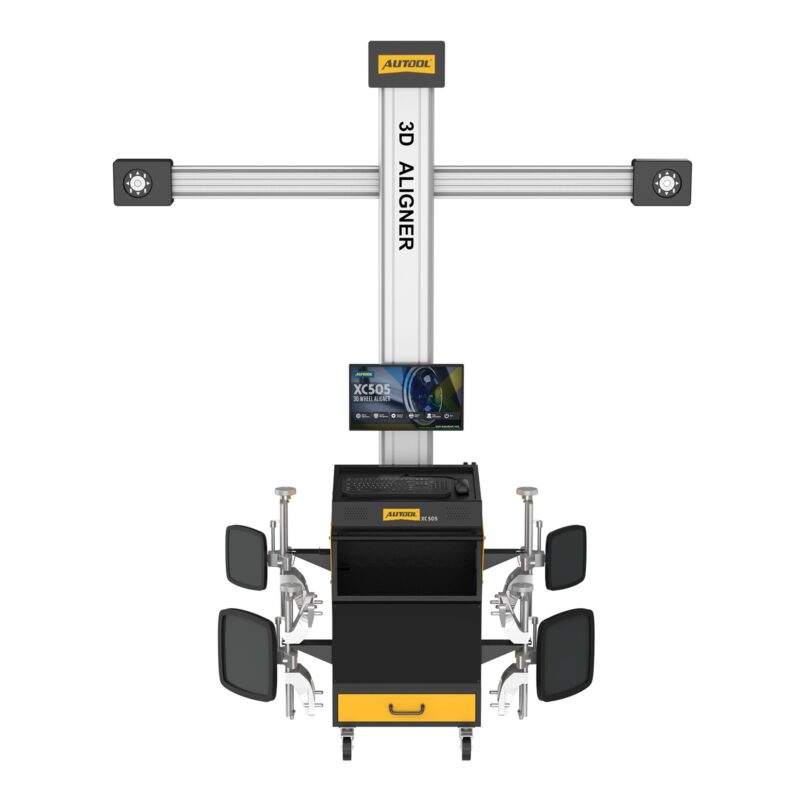

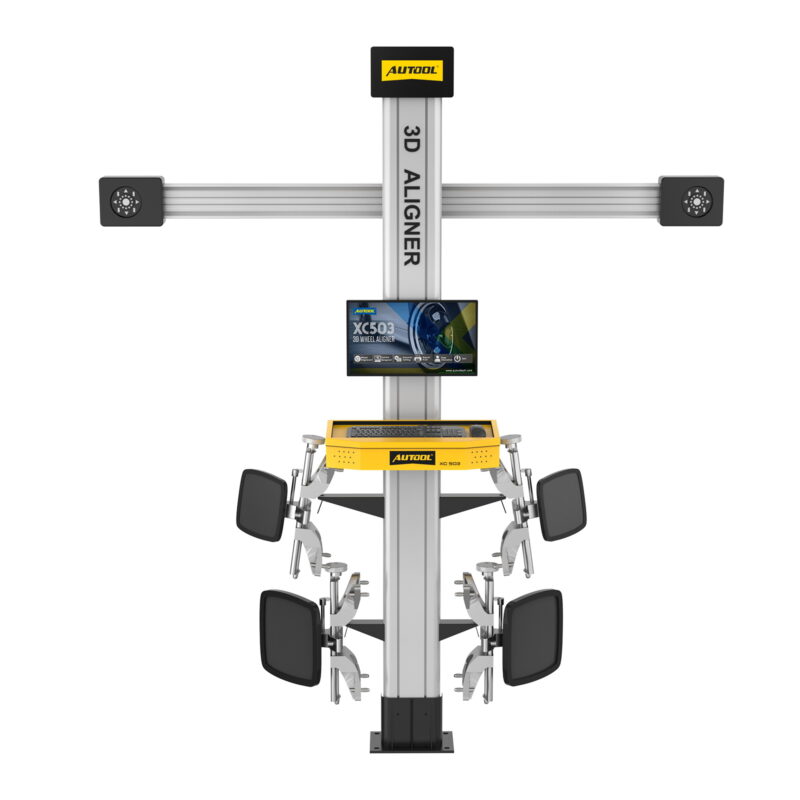

Wheel alignment machineIt measures wheel geometry and vehicle angles using sensors and software. It tells the technician what needs adjusting and how far the alignment is off. Accurate alignment improves handling, tire life, and fuel efficiency.
Vehicle liftIt provides access underneath the vehicle and helps place the wheels in the correct service condition. Without a dedicated alignment system, a lift cannot measure or correct wheel alignment angles.
Integrated alignment bayThe lift raises the vehicle for access, and the alignment system collects accurate data for adjustment. This is why professional tire shops and repair bays combine the two as one integrated working area.
Planning 02
Four practical selection points
Start From the Actual Situation in the Workshop
The right alignment bay depends less on a single machine price and more on how the complete setup fits your shop. The four core selection points are workshop space, vehicle service range, alignment machine capability, and compatibility between the lift and alignment system.
Workshop Space
If the shop has limited floor space, a scissor lift or low-profile drive-on lift is often more space-efficient. If the shop has ample space, a four-post lift becomes a stable and practical option for alignment bays.
Vehicle Service Range
Small passenger cars, SUVs, and light trucks require different lifting heights and load capacities. The lift must be rated for the vehicles the shop actually services.
Alignment Accuracy and Features
Measurement accuracy, automatic compensation features, and vehicle database coverage all affect alignment quality, service speed, and the range of makes and models the shop can handle.
Lift and System Compatibility
Alignment-ready lifts may include turntables, adjustable platform spacing, and slip plates. These details help the wheel alignment machine collect data in a stable and reliable environment.
Select options
This product has multiple variants. The options may be chosen on the product page
Planning 03
Scenario-based equipment combinations
Recommended Lift and Alignment Machine Combinations
Option 1: Scissor Lift + Portable Wheel Alignment System
Advantages: Scissor lifts save floor space, offer strong layout flexibility, usually cost less than post-style lifts, and are easier to install or relocate in some workshops.
Disadvantages: Scissor lifts generally have lower load capacity and lifting height than post-style lifts. Portable alignment systems are more affordable, but they may offer lower precision, fewer software functions, and slower workflow than high-end automated systems.

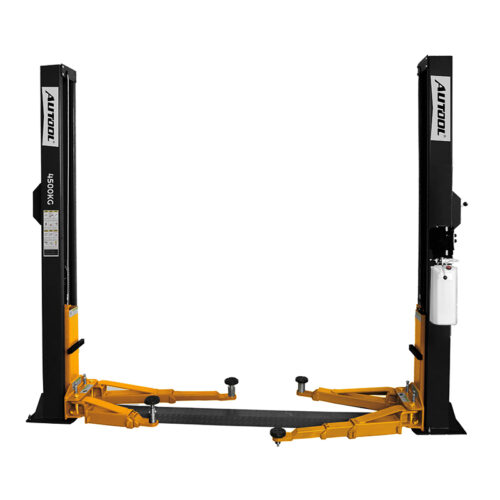

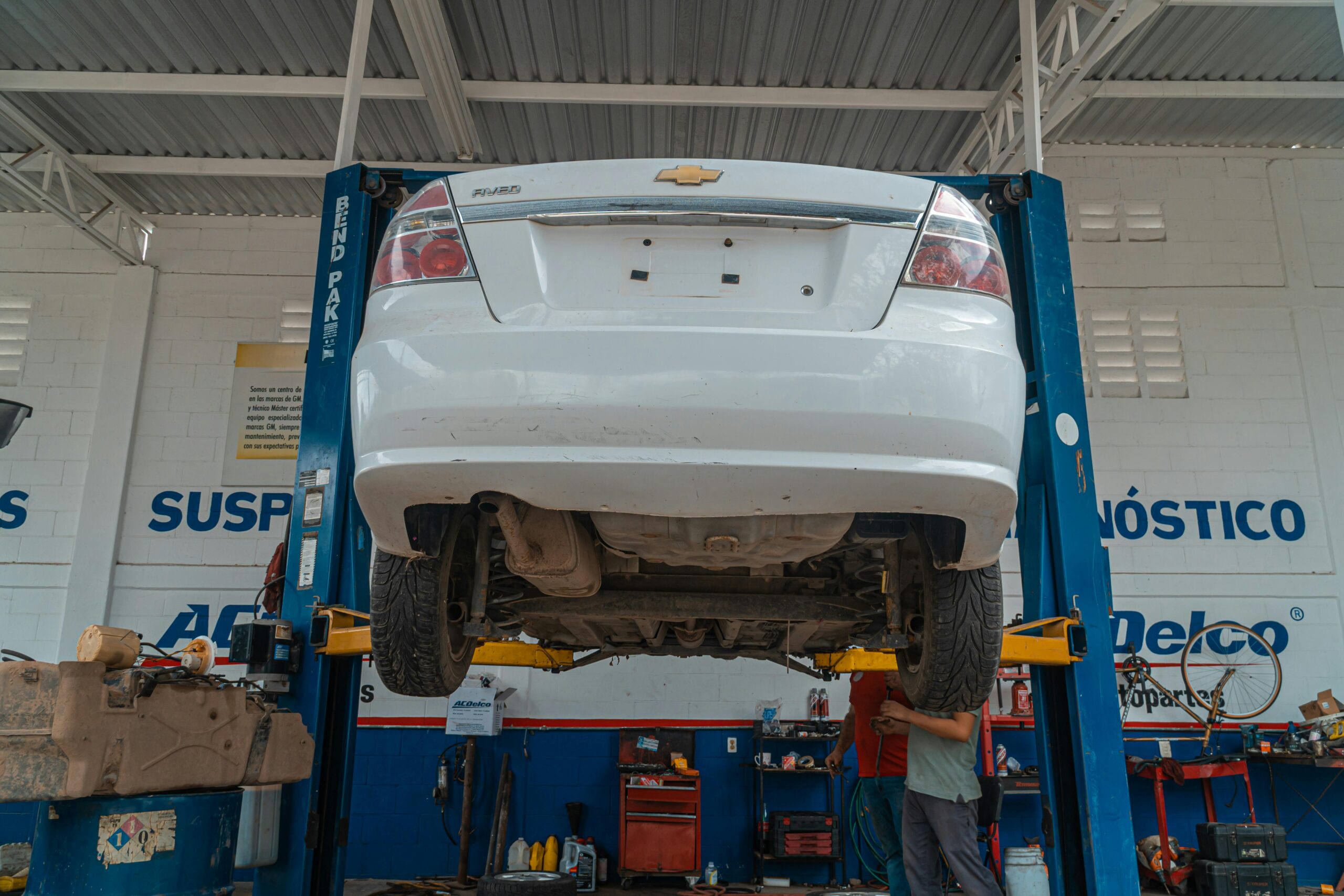

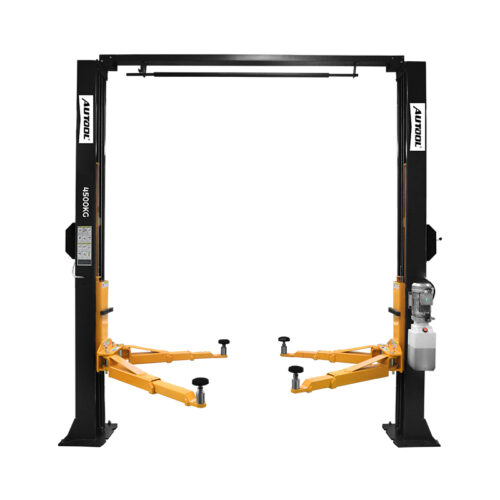

Option 2: Two-Post Lift + Fully Automated Wheel Alignment System
Why it is cost-effective: Two-post lifts provide good lifting height and clear underbody access, while fully automated alignment systems bring automatic calibration, quick measurement, and extensive vehicle databases.
In practice, this combination creates a performance-versus-cost balanced setup. It does not occupy a large central floor area, but proper foundation anchoring and installation conditions must still be planned carefully.
Option 3: In-Ground Scissor Lift + Wireless Wheel Alignment System
Advantages: The in-ground design saves space because the lift mechanism is recessed below the floor. Wireless alignment systems reduce cable clutter, reduce setup interference, and allow faster data capture and adjustment.
Considerations: In-ground lifts require excavation, trenching, waterproofing, and more complex groundwork. Wireless alignment systems also usually cost more than basic wired models.
Option 4: Cantilever or Articulated Platform + Light-Duty Alignment Tools
Advantages for special vehicles: This setup can help with non-standard vehicles, irregular undercarriage geometry, very wide wheelbases, or vehicles that do not fit conventional lifts well.
Disadvantages: Light alignment tools generally do not match the accuracy and advanced features of fully automated systems. This setup is better for quick checks, supplemental service, or specialized vehicle scenarios rather than high-volume primary alignment work.
Lift and bay equipment
Lift Equipment for Alignment Bay Planning
Use these product references when planning scissor, two-post, and alignment-bay lift combinations.
Select options
This product has multiple variants. The options may be chosen on the product page
Planning 04
Quick comparison
Comparison of Common Alignment Bay Solutions
Solution
Space Efficiency
Cost
Alignment Efficiency
Work Flexibility
Precision Capability
Scissor + Portable Alignment
4/5
4/5
3/5
4/5
2/5
Two-Post + Fully Automated
3/5
3/5
4/5
3/5
4/5
In-Ground Scissor + Wireless
5/5
2/5
4/5
4/5
3/5
Cantilever Platform + Light Tools
3/5
3/5
2/5
4/5
2/5
Summary
Do not just look at price
Choose the Combination That Fits the Shop
Do not base your equipment choice solely on price. What matters more is whether the combination can improve work efficiency, enhance alignment quality, and support future workshop growth.
Improve work efficiencyThe right lift and alignment system help technicians complete jobs faster and serve more customers.
Enhance alignment qualityA stable platform and accurate machine deliver better results and reduce rework.
Support future growthA well-matched setup gives the shop room to expand services and handle a wider range of vehicles.
Often, choosing equipment that fits your needs well improves overall workshop performance more than buying the most expensive standalone machines. You can also review more wheel alignment equipment options based on your shop layout and service plan.
