How Do You Choose a Vacuum Gauge? It’s Simple!#
After an air-conditioning system has been running for some time, users may need to replace the refrigerant or refill it to keep the cooling effect stable. During refrigerant replacement or refilling, it can be difficult to visualize the working status of the equipment accurately, which may lead to unsatisfactory refilling results.
A vacuum gauge helps make this process easier to observe. It allows technicians to read vacuum or pressure data while servicing automotive air-conditioning and refrigeration systems, helping them judge whether the system is stable enough for the next step.
What Is a Vacuum Gauge?#
A vacuum gauge is an instrument capable of measuring vacuum pressure. It is commonly used in automotive repair, refrigeration service, and research laboratory applications where pressure or vacuum status needs to be observed.
The gauge indicates the vacuum or pressure value through the deformation of an elastic element or through a sensor. That movement or sensor response is converted into mechanical displacement or an electrical signal change, allowing the user to read the current pressure condition.
Measures Vacuum Pressure
It helps technicians see the vacuum or pressure value during service work.
Used in AC Service
It is useful when replacing or refilling refrigerant in automotive air-conditioning systems.
Mechanical or Sensor-Based
Readings can come from elastic-element deformation or electronic sensor signals.
Improves Observation
Clear pressure data helps reduce guesswork during refrigerant filling and holding tests.
Common Types of Vacuum Pressure Gauges#
Vacuum pressure gauges are commonly divided into mechanical gauges and digital gauges. Both can measure pressure changes, but they differ in reading method, accuracy, and operating convenience.

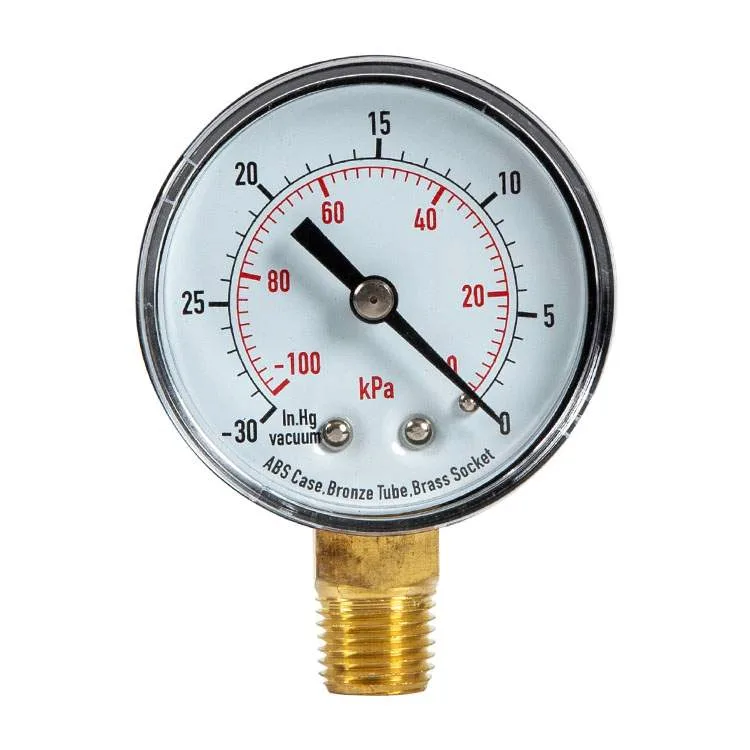

Mechanical Vacuum Pressure Gauges
A mechanical gauge is mainly composed of a sensor and a dial with a pointer. During use, the pointer changes position according to the vacuum pressure, allowing the user to read the pressure of the device under test.
Digital Vacuum Gauges
Compared with traditional mechanical vacuum gauges, digital vacuum gauges use more sensitive sensing elements and digital displays. Users can read accurate data directly from the screen instead of carefully checking the pointer grid.
How to Choose a Digital Vacuum Gauge for HVAC Service#
Choosing a digital vacuum gauge for HVAC or automotive AC service should be based on the working pressure range, measurement accuracy, and durability of the tool. A suitable gauge should cover the pressure range of the system while still providing enough resolution for small changes.
| Selection Point | Why It Matters | LM100 Example |
|---|---|---|
| Moderate measuring range | If the range is too small, the gauge may fail to read or may be damaged by overpressure. If the range is too large, readings may lack accuracy. | AUTOOL LM100 covers -101 kPa to 6 MPa (-0.1 bar to 60 bar), with a 10 MPa (100 bar) limit. |

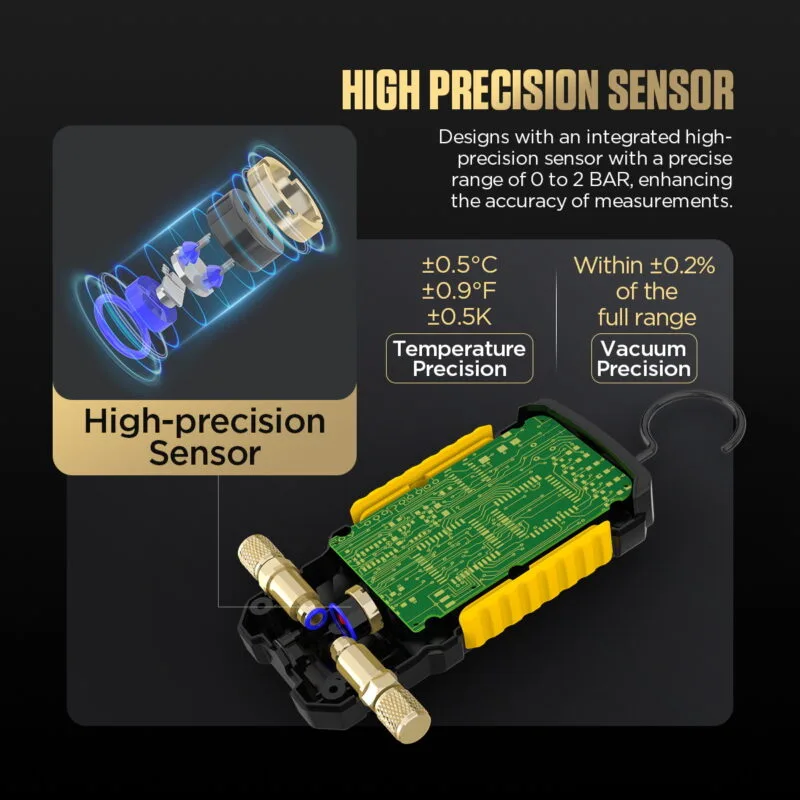

| High measurement accuracy | Accurate readings help ensure the adjustment and refilling operation is reliable. | LM100 accuracy can reach ±0.2%, with resolution up to 0.1 mbar. |

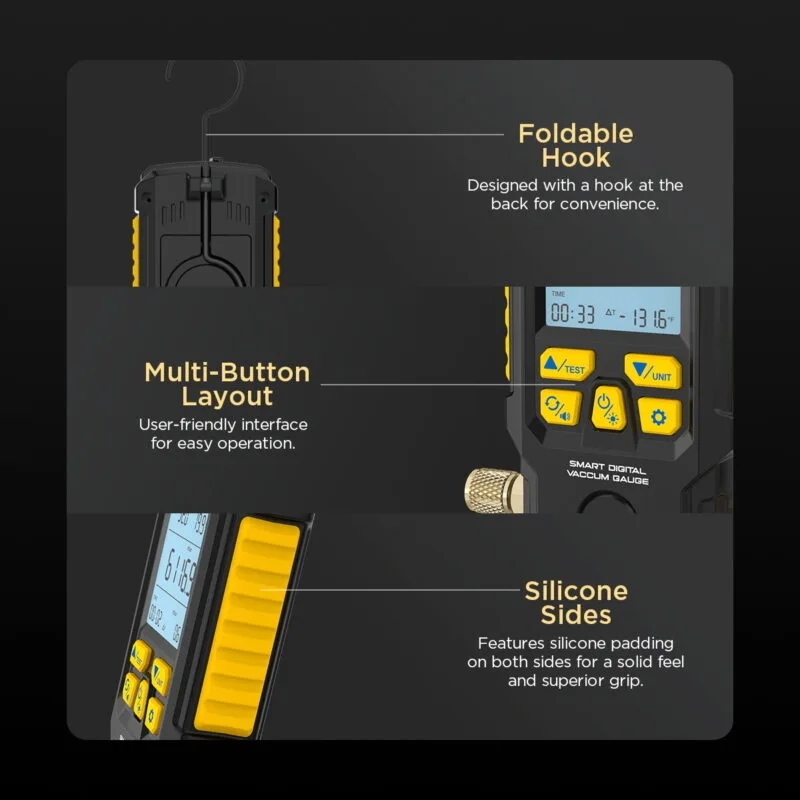

| Material durability | Automotive repair shops often expose tools to oil, friction, and corrosive liquids. | Prefer IP65-rated tools and durable materials such as engineering plastics and non-slip silicone. |
AUTOOL LM100 Smart Digital Vacuum Gauge#

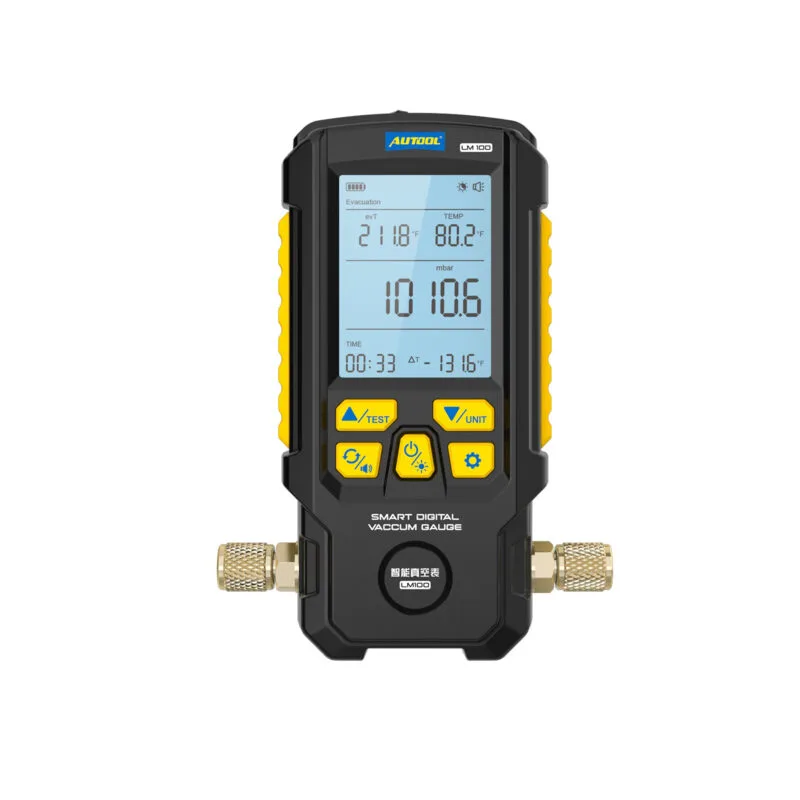

The AUTOOL LM100 is a smart digital vacuum gauge designed for refrigerant and HVAC service work. It helps users observe pressure data more clearly during refrigerant filling and system sealing checks.

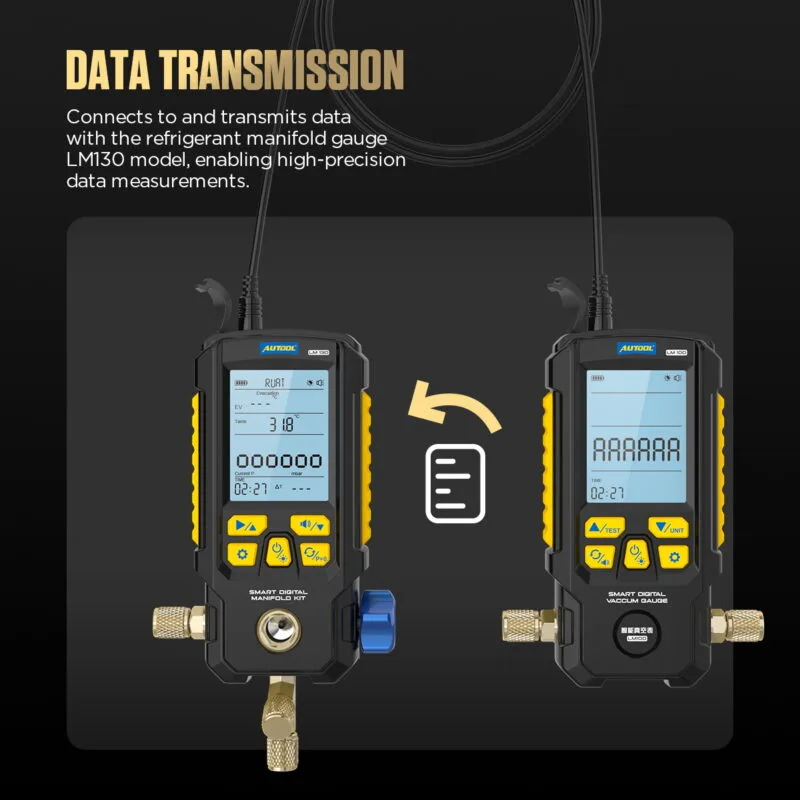

Data Transfer
The built-in integrated microprocessor and communication interface can connect to the AUTOOL LM130 Refrigerant Meter for data transfer and data synchronization.

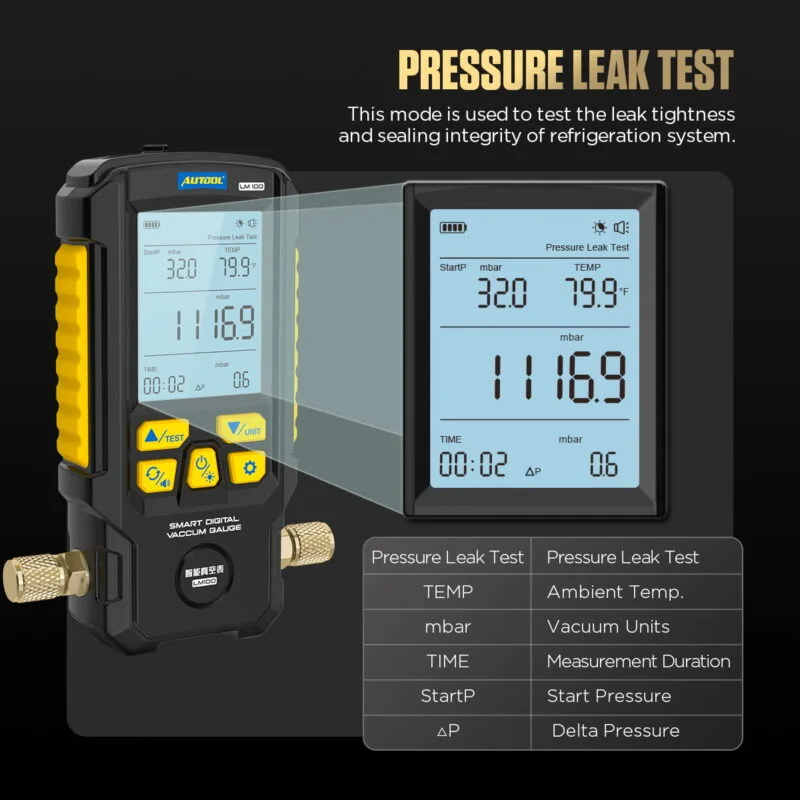

Holding Pressure Test Mode
The tool can detect the sealing condition of the refrigeration system and help identify slight leakage in time.
Multiple Units
LM100 can switch among Hpa, mbar, Torr, inHg, ℃, ℉, and K with one click to meet different testing needs.
Auto Sleep Mode
When there is no operation for more than 20 minutes, the device automatically shuts down to help save energy.

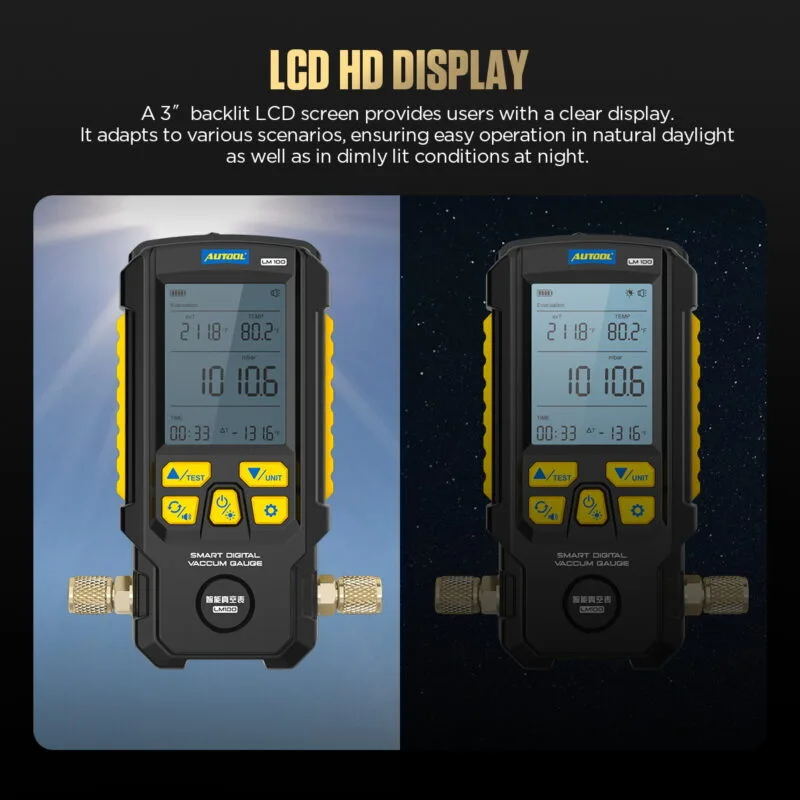

2.8-Inch Display
The high-definition backlit display works in dim and bright environments and gives users a comfortable viewing experience.
Fast Screen Response
The 0.5-second screen response helps users observe data more intuitively, clearly, and quickly.
AUTOOL LM100 Product Images#
The following local images show the LM100 product appearance and feature details for reference.
Choose a Vacuum Gauge Around Range, Accuracy, and Durability#
If you are having trouble observing pressure data during refrigerant filling, a digital vacuum gauge can make the process easier to monitor. For automotive air-conditioning service, choose a gauge with a suitable range, high accuracy, stable resolution, and durable materials for workshop use.
With support from a refrigerant vacuum gauge such as the AUTOOL LM100, refrigerant refilling and system checking can be more efficient, clearer, and safer.
