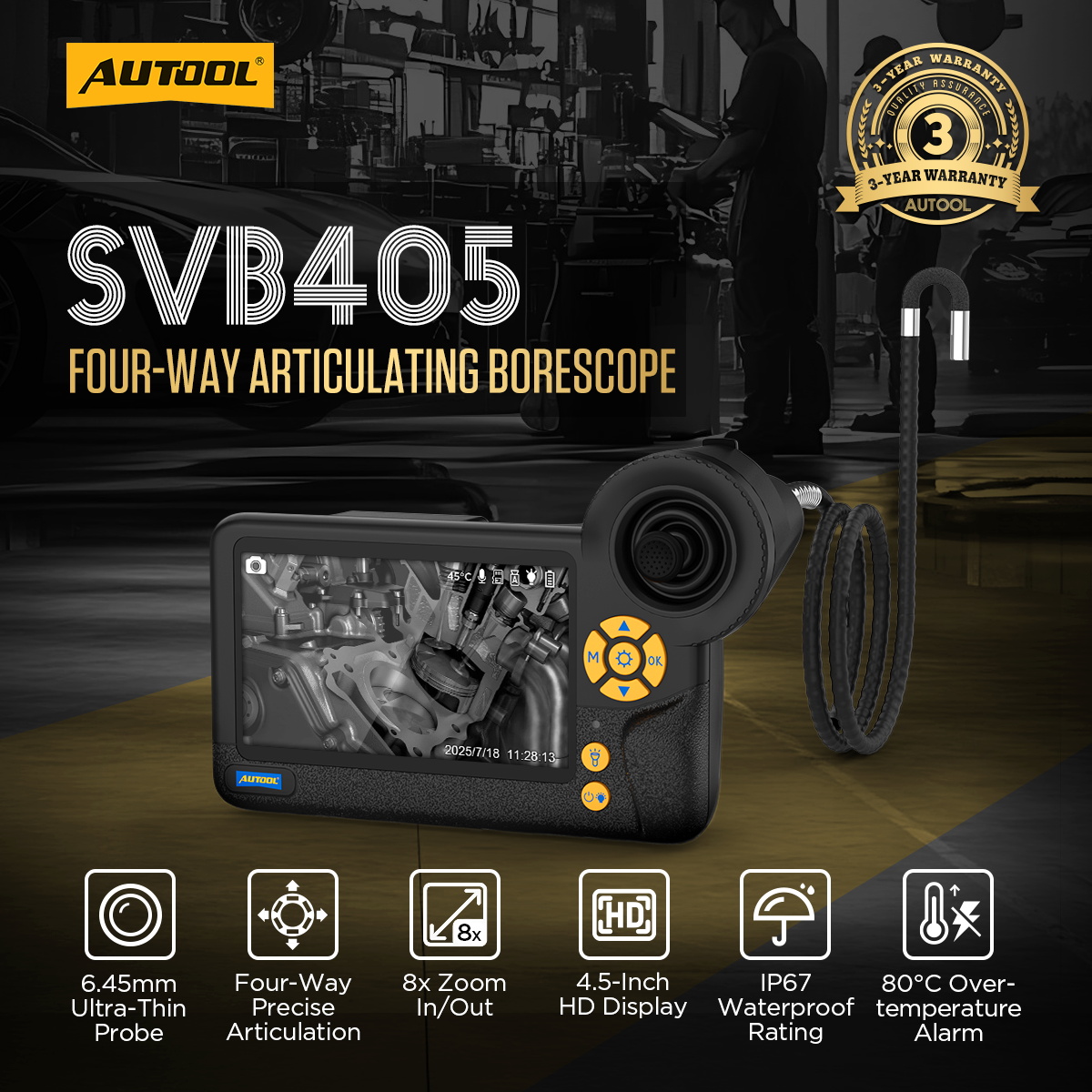

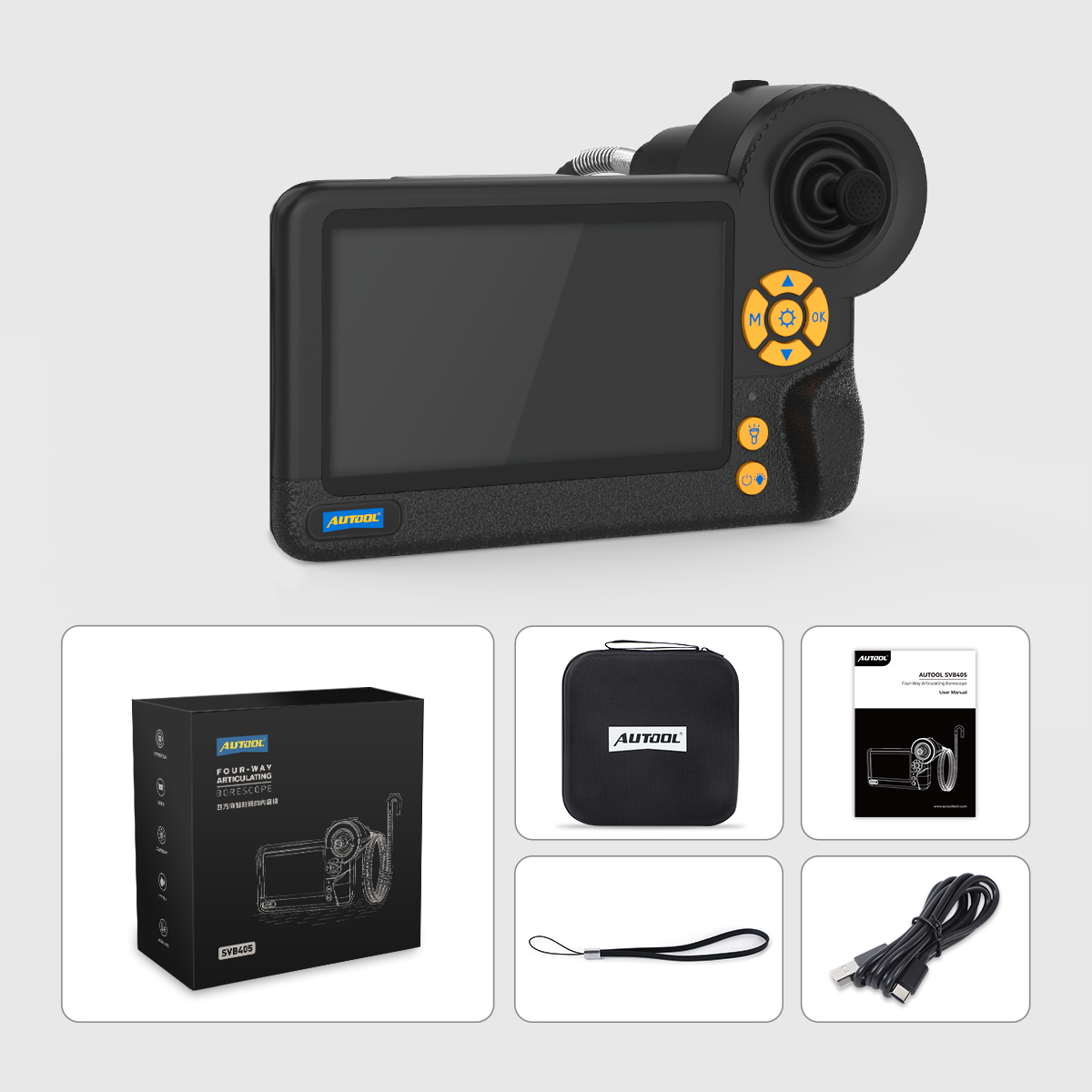

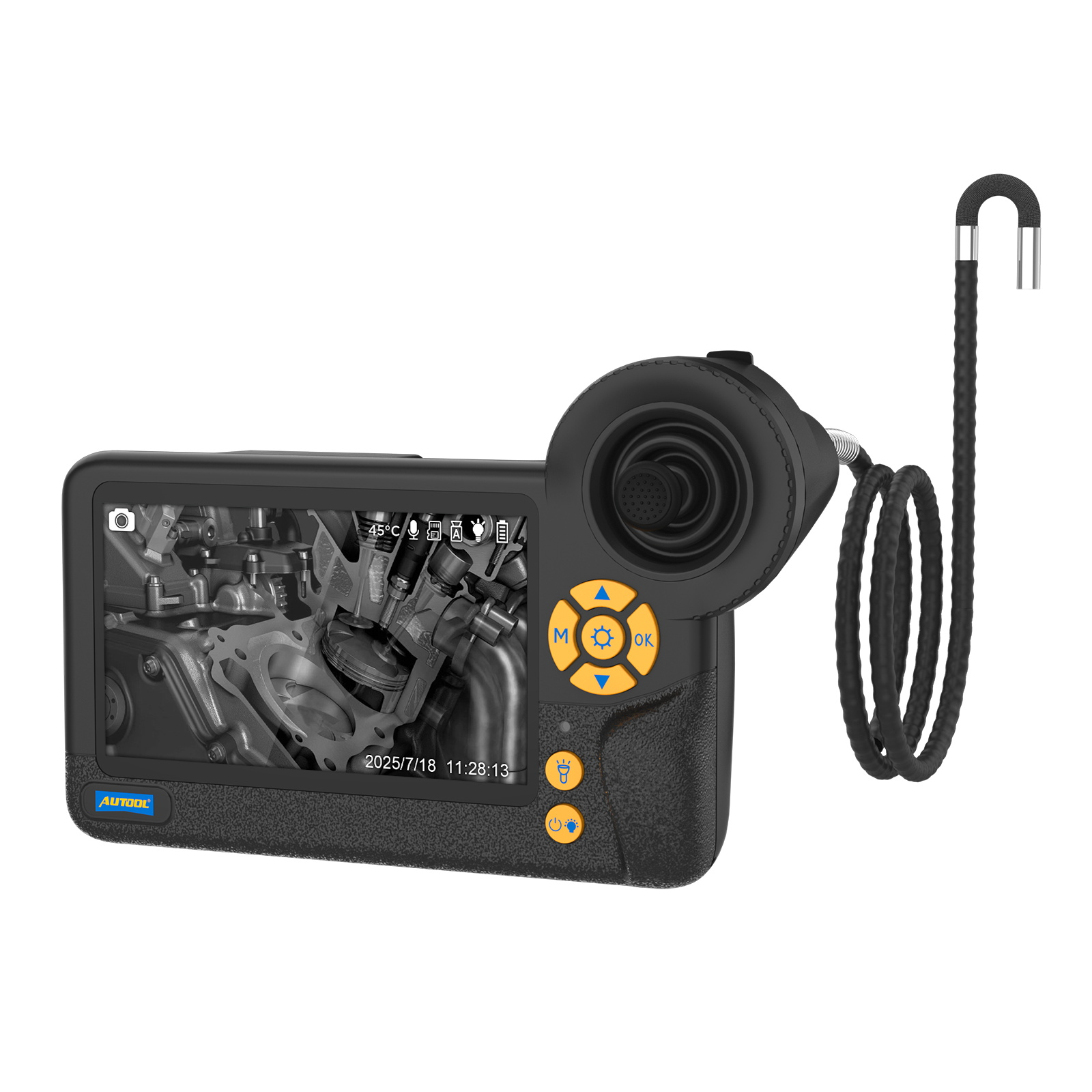

The AUTOOL SVB405 is a high-performance automotive borescope camera designed for the global automotive aftermarket. It helps inspect hard-to-reach, narrow, curved, and hidden spaces such as evaporators, combustion chambers, engine gaps, pipes, exhaust passages, and catalytic converter areas without unnecessary disassembly.
With 360° four-way articulation, a 6.45mm slim probe, 2MP HD imaging, up to 8x digital zoom, a 4.5-inch IPS screen, temperature warning, and built-in storage, SVB405 is built for detailed visual inspection in confined automotive areas.
360° Four-Way6.45mm Probe2MP Camera8x Digital Zoom
4.5″IPS HD Screen
20-100mmDepth Of Field
2000mAhBattery
32GBTF Card Storage
Click to enlarge
Before You Order And Use
Before You Order And Use
Review the temperature, waterproof, handling, and inspection safety limits before inserting the SVB405 probe into an engine, pipe, HVAC area, or other confined space.
Use Below 75°C
For safer inspection and lens protection, use the automotive inspection camera below 75°C whenever possible.
Do Not Inspect A Hot Engine
A recently stopped engine may reach 80°C-100°C or higher. Wait until the engine has cooled completely before inspection.

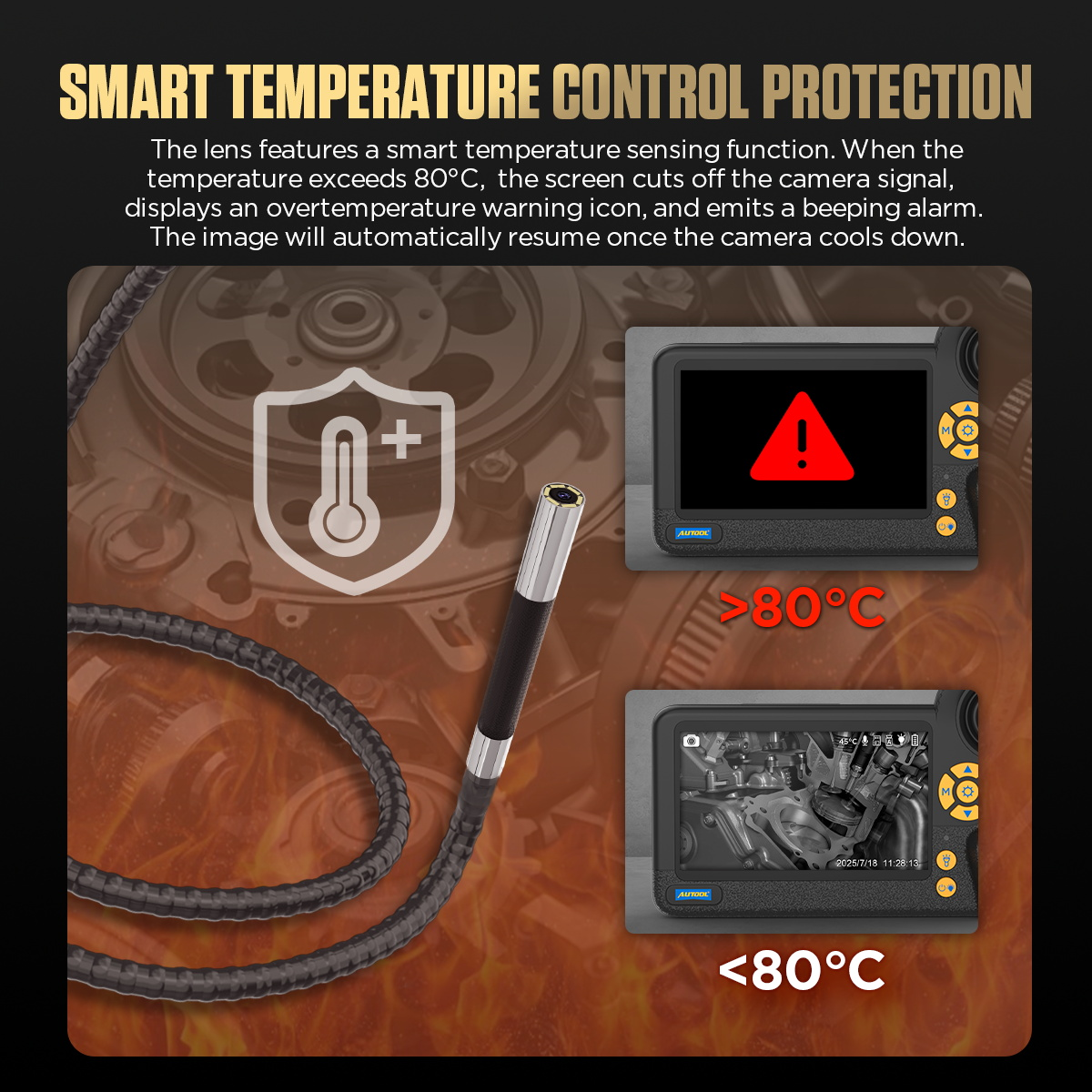

80°C Temperature Warning
When the camera temperature exceeds about 80°C, the screen may show an over-temperature warning, cut off the image signal, and resume after cooling.
Probe Limit
The probe should not be used above 85°C / 185°F. High-temperature damage is considered abnormal damage and is not covered by free warranty.

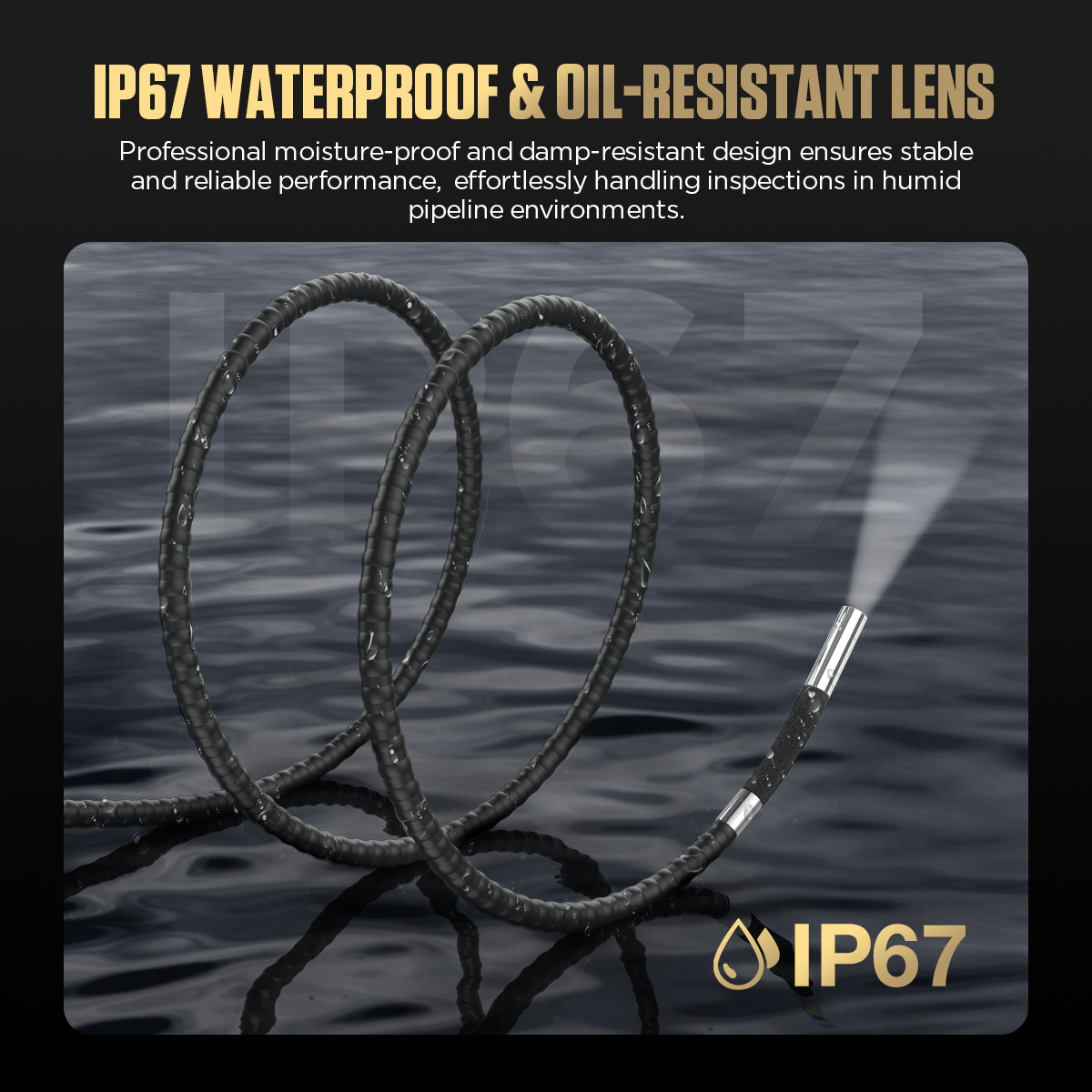

IP67 Probe, Not Whole-Unit Waterproof
The camera probe is IP67-rated, but the whole device is not waterproof. Avoid prolonged direct contact with water, oil, and corrosive liquids.
Handle The Flexible Hose Carefully
Return the joystick to neutral before removing the probe. Do not twist, pull, force, or excessively bend the front curved section.
Safety And Inspection Reminders
Do not use the SVB405 for medical or human body inspection.
Do not use the camera in areas where it may contact live cables or electrical objects.
Do not use the borescope in explosive environments with flammable liquid, gas, or dust.
Keep the articulating borescope clean and avoid prolonged exposure to direct sunlight.
Protect the display, handle, charging port, TF card slot, and buttons from rainwater, moisture, oil, and corrosive liquids.
Key Features
Key Features
SVB405 combines four-way articulation, slim access, HD imaging, adjustable lighting, clear screen viewing, long battery life, and built-in storage for efficient automotive inspection in confined spaces.

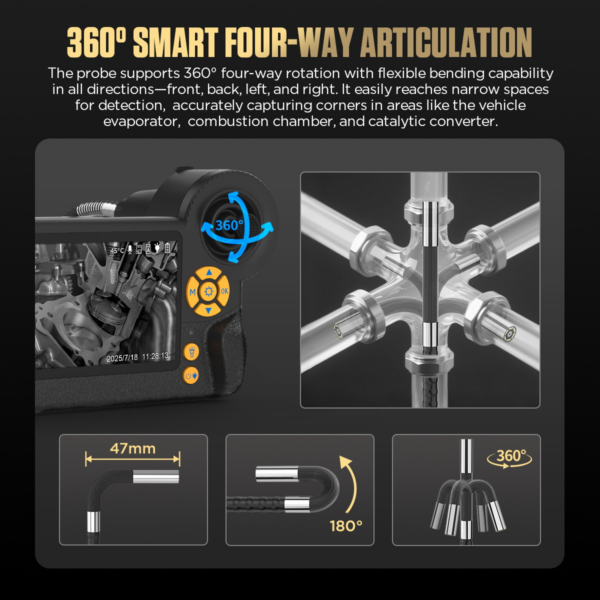

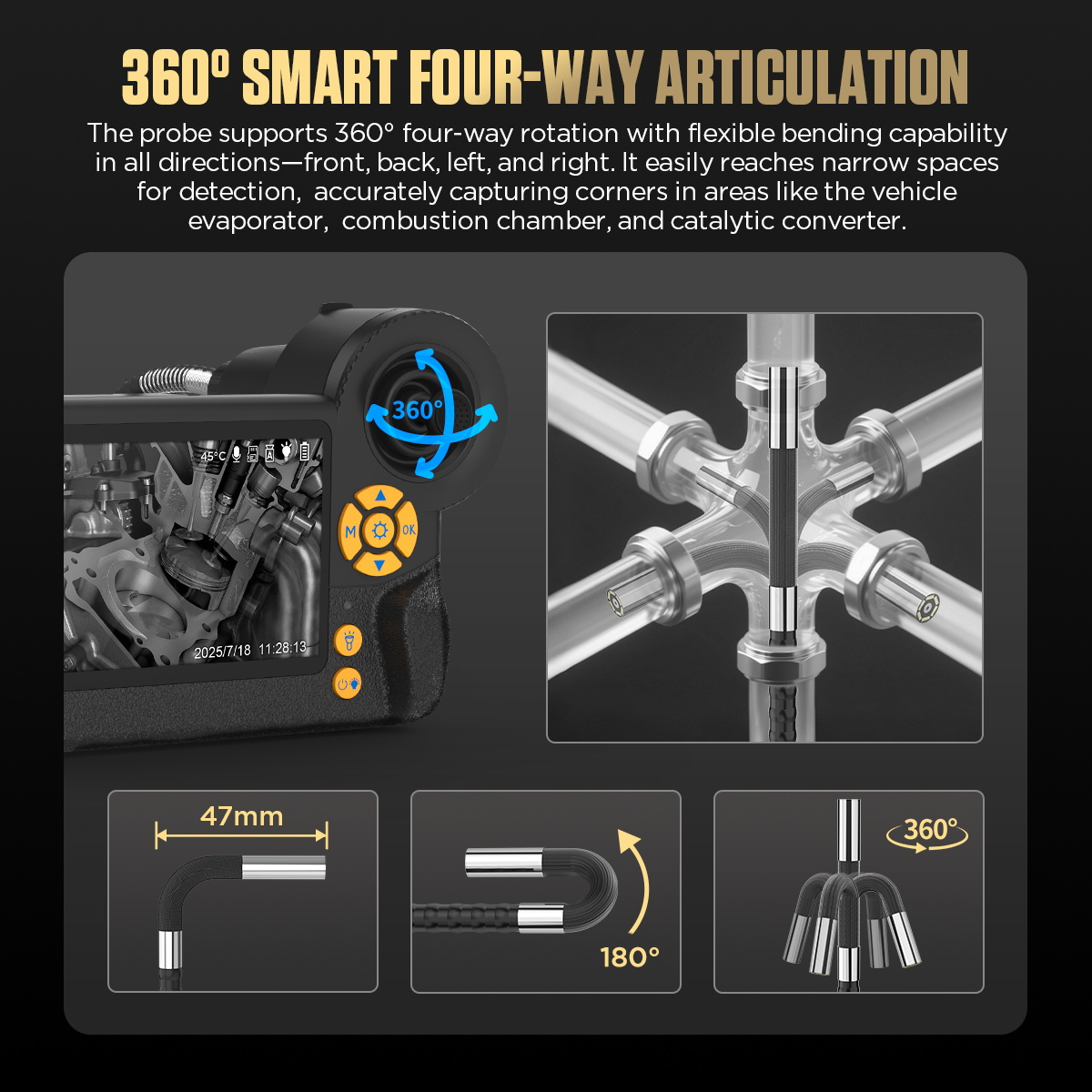

360° Four-Way Articulation
The probe supports 360° four-way control with a 180° articulation angle and 47mm bending radius, helping users reach front, back, left, and right viewing angles inside narrow spaces.

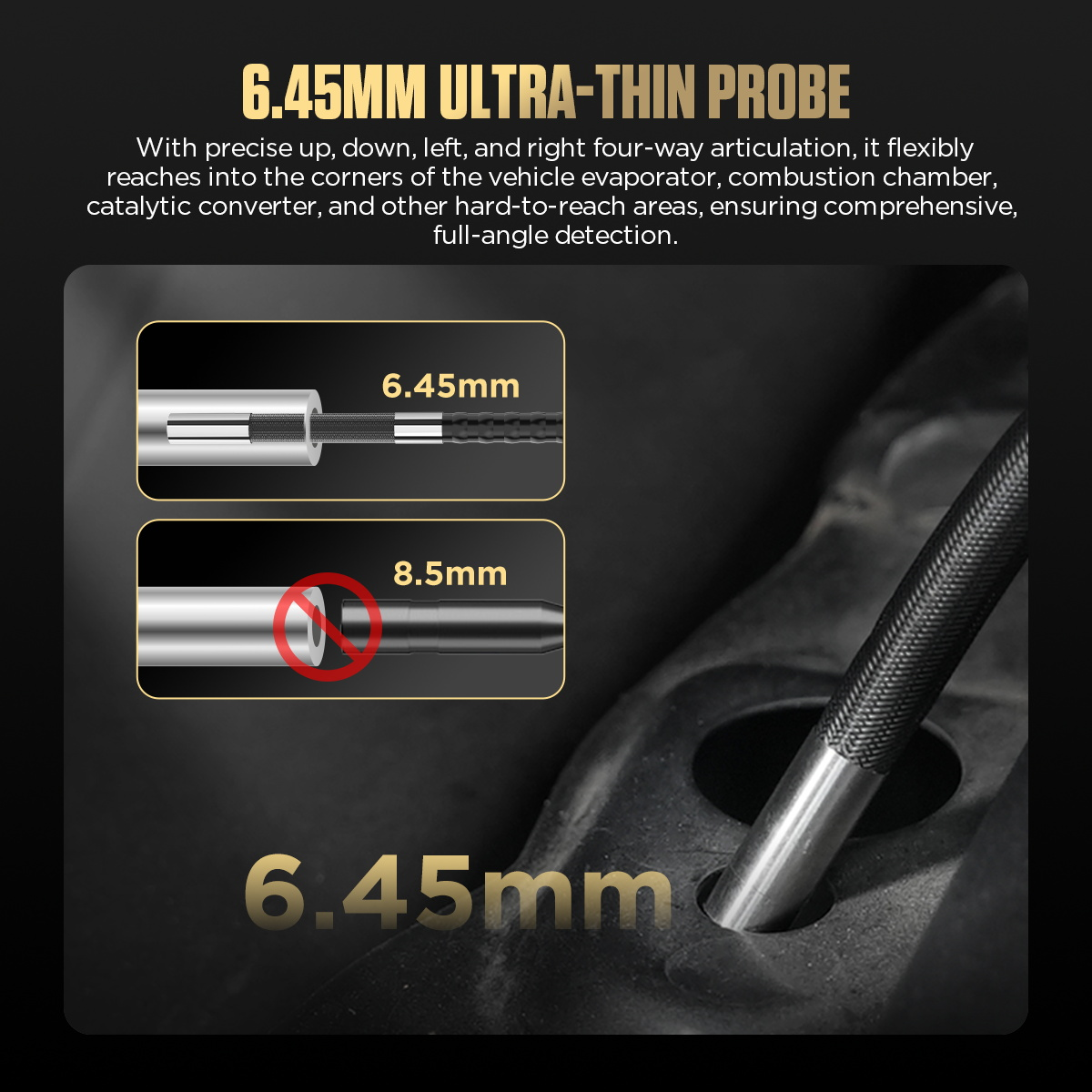

6.45mm Ultra-Thin Probe
The 6.45mm probe can enter engine gaps, pipes, combustion chambers, evaporator areas, catalytic converter areas, and other hard-to-reach automotive spaces.

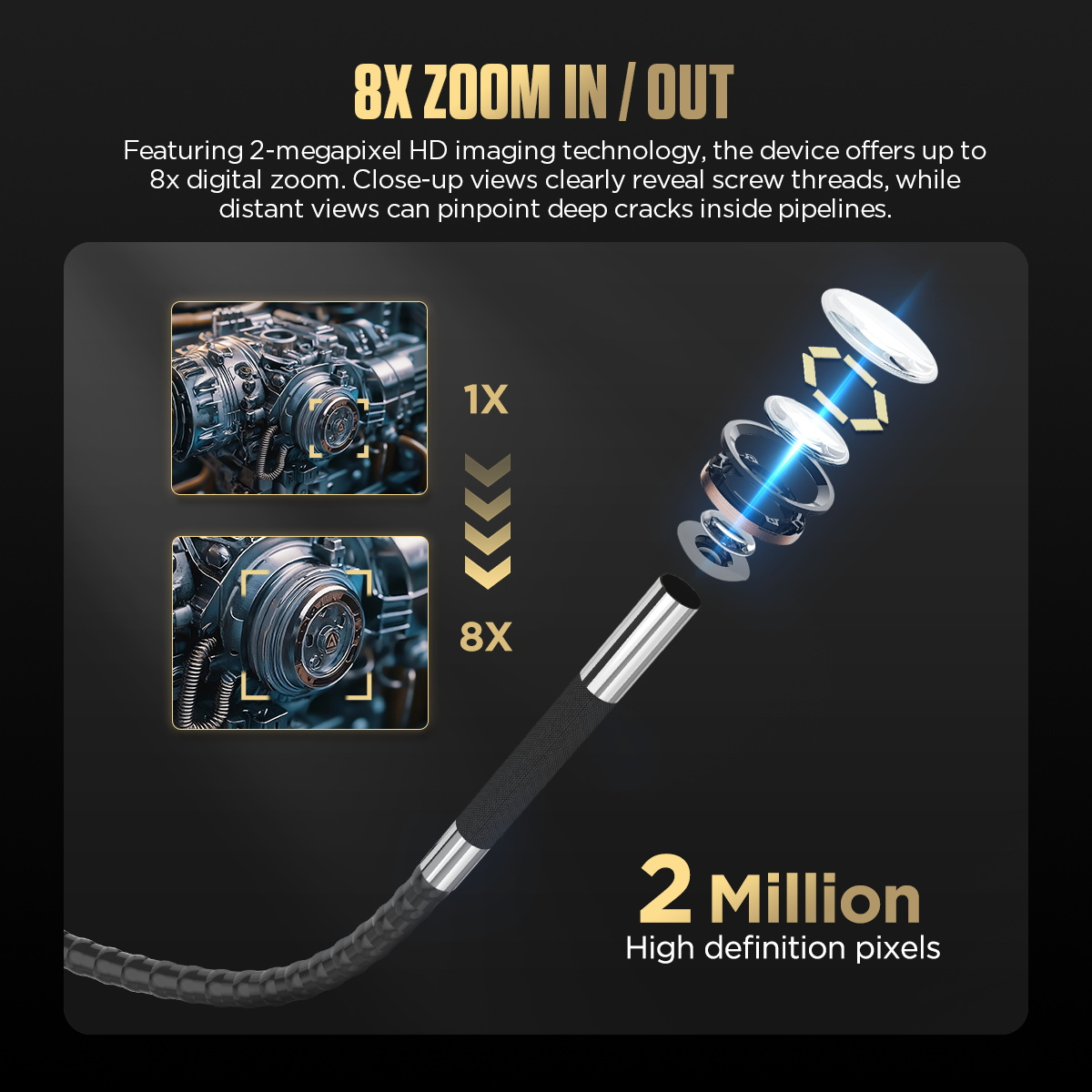

2MP Camera With 8x Zoom
The 2MP HD camera and up to 8x digital zoom help reveal detailed conditions such as screw threads, cracks, carbon deposits, wear marks, blockage, and pipe damage.

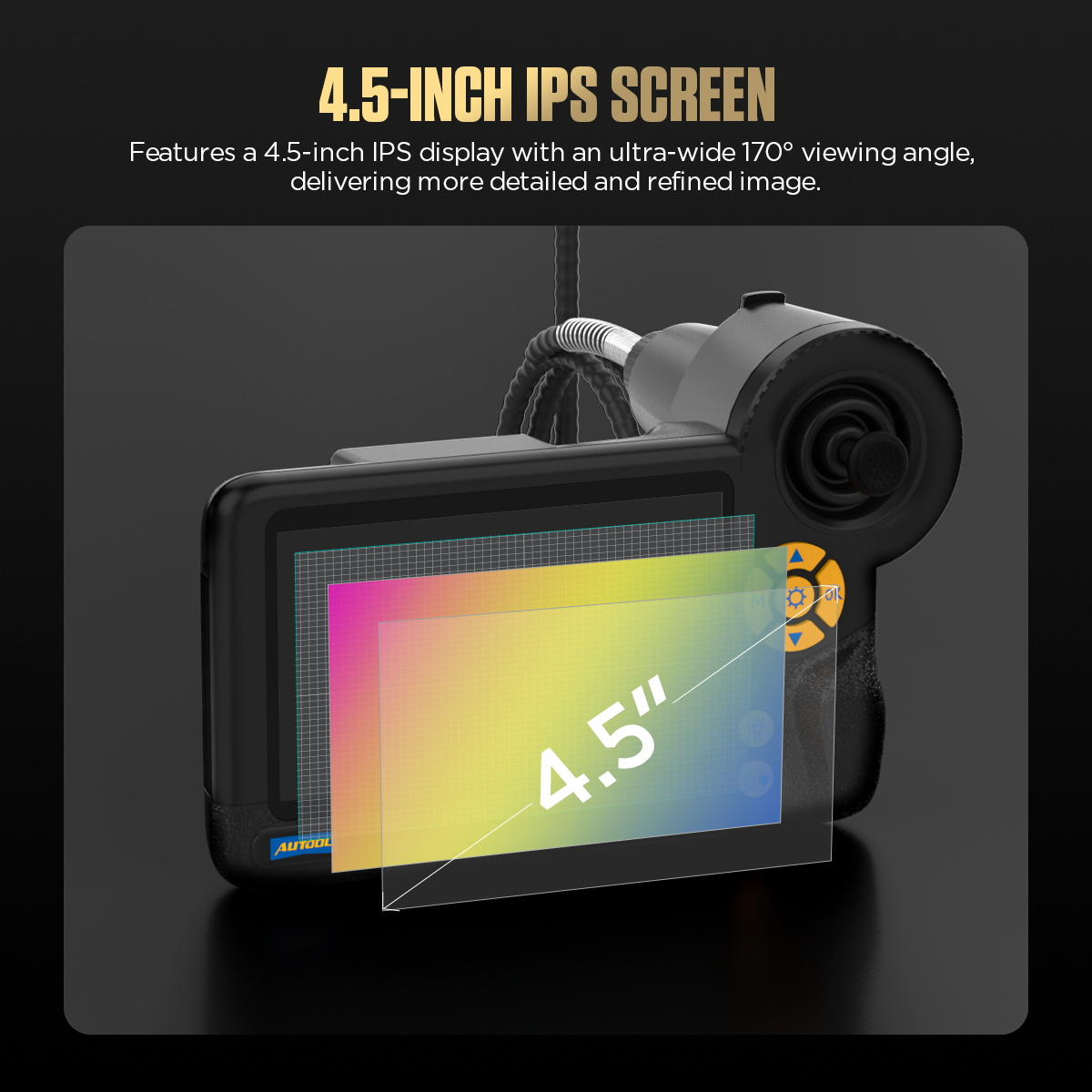

4.5-Inch IPS HD Screen
The 4.5-inch IPS display provides a clear real-time view with an ultra-wide viewing angle for inspection, image checking, and diagnosis.

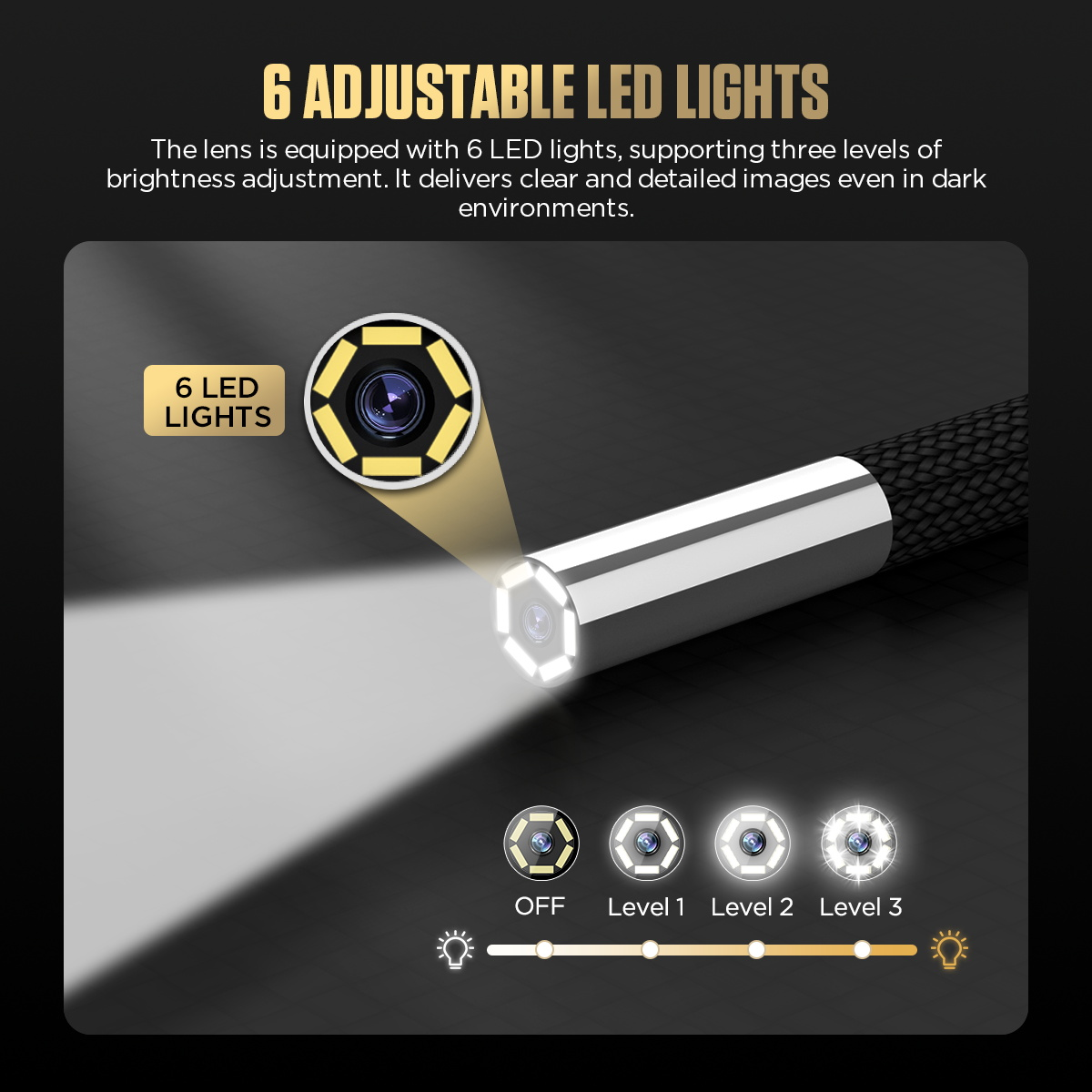

Six Adjustable Ceramic LEDs
Six ceramic LEDs support three brightness levels, delivering stable illumination for dark engine bays, pipelines, evaporator housings, and confined cavities.

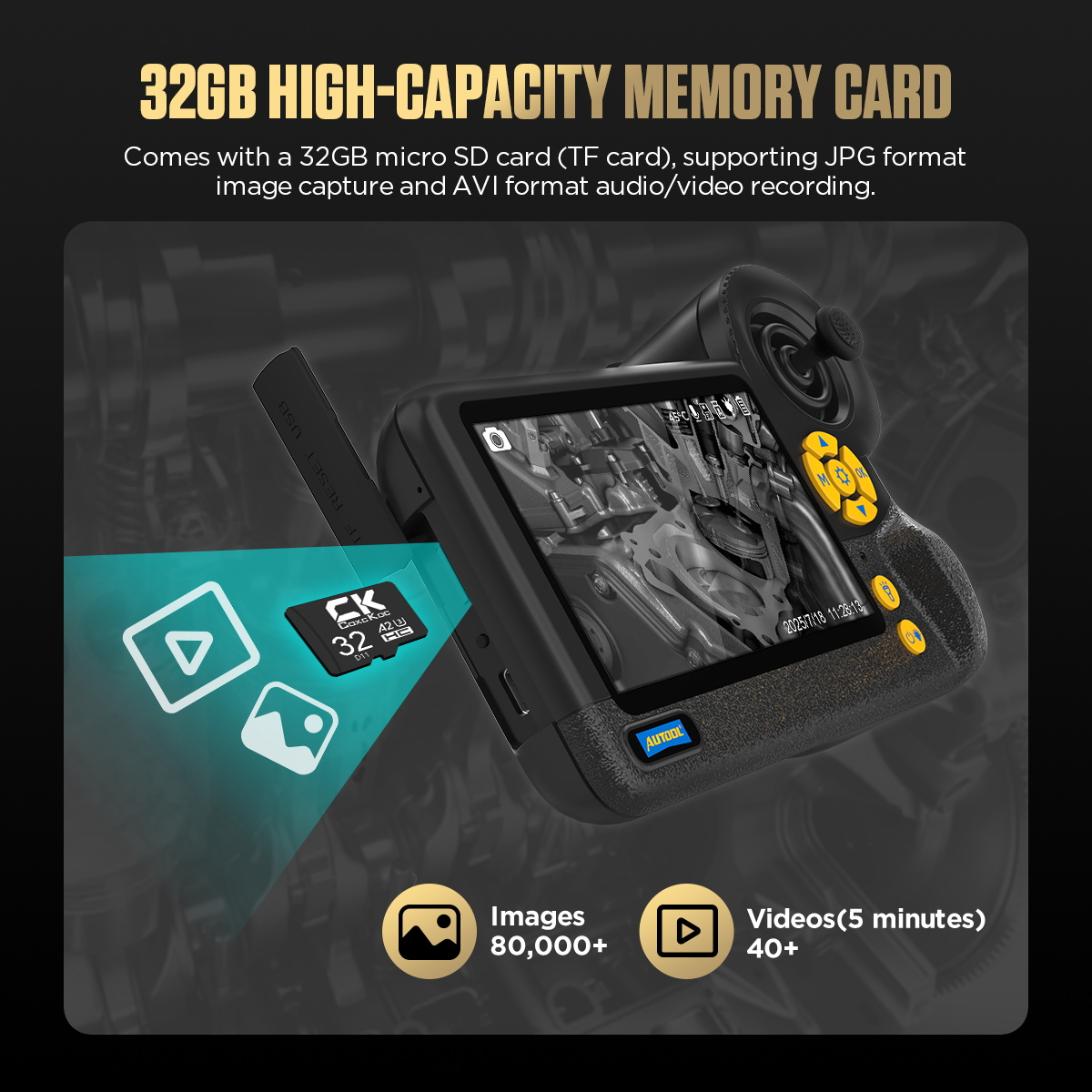

Battery And Storage
The 2000mAh battery supports up to 180 minutes of use, while the 32GB TF card stores JPG images and AVI video recordings for later review.
Click to enlargeClick to enlargeClick to enlargeClick to enlargeClick to enlargeClick to enlargeClick to enlargeClick to enlarge
Applications
Applications
Use SVB405 for nondestructive visual inspection in hard-to-reach automotive areas. It is also suitable for selected motorcycle, mechanical, pipe, appliance, circuit maintenance, and air-conditioning repair inspection tasks when the temperature and liquid exposure limits are respected.
Evaporator And HVAC Inspection
Inspect evaporators, air-conditioning ducts, and hidden HVAC areas without unnecessary disassembly.
Combustion Chamber Inspection
Check combustion chambers, piston tops, carbon deposits, internal wear, and narrow engine access points after the engine has cooled.
Engine And Transmission Inspection
Inspect hard-to-reach engine, transmission, motorcycle, and mechanical areas to support faster and more accurate fault diagnosis.

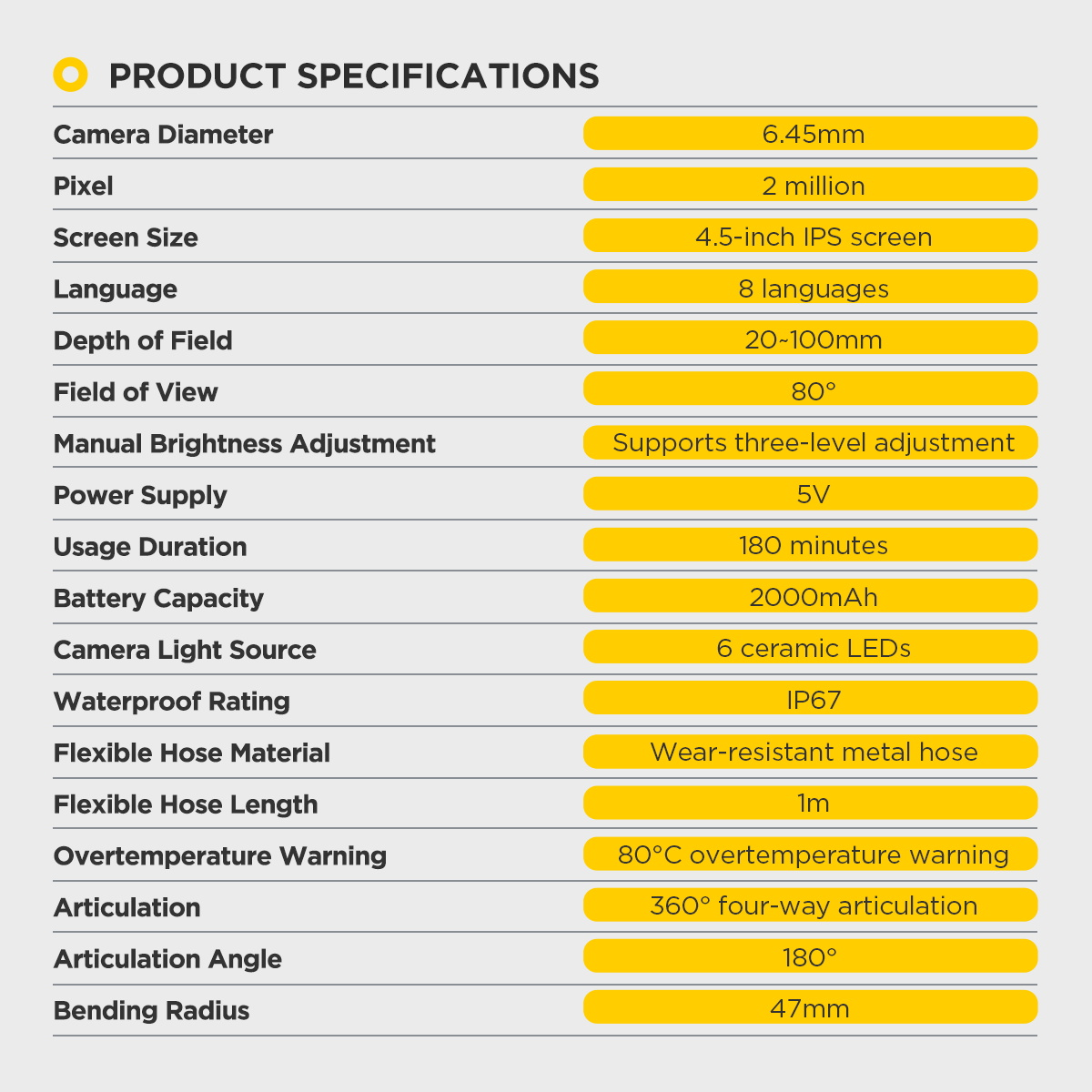

Review the camera, display, probe, articulation, lighting, battery, storage, temperature warning, language, and warranty details before ordering.
Camera And Display
Product
AUTOOL SVB405 Four-Way Articulating Borescope
Camera Diameter
6.45mm
Camera Resolution
2MP / 2 million pixels
Screen
4.5-inch IPS screen
Digital Zoom
Up to 8x
Depth Of Field
20-100mm
Field Of View
80°
Probe And Articulation
Articulation
360° four-way articulation
Articulation Angle
180°
Bending Radius
47mm
Flexible Hose Length
1m
Flexible Hose Material
Wear-resistant metal hose
Waterproof Rating
IP67-rated camera probe / camera head; whole device is not waterproof
Lighting, Battery And Storage
Camera Light Source
6 ceramic LEDs
Manual Brightness Adjustment
3 adjustable levels
Power Supply
5V
Battery Capacity
2000mAh lithium battery
Usage Duration
Up to 180 minutes
Storage
Built-in / included 32GB TF card storage
File Support
JPG image capture and AVI video recording
Storage Capacity
Over 80,000 images or 40+ five-minute videos
Temperature, Language And Warranty
Recommended Use Temperature
Below 75°C whenever possible
Overtemperature Warning
80°C overtemperature warning with screen prompt and image signal cut-off
Probe Temperature Limit
Do not use the probe above 85°C / 185°F

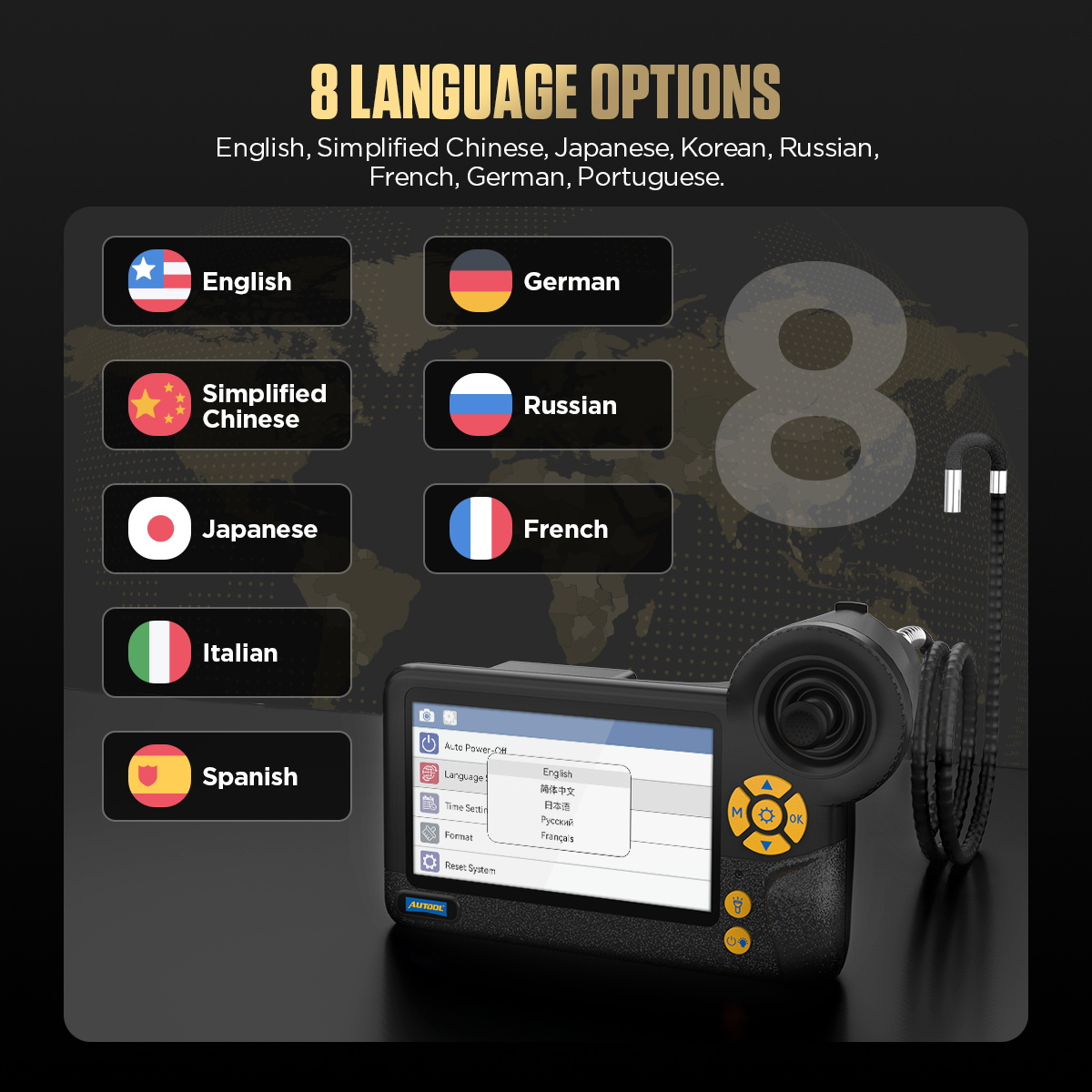

Languages
8 language options; confirm the exact language menu before ordering if a specific language is required
Warranty
3-year warranty support for eligible non-artificial damage

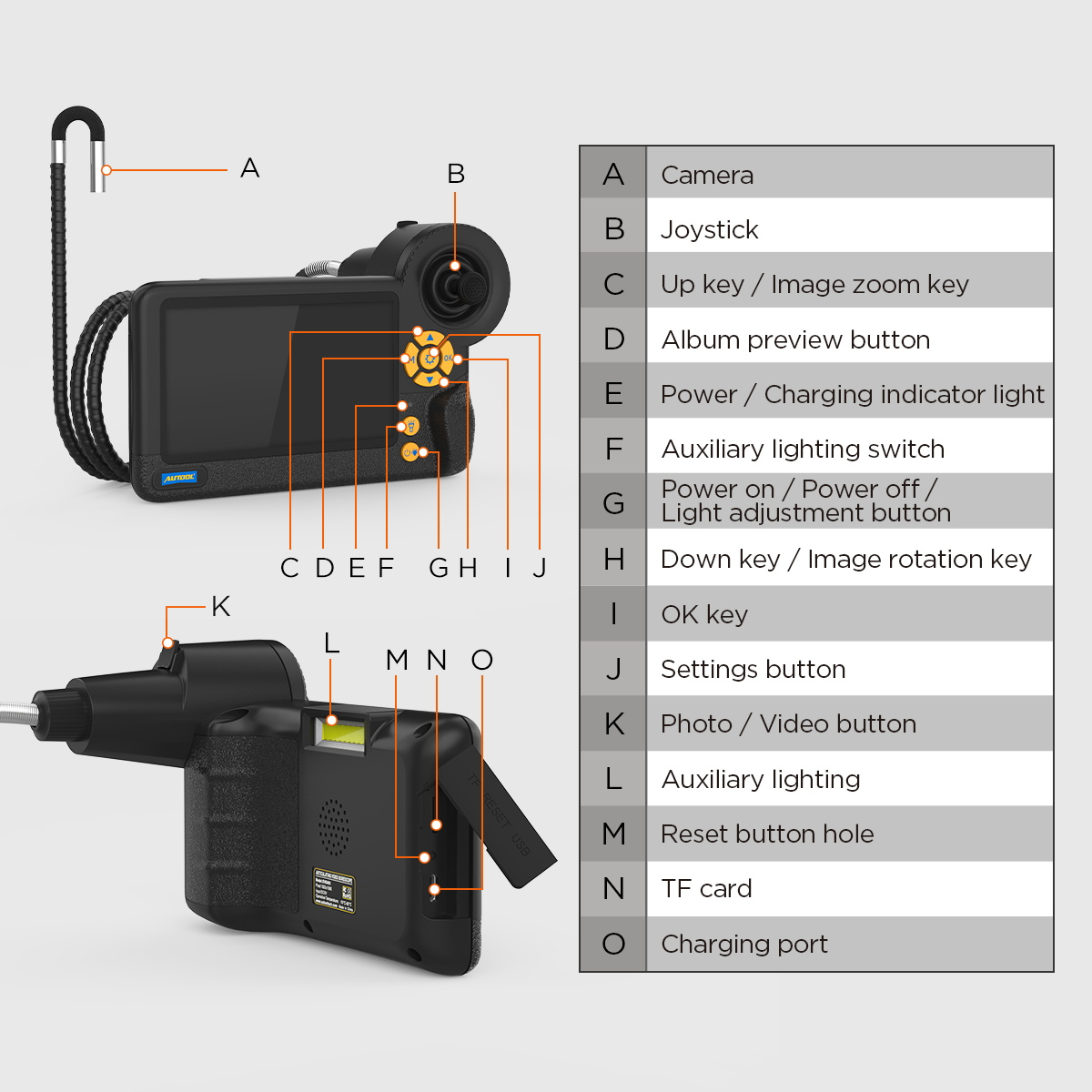

Product Structure
Structure Overview
The SVB405 body integrates camera steering, image zoom, image rotation, photo/video capture, lighting adjustment, album preview, settings, TF card access, and charging functions in one handheld inspection tool.
Camera And Steering
Camera probe with joystick control for four-way articulation
Image Controls
Up key / image zoom key, down key / image rotation key, OK key, and settings button
Capture And Preview
Photo / video button and album preview button for recording and checking inspection results
Lighting
Auxiliary lighting, auxiliary lighting switch, and power / light adjustment button
Power And Storage
Power / charging indicator light, reset button hole, TF card slot, and charging port

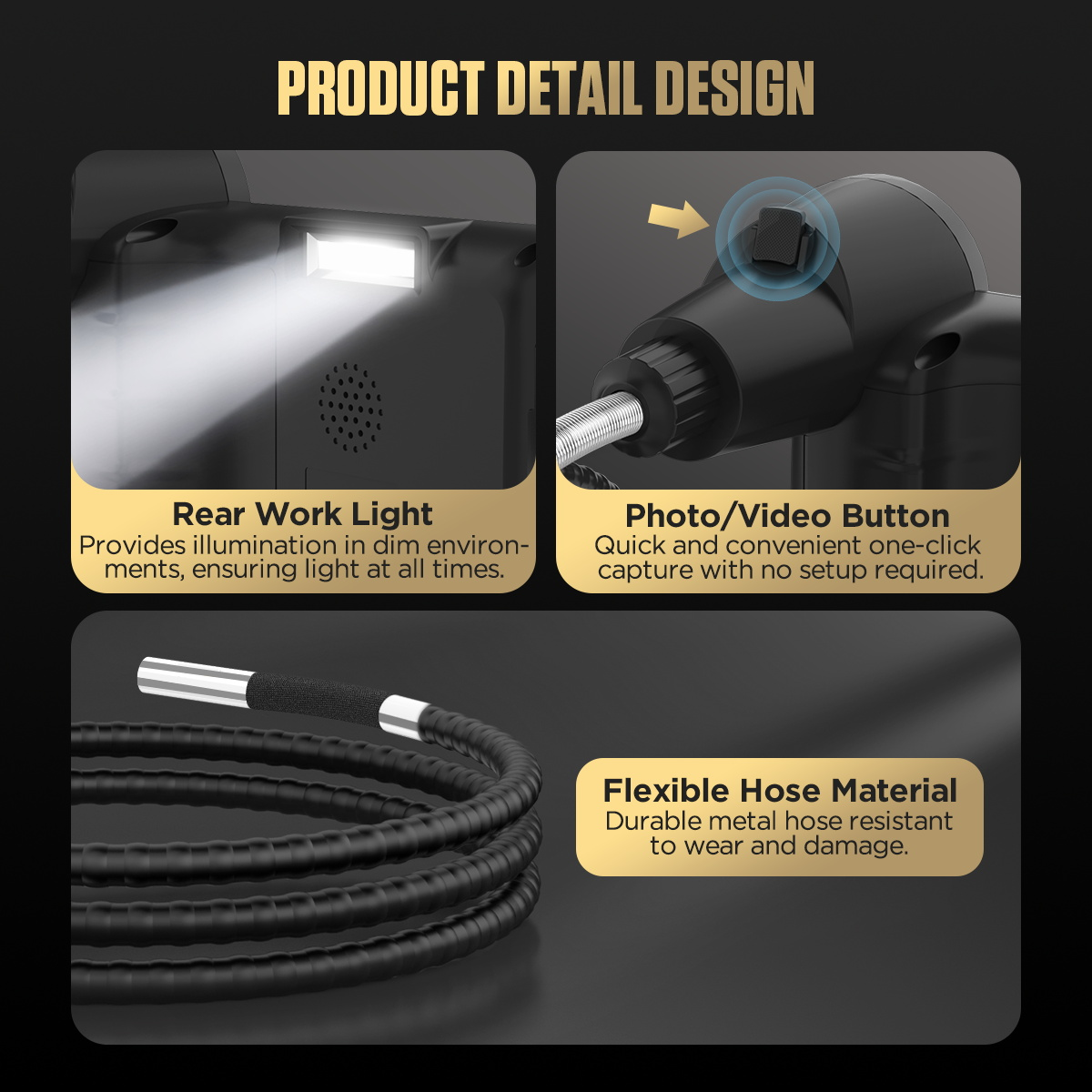

Rear Work Light
Additional rear lighting helps illuminate dim work areas around the inspection site
Waterproof RatingIP67-rated camera probe / camera head; whole device is not waterproof
Lighting, Battery And Storage
Camera Light Source6 ceramic LEDs
Manual Brightness Adjustment3 adjustable levels
Power Supply5V
Battery Capacity2000mAh lithium battery
Usage DurationUp to 180 minutes
StorageBuilt-in / included 32GB TF card storage
File SupportJPG image capture and AVI video recording
Storage CapacityOver 80,000 images or 40+ five-minute videos
Temperature, Language And Warranty
Recommended Use TemperatureBelow 75°C whenever possible
Overtemperature Warning80°C overtemperature warning with screen prompt and image signal cut-off
Probe Temperature LimitDo not use the probe above 85°C / 185°F
Languages8 language options; confirm the exact language menu before ordering if a specific language is required
Warranty3-year warranty support for eligible non-artificial damage
Product Structure
Structure OverviewThe SVB405 body integrates camera steering, image zoom, image rotation, photo/video capture, lighting adjustment, album preview, settings, TF card access, and charging functions in one handheld inspection tool.
Camera And SteeringCamera probe with joystick control for four-way articulation
Image ControlsUp key / image zoom key, down key / image rotation key, OK key, and settings button
Capture And PreviewPhoto / video button and album preview button for recording and checking inspection results
LightingAuxiliary lighting, auxiliary lighting switch, and power / light adjustment button
Power And StoragePower / charging indicator light, reset button hole, TF card slot, and charging port
Rear Work LightAdditional rear lighting helps illuminate dim work areas around the inspection site
Product Comparison
Product Comparison
Compare SVB405 with related AUTOOL articulating borescope models before choosing the right steering angle, lens setup, resolution, screen size, bending radius, battery, storage, and inspection workflow.
SVB405 Focus360° four-way articulation, one lens, 2MP image quality, 6.45mm probe, 4.5-inch IPS screen, 80° field of view, 20-100mm depth of field, 47mm bending radius, 32GB storage, and 8x digital zoom.
SVB403 Focus210° two-way steering, dual-lens design with front and side lenses, 1MP camera, 4.3-inch display, 35mm bending radius, 32GB storage, and 8x digital zoom.
SVB408 Focus360° four-way rotation, one lens, 1MP camera, 4.5-inch IPS screen, 8.9mm lens diameter, 25-100mm depth of field, 37mm bending radius, and 32GB storage.
SVB302 / SVB303SVB302 uses 210° two-way steering with a 6.45mm lens. SVB303 supports 360° four-way rotation, uses a 6.2mm lens, and includes magnetic base and detachable design.
SVB305 / SVB308SVB305 uses 210° two-way steering and a 5.05mm lens. SVB308 supports 360° four-way rotation, uses a 6.2mm lens, has a 2600mAh battery, and includes magnetic base and detachable design.
Decision CheckChoose SVB405 if you prioritize 2MP image quality, 360° four-way steering, 4.5-inch IPS display, slim 6.45mm access, 8x zoom, and detailed inspection in narrow automotive spaces.
Click to enlarge

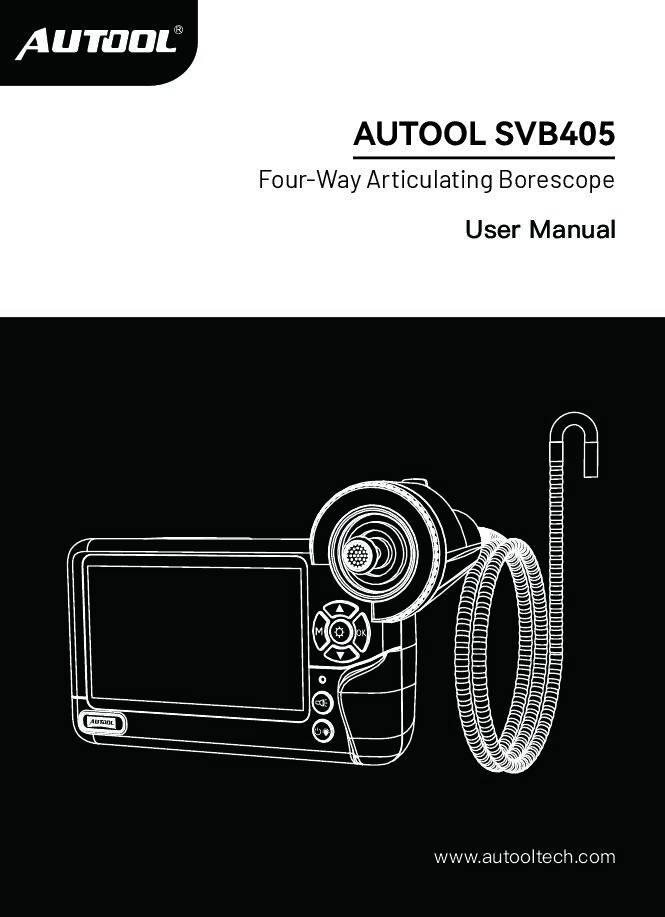

Manual And Downloads
Manual And Downloads
Download the SVB405 manual for safety rules, product introduction, structure diagram, operation guidance, troubleshooting, maintenance, warranty, and return / exchange information.
Contact AUTOOL Store before ordering if you need to confirm high-temperature use, probe diameter, articulation, model comparison, language options, memory card details, package information, or warranty conditions.
Compare related AUTOOL automotive borescope cameras before choosing the right steering angle, probe size, camera resolution, display, battery capacity, storage, and inspection workflow.
SALE
Select options
This product has multiple variants. The options may be chosen on the product page
Select options
This product has multiple variants. The options may be chosen on the product page
Questions And Answers
These answers cover SVB403 / SVB405 / SVB408 comparison, related SVB series model differences, high-temperature use, temperature warning, waterproof limits, image quality, storage, and recommended inspection scenarios.
SVB403 has 210-degree two-way steering and two lenses, including a front lens and a side lens. SVB405 and SVB408 support 360-degree four-way rotation and each has one lens. SVB405 uses a 2MP camera, while SVB403 and SVB408 use 1MP cameras. SVB403 has a 4.3-inch screen, while SVB405 and SVB408 have 4.5-inch screens. The bending radius is 35mm for SVB403, 47mm for SVB405, and 37mm for SVB408.
SVB305 has 210-degree two-way steering, while SVB308 supports 360-degree four-way rotation. SVB305 uses a 5.05mm lens, while SVB308 uses a 6.2mm lens. SVB305 supports English, German, French, Italian, Spanish, Chinese, Russian, and Japanese. SVB308 supports these languages plus Traditional Chinese and Korean. SVB305 has a 2000mAh battery, while SVB308 has a larger 2600mAh battery. SVB308 also includes a magnetic base and detachable design.
SVB302 has 210-degree two-way steering, while SVB303 supports 360-degree four-way rotation. SVB302 uses a 6.45mm lens, while SVB303 uses a slimmer 6.2mm lens. SVB302 has a 30-100mm focus range, while SVB303 has a 20-100mm range. SVB302 supports English, German, French, Italian, Spanish, Chinese, and Japanese. SVB303 supports these languages plus Traditional Chinese, Russian, and Korean. SVB303 also includes a magnetic base and detachable design.
No. Use the SVB405 below 75°C whenever possible and wait until the engine has cooled completely. A recently stopped engine may reach 80°C-100°C or higher. The probe should not be used above 85°C / 185°F. High-temperature damage is considered abnormal damage and is not covered by free warranty.
When the camera temperature exceeds about 80°C, the SVB405 may cut off the camera signal, display an over-temperature warning icon on the screen, and emit an alarm. Remove the probe from the hot area and wait for it to cool down. The image should automatically resume after the camera cools.
The SVB405 camera probe / camera head has an IP67 waterproof rating, but the whole device is not waterproof. Avoid rainwater, moisture around the host unit, and prolonged direct contact with water, oil, or corrosive liquids. Keep the borescope clean and dry after use.
SVB405 combines a 2MP camera, 8x digital zoom, 4.5-inch IPS HD screen, 20-100mm depth of field, 80° field of view, six adjustable ceramic LEDs, and 360° four-way articulation for clearer inspection in narrow automotive spaces.
Yes. SVB405 uses 32GB TF card storage and supports JPG image capture and AVI video recording. The storage capacity can support more than 80,000 images or 40+ five-minute videos, depending on actual file size and recording conditions.
SVB405 is suitable for automotive evaporators, combustion chambers, engine gaps, pipes, exhaust passages, catalytic converter areas, motorcycle repair, mechanical repair, pipe repair, and selected air-conditioning inspection tasks. Do not use it for human body inspection, medical use, live electrical contact, explosive environments, or hot-engine inspection above the recommended temperature range.
SVB405 supports 8 language options. Because the exact language menu may vary by production batch or version, contact AUTOOL Store before ordering if you require a specific language such as English, Simplified Chinese, Japanese, Russian, French, German, Italian, Spanish, Portuguese, Korean, or another menu option.
