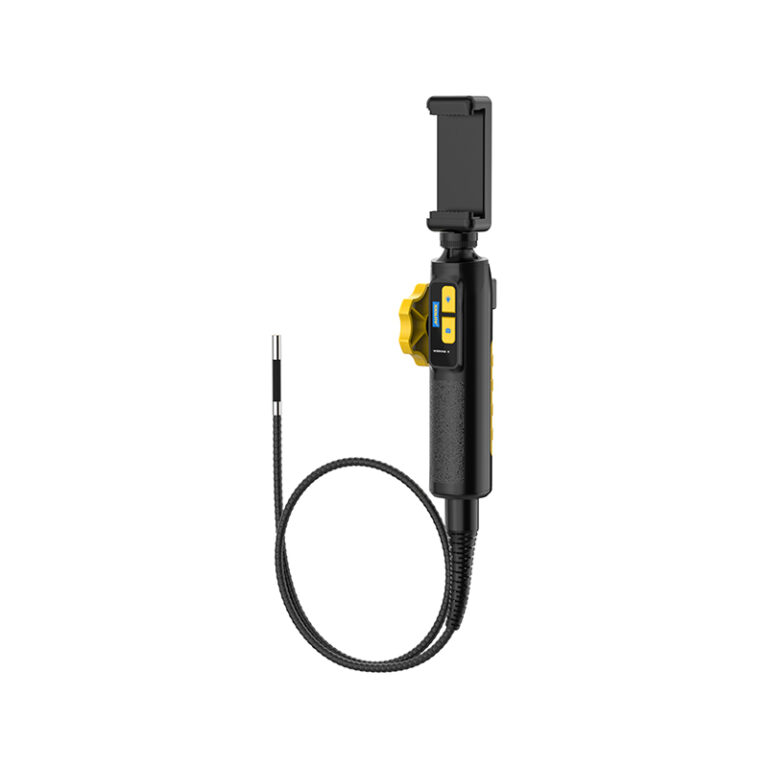

The AUTOOL SVB302 is a phone-connected automotive endoscope camera for inspecting narrow and curved areas without disassembling vehicle parts. Its small articulating probe, 210° two-way steering control, LED brightness adjustment, photo and video capture, IP67 camera probe, and external device display support make it suitable for automotive inspection, mechanical maintenance, pipelines, and facility checks.
210° Two-Way ArticulationPhone / Tablet DisplayPhoto & VideoIP67 Camera Probe
6.45mmCamera Diameter
1280×720Resolution
30–100mmDepth Of Field
3 YearsWarranty Support
Click to enlarge
Before You Order And Use
Before You Order And Use
SVB302 is designed for inspection through an external display device. Review the screen difference, cable setup, high-temperature warning, waterproof boundary, and safe-use limits before ordering or operating the tool.
No Built-In Screen
SVB302 does not include a built-in display screen. Connect it to a compatible phone, tablet, or laptop to view images and video.
SVB302 Vs SVB305
SVB305 has a built-in screen. SVB302 is a lighter external-device model and is better when you prefer phone, tablet, or laptop viewing.
Cable Setup Difference
SVB302 uses multiple connection cables for different device ports, while SVB305 uses a simpler screen-integrated setup. Confirm device compatibility before use.
Avoid Hot Engine Use
Do not use the camera right after the vehicle stops or when the engine is hot. A recently stopped engine may reach 80°C to 100°C or higher.
Keep Below 75°C For Safety
Although the device has high-temperature protection, do not place the hose in an environment above 75°C. Wait about 1–2 hours for the engine to cool before inspection.
High-Temperature Damage
Camera damage caused by high temperature is treated as artificial damage. Camera replacement may require an additional service cost.
Safety And Handling Notes
The camera probe is IP67 waterproof and oil-resistant, but the handle, USB interface, phone holder, and connected device must not be soaked.
Do not use the camera for medical inspection, human body testing, live electrical inspection, or areas where exposed metal parts may contact charged objects.
Do not twist, pull, or over-bend the front bending section. Handle the flexible hose carefully and avoid excessive bending.
Keep the product clean and avoid long-term sun exposure, direct contact with corrosive liquids, and rough-surface abrasion.
Use a 5V adapter or mobile power supply when charging. Do not use fast charging or excessive voltage.

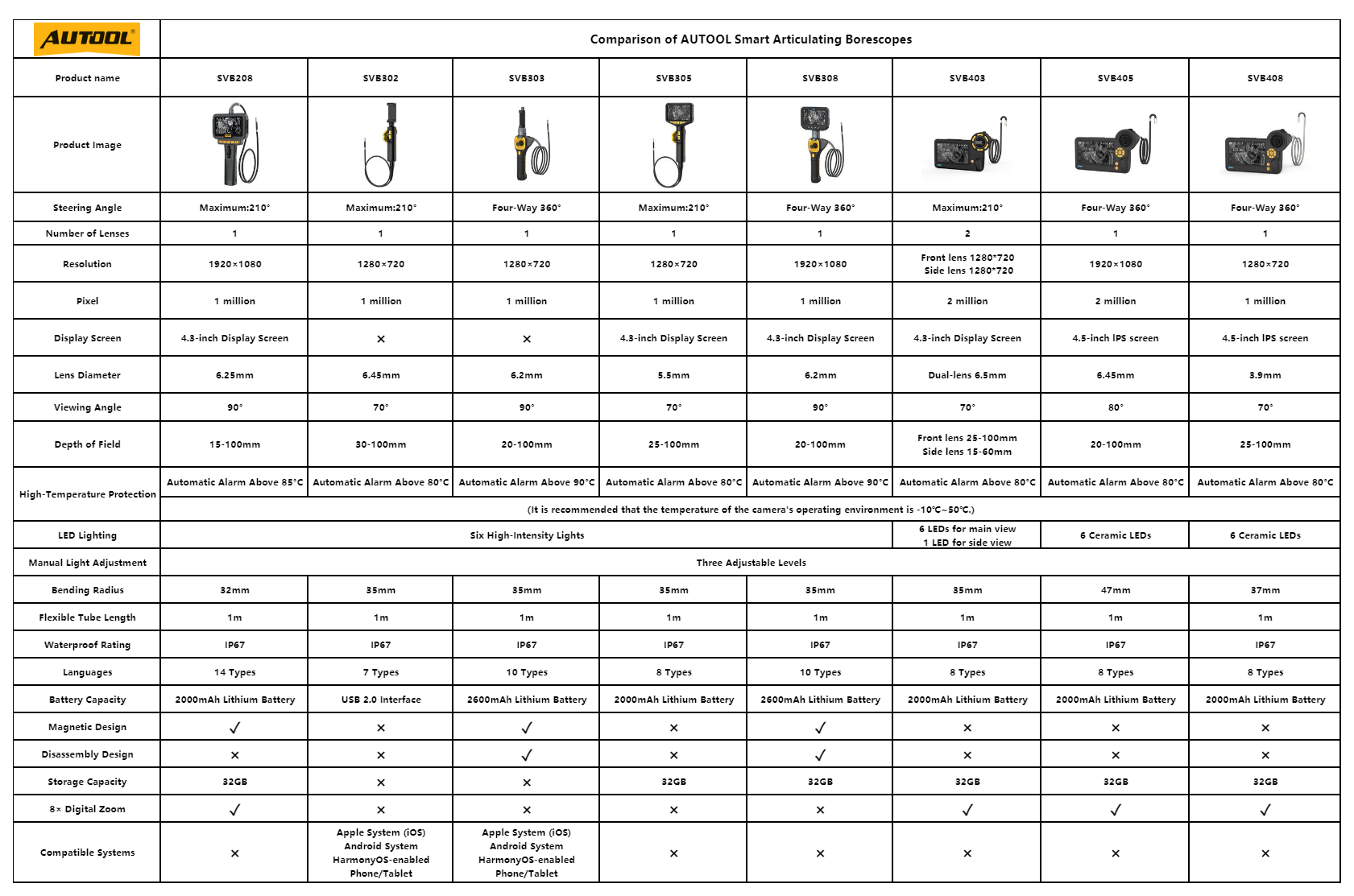

Product Comparison
Product Comparison
Compare SVB302 with related AUTOOL smart articulating borescopes before choosing by screen type, steering angle, lens size, resolution, battery design, storage, and inspection space.
SVB302 FocusExternal-device borescope with 210° two-way articulation, 6.45mm lens, 1280×720 resolution, 1m flexible cable, USB 2.0 connection, and phone/tablet/laptop viewing.
Need A Built-In Screen?Choose SVB305, SVB308, SVB403, SVB405, or SVB408 if you need an integrated screen. SVB302 and SVB303 are external-display models.
Need Four-Way 360° Steering?Choose SVB303, SVB308, SVB405, or SVB408 for four-way articulation. SVB302 supports two-way steering up to 210°.
Need A Smaller Probe?SVB408 has a 3.9mm lens for very tight spaces. SVB302 uses a 6.45mm camera diameter.
Decision CheckConfirm display method, articulation direction, lens diameter, depth of field, waterproof boundary, supported systems, and high-temperature limit before ordering.
Click to enlarge
Key Features
Key Features
SVB302 helps users inspect hard-to-reach areas with a steerable camera probe, adjustable lighting, external device viewing, image capture, and waterproof probe protection for wet-pipe inspection conditions.

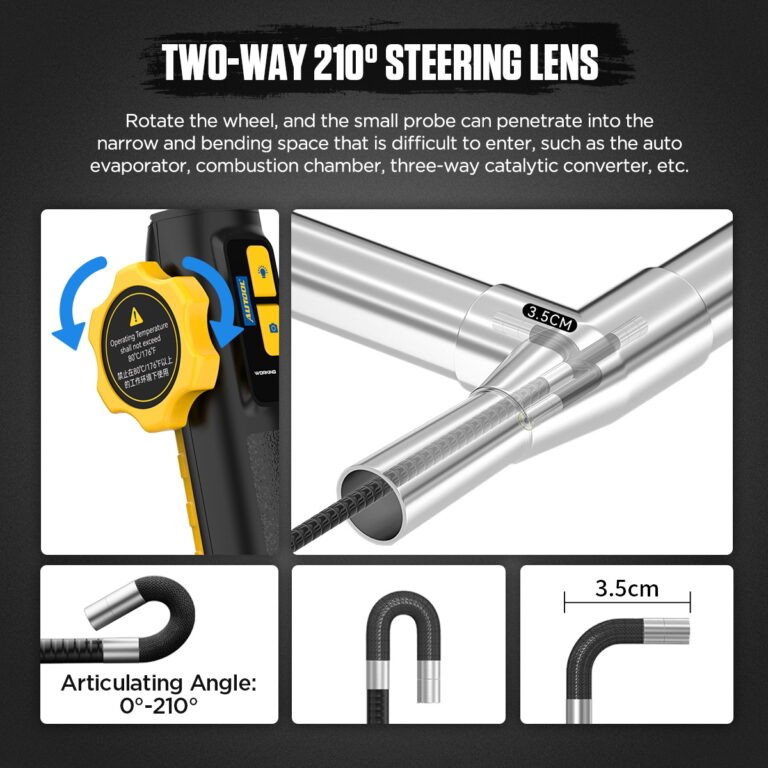

210° Two-Way Steering Lens
The small probe can access narrow curved spaces such as automotive evaporators, combustion chambers, and three-way catalytic converters.

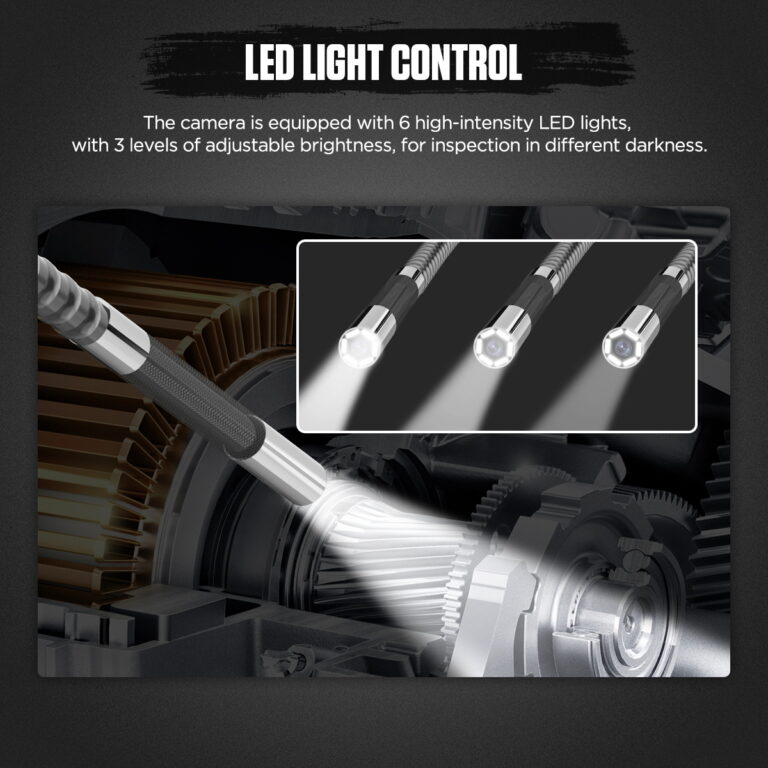

LED Light Control
The camera uses high-intensity LED lighting with adjustable brightness, helping users inspect darker internal spaces more clearly.
Photo And Video Capture
Capture inspection photos or record videos to document internal conditions, explain faults, and support repair decisions.

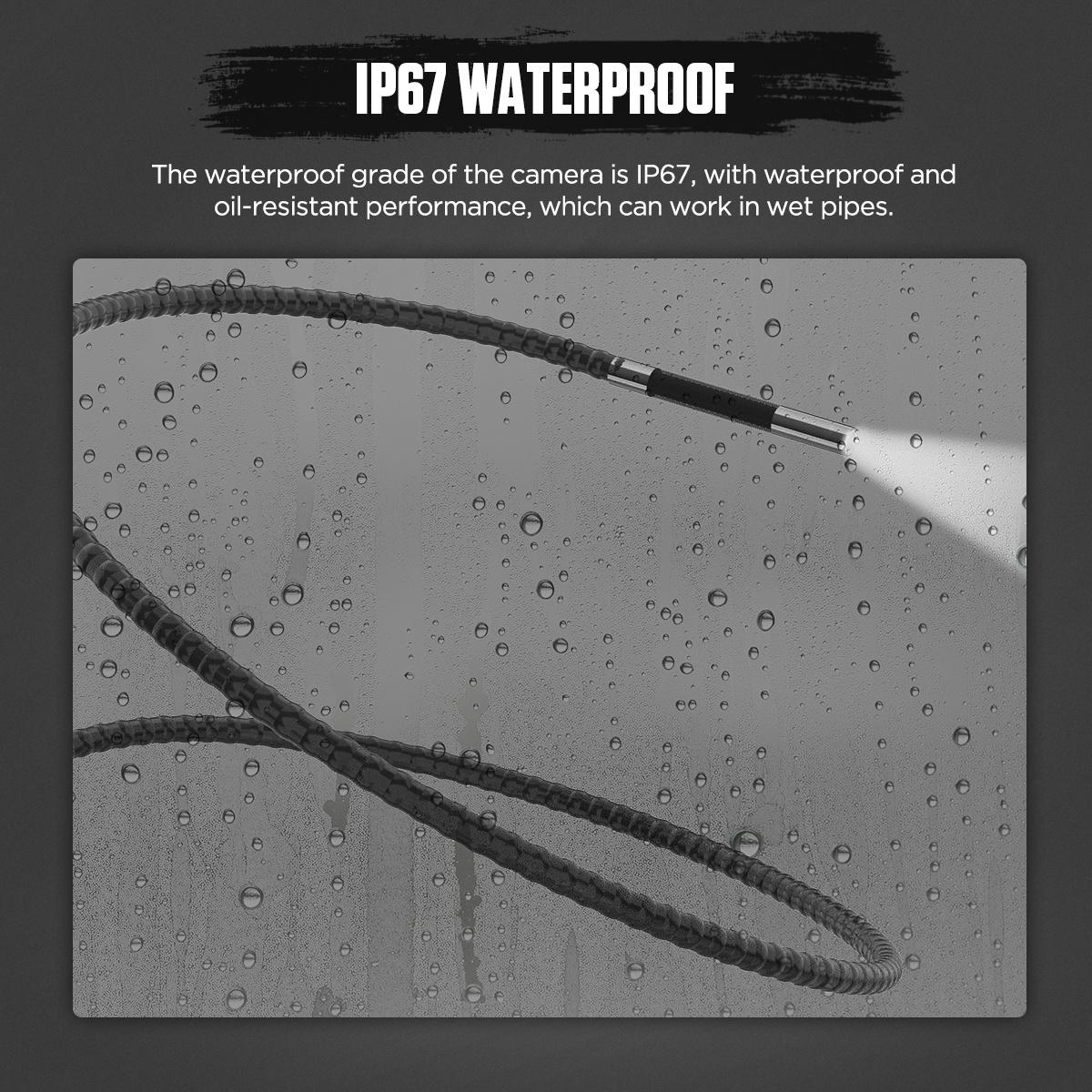

IP67 Camera Probe
The camera probe is IP67 waterproof and oil-resistant, suitable for wet pipes and similar inspection environments. Do not soak the handle or connected device.

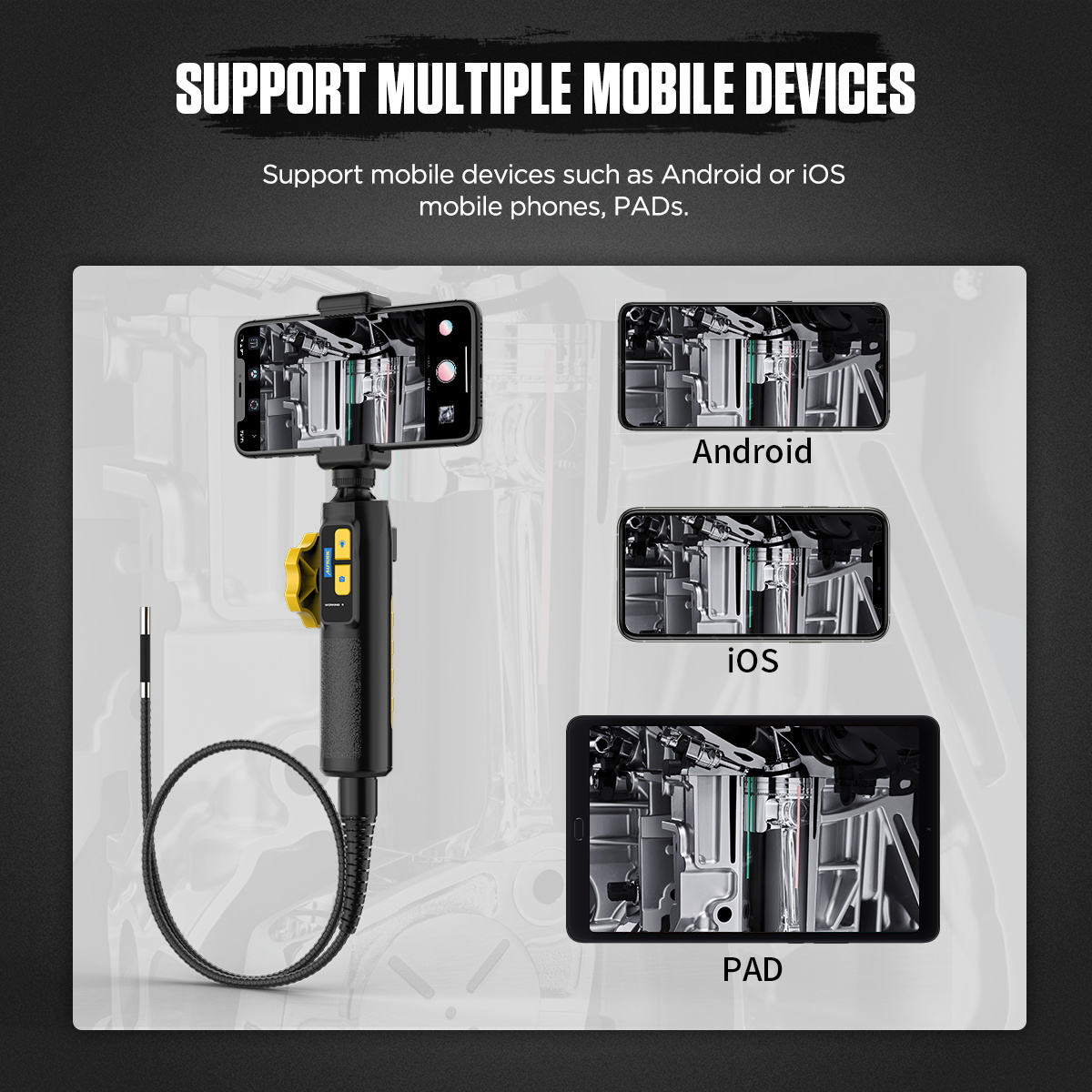

Multiple Device Support
Supports mobile devices such as Android phones, iOS phones, tablets, and compatible laptops depending on cable and software setup.
Nondestructive Inspection
Inspect internal vehicle and equipment areas without unnecessary disassembly, helping reduce maintenance time and avoid avoidable part removal.
Click to enlargeClick to enlargeClick to enlarge

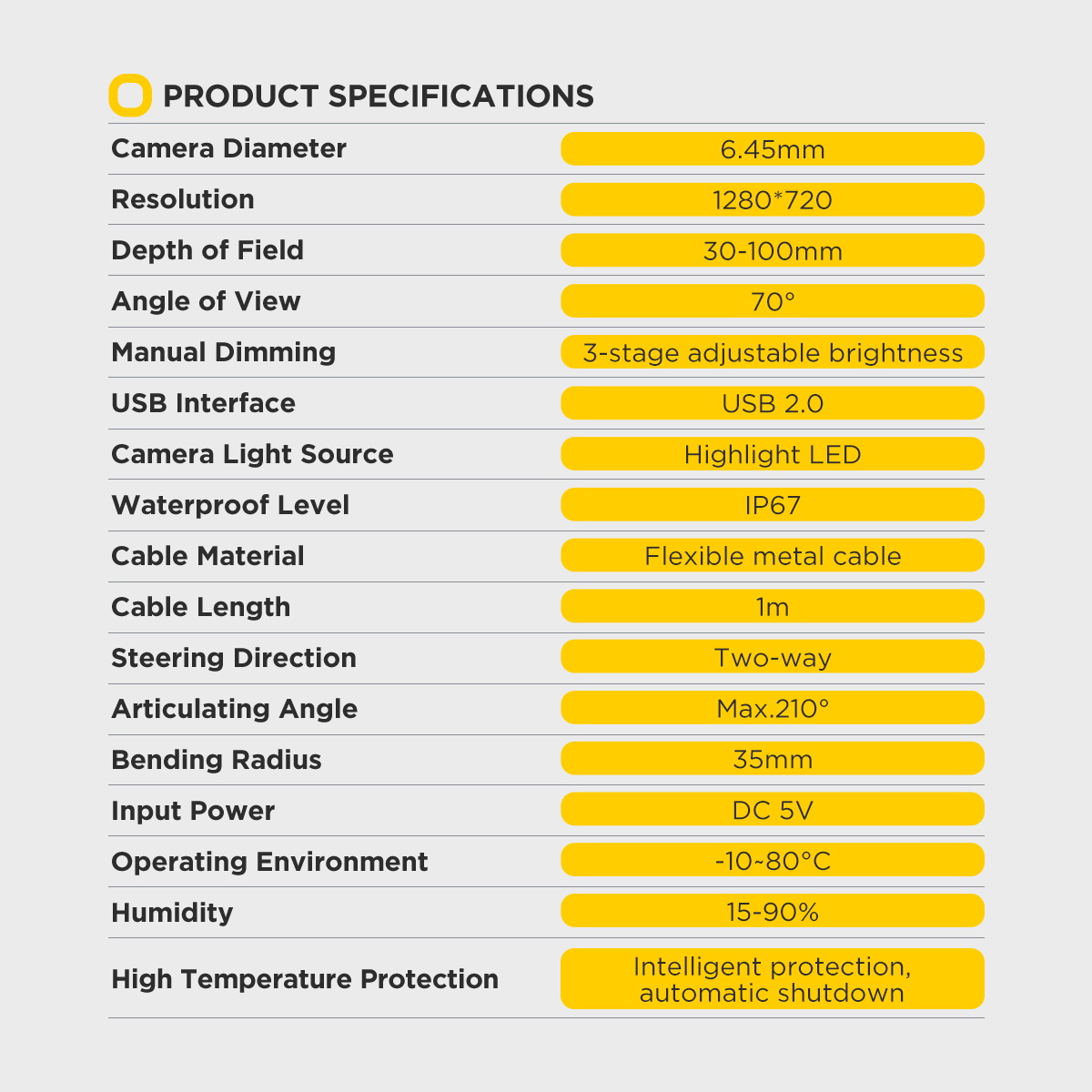

Specifications
SVB302 Product Specifications
Check the active SVB302 specifications before ordering. If your manual or package version differs from the current page, contact AUTOOL Store for version confirmation.
Camera And Display
Product
AUTOOL SVB302 Articulating Video Borescope
Camera Diameter
6.45mm
Resolution
1280 × 720
Angle Of View
70°
Depth Of Field
30–100mm
Display Method
External phone, tablet, or compatible laptop
Photo / Video
Supported through compatible app or software
Lighting And Probe
Manual Dimming
3-stage adjustable brightness
Camera Light Source
Highlight LED
Waterproof Level
IP67 camera probe
Cable Material
Flexible metal cable
Cable Length
1m
Articulation And Power
Steering Direction
Two-way
Articulating Angle
Max. 210°
Bending Radius
35mm
USB Interface
USB 2.0
Input Power
DC 5V
Charging Reminder
Use 5V / 1A. Fast charging is not recommended.
Environment And Protection
Operating Environment
-10°C to 80°C
Recommended Safe Use
Do not place the hose in environments above 75°C
Humidity
15–90%
High Temperature Protection
Intelligent protection, automatic shutdown
Warranty Support
3 years for eligible non-human damage cases
Click to enlarge
Camera And Display
Camera Diameter6.45mm
Resolution1280 × 720
Angle Of View70°
Depth Of Field30–100mm
Display MethodExternal phone, tablet, or laptop
Probe And Power
Waterproof LevelIP67 camera probe
Cable Length1m
Steering DirectionTwo-way
Articulating AngleMax. 210°
Input PowerDC 5V
Environment
Operating Environment-10°C to 80°C
Safe Use ReminderDo not place hose above 75°C
Humidity15–90%
ProtectionAutomatic shutdown
Applications
Applications
SVB302 is useful when users need visual access to narrow, curved, or partially hidden areas. Keep safety limits in mind and avoid hot, charged, medical, or human-body inspection scenarios.
Automotive Inspection
Helps inspect evaporators, combustion chambers, catalytic converters, engine areas, and other hard-to-reach vehicle spaces.
Mechanical Maintenance
Supports visual diagnosis inside mechanical parts where direct viewing is difficult without disassembly.
Pipe And Facility Checks
Suitable for wet-pipe viewing and general facility inspection when the environment is within the safe operating range.
Inspection Documentation
Use photo and video capture to record visible internal conditions for maintenance reports, customer communication, or repair planning.
How To Use
How To Use
SVB302 uses an external display device. Connect the correct cable, open the compatible app or software, adjust the light, and use the steering wheel to guide the camera into the inspection area.

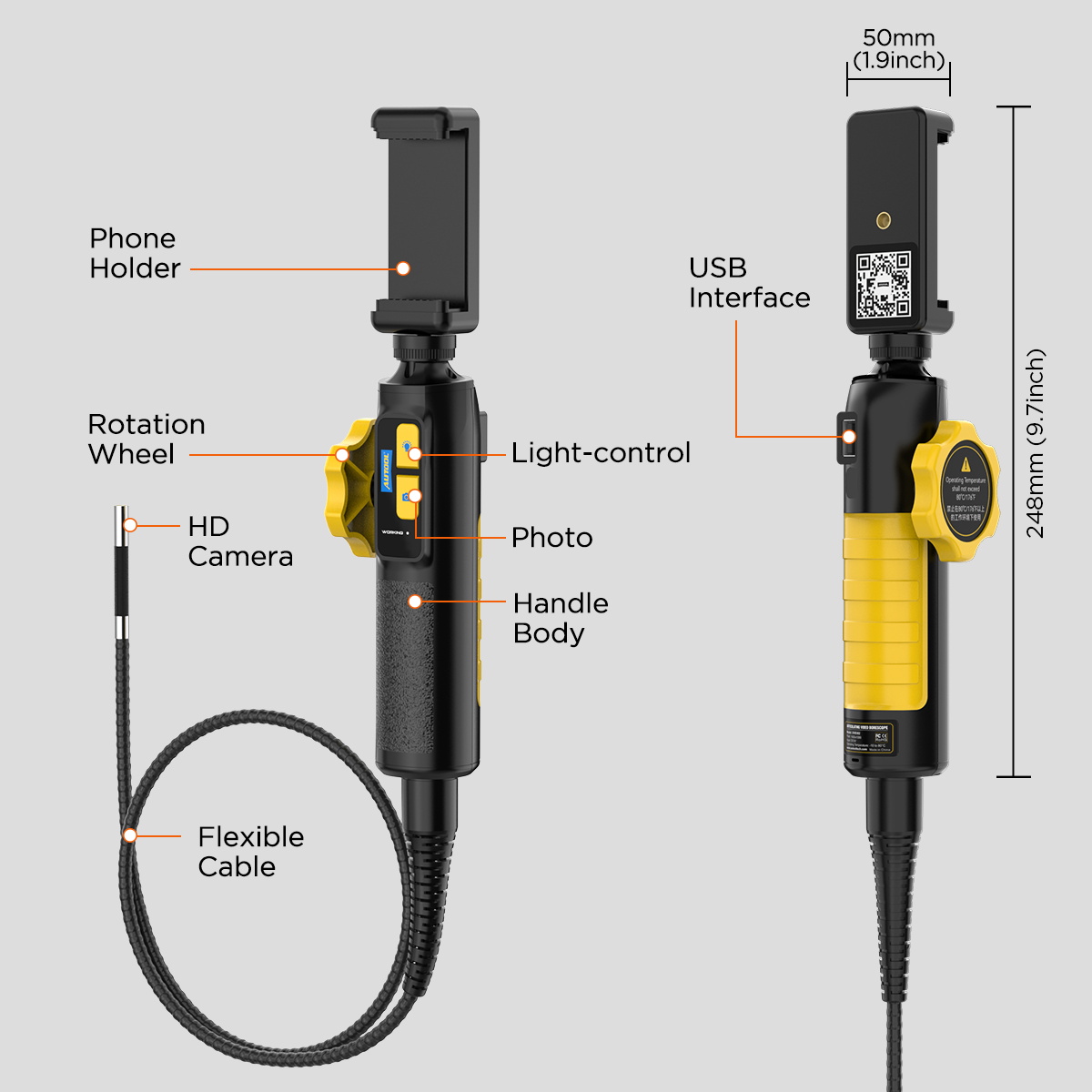

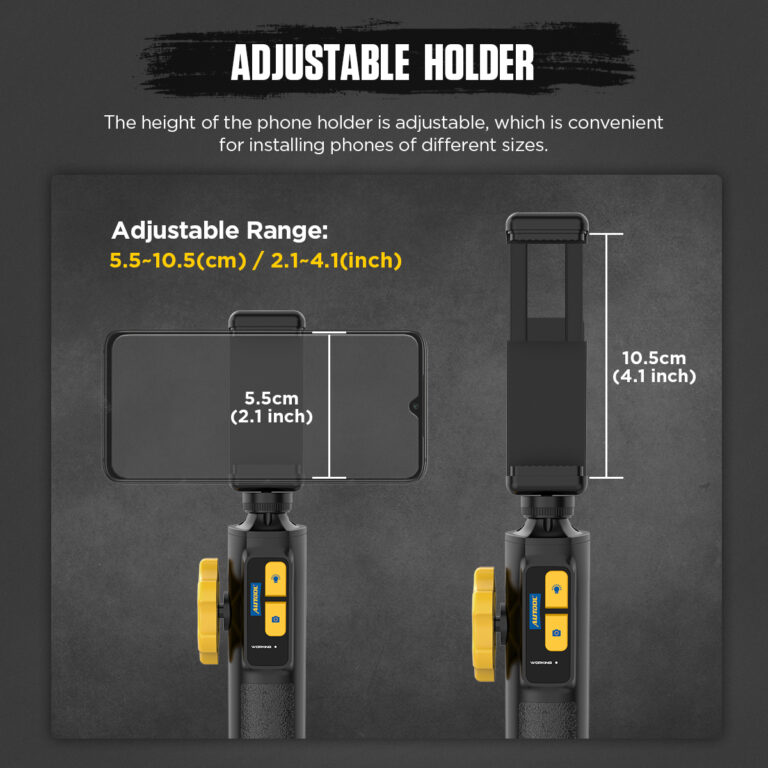

Install The Display Device
Adjust the phone holder and secure a compatible phone. SVB302 supports phone holder use for devices around 3.5–6.3 inches.
Connect The Cable
Connect the phone, tablet, or compatible laptop to the borescope using the correct data cable for your device port.
Open The App Or Software
For Apple devices, search “JCAM” in the App Store or follow the manual QR code. For Android devices, follow the manual QR code or supported app setup.
Power On And Adjust Light
Long press the power key for about 2 seconds. Use the light-control button to adjust LED brightness for different dark environments.
Inspect And Capture
Insert the cooled probe area carefully, use the steering wheel to adjust direction, then press the photo / video key to capture images or record video.
Use Notes
Wait until the engine or inspected area has cooled before inserting the probe.
Do not place the hose in an environment above 75°C.
Do not force the probe through very tight bends or pull the front bending section.
Use the light control gradually; the brightest level is not always necessary in reflective areas.
Clean and dry the probe after use, especially after wet or oily inspections.
Use only 5V charging. Fast charging or excessive voltage may damage the product.
Click to enlarge

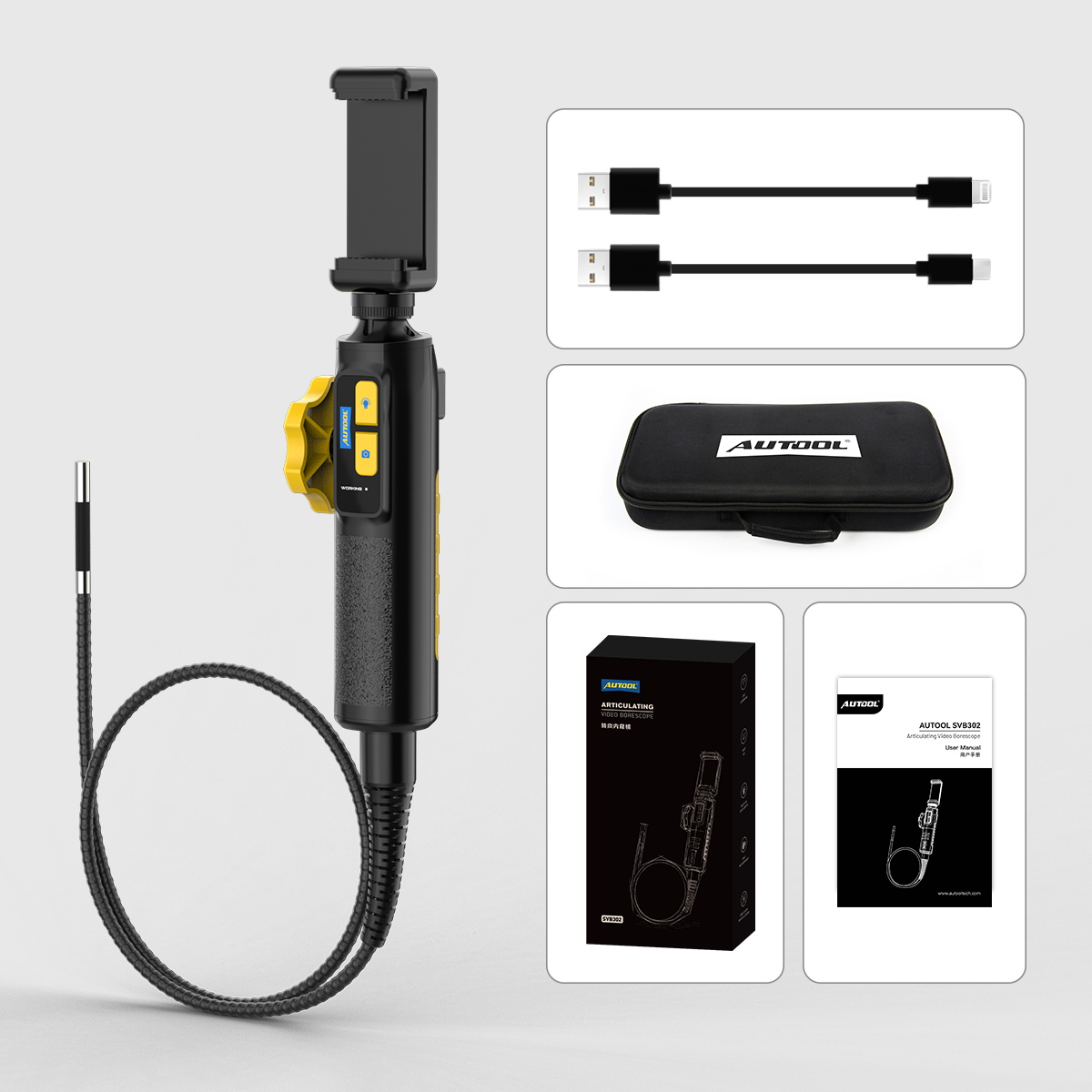

What Is In The Box
What Is In The Box
The packing list image shows the SVB302 main unit, connection cables, carrying case, user manual, and retail box. Final accessories should follow the package image and product option.
Main UnitAUTOOL SVB302 articulating video borescope
Connection CablesUSB connection cables shown in the package image
Carrying CaseAUTOOL storage case for transport and protection
ManualAUTOOL SVB302 user manual
Retail BoxSVB302 retail packaging shown in the package image
Final CheckRefer to the package image and selected product option for final accessories
Manual And Downloads
Manual And Downloads
Download the SVB302 manual for product structure, app setup, operation guide, charging notes, maintenance, warranty, and safe-use instructions.
Click to enlarge

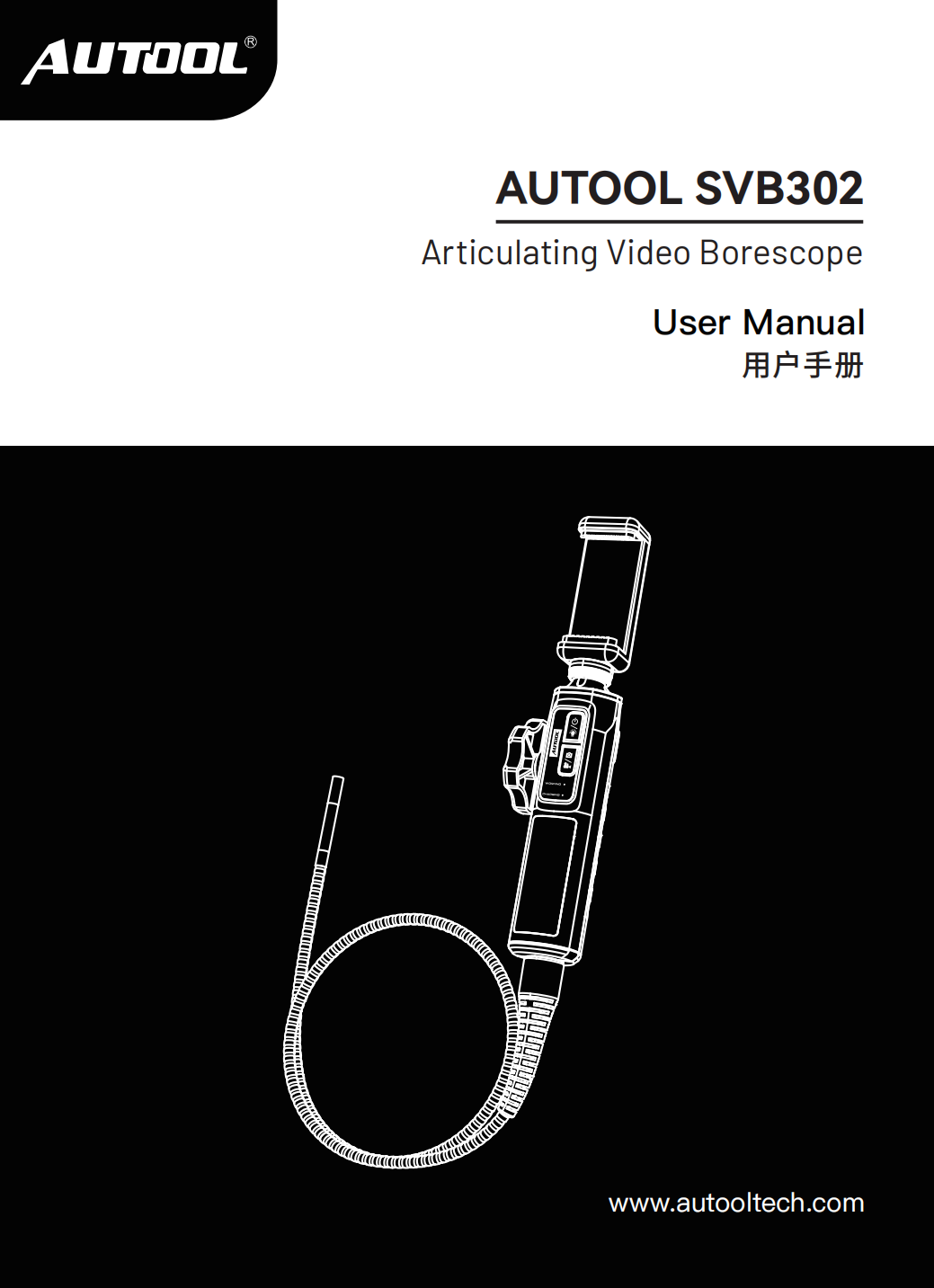

AUTOOL SVB302 Articulating Video Borescope Manual
Open the PDF manual for connection setup, app download, operation, charging, handling, warranty, and safety guidance.
Contact AUTOOL Store before ordering if you need to confirm phone compatibility, cable port, app setup, package contents, high-temperature use, or model selection.
Select options
This product has multiple variants. The options may be chosen on the product page
Questions And Answers
These answers cover screen setup, cable compatibility, app use, articulation, high-temperature protection, waterproof boundaries, model differences, package contents, and warranty support.
No. SVB302 does not have a built-in display screen. It transfers images and video to a compatible phone, tablet, or laptop through the data cable. Choose SVB305 or another screen-equipped model if you need an integrated display.
SVB302 supports compatible Android phones, iOS phones, tablets, and laptops depending on device port, cable type, and software support. Confirm compatibility before ordering if your device has special port or system restrictions.
For Apple devices, search “JCAM” in the App Store or scan the manual QR code. For Android devices, follow the QR code and setup instructions in the manual. Open the app after connecting the phone and borescope.
SVB302 supports two-way steering with a maximum articulating angle of 210°. Use the steering wheel on the handle to guide the camera direction in narrow or curved inspection spaces.
No. Do not use the endoscope when the engine has just stopped or remains hot. The engine may reach 80°C to 100°C or higher after shutdown. Wait until the engine cools down, usually about 1–2 hours, and do not place the hose in an environment above 75°C.
No. High-temperature protection is a safety function, not permission to inspect hot engines. High heat can damage the camera, and damage caused by high temperature is treated as artificial damage. Camera replacement may require an additional service cost.
The camera probe is IP67 waterproof and oil-resistant for wet-pipe inspection. The full product is not designed to be soaked. Keep the handle, USB interface, phone holder, and connected display device away from water, oil immersion, and corrosive liquids.
Refer to the Packing List image for final package contents. The image shows the SVB302 main unit, connection cables, carrying case, user manual, and retail box. Final accessories may depend on the selected product option.
SVB302 is a two-way 210° external-display borescope with a 6.45mm camera diameter, 1280×720 resolution, 30–100mm depth of field, USB 2.0 interface, and no built-in battery display. SVB303 is a higher model with four-way 360° steering, a 6.2mm lens, 20–100mm depth of field, wider language support, and phone/tablet compatibility. Compare the chart before choosing.
SVB305 has 210° two-way steering, a 4.3-inch display screen, a 5.5mm lens, 1280×720 resolution, and a 2000mAh battery. SVB308 has four-way 360° steering, a 4.3-inch display screen, a 6.2mm lens, 1920×1080 resolution, a 2600mAh battery, magnetic design, disassembly design, and 32GB storage. Choose SVB308 if you need more advanced articulation and detachable / magnetic convenience.
SVB403 supports 210° two-way steering, has dual lenses, a 4.3-inch display, front-lens and side-lens 1280×720 resolution, and 8× digital zoom. SVB405 and SVB408 support four-way 360° steering and use 4.5-inch IPS screens. SVB405 has 1920×1080 resolution, a 6.45mm lens, and a 47mm bending radius. SVB408 has a smaller 3.9mm lens, 1280×720 resolution, and a 37mm bending radius for tighter spaces.
AUTOOL provides 3-year warranty support for eligible non-human damage cases. High-temperature damage, misuse, unauthorized modification, excessive voltage, water immersion of non-waterproof parts, or forced bending may not be covered.
