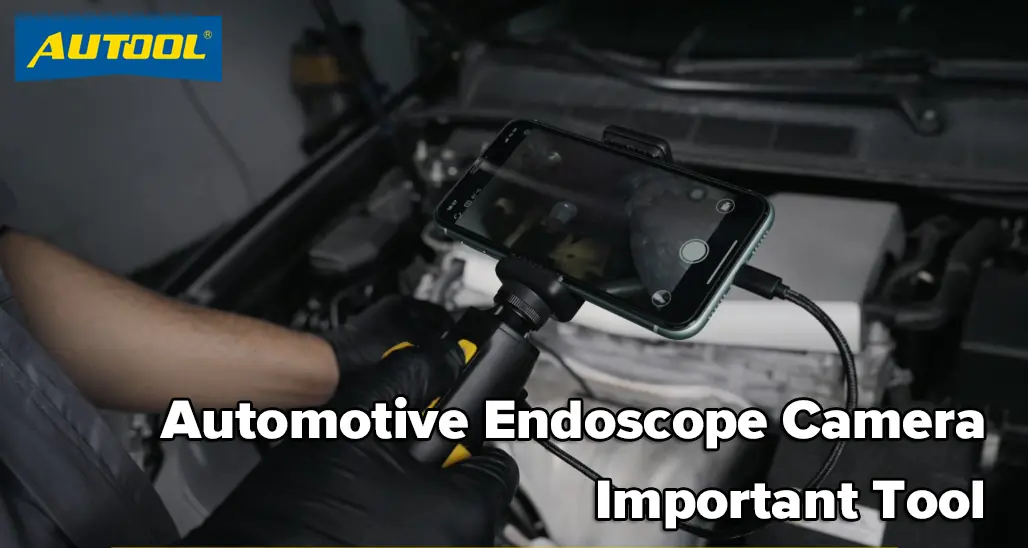

Automotive Endoscope Camera: An Important Tool

With the rapid development of automotive endoscope cameras, the role and importance of endoscope cameras in automobile maintenance have become increasingly prominent. This article discusses the application and importance of automotive endoscope cameras in automobile maintenance.

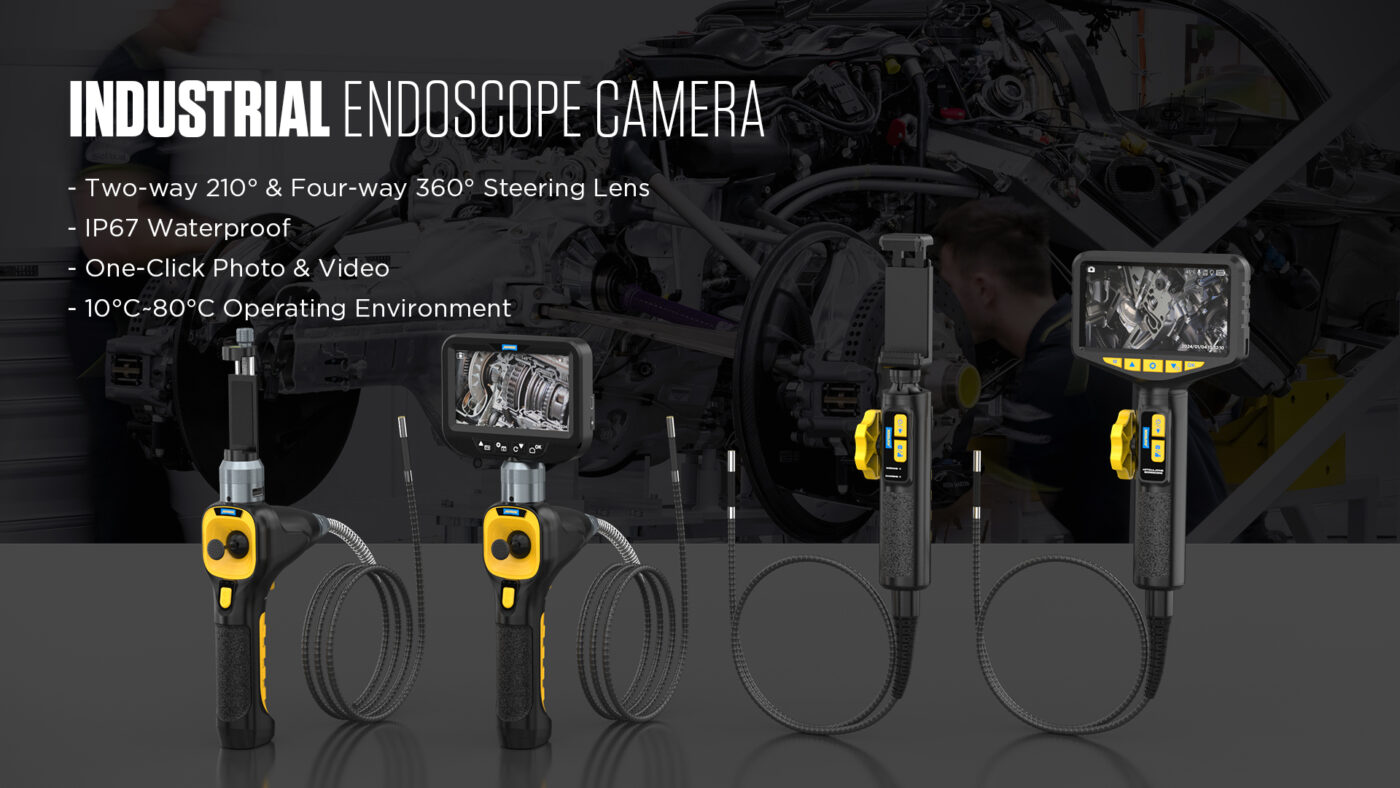

An automotive endoscope camera, also called an industrial borescope or camera, is a tool used to inspect and visualize enclosed or hard-to-reach areas. It usually consists of a flexible or rigid tubular probe with a camera and light at the end, capable of transmitting images to an external display or monitor.

Guide 01

Inspection camera basics

What Is an Automotive Endoscope Camera?

When automotive endoscope cameras are used in automotive repair and maintenance, they can help repairers inspect the interior of engines, drivetrains, fuel systems, and other components in areas that are difficult to access with repair equipment. This helps technicians make more accurate diagnoses of malfunctions and damage.

Guide 02

Carbon buildup diagnosis

Why Do You Need to Use an Articulating Borescope?

Carbon deposits are gels that build up on engine components such as engine valves, intake manifolds, and injectors. When the engine is operating, certain components in gasoline can condense to form gelatinous carbon. That condensed carbon can continue to accumulate and affect the normal operation of the sophisticated engine management system.

The diagnosis of carbon buildup on the intake pipe is simple in automotive repair: remove the throttle and check the extent of carbon buildup. However, diagnosing valve carbon buildup has always been more difficult. The original article presents two diagnostic methods.

1. Disassembly Method

The disassembly method takes the engine apart and checks for carbon deposits. It is intuitive, but time-consuming and labor-intensive. Every time parts are disassembled, performance can be affected and service life can be reduced.

Engine carbon buildup inspection by disassembly

2. Articulating Borescope

Remove the spark plugs or injectors and use an automotive endoscope camera to observe the extent of carbon buildup on the valves. After completing the observation, gently withdraw the camera from the inspection area so that it does not damage parts or affect vehicle operation.

Using an automotive endoscope camera improves inspection efficiency and accuracy while reducing the damage risk that may come from disassembling parts. This is important for safeguarding automobile safety, reliability, and long-term service life.

Click to jump to the store to buy the AUTOOL automotive endoscope camera.

Original Purchase Prompt

Operation Steps

  1. Insert the automotive endoscope cameraGently insert the lens into the part to be inspected, such as under the hood, exhaust pipe, brake system, electrical connector, and other areas. Insert it gently to avoid damaging internal parts or surfaces.
  2. Observe and adjust the viewing angleObserve the interior through the lens. The viewing angle can be changed by rotating the lens or adjusting the bendable part at the end of the lens for better observation of the target area.
  3. Adjust illumination and clarityAdjust the LED lighting or other illumination as needed to make details of the target area visible. Some endoscope cameras may allow illumination intensity adjustment.
  4. Take photos or videoIf documentation or sharing is needed, use the photo or video function on the automotive endoscope camera. Make sure camera operation does not interfere with inspection.
  5. Pay attention to safety and maintenanceDuring operation, avoid pinching or pulling the camera cable. After inspection, carefully put away and store the camera so the equipment remains clean and properly stored.
Automotive endoscope camera operation display
Guide 03

Maintenance inspection scenarios

Application of Automotive Endoscope Camera in Automobile Maintenance

Engine Inspection

The engine is the core component of the automobile, and whether its internal structure is intact is directly related to performance and service life. Industrial endoscopes can detect carbon, wear and tear, cracks, and other internal engine problems, helping maintenance personnel locate fault points accurately and improve maintenance efficiency.

Fuel System Inspection

The working condition of the fuel system directly affects fuel consumption and power output. Automotive endoscope cameras can detect blockage and wear of fuel injectors, fuel lines, and other components, providing detailed fault information for maintenance personnel.

Cooling System Inspection

The cooling system maintains the normal working temperature of the engine. An automotive endoscope camera can detect scale, corrosion, and other problems in the cooling system, helping maintenance personnel find and deal with potential safety hazards in time.

Air-Conditioning System Detection

The working condition of the air conditioning system directly affects passenger comfort. The automotive endoscope camera can detect dirt and damage to evaporators, condensers, and other parts of the air conditioning system, providing accurate maintenance programs.

Brake System Inspection

With increased vehicle use, brake system parts may become worn, aged, or damaged, leading to reduced braking performance and safety problems. Regular testing and maintenance of the brake system is therefore essential.

Guide 04

Maintenance value

The Importance of Automotive Endoscope Cameras in Maintenance

Improving Maintenance Efficiency

Traditional automobile maintenance often requires dismantling many parts for detection. This is time-consuming and labor-intensive, and may cause secondary damage. Automotive endoscope cameras can directly test the vehicle interior without disassembling parts, greatly improving maintenance efficiency.

Reducing Misjudgment and Omission

The high-resolution image provided by an automotive endoscope camera enables maintenance personnel to identify subtle defects inside the vehicle more accurately, reducing misjudgment and omission and improving maintenance quality.

Reducing Repair Costs

Nondestructive testing through automotive endoscope cameras can avoid unnecessary disassembly and replacement of parts, reducing maintenance costs. Accurate fault diagnosis also helps reduce return rate and further lower repair cost.

Improved Safety

Automotive endoscope cameras can be used without destroying the structure of the vehicle, avoiding potential safety hazards caused by component disassembly. Timely detection and treatment of hidden problems inside the car also helps improve vehicle safety.

To summarize, automotive endoscope cameras play an important role in automobile maintenance and have a wide range of application prospects. With scientific and technological progress and the development of industrial endoscope technology, application in automobile maintenance will become more in-depth and extensive. For automobile maintenance personnel, mastering industrial endoscope technology will become a necessary skill.
