AUTOOL TCA403/404 Low-Profile Tire Changer Swing-arm Tire Changer
Price range: US$2,199.00 through US$2,499.00
Key Features
- Digital Inflation Gauge
- Stable Low-Vibration Work
- Rim Protection
- Digital Inflation Gauge: The included digital gauge is positioned to give more accurate inflation readings during tire service.
- Stable Low-Vibration Work: Reinforced composite housing and a pull-out foot valve assembly aim to improve stability and serviceability.
- Rim Protection: Jaw protection sleeves and a scratch-resistant stainless tire head help reduce wheel damage during mounting work.
Secure checkoutFast supportBulk ready

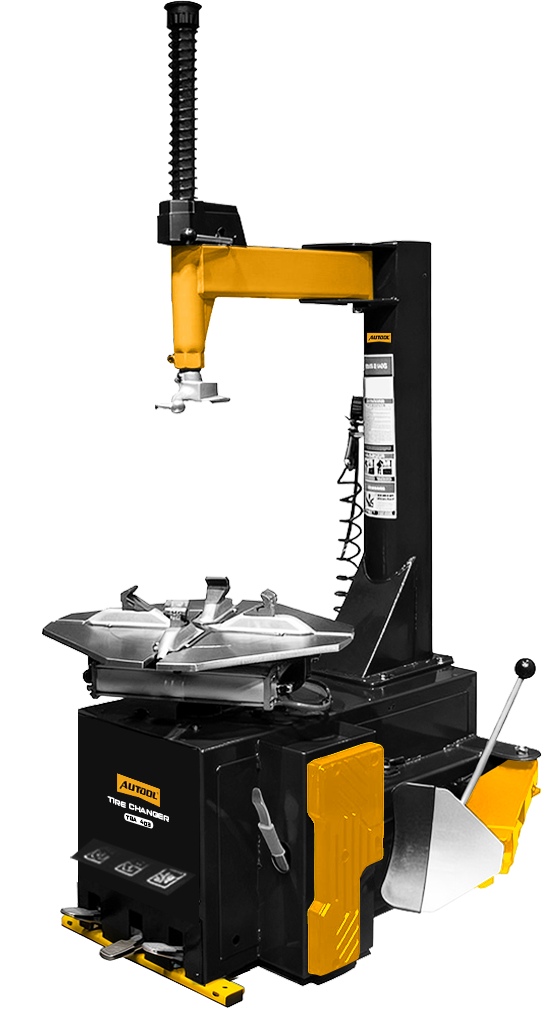

AUTOOL TCA403 / TCA404
Product Overview
The AUTOOL TCA403 / TCA404 low-profile tire changer is designed for stable and efficient tire mounting and demounting in professional tire service environments. Its streamlined overall design combines aesthetic appeal with functional operation, while the reinforced composite housing enhances machine strength and reduces vibration of the working head. The pull-out foot valve assembly supports easier maintenance and servicing, and the bidirectional large pneumatic cylinder with dual exhaust design provides fast return movement, stronger bead breaking performance, energy-saving operation, and reduced labor effort.
Low-Profile Tire Service Swing-Arm Option 8-10bar Air Pressure 12-24″ Rim Size
TCA403Standard Model
TCA404Auxiliary Arm
231kgGross Weight
≤70dBNoise Level
How To Choose
How To Choose
Choose the correct model based on whether you need the standard low-profile tire changer or the version with an auxiliary swing-arm unit for more support during demanding tire service work.

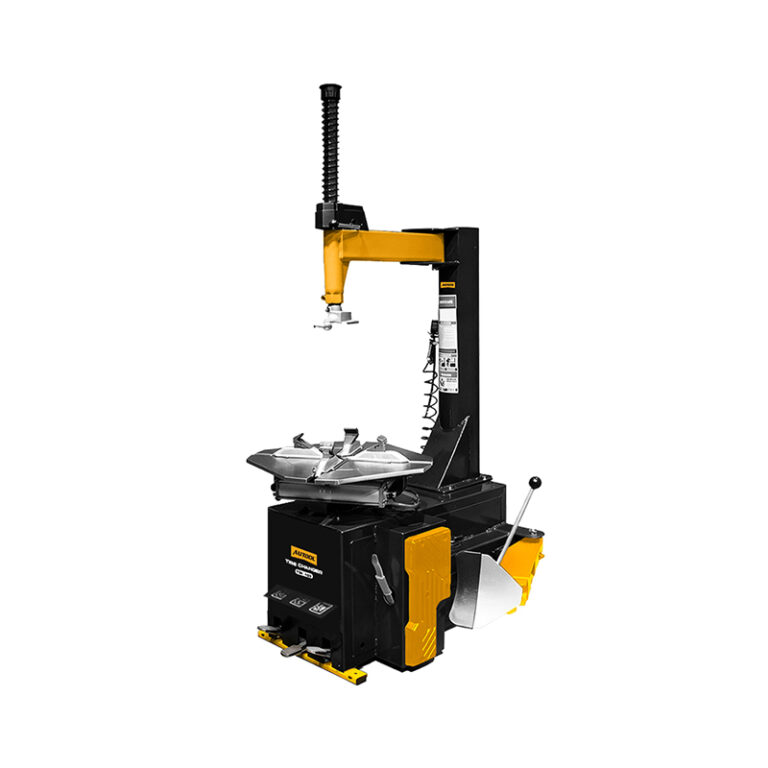

TCA403 Standard Model
TCA403 is the standard low-profile tire changer with the main unit package. It is suitable for users who need a stable and efficient tire changing machine for daily tire mounting and demounting work.
TCA404 With Auxiliary Swing-Arm
TCA404 includes the main tire changer and an auxiliary swing-arm package. It is suitable for users who need extra support for low-profile tires, tougher tire service, and more labor-saving operation.
Key Features
Key Features
The TCA403 / TCA404 combines accurate inflation measurement, a reinforced body, service-friendly valve structure, protected clamping, scratch-resistant dismounting components, and fast pneumatic reset for smoother tire service.
High-Precision Inflation Gauge
Equipped with a high-end digital inflation gauge for more accurate tire inflation measurement during service.
Stable Composite Housing
The reinforced composite housing enhances overall machine strength and reduces vibration of the working head for more stable operation.
Pull-Out Foot Valve Assembly
The foot valve assembly uses a pull-out design, making maintenance and servicing easier for workshop users.
Alloy Steel Jaws With Protection Sleeves
Alloy steel jaws with quenched tips and jaw protection sleeves help improve clamping strength while protecting the rim surface.
Stainless Steel Mounting Head
The tire dismounting head is made of stainless steel and is equipped with anti-scratch washers to reduce rim damage during operation.
Fast Reset And Strong Bead Breaking
The bidirectional large pneumatic cylinder and dual exhaust design support fast return movement, stronger bead breaking performance, and more labor-saving operation. Tire bead clamps are included as standard accessories.
Click to enlargeProduct Details
Product Details

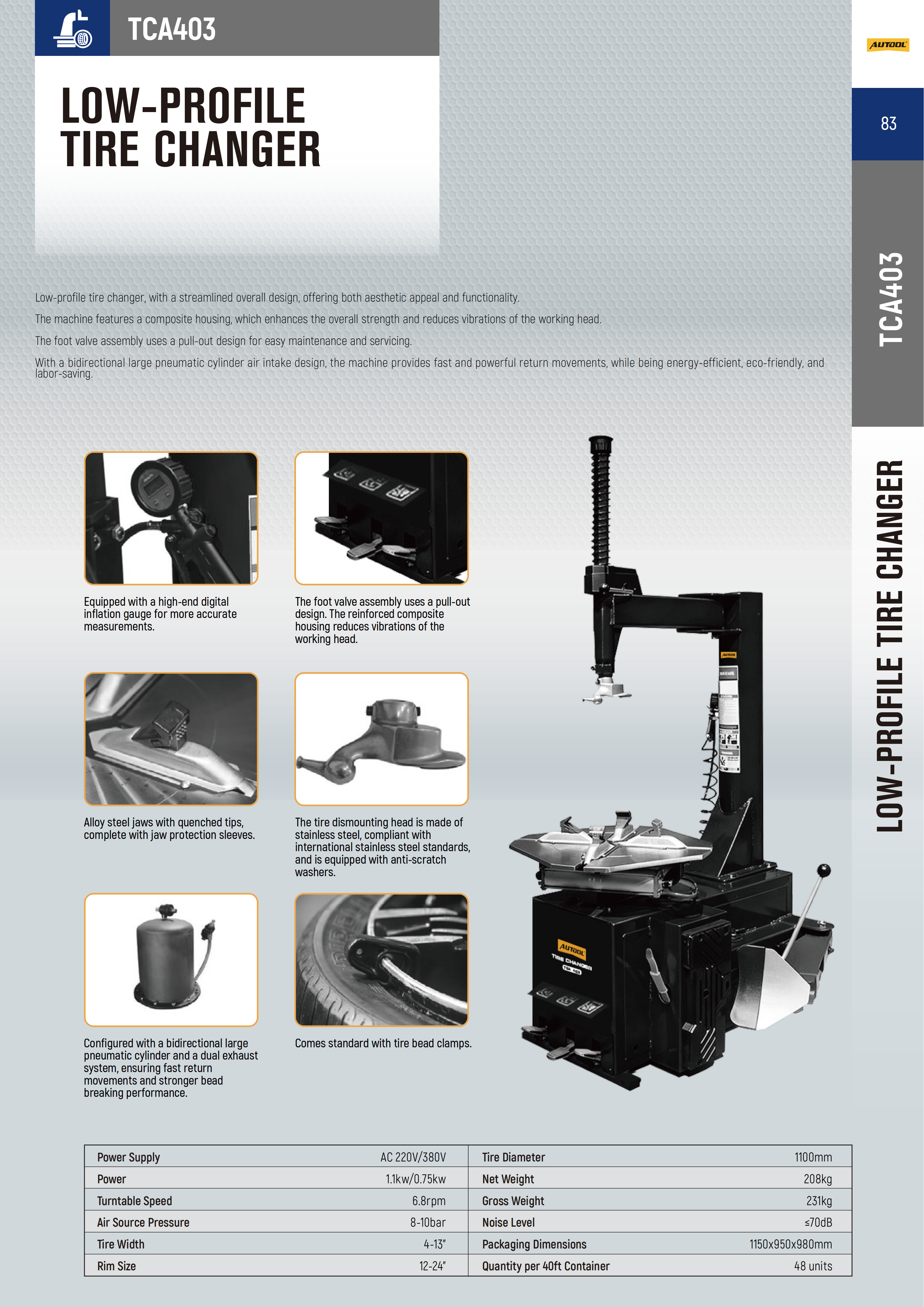

This detailed view shows the TCA403 structure, key working components, standard tire bead clamps, digital inflation gauge, pull-out foot valve assembly, alloy steel jaws, stainless steel tire dismounting head, large pneumatic cylinder, and core specification information.
Specifications
Specifications And Model Package Details
Review the TCA403 machine specifications and TCA404 auxiliary swing-arm package information before ordering. Confirm power supply, air source pressure, rim size, tire width, and workshop installation needs in advance.
| TCA403 Machine Specifications | |
| Power Supply | AC 220V / 380V |
| Power | 1.1kw / 0.75kw |
| Turntable Speed | 6.8rpm |
| Air Source Pressure | 8-10bar |
| Tire Width | 4-13″ |
| Rim Size | 12-24″ |
| Tire Diameter | 1100mm |
| Net Weight | 208kg |
| Gross Weight | 231kg |
| Noise Level | ≤70dB |
| Packaging Dimensions | 1150×950×980mm |
| Quantity Per 40ft Container | 48 units |
| TCA403 / TCA404 Package Information | |
| TCA403 Package | Main unit package; dimensions 115×95×98; weight 231kg |
| TCA404 Main Unit | Main unit package; dimensions 115×95×98; weight 231kg |
| TCA404 Swing-Arm Package | Auxiliary swing-arm package; dimensions 105×75×36; weight 34kg |
TCA403 Machine Specifications
Power SupplyAC 220V / 380V
Power1.1kw / 0.75kw
Turntable Speed6.8rpm
Air Source Pressure8-10bar
Tire Width4-13″
Rim Size12-24″
Tire Diameter1100mm
Net Weight208kg
Gross Weight231kg
Noise Level≤70dB
Packaging Dimensions1150×950×980mm
Quantity Per 40ft Container48 units
TCA403 / TCA404 Package Information
TCA403 PackageMain unit package; dimensions 115×95×98; weight 231kg
TCA404 Main UnitMain unit package; dimensions 115×95×98; weight 231kg
TCA404 Swing-Arm PackageAuxiliary swing-arm package; dimensions 105×75×36; weight 34kg
Related Products
Related Products
Use these related AUTOOL tire changer and balancing products to build a more complete workshop tire-service workflow around TCA403 / TCA404.
- Select options This product has multiple variants. The options may be chosen on the product page
AUTOOL TCA403/404 Low-Profile Tire Changer Swing-arm Tire Changer
From US$2,199.00 - Select options This product has multiple variants. The options may be chosen on the product page
AUTOOL TCA505/TCA506 Tilt-Back Tire Changer WIth Multi-Support Arm
From US$2,799.00 - Select options This product has multiple variants. The options may be chosen on the product page
AUTOOL TWB203/TWB205 Enhanced & Intelligent Precision Wheel Balancer
From US$1,950.00 - Select options This product has multiple variants. The options may be chosen on the product page
AUTOOL ATL-4SHU Ultra-low Twin Scissor Lift for Wheel Alignment
From US$5,799.00
Related Guides
Related Guides
Use these related articles to compare tire changers, understand tire-service workflow, and review balancing basics before choosing workshop equipment.
Find a Professional Tire Changer That Suits Your Needs
Use this buying guide to compare tire changer structures, service scenarios, and setup choices before selecting a workshop-ready machine.
Tire Changer 101: Understanding the Mechanism Behind the Machine
Review the working mechanism behind a tire changer before selecting the right machine for daily service work.
How Can I Tell If My Tires Need Car Wheel Balancing?
Use this quick reference to recognize balancing symptoms and complete a more consistent tire-service workflow with changer and balancer equipment.
Wheel Balancing: Not Just for a Smoother Ride
Understand why wheel balancing matters in the full tire-service workflow, not just ride comfort.
What Is In The Box
What Is In The Box
The current source content provides package size and weight information but does not provide a dedicated packing list image. The detailed product image is therefore kept in the Detailed View module instead of being used as a Packing List image.
TCA403 Package
Includes the main tire changer unit. Package dimensions are 115×95×98, and package weight is 231kg.
TCA404 Package
Includes the main tire changer unit and auxiliary swing-arm unit. Main unit package dimensions are 115×95×98 with 231kg weight. Swing-arm package dimensions are 105×75×36 with 34kg weight.
Before You Order And Use
Before You Order And Use
Confirm model choice, power supply, air source, tire size range, auxiliary arm requirement, shipping, and installation details before ordering.
Purchase And Workshop Setup Notes
- Confirm whether you need the TCA403 standard model or the TCA404 model with auxiliary swing-arm.
- Confirm your workshop power supply: AC 220V / 380V.
- Confirm the air source pressure requirement: 8-10bar.
- Confirm the supported rim size range: 12-24″.
- Confirm the supported tire width range: 4-13″.
- Confirm tire diameter support up to 1100mm.
- TCA404 includes an additional swing-arm auxiliary package.
- Use jaw protection sleeves and anti-scratch washers properly to help reduce rim damage.
- Contact AUTOOL Store before ordering if you need installation, freight, power supply, model confirmation, or auxiliary arm confirmation.
Questions And Answers
These answers cover the difference between TCA403 and TCA404, supported rim size, air pressure, power supply, auxiliary swing-arm package, low-profile tire use, rim protection, and pre-order confirmation.
TCA403 is the standard low-profile tire changer with the main unit package. TCA404 includes the main unit and an additional auxiliary swing-arm package, making it more suitable for users who need extra support for low-profile tires or more demanding tire service.
The TCA403 specification information shows a rim size range of 12-24″. Confirm your tire and rim requirements before ordering.
The machine requires 8-10bar air source pressure. Confirm your workshop air supply before ordering or installation.
The TCA403 specification information shows AC 220V / 380V power supply support. Confirm your workshop power supply and order requirements before purchase.
Yes. The TCA404 package includes the main unit and an auxiliary swing-arm package. The source content lists the swing-arm package dimensions as 105×75×36 with 34kg weight.
Yes. The product is positioned as a low-profile tire changer. If you frequently service low-profile or more difficult tires, choose TCA404 with the auxiliary swing-arm for additional support.
The machine uses alloy steel jaws with quenched tips and jaw protection sleeves. The stainless steel tire dismounting head also includes anti-scratch washers to help reduce rim damage during tire service.
Confirm model selection, auxiliary swing-arm requirement, AC 220V / 380V power supply, 8-10bar air pressure, 12-24″ rim size range, 4-13″ tire width range, shipping, installation, and workshop setup requirements before ordering.
Warranty And Contact
Warranty And Contact
Contact AUTOOL Store to confirm model, auxiliary arm option, voltage, air source requirement, shipping, and workshop installation needs before ordering.
Pre-Sales And Product Support
Use support if you need help choosing between TCA403 and TCA404, confirming the auxiliary swing-arm package, checking power supply, confirming air pressure, reviewing rim and tire size compatibility, or arranging freight and installation details.
- TCA403 / TCA404 model confirmation
- Auxiliary swing-arm package confirmation
- AC 220V / 380V power supply confirmation
- 8-10bar air source requirement confirmation
- Rim size, tire width, and tire diameter support confirmation
- Freight, installation, and workshop setup support
