How to test a car battery with a right tester？
October 23, 2021
Share:
Why It Matters
Battery testing accuracy
Why Proper Battery Testing Matters
Due to the lack of traditional means of testing batteries, battery dealers, auto repair stations, and car dealers may return good batteries to manufacturers as bad batteries. According to INTERSTATE, an auto battery distributor in the U.S., 50% of the so-called bad batteries returned are good. These batteries need to be recharged, not replaced.
Those good batteries can move needlessly back and forth between manufacturers and dealers because of erroneous judgment, causing unnecessary consumption. At the same time, many auto repair outlets lack efficient inspection tools, so they may fail to detect weakened batteries in time before owners encounter problems. That means they also lose potential battery sales opportunities.
Traditional auxiliary tests, such as specific gravity indication and terminal voltage, reflect the battery’s state of charge (SOC), not its health (SOH). Therefore, they cannot be used as an effective way to check whether the battery needs to be replaced.
Proper battery testing makes it easier to find out what is wrong with a battery. You can use a multimeter, but it will not provide detailed information about what is happening inside the battery. A dedicated battery tester is the better choice when you need clearer diagnostic information.
Recommended Tester
AUTOOL BT760
Why Use AUTOOL BT760?
AUTOOL recommends the AUTOOL BT760 Battery Load Tester with Printer, a powerful professional car battery tester designed with a color screen and an easy printer for a better user experience.
By adopting advanced conductance testing technology, BT760 provides accurate testing results and prints them in seconds. This makes it useful for workshops that need both diagnostic information and a printed test record.
Step-by-Step
Step by step project with AUTOOL BT760
How to Test a Car Battery with AUTOOL BT760
1. Open the hood and find the battery
Open the hood and locate the vehicle battery before connecting the tester.
2. Connect the battery tester
Remove the plastic protective cover of the battery.

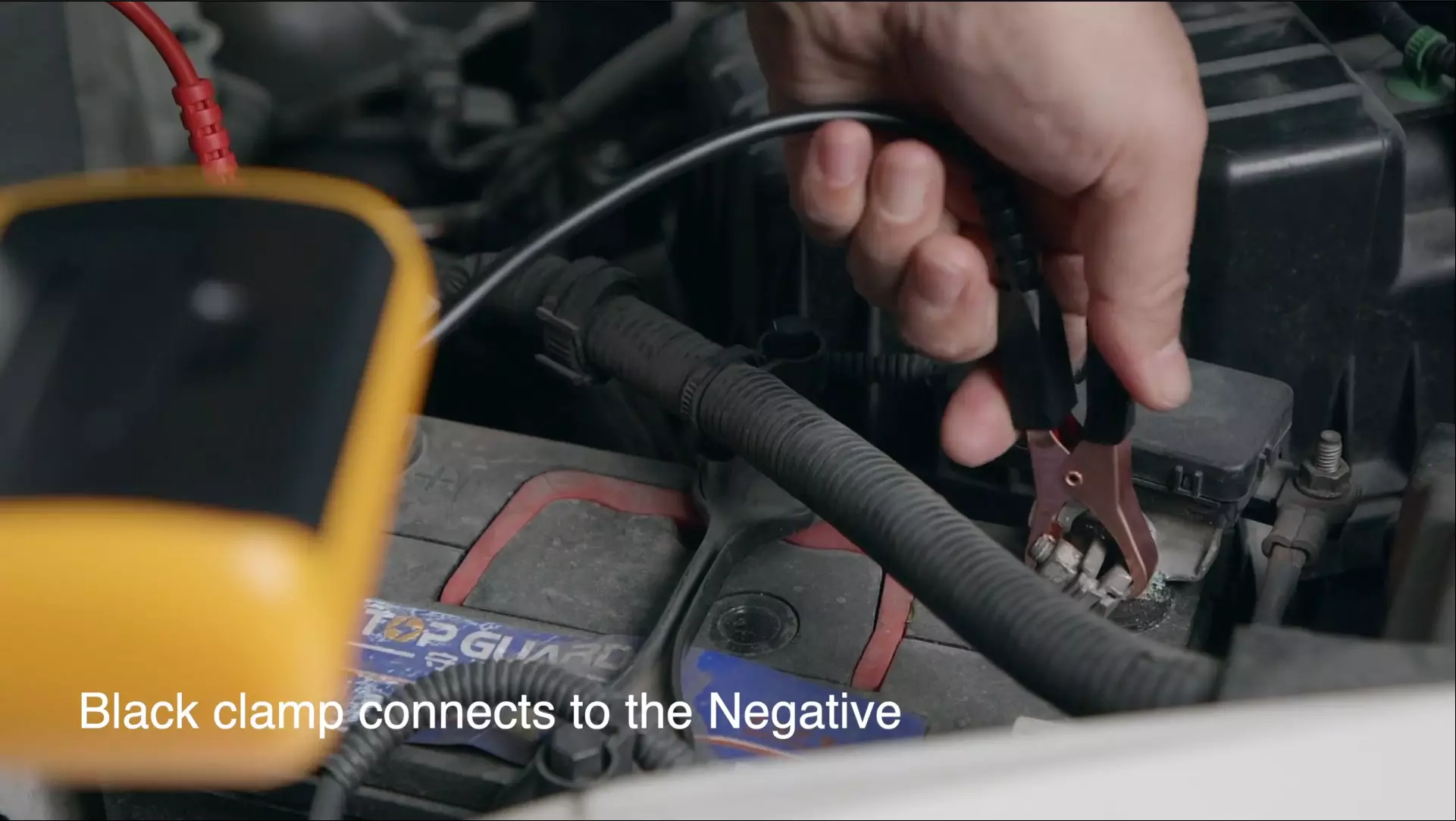

Connect the black cable clip of the battery tester to the negative terminal of the battery. Then connect the red cable clip to the positive terminal of the battery.
3. Test the voltage

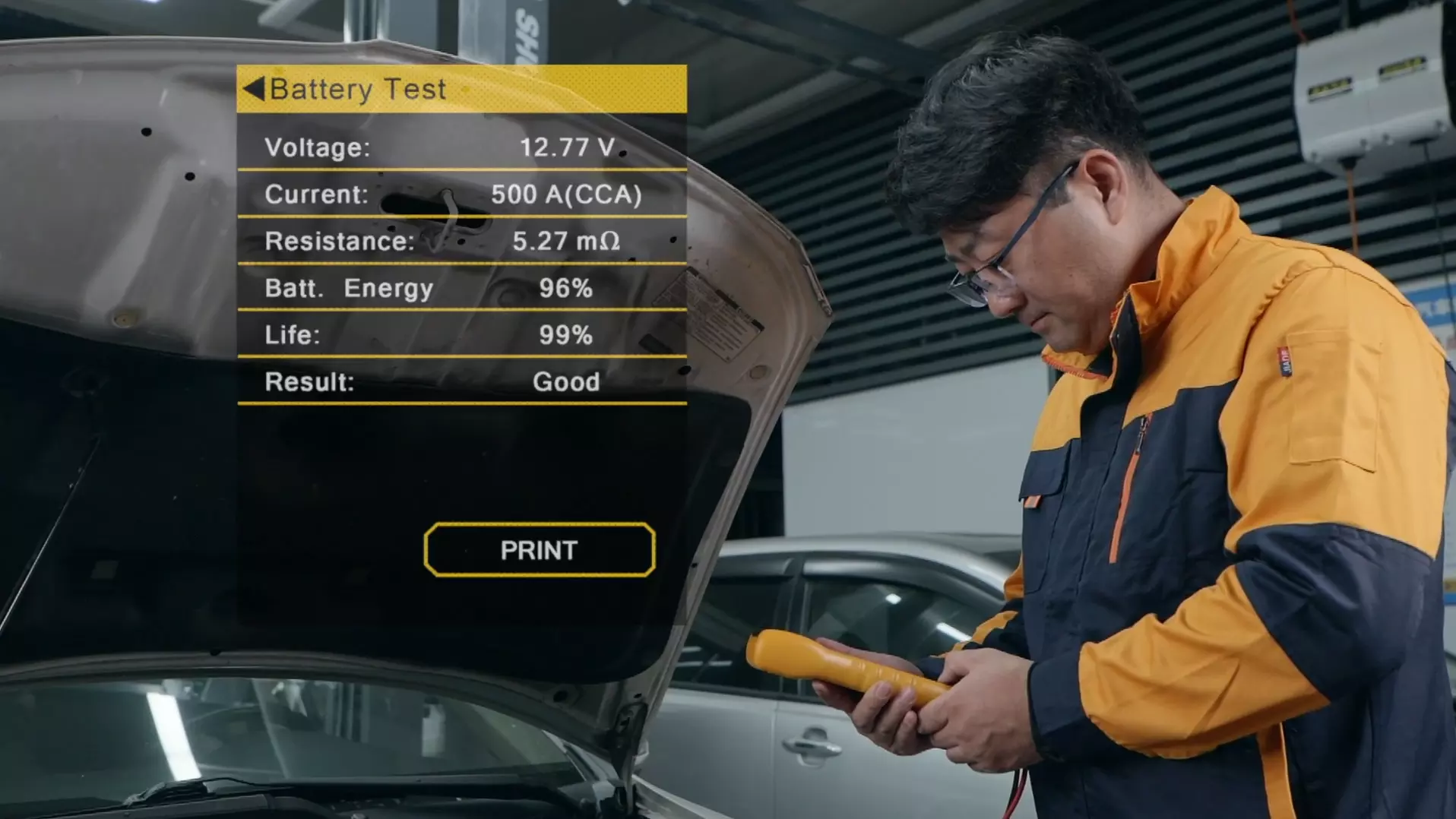

Use the voltage test mode to check the battery status. Most car battery voltages are 12V, while some are 24V. You can use a simple voltmeter to test voltage, but a battery tester will also work and can provide more context.

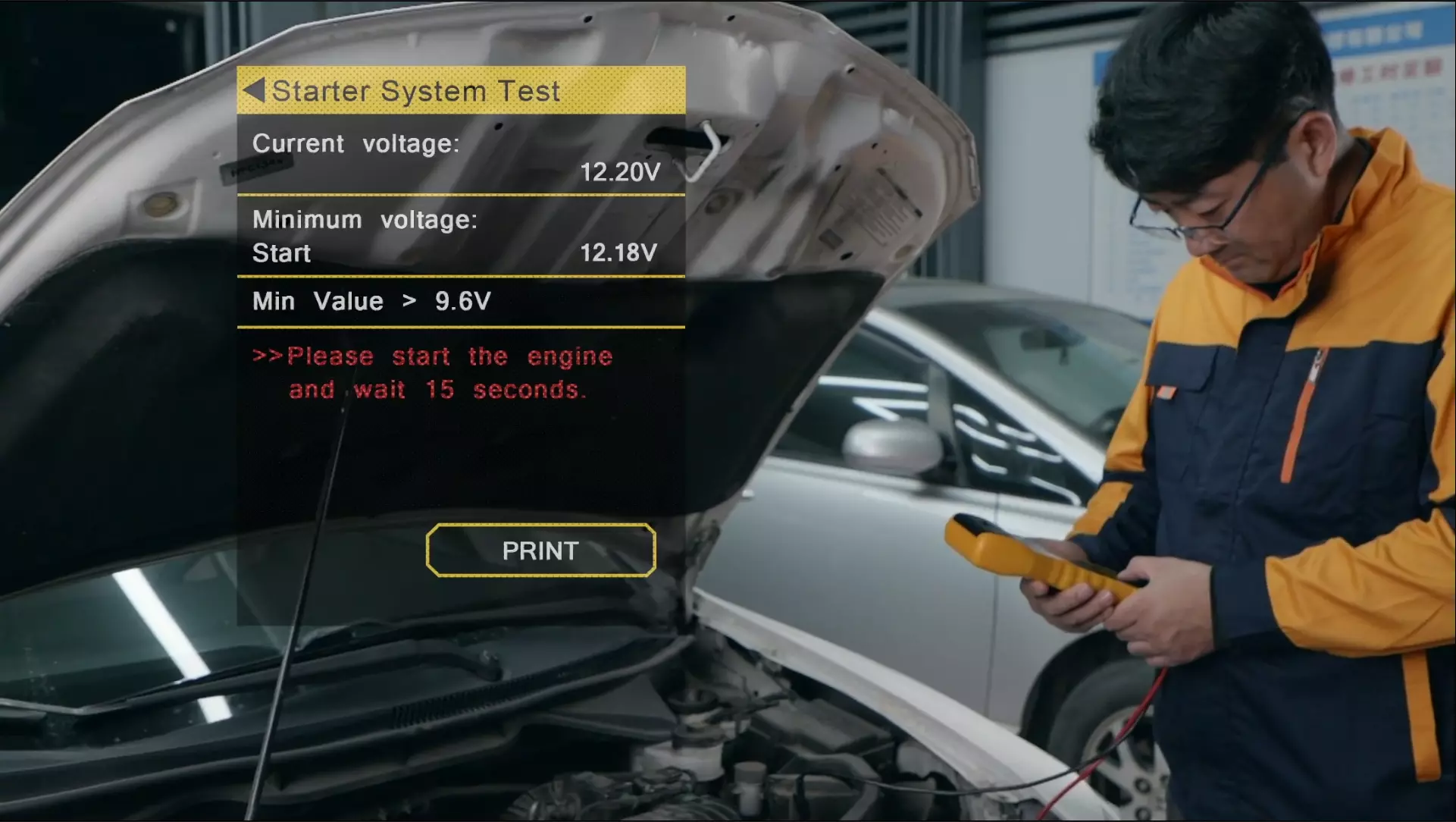

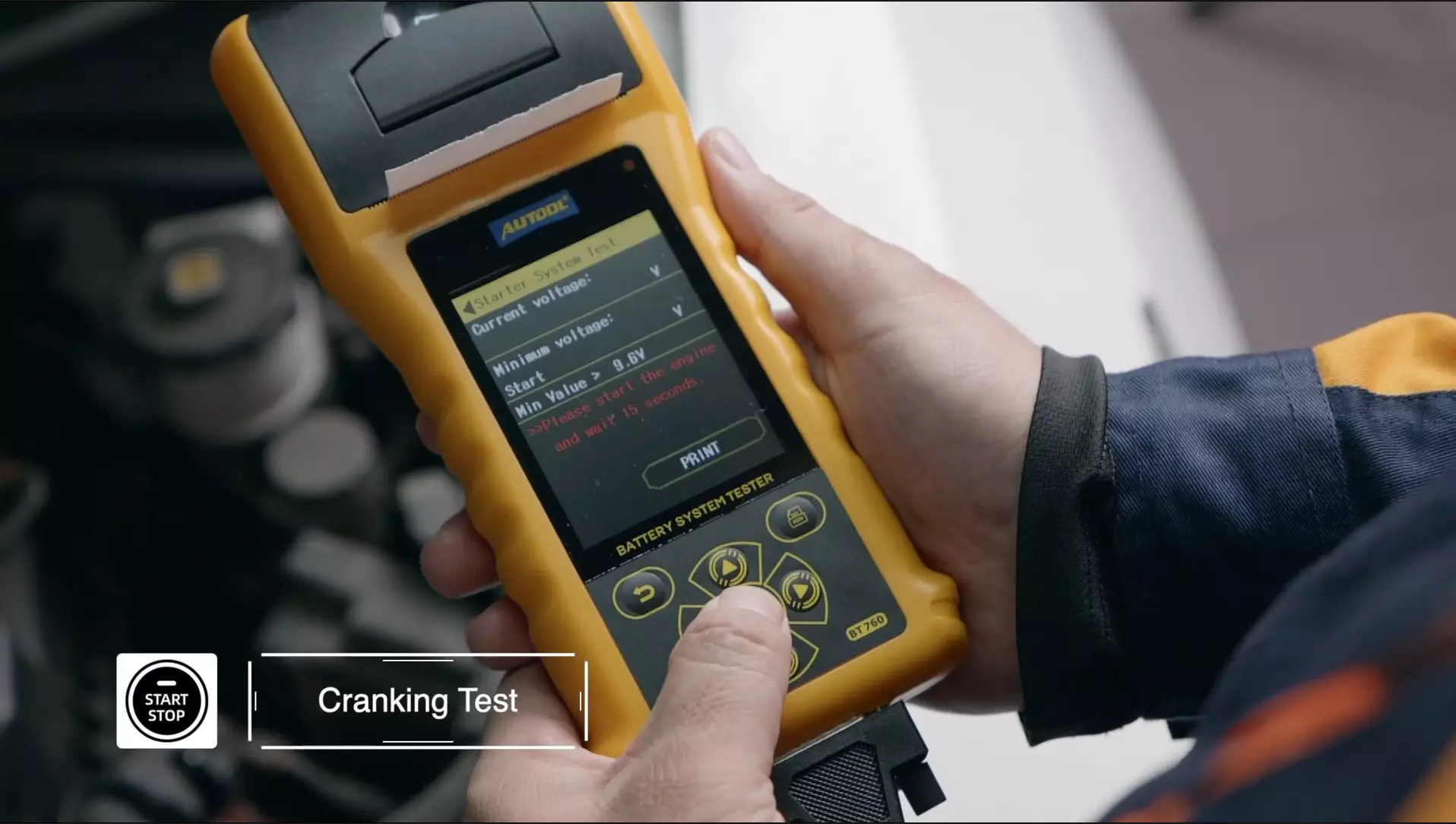

4. Perform cranking test
Set the battery tester to cranking test mode, then start the vehicle. The tester will record the minimum voltage that the battery is able to maintain while the starter motor is working.

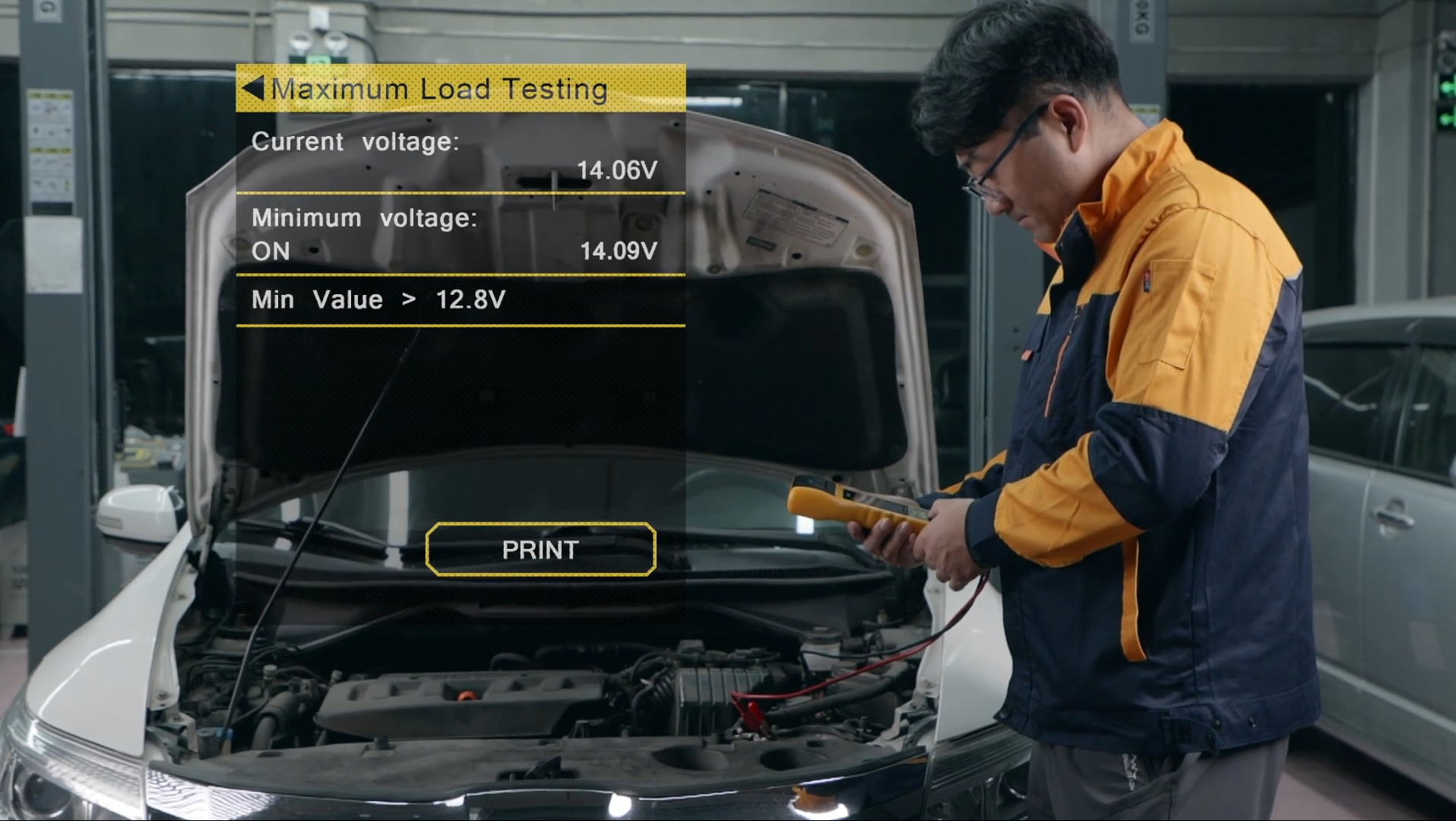

5. Conduct a load test
Select the maximum load test function, turn on the car appliance, start the car engine, click OK, and wait for the result to come out.

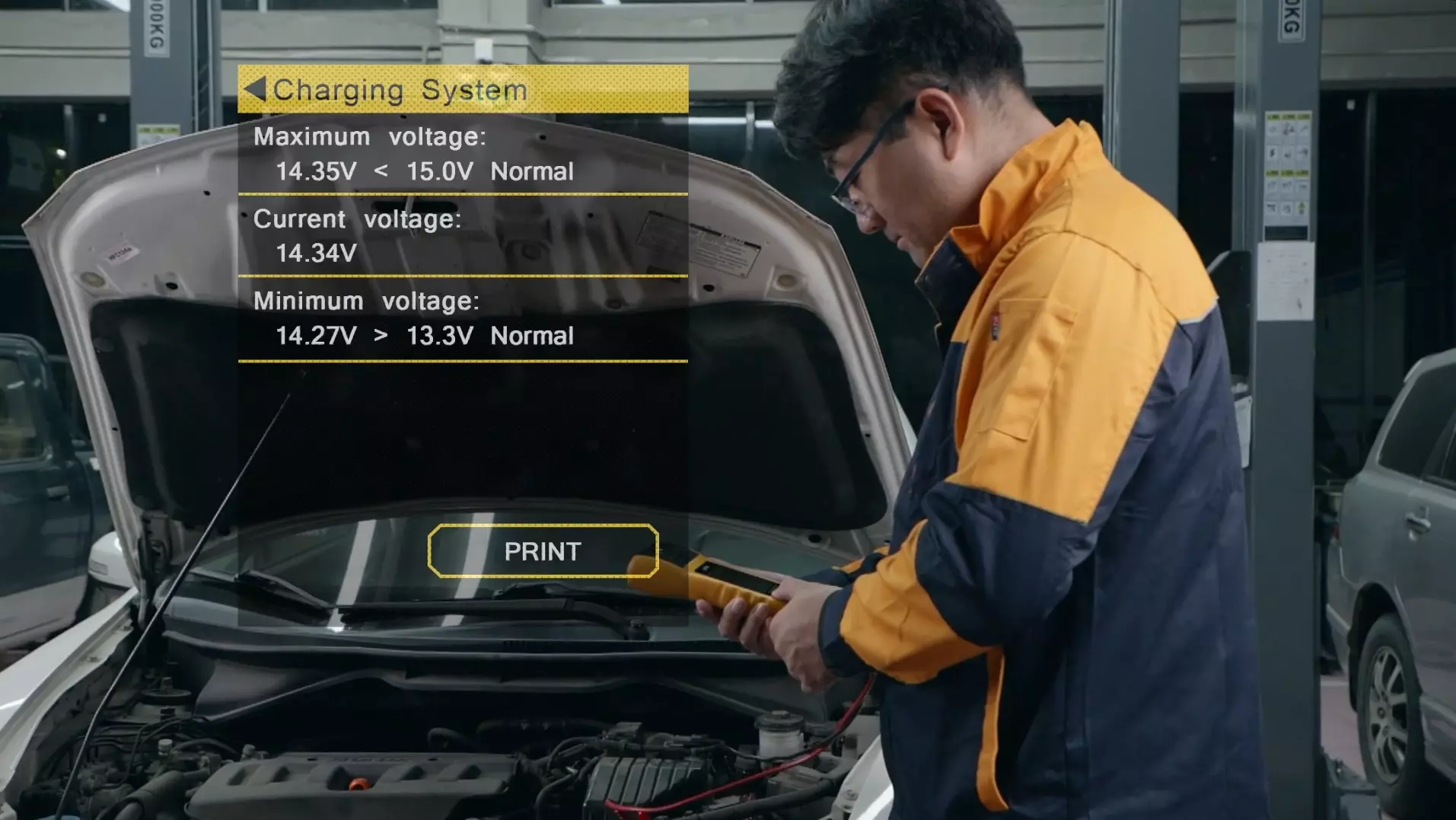

6. Charging test
After entering the charging test function, follow the instructions to increase the speed to 2500 rpm for 5 seconds, then press OK. Wait for the result to come out, and then the test is finished.

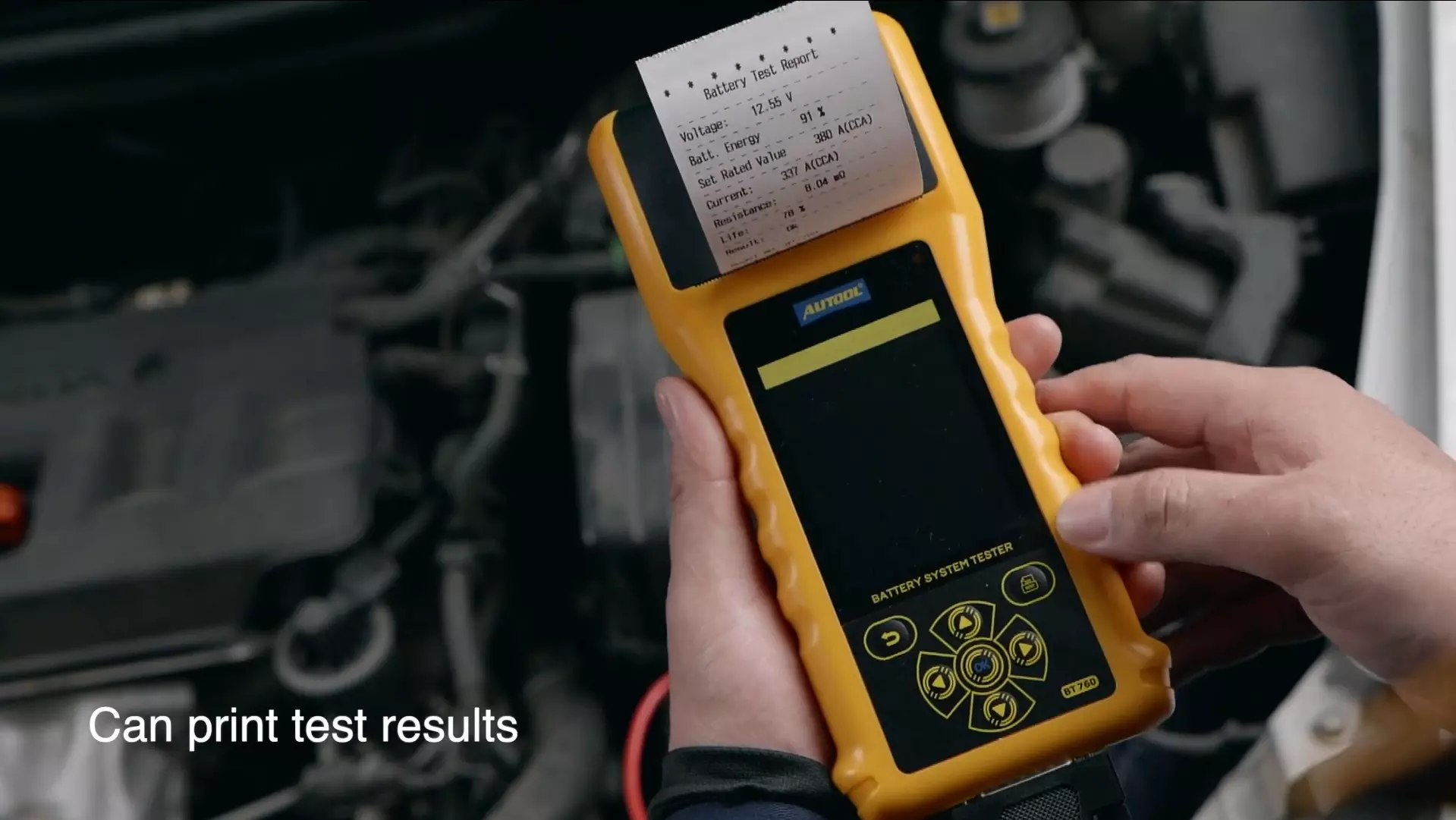

7. Print test results
After the test is completed, there will be a print option. Click OK to print the battery test results.
Features
More than a basic battery tester
BT760 Applications and Support
BT760 automotive battery tester features more than the steps above. It also has a wide range of applications and is described as an ultra-wide range professional tester with ratings from 100 to 3000 CCA.
It is compatible with cars, motorcycles, trucks, RVs, ATVs, SUVs, boats, yachts, lawnmowers, and even golf carts. It uses reverse polarity protection so that neither the battery nor the equipment will be damaged.
Up to 12 languages are supported, and other language versions can be customized. Most importantly, a 3-year free warranty is available. For damage not caused by human factors, AUTOOL promises to resend parts for free within 3 years.
If you are interested in this product, you can review the AUTOOL BT760 product details or check the related product cards below.
