AUTOOL DM202 Mini Digital Multimeter NCV Tester Ture-RMS 4000 Counts

AUTOOL DM202

Product Overview

AUTOOL DM202 is a compact automotive mini digital multimeter for quick automotive and household electrical checks. It automatically identifies AC/DC voltage, resistance, and continuity, while also supporting True RMS, NCV non-contact voltage detection, live/neutral wire testing, data hold, backlight, flashlight, and a 4000-count display.

Auto Mode True RMS NCV Test Live / Neutral Data Hold

4-600VAC / DC Voltage

4000Count LCD

3x/sSampling Rate

3 YearsWarranty

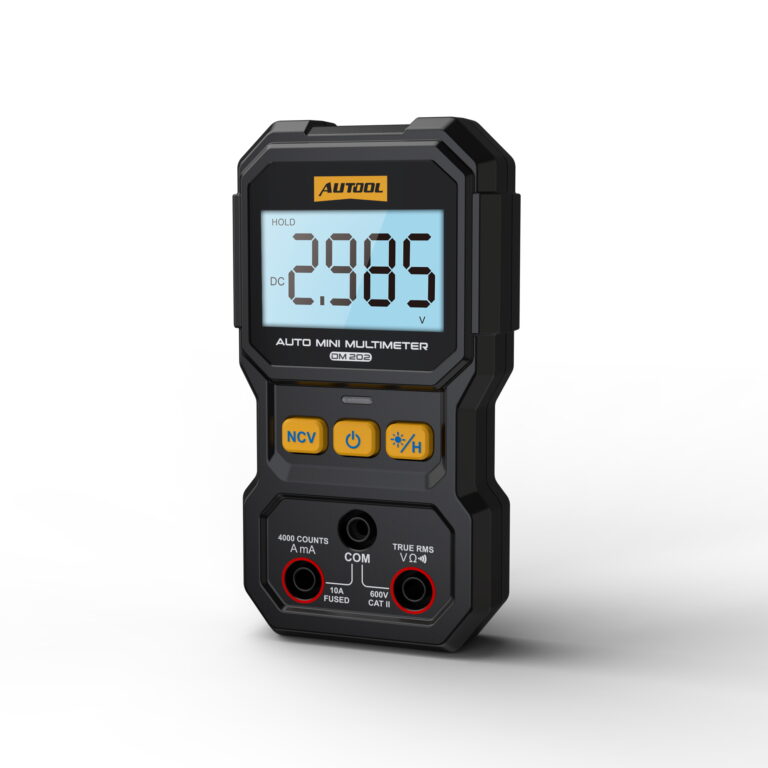

AUTOOL DM202 auto mini multimeter main product image

Key Features

DM202 is designed to reduce manual setup and make everyday electrical troubleshooting easier, from automotive voltage checks to household live-wire detection and continuity testing.

Automatic Mode Identification

No need to repeatedly adjust mode or range settings. DM202 automatically identifies AC/DC voltage, resistance, and continuity for quick basic checks.

5-Second Quick Measurement

Power on the meter, insert the test leads, and let the device identify the measurement type automatically to help users get readings faster.

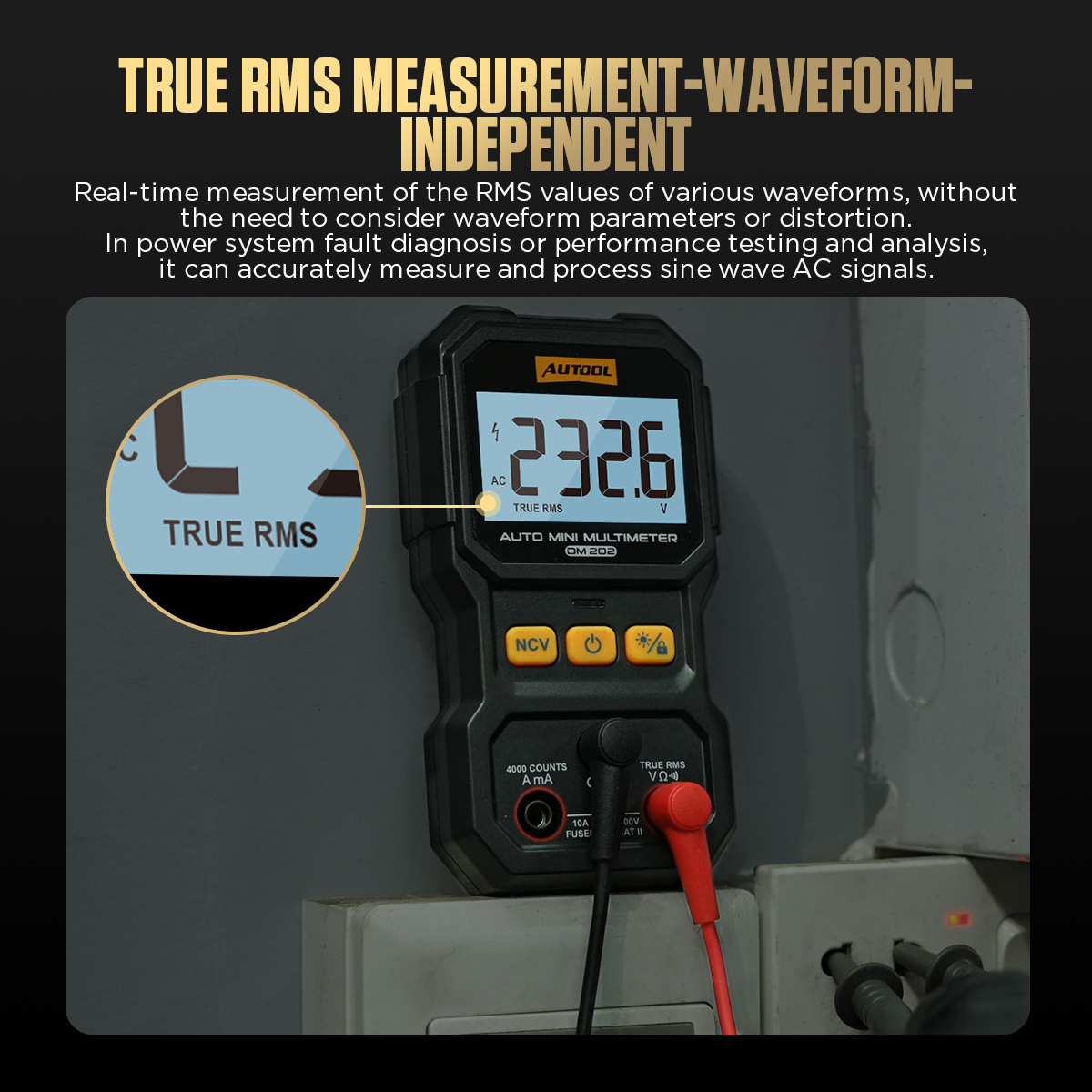

True RMS Measurement

True RMS helps improve AC measurement reliability for supported waveforms and electrical checks within the rated range.

NCV Non-Contact Voltage Detection

Hold the NCV button and bring the meter close to a wire for quick AC voltage detection without directly contacting the conductor.

Live / Neutral Wire Test

Supports common live and neutral wire identification, helping users perform quick household or workshop electrical checks.

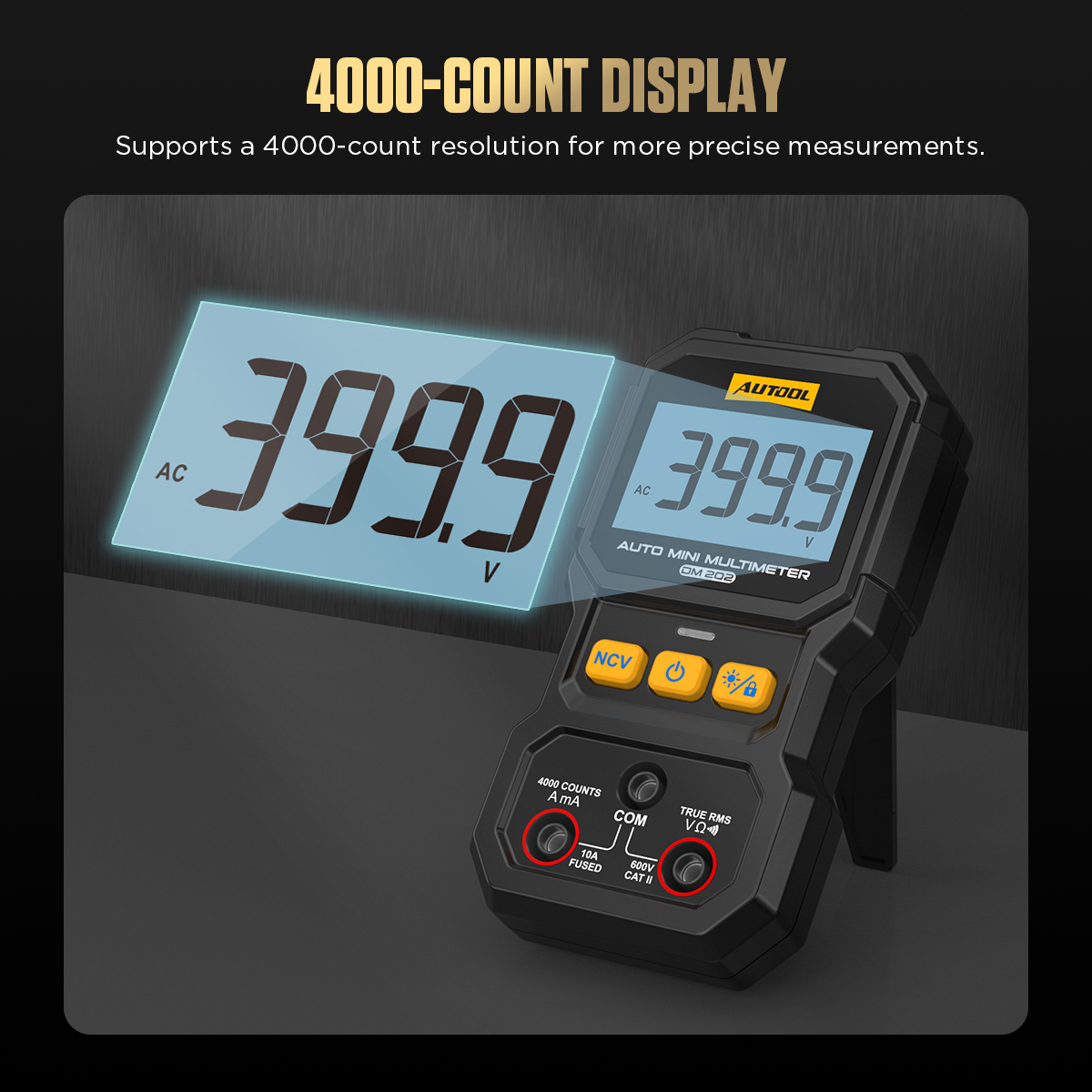

4000-Count Display And Data Hold

The 4000-count LCD, data hold, screen backlight, and flashlight make readings easier to view, lock, and record in different work environments.

AUTOOL DM202 automatic mode identification and 5-second quick measurement

AUTOOL DM202 NCV non-contact voltage test

AUTOOL DM202 True RMS measurement feature

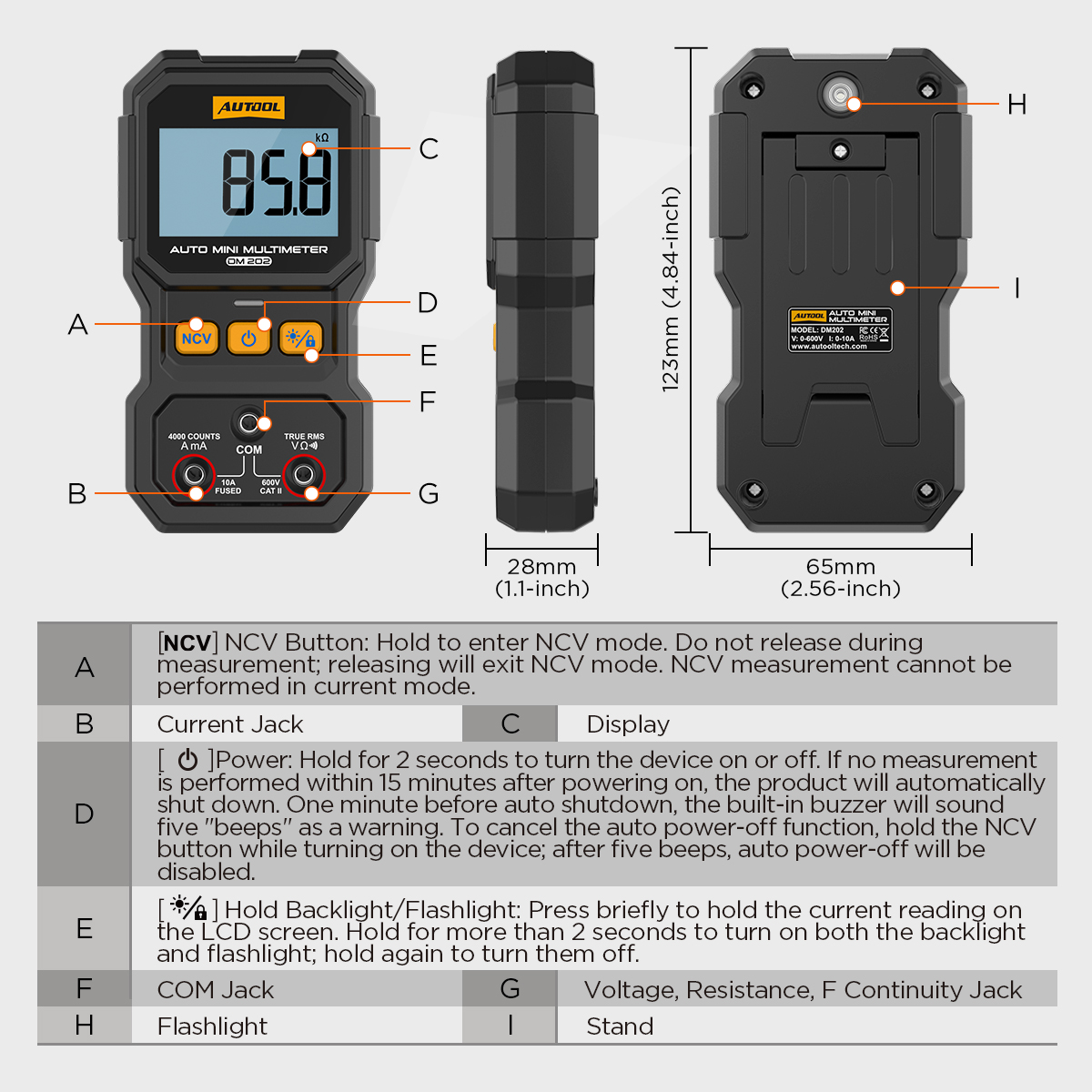

AUTOOL DM202 size components button layout and jack information

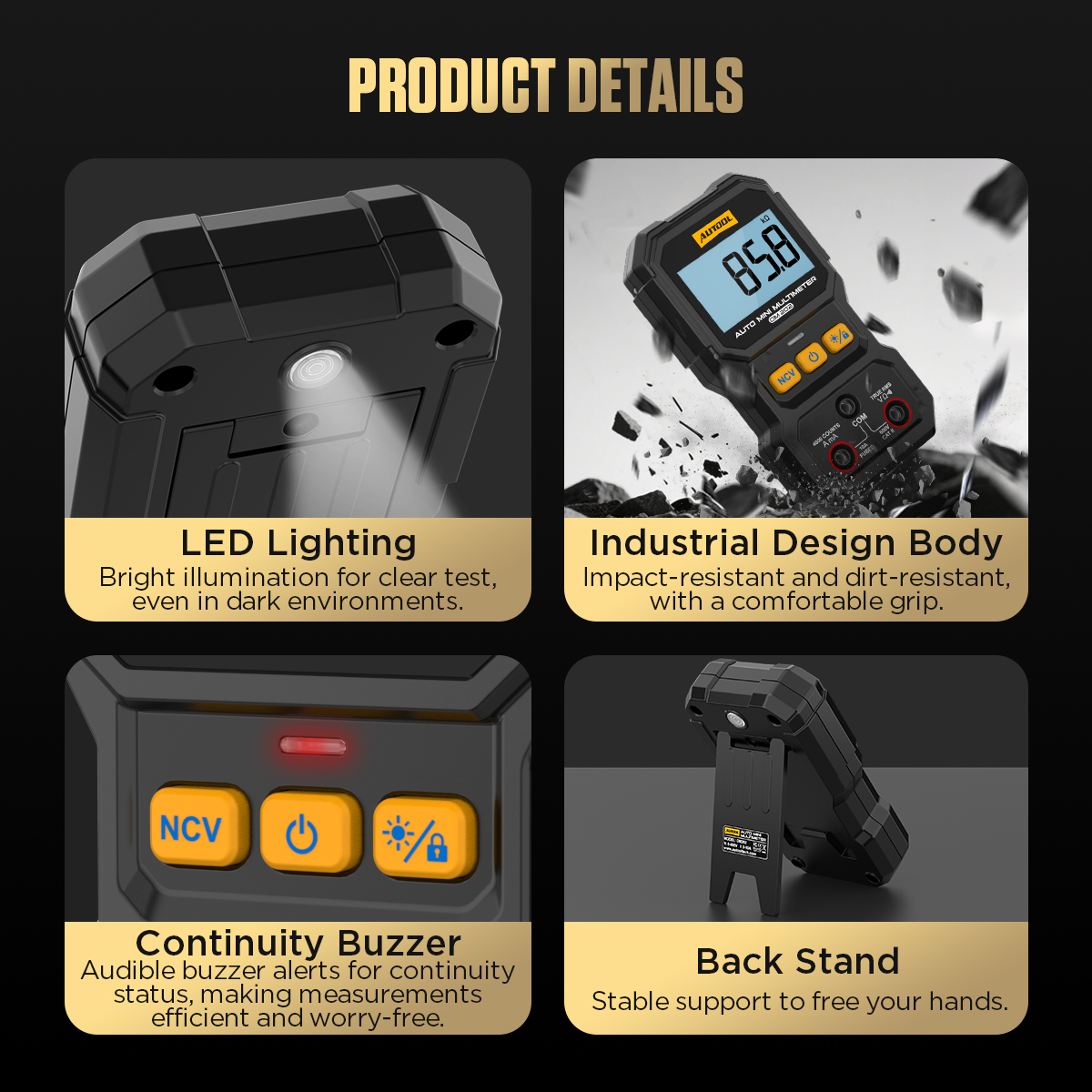

Product Details

DM202 combines a compact 123 x 65 x 28mm body with clear front controls, a built-in flashlight, screen backlight, audible continuity buzzer, and a back stand for hands-free viewing.

LED Lighting

The rear flashlight helps illuminate dark test areas, especially around vehicle compartments, panels, and tight workspaces.

Industrial Design Body

The ABS/PVC body is designed for a comfortable grip and regular workshop handling.

Continuity Buzzer

The audible buzzer alerts users to continuity status, making continuity checks easier when the screen is not directly visible.

Back Stand

The rear stand keeps the meter upright so users can view readings while keeping both hands free for probe positioning.

Specifications

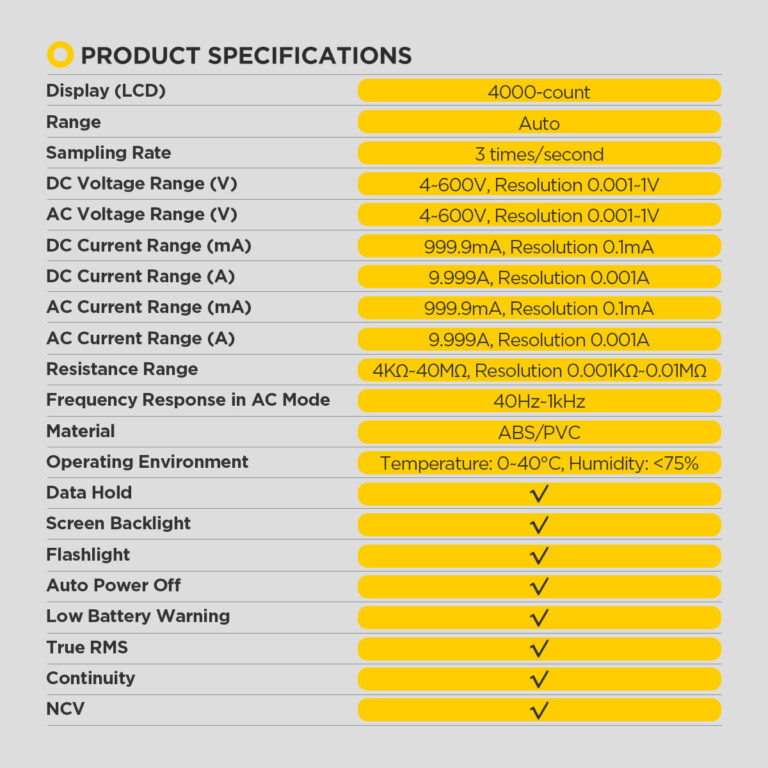

AUTOOL DM202 Product Specifications

Review the official DM202 measurement ranges, display information, sampling rate, working environment, and built-in functions before testing live circuits or unknown systems.

Display And Measurement
Display	4000-count LCD
Range	Auto
Sampling Rate	3 times/second
DC Voltage Range	4-600V, resolution 0.001-1V
AC Voltage Range	4-600V, resolution 0.001-1V
DC Current Range	999.9mA, resolution 0.1mA / 9.999A, resolution 0.001A
AC Current Range	999.9mA, resolution 0.1mA / 9.999A, resolution 0.001A
Resistance Range	4KΩ-40MΩ, resolution 0.001KΩ-0.01MΩ
Frequency Response In AC Mode	40Hz-1kHz
Body And Functions
Material	ABS/PVC
Dimensions	123 × 65 × 28mm / 4.84 × 2.56 × 1.1in
Operating Environment	Temperature 0-40°C, humidity <75%
Built-In Functions	Data hold, screen backlight, flashlight, auto power off, low battery warning, True RMS, continuity, NCV
Auto Power Off	Automatically shuts down after 15 minutes without measurement; warning beeps sound before shutdown.
Warranty Support	3 years for eligible non-human damage cases

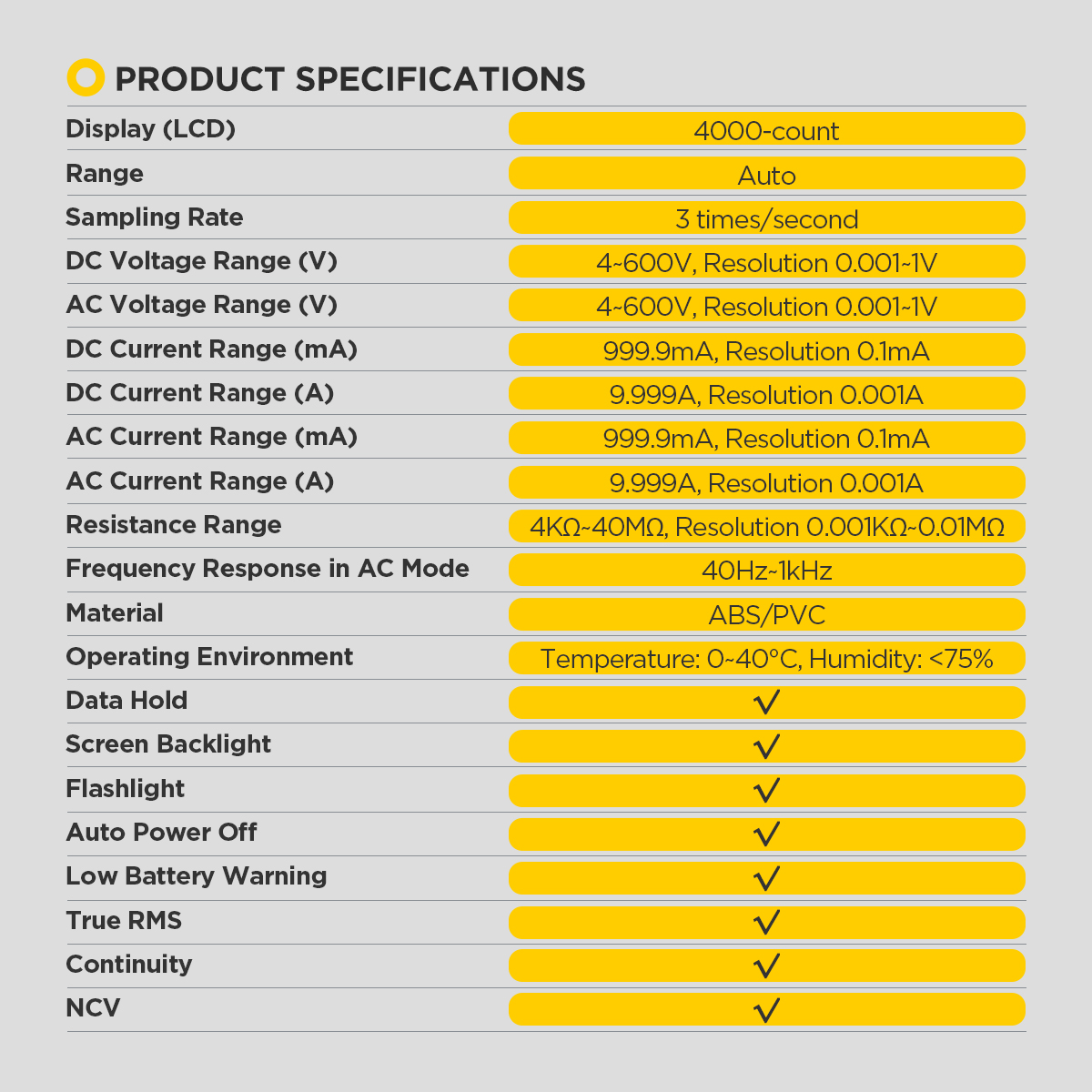

AUTOOL DM202 official product specifications image

Display And Measurement

Display4000-count LCD

RangeAuto

Sampling Rate3 times/second

DC Voltage4-600V

AC Voltage4-600V

DC Current999.9mA / 9.999A

AC Current999.9mA / 9.999A

Resistance4KΩ-40MΩ

AC Frequency Response40Hz-1kHz

Body And Functions

MaterialABS/PVC

Dimensions123 × 65 × 28mm

Operating Environment0-40°C, humidity <75%

FunctionsData hold, backlight, flashlight, auto power off, low battery warning, True RMS, continuity, NCV

How To Use

DM202 is designed for quick operation. Use the correct input jack, keep the measurement within the rated range, and follow the manual when testing unknown or live circuits.

Power On

Hold the power button for 2 seconds to turn the device on. The meter can automatically shut down after 15 minutes without measurement.

Insert The Test Leads

Connect the black lead to COM and use the correct jack for current, voltage, resistance, or continuity according to the test you need.

Let Auto Mode Identify

In auto mode, the device identifies AC/DC voltage, resistance, or continuity, helping reduce manual setup.

Read Or Hold The Value

Read the 4000-count LCD directly, or press the hold/backlight button briefly to lock the current measurement value on the screen.

Use NCV For Quick Detection

Hold the NCV button and bring the meter close to the wire to detect AC voltage. Release the button to exit NCV mode.

Use Notes

NCV measurement cannot be performed in current mode.
Press the backlight / flashlight / hold button briefly to hold the current reading.
Hold the backlight / flashlight / hold button for more than 2 seconds to turn on both the backlight and flashlight; hold again to turn them off.
One minute before auto shutdown, the built-in buzzer sounds five beeps as a warning.
To disable auto power-off, hold the NCV button while turning on the device; after five beeps, auto power-off is disabled.

Before You Order And Use

Electrical measurement involves risk. Confirm the rated range, input jack, and measurement method before connecting probes to automotive or household circuits.

Use Within The Rated Range

Do not use the meter outside the official measurement range. Confirm the circuit type and expected voltage or current before testing.

Choose The Correct Jack

Use the current jack only for current measurement, the COM jack for the black lead, and the voltage / resistance / continuity jack for supported checks.

NCV Is Preliminary Detection

NCV is designed for quick non-contact AC voltage detection. Do not rely on NCV alone before touching or repairing a circuit.

Be Careful With Live Circuits

Do not touch exposed conductors. If the circuit status is unclear, stop testing and follow proper safety procedures.

Check Unclear Readings

If the reading is unstable or unexpected, check the probes, jack connection, test point, and measurement method before continuing.

Use The Manual

Read the user manual before measuring unfamiliar circuits, live electrical systems, or current loads.

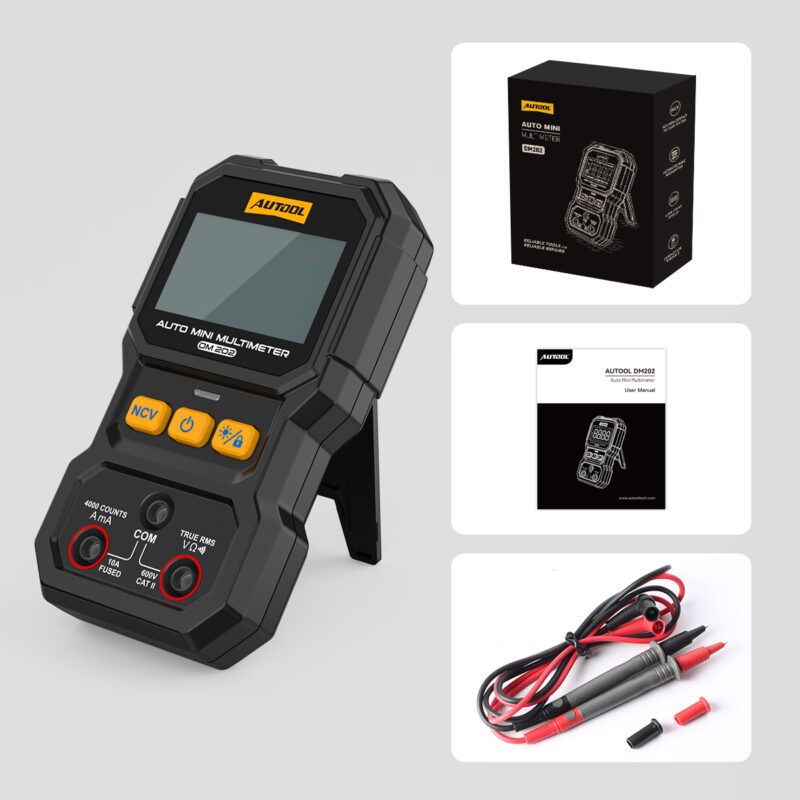

AUTOOL DM202 package contents with main unit test leads manual and retail box

What Is In The Box

The official packing image shows the DM202 main unit, test leads, user manual, and retail box. Refer to the package image for the final included accessories.

Main UnitAUTOOL DM202 auto mini multimeter

Test LeadsRed and black test probes shown in the package image

ManualAUTOOL DM202 user manual

PackagingDM202 retail box

Manual And Downloads

Use the manual preview and contact support if you need the full PDF file, setup confirmation, measurement guidance, or safety information before testing unfamiliar circuits.

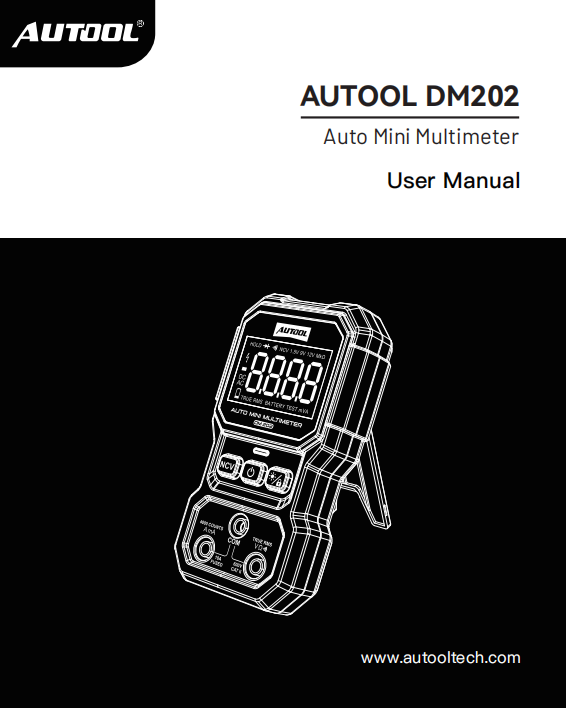

AUTOOL DM202 Manual Preview

Open the manual preview before use, especially when working with live circuits, current measurement, NCV detection, or unknown systems.

Open Manual Preview

Need The Full Manual?

Contact AUTOOL Store for the latest DM202 manual file, measurement setup help, NCV use, current jack confirmation, and safe-use guidance.

Emailsupport@autoolstore.com WhatsApp+86 189 2647 7404

Questions And Answers

These answers cover auto mode, voltage range, current measurement, NCV detection, True RMS, data hold, auto power-off, package contents, manual support, and warranty.

What Can AUTOOL DM202 Automatically Identify?

What Voltage Range Does DM202 Support?

Can DM202 Measure Current?

How Do I Use NCV Non-Contact Voltage Detection?

What Does True RMS Mean On DM202?

How Do Data Hold, Backlight, And Flashlight Work?

Why Does DM202 Shut Down Automatically?

Can DM202 Be Used For Car Battery Voltage Checks?

What Accessories Are Included?

Where Can I Get The DM202 Manual?

How Long Is The Warranty?

Related Guides

Use these related AUTOOL articles to learn more about car battery voltage checks and compact electrical testing tools.

Guide image for checking and replacing a car battery yourself

Battery Check

A Simple Guide to Checking and Replacing Car Battery Yourself

Learn how basic voltage checks can help evaluate battery condition before further diagnosis or replacement.

AUTOOL DM103 digital LCR tweezer related guide image

AUTOOL Tools

AUTOOL New Product Release | DM103 Digital LCR Tweezer

Explore another compact AUTOOL electrical testing tool for electronic component checks.

Guide / 2025-10-22

AUTOOL New Product Release | DM103 Digital LCR Tweezer

Learn the DM103 positioning, D/Q interpretation, and component-level testing workflow.

Guide / 2025-09-12

Common Car Breakdowns and Solutions

See common electrical fault patterns and where LCR-level measurement can reduce misdiagnosis.

Warranty And Contact

For DM202 setup, measurement range confirmation, probe connection, NCV use, current measurement, manual support, accessories, troubleshooting, or warranty help, contact AUTOOL Store directly.

Pre-Sales And Product Support

Use support before or after purchase if you need help confirming whether DM202 fits your automotive or household electrical testing needs.

Model selection and measurement range confirmation
Probe connection and input jack guidance
NCV, live/neutral wire, continuity, and True RMS use questions
Car battery voltage check guidance
Manual file, package contents, and accessory confirmation
3-year warranty support for eligible non-human damage cases
Returns, exchanges, troubleshooting, and legacy model support

Email Supportsupport@autoolstore.com WhatsApp Support+86 189 2647 7404
