AUTOOL BT260 Electrical Circuit Tester For Trucks

AUTOOL BT260

Product Overview

The AUTOOL BT260 electrical circuit tester is designed for 12V and 24V vehicle electrical diagnostics within its 9-30V operating range. It supports DC voltage, AC voltage, resistance, diode, continuity, polarity, grounding, and circuit fault checks, with a 12m power cable for front-to-rear vehicle inspection.

DC / AC Voltage Test Resistance / Diode Test 12m Power Cable 9 Languages

9-30VOperating Voltage

0-65VDC / AC Range

0-200kΩResistance Range

3 YearsWarranty

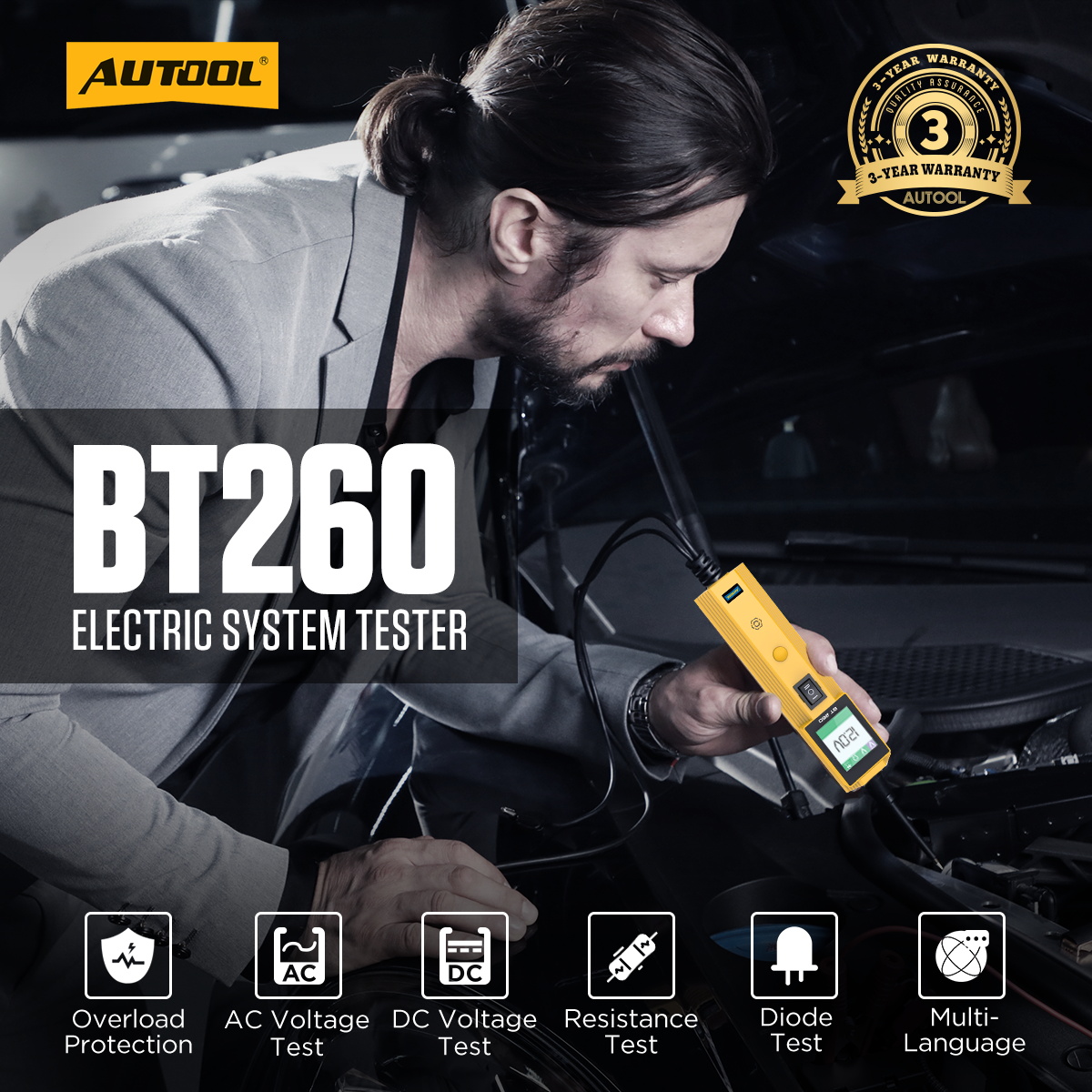

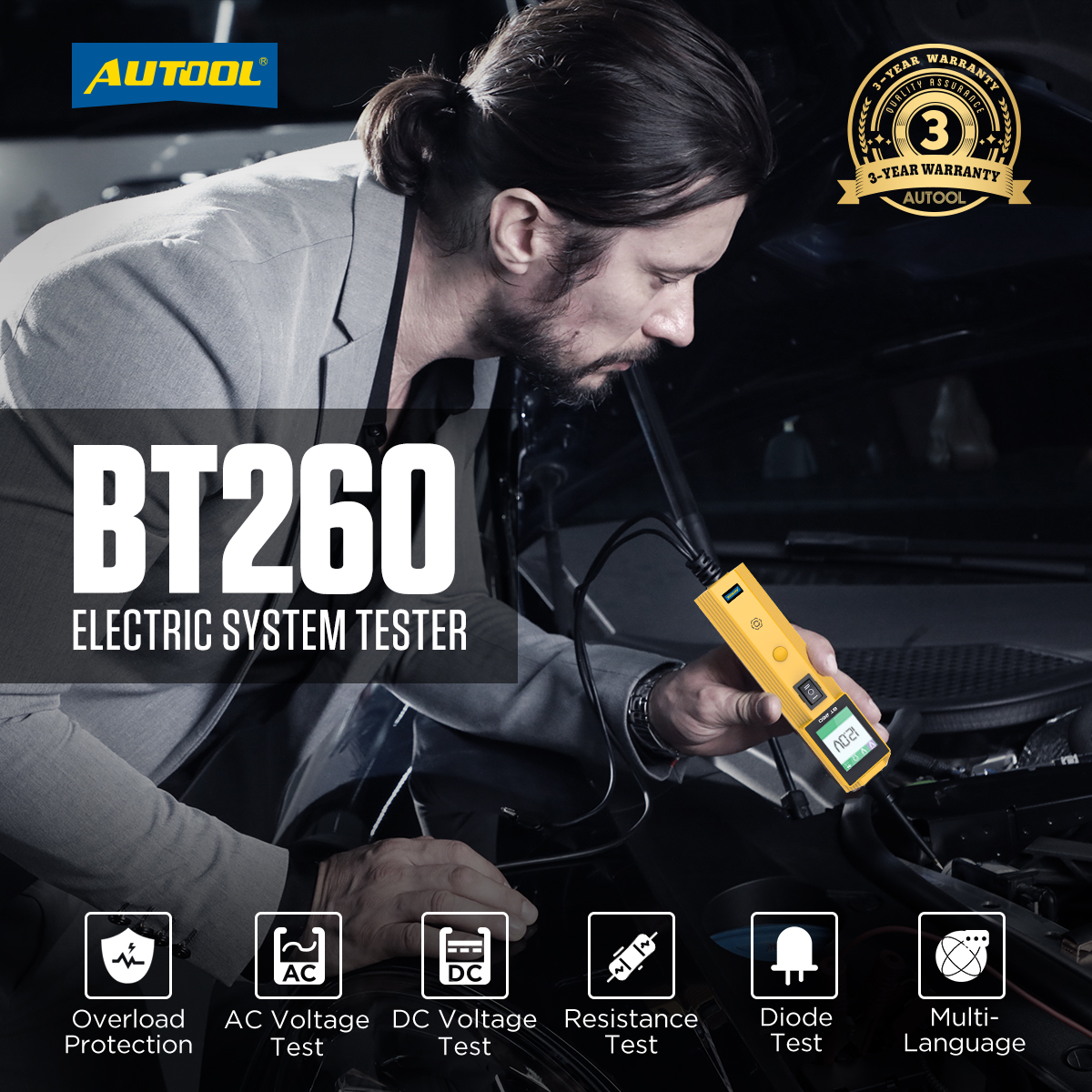

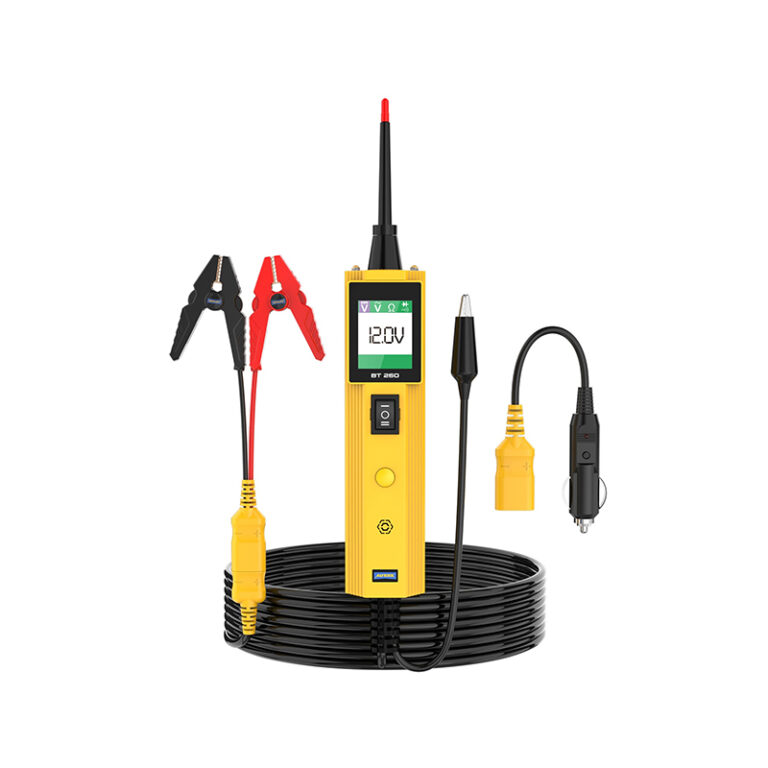

AUTOOL BT260 electrical system tester main product image with overload protection AC voltage DC voltage resistance diode and multi-language functions

AUTOOL BT260 electrical system tester with 3 year warranty

Before You Order And Use

BT260 is a low-voltage automotive electrical tester. Confirm the operating range, measuring range, current limit, power connection, and overload protection before testing vehicle circuits.

Vehicle Low-Voltage Use

Use BT260 on compatible 12V and 24V vehicle electrical systems within its 9-30V operating voltage range.

Measurement Range

The tester supports 0-65V DC voltage, 0-65V AC voltage, and 0-200kΩ resistance measurement.

Rated Current

The specification image lists a 1-10A rated current. Keep jump-wire and circuit checks within the proper rated range.

Overload Protection

Current overload protection can automatically disconnect the tester during overload or short-circuit conditions to help reduce circuit risk.

Power Connection

BT260 is powered through the vehicle battery clamps or the cigarette lighter adapter shown in the package image; no internal battery is required.

Stay Within Rating

Do not use this tool on circuits outside its rated range, and do not treat it as a high-voltage EV battery or household mains tester.

Safe Testing Reminder

Use the probe, auxiliary ground clamp, battery clips, and cigarette lighter adapter only as intended.
Correct a short circuit or overload condition before continuing the test.
For high-current motors or starter-related circuits, test the control circuit and stay within the BT260 rated current range.

Product Comparison

Compare BT260 with other AUTOOL automotive circuit testers before choosing the right operating voltage, measuring range, cable length, display, language support, and advanced functions.

BT1606-24V operation, basic circuit checks, 4m power cable, no screen, and no multi-language interface.

BT2109-30V operation, 9-30V DC / AC measurement, 1.1m cable, LED light, temperature test, and basic circuit functions.

BT2509-30V operation, 0-65V DC / AC measurement, 0-200kΩ resistance measurement, TFT color display, 9 languages, and 1.5m cable.

BT260BT250-level voltage and resistance test coverage, plus a longer 12m power cable for front-to-rear vehicle electrical inspection.

BT280Higher-end option with 0.1-100V DC / AC measurement, 0-18A current range, larger 320×240dpi display, 14 languages, oscilloscope, multimeter, smart test, online update, relay test, and advanced component activation functions.

Decision CheckChoose BT260 if you need a 9-30V automotive circuit tester with 0-65V measurement, resistance and diode modes, TFT display, 9 languages, and a 12m cable instead of advanced BT280-only functions.

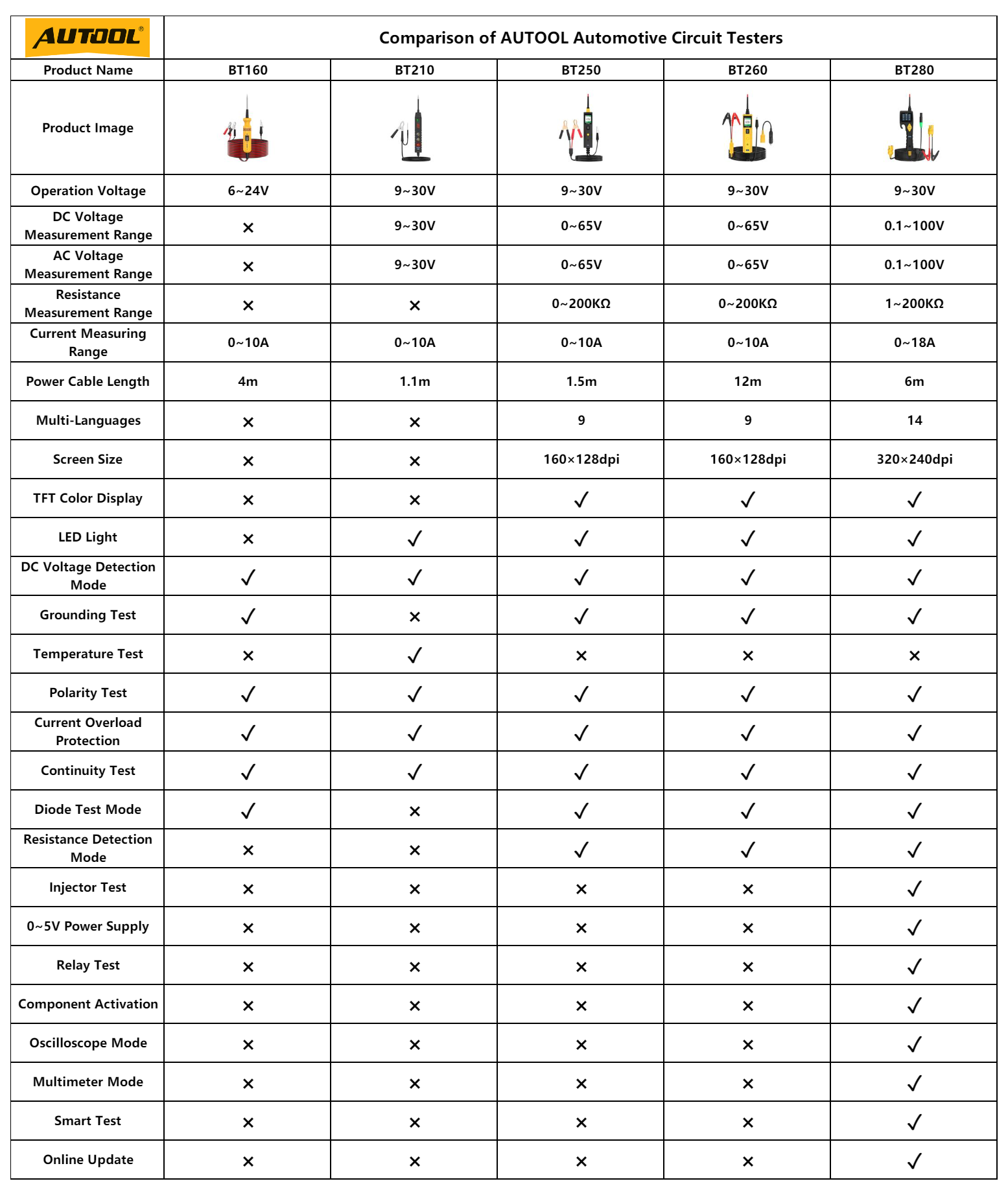

AUTOOL BT160 BT210 BT250 BT260 BT280 automotive circuit tester comparison chart

Key Features

BT260 combines multi-mode electrical testing, long-cable vehicle coverage, color display reading, LED lighting, overload protection, and multi-language operation for common automotive circuit diagnostics.

Multi-Mode Circuit Testing

Supports DC voltage, AC voltage, resistance, diode, continuity, polarity, grounding, and signal circuit checks for common vehicle electrical diagnostics.

DC Voltage Testing

Measures DC voltage with 0.1V resolution and ±0.2V accuracy, helping check voltage values at different circuit nodes.

AC Voltage Testing

Detects maximum and minimum voltage values, supply frequency, and duty cycle of the circuit under test.

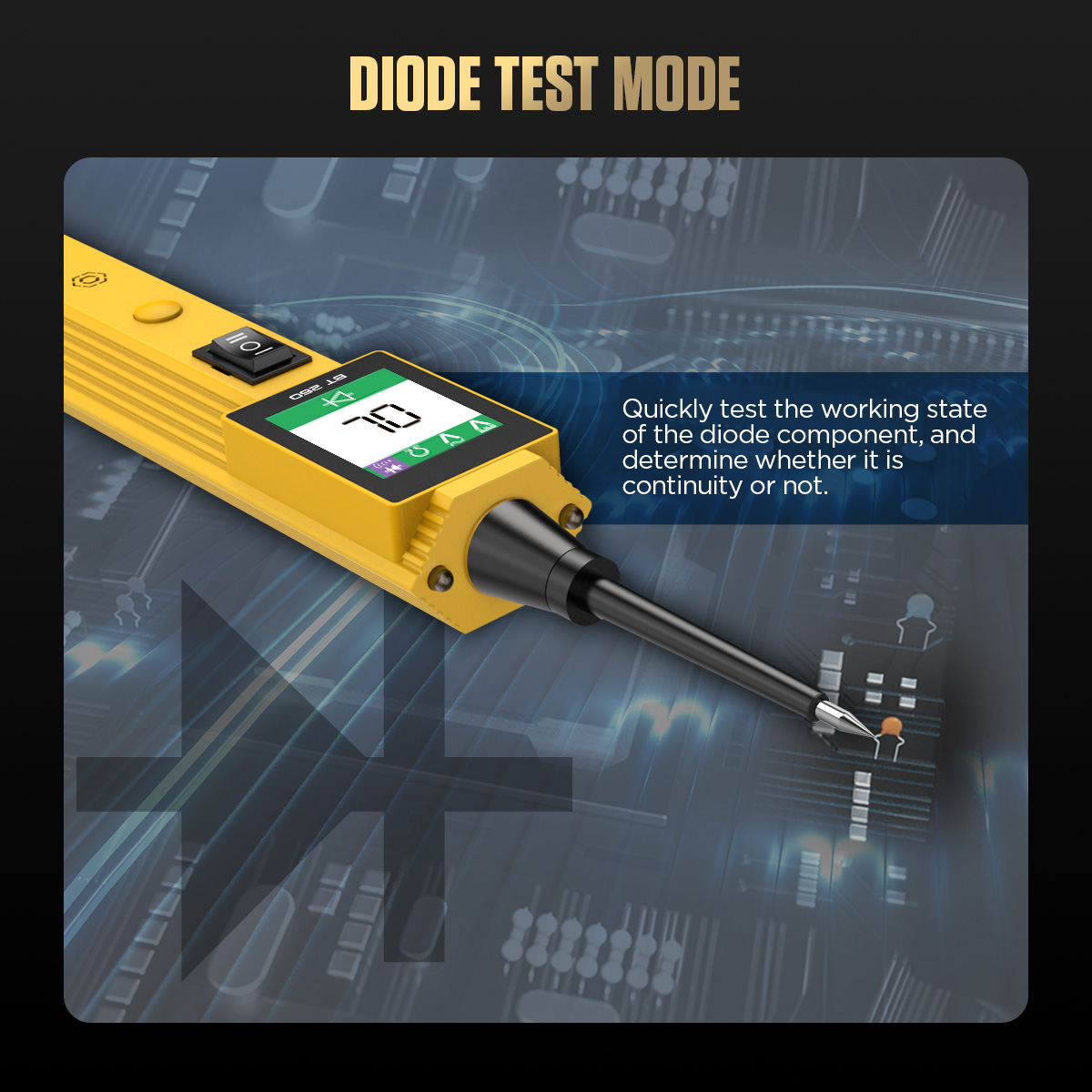

Resistance And Diode Modes

Measures resistance from 0-200kΩ and helps check diode working status, continuity, and open-circuit conditions.

12m Front-To-Rear Cable

The 6m + 6m power cable setup helps cover the full length of larger vehicles for front-to-rear electrical circuit inspection.

Color Display And Lighting

A 1.7-inch TFT color screen and 2 LED flashlights on the probe head help improve reading and visibility in darker work areas.

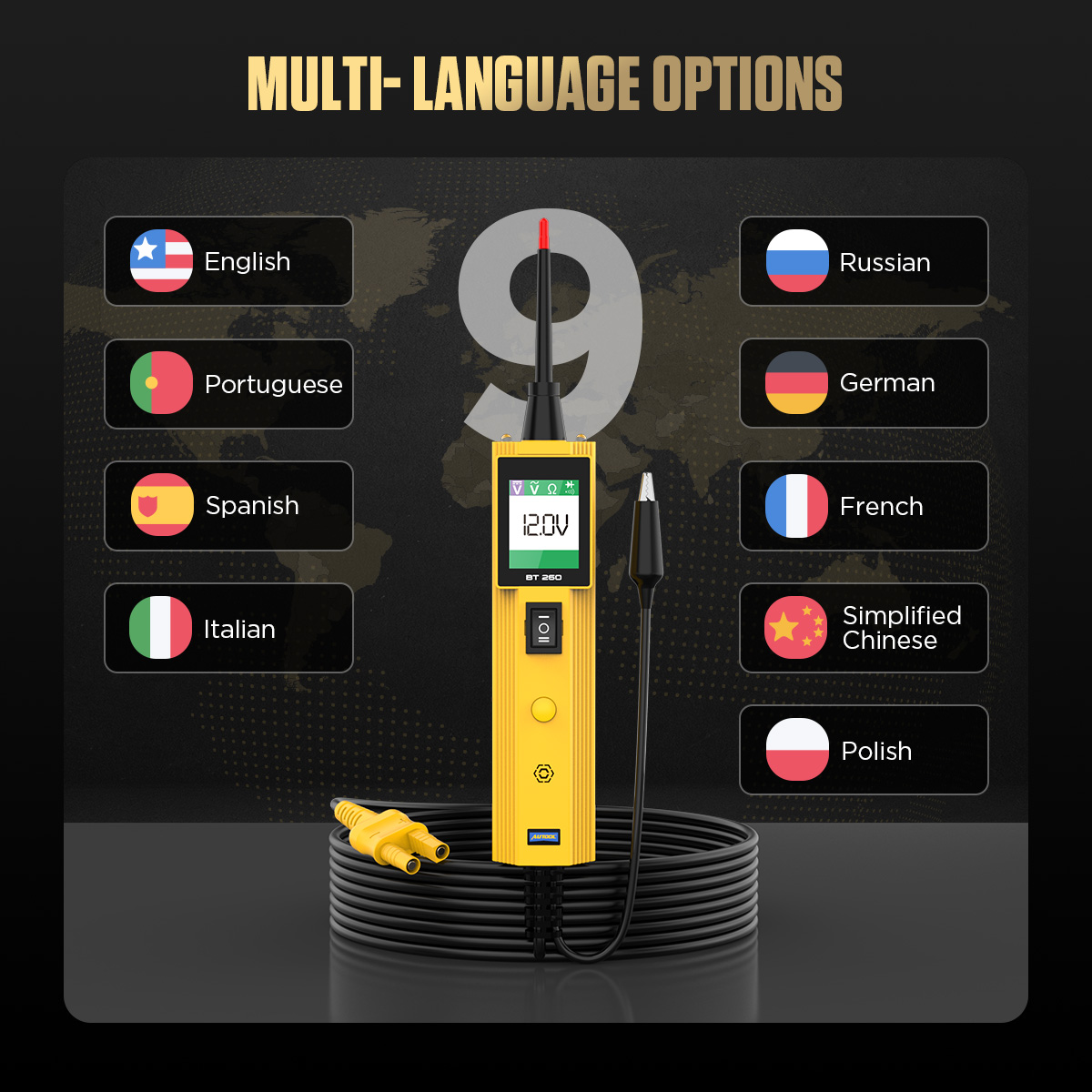

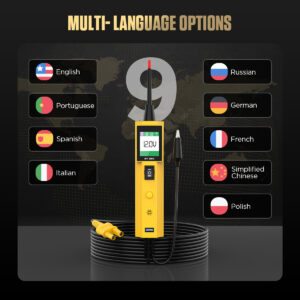

9 Language Options

Supports English, Russian, German, French, Simplified Chinese, Polish, Italian, Spanish, and Portuguese.

Powered By The Vehicle

Connect through the vehicle battery or cigarette lighter adapter shown in the package image, without needing a separate internal battery.

Warranty And Support

AUTOOL provides 3-year support for eligible non-human damage cases, with assistance for setup, accessories, model selection, and troubleshooting.

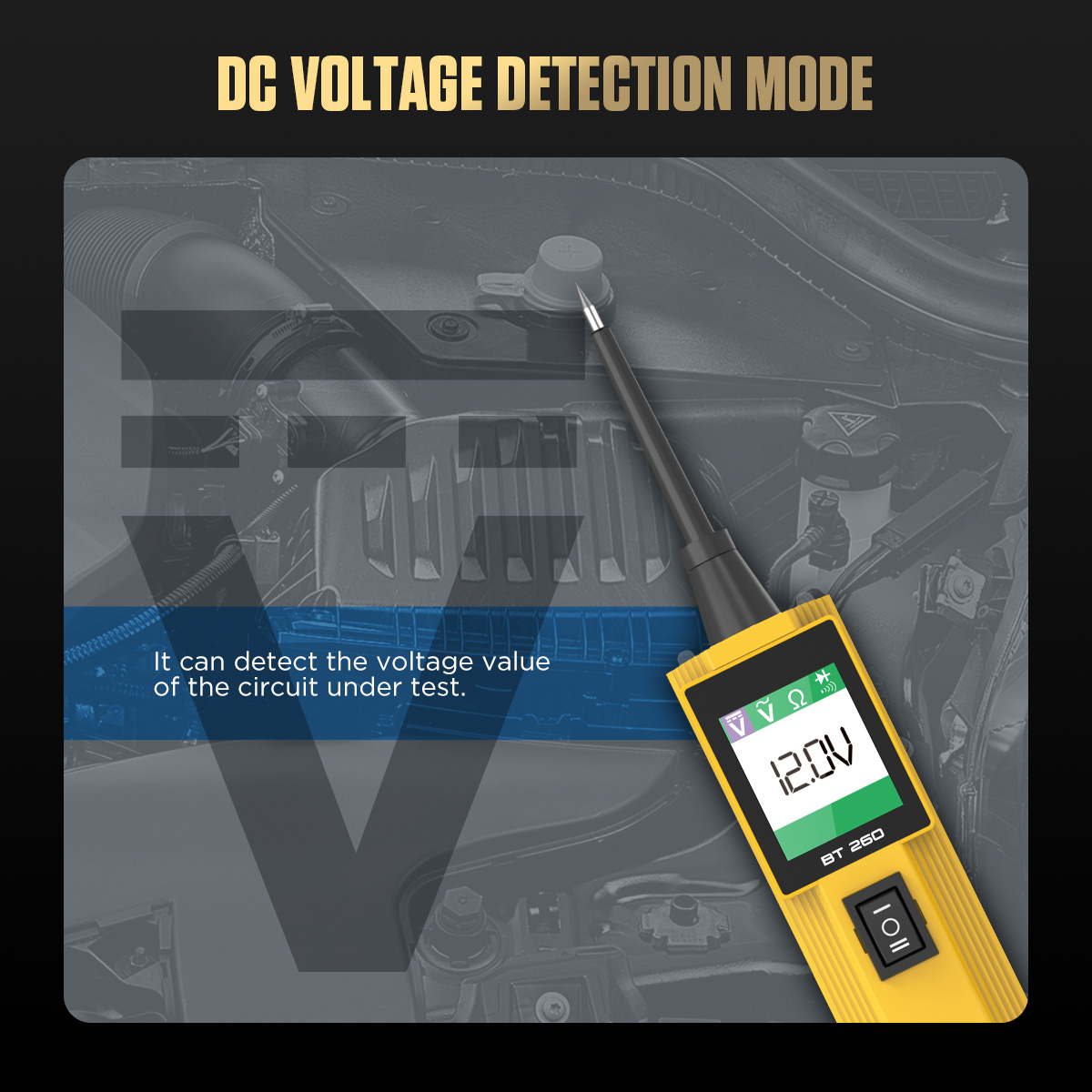

AUTOOL BT260 DC voltage detection mode image

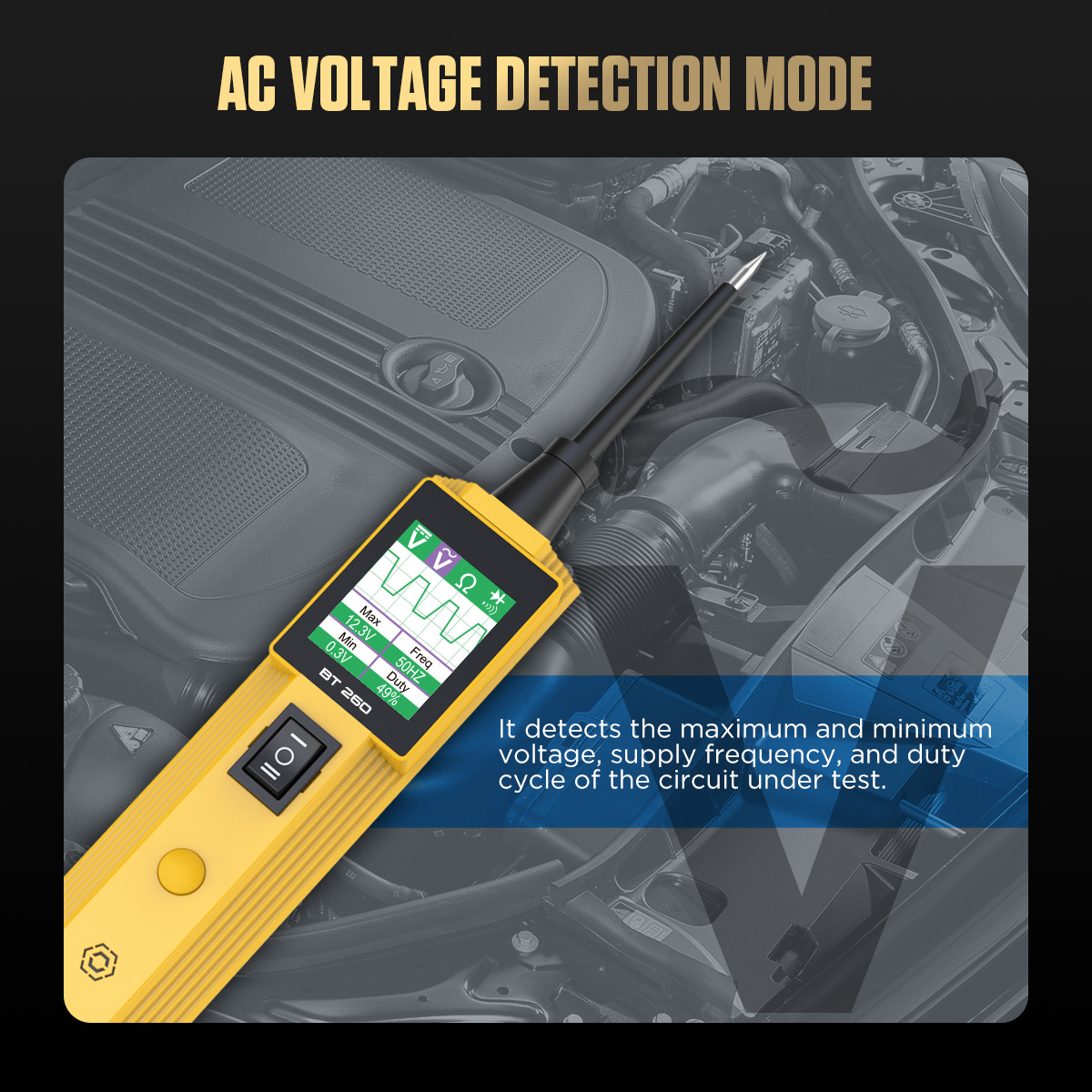

AUTOOL BT260 AC voltage detection mode image showing max min frequency and duty cycle

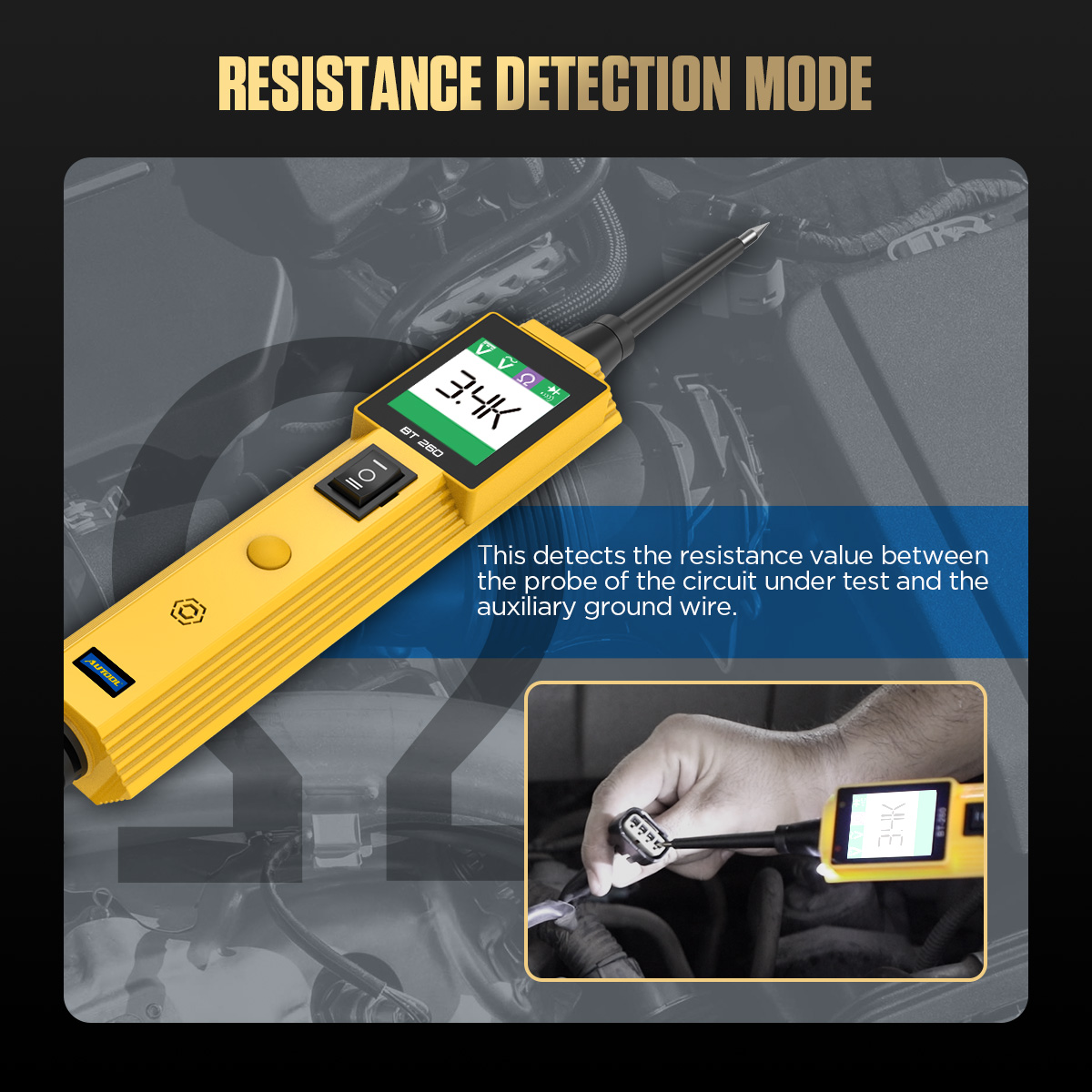

AUTOOL BT260 resistance detection mode image

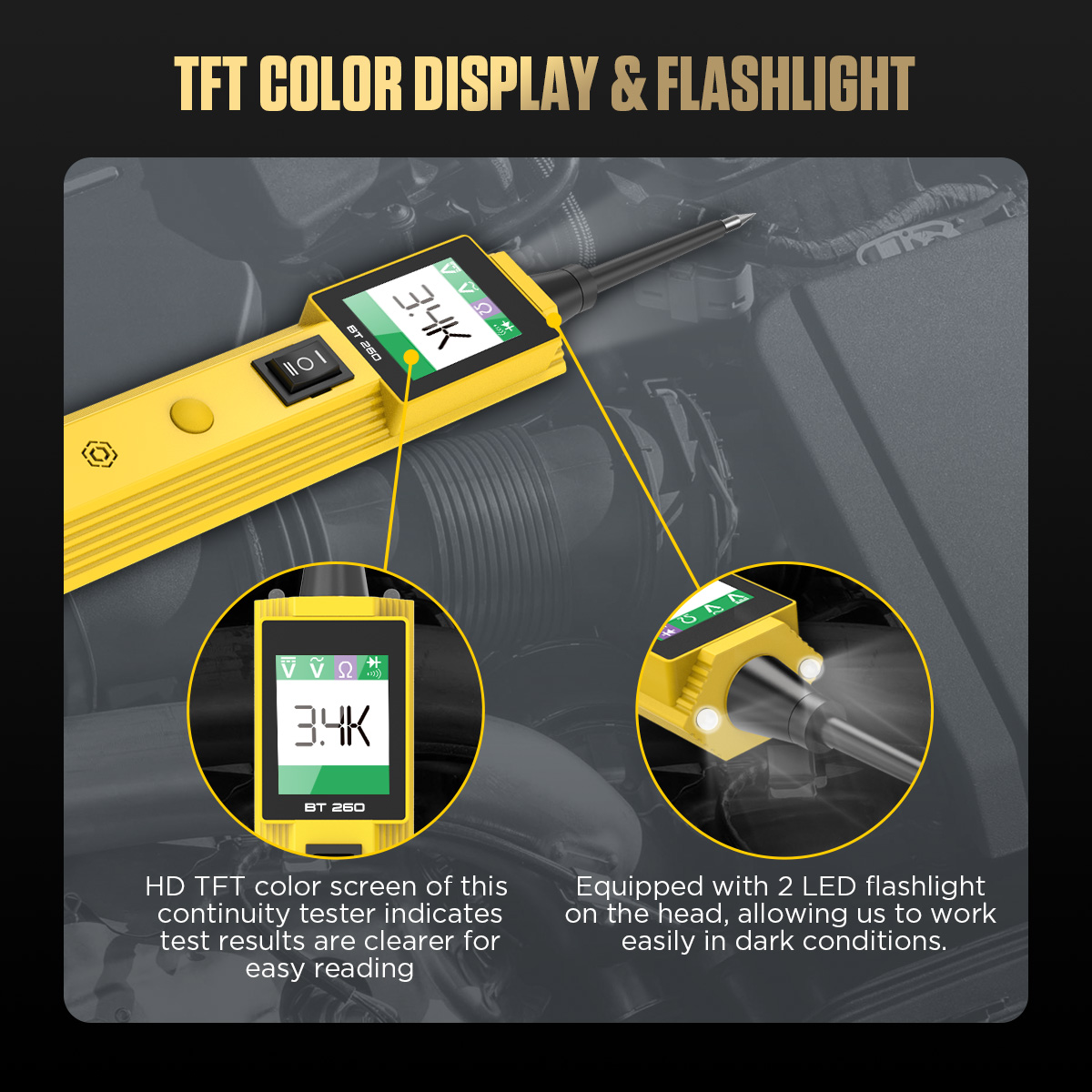

AUTOOL BT260 TFT color display and 2 LED flashlight image

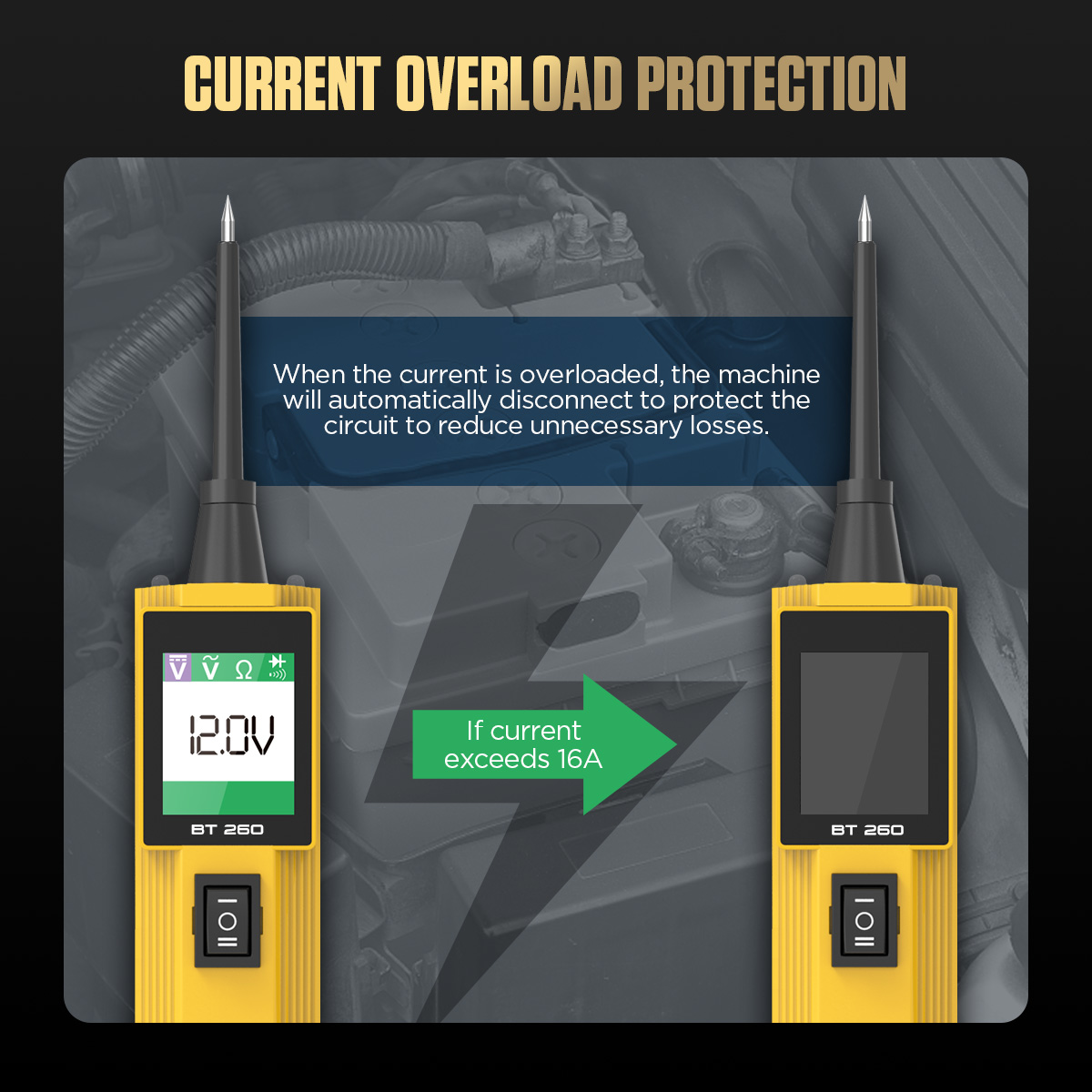

AUTOOL BT260 current overload protection image

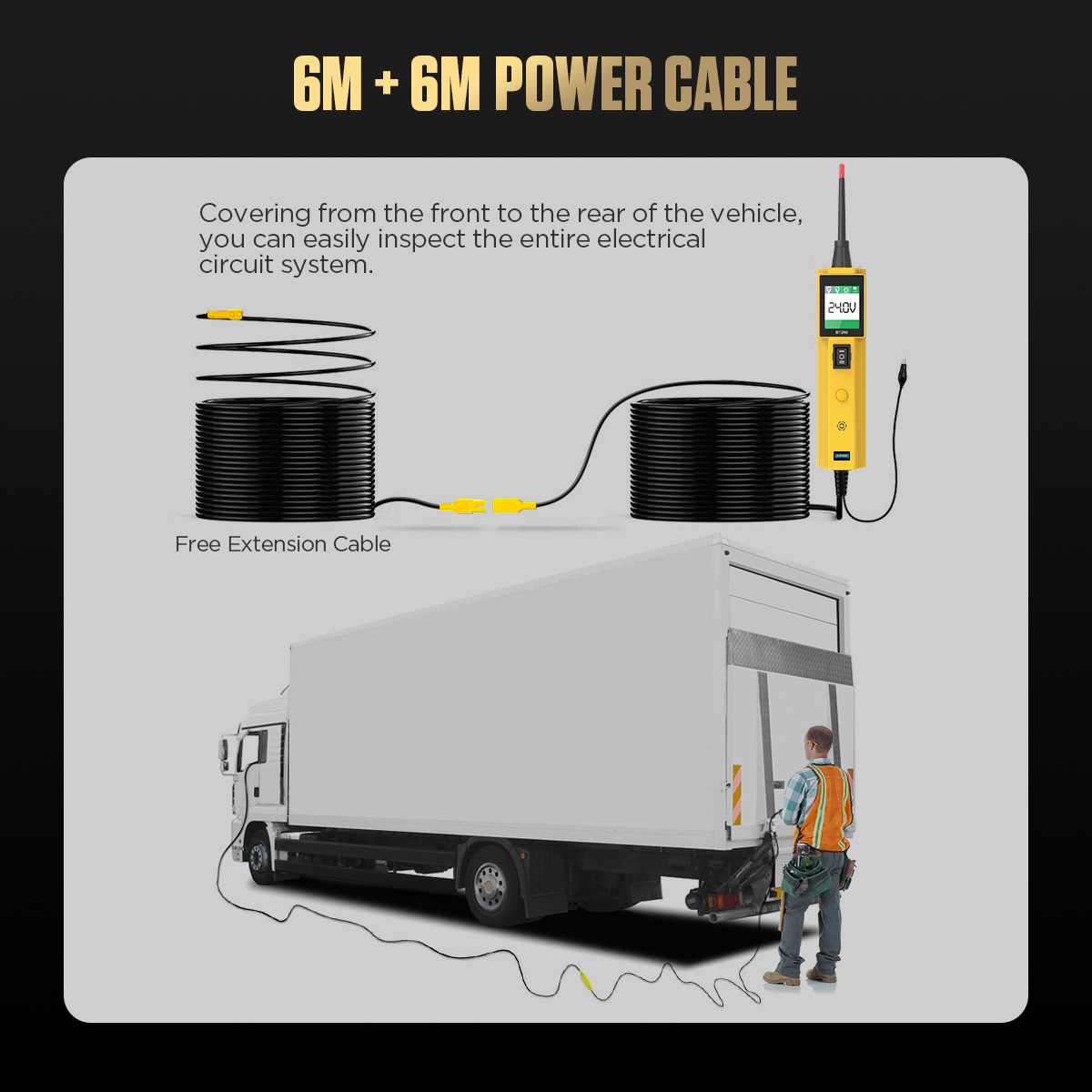

AUTOOL BT260 6m plus 6m 12m power cable front to rear vehicle inspection image

Applications

Use BT260 to assist common low-voltage vehicle electrical troubleshooting, including circuit status checks, poor-ground detection, continuity checks, and long-distance inspections on larger vehicles.

Circuit Fault Checks

Helps identify open circuits, continuity issues, short circuits, poor grounding, and faulty circuit connections.

Lighting And Socket Checks

Useful for checking headlights, taillights, faulty sockets, fuses, wires, and related low-voltage circuits.

Relay And Switch Checks

Supports switch, relay, polarity, grounding, signal circuit, continuity, and jump-wire style checks under proper conditions.

Wide Vehicle Coverage

Suitable for compatible cars, motorcycles, trucks, excavators, boats, RVs, and other 12V / 24V vehicle electrical systems.

Specifications

BT260 Product Specifications

BT260 provides 9-30V operation, 0-65V DC / AC voltage measurement, 0-200kΩ resistance measurement, 1-10A rated current, TFT color display, 2 LED lights, and a 12m test cable.

Electrical Specifications
Product	AUTOOL BT260 Electrical System Tester
Operating Voltage	9-30V
Compatible Vehicle Systems	12V / 24V vehicle electrical systems within rated range
DC Voltage Measurement Range	0-65V
DC Voltage Resolution	0.1V
DC Voltage Accuracy	±0.2V
AC Voltage Measurement Range	0-65V
Resistance Measurement Range	0-200kΩ
Current Measuring Range	0-10A
Rated Current	1-10A
Function And Interface
Supported Tests	DC voltage, AC voltage, resistance, diode, continuity, polarity, grounding, and circuit fault checks
AC Measurement Display	Maximum voltage, minimum voltage, frequency, and duty cycle
Display	TFT color display
Screen Size	160 × 128dpi
Flashlight	2 LED lights on the probe head
Languages	English, Russian, German, French, Simplified Chinese, Polish, Italian, Spanish, Portuguese
Cable And Body
Power Cable Length	12m / 39.37ft
Cable Structure	6m + 6m extension cable setup shown in the feature image
Product Length	255mm / 9.93inch
Product Width	32mm / 1.26inch
Probe Tip Length	42mm / 1.65inch
Warranty	3-year support for eligible non-human damage cases

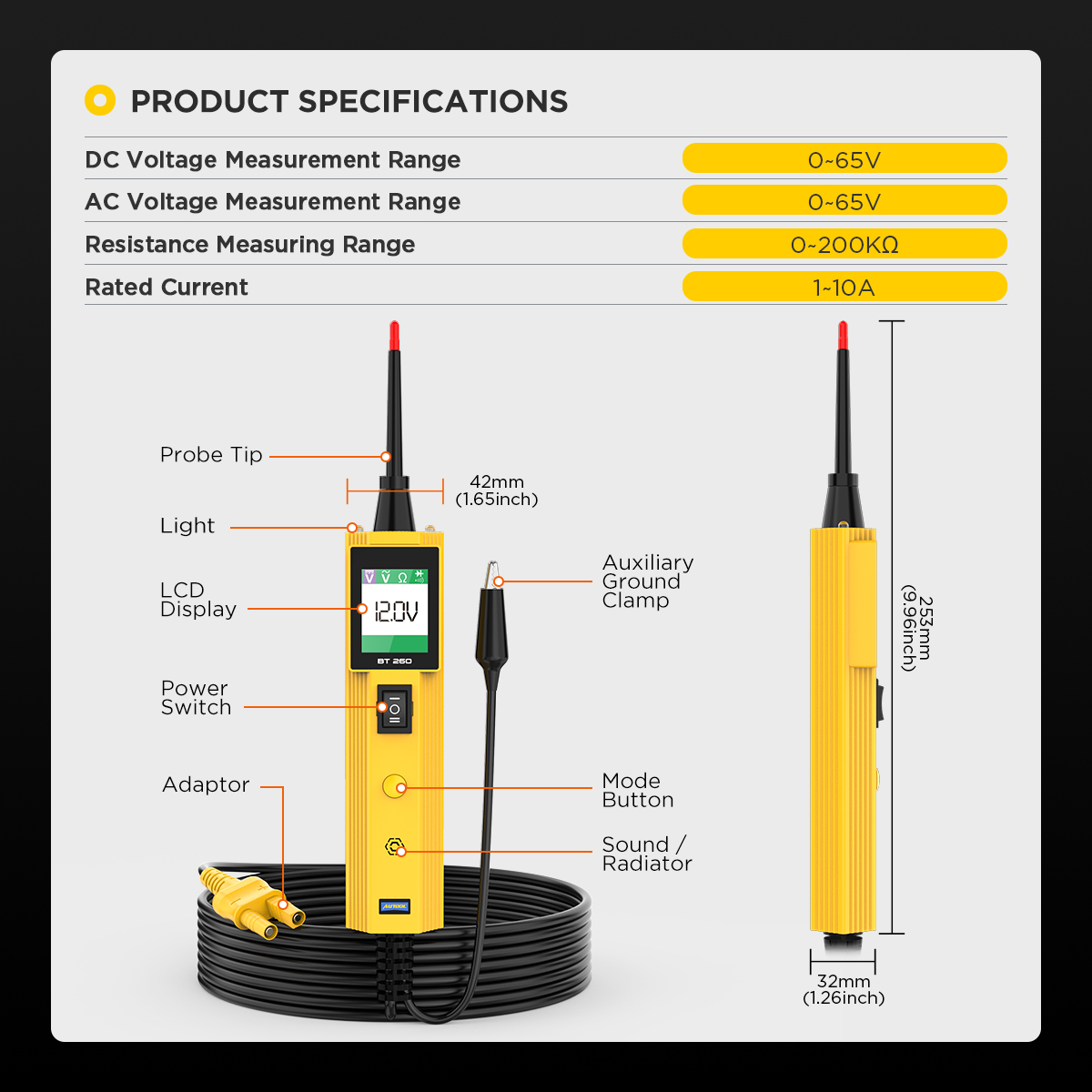

AUTOOL BT260 product specifications and dimensions image

Electrical Specifications

Operating Voltage9-30V

DC Voltage Range0-65V

AC Voltage Range0-65V

Resistance Range0-200kΩ

Current Measuring Range0-10A

Rated Current1-10A

Display And Cable

DisplayTFT color display

Screen Size160 × 128dpi

Flashlight2 LED lights

Power Cable12m / 39.37ft

Product Size255 × 32mm

Languages9 languages

Manual And Downloads

Download the shared BT250 / BT260 manual for setup, test modes, interface guidance, specifications, and safe-use instructions.

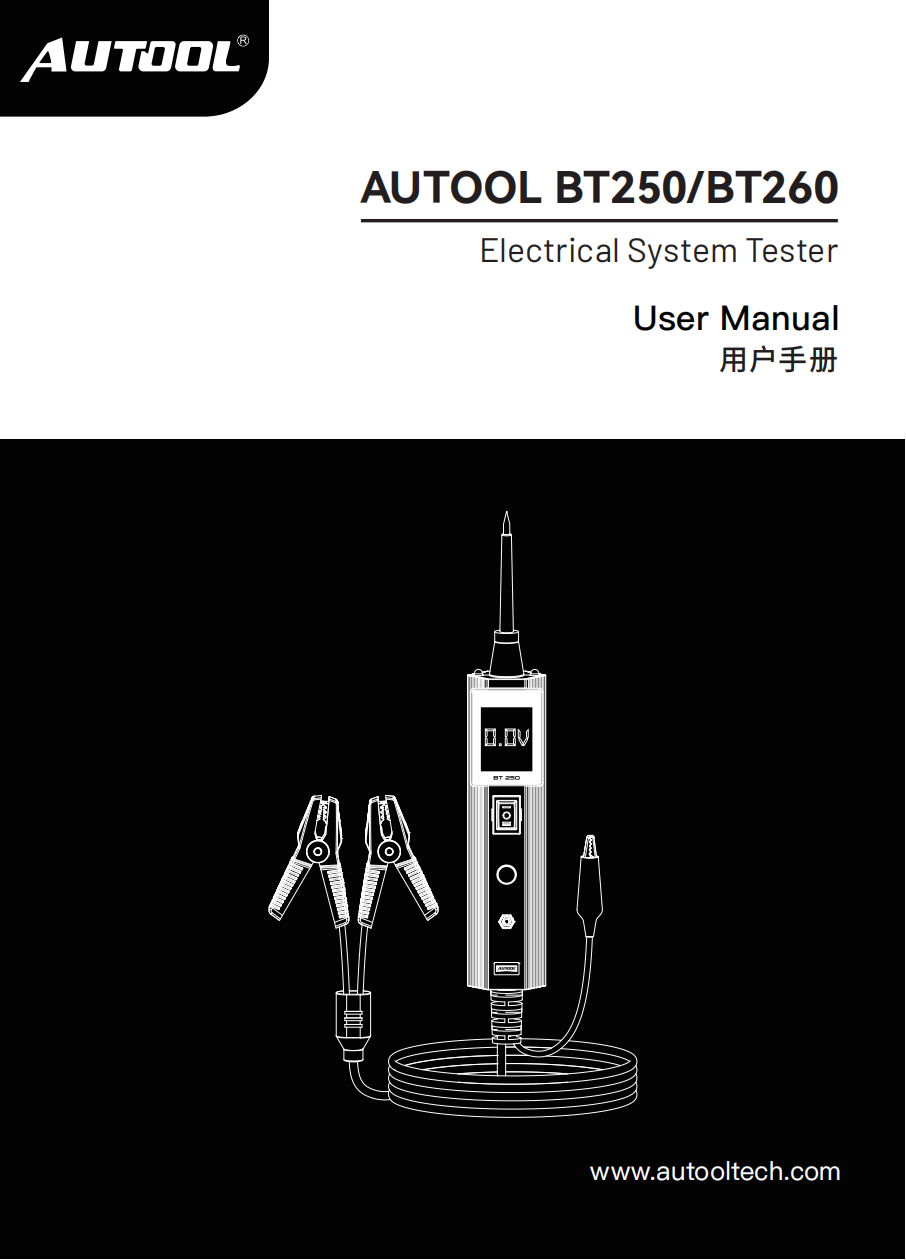

AUTOOL BT250 BT260 electrical system tester user manual preview

BT250 / BT260 Electrical System Tester Manual

Open the PDF manual before use if you need help with power connection, test mode selection, screen icons, or troubleshooting.

Download Manual

Need Setup Confirmation?

Contact AUTOOL Store if you need help confirming BT250 vs BT260, compatible vehicle systems, circuit rating, cable length, accessories, or safe test setup.

Emailsupport@autoolstore.com WhatsApp+86 189 2647 7404

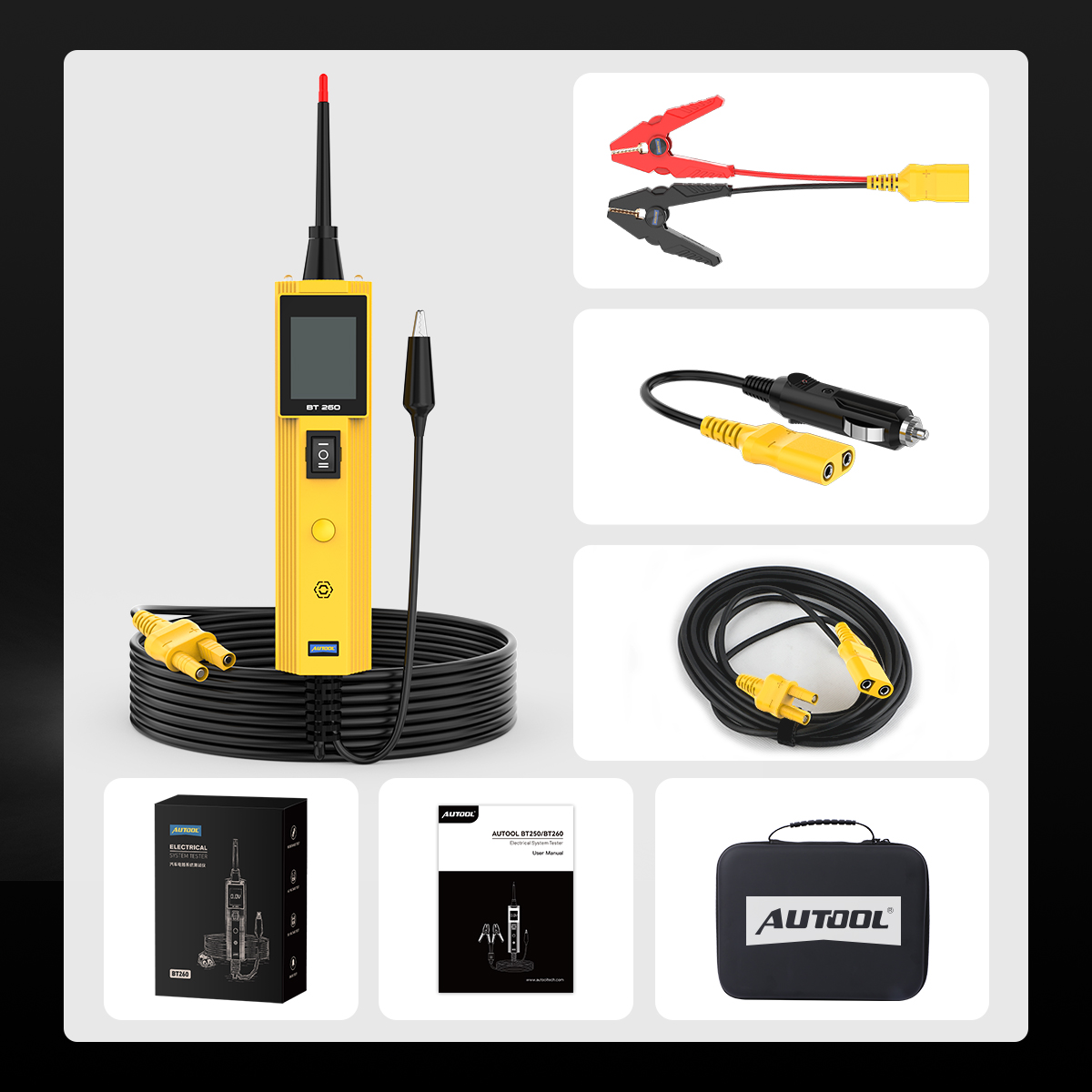

AUTOOL BT260 packing list with main unit battery clips cigarette lighter adapter extension cable manual storage bag and retail box

What Is In The Box

The packing list image shows the BT260 main tester and included accessories. The final package should be checked against the package image and the product option selected.

Main UnitAUTOOL BT260 electrical system tester

Battery ClipsBattery clamp power adapter shown in the package image

Cigarette Lighter AdapterCigarette lighter power adapter shown in the package image

Extension CableExtension cable shown in the package image

Auxiliary Ground ClampAuxiliary ground clamp integrated with the tester

Storage BagAUTOOL storage bag shown in the package image

DocumentationAUTOOL BT250 / BT260 user manual

Retail BoxBT260 retail packaging shown in the package image

Questions And Answers

These answers cover BT260 operating voltage, supported test modes, cable length, accessories, comparison with BT250 and BT280, overload protection, language support, and safe-use boundaries.

What Vehicle Electrical Systems Can BT260 Test?

What Test Modes Does BT260 Support?

What Is The Difference Between BT250 And BT260?

What Is The Difference Between BT260 And BT280?

Can BT260 Activate Vehicle Components?

How Long Is The BT260 Power Cable?

Does BT260 Need Internal Batteries?

What Languages Are Available On BT260?

What Accessories Are Included?

What Happens If The Circuit Is Overloaded?

What Should I Use BT260 For?

How Long Is The Warranty?
