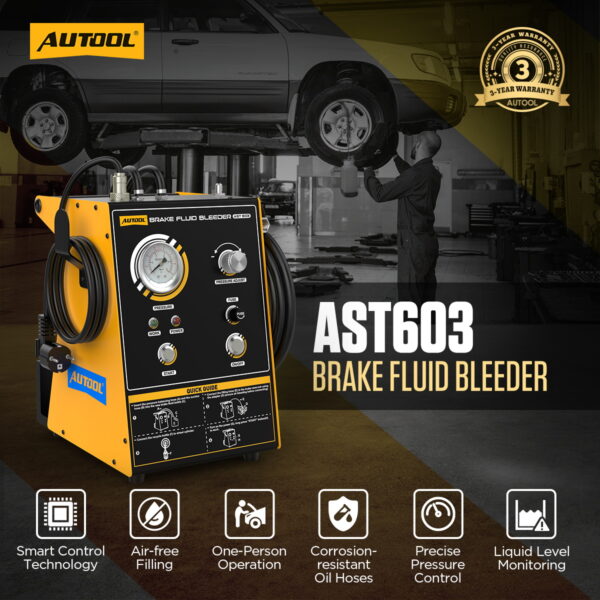

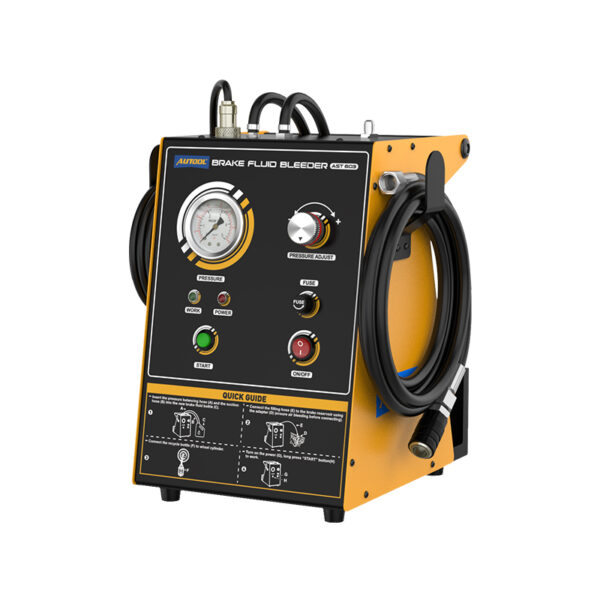

AUTOOL AST603 Pulsating Brake Fluid Bleeder

AUTOOL Pulsating Brake Fluid Bleeder

Rated 5.00 out of 5 based on 3 customer ratings

(3 customer reviews)

Price range: US$205.00 through US$999.00

Key Features

Brake Fluid Exchange
Pressure-Guided Bleeding
Multi-Wheel Efficiency

Model

Ship From

Clear

☰ REQUEST BULK / B2B QUOTE

Secure checkoutFast supportBulk ready

AUTOOL AST Series

Product Overview

The AUTOOL AST Series is built for efficient, high-quality automotive brake fluid replacement with pulsating exchange technology, pressure gauge monitoring, and single-person operation. The lineup includes AST603, AST605, AST609, AST612, and AST618, covering portable single-wheel service, two-wheel service, DC12V vehicle-mounted options, and high-efficiency four-wheel workshop service. The series supports DOT3, DOT4, and DOT5.1 brake fluid standards and is suitable for brake fluid reservoirs across many European, American, and Asian vehicles.

Pulse Exchange Single Operator DOT3 / DOT4 / DOT5.1 Pressure Gauge

5 ModelsAST603-618

1-4 WheelsService Range

110/220V / 12VModel Dependent

3 YearsWarranty

How To Choose

Choose your AST model by service volume, power supply, number of wheels serviced at the same time, connector coverage, portability, and whether pulse / working time settings are required.

Need Portable Service?

Choose AST603 or AST605 if compact size, easier movement, and single-wheel brake fluid service are the priority.

Need Two-Wheel Efficiency?

Choose AST609 or AST612 for simultaneous brake fluid replacement on two wheels. AST609 is available in 110/220V or 12V versions, while AST612 is a DC12V vehicle-mounted style model.

Need Four-Wheel Service?

Choose AST618 for simultaneous four-wheel brake fluid replacement. AST612 can be expanded for four-wheel service with two additional fluid reservoirs, but AST618 is the better native four-wheel option.

Need Car Battery Power?

Choose AST612 or AST618 when you need a DC12V model that can connect directly to the vehicle battery. Confirm the ordered version if you are considering AST609 with 12V power.

Have A Busy Workshop?

Choose AST618 for workshops that frequently service multiple vehicles. It supports four brake calipers, 17 connector types, pulse settings, working time settings, 360° casters, and a three-section telescoping handle.

Need Pulse And Time Settings?

Choose AST618. Among the listed AST models, only AST618 supports pulse settings and working time settings.

Product Comparison

Compare AST603, AST605, AST609, AST612, and AST618 before choosing the right power supply, connector coverage, working pressure, brake caliper capacity, pressure relief function, output flow, and workshop mobility.

AST603Portable entry model with 110/220V input, 1L oil bottle plus 1 used oil bottle, 0.5-2.5bar working pressure, 1 brake caliper, 1 connector type, 5.2kg weight, and single-wheel oil change.

AST605Portable upgrade with 110/220V input, 0.7-3bar working pressure, 1 brake caliper, 3 connector types, 5.3kg weight, and single-wheel oil change.

AST609Two-wheel model with 110/220V or 12V version, 1.5L old oil bottle, 1L new oil bottle, 2 brake calipers, 7 connector types, 2.6L/min maximum output flow, and standard / fast working pressure modes.

AST612DC12V vehicle-mounted style model with 2 brake calipers, 9 connector types, 1.5-3.0bar working pressure, 30-second pressure relief time, and simultaneous oil change for two wheels.

AST618High-efficiency workshop model with DC12V input, 4 brake calipers, 17 connector types, 0.6-3.0bar working pressure, 10-second pressure relief time, four-wheel simultaneous service, pulse settings, working time settings, 360° casters, and telescoping handle.

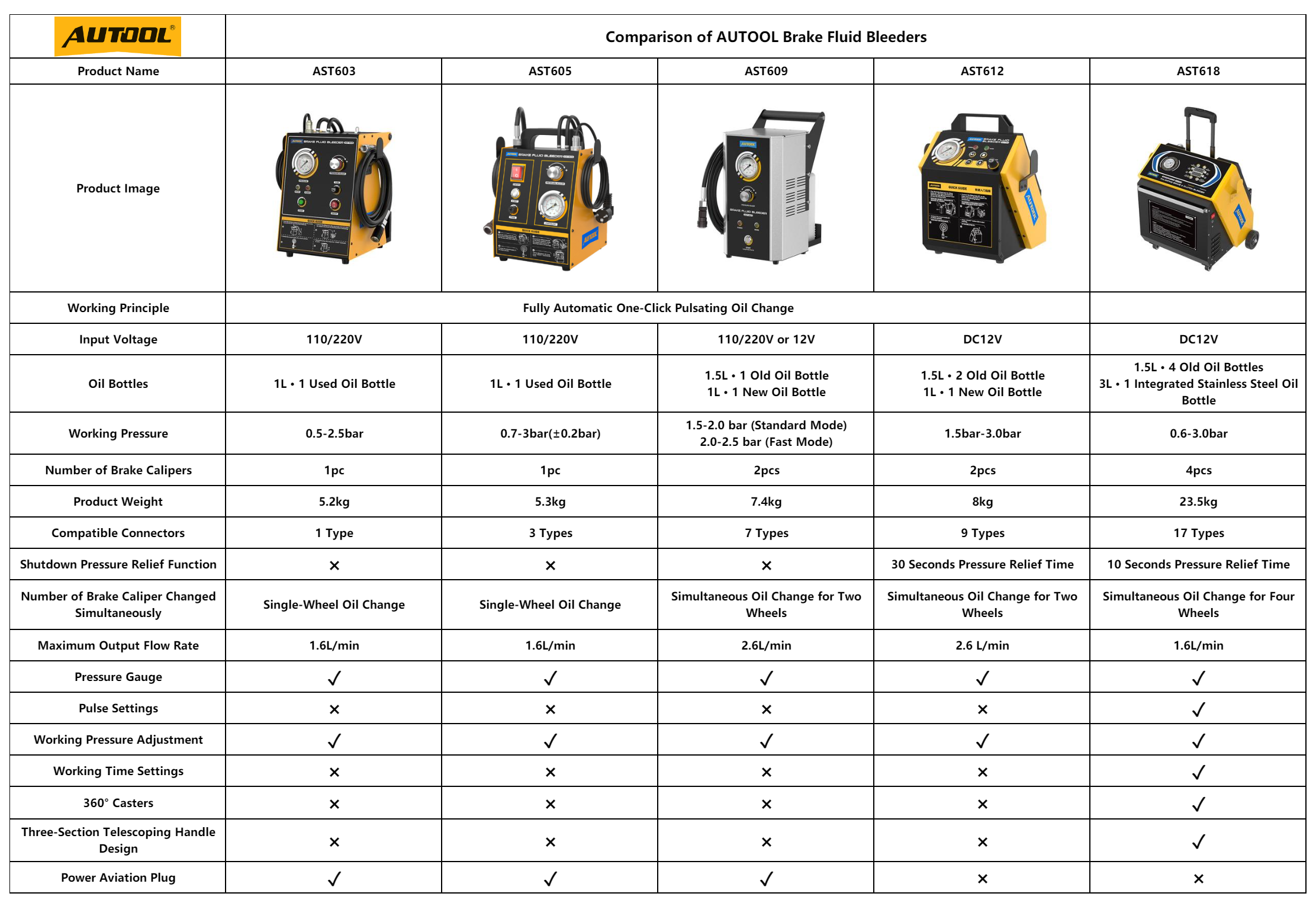

AUTOOL AST603 AST605 AST609 AST612 AST618 pulsating brake fluid bleeder comparison chart

Pulsating Exchange Technology

The AST series uses fully automatic one-click pulsating oil change technology to push new fluid through the brake lines while helping remove old fluid, air, and impurities.

Single-Person Operation

The brake fluid exchange machine requires only one operator, helping reduce labor time and simplify brake fluid replacement in daily service work.

Pressure Gauge Monitoring

Each model includes a pressure gauge, allowing real-time pressure monitoring during brake fluid replacement and pressure adjustment.

DOT3 / DOT4 / DOT5.1 Support

The AST series supports DOT3, DOT4, and DOT5.1 brake fluid standards. Confirm compatibility before using any brake fluid outside these listed standards.

Portable To Workshop Models

AST603 and AST605 focus on portability. AST609 and AST612 add two-wheel service capability. AST618 is built for high-efficiency four-wheel workshop use.

Durable Service Design

The series is constructed from durable, corrosion-resistant materials and is designed for broad brake fluid reservoir compatibility across many vehicle models.

How It Works

AUTOOL brake fluid exchangers use high-frequency pulse pressure to move new brake fluid through the brake lines while helping recover old brake fluid. Compared with traditional compression-type brake fluid bleeders, the pulsating method helps prevent bubbles during refilling, reduces or eliminates manual bleeding in many service situations, and improves exchange efficiency.

Pulse Pressure

High-frequency pulse pressure improves brake fluid exchange efficiency and helps push old fluid and impurities out of the brake lines.

Bubble Reduction

Pulsating refilling helps prevent air bubbles from forming during brake fluid filling and can reduce the need for manual bleeding.

Moisture Separation

The intake port includes a moisture separator and filter to help prevent airborne moisture from entering and contaminating the brake fluid during service.

Specifications

Use this compact summary to confirm the main AST model differences before ordering. Do not apply AST618 functions to the whole series; some functions are model-specific.

Model Comparison
Model	AST603	AST605	AST609	AST612	AST618
Working Principle	Fully Automatic One-Click Pulsating Oil Change
Input Voltage	110/220V	110/220V	110/220V or 12V	DC12V	DC12V
Oil Bottles	1L + 1 used oil bottle	1L + 1 used oil bottle	1.5L + 1 old oil bottle; 1L + 1 new oil bottle	1.5L + 1 old oil bottle; 1L + 1 new oil bottle	1.5L + 4 old oil bottles; 3L + 1 integrated stainless steel oil bottle
Working Pressure	0.5-2.5bar	0.7-3bar (±0.2bar)	1.5-2.0bar standard mode; 2.0-2.5bar fast mode	1.5-3.0bar	0.6-3.0bar
Brake Calipers	1pc	1pc	2pcs	2pcs	4pcs
Product Weight	5.2kg	5.3kg	7.4kg	8kg	23.5kg
Compatible Connectors	1 type	3 types	7 types	9 types	17 types
Shutdown Pressure Relief	Not listed	Not listed	Not listed	30 seconds pressure relief time	10 seconds pressure relief time
Simultaneous Service	Single-wheel oil change	Single-wheel oil change	Two-wheel simultaneous oil change	Two-wheel simultaneous oil change	Four-wheel simultaneous oil change
Maximum Output Flow Rate	1.6L/min	1.6L/min	2.6L/min	2.6L/min	1.6L/min
Pressure Gauge	Yes	Yes	Yes	Yes	Yes
Working Pressure Adjustment	Yes	Yes	Yes	Yes	Yes
Pulse Settings	No	No	No	No	Yes
Working Time Settings	No	No	No	No	Yes
360° Casters	No	No	No	No	Yes
Three-Section Telescoping Handle	No	No	No	No	Yes
Power Aviation Plug	Yes	Yes	Yes	No	No
Support And Service
Brake Fluid Standards	DOT3, DOT4, and DOT5.1
Primary Use	Automotive brake fluid replacement and brake line maintenance
Operation	Single-person brake fluid replacement with pressure gauge monitoring
Warranty	3-year warranty for eligible non-human damage cases
Maintenance	Lifetime maintenance support
Support Focus	Model selection, adapter compatibility, quick connector, start button, oil pump, pump core, fuse, leakage, and brake fluid standard confirmation

Before You Order And Use

Brake fluid replacement requires controlled pressure, clean connections, compatible brake fluid, and careful leak checks. Review these notes before use.

Pressure Control

The factory pressure regulator working pressure is set to 1-1.5bar. This setting helps prevent deformation of the liquid storage chamber and helps ensure the tightness of the secondary sealing ring.

Do Not Over-Pressurize

Exhausting or changing fluid at lower working pressure is feasible by adjusting pressure and the size switch. In special circumstances, higher working pressure may be used, but excessive pressure adjustment must be avoided because it may damage the brake master cylinder.

Leak And Hose Checks

Check each connection for leaks during brake fluid replacement. Inspect the connecting hose for damage before use and stop service if leakage or hose damage is found.

Fluid Cleanliness And Safety

Keep the new oil filler port clean, confirm DOT3 / DOT4 / DOT5.1 brake fluid compatibility before service, wear proper PPE, and avoid spilling brake fluid on painted surfaces.

Questions And Answers

These answers cover startup failure, pressure-building failure, no fluid dispensing, low pressure, fuse and wiring checks, leakage at the brake fluid reservoir, four-wheel replacement, car battery power, and interval setting support.

The Machine Powers On, But Why Does It Not Build Pressure?

Why Does The Brake Fluid Changer Have Pressure But No Fluid Dispensing?

Why Can’t The Target Pressure Be Reached?

The Machine Does Not Start Normally. What Should I Check?

Why Is There Leakage At The Brake Fluid Reservoir Connection?

Which Model Supports Four-Wheel Brake Fluid Replacement?

Which Models Can Connect To A Car Battery?

Which Model Supports Pulse And Oil Change Interval Settings?

What Brake Fluid Standards Are Supported?

Related Guides

Use these related articles to understand brake fluid change methods, brake fluid bleeder selection, and brake fluid condition testing.

Brake fluid reservoir guide image for brake fluid changes by system type

Guide / 2025-07-04

A Professional Guide to Brake Fluid Changes by System Type

Understand how different brake system types affect brake fluid change methods and service planning.

Guide / 2025-05-07

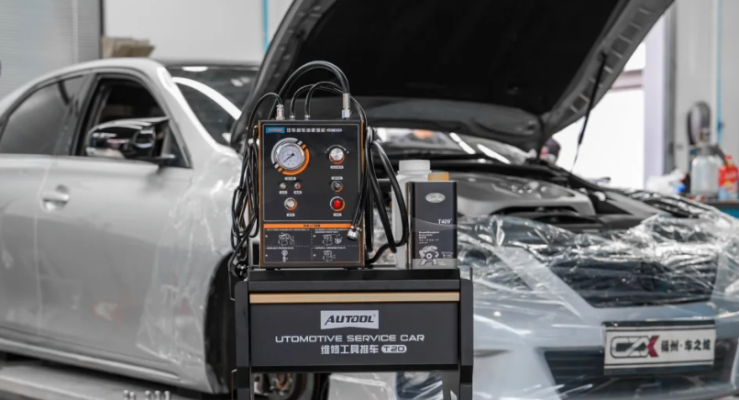

Brake Fluid Bleeder Buying Guide

Compare brake fluid bleeder features and choose the right equipment for your workshop needs.

Guide / 2025-06-22

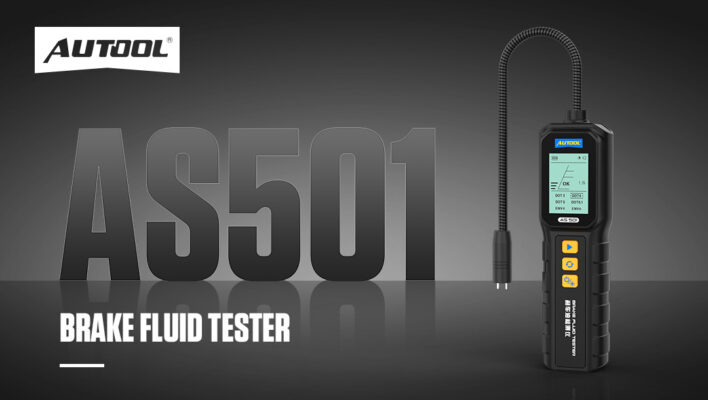

AUTOOL AS501 Brake Fluid Tester

Use a brake fluid tester to understand brake fluid condition before planning replacement service.

AUTOOL pulsating brake oil exchanger review guide image

Guide / 11-25-2024

Pulsating Brake Fluid Exchanger Review

Have you ever been curious about how modern garages achieve efficient and precise brake fluid replacements? And for individual car owners, do they possess the ability.

Warranty And Contact

For AST603 / AST605 / AST609 / AST612 / AST618 model selection, adapter confirmation, quick connector replacement, start button troubleshooting, oil pump checks, pump core issues, fuse checks, leakage troubleshooting, or brake fluid standard confirmation, contact AUTOOL Store directly.

Pre-Sales And Product Support

Use support if you need help choosing the right AST model, confirming DOT3 / DOT4 / DOT5.1 compatibility, troubleshooting startup failure, pressure problems, no fluid dispensing, leakage, adapter compatibility, quick connector blockage, oil pump issues, pump core problems, or fuse replacement.

3-year warranty for eligible non-human damage cases
Lifetime maintenance support
Pre-sale help for AST603 / AST605 / AST609 / AST612 / AST618 model selection
Support for adapters, quick connector, start button, oil pump, pump core, fuse, and leakage troubleshooting
Brake fluid standard confirmation for DOT3, DOT4, and DOT5.1
Assistance with AST612 vehicle mounting, AST618 four-wheel service, and AST609 110/220V or 12V version confirmation

Email Support support@autoolstore.com WhatsApp Support +86 189 2647 7404
