AUTOOL HTS559 30L Walnut Blasting Machine for Intake Valve Cleaning
US$549.00
Key Features
- 30L Workshop Capacity
- Cleaner Spray & Recovery
- Deep Intake Cleaning
- 5 Intake Adapters
- 30L Workshop Capacity: The 30L main unit provides a larger workshop-format system while retaining a mobile 360° caster design.
- Cleaner Spray & Recovery: Simultaneous blasting, vacuum recovery, and dust filtration help collect walnut media and carbon residue as you clean.
- Deep Intake Cleaning: Targets stubborn deposits in the intake pipe, intake manifold, and backside of intake valves.
- 5 Intake Adapters: Five adapter types support different intake-port shapes and cleaning setups for easier connection and sealing.
- 3-Year Warranty Main unit 3 years · Accessories 1 year
- 90-Day Returns Eligible returns within 90 days
- Official Store Genuine products · Direct support

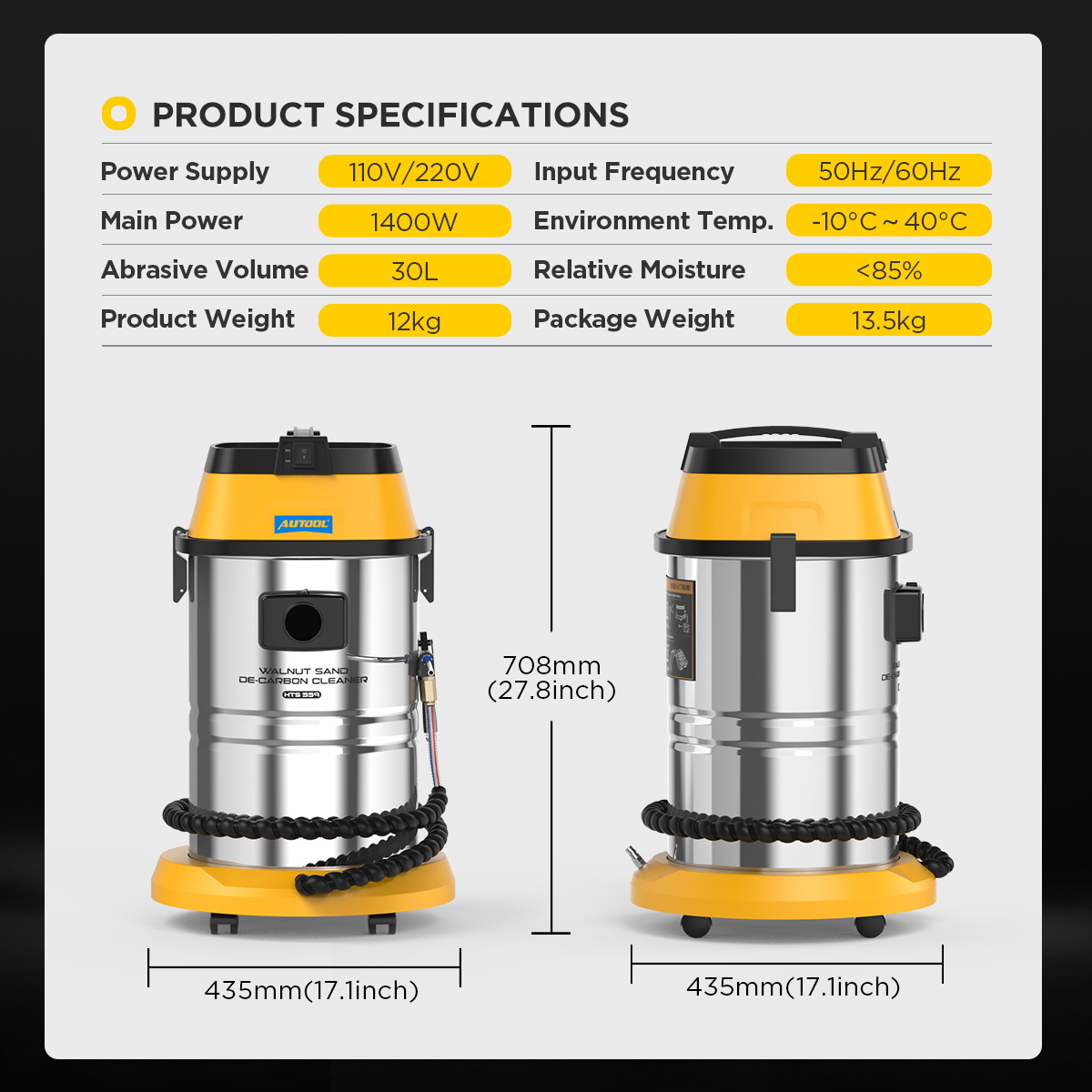

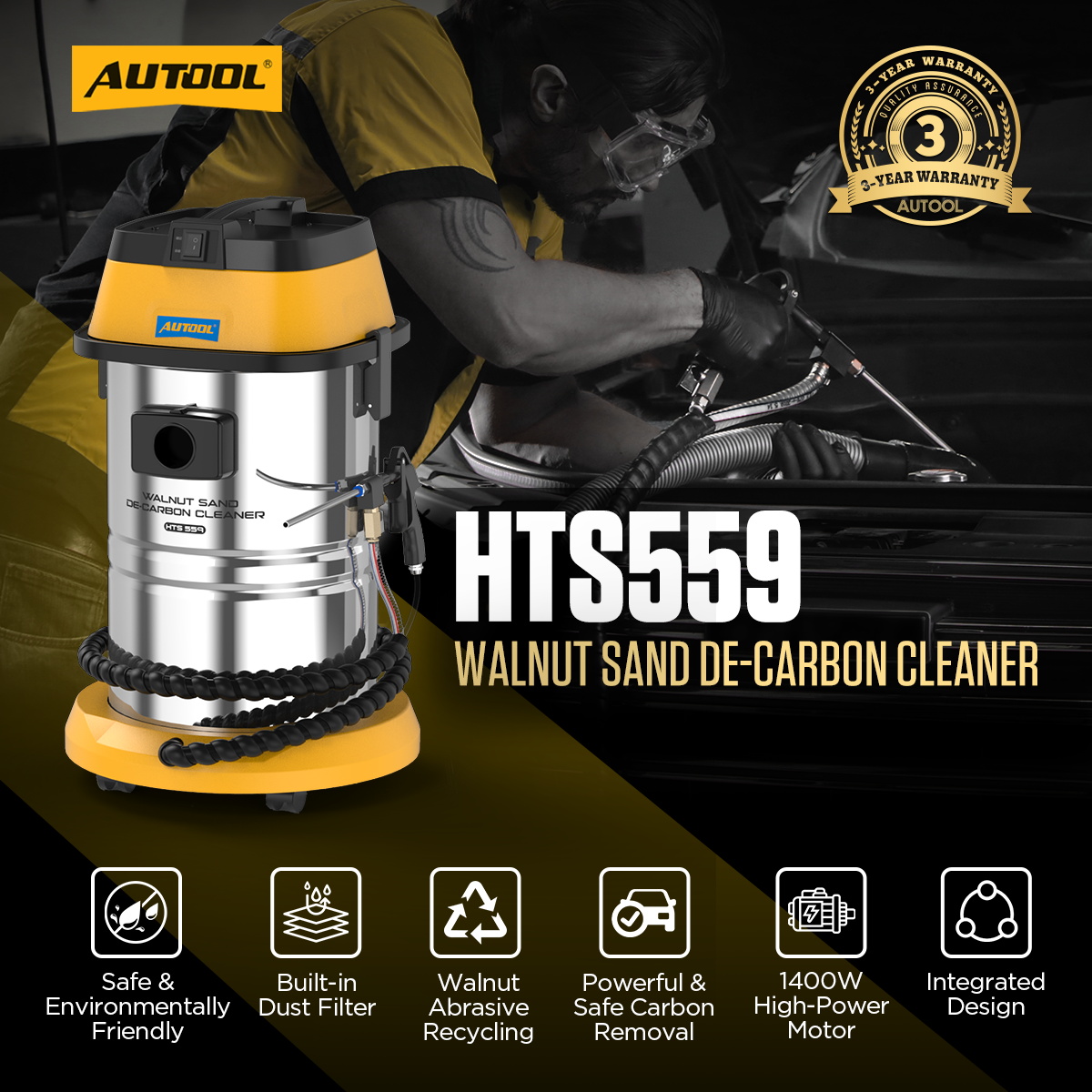

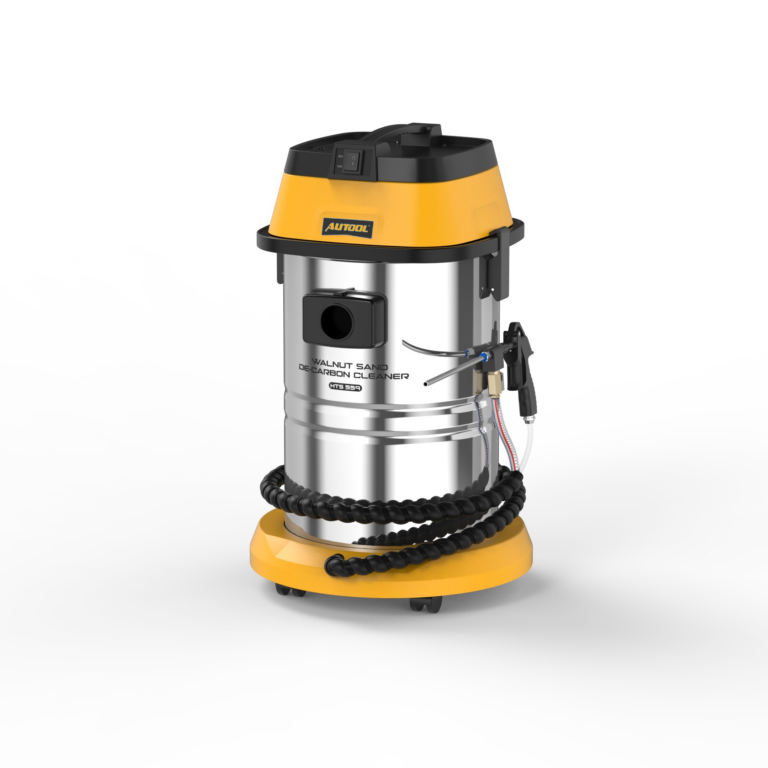

AUTOOL HTS559 · 1400W Walnut Blasting Machine
High-Capacity Blasting with Integrated Recovery
The AUTOOL HTS559 walnut blasting machine is designed to remove carbon deposits from the engine intake pipe, intake manifold, and the backs of the intake valves. It combines 1400W rated power, a 30L main unit, built-in dust filtration, and simultaneous spray-and-vacuum recovery. An external air compressor and compatible walnut-shell abrasive are required; the compressor provides the blasting force.
- 1400W Rated Power
- 30L Main Unit Capacity
- 5 Adapters
- 0.6–1.2 mm Walnut Media
Best for: workshops that want 30L capacity, 1400W vacuum recovery, and simultaneous spraying and recovery for intake carbon cleaning.
5 Intake Adapters
Key Features
HTS559 is professional walnut shell blasting equipment built around spray-and-recovery cleaning, media and residue management, intake carbon removal, adapter coverage, external-air blasting, 0.6–1.2 mm walnut abrasive support, workshop mobility, and warranty support.

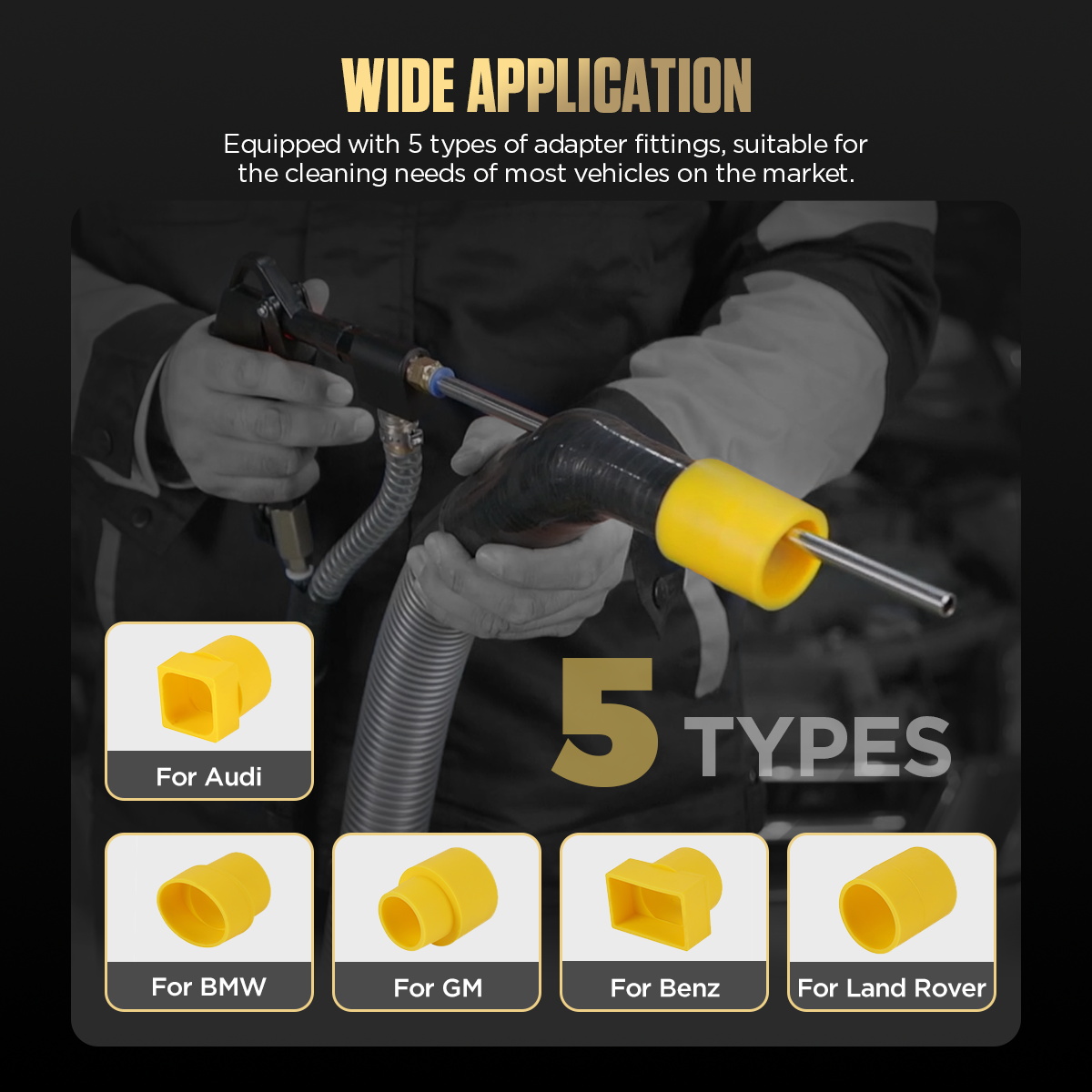

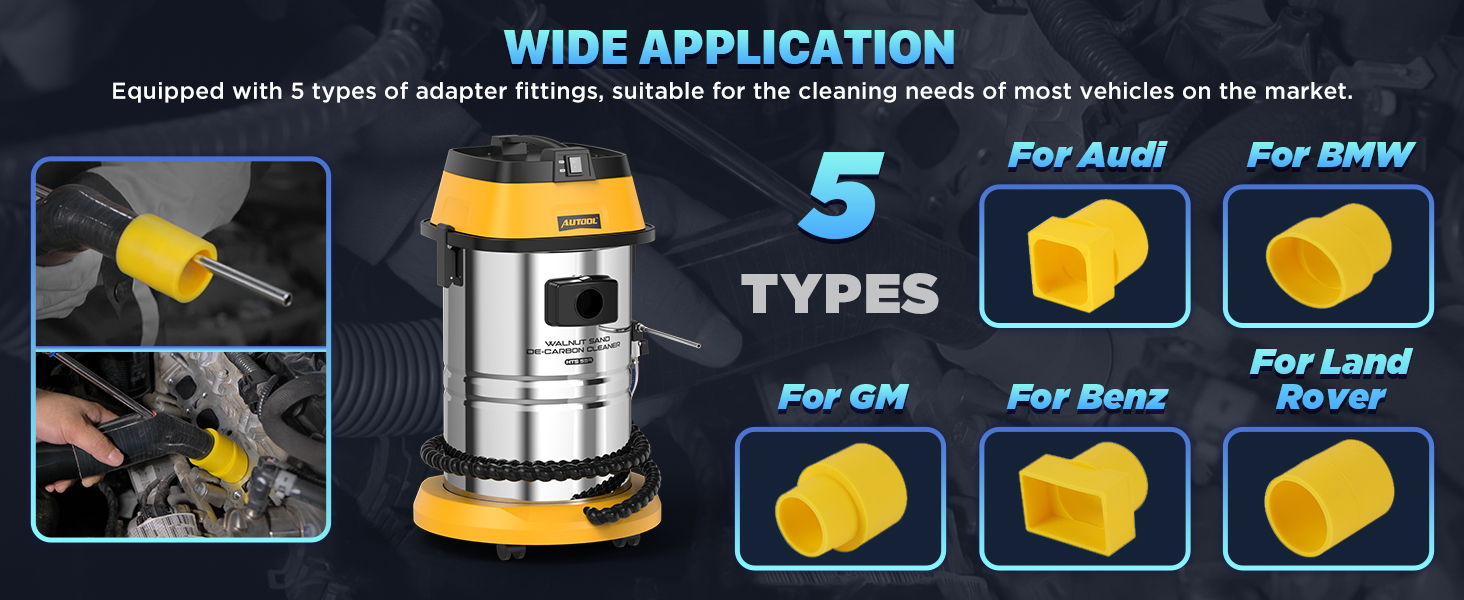

5 Intake Adapters For Different Port Shapes
Equipped with 5 adapter types for different intake-port shapes and cleaning setups. Match the adapter to the specific engine and intake-port shape before cleaning. The included adapter set fits multiple intake-port shapes, but it is not universal for every engine.
Integrated Spray And Vacuum Recovery
HTS559 uses walnut blasting for carbon cleaning while integrated vacuum recovery collects loosened residue and spent media, helping reduce manual cleanup.

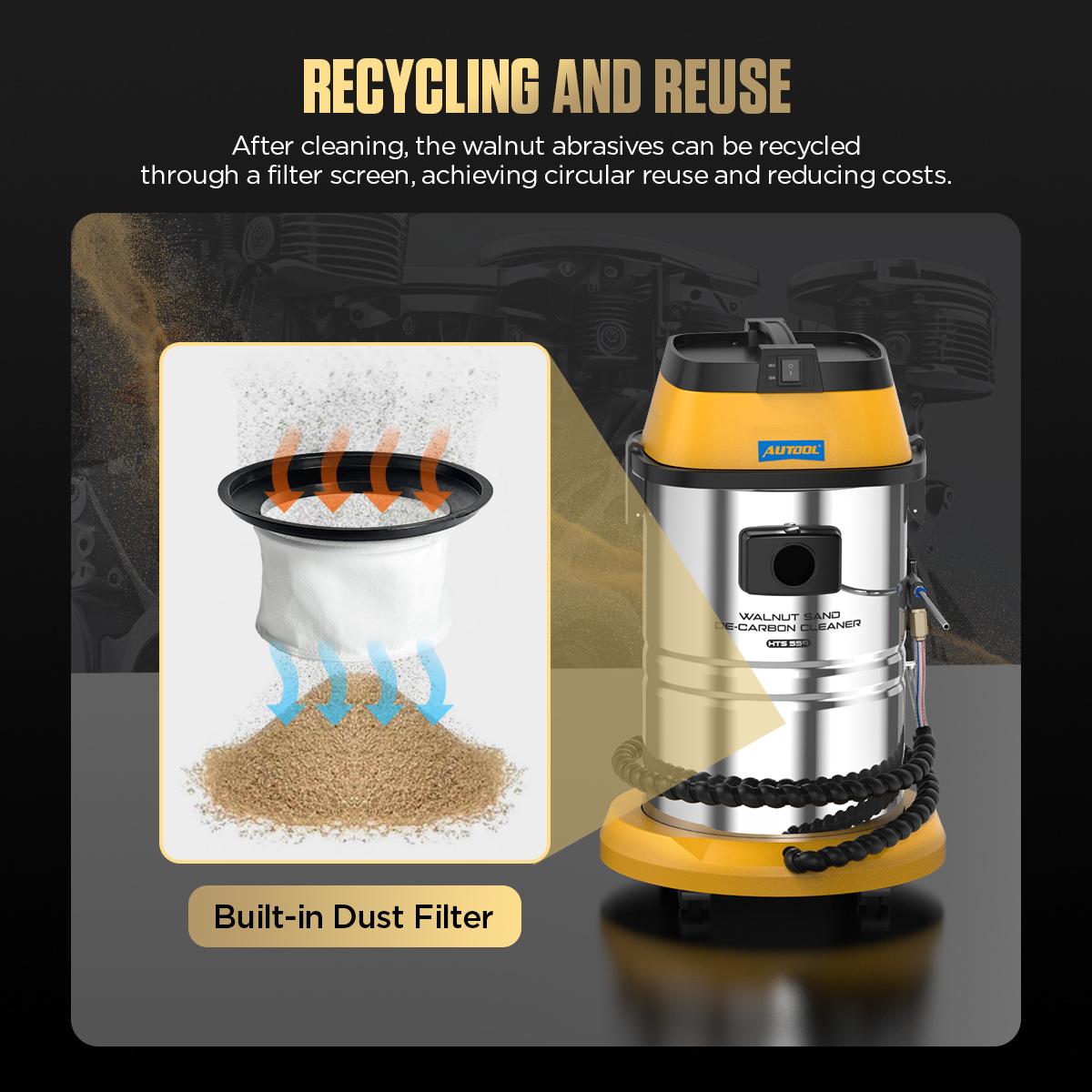

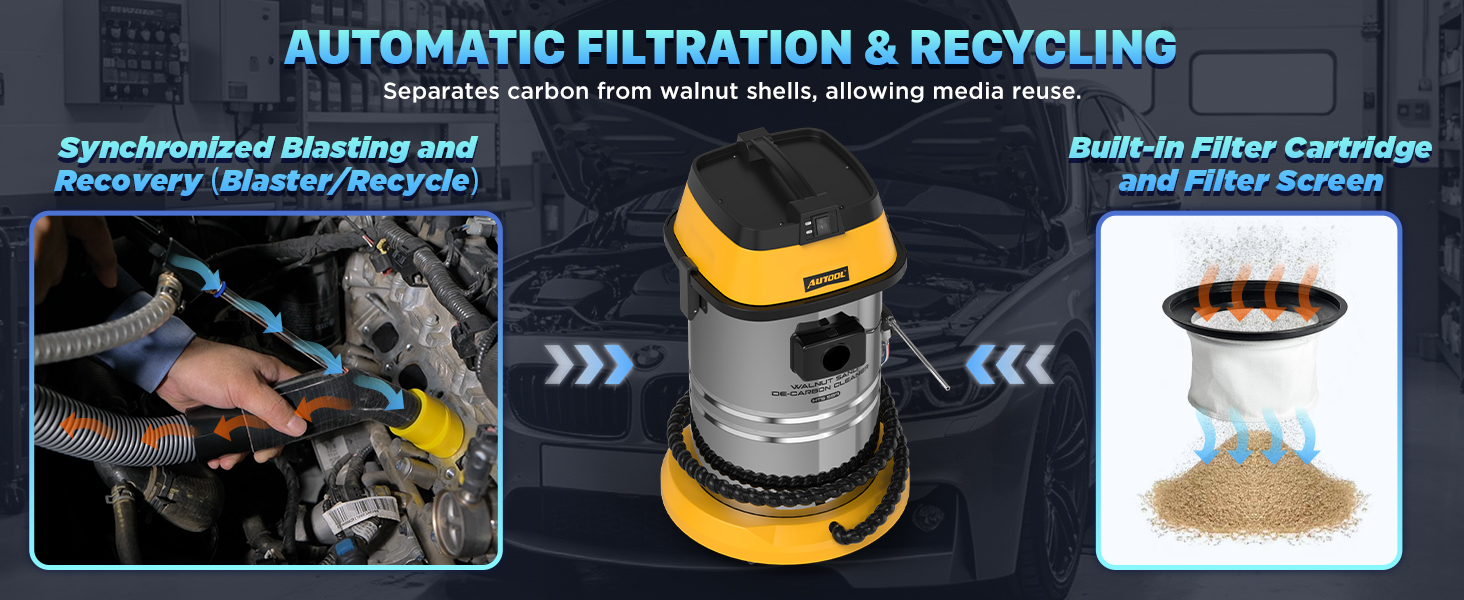

Built-In Dust Filter For Collected Media And Residue
The built-in dust filter helps manage collected walnut abrasive and carbon residue during simultaneous spray-and-recovery operation. The collection and filtration system supports abrasive recovery. Reuse recovered abrasive only when the service procedure for the specific vehicle permits it and the media remains suitable for reuse.

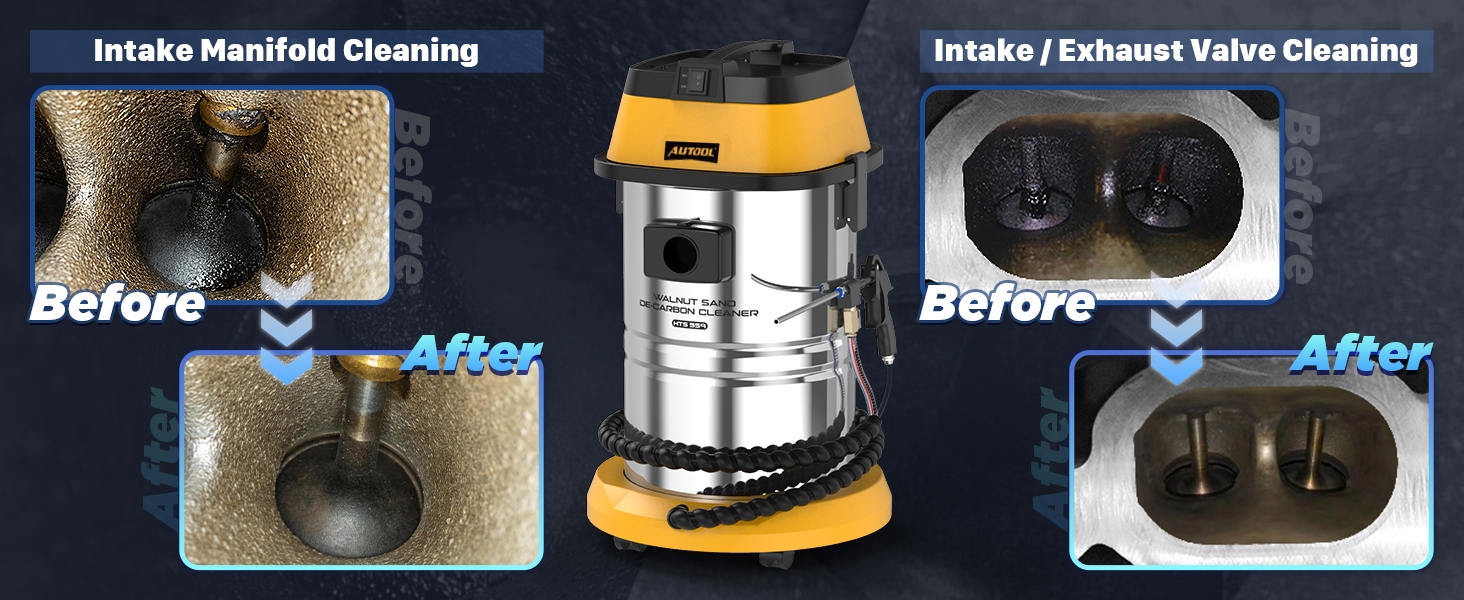

Deep Intake Carbon Deposit Removal
Designed to remove sticky carbon deposits from the intake pipe, intake manifold, and the backs of the intake valves. Any changes in idle quality, combustion behavior, air-fuel ratio, power, or fuel economy depend on the vehicle condition and diagnosis.

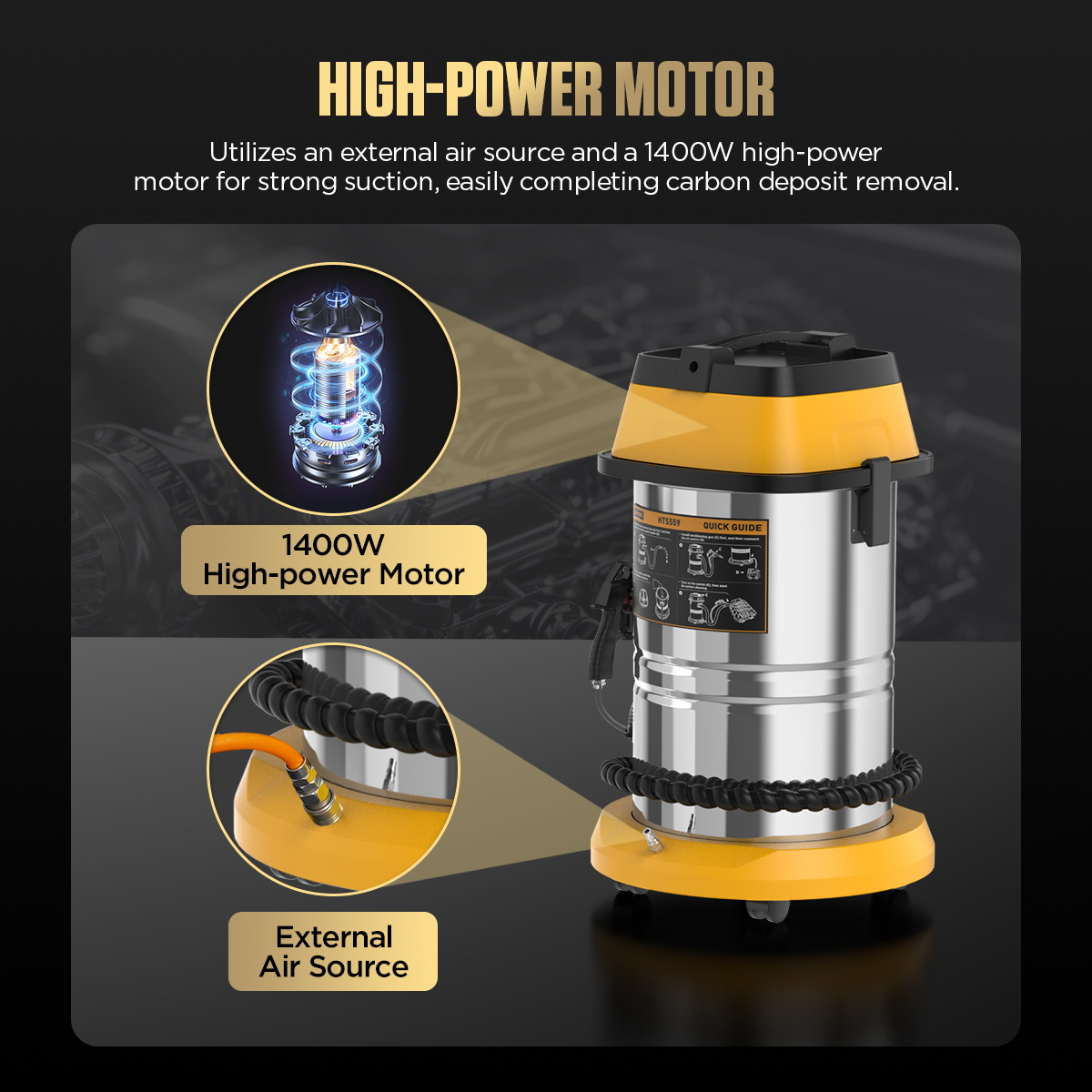

External Air-Driven Blasting + 1400W Vacuum Recovery
The 1400W rated-power machine supports vacuum recovery, while an external air compressor supplies the blasting force for walnut-shell cleaning. The external compressor must provide suitable airflow and dry air for the cleaning procedure.
Walnut Shell Abrasive Cleaning
HTS559 uses 0.6–1.2 mm walnut-shell abrasive as the cleaning media. Use dry, compatible walnut-shell media, follow the supplier Safety Data Sheet (SDS), and wear appropriate personal protective equipment (PPE). Walnut-shell media can create dust and may present allergen concerns.
360° Swivel Casters
360° swivel casters make the machine easier to move around the workshop.

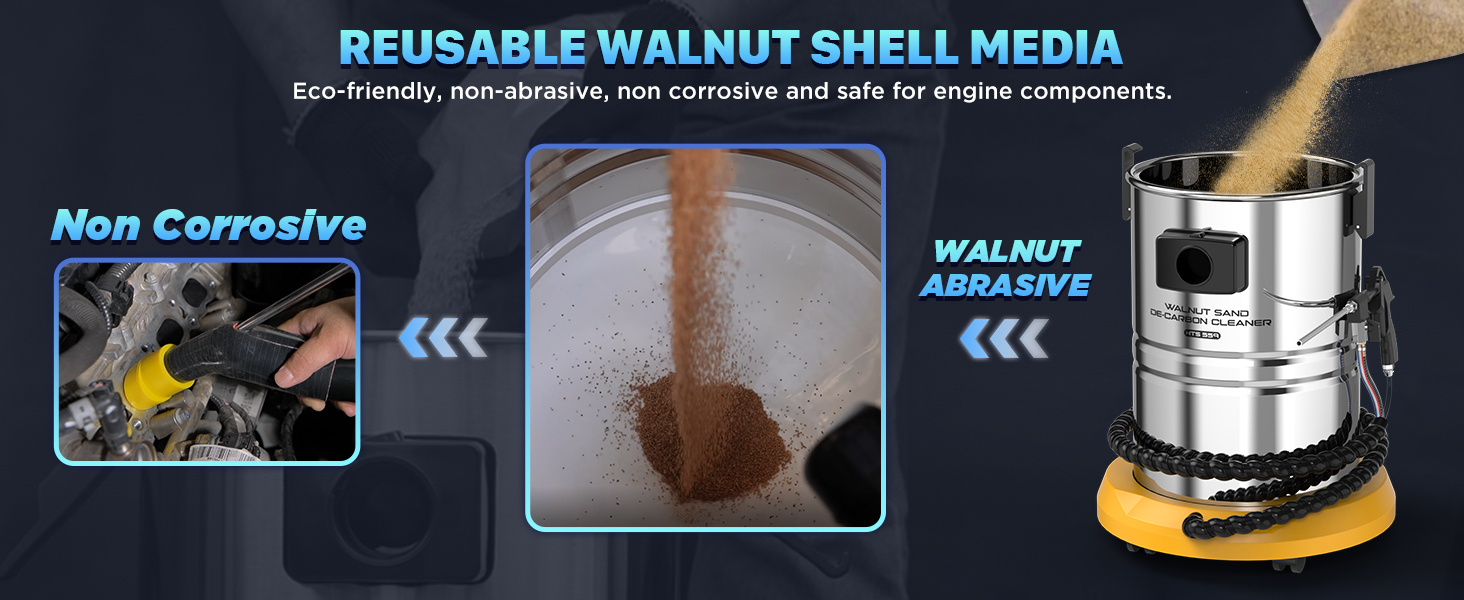

Walnut Media Recovery & Reuse
The recovery and filtration system helps separate collected walnut-shell abrasive from carbon residue so suitable media can be reused. Under normal conditions, walnut-shell abrasive can be reused 5–10 times. Keep the media dry and replace it if it becomes contaminated, clumped, or cleaning performance drops.
3-Year Main Unit Warranty
The main unit includes a 3-year warranty, and standard accessories include a 1-year warranty. Setup and troubleshooting support are also available. See the Warranty Policy for regional coverage, eligibility, and exclusions before purchase.

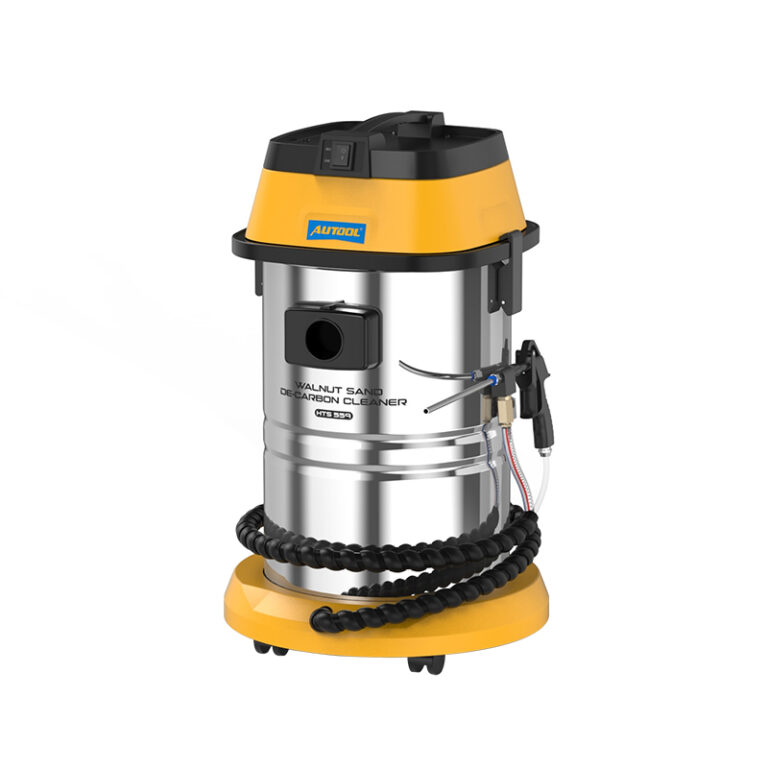

HTS559 Product Gallery

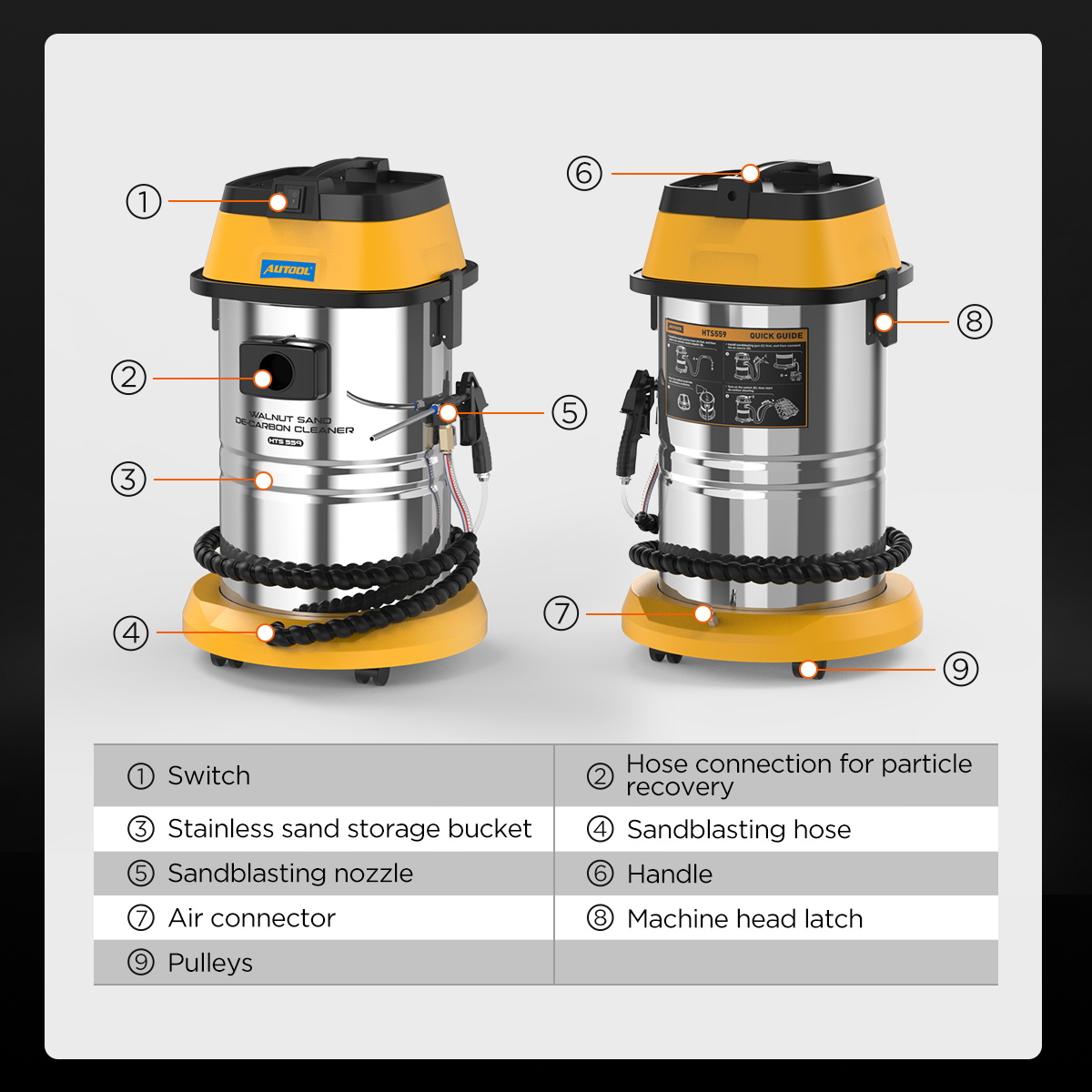

HTS559 Walnut Blasting System Details
Explore the HTS559 external-air blasting setup, 1400W vacuum recovery, intake-valve cleaning results, filtration and media recovery, adapter coverage, operating steps, specifications, and package contents.
Showing product image 1 of 10.

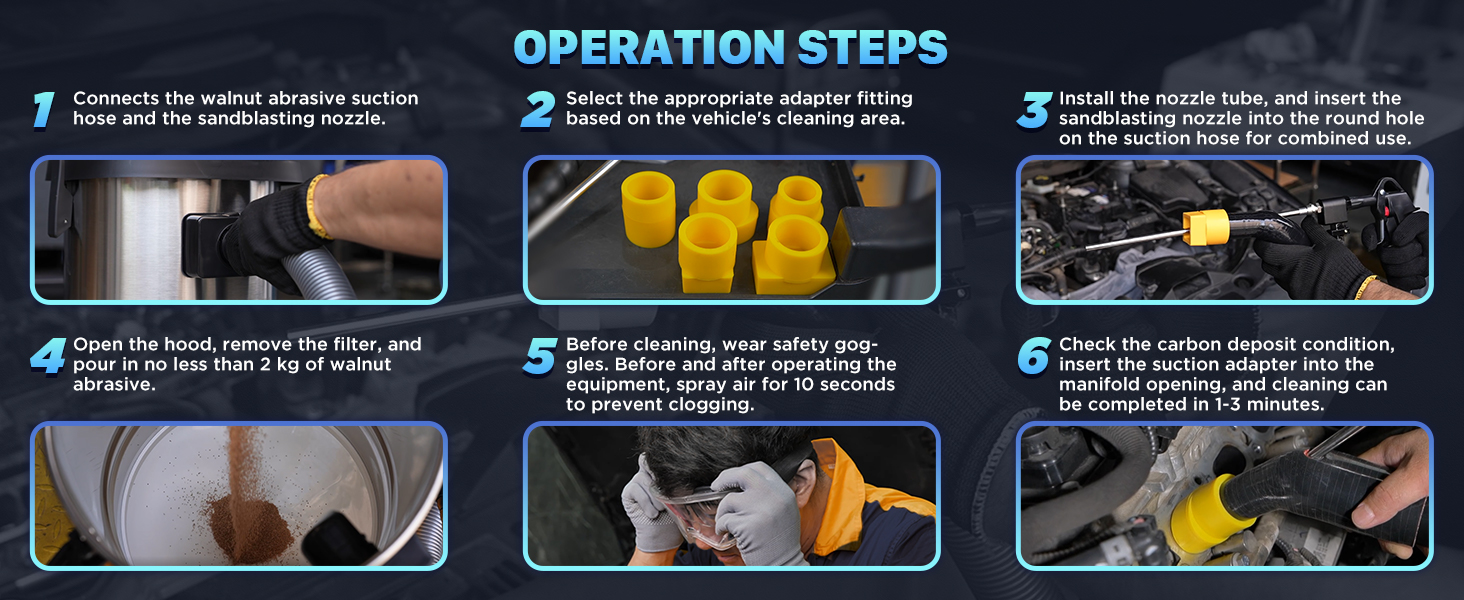

From Setup to Final Vehicle Check

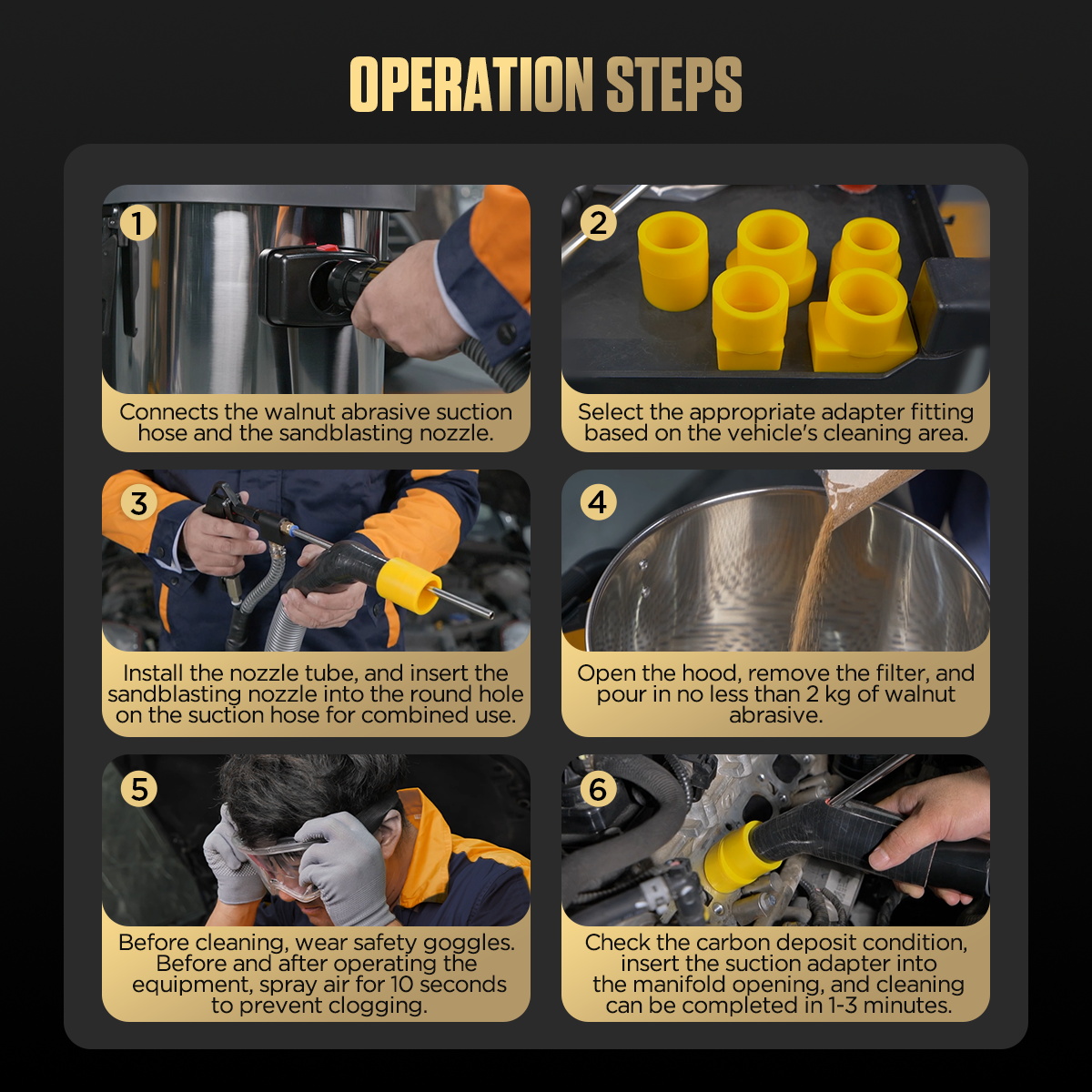

Step-by-Step Workflow
HTS559 works with 0.6–1.2 mm walnut abrasive, external compressed air, and vacuum recovery. The sequence below covers media setup, valve-position confirmation, anti-clog airflow, port-by-port cleaning, residual-media recovery, reassembly, leak checks, diagnostic scanning, and a final vehicle check.
01
Step 1
Connect Hoses And Nozzle
Secure all hose and nozzle connections before media is loaded so the blasting and recovery path is ready.
- Connect the recovery hose securely.
- Connect the blasting gun, nozzle, and related fittings.
02
Step 2
Select And Seal The Adapter
A correctly matched, sealed adapter helps keep blasting and recovery focused on the target intake port.
- Choose the adapter that matches the intake-port shape.
- Confirm a secure seal before blasting.
- Remember that the five supplied adapter types are not universal for every engine.
03
Step 3
Position The Nozzle In The Recovery Path
Position the nozzle inside the suction path so blasting and vacuum recovery work together.
- Insert the nozzle tube into the suction-hose opening.
- Keep the nozzle within the recovery path.
04
Step 4
Load Walnut Abrasive
Load the model-specific amount of compatible abrasive before starting, and follow the HTS559 loading procedure supplied with the machine.
- Load 1 kg of compatible walnut-shell abrasive.
- Follow the HTS559 loading instructions supplied with the machine.
05
Step 5
Prepare Dry Air And Anti-Clog Flow
Dry, filtered air and the short air-only purge help reduce clogging before and after blasting.
- Wear suitable personal protective equipment (PPE).
- Use dry, filtered compressed air.
- Use an approximately 10-second air spray before and after blasting as instructed.
06
Step 6
Prepare The Engine
Prepare the target intake port before blasting by confirming valve position and isolating the other openings.
- Switch the engine off.
- Rotate the crankshaft until the target intake valve is closed.
- Isolate the other intake openings as required by the vehicle service procedure.
07
Step 7
Clean Carbon Deposits Port By Port
Clean one intake port at a time, inspecting between ports so blasting duration follows the observed carbon buildup.
- Blast one intake port at a time.
- Allow approximately 1–3 minutes per intake port, depending on carbon buildup.
- Inspect the port before moving to the next one.
08
Step 8
Recover, Inspect And Purge
Finish each cleaned port by recovering loose abrasive, using an air-only purge only when the HTS559 procedure supports it, and confirming that no visible media remains.
- Stop the media flow and vacuum out remaining abrasive.
- Use an air-only purge only when the HTS559 procedure supports it.
- Inspect with adequate lighting or a borescope until no visible media remains.
09
Step 9
Reassemble And Check The Vehicle
After cleaning, restore the intake system and complete the final checks before returning the vehicle to service.
- Remove the tools and adapters.
- Reinstall the intake components.
- Complete leak checks, a diagnostic scan, and a functional vehicle check.
Before You Start
Safety & Compatibility
Use HTS559 for supported intake-cleaning applications and follow the service procedure for the specific vehicle. Before operation, check the external air source, dry walnut abrasive, adapter seal, intake-valve position, required protective equipment, and final residual-media recovery steps.
Cleaning Scope
HTS559 is designed to clean the intake pipe, intake manifold, and the backs of the intake valves. It is not designed for fuel injectors, throttle valves, cylinders, or combustion chambers.
External Compressor Required
The external high-pressure air compressor is required and not included. Use an external compressor with air pressure up to 0.7 MPa; 6 bar or more is generally recommended. Also confirm sufficient continuous airflow and that the air tank, hose, quick-connect fittings, and duty cycle suit the blasting workflow.
Use Dry Compatible Media
Use compatible 0.6–1.2 mm walnut-shell abrasive and dry, filtered air. Walnut abrasive is not included. Moisture may cause clumping or feed instability.
Valve Closure And Port Isolation
Start blasting only after confirming that the target intake valve is fully closed. Clean one intake port at a time and isolate other intake openings as required by the service procedure for the specific vehicle.
Adapter Fit And Seal
The five adapter types support multiple intake-port shapes, but they are not universal for every vehicle. Before blasting, make sure the selected adapter fits the specific engine intake port and forms a secure seal.
Protective Equipment and Dust/Allergen Control
Wear eye and respiratory protection, provide suitable ventilation, and follow the walnut-media supplier Safety Data Sheet (SDS). Walnut-shell media can create dust and may trigger allergies, so use appropriate protective equipment and ventilation.
Walnut Abrasive Reuse
Reuse walnut abrasive only when the service procedure for the specific vehicle permits it and the recovered media remains suitable for reuse.
Chemical Cleaner Compatibility
Walnut blasting is a physical cleaning method. Chemical cleaners vary by formulation and application; follow the cleaner manufacturer and vehicle service instructions when using chemical products.
Protect The Engine From Residual Media
Use the specified walnut-shell media, air settings, and service procedure to reduce the risk of damaging cleaned surfaces. Before restarting, confirm the correct media and airflow were used, the target valve was closed, the adapter was sealed, and no residual media remains.
Final Inspection Before Restart
Before restarting the engine, vacuum out the remaining abrasive and inspect the cleaned area to make sure no visible media remains. Complete reassembly, leak checks, and diagnostic scanning as appropriate.

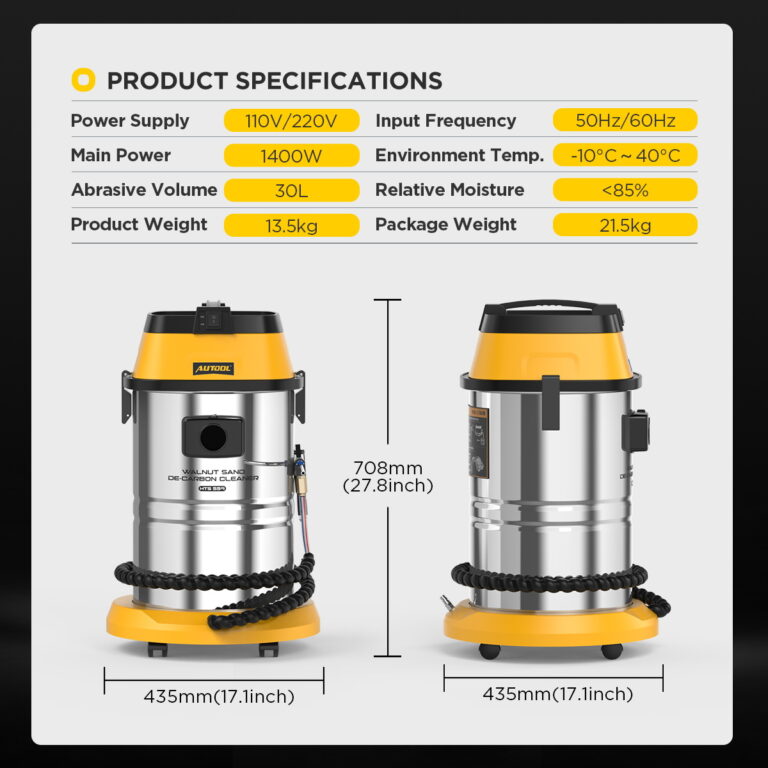

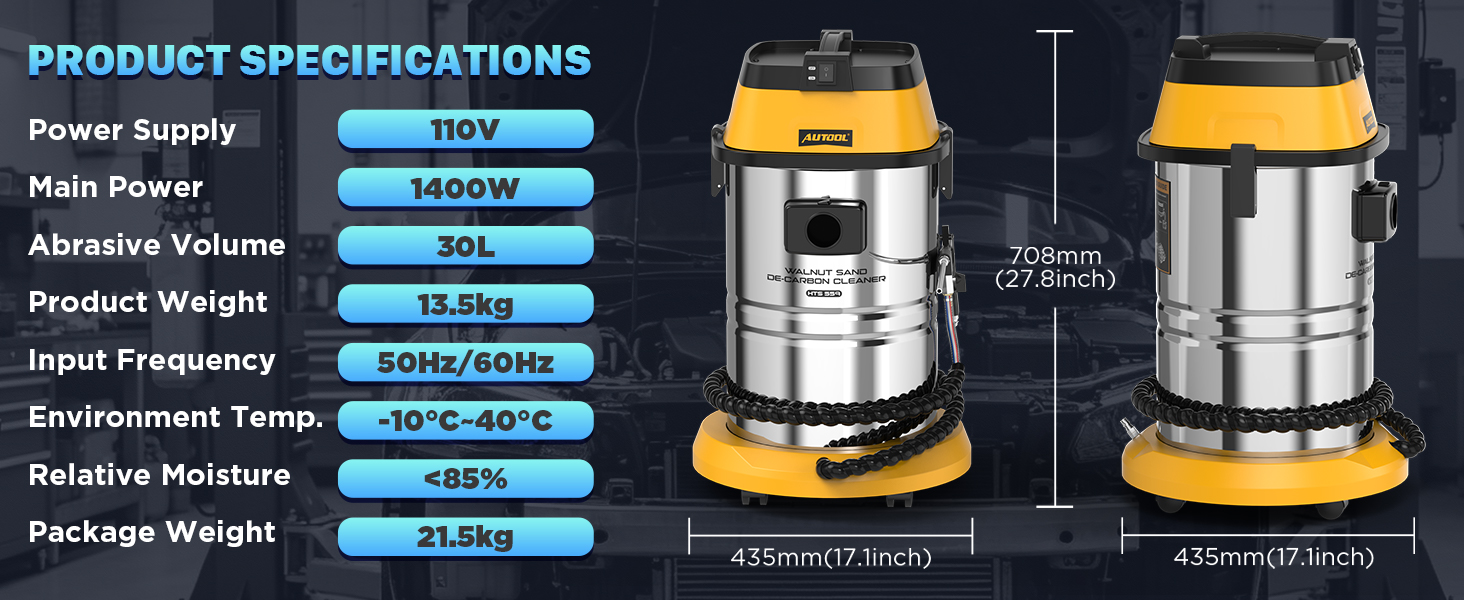

Compare models

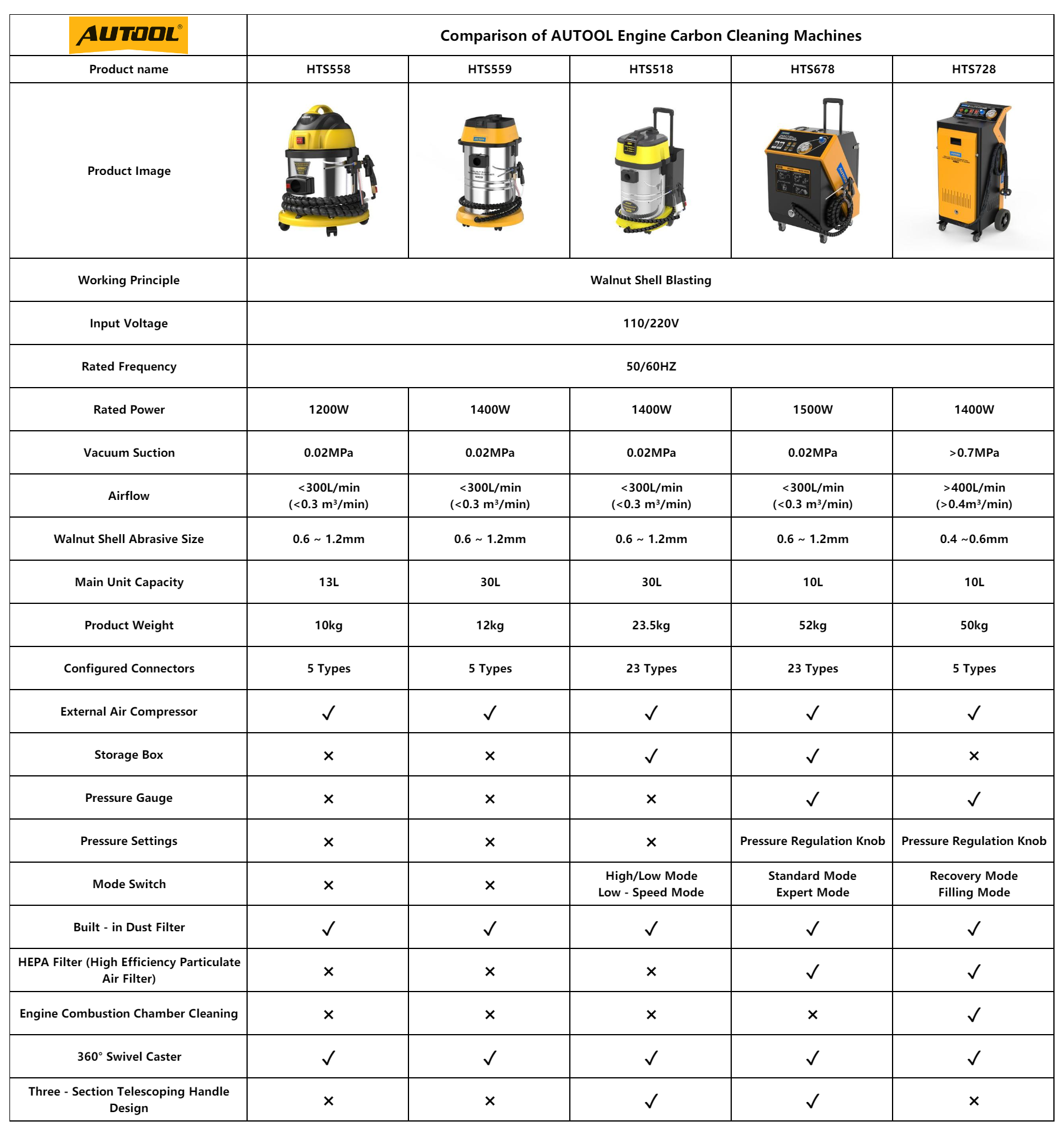

Compare AUTOOL Walnut Blaster Models
Use this table to compare key specifications and feature differences across the AUTOOL walnut blasting models.
Compare models
Choose one or more models. HTS559 is selected by default.
1 model selected
No model is selected. Choose a model to compare.
| Specification | ModelAUTOOL HTS558 | ModelAUTOOL HTS559 | ModelAUTOOL HTS518 | ModelAUTOOL HTS678 | ModelAUTOOL HTS728 |
|---|---|---|---|---|---|
| Core operation | |||||
| Cleaning Method | Walnut Shell Blasting | Walnut Shell Blasting | Walnut Shell Blasting | Walnut Shell Blasting | Walnut Shell Blasting |
| Input Voltage | 110/220 V | 110/220 V | 110/220 V | 110/220 V | 110/220 V |
| Rated Frequency | 50/60 Hz | 50/60 Hz | 50/60 Hz | 50/60 Hz | 50/60 Hz |
| Rated Power | 1200 W | 1400 W | 1400 W | 1500 W | 1400 W |
| Vacuum Suction | 0.02 MPa | 0.02 MPa | 0.02 MPa | 0.02 MPa | >0.7 MPa |
| Airflow | <300 L/min (<0.3 m³/min) | <300 L/min (<0.3 m³/min) | <300 L/min (<0.3 m³/min) | <300 L/min (<0.3 m³/min) | >400 L/min (>0.4 m³/min) |
| Walnut Shell Abrasive Size | 0.6–1.2 mm | 0.6–1.2 mm | 0.6–1.2 mm | 0.6–1.2 mm | 0.4–0.6 mm |
| Main Unit Capacity | 13 L | 30 L | 30 L | 10 L | 10 L |
| Product Weight | 10 kg | 12 kg | 23.5 kg | 52 kg | 50 kg |
| Adapter Types | 5 Types | 5 Types | 23 Types | 23 Types | 5 Types |
| Workshop hardware | |||||
| External Air Compressor Required | ✓Included | ✓Included | ✓Included | ✓Included | ✓Included |
| Storage Box | ×Not included | ×Not included | ✓Included | ✓Included | ×Not included |
| Pressure Gauge | ×Not included | ×Not included | ×Not included | ✓Included | ✓Included |
| Pressure Settings | ×Not included | ×Not included | ×Not included | Pressure Regulation Knob | Pressure Regulation Knob |
| Modes & filtration | |||||
| Mode Switch | ×Not included | ×Not included | High/Low Mode; Low-Speed Mode | Standard Mode; Expert Mode | Recovery Mode; Filling Mode |
| Built-In Dust Filter | ✓Included | ✓Included | ✓Included | ✓Included | ✓Included |
| HEPA (High-Efficiency Particulate Air) Filter | ×Not included | ×Not included | ×Not included | ✓Included | ✓Included |
| Cleaning scope & mobility | |||||
| Combustion-Chamber Cleaning | ×Not included | ×Not included | ×Not included | ×Not included | ✓Included |
| 360° Swivel Casters | ✓Included | ✓Included | ✓Included | ✓Included | ✓Included |
| Three-Section Telescoping Handle | ×Not included | ×Not included | ✓Included | ✓Included | ×Not included |
Model guide
Review the main differences below, then select models above for a side-by-side comparison.
AUTOOL HTS558
A lighter 13L walnut blasting model with five configured adapter types and built-in dust filtering.
AUTOOL HTS559
Current model: Keeps 1400W power and a 30L capacity, with five configured adapter types and no storage box.
AUTOOL HTS518
1400W, 30L capacity, 23 configured adapter types, storage box, and telescoping handle.
AUTOOL HTS678
Adds 1500W rated power, 23 adapter types, a pressure gauge, pressure regulation, HEPA filtration, and storage.
AUTOOL HTS728
Adds combustion-chamber cleaning capability, HEPA filtration, pressure regulation, and higher airflow.
Included & Not Included

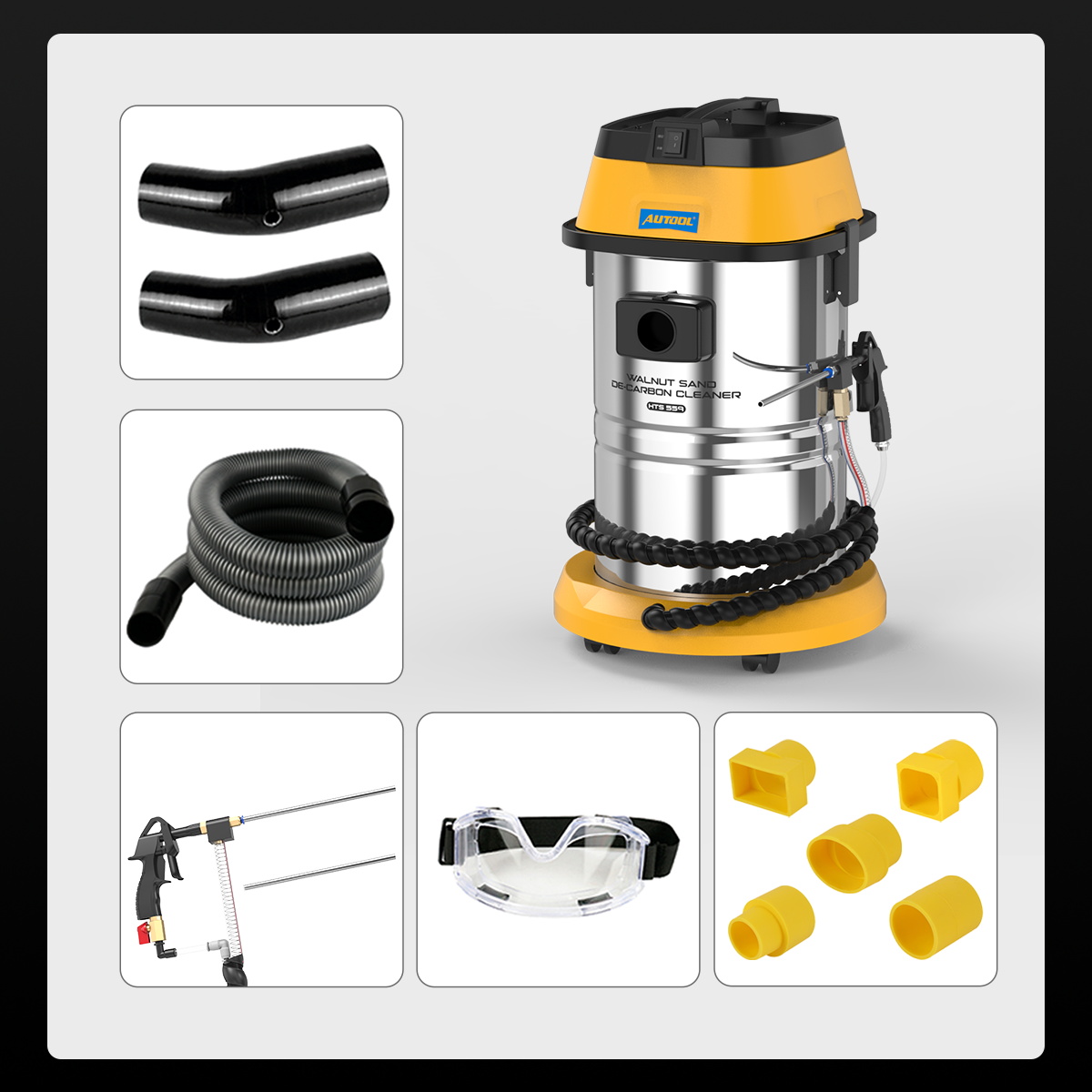

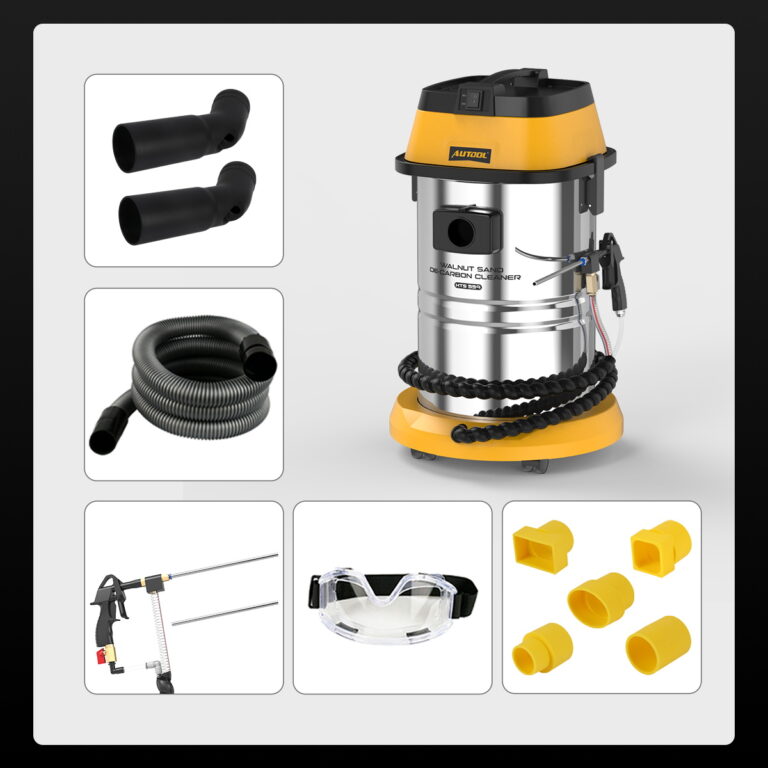

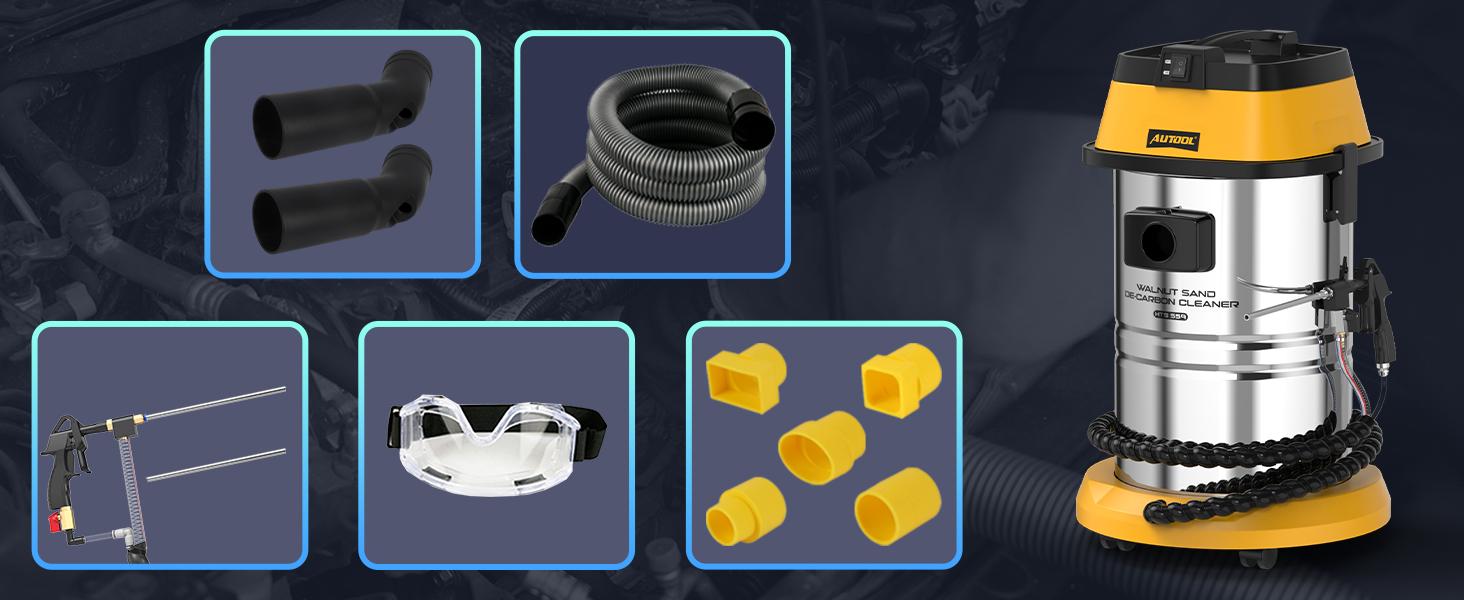

Package Contents
The package includes the HTS559 main unit and the accessories listed below. Walnut-shell abrasive and the external air compressor are not included and must be prepared separately before use.
- Main UnitAUTOOL HTS559 walnut blasting machine
- Included AccessoriesHoses, spray/nozzle components, adapters, safety goggles, and the other listed accessories
- Walnut AbrasiveNot included; use 0.6–1.2 mm walnut-shell abrasive.
- Air CompressorNot included; external air compressor required.
- ManualDownload the manual in the Manual & Support section below.
Downloads & Help
Manual & Support
Use the HTS559 manual for setup, walnut loading, hose/adapter connection, safe operation, and maintenance. Contact support for replacement parts or package questions.

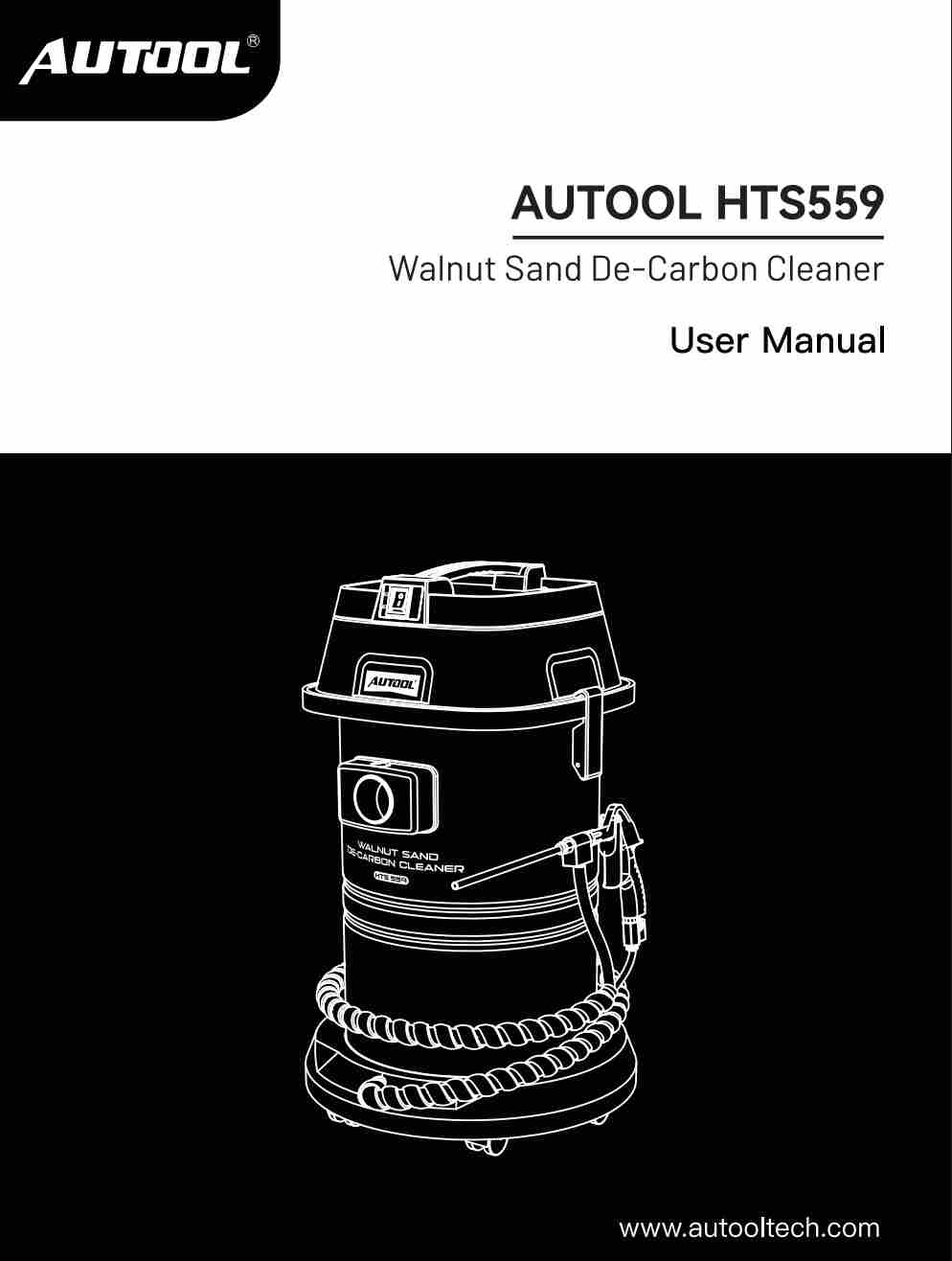

AUTOOL HTS559 User Manual
Open the PDF manual for HTS559 setup, safe operation, abrasive loading, adapter use, and cleaning workflow support.
Product, Setup & Service Answers
Frequently Asked Questions
Find answers about walnut abrasive, carbon buildup, cleaning timing, air-compressor requirements, package contents, cleaning range, operation, abrasive safety, and model selection.
What Is Walnut Sand?
Walnut abrasive is made from crushed walnut shells screened by particle size. For HTS559, use 0.6–1.2 mm walnut-shell abrasive. Control dust, follow the supplier Safety Data Sheet (SDS), and use appropriate personal protective equipment (PPE). Walnut-shell media can create dust and may trigger allergies.
What Walnut Shell Size Should I Use For HTS559?
Use 0.6–1.2 mm walnut-shell abrasive for HTS559.
Can Walnut Abrasive Be Reused?
Reuse recovered walnut abrasive only when the HTS559 manual and the service procedure for the specific vehicle permit it and the media remains suitable for reuse.
Can HTS559 Remove Carbon Deposits on Intake Valves?
HTS559 removes carbon deposits from supported intake-valve and intake-port surfaces when inspection confirms buildup and the vehicle-specific service procedure supports walnut blasting. Confirm valve position, adapter sealing, and residual-media recovery before service.
When Should Intake Carbon Deposits Be Cleaned?
Clean intake deposits when inspection or diagnosis confirms significant buildup and the vehicle procedure supports mechanical cleaning. Do not use one fixed mileage interval for all vehicles, and do not expect a guaranteed improvement in power, fuel economy, or idle quality.
What Air Compressor Is Required?
HTS559 uses an external compressor with air pressure up to 0.7 MPa; 6 bar or more is generally recommended. Also make sure the compressor provides sufficient continuous airflow and dry air, and that the air tank, hose, quick-connect fittings, and pressure settings suit the vehicle and workshop setup.
Does HTS559 Include Walnut Abrasive and an Air Compressor?
No. Walnut abrasive and the external air compressor are not included. Prepare the specified media and a suitable compressor before use.
What Areas Can HTS559 Clean?
HTS559 is designed to clean the intake pipe, intake manifold, and the backs of the intake valves. It is not designed for injectors, throttle valves, cylinders, or combustion chambers.
How Does HTS559 Use Walnut Blasting for Intake Carbon Cleaning?
HTS559 uses external compressed air to drive walnut abrasive across supported intake-manifold areas and the backs of intake valves, while vacuum recovery collects spent media and carbon residue. Close the target intake valve, make sure the adapter forms a secure seal, isolate other intake openings as required by the service procedure for the specific vehicle, and inspect the cleaned area for residual media before restarting the engine.
How Can I Reduce the Risk of Engine Damage During Walnut Blasting?
Use the specified walnut abrasive, air settings, adapter, and service procedure to reduce the risk of damaging engine or metal surfaces. Confirm the target intake valve is closed, use a correctly fitted and sealed adapter, follow the service procedure for the specific vehicle, and complete a final residual-media inspection.
Where Can I Compare HTS558, HTS559, HTS518, HTS678, And HTS728?
Use the AUTOOL Walnut Blaster Model Comparison table above to compare rated power, capacity, adapters, filters, modes, pressure controls, and combustion-chamber capability across HTS558, HTS559, HTS518, HTS678, and HTS728.
