AUTOOL Engine Pressure Tester Oil Pressure Test Gauge

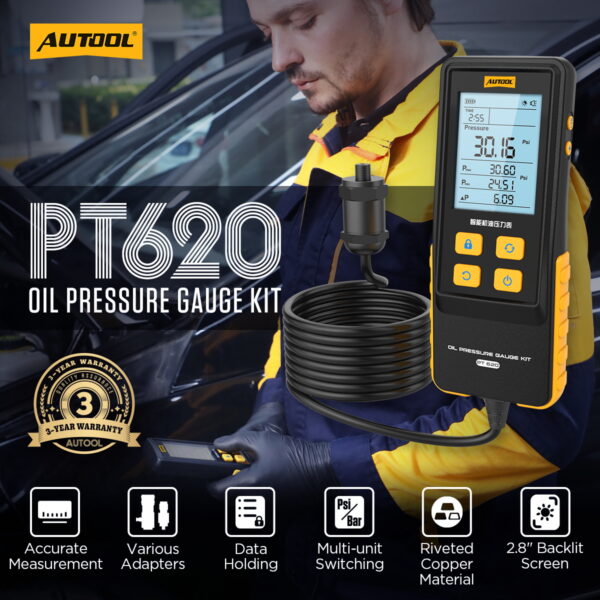

Engine Oil Pressure Gauge with Digital Display

Automobile Fuel Pressure Gauge with Digital Display

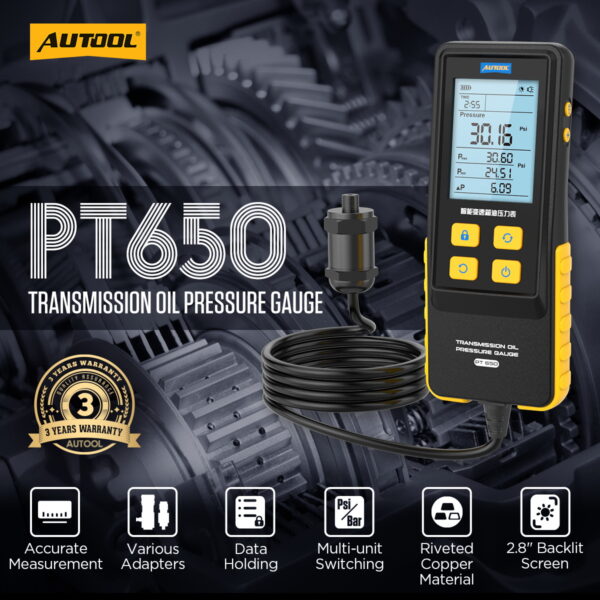

ATF Exchanger Transmission Oil Pressure Gauge

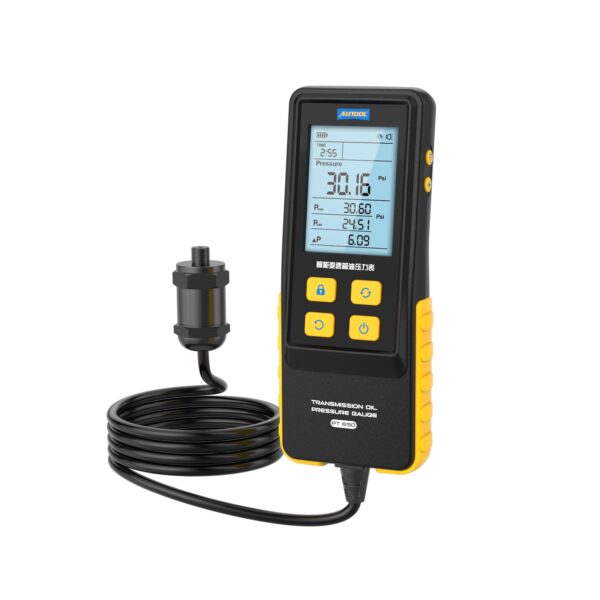

AUTOOL Engine Pressure Tester Oil Pressure Test Gauge

Price range: US$119.00 through US$359.00

Key Features

Digital Pressure Readout
Multi-System Tester Range
Copper-Riveted Build

Model

Ship From

Clear

☰ REQUEST BULK / B2B QUOTE

Secure checkoutFast supportBulk ready

AUTOOL PT Series

Product Overview

The AUTOOL PT Series Engine Pressure Tester is designed for automotive pressure testing across cylinder compression, engine oil, fuel, GDI fuel, transmission oil, and brake fluid systems. The digital measurement system provides high sensitivity, real-time pressure display, intuitive reading, and easier pressure diagnosis. Copper-riveted fittings, corrosion-resistant construction, and reinforced rubber hoses improve durability, pressure resistance, temperature tolerance, and workshop reliability.

Cylinder Pressure Oil Pressure Fuel / GDI Brake Pressure

0.01Fine Readings

2.8-3″Backlit Display

CopperRiveted Fittings

3 YearsWarranty

How To Choose

Choose the right AUTOOL PT pressure tester by matching the system you need to measure: cylinder compression, engine oil, fuel, GDI fuel, transmission oil, or brake fluid pressure.

Cylinder Pressure

Choose PT610 for cylinder compression pressure testing and cylinder pressure comparison.

Engine Oil Pressure

Choose PT620 for engine oil pressure testing on motorcycles, cars, and trucks.

Fuel Pressure

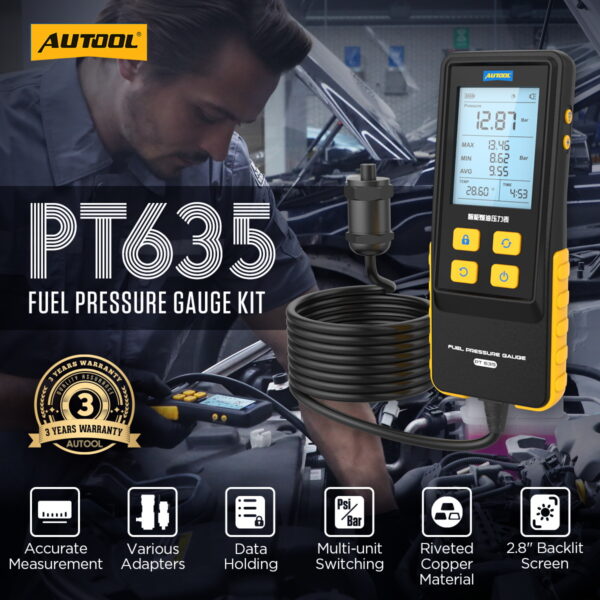

Choose PT630 or PT635 for fuel pressure testing. PT635 is the higher-end version and also supports fuel temperature monitoring.

GDI Fuel Pressure

Choose PT640 for GDI high-pressure fuel testing with digital measurement up to 0-360 bar.

Transmission Oil Pressure

Choose PT650 for ATF exchanger and transmission oil pressure testing.

Brake Fluid Pressure

Choose PT660 for brake fluid pressure testing and front / rear brake pressure comparison.

Product Comparison

Use the comparison chart and model notes to quickly match the correct PT pressure tester with your required automotive pressure system.

PT610 FocusCylinder compression pressure testing with real-time pressure, average pressure, temperature display, and up to 6 cylinder data storage.

PT620 FocusEngine oil pressure testing with PSI / Bar / kg/cm² unit switching and 0-426.6 psi pressure range.

PT630 / PT635 FocusFuel pressure testing. PT635 is the higher-end fuel pressure gauge and adds fuel temperature monitoring.

PT640 FocusGDI fuel pressure testing with 0-360 bar digital measurement for high-pressure direct injection systems.

PT650 FocusTransmission oil pressure testing with multiple connectors, data lock, and unit switching.

PT660 FocusBrake pressure testing with dual-channel front / rear brake pressure detection and trend comparison.

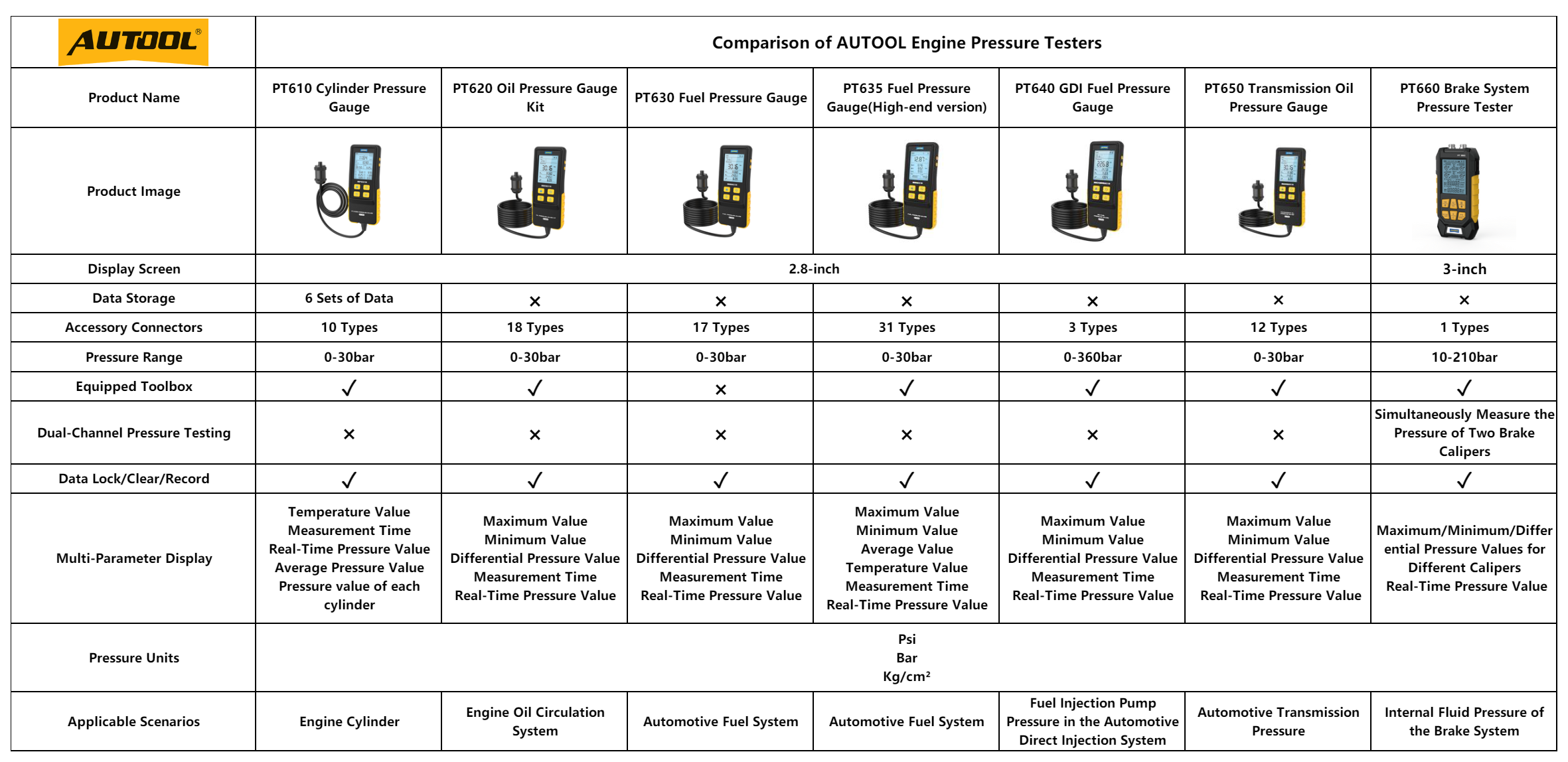

AUTOOL PT series engine pressure tester comparison chart

Key Features

AUTOOL PT series pressure testers combine digital measurement, clear display, durable fittings, reinforced hoses, and model-specific pressure test functions for professional diagnosis.

Digital Measurement System

Features a wide measurement range and high precision, with readings accurate to two decimal places for more intuitive pressure diagnosis.

Smart Digital Display

2.8-3 inch backlit display keeps pressure data readable in bright and dim workshop environments without flipping pages.

Real-Time And Average Data

Selected models display real-time pressure, average pressure, temperature, measurement time, or related diagnostic data.

Data Saving And Locking

Selected models support data storage or data lock, making pressure test results easier to review and compare.

Copper-Riveted Construction

Copper-riveted fittings resist rust and corrosion, while reinforced rubber hoses improve pressure resistance, temperature tolerance, and kink resistance.

3-Year Warranty

For eligible damage caused by non-human factors, AUTOOL provides free replacement parts within 3 years.

Before You Order And Use

Pressure testing accuracy depends on correct zero calibration, adapter selection, and measurement range control. PT660 brake pressure testing also requires correct L/R channel connection and wheel direction selection.

General Test Notes

Perform zero calibration before every test.
Zero calibration should be done under atmospheric pressure before connecting test lines.
Pay attention to the measurement range; exceeding the range may only display maximum or minimum values.
Choose the correct adapter before connecting to the target system.
Disconnect the device and release pressure before repeating a test if the reading appears abnormal.

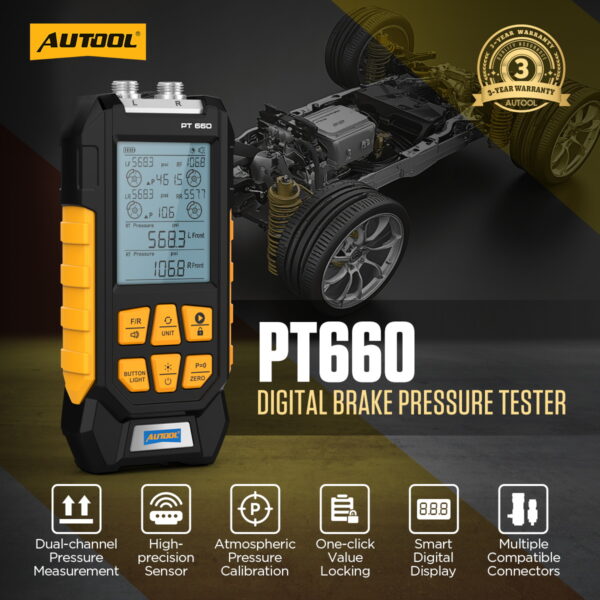

PT660 Brake Pressure Gauge Quick Steps

Connect the pressure input cable to the L/R slots.
Perform air pressure zero calibration before testing.
Connect the specific model adapter to the measurement probe.
Select the unit and wheel direction.
Press the measurement button to start pressure measurement.
After measurement is complete, view results and switch units if needed.

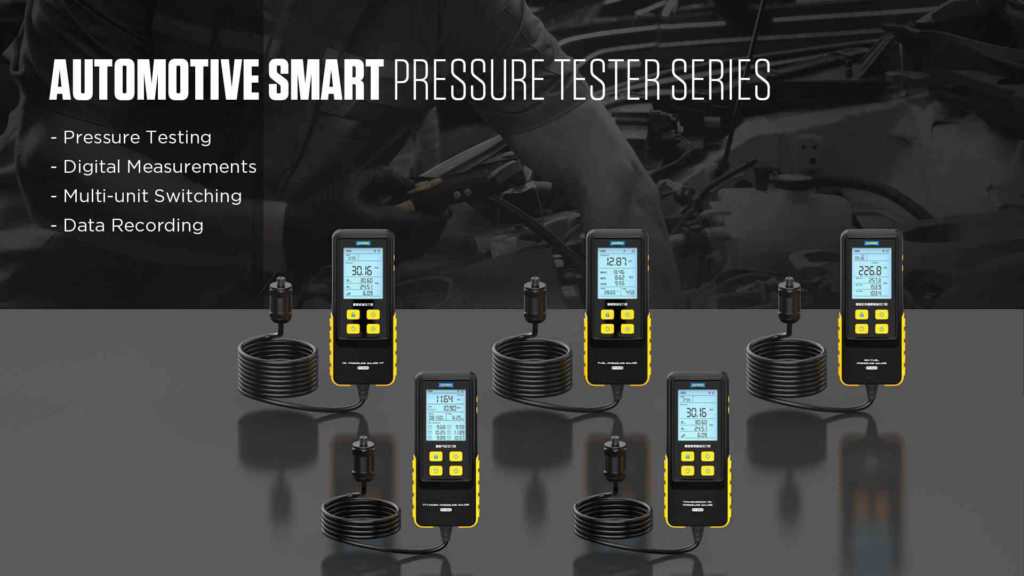

8 Pressure Gauges for Your Workshop

Compare different pressure gauges and match them to compression, oil, fuel, brake, and other workshop diagnosis tasks.

Guide / 2024-10-16

What Are the Symptoms of Dirty Fuel Injectors?

Learn the common injector symptoms before deciding whether fuel pressure testing should be your next diagnostic step.

Guide / 2025-09-13

What if there is oil inside intake manifold?

Understand why oil can appear in the intake manifold and how pressure-related engine checks help narrow the cause.

Guide / 2025-09-29

Common Abnormal Issues with Car Brakes

Review common brake abnormalities and see where brake pressure measurement can support faster diagnosis.

Questions And Answers

These answers cover PT610 inaccurate readings, zero calibration, measurement range limits, fuel pressure model selection, PT630 / PT635 differences, and PT660 brake pressure testing.

Why Are PT610 Readings Inaccurate?

Do I Need To Perform Zero Calibration Before Every Test?

What Happens If I Exceed The Measurement Range?

Which Model Should I Choose For Fuel Pressure?

What Is The Difference Between PT630 And PT635?

Which Model Should I Choose For Brake Pressure?

How Do I Use The PT660 Brake Pressure Gauge?

Warranty And Contact

For PT610 / PT620 / PT630 / PT635 / PT640 / PT650 / PT660 model selection, zero calibration support, inaccurate reading troubleshooting, adapter selection, measurement range confirmation, brake pressure L/R slot operation, or discount inquiries, contact AUTOOL support.

Pre-Sales And Product Support

Use support if you need help choosing the correct PT series pressure tester, confirming supported measurement range, selecting adapters, troubleshooting inaccurate readings, repeating zero calibration, or confirming PT660 brake pressure testing operation.

PT610 / PT620 / PT630 / PT635 / PT640 / PT650 / PT660 model selection
Zero calibration and pressure relief support
Inaccurate reading troubleshooting
Adapter and measurement range confirmation
PT660 L/R slot and brake pressure operation support
3-year warranty support for eligible non-human damage cases

WhatsApp+86 189 2647 7404 Emailshop@autooltech.com
