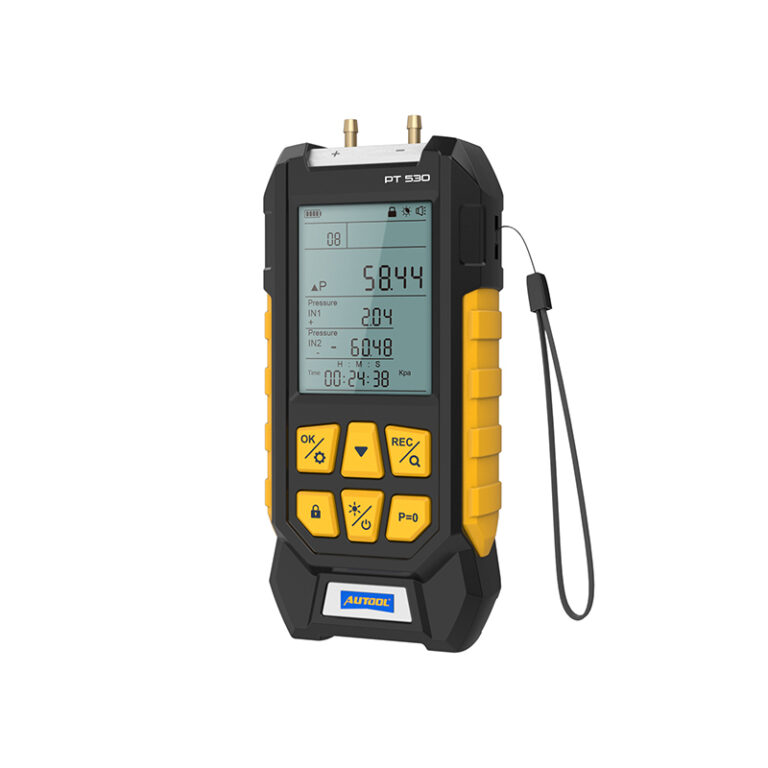

AUTOOL PT530 Digital Manometer Dual Port Pressure Gauge
Digital Manometer Dual Port Pressure Gauge
AUTOOL PT530 Digital Manometer Dual Port Pressure Gauge
AUTOOL PT530 Digital Manometer Dual Port Pressure Gauge
AUTOOL PT530 Digital Manometer Dual Port Pressure Gauge
AUTOOL PT530 Digital Manometer Dual Port Pressure Gauge
AUTOOL PT530 Digital Manometer Dual Port Pressure Gauge
AUTOOL PT530 Digital Manometer Dual Port Pressure Gauge
AUTOOL PT530 Digital Manometer Dual Port Pressure Gauge
AUTOOL PT530 Digital Manometer Dual Port Pressure Gauge
AUTOOL PT530 Digital Manometer Dual Port Pressure Gauge
AUTOOL PT530 Digital Manometer Dual Port Pressure Gauge
AUTOOL PT530 Digital Manometer Dual Port Pressure Gauge
AUTOOL PT530 Digital Manometer Dual Port Pressure Gauge
AUTOOL PT530 Digital Manometer Dual Port Pressure Gauge
AUTOOL PT530 Digital Manometer Dual Port Pressure Gauge
  1. AUTOOL PT530 Digital Manometer Dual Port Pressure Gauge
  2. Digital Manometer Dual Port Pressure Gauge
  3. AUTOOL PT530 Digital Manometer Dual Port Pressure Gauge
  4. AUTOOL PT530 Digital Manometer Dual Port Pressure Gauge
  5. AUTOOL PT530 Digital Manometer Dual Port Pressure Gauge
  6. AUTOOL PT530 Digital Manometer Dual Port Pressure Gauge
  7. AUTOOL PT530 Digital Manometer Dual Port Pressure Gauge
  8. AUTOOL PT530 Digital Manometer Dual Port Pressure Gauge
  9. AUTOOL PT530 Digital Manometer Dual Port Pressure Gauge
  10. AUTOOL PT530 Digital Manometer Dual Port Pressure Gauge
  11. AUTOOL PT530 Digital Manometer Dual Port Pressure Gauge
  12. AUTOOL PT530 Digital Manometer Dual Port Pressure Gauge
  13. AUTOOL PT530 Digital Manometer Dual Port Pressure Gauge
  14. AUTOOL PT530 Digital Manometer Dual Port Pressure Gauge
  15. AUTOOL PT530 Digital Manometer Dual Port Pressure Gauge
  16. AUTOOL PT530 Digital Manometer Dual Port Pressure Gauge

AUTOOL PT530 Digital Manometer Dual Port Pressure Gauge

(6 customer reviews)

Price range: US$135.90 through US$299.00

Key Features
  • Dual-Port Range
  • Magnetic Backing
  • Stored Readings
Key Features
☰ REQUEST BULK / B2B QUOTERequest B2B Quote
Secure checkoutFast supportBulk ready
AUTOOL PT530

Product Overview

AUTOOL PT530 is a dual-port digital manometer for automotive pressure and vacuum testing. It is suitable for brake booster pressure checking, crankcase negative pressure checking, exhaust valve negative pressure checking, intake manifold vacuum testing, and differential pressure measurement. With a -100~300kPa range, ±0.25%FS accuracy, magnetic back plate, flashlight, backlit buttons, and 29 sets of data storage, it is built for workshop diagnostics and on-site pressure recording.

Dual-Port Testing -100~300kPa 29 Data Sets Magnetic Back
±0.25%FSAccuracy
10 UnitsSwitchable
4×AAAPower Supply
3 YearsWarranty
AUTOOL PT530 Digital Manometer Dual Port Pressure Gauge main product image Click to enlarge
AUTOOL 3-year warranty support image Click to enlarge
Key Features

Key Features

PT530 combines dual-port pressure testing, high accuracy, multi-unit switching, data storage, low-light operation, magnetic mounting, and drop-resistant casing for automotive and workshop pressure diagnosis.

Dual-Port Differential Pressure Test

Simultaneously measure IN1, IN2, and differential pressure for faster comparison during pressure and vacuum diagnosis.

Wide Measurement Range

Supports -100~300kPa / -1000~3000hPa pressure range for both low-pressure and higher-pressure diagnostic environments.

High Accuracy Sensor

±0.25%FS accuracy with temperature compensation helps provide more stable results, even in cold regions.

10 Pressure Units

Switch between kPa, hPa, Torr, mbar, inHg, mmHg, inH₂O, mmH₂O, psi, and kg/cm². Pa display is no longer supported.

Data Locking And Storage

Lock current readings, perform zeroing, store records, and review up to 29 data sets for on-site checks and later recording.

Magnetic Back Plate

The magnetic backing easily attaches to metallic vehicle components, supporting hands-free measurement during workshop work.

Backlight And Flashlight

Backlit screen, illuminated buttons, and built-in flashlight help users read and operate the meter in dark environments.

Drop-Resistant Casing

Lead elements are added to the casing to improve impact resistance and help protect the machine if accidentally dropped.

AUTOOL PT530 function summary image Click to enlarge
AUTOOL PT530 data locking and data storage image Click to enlarge
AUTOOL PT530 high precision sensor and measurement range image Click to enlarge
AUTOOL PT530 pressure unit range and resolution image Click to enlarge
AUTOOL PT530 screen and interface introduction image Click to enlarge
AUTOOL PT530 structure size and component introduction image Click to enlarge
Applications

Applications

PT530 supports pressure testing and vacuum testing in intake pipes, brake boosters, crankcases, exhaust valves, and multiple non-corrosive pressure-measurement scenarios.

Brake Booster Pressure Checking

Measure pressure or vacuum conditions in the brake booster system.

Crankcase Negative Pressure Checking

Support crankcase pressure or negative pressure checks during engine diagnosis.

Exhaust Valve Negative Pressure Checking

Assist exhaust valve-related negative pressure checks and pressure comparison.

Intake Manifold Vacuum Testing

Check intake manifold vacuum and related pressure conditions.

Oil / Water / Air / Natural Gas

Suitable for non-corrosive oil, water, air, and natural gas pressure measurement.

AUTOOL PT530 automotive application scenarios image Click to enlarge
AUTOOL PT530 oil water natural gas and air pressure measurement compatibility image Click to enlarge
Specifications

Specifications

Review the PT530 measurement range, units, power supply, structure, operating temperature, and support details before ordering.

Measurement
ProductAUTOOL PT530 Digital Manometer Dual Port Pressure Gauge
Measurement Range-100~300kPa / -1000~3000hPa
Measurement Accuracy±0.25%FS
Resolution0.1kPa / 1hPa
Dual PortIN1 / IN2 / Differential pressure
Data StorageStores and reviews up to 29 data sets
Pressure Units
kPa-100~300, resolution 0.1
hPa-1000~3000, resolution 1
Torr-750~2250, resolution 0.1
mbar-1000~3000, resolution 1
inHg-29.52~88.58, resolution 0.01
mmHg-750~2250, resolution 0.1
inH₂O-401.4~1204.4, resolution 0.01
mmH₂O-10197~30591, resolution 1
psi-14.5~43.51, resolution 0.01
kg/cm²-1~3.05, resolution 0.01
Power And Structure
Power Supply4×1.5V AAA batteries
InterfaceType-C interface
Product Size165×74×33mm / 6.49×2.91×1.29in
Magnetic BackYes
FlashlightYes
Button LightYes
Backlit DisplayYes
Operating Temperature-10°C~60°C
Storage Temperature-20°C~65°C
Support
ManualPT530 Manual PDF available for download
Warranty3-year warranty and lifetime maintenance support
Important Unit NotePa unit display is no longer supported in the current version
AUTOOL PT530 specification parameter image Click to enlarge
AUTOOL PT530 structure and components image Click to enlarge
Measurement
ProductAUTOOL PT530 Digital Manometer Dual Port Pressure Gauge
Measurement Range-100~300kPa / -1000~3000hPa
Measurement Accuracy±0.25%FS
Resolution0.1kPa / 1hPa
Dual PortIN1 / IN2 / Differential pressure
Data StorageStores and reviews up to 29 data sets
Pressure Units
kPa-100~300, resolution 0.1
hPa-1000~3000, resolution 1
Torr-750~2250, resolution 0.1
mbar-1000~3000, resolution 1
inHg-29.52~88.58, resolution 0.01
mmHg-750~2250, resolution 0.1
inH₂O-401.4~1204.4, resolution 0.01
mmH₂O-10197~30591, resolution 1
psi-14.5~43.51, resolution 0.01
kg/cm²-1~3.05, resolution 0.01
Power And Structure
Power Supply4×1.5V AAA batteries
InterfaceType-C interface
Product Size165×74×33mm / 6.49×2.91×1.29in
Magnetic BackYes
FlashlightYes
Button LightYes
Backlit DisplayYes
Operating Temperature-10°C~60°C
Storage Temperature-20°C~65°C
Support
ManualPT530 Manual PDF available for download
Warranty3-year warranty and lifetime maintenance support
Important Unit NotePa unit display is no longer supported in the current version
Reference Values

Reference Values

AUTOOL PT530 unit range image Click to enlarge
Product Comparison

Product Comparison

Compare PT503, PT520, and PT530 before choosing the right pressure tester for range, accuracy, screen size, data storage, magnetic mounting, lighting, and workshop accessory needs.

PT503 FocusCompact 1.8-inch model with -100~200kPa range, ±0.5%FS accuracy, 7 connector types, and basic data lock
PT520 Focus2.8-inch model with -100~200kPa range, ±0.3%FS accuracy, 29 data sets, flashlight, and dual-channel testing
PT530 FocusHigher-accuracy 2.8-inch model with -100~300kPa range, ±0.25%FS accuracy, magnetic back, button light, flashlight, toolbox, and 29 data sets
Decision CheckChoose PT530 if you need wider pressure range, higher accuracy, magnetic mounting, better low-light operation, data storage, and workshop-ready accessories
AUTOOL PT503 PT520 PT530 differential pressure gauge comparison chart Click to enlarge
Manual And Downloads

Manual And Downloads

Download the PT530 manual for button functions, unit switching, zeroing, recording, data review, pressure calibration, and safe measurement guidance.

AUTOOL PT530 Manual PDF preview Click to enlarge

AUTOOL PT530 Manual PDF

Use the manual to confirm measurement modes, dual-port operation, data storage, unit switching, zeroing, and calibration instructions before use.

Download Manual
Related Products

Related Products

Compare AUTOOL differential pressure gauges and automotive pressure tester tools before choosing the right diagnostic tester for brake, cylinder, oil, fuel, GDI, ATF, and transmission pressure work.

AUTOOL PT530 packing list with main unit toolbox hoses adapters product box and manual Click to enlarge
What Is In The Box

What Is In The Box

The packing list image shows the PT530 main unit, protective carrying toolbox, hoses, adapters, product box, and user manual. This is the most complete package image for PT530 and is kept as the only Packing List image.

Main UnitAUTOOL PT530 digital manometer
StorageCarrying case / toolbox
HosesTransparent pressure testing hoses
AdaptersMultiple connector adapters and rubber cone adapter shown in the package image
DocumentationUser manual
PackagingProduct box shown in the package image
Before You Order And Use

Before You Order And Use

Review unit support, pressure range, medium compatibility, battery requirement, zeroing, and manual guidance before using PT530.

Unit And Range Notes

  • Pa unit display is no longer supported in the current version.
  • PT530 supports 10 pressure units, but Pa is not included in the current version.
  • Confirm the pressure range before testing: -100~300kPa / -1000~3000hPa.
  • Do not use the device beyond the supported pressure range.

Measurement And Operation Notes

  • Use the correct connector and hose according to the tested pipe or pressure source.
  • The device is suitable for non-corrosive oil, water, air, and natural gas pressure measurements.
  • Before measurement, perform zeroing if the display does not return to zero.
  • Use the flashlight, backlight, and button light when testing in dark environments.
  • Install 4×1.5V AAA batteries before use.
  • Use the manual for pressure calibration, data recording, and unit switching instructions.
