SALE 🔍

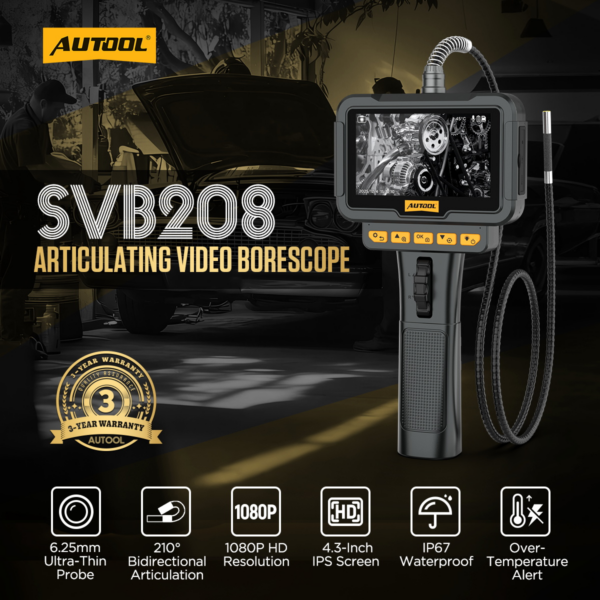

AUTOOL Automotive Inspection Camera Borescope Camera

AUTOOL Automotive Inspection Camera Borescope Camera

Rated 5.00 out of 5 based on 1 customer rating

(1 customer review)

Price range: US$159.00 through US$289.00

Key Features

Tight-Space Inspection
Articulating Probe
Photo Video Capture

Model

Ship From

Clear

☰ REQUEST BULK / B2B QUOTE

Secure checkoutFast supportBulk ready

AUTOOL SVB Series

Product Overview

The AUTOOL SVB Series Automotive Inspection Camera is designed for inspecting hard-to-reach, narrow, and curved spaces in automotive repair, including evaporators, combustion chambers, catalytic sensor areas, engine cylinders, pipelines, and hidden wiring. Depending on the model, the SVB series supports phone-connected inspection or built-in screen inspection, 210° two-way or 360° four-way probe articulation, photo and video recording, IP67 probe protection, LED lighting, high-temperature alarm, and replaceable flexible hose design.

210° / 360° Articulation Screen / Phone Models Photo & Video High-Temp Alert

SVB302Phone Model

SVB305Screen Model

SVB403Dual Lens

3 YearsWarranty

How To Choose

Choose your AUTOOL SVB automotive borescope based on connection method, steering angle, lens diameter, screen type, camera resolution, and whether dual-lens inspection or zoom is required.

Need A Phone-Connected Camera?

Choose SVB302 or SVB303. SVB302 supports 210° bidirectional probe rotation, while SVB303 supports 360° four-way probe rotation and is suitable for users who prefer phone or tablet inspection.

Need A Built-In Screen?

Choose SVB305, SVB308, SVB403, SVB405, or SVB408 if you want direct inspection without depending on a phone App or phone cable connection.

Need 360° Four-Way Articulation?

Choose SVB303, SVB308, SVB405, or SVB408 for four-way 360° rotation, which is useful for complex curved passages and multi-directional observation.

Need Dual Lens Inspection?

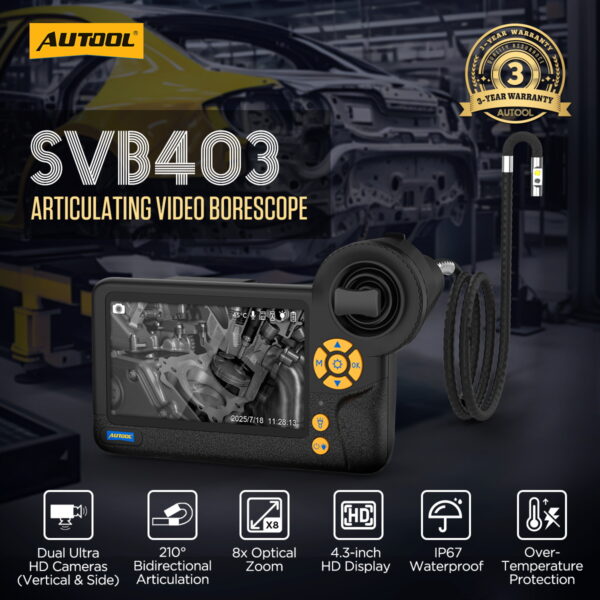

Choose SVB403. It includes a front lens and a side lens, making it useful for cylinder-wall, piston-top, and side-view inspection without frequently repositioning the probe.

Need The Thinnest Lens?

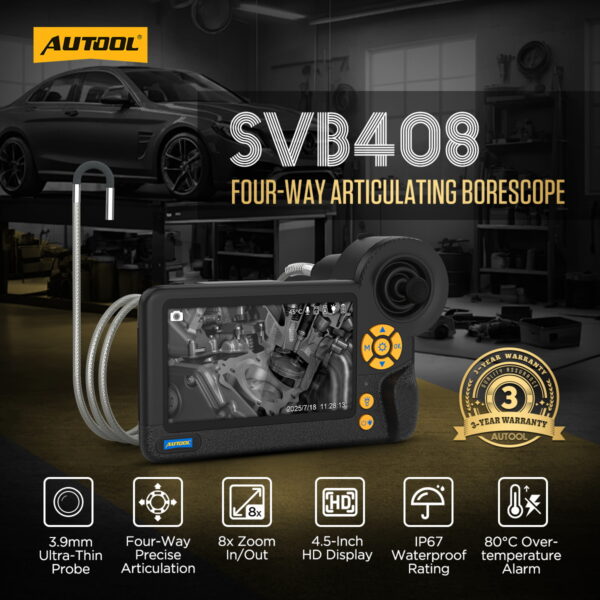

Choose SVB408. Its 3.9mm lens diameter is the thinnest among the compared models, making it better for especially narrow inspection spaces.

Need Higher Resolution Or Zoom?

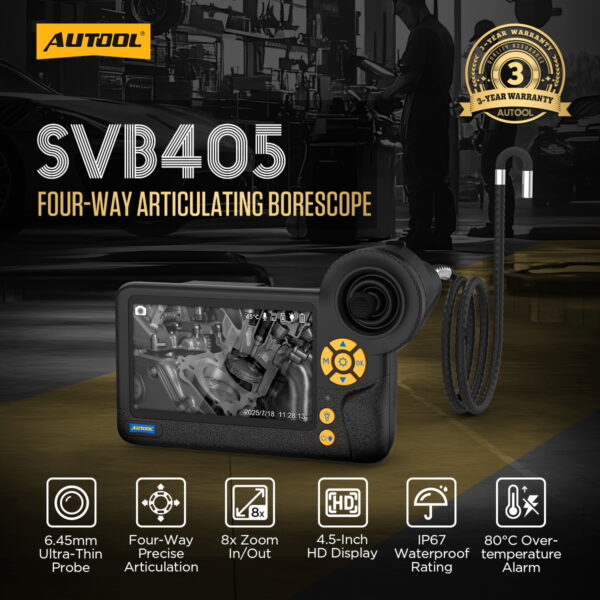

Choose SVB405, SVB408, or SVB403. SVB405 has a 2MP / 1920×1080 camera, while SVB403 and SVB408 support 8× digital zoom for closer inspection.

Product Comparison

Compare SVB208, SVB302, SVB303, SVB305, SVB308, SVB403, SVB405, and SVB408 before choosing the right steering angle, display type, lens diameter, resolution, depth of field, temperature protection, storage, zoom, and battery capacity.

Phone-Connected ModelsSVB302 and SVB303 connect to phone / tablet systems. SVB302 is 210° two-way, while SVB303 is 360° four-way.

Built-In Screen ModelsSVB305, SVB308, SVB403, SVB405, and SVB408 include display screens for direct inspection.

Dual-Lens ModelSVB403 includes front and side lenses for engine cylinder and side-wall inspection.

Ultra-Thin Probe ModelSVB408 has a 3.9mm lens diameter for narrower inspection spaces.

Decision CheckCompare steering angle, screen type, lens diameter, resolution, depth of field, storage, zoom, battery, and operating temperature before ordering.

AUTOOL smart articulating borescopes comparison chart

Key Features

The SVB series helps mechanics inspect narrow and hidden areas without unnecessary disassembly, with model-specific options for articulation, imaging, storage, waterproof probe protection, and screen or phone viewing.

Rotatable Lens

Selected models use joystick-style control with 210° or 360° rotating probes, allowing flexible access to narrow, curved, and hard-to-see spaces.

HD Imaging And LED Lighting

Selected models support 720P or 1080P imaging and LED illumination, providing clearer visibility in low-light engine, pipeline, or hidden structure inspections.

Photo And Video Recording

Supports one-click photo and video recording on selected models. Built-in storage card support helps users review inspection results and export work examples.

Screen / Phone Inspection Options

SVB302 and SVB303 are phone-connected models, while SVB305, SVB308, SVB403, SVB405, and SVB408 use built-in displays for direct inspection.

Detachable / Magnetic Design

Selected models such as SVB303 and SVB308 support magnetic or detachable design for easier storage, positioning, and portability during workshop use.

IP67 Probe And High-Temperature Alert

The probe side supports IP67 protection depending on the model, and selected models include high-temperature alarm or shutdown protection. The screen should still be protected from oil and liquid.

Compatibility And Fitment

The AUTOOL automotive articulating borescope uses optical and electronic imaging technology. A miniature camera and LED light source at the probe tip illuminate the target area, capture images, and transmit signals to a display device for real-time inspection.

Miniature Camera And LED

The probe tip uses a miniature camera and LED light source to illuminate the target area and capture images inside narrow or hidden structures.

Signal Transmission

Image signals are transmitted through the probe and cable, or through the phone-connected system, to the display device for decoding and viewing.

Real-Time Inspection

The screen or phone displays the image in real time, supporting hidden-area inspection, engine wear detection, pipeline blockage checks, and wiring observation without unnecessary disassembly.

Applications

Use the SVB series to inspect hard-to-reach areas in engine, HVAC, exhaust, pipeline, and hidden wiring scenarios.

Engine Cylinder / Combustion Chamber

Inspect combustion chambers, cylinder walls, piston tops, spark plug holes, and signs of wear or carbon buildup.

Evaporator And HVAC Duct Area

Check automotive evaporators, HVAC ducts, and narrow internal spaces that are difficult to access directly.

Catalytic Sensor / Exhaust Area

Inspect catalytic sensor areas, exhaust pipe sections, and tight sensor interface areas for hidden issues.

Pipeline / Hidden Wiring

Use the flexible probe to observe pipeline blockage, hidden wiring, and internal structural conditions during non-destructive inspection.

Before You Order And Use

Automotive borescope cameras are sensitive inspection tools. Confirm temperature, liquid exposure, hose replacement, and model compatibility before use.

Safety And Use Notes

Wait until the engine has completely cooled down before inserting the probe.
Avoid placing the hose or camera probe in environments above 75°C.
Engine temperature can reach 80°C to 100°C or higher after shutdown, which may damage the camera.
High-temperature alarm or shutdown is a protection feature, not permission to inspect hot engine components.
The flexible hose is removable and replaceable; unscrew the screw on the AUTOOL logo to replace it.
The probe may support IP67 protection depending on the model, but the display screen must not be exposed to liquid, motor oil, or cleaning fluid.
If liquid enters the screen, the display may be damaged and replacement may be required at the user’s expense.
If the camera is damaged by high temperature, replacement may require an additional paid accessory.
Confirm screen type, phone compatibility, steering angle, lens diameter, depth of field, storage, and temperature protection before choosing a model.

Questions And Answers

These answers cover model differences, screen and phone-connected options, rotating probes, photo and video recording, file export, App download, and safe use after engine shutdown.

What Is The Difference Between SVB403, SVB405, And SVB408?

What Is The Difference Between SVB305 And SVB308?

What Is The Difference Between SVB302 And SVB303?

I Need One With A Screen. Which Model Should I Choose?

I Need One That Connects To My Phone. Which Model Should I Choose?

Which Models Can Rotate?

Can The Device Take Photos And Record Videos?

Can Photos And Videos Be Downloaded?

How Do I Download And Use The App?

Can I Use It Immediately After Turning Off The Engine?

Related Guides

Use these related articles to understand how automotive endoscope cameras are used and how to compare different inspection camera models.

Guide / 2024-07-03

Automotive Endoscope Camera-Important Tool

Learn why automotive endoscope cameras are useful for inspecting hidden vehicle areas without unnecessary disassembly.

SVB403 vs SVB308 car inspection camera comparison guide image

Guide / 2025-04-11

Which car inspection camera Should You Buy?

Compare inspection camera choices such as SVB403 and SVB308 before choosing a model for your workshop or DIY needs.

Guide / 2026-02-01

How to inspect an engine with an automotive borescope?

Use this guide to understand how a borescope supports engine inspection in tight spaces and hidden passages.

Guide / 2026-03-01

Use Guide for Automotive Endoscopes

See practical use tips for automotive endoscopes, including camera positioning, viewing angles, and inspection workflow.

Warranty And Contact

For SVB302 / SVB303 / SVB305 / SVB308 / SVB403 / SVB405 / SVB408 model selection, screen model vs phone-connected model selection, steering angle confirmation, lens diameter checks, hose replacement, screen liquid damage, App download, memory card export, or warranty support, contact AUTOOL Store directly.

Pre-Sales And Product Support

Use support if you need help choosing between 210° and 360° models, confirming whether a built-in screen or phone-connected model is better, checking lens diameter for narrow spaces, replacing a flexible hose, exporting files, or handling high-temperature / screen-liquid damage support.

SVB302 / SVB303 / SVB305 / SVB308 / SVB403 / SVB405 / SVB408 model selection
Screen model vs phone-connected model selection
210° / 360° steering angle confirmation
Lens diameter and narrow-space inspection confirmation
High-temperature damage and replacement support
Hose replacement support
Screen liquid damage / replacement support
App download and memory card export support
3-year warranty for eligible non-human damage cases

Email Supportsupport@autoolstore.com WhatsApp Support+86 189 2647 7404
