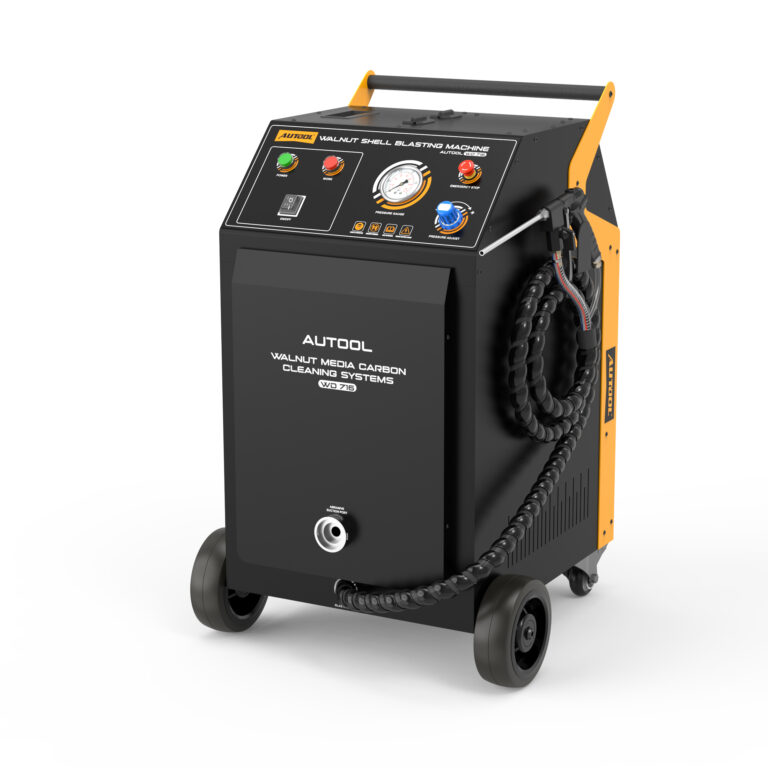

AUTOOL WD716 Walnut Shell Blasting Machine
US$1,799.00
Key Features
- Walnut Blast + Powered Recovery
- 23 Adapter Sizes
- Voltage-Specific Power
- 10 L Body
- Walnut Blast + Powered Recovery: External air drives walnut media while powered suction and filtration collect loosened residue.
- 23 Adapter Sizes: Match 23 adapter sizes to varied intake-port shapes, with the selected profile sealed to the specific engine port.
- Voltage-Specific Power: Choose the regional 1000 W/110 V or 1400 W/220 V version to match the site power supply and machine nameplate.
- 10 L Body: A 10 L body combines media handling and recovery in a compact workshop unit.
- 3-Year Warranty Main unit 3 years · Accessories 1 year
- 90-Day Returns Eligible returns within 90 days
- Official Store Genuine products · Direct support
AUTOOL WD716 · 23-Adapter Walnut Blaster with Recovery
Match More Intake Ports While Recovering Media
Match varied intake-port shapes with 23 adapter options, then use compressor-driven walnut blasting and powered suction to remove and collect accessible deposits. The compact 10 L body combines media handling with recovery and filtration. Choose 1000 W at 110 V or 1400 W at 220 V to match the workshop supply; an external compressor and engine-specific adapter fit and seal are required.
- 23 Intake-Adapter Options
- Compact 10 L Body

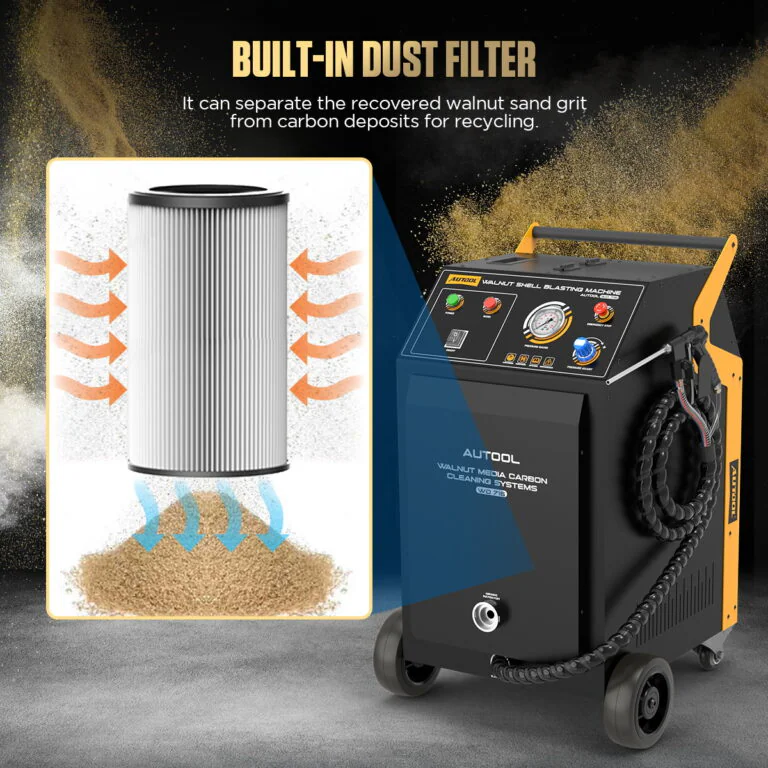

- Powered Recovery & Filtration
- 1000 W / 110 V or 1400 W / 220 V
- Air Purge for Feed-Path Clearing
Key Features
Broad Adapter Coverage in a 10 L Mobile Unit
Twenty-Three Adapter Options
Match varied intake-port shapes after engine-specific fit and seal checks.

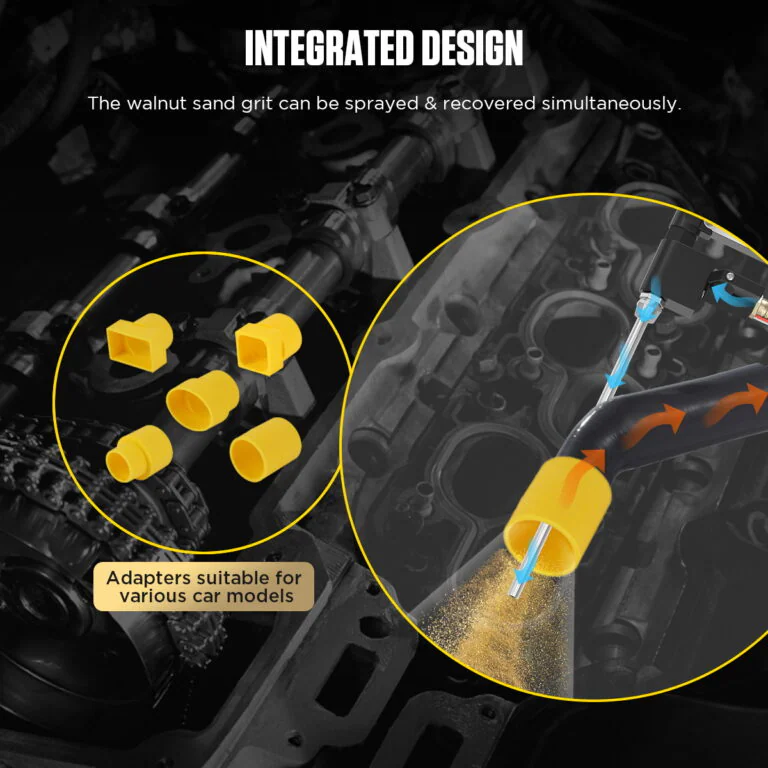

Blast and Recovery Path
This walnut blasting machine uses external air to drive walnut media while powered suction and filtration collect residue.
Regional Power Versions
Choose 1000 W/110 V or 1400 W/220 V and confirm the nameplate.
Ten-Litre Body
The 10 L body combines media handling and recovery in a compact workshop setup.
Air-Purge Step
Use about 10 seconds of air before and after blasting to help clear the path.
3 Years Warranty Support
Main unit: 3-year warranty. Standard accessories: 1-year warranty. Warranty Policy.
How to Use
Choose Voltage, Seal the Port, Blast, and Recover
Step progress1 / 6
01
Confirm Vehicle, Compressor and Voltage
Verify the target procedure, port, required air supply and correct regional unit.
02
Connect Gun and Recovery
Secure suction hose, blasting gun and nozzle inside the recovery path.
03
Select and Seal Adapter
Choose from 23 sizes, close the target valve and isolate other openings.
04
Load Approved Dry Walnut Media
Load at least 2 kg and follow the WD716 manual for size and conditions.
05
Purge, Blast and Recover
Use the instructed air purge and clean one supported port at a time.
06
Inspect and Verify
Recover visible abrasive, reassemble and complete leak/diagnostic/functional checks.
Safety & Compatibility
Confirm Dynamic Airflow, Media, and Valve Position

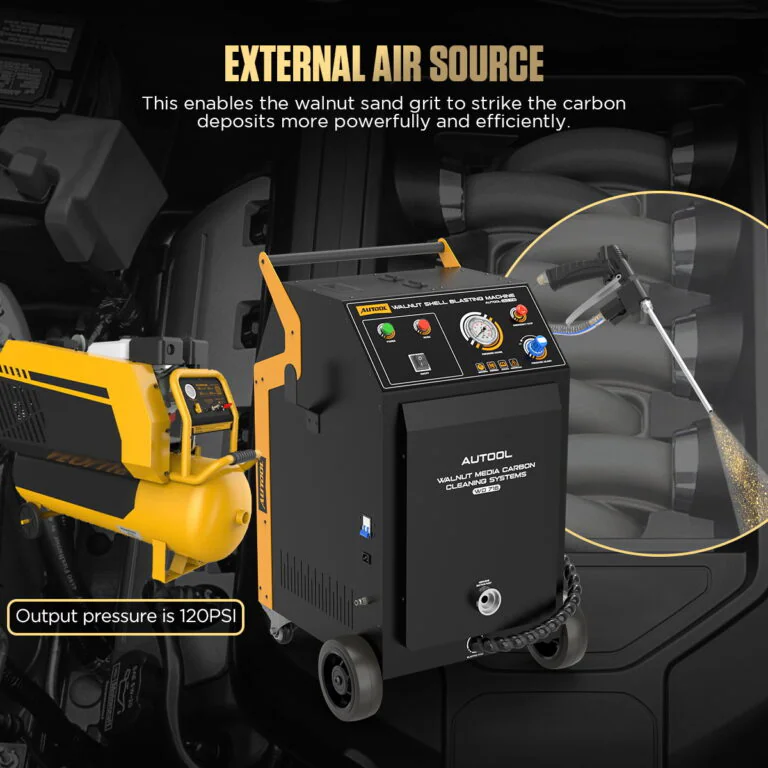

External Air Facts
A compressor is required; confirm the exact pressure and dynamic flow before ordering.
Voltage-Specific Unit
Confirm 110 V/1000 W or 220 V/1400 W, nameplate and grounding.
Valve and Adapter
Close the target valve, isolate unintended paths and confirm a secure seal.
Walnut PPE
Use dry approved media, goggles, gloves, respiratory protection, ventilation and SDS guidance.
Residual Media
Maintain recovery and inspect before startup; reuse only if the manual and vehicle procedure permit.
Compare Models
Compare Adapter Coverage and Regional Versions
Model Guide
Choose one or more models. WD716 is selected by default.
1 model selected
No model is selected. Choose a model to compare.
| Choose For Your Task | WD616 | WD716 | WD816 |
|---|---|---|---|
| Capacity & Power | |||
| Adapters | 5 | 23 | 23 |
| Capacity | 30 L | 10 L | 10 L |
| Power | 1000 W | 1000 W (110 V) / 1400 W (220 V) | 1000 W (110 V) / 1400 W (220 V) |
| Equipment & Air | |||
| 8 Angle Tubes | Not stated | Not stated | Yes |
| Required Air Supply | Confirm | Confirm | >0.7 MPa / >0.4 m³/min |
Manual & Downloads
WD716 Manual & Setup Help
AUTOOL WD716 User Manual
Open the PDF manual for WD716 walnut blasting, 23-adapter selection, media recovery, compressor and voltage setup, operating safety, maintenance, and troubleshooting.
Package

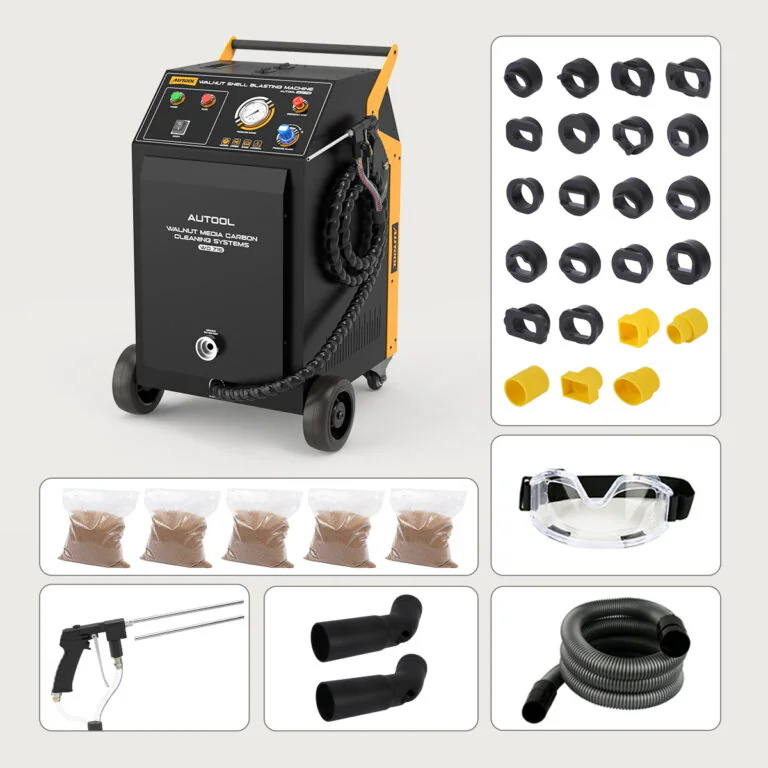

What’s Included
- WD716 Main Unit10 L walnut shell blasting machine with recovery in the selected voltage.
- 23 Adapter SizesConfirm the exact shapes and quantities in the packing list.
- Gun and Suction HoseRequired for operation; confirm the shipment pieces.
- External SuppliesConfirm whether the compressor and approved walnut media are included; plan to supply them separately.
- Final Packing ListConfirm every accessory and quantity for the selected shipment.
FAQs
Adapter, Air, and Voltage Questions
How does WD716 differ from WD616?
WD716 lists 23 adapters and 10 L capacity; WD616 lists five adapters and 30 L.
What power does WD716 use?
Choose 1000 W for 110 V or 1400 W for 220 V and confirm the nameplate; disregard the conflicting 1200 W marketing sentence.
How much walnut media should I load?
Load at least 2 kg and follow the manual for approved size and conditions.
What compressor is required?
External air is required. Confirm the pressure and dynamic flow with AUTOOL.
Are 23 adapters universal?
No. Match the exact engine port and seal.
Can I reuse recovered media?
Only if the WD716 manual and exact vehicle procedure allow it and the media remains suitable.
