AUTOOL Transmission Fluid Changer
AUTOOL Transmission Fluid Changer
AUTOOL Transmission Fluid Changer
  1. AUTOOL Transmission Fluid Changer
  2. AUTOOL Transmission Fluid Changer
  3. AUTOOL Transmission Fluid Changer

AUTOOL Transmission Fluid Changer

(1 customer review)

Price range: US$1,099.00 through US$1,399.00

Key Features
  • 20-Minute Fluid Exchange
  • Visual Oil Monitoring
  • Model-Based Automation
Key Features
☰ REQUEST BULK / B2B QUOTERequest B2B Quote
Secure checkoutFast supportBulk ready
AUTOOL ATF Series

Product Overview

AUTOOL ATF Series Transmission Fluid Exchangers are designed for automatic transmission fluid cleaning and replacement. With dedicated transmission interfaces, adjustable pressure, oil exchange windows, and model-specific intelligent exchange functions, the series helps clean the transmission, torque converter, and cooler while replacing old ATF with fresh fluid without disassembly. Under proper operating conditions, the cleaning and exchange process can be completed in about 20 minutes, with replacement efficiency over 90% and approaching full exchange under proper service conditions.

ATF Exchange Equal-Volume Replacement No Disassembly 20L Oil Tank
20 minService Reference
>90%Replacement Rate
20LOil Tank
3 YearsWarranty

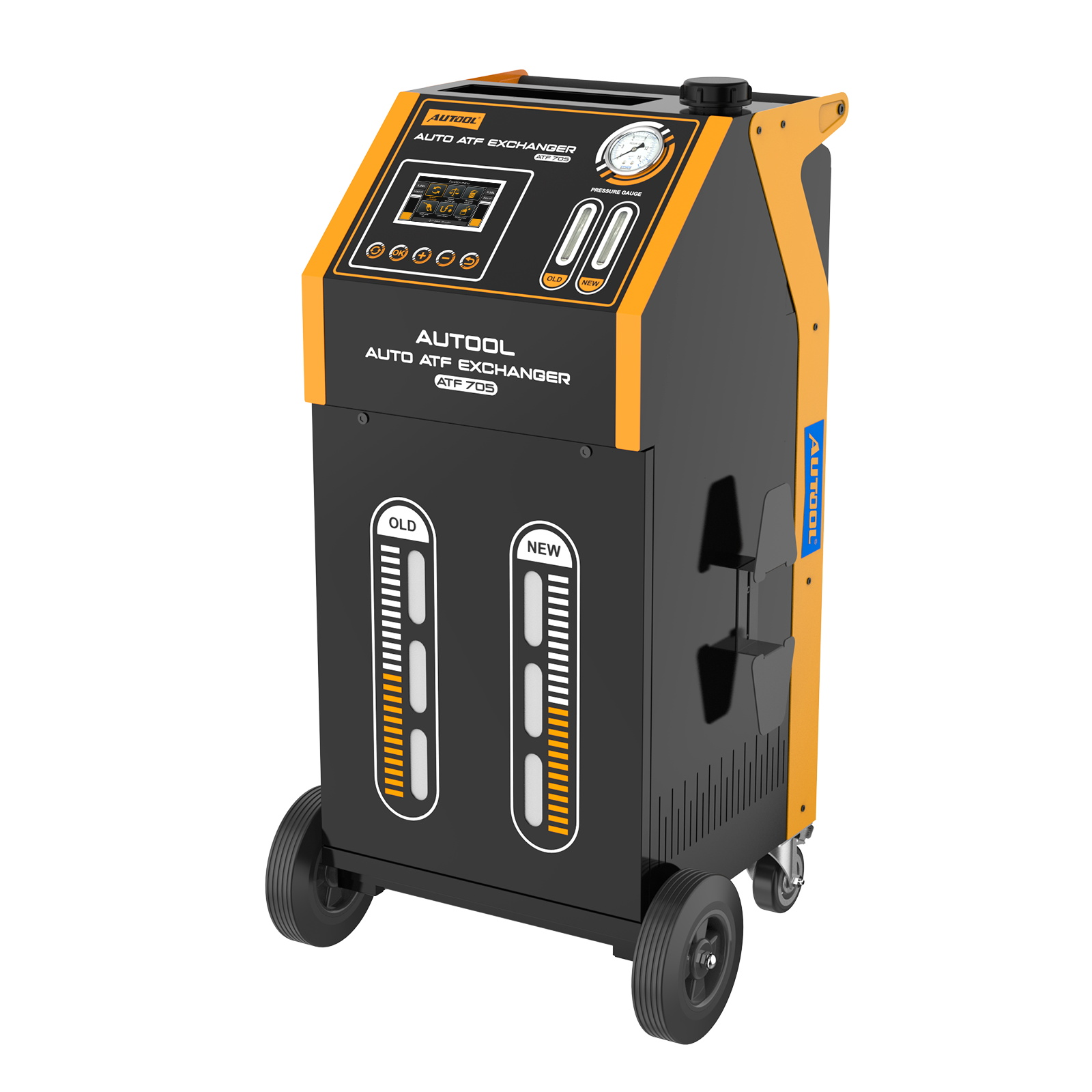

AUTOOL ATF705 automatic transmission fluid exchanger with screen and oil sight windows Click to enlarge
How To Choose

How To Choose

Choose ATF702, ATF705, ATF802, ATF805, or related ATF service tools based on automation level, oil pump configuration, screen, printing, adapter coverage, and inspection needs.

Need Basic Semi-Auto Operation?

Choose ATF702 if you need a mechanical-control ATF exchanger with DC12V power, single oil pump, 20L oil tank, 2.5m oil exchange hose, dual mechanical pressure gauges, oil exchange window, and liquid level window.

Need Automatic Operation?

Choose ATF705 if you want electronic control, operation guide, 5-inch IPS screen, automatic inlet / outlet recognition, automatic equal-volume exchange, automatic refilling, and automatic used oil recovery.

Need Dual Oil Pump Workflow?

Choose ATF802 or ATF805 if dual oil pump operation, more automatic tank functions, and advanced exchange workflow are required.

Need Printing And Oil Temperature Display?

Choose ATF805 if you need data printing, electronic pressure display, oil temperature display, smart cleaning exchange, and a larger 7-inch IPS screen.

Need Broader Adapter Coverage?

Use the 86-piece transmission fluid service adapter and connector kit when wider vehicle transmission connector coverage is required for European, American, Japanese, and other automatic transmissions.

Need To Check ATF Condition?

Use AS505 Transmission Fluid Tester as a related inspection tool when you need transmission fluid condition, transmittance, or oil temperature checking before or after service.

Product Comparison

Product Comparison

Use the updated comparison chart to review ATF702, ATF705, ATF802, and ATF805 by operation method, power supply, screen, oil pump, pressure gauge, automatic workflow, smart cleaning, printing, and language support.

AUTOOL ATF702 ATF705 ATF802 ATF805 transmission fluid exchanger comparison chart Click to enlarge

ATF702 Focus

Mechanical control, DC12V power, single oil pump, 20L tank, 2.5m oil exchange hose, dual mechanical pressure gauges, oil exchange window, liquid level window, and manual workflow.

ATF705 Focus

Electronic control, 110V/220V power, operation guide, 5-inch IPS screen, automatic oil inlet / outlet recognition, real-time oil tank level, buzzer alert, pipeline self-flushing, and automatic equal-volume exchange.

ATF802 Focus

Electronic control, dual oil pump, 5-inch IPS screen, 20L tank, two mechanical pressure gauges, filter replacement reminder, automatic oil exchange workflow, and automatic tank emptying / refilling functions.

ATF805 Focus

Higher-end model with 7-inch IPS screen, electronic pressure gauge, oil temperature display, data printing, oil filter replacement reminder, smart exchange, smart cleaning exchange, automatic workflow, and multi-language settings.

Specifications

Specifications

This compact table keeps the key model details from the original comparison content while avoiding a long desktop-only layout.

Core Specifications
ModelATF702ATF705ATF802ATF805
Operation MethodMechanical ControlElectronic ControlElectronic ControlElectronic Control
Operation GuideNoYesYesYes
Power SupplyDC12V110V / 220V110V / 220V110V / 220V
Maximum Power<150W<150W<150W<150W
Noise<70dB<70dB<70dB<70dB
ScreenNo screen5-inch IPS Screen5-inch IPS Screen7-inch IPS Screen
Oil PumpSingle Oil PumpSingle Oil PumpDual Oil PumpDual Oil Pump
Oil Tank20L20L20L20L
Oil Exchange Hose2.5m2.5m2.5m2.5m
Oil Drain HoseNo1.5m1.5m1.5m
Pressure Gauge2 Mechanical1 Mechanical2 MechanicalElectronic
Automatic Functions And Display
Oil Temperature DisplayNoNoNoYes
Data PrintingNoNoNoYes
Smart Cleaning ExchangeNoNoNoYes
Automatic Inlet / Outlet RecognitionNoYesYesYes
Real-Time Oil Tank LevelNoYesYesYes
Beep NotificationNoYesYesYes
Oil Exchange WindowYesYesYesYes
Liquid Level WindowYesYesYesYes
Oil Exchange Window BacklightNoNoYesYes
Pipeline Self-FlushingNoYesYesYes
Workflow
Circulating FlushingManualManualManualManual
Equal-Volume ExchangeManualAutomaticAutomaticAutomatic
New Oil RefillingManualAutomaticAutomaticAutomatic
Used Oil RecoveryManualAutomaticAutomaticAutomatic
New Oil Tank EmptyingManualManualAutomaticAutomatic
Old Oil Tank EmptyingManualManualAutomaticAutomatic
New Oil Tank Electric RefillingManualManualAutomaticAutomatic
LanguagesNo language settingChinese, English, Spanish, French, German, Russian, Portuguese, Vietnamese, MalaysianChinese, English, Spanish, French, German, Russian, Portuguese, Vietnamese, MalaysianChinese, English, Spanish, French, German, Russian, Portuguese, Vietnamese, Malaysian
Core Specifications
Operation MethodATF702: Mechanical Control | ATF705/802/805: Electronic Control
Operation GuideATF702: No | ATF705/802/805: Yes
Power SupplyATF702: DC12V | ATF705/802/805: 110V/220V
Maximum PowerAll models: <150W
NoiseAll models: <70dB
ScreenATF702: No screen | ATF705/802: 5-inch IPS | ATF805: 7-inch IPS
Oil PumpATF702/705: Single | ATF802/805: Dual
Oil TankAll models: 20L
Oil Exchange HoseAll models: 2.5m
Oil Drain HoseATF702: No | ATF705/802/805: 1.5m
Pressure GaugeATF702: 2 Mechanical | ATF705: 1 Mechanical | ATF802: 2 Mechanical | ATF805: Electronic
Automatic Functions And Display
Oil Temperature DisplayATF805 only
Data PrintingATF805 only
Smart Cleaning ExchangeATF805 only
Auto Inlet/Outlet RecognitionATF705/802/805
Real-Time Oil Tank LevelATF705/802/805
Beep NotificationATF705/802/805
Oil Exchange WindowAll models
Liquid Level WindowAll models
Oil Exchange Window BacklightATF802/805
Pipeline Self-FlushingATF705/802/805
Workflow And Languages
Circulating FlushingAll models: Manual
Equal-Volume ExchangeATF702: Manual | ATF705/802/805: Automatic
New Oil RefillingATF702: Manual | ATF705/802/805: Automatic
Used Oil RecoveryATF702: Manual | ATF705/802/805: Automatic
New Oil Tank EmptyingATF702/705: Manual | ATF802/805: Automatic
Old Oil Tank EmptyingATF702/705: Manual | ATF802/805: Automatic
New Oil Tank Electric RefillingATF702/705: Manual | ATF802/805: Automatic
LanguagesATF702: No language setting | ATF705/802/805: Chinese, English, Spanish, French, German, Russian, Portuguese, Vietnamese, Malaysian
Key Features

Key Features

ATF705 is the recommended choice when users want more automation, oil flow recognition, equal-volume exchange, and screen-guided operation.

Automatic Oil Inlet / Outlet Recognition

The system automatically identifies oil flow direction without manually distinguishing inlet and outlet pipes.

Automatic Used / New Fluid Exchange

The system automatically completes used and new transmission fluid exchange, reducing manual operation.

High-Precision Equal-Volume Exchange

The system automatically balances inlet and outlet flow to achieve high-precision, equal-volume replacement.

Automatic Transmission Cyclic Cleaning

Cyclic cleaning helps remove sludge and improves oil-change thoroughness.

Visual Oil And Data Display

New and old oil sight windows help users observe fluid status clearly during service.

AUTOOL ATF705 automatic ATF exchanger feature poster Click to enlarge
Key Features

Key Features

The ATF series focuses on faster oil exchange, more thorough cyclic cleaning, adjustable pressure, easy pipeline connection, broad vehicle coverage, and workshop mobility.

Quick ATF Change

Transmission cleaning and fluid exchange can be completed in about 20 minutes under proper operating conditions.

Cycle Cleaning Function

Independent cycle cleaning helps clean automatic transmissions more thoroughly before fluid replacement.

Adjustable Electric Pressure

Pressure and flow can be adjusted according to different vehicle model requirements for easier operation.

No Disassembly Required

Quick-connect fittings connect to transmission pipelines without unnecessary disassembly.

Wide Vehicle Compatibility

Specialized connectors support automatic transmissions produced by European, American, and Japanese manufacturers.

Portable Mobile Design

Swivel casters make the machine easier to move around the workshop, saving time and effort during use.

How It Works

How It Works

The AUTOOL transmission fluid changer connects to transmission fluid lines through dedicated adapters. During operation, the intelligent control system monitors fluid flow and replacement ratio in real time. Old ATF is extracted while fresh ATF is injected in equal quantity, helping achieve a cleaner and more uniform exchange through the transmission, torque converter, and cooler.

Connect To Fluid Lines

Dedicated adapters connect the machine to automatic transmission fluid lines without full disassembly.

Monitor Flow Direction

Selected models identify fluid inlet and outlet direction and monitor flow during exchange.

Equal-Volume Replacement

Old fluid is removed while new fluid is injected in equal quantity to reduce incomplete manual change problems.

Applications

Applications

Use the ATF series to improve automatic transmission fluid service quality across the transmission, torque converter, cooler, and internal circulation path.

Automatic Transmission Fluid Exchange

Replace old ATF with fresh fluid more thoroughly than manual draining.

Torque Converter Cleaning

Helps circulate fluid through the torque converter during transmission service.

Transmission Cooler Cleaning

Supports cleaning of the cooler circuit during fluid exchange and circulation service.

Sludge And Metal Debris Removal

Helps remove metal debris and sludge from inside the transmission without full disassembly.

Before You Order And Use

Before You Order And Use

Transmission fluid exchange requires the correct adapter, correct ATF type, safe workshop procedure, leak checks, and model-appropriate workflow settings.

Operation And Safety Notes

  • For optimal cleaning results, set the cleaning duration to 20 minutes or longer.
  • During the cleaning cycle, the engine should remain running.
  • Shift through different gears as needed during the process, holding each gear for about one minute.
  • When operating in high gear, press the accelerator to reach 60 km/h or higher only under safe workshop conditions and according to vehicle service procedures.
  • Use the correct transmission fluid type required by the vehicle.
  • Use the correct adapter before connecting to the transmission fluid lines.
  • Check old / new oil tank levels before operation.
  • Check hoses and connectors for leaks before starting the exchange.
  • ATF702 is semi-auto / mechanical-control focused.
  • ATF705 and above provide more automatic workflow support, depending on model.
  • ATF805 is the better choice if data printing, oil temperature display, and smart cleaning exchange are required.
Related Products

Related Products

Compare core ATF service products with the shared global product card style and mobile slider behavior.

Questions And Answers

These answers cover ATF702 / ATF705 differences, automatic oil direction recognition, data printing, oil temperature display, dual oil pumps, tank capacity, exchange time, adapter use, and AS505 transmission fluid testing.

Related Guides

Related Guides

Use these related articles to understand ATF inspection, service timing, and the difference between transmission fluid flush and change.

Warranty And Contact

Warranty And Contact

For ATF702 / ATF705 / ATF802 / ATF805 model selection, adapter compatibility, automatic oil inlet / outlet recognition questions, equal-volume exchange setup, tank / hose / connector troubleshooting, ATF fluid type confirmation, AS505 transmission fluid tester support, or warranty questions, contact AUTOOL Store directly.

Pre-Sales And Product Support

Use support if you need help choosing the right ATF exchanger, confirming adapters, selecting ATF service tools, checking oil direction recognition requirements, or verifying whether ATF805 printing / temperature / smart cleaning functions are necessary.

  • ATF702 / ATF705 / ATF802 / ATF805 model selection
  • Adapter compatibility confirmation
  • Automatic oil inlet / outlet recognition support
  • Equal-volume exchange setup support
  • Oil tank, hose, and connector troubleshooting
  • ATF fluid type confirmation
  • AS505 transmission fluid tester support
  • 3-year warranty support for eligible non-human damage cases
