AUTOOL PT502 數位汽車真空壓力表
US$30.00
主要特色
- Automotive Vacuum Paths
- 101–0 kPa 範圍
- 溫度補償
- Direct 12 V Power
- Automotive Vacuum Paths: Observe intake, crankcase, EGR/exhaust-control, turbo vacuum, and ventilation-system pressure patterns.
- -101–0 kPa 範圍： Capture pressure changes across the -101 to 0 kPa working range with ±1% FS accuracy.
- 溫度補償： Automatically correct measurement deviation as ambient temperature changes from -10°C to 60°C.
- Direct 12 V Power: Connect to vehicle 12 V power for continuous workshop observation without an internal battery.
- 3 年保用期 主機保固 3 年，配件保固 1 年
- 90日返回 符合條件的退貨可在 90 天內進行
- 官方店鋪 正品 · 直接支持
AUTOOL PT502 · -101–0 kPa Vacuum Gauge
Watch Vacuum Patterns Under Controlled Conditions
Observe negative-pressure patterns on automotive vacuum paths with this automotive vacuum tester and compare readings under controlled operating conditions. PT502 covers -101 to 0 kPa with ±1% FS accuracy, adds temperature compensation for changing workshop conditions, and runs directly from 12 V vehicle power for continuous workshop observation.
- -101 To 0 kPa Vacuum Range
- Stated ±1% FS Accuracy
- -10°C To 60°C Compensation
- Direct 12 V Vehicle Power
- 1.5 m Main Cable
主要特色
Live Negative-Pressure and Temperature Readout

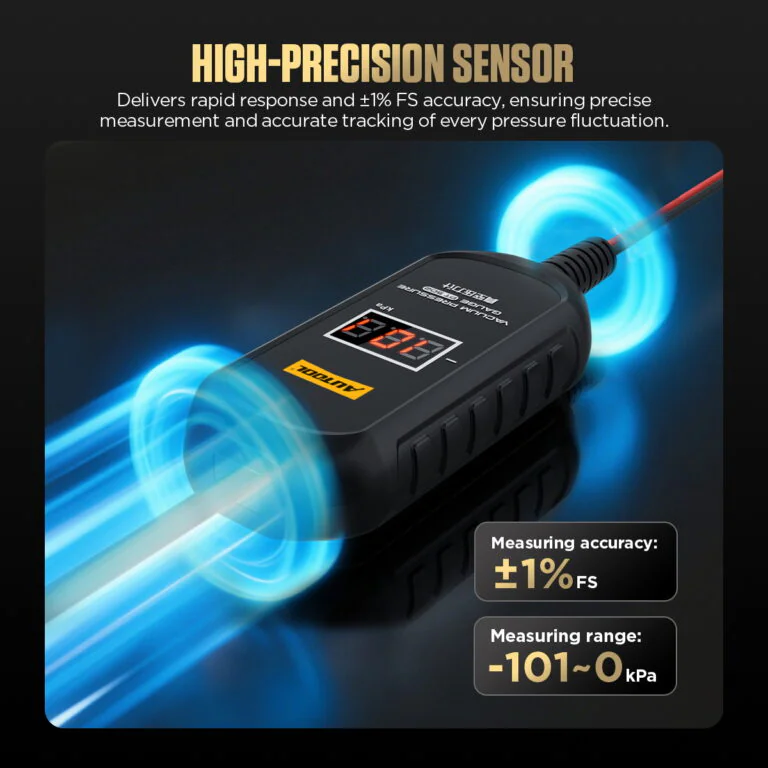

Stated ±1% FS Accuracy
The built-in high-precision pressure sensor quickly captures pressure changes and provides real-time measurement results across the -101kPa to 0kPa working range with ±1%FS accuracy.

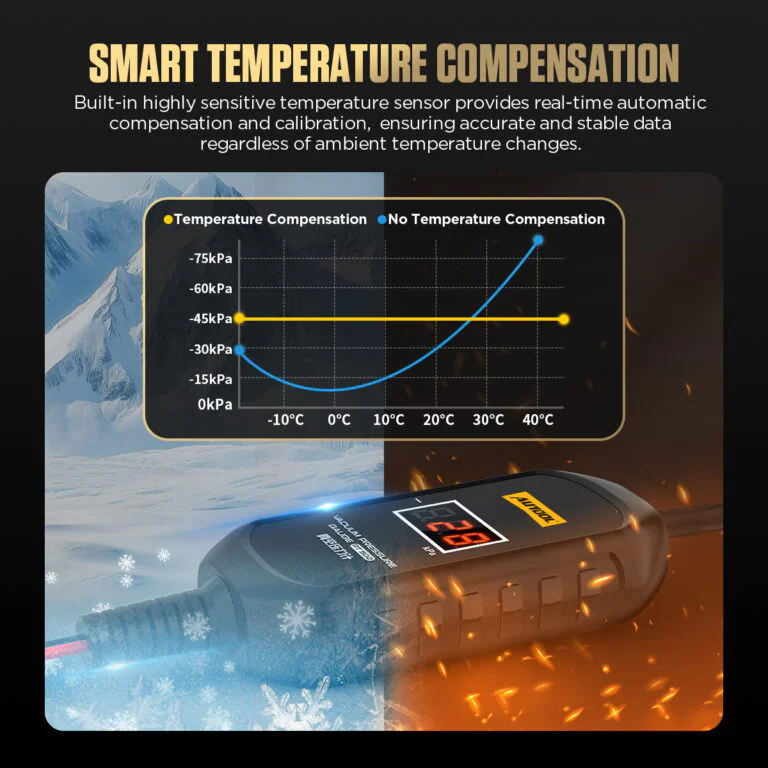

智慧溫度補償
The built-in temperature sensor monitors ambient temperature changes and automatically corrects measurement deviations, improving stability in -10°C to 60°C environments.

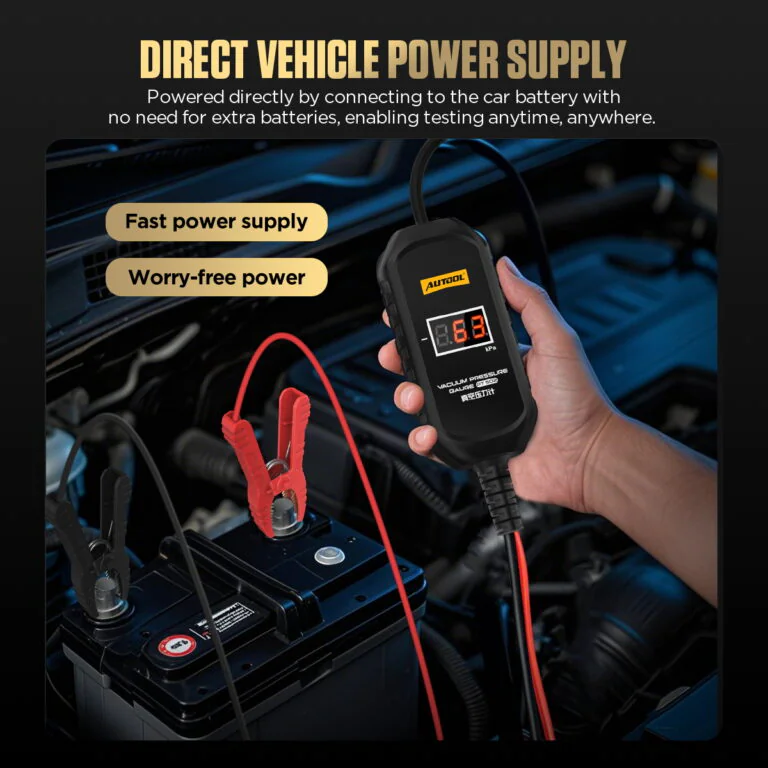

Direct Vehicle Power Supply
PT502 connects directly to the vehicle’s 12V power supply, providing worry-free power for continuous diagnosis without a separate internal battery.
反極性保護
If the positive and negative terminals are connected incorrectly, reverse polarity protection automatically cuts off current to help safeguard the gauge and vehicle battery.
Vacuum Fault Diagnosis
Follow the vacuum pattern at the selected connection to identify deviations that need further inspection, comparing readings under the same recorded engine conditions.
Main Cable Length
The main cable is 1.5 m long.
3年保固支持
主機：三年保固。標準配件：一年保固。保固政策。
服務工作流程
Connect to the Documented Vacuum Path
步驟進展1 / 5
01
Choose the Test Path
Confirm the system, medium, expected range and required operating condition before selecting an adapter.
02
安全連接
Depressurize when required and install the correctly rated fitting, hose and sensor without forcing threads.
03
設定條件
Start or operate the system only as the vehicle procedure directs and watch for leaks at every connection.
04
Capture the Reading
Record the value, unit and operating condition; repeat the observation when the procedure calls for a comparison or decay period.
05
Depressurize and Confirm
Return the system to a safe state, remove the adapter, restore the connection and confirm the next diagnostic step against the vehicle specification.
安全使用
Match the Path, Adapter and Operating State
Vacuum Measurement Range
Vacuum range: -101 to 0 kPa. Choose a positive-pressure gauge for boost testing.
Do Not Power On Under Pressure
Do not turn on the vacuum pressure gauge while pressure is already applied. Powering on under pressure may affect zeroing and measurement accuracy.
Connect 12V Power Correctly
Connect the clamps correctly to the vehicle DC 10V–14V power supply. Reverse polarity protection helps protect the device, but correct connection is still required.
Confirm The Target System
Before testing, confirm that the target system is a vacuum / negative pressure system and that PT502’s -101kPa to 0kPa range is suitable.
利用結果規劃下次檢查
Use PT502 within its -101 to 0 kPa vacuum range and compare the pattern with the vehicle specification and operating condition to guide follow-up inspection.

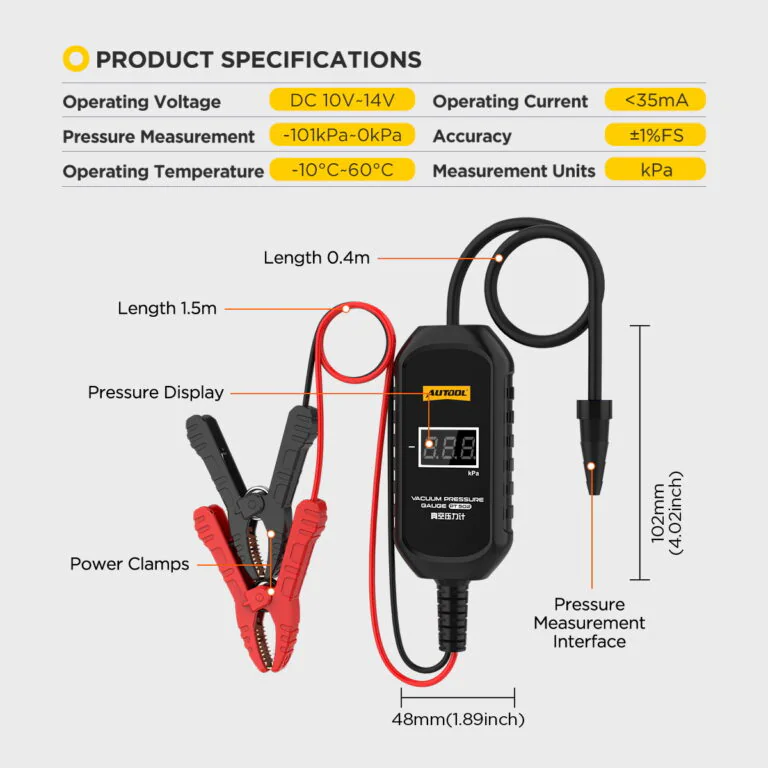

論文規範
Vacuum Range and Gauge Specifications
| 規格 | 價值 |
|---|---|
| Gauge-pressure range | -101 至 0 kPa |
| 聲明的準確性 | ±1％FS |
| 電源 | 12 V vehicle connection |
手冊和支持
尋找手冊和適配器指南
AUTOOL PT502 使用手冊
開啟PDF手冊 AUTOOL PT502 vacuum diagnosis, vehicle-power connection, temperature compensation, pressure readings, reverse-polarity protection, safe hose setup and troubleshooting support.

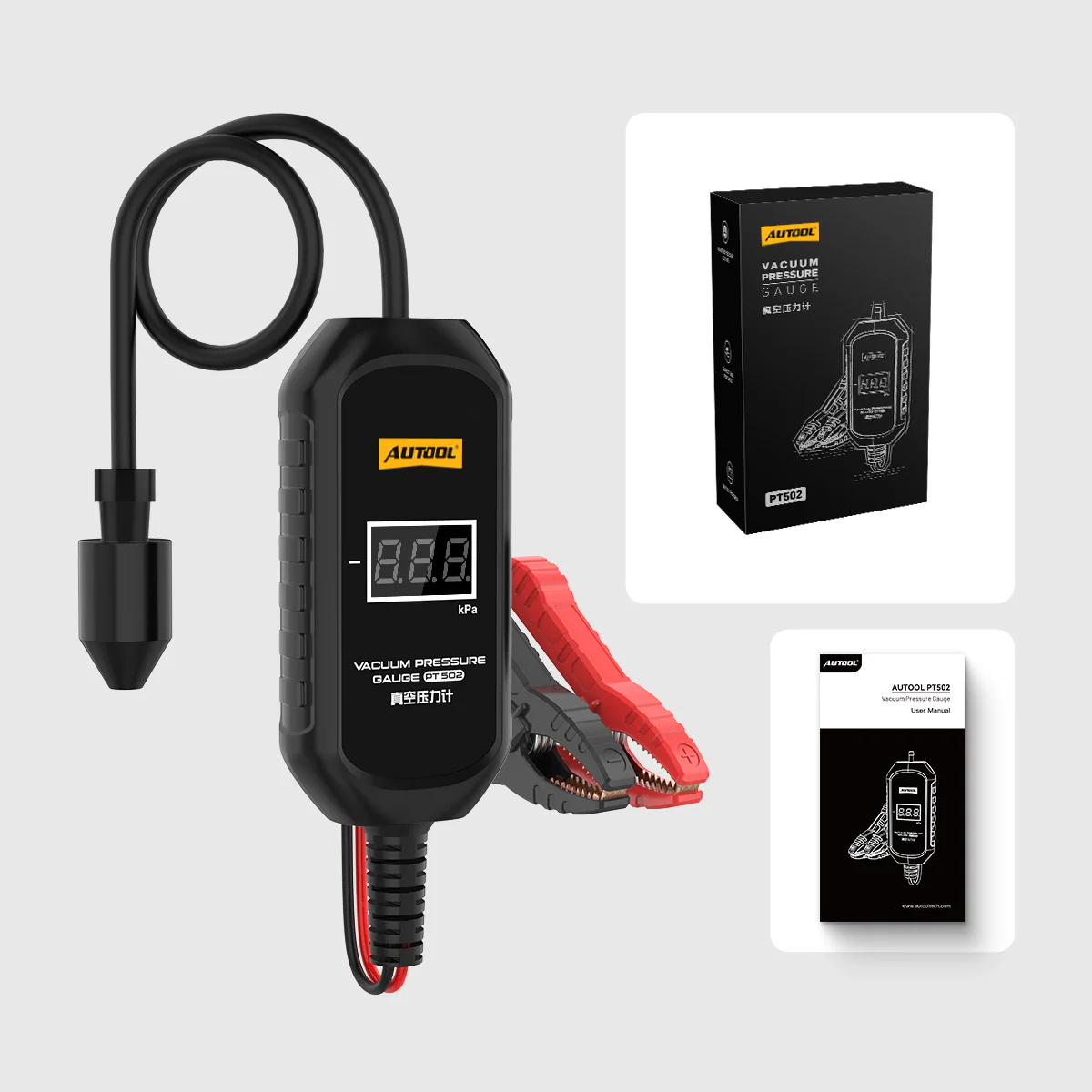

包裝內容
看看盒子裡裝了什麼
- 主機AUTOOL PT502 Vacuum Pressure Gauge
- 項目Power Clamps Vehicle battery clamp power cable
- Pressure InterfaceVacuum pressure measurement probe / interface
- 包裝產品包裝盒
- 文档PT502 使用手冊
買家問題
壓力連結和閱讀問題
Can PT502 Measure Positive Pressure?
No. PT502 only supports negative pressure / vacuum pressure measurement. Do not use it for positive pressure testing.
PT502的測量範圍是多少？
PT502 measures vacuum pressure from -101kPa to 0kPa.
Why Should I Not Power On The Gauge Under Pressure?
Powering on while pressure is already applied may affect zeroing and cause inaccurate measurement results. Power on the gauge before applying vacuum pressure.
What Systems Can PT502 Test?
PT502 can be used for vacuum-related diagnosis in the intake manifold, crankcase, EGR / exhaust valve, exhaust pipe, gas pipeline, turbocharger vacuum line, and A/C ventilation system.
How Is PT502 Powered?
PT502 connects directly to the vehicle DC 10V–14V power supply using the battery clamps.
Does PT502 Have Reverse Polarity Protection?
Yes. PT502 has reverse polarity protection that cuts off current when the positive and negative terminals are connected incorrectly.
What Is The Accuracy Of PT502?
The measurement accuracy is ±1%FS across the working range.
Does PT502 Support Temperature Compensation?
Yes. PT502 has a built-in temperature sensor and smart temperature compensation to reduce measurement deviation caused by ambient temperature changes.
