AUTOOL SVB305 雙向鉸接式內視鏡
US$179.00
主要特色
- 5.5 mm Two-Way Probe
- Standalone Inspection Display
- 25–100 毫米可視範圍
- Six LEDs + One-Button Recording
- 5.5 mm Two-Way Probe: Reach narrow curved inspection points with a 5.5 mm probe and 210° two-way steering.
- Standalone Inspection Display: Inspect directly on the built-in screen without connecting a phone or separate mobile display.
- 可視範圍：25–100 毫米 Match the 25–100 mm viewing range to the target distance for a focused image.
- Six LEDs + One-Button Recording: Use six LEDs at three brightness levels and capture JPG photos or AVI videos from the handle.
- 32 GB / 3 Hours: Built-in 32 GB storage and a 2000 mAh battery support recording and up to three hours of use.
- 3 年保用期 主機保固 3 年，配件保固 1 年
- 90日返回 符合條件的退貨可在 90 天內進行
- 官方店鋪 正品 · 直接支持

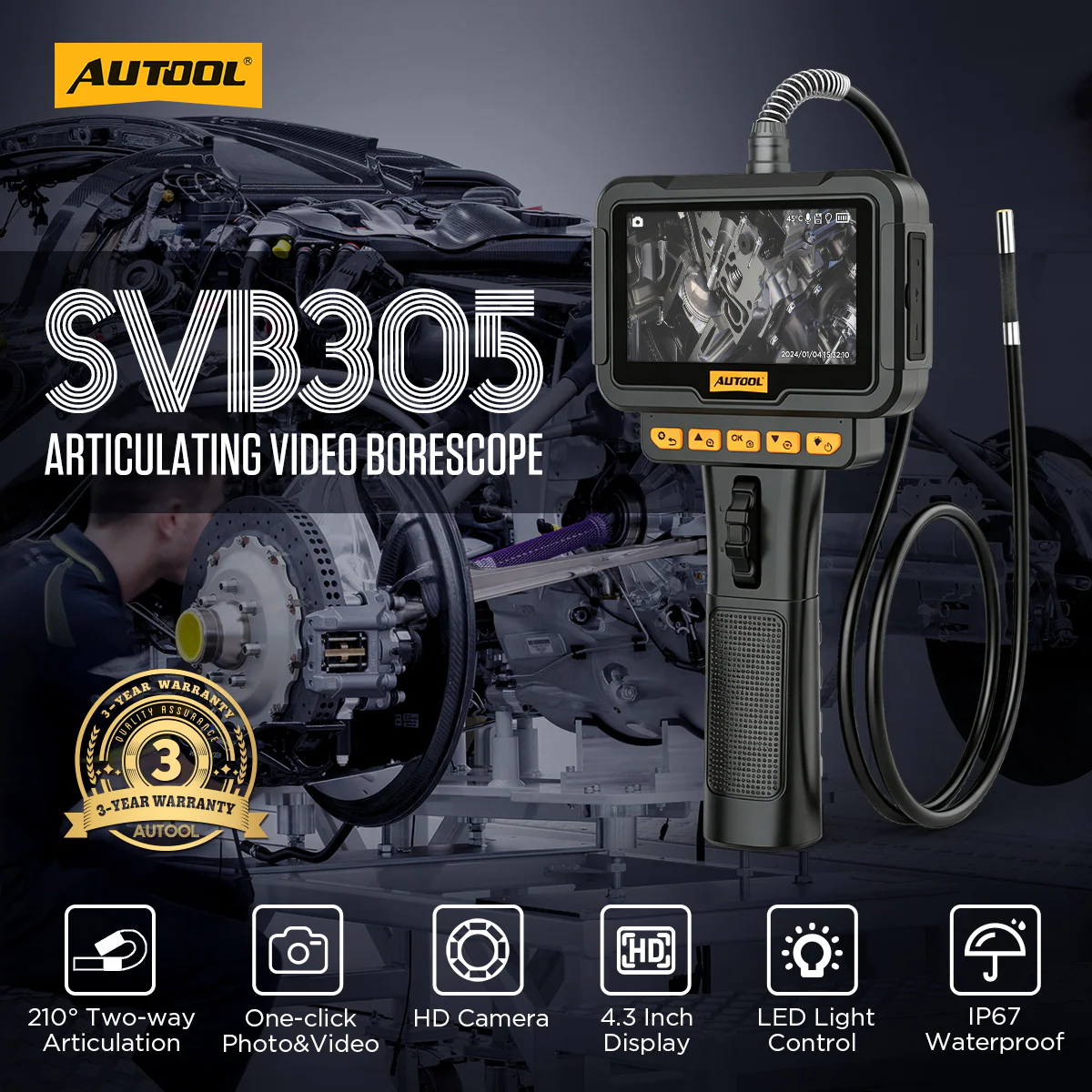

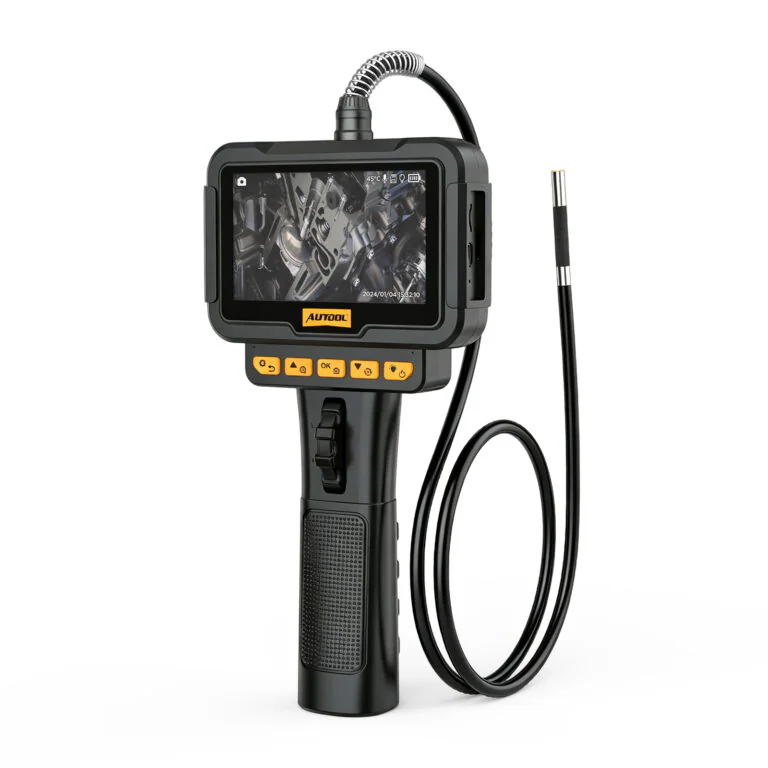

AUTOOL SVB305 · Two-Way Articulating Borescope
Inspect Around Bends with a Self-Contained Screen
Use this automotive borescope to inspect curved engine, pipe, and wiring spaces without relying on a phone. SVB305 combines a 5.5 mm two-way probe with a built-in display, while adjustable LEDs and one-button photo or video capture help document dark inspection points. Built-in 32 GB storage keeps records on the standalone tool for later review.
- 5.5 mm Two-Way Probe
- Built-In Standalone Display
- Adjustable Probe LEDs
- 32 GB Recording Storage
- One-Button Photo / Video
主要特色
Two-Way Steering with an Integrated Display

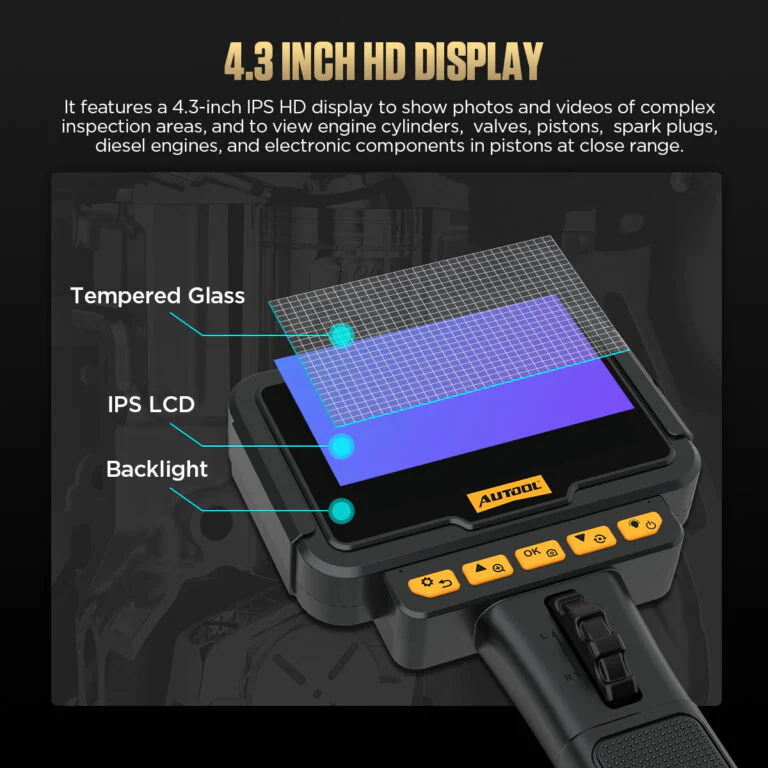

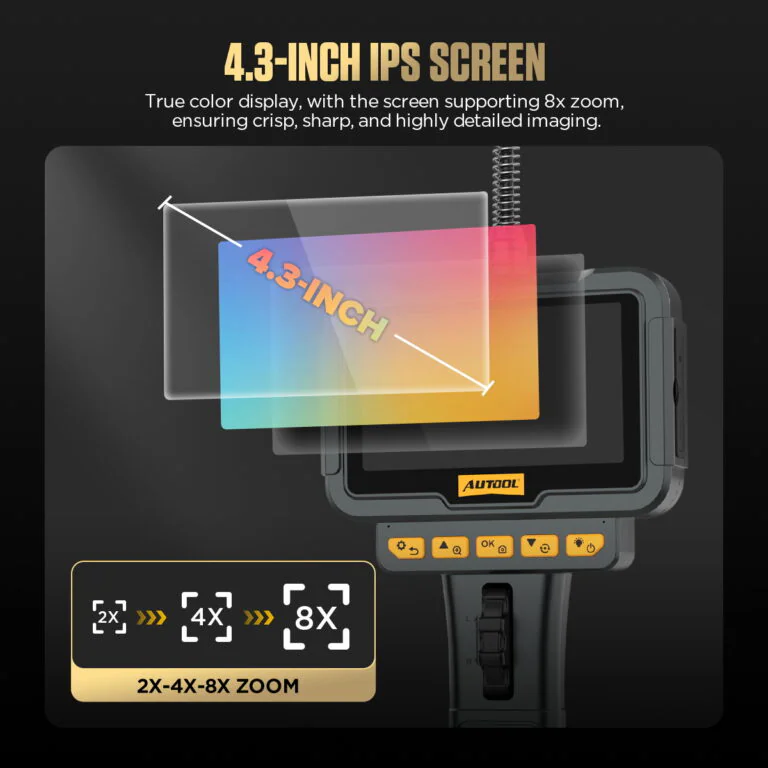

4.3英寸高清顯示屏
The built-in 4.3-inch display lets you inspect engine areas, pipes, components, and hidden spaces directly without connecting a phone.

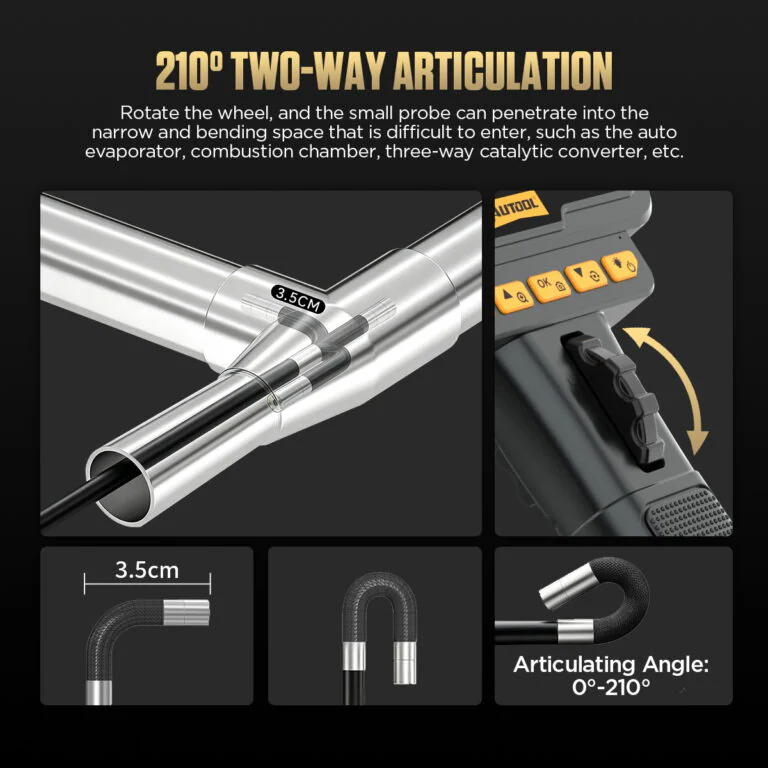

210° Two-Way Steering Lens
The articulating lens can rotate up to 210° in two directions, helping the probe reach curved, narrow, and hard-to-see inspection points.

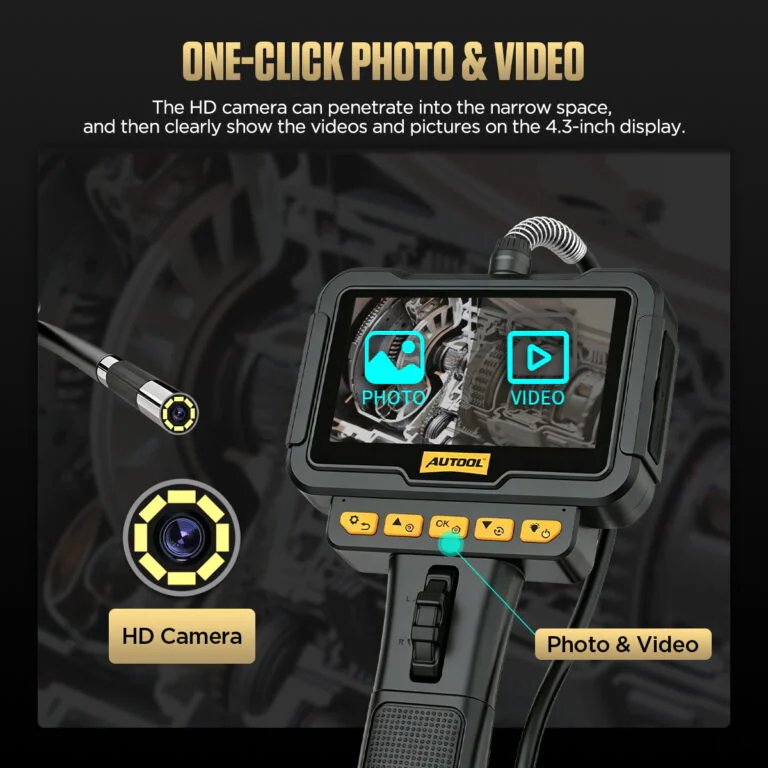

One-Click Photo And Video
Use the handle photo / video button to capture inspection evidence. The device supports JPG image recording and AVI video recording.
可調式 LED 照明
Six LED lights support three brightness levels, making it easier to inspect dark engine cavities, pipes, and enclosed spaces.

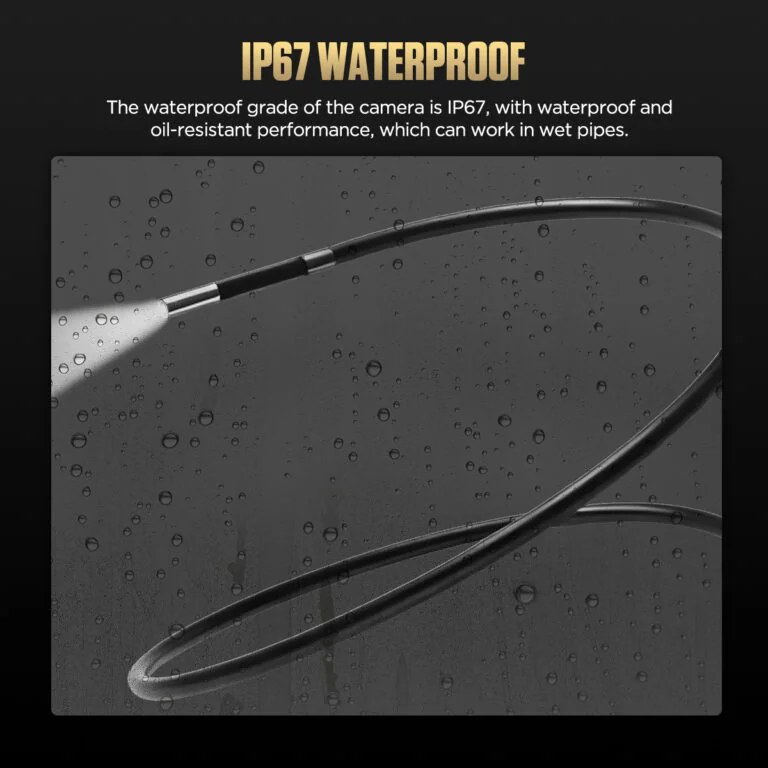

IP67防水探頭
The probe is rated IP67 with waterproof and oil-resistant performance, suitable for wet pipes and oily vehicle inspection environments. The IP67-rated probe and flexible hose support inspection within the model’s permitted conditions. Keep the screen and main unit dry; confirm allowable liquids separately before use.

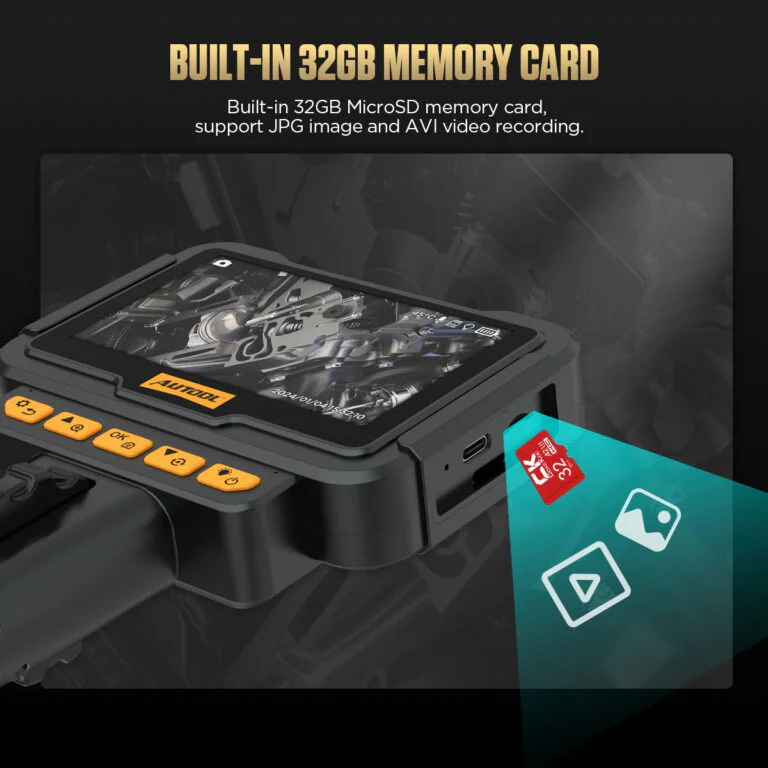

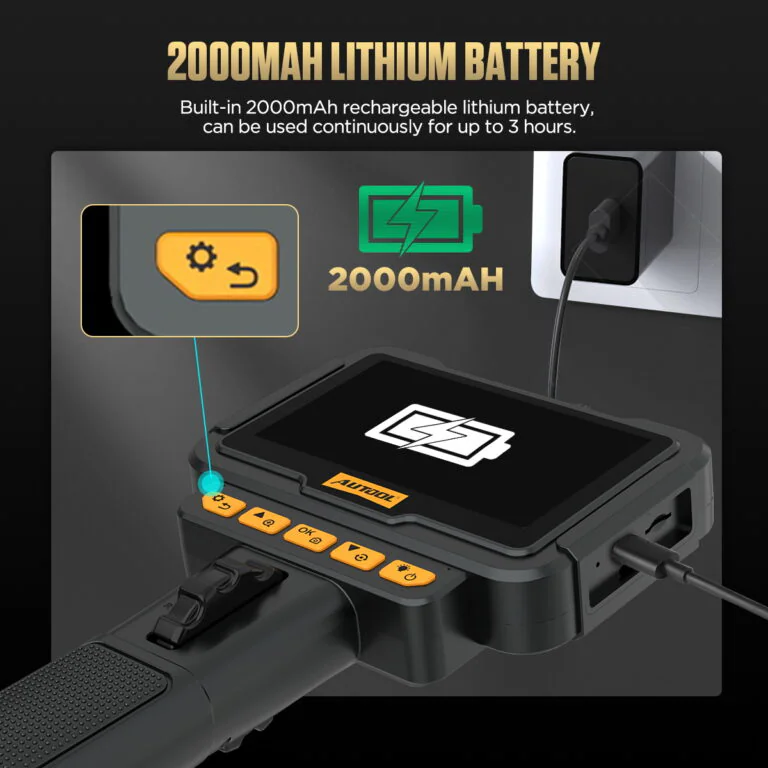

32GB Storage And 2000mAh Battery
SVB305 includes built-in 32GB storage and a 2000mAh rechargeable lithium battery that can work up to 3 hours depending on brightness and recording use.
一鍵錄音
Capture inspection photos and videos from the handle button for later review and repair documentation.

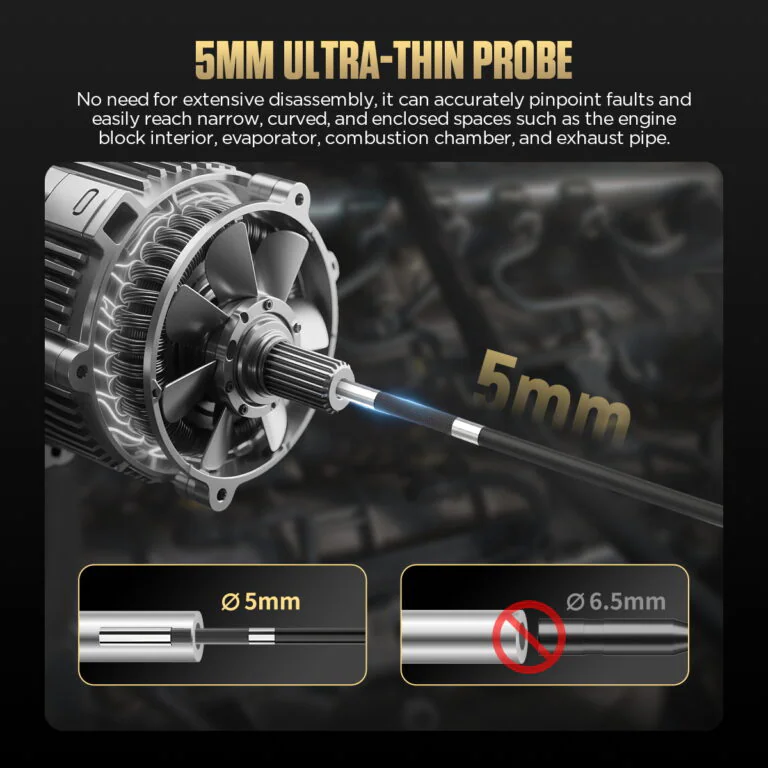

Slim Articulating Probe
A 5.5 mm probe with 210° two-way steering helps reach narrow, curved inspection points.
LED照明
The front probe uses a miniature camera and LED light source to illuminate the target inspection area in dark vehicle spaces.
圖像捕捉
The probe captures real-time images of engine wear, pipe blockage, hidden wiring, component surfaces, and other internal structures.
信號顯示
The image signal is transmitted through the probe cable and displayed on the built-in screen after decoding.
Articulating Access
The flexible probe and 210° steering help access curved and narrow structures for visual inspection without unnecessary disassembly.

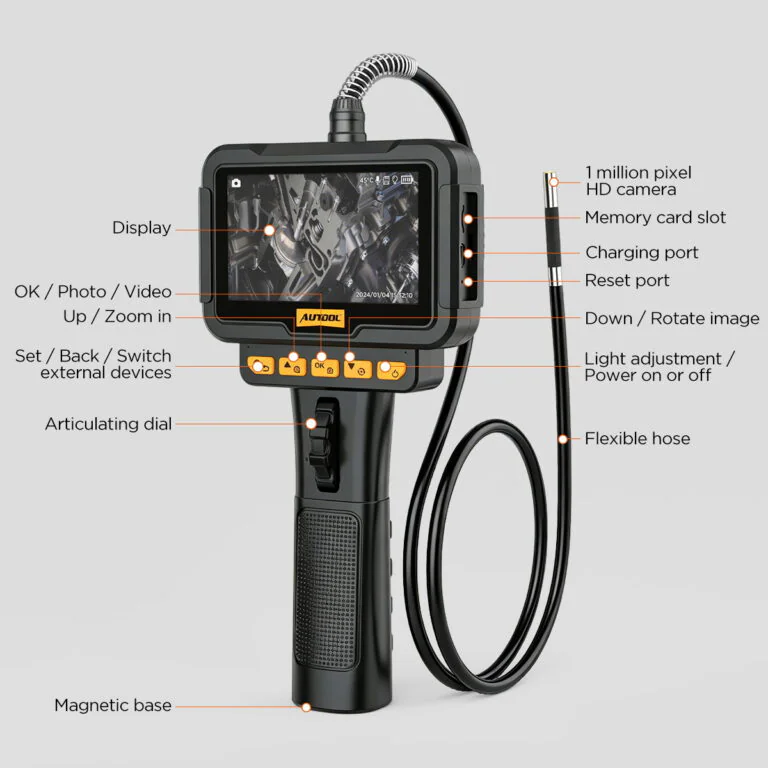

顯示區域
4.3-inch display with SD interface, M key, up key, settings key, down / toggle key, OK key, and charging port.
手柄控制
Power on / light-control button and photo / video button are placed on the handle for quick operation.
Probe Control
The rotation wheel controls the articulating camera direction during inspection.
探頭和電纜
HD camera probe with flexible cable for narrow-space inspection.
車身尺寸
Approx. 135mm / 5.2 inch screen width and 255mm / 10.0 inch body height shown in the interface image.
可視範圍
將目標置於 25–100 毫米的可視範圍內，以獲得清晰的影像。
記錄和操作配置
The 5.5 mm probe, 25–100 mm viewing range and 2000 mAh battery help match the tool to the access path and inspection duration. JPG photos and AVI videos can be retained for later review, and the steering wheel, handle capture control and charging port keep everyday operation together.
3年保固支持
主機：三年保固。標準配件：一年保固。保固政策。
如何使用
計劃輸入、插入、轉向、記錄、居中和撤回
步驟進展1 / 6
01
定義檢查目標
確定車輛、故障症狀、入口點和需要檢查的表面。確認SVB305探頭和觀察範圍是否符合要求。
02
檢查設備
檢查筆尖和線纜，為設備充電，檢查轉向和照明，並確認照片或影片可以保存。
Press and hold the power button, then open or remove the camera protective cover before inspection.
03
準備車輛
依照車輛維修程序隔離運動部件和帶電部件，冷卻檢查區域，並準備一個乾淨的檢修點。
04
引導與啟迪
觀察即時影像，輕輕插入。使用轉向控制和照明裝置將目標調整到指定的清晰可視範圍內；切勿強行彎曲。
05
記錄調查結果
從合適的角度拍攝目標，並識別組件、入射點和觀察方向。將不確定的觀察結果與已確認的結論區分開來。
06
提取和儲存
按照說明將探針尖端放回原位，輕輕拔出並檢查探針是否完好無損。依照車型手冊清潔、乾燥並存放探針，然後查閱車輛診斷記錄文件。
安全性和相容性
Confirm Probe Fit, Temperature, Liquid, and Withdrawal Path
匹配訪問路徑
將整個探針尖端和彎曲路徑與最窄的開口和可用的轉彎空間相匹配。
檢查一輛冷卻、隔離的車輛
防止引擎意外運轉和電氣設備意外啟動。插入探頭前，請等待零件冷卻至SVB305手冊中規定的極限溫度；過熱警報是一種保護措施，並非工作溫度額定值。
保護探頭和主機
IP67 防護等級僅適用於指定的探頭，不適用於濾網或手把。請另行確認允許使用的液體和接觸條件；請勿根據 IP 防護等級推斷其與油、燃料或溶劑的兼容性。
不費力撤退
使用轉向控制裝置將鏟鬥尖端調整到能夠清理入口通道的位置。若感到阻力，請停止操作；請遵循車型手冊和車輛操作規程，切勿用力拉動。
保留檢查證據
記錄檢修點、零件、觀察方向以及任何無法檢查的區域。在做出維修決定前，請遵循車輛維修程序並進行相關測試。
檢查結果
Read Borescope Photos and Videos by Surface, Direction, and Location
記錄可見狀況
記錄位置和可見的沉積物、痕跡、液體或異物，然後將影像與適用的服務資訊進行比較。
重新檢查對焦、光線和方向
如果影像不清晰，請調整目標距離和亮度，按照指示清潔鏡頭，並從另一個角度觀察。反射或陰影可能看起來像缺陷。
儲存檢查視圖
保存包含組件和觀看方向的原始圖像或視頻，並檢查覆蓋範圍不完整的其他角度。
選擇下一個測試
請使用原廠參考圖片並依照對應的診斷程序進行。如果圖片無法得出結論，可能仍需進行壓縮測試、洩漏測試或其他測量，或進行拆卸檢查。
比較型號
Compare Display and Steering Options
模型指南
選擇一個或多個型號。預設選擇SVB305。
已選擇 1 個模型
未選擇任何型號。請選擇一個型號進行比較。

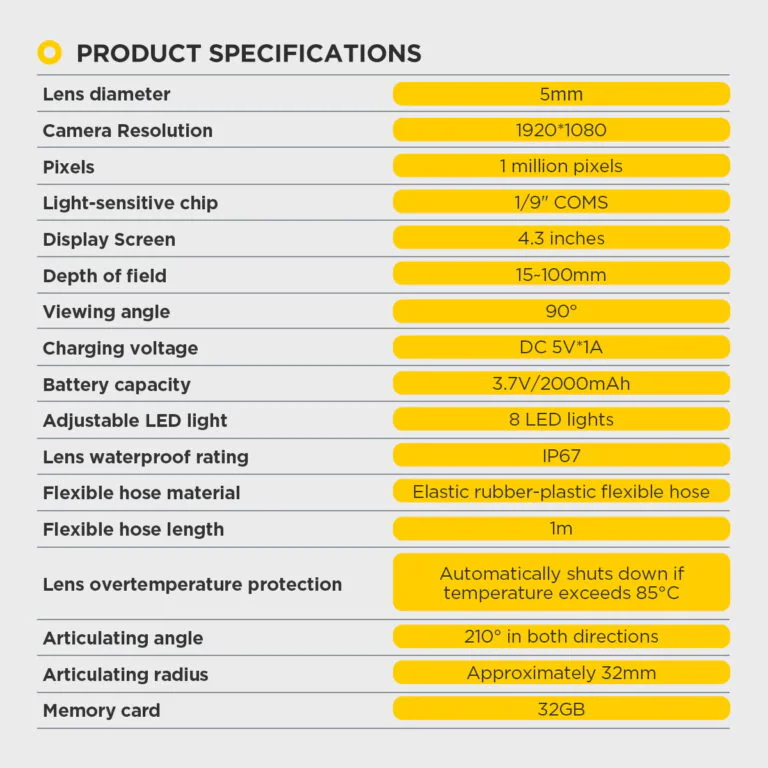

| 產品名稱 | SVB208 | SVB302 | SVB303 | SVB305 | SVB308 | SVB403 | SVB405 | SVB408 | THINKCAR ES401 |
|---|---|---|---|---|---|---|---|---|---|
| 成像、顯示和工作流程 | |||||||||
| 鏡頭數量 | 1 | 1 | 1 | 1 | 1 | 2 | 1 | 1 | 2 |
| 解析度 | 1920×1080 | 1280×720 | 1280×720 | 1280×720 | 1920×1080 | 前置鏡頭 1280×720 側置鏡頭 1280×720 | 1920×1080 | 1280×720 | 沒有說明 |
| 像素 | 1百萬 | 1百萬 | 1百萬 | 1百萬 | 1百萬 | 2百萬 | 2百萬 | 1百萬 | 沒有說明 |
| 顯示屏 | 4.3吋顯示屏 | 沒有內建顯示器；需要使用相容的手機或平板電腦。 | 沒有內建顯示器；需要使用相容的手機或平板電腦。 | 4.3吋顯示屏 | 4.3吋顯示屏 | 4.3吋顯示屏 | 4.5英寸IPS屏幕 | 4.5英寸IPS屏幕 | 5英寸IPS |
| 可視角度 | 90° | 70° | 90° | 70° | 90° | 70° | 80° | 70° | 70° |
| 景深 | 15-100mm | 30-100mm | 20-100mm | 25-100mm | 20-100mm | 前置鏡頭 25-100mm 側置鏡頭 15-60mm | 20-100mm | 25-100mm | 20-100mm |
| LED照明 | 六盞高強度燈 | 六盞高強度燈 | 六盞高強度燈 | 六盞高強度燈 | 六盞高強度燈 | 主視圖用6個LED燈，側視圖用1個LED燈 | 6個陶瓷LED燈 | 6個陶瓷LED燈 | 沒有說明 |
| 手動燈光調節 | 三個可調節級別 | 三個可調節級別 | 三個可調節級別 | 三個可調節級別 | 三個可調節級別 | 三個可調節級別 | 三個可調節級別 | 三個可調節級別 | 沒有說明 |
| 8×數碼變焦 | ✓ | × | × | × | × | ✓ | ✓ | ✓ | 沒有說明 |
| 查看工作流程 | 內建顯示器；無需手機。 | 相容的手機或平板電腦；請確認特定的 iOS、Android 或 HarmonyOS 裝置、數據線和軟體。 | 相容的手機或平板電腦；請確認特定的 iOS、Android 或 HarmonyOS 裝置、數據線和軟體。 | 內建顯示器；無需手機。 | 內建顯示器；無需手機。 | 內建顯示器；無需手機。 | 內建顯示器；無需手機。 | 內建顯示器；無需手機。 | 沒有說明 |
| 探針接入、形狀和耐用性 | |||||||||
| 轉向角度 | 最高點：210° | 最高點：210° | 四向360° | 最高點：210° | 四向360° | 最高點：210° | 四向360° | 四向360° | 最高點：210° |
| 鏡片直徑 | 6.25mm | 6.45mm | 6.2mm | 5.5mm | 6.2mm | 雙鏡頭 6.5mm | 6.45mm | 3.9mm | 沒有說明 |
| 高溫保護 | 自動警報，溫度高於 85°C | 自動警報，溫度高於 80°C | 自動警報，溫度高於 90°C | 自動警報，溫度高於 80°C | 自動警報，溫度高於 90°C | 自動警報，溫度高於 80°C | 自動警報，溫度高於 80°C | 自動警報，溫度高於 80°C | 沒有說明 |
| 工作溫度 | （建議相機工作環境溫度為-10℃~50℃。） | （建議相機工作環境溫度為-10℃~50℃。） | （建議相機工作環境溫度為-10℃~50℃。） | （建議相機工作環境溫度為-10℃~50℃。） | （建議相機工作環境溫度為-10℃~50℃。） | （建議相機工作環境溫度為-10℃~50℃。） | （建議相機工作環境溫度為-10℃~50℃。） | （建議相機工作環境溫度為-10℃~50℃。） | 沒有說明 |
| 彎曲半徑 | 32mm | 35mm | 35mm | 35mm | 35mm | 35mm | 47mm | 37mm | 35mm |
| 軟管長度 | 1m | 1m | 1m | 1m | 1m | 1m | 1m | 1m | 1m |
| 探針保護等級 | IP67 | IP67 | IP67 | IP67 | IP67 | IP67 | IP67 | IP67 | 沒有說明 |
| 磁性設計 | ✓ | × | ✓ | × | ✓ | × | × | × | 沒有說明 |
| 可拆式設計 | × | × | ✓ | × | ✓ | × | × | × | 沒有說明 |
| 電源、語言和存儲 | |||||||||
| 語言 | 14類型 | 7類型 | 10類型 | 8類型 | 10類型 | 8類型 | 8類型 | 8類型 | 沒有說明 |
| 電池/電源接口 | 2000mAh鋰電池 | USB 2.0介面；未列出電池容量。 | 2600mAh鋰電池 | 2000mAh鋰電池 | 2600mAh鋰電池 | 2000mAh鋰電池 | 2000mAh鋰電池 | 2000mAh鋰電池 | 沒有說明 |
| 板載存儲 | 32GB | 未列出板載儲存；文件透過連接設備的工作流程保存。 | 未列出板載儲存；文件透過連接設備的工作流程保存。 | 32GB | 32GB | 32GB | 32GB | 32GB | 8GB |
使用者手冊及下載
使用操作手冊進行操控和安全撤離

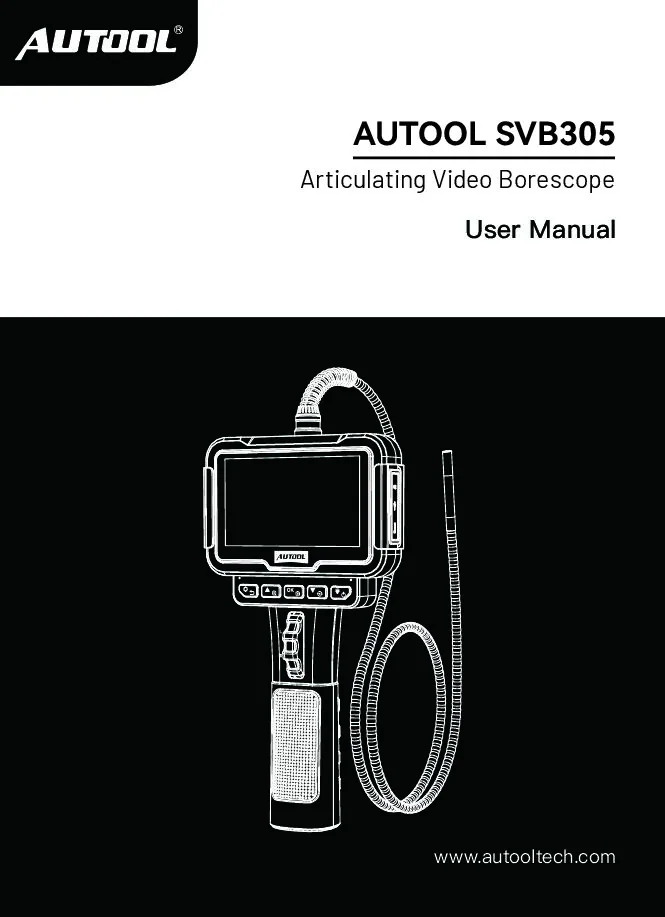

AUTOOL SVB305 使用手冊
開啟PDF手冊 AUTOOL SVB305 two-way probe steering, display controls, lighting, recording, storage, temperature protection and troubleshooting support.

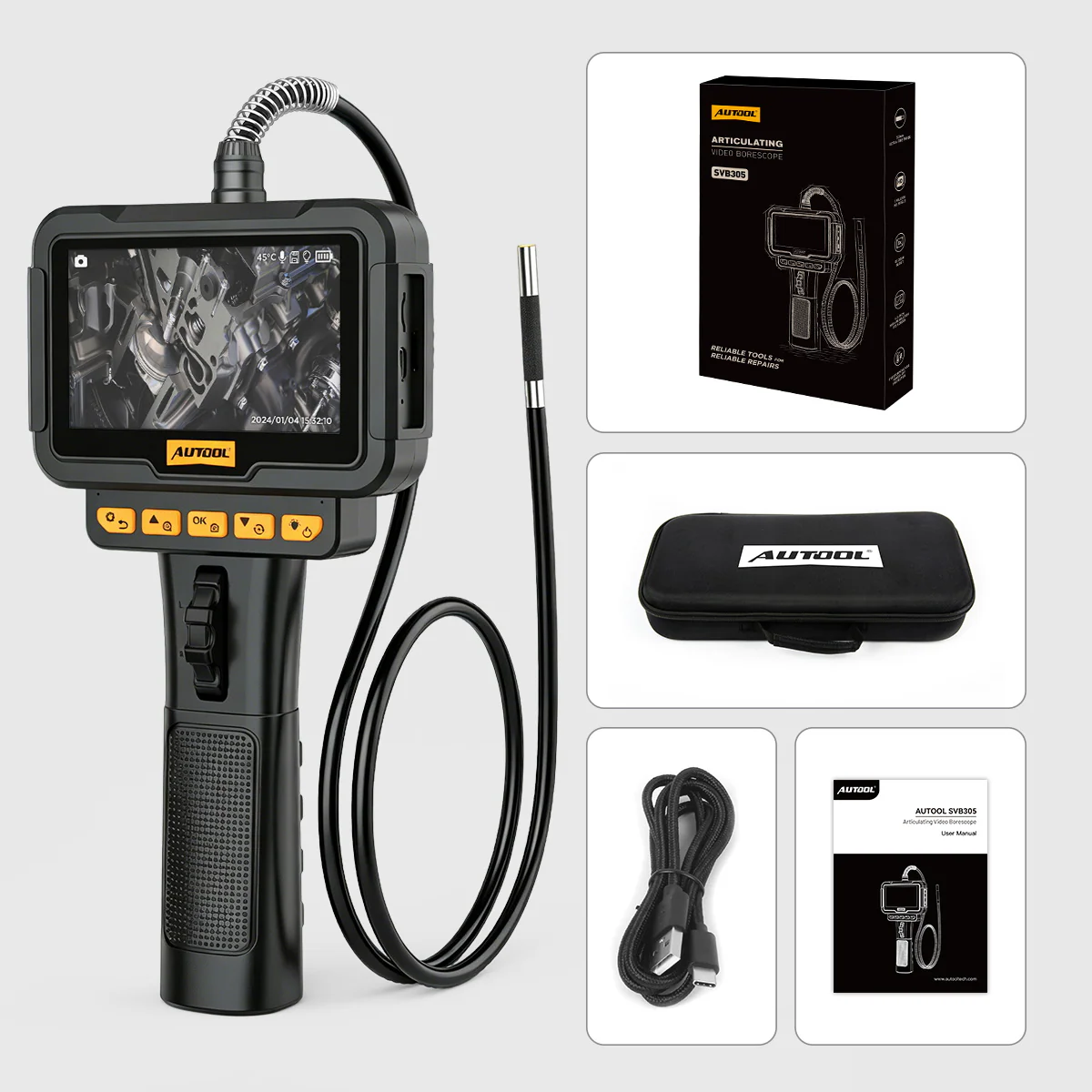

小包裝
產品包括
- 主機AUTOOL SVB305 內視鏡攝影機及其專用探頭。
- 已選套餐訂購前請確認所選版本是否包含隨附的線纜、記憶卡、外殼和文件。
常見問題
Screen, Probe, and Steering Questions
What Is The Screen Size Of AUTOOL SVB305?
SVB305 has a 4.3-inch built-in display. The original warm-tip text mentioned 5 inches, but the product image, interface image, and comparison chart show SVB305 as a 4.3-inch display model.
What Is The Lens Diameter And Resolution Of SVB305?
SVB305 uses a 5.5 mm ±0.2 mm camera diameter, 1280 × 720 resolution, and 1 million pixels.
Does SVB305 Support 360° Four-Way Articulation?
No. SVB305 supports maximum 210° two-way articulation. If you need four-way 360° steering, compare SVB303, SVB308, SVB405, or SVB408.
SVB305 和 SVB302 有什麼不同？
SVB305 has a built-in 4.3-inch display, 32GB storage, 2000mAh battery, and does not require a phone display. SVB302 has no built-in screen and is designed for phone / tablet display connection. The original note also states that SVB302 has three port cables and one USB cable, while SVB305 uses one USB cable.
SVB305 和 SVB308 有什麼不同？
SVB305 has 210° two-way articulation, a 5.5mm lens, 1280 × 720 resolution, 8 languages, 2000mAh battery, and 32GB storage. SVB308 has four-way 360° articulation, a 6.2mm lens, 1920 × 1080 resolution, 10 languages, a 2600mAh battery, magnetic design, and detachable screen / handle design.
How Do SVB403, SVB405, And SVB408 Differ?
- SVB403 uses 210° bidirectional articulation with two lenses: front lens and side lens.
- SVB405 and SVB408 use four-way 360° articulation with one lens.
- SVB405 has 1920 × 1080 / 2 million pixel imaging and a 4.5-inch IPS display.
- SVB408 has a 3.9mm ultra-thin lens diameter, 1280 × 720 / 1 million pixel imaging, a 4.5-inch IPS display, and a 37mm bending radius.
- SVB405 and SVB408 support 8× digital zoom, while SVB403 also supports 8× digital zoom according to the comparison chart.
SVB302 和 SVB303 有什麼不同？
SVB302 is a phone / tablet compatible model with maximum 210° steering, 6.45mm lens diameter, 30-100mm depth of field, and 7 languages. SVB303 is also phone / tablet compatible but adds four-way 360° steering, 6.2mm lens diameter, 20-100mm depth of field, 10 languages, 2600mAh lithium battery, magnetic design, and detachable design.
Can I Use SVB305 Right After Turning Off The Engine?
It is not recommended. Engine temperatures can reach 80°C to 100°C or more when the car has just stopped. Let the engine cool completely before use; in many cases, waiting about 1-2 hours is safer.
- Use the probe only after the vehicle and target area have cooled to the model’s permitted operating conditions. Use the camera only within the stated -10°C to 50°C operating environment; the 80°C protection value is an alarm or shutdown event rather than a continuous-use rating. Do not rely on a fixed waiting time; verify the actual condition and follow the vehicle and tool procedures.
What Temperature Should I Avoid When Using The Probe?
The published operating-environment range is -10°C to 80°C. For customer use, keep the hose, probe, and camera at or below 75°C, especially near a recently stopped engine.
- Use the probe only after the vehicle and target area have cooled to the model’s permitted operating conditions. Use the camera only within the stated -10°C to 50°C operating environment; the 80°C protection value is an alarm or shutdown event rather than a continuous-use rating. Do not rely on a fixed waiting time; verify the actual condition and follow the vehicle and tool procedures.
Does SVB305 Support Photo And Video Recording?
Yes. SVB305 supports one-click photo and video recording. It supports JPG images and AVI video files, with recording saved to the 32GB storage shown for this model/version.
Is The SVB305 Probe Waterproof?
The camera probe is IP67 rated with waterproof and oil-resistant performance, making it suitable for wet pipes and oily environments. Do not immerse or wash the display body as if the entire unit were waterproof.
- IP67 is stated for the camera probe, not the display, handle or connected device. Keep the main unit dry, and confirm the permitted liquid, contact time and cleaning method; IP67 alone does not establish oil, fuel, coolant or solvent compatibility.
What Languages Does SVB305 Support?
SVB305 supports 8 languages: English, German, French, Italian, Spanish, Chinese, Russian, and Japanese.
Where Can SVB305 Be Used?
SVB305 can be used for auto inspection, mechanical maintenance, construction industry checks, power facility inspection, chemical pipeline inspection, security monitoring, hidden wiring observation, and other visual inspection tasks where the probe can be used safely.
保固期有多長？
主機：三年保固。標準配件：一年保固。保固政策。
圖片能否確認引擎故障的原因？
使用影像記錄檢查位置，並將可見情況與車輛程序、參考影像和任何所需的輔助測試進行比較。
選擇這款探頭之前我應該檢查哪些方面？
確認進給直徑、噴嘴和電纜路徑、轉彎空間、目標距離、溫度、可能接觸液體的範圍，以及是否需要正面或側面視圖。對於連網型號，也需確認您的設備、電纜和軟體。
