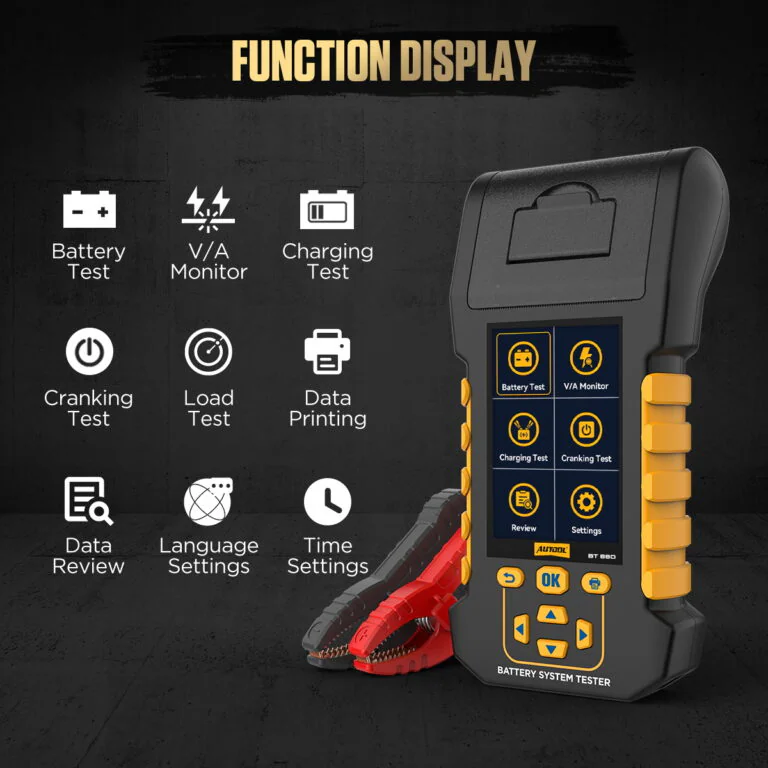

AUTOOL BT880 Battery Analyzer with Leakage Monitoring
US$110.00
主要特色
- 12V/24V System Testing
- 15 mA–5 A Leakage Monitor
- 8–30 V 測試範圍
- Voltage/Current Waveforms + Records
- 12V/24V System Testing: Check lead-acid battery health, cranking, charging, and running system voltage with vehicle loads switched on.
- 15 mA–5 A Leakage Monitor: Observe total leakage current through the negative-side connection and record its waveform.
- 8–30 V 測試範圍： Select the correct lead-acid battery type and rating standard within the tester’s 8–30 V measurement range.
- Voltage/Current Waveforms + Records: View voltage and current waveforms, then review earlier records to compare battery behavior over time.
- 內建熱感式印表機： Print test results for work orders, customer reports, or maintenance records.
- 3 年保用期 主機保固 3 年，配件保固 1 年
- 90日返回 符合條件的退貨可在 90 天內進行
- 官方店鋪 正品 · 直接支持

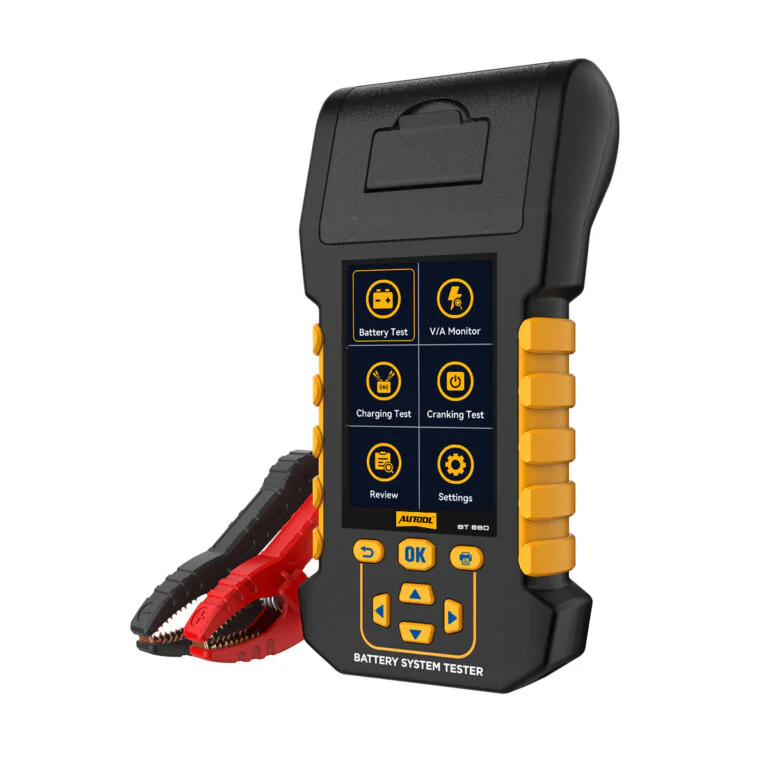

AUTOOL BT880 · Leakage-Current Battery Tester
Monitor Key-Off Current and Print the Findings
Check 12 V/24 V lead-acid battery and vehicle-system behavior, monitor key-off current, record current and voltage waveforms, and print results for work orders or customer reports. Use the total-current reading to decide when circuit isolation is needed.
- 8–30 V Measurement Range
- 15 mA–5 A Drain Range
- 電池、啟動和充電測試
- Voltage And Current Waveforms
- 內建熱感式印表機
主要特色
Battery Testing, Leakage Monitoring and Printout
電池健康測試
Run battery testing to check voltage, CCA, resistance, SOC, SOH, and overall battery condition based on the selected battery type and rating standard.
Cranking And Charging Tests
Use cranking test and charging system test to evaluate starting performance and charging status, helping diagnose common vehicle electrical faults.
最大負載試驗
The Maximum Load menu observes system voltage while the engine runs and vehicle electrical loads are switched on. It is not a traditional high-current resistive battery load test.
Parasitic Drain and Leakage Current Monitoring
The negative-side connection observes total current from 15 mA to 5 A and records its waveform. Locating the responsible circuit requires a separate vehicle sleep-state and fuse/circuit isolation procedure.
Voltage And Current Monitor
The V/A monitor displays voltage and current waveforms, allowing users to observe voltage fluctuation and current changes during inspection.
Real-Time Temperature Sensor
The built-in sensor displays ambient temperature so battery results can be reviewed with hot or cold operating context; no automatic result-compensation algorithm is assumed.
Data Review And Playback
BT880 can record previous test data and battery voltage values, so users can review historical results and compare vehicle battery behavior over time.
內建熱感式印表機
Print battery test results directly from the tester and attach them to work orders, customer reports, or workshop maintenance records.
遠端韌體升級
Remote firmware upgrade support helps keep the tester current with software improvements and function updates when available.
18 語言設置
Choose from 18 language settings for test menus and operation.
3.2吋彩色螢幕
Read test information on a 3.2-inch color screen, with the paper compartment integrated into the handheld tester.
Lead-Acid Battery Selection
Select the correct lead-acid battery type and rating standard before testing. BT880 supports an 8–30V voltage measurement range.
Handheld Test Unit
The 203 × 106 × 55mm body combines the display, test controls and report printer in a single unit.
Temperature Affects Batteries
The built-in sensor displays ambient temperature so battery results can be reviewed with hot or cold operating context; no automatic result-compensation algorithm is assumed.
3年保固支持
主機：三年保固。標準配件：一年保固。保固政策。
服務工作流程
Prepare the Vehicle for Leakage Testing
步驟進展1 / 5
01
Select Test Mode
Choose battery test, cranking test, charging system test, maximum load test, V/A monitor, leakage test, data review, or data printing according to the inspection task.
02
Connect Clamps Correctly
Connect the red and black clamps to the battery terminals according to polarity. Reverse polarity protection is supported, but correct connection is still required for reliable testing.
03
Choose Battery Type And Standard
Select the correct battery type and rating standard, such as CCA, JIS, GB, SAE, MCA, CA, DIN, IEC, EN, or BCI, before running the battery test.
04
Monitor Leakage When Needed
For leakage current monitoring, disconnect the negative terminal as instructed, use the special leakage clamp on the negative bus, and observe the real-time waveform and current value.
05
Review Or Print Results
Use data review to check stored records or use the built-in thermal printer to print test results for work orders, customer records, and maintenance documentation.
安全使用
Protect the Vehicle Sleep-State Measurement
Correct Leakage Test Connection
Connect on the documented negative side, allow the vehicle to reach its specified sleep state, and use total-current monitoring to decide when circuit isolation is needed.
支持的電池類型
Regular flooded, AGM flat plate, AGM spiral, GEL, and EFB enhanced flooded batteries.
Rating Standards
CCA, JIS, GB, SAE, MCA, CA, DIN, IEC, EN, and BCI rating standards are supported.
檢測範圍
Operating voltage is 8-30V DC, leakage current detection range is 15mA-5A, and CCA detection range is 30-2000CCA.
Lithium Battery Note
專為支援的鉛酸電池而設計；鋰電池測試請選擇 BT960。
電池和充電系統測試
BT880 provides battery, cranking, charging-system, load, voltage/current monitoring, printing, and data-review functions; use separate charging equipment when charging is required.
支持的電池類型
Supported types include regular flooded, AGM flat plate, AGM spiral, GEL, and EFB batteries. Choose BT960 for lithium battery testing.
Correct Leakage Test Connection
For leakage current monitoring, connect the battery clamps correctly, disconnect the negative terminal as instructed, and use the special leakage clamp on the vehicle negative bus.
Use The Manual For Setup
Follow the BT880 manual for battery type selection, rating standard selection, clamp connection, leakage monitoring, data review, printing, and firmware upgrade operation.
Thermal Paper Required
The built-in printer uses thermal paper and does not require ink. Replace the thermal paper roll when printing becomes unclear or the paper runs out.
利用結果規劃下次檢查
將冷啟動電流 (CCA)、荷電狀態 (SOC) 和健康指標與電池額定值、充電狀態、溫度和車輛測試結果合併使用。這些基於演算法的指標並非受控安時測量值。
結果指南
Read the Result Before Deciding the Next Step
測量電壓
結合電壓、充電狀態、溫度、端子接觸情況和完整測試結果來評估電池健康狀況。
CCA 或電導輸出
將測試儀演算法的輸出結果與電池標籤上的額定標準和數值進行比較。檢查端子接觸和充電狀態後，如果出現異常結果，請重複上述步驟。
SOC 與健康/生命
使用 SOC 和健康百分比作為篩選指標，並與電池標籤、充電狀態和重複測試結果進行比較。
啟動和充電
分別記錄啟動電壓、運轉系統電壓、負載系統電壓。根據車輛操作規程和運轉狀態決定下一步檢查內容。
模型比較
選擇合適的電池系統測試儀
模型指南
選擇一個或多個型號。預設選擇BT880。
已選擇 1 個模型
未選擇任何型號。請選擇一個型號進行比較。
| 產品描述* | BT360 | BT460 | BT760 | BT880 | BT960 |
|---|---|---|---|---|---|
| 測試、監控和保護 | |||||
| 電池測試 | ✓ | ✓ | ✓ | ✓ | ✓ |
| 啟動測試 | ✓ | ✓ | ✓ | ✓ | ✓ |
| 充電系統測試 | ✓ | ✓ | ✓ | ✓ | ✓ |
| 電池充電 | × | × | × | × | × |
| 反極性保護 | ✓ | ✓ | ✓ | ✓ | ✓ |
| 最大負載試驗 | × | ✓ | ✓ | ✓ | ✓ |
| 熱監控器 | × | × | × | ✓ | ✓ |
| 洩漏電流監測 | × | × | × | ✓ | ✓ |
| 電池相容性和續航範圍 | |||||
| 傳統鉛酸蓄電池 | ✓ | ✓ | ✓ | ✓ | ✓ |
| AGM平板電池 | ✓ | ✓ | ✓ | ✓ | ✓ |
| AGM螺旋電池 | ✓ | ✓ | ✓ | ✓ | ✓ |
| 凝膠電池 | ✓ | ✓ | ✓ | ✓ | ✓ |
| EFB增強型富液電池 | ✓ | ✓ | ✓ | ✓ | ✓ |
| 鋰電池 | × | × | × | × | ✓ |
| 測試範圍（CCA） | 30~2000 CCA | 30~2000 CCA | 30~2000 CCA | 30~2000 CCA | 30~2000 CCA |
| 適用電池額定電壓 | 12V | 12V / 24V | 12V / 24V | 12V / 24V | 12V / 24V |
| 電壓測試範圍 | 8-20V | 8〜30V | 8〜30V | 8〜30V | 0〜80V |
| 介面、錄音和電源 | |||||
| 數據打印 | × | × | ✓ | ✓ | ✓ |
| 數據記錄 | ✓ | ✓ | ✓ | ✓ | ✓ |
| 軟件升級 | ✓ | ✓ | × | ✓ | ✓ |
| 彩屏 | ✓ | ✓ | ✓ | ✓ | ✓ |
| 屏幕尺寸 | 2.4英寸 | 2.8inch | 3.2英寸 | 3.2英寸 | 3.2英寸 |
| 多國語言 | 14 | 14 | 14 | 18 | 14 |
| 電源供應 | 連接 12V 電池 | 連接 12V 電池 | 連接 12V 電池 | 連接 12V 電池 | 乾電池 Type-C電源 連接 12V 電池 |
手冊和支持
Find Manuals, Paper and Product Support

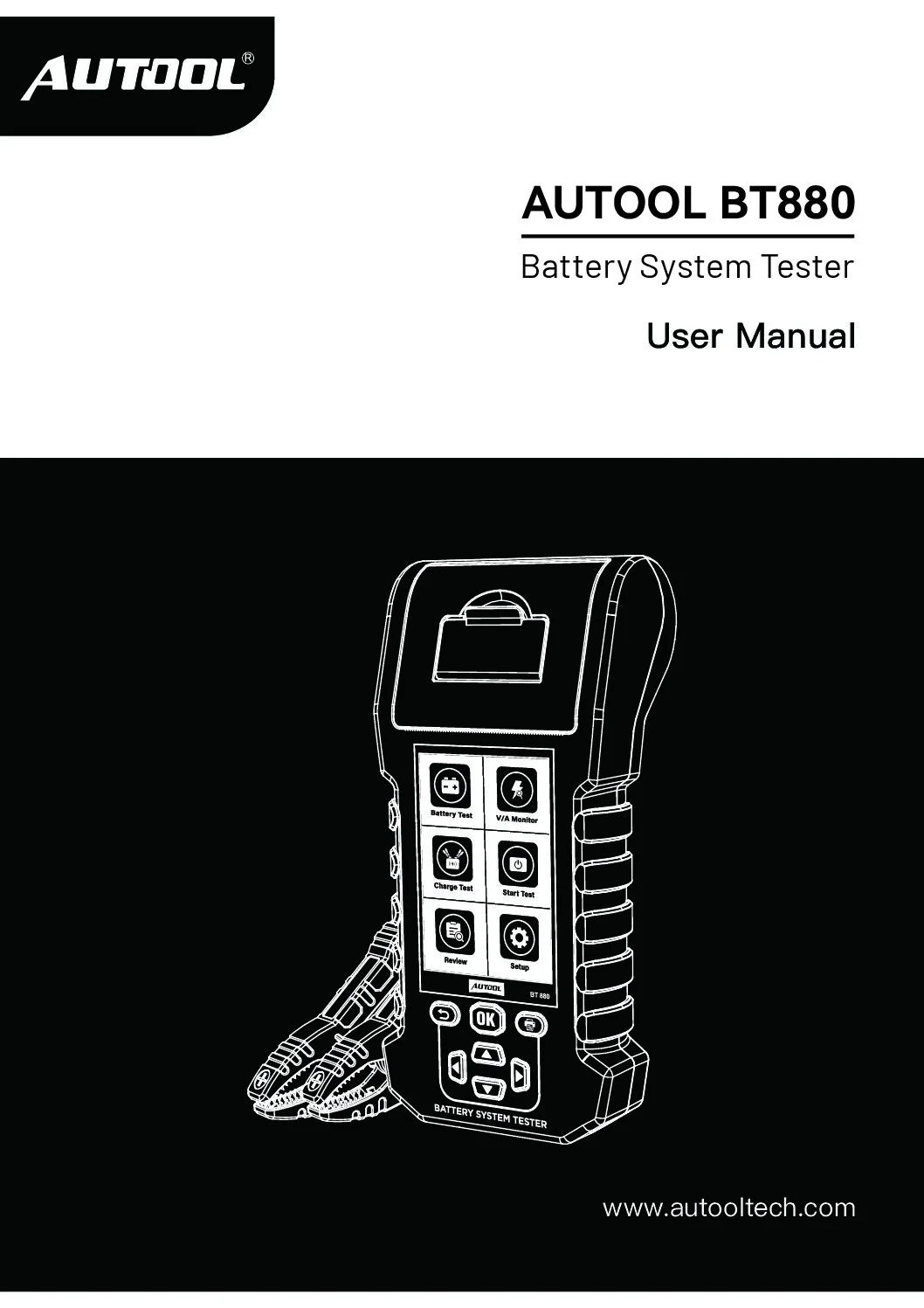

AUTOOL BT880 使用手冊
開啟PDF手冊 AUTOOL BT880 battery and system tests, leakage monitoring, temperature sensing, data playback, report printing, safe connection and troubleshooting support.
包裝內容
看看盒子裡裝了什麼
- 主機AUTOOL BT880 battery and system tester with built-in thermal printer
- Battery Clamp CableMain red and black clamp cable
- Leakage Test CableYellow leakage current test clamp cable
- Printer Consumable熱感紙捲
- 文档BT880 使用手冊
- Storage / PackagingRetail box or carrying case
買家問題
電池測試、適配性和結果問題
BT880支援鋰電池嗎？
No. BT880 does not support lithium battery testing. It supports regular flooded, AGM flat plate, AGM spiral, GEL, and EFB batteries. Choose BT960 if lithium battery testing is required.
BT880 可以測試哪些類型的電池？
BT880 supports regular flooded, AGM flat plate, AGM spiral, GEL, and EFB enhanced flooded batteries. Select the correct battery type on the tester before running a battery test.
Does BT880 Support 12V And 24V Batteries?
BT880 supports 12 V and 24 V rated-voltage testing over an 8–30 V DC operating range. Follow the vehicle procedure and test individual 12 V batteries separately when required.
What Is The Leakage Current Detection Range?
The listed total-current observation range is 15 mA to 5 A. The waveform can support follow-up, while circuit location requires a separate sleep-state and fuse/circuit isolation procedure.
How Should I Connect BT880 For Leakage Current Monitoring?
After correctly connecting the power clamps to the battery terminals, disconnect the negative terminal according to the manual. Use the special leakage test clamp to connect to the vehicle negative bus, then enter the waveform function to monitor and record real-time leakage current.
Can BT880 Print Test Results?
Yes. BT880 has a built-in thermal printer. It does not require ink; replace the thermal paper roll when needed. Printed results can be used for work orders, customer records, and maintenance reports.
What Does The Data Review Function Do?
The data review function stores previous records and battery voltage values so users can view earlier results and compare battery status over time.
Why Does BT880 Have A Temperature Sensor?
The built-in sensor displays ambient temperature so the battery result can be reviewed with hot or cold operating context. Treat the temperature as context rather than assuming the tester automatically compensates the result.
Which Rating Standards Are Supported?
BT880 supports CCA, JIS, GB, SAE, MCA, CA, DIN, IEC, EN, and BCI rating standards. Choose the standard that matches the battery label before testing.
What Languages Does BT880 Support?
BT880 supports 18 languages: English, Spanish, Russian, Malay, Italian, Portuguese, French, German, Polish, Japanese, Korean, Vietnamese, Indonesian, Filipino, Turkish, Thai, Simplified Chinese, and Traditional Chinese.
BT880 和 BT960 有什麼不同？
BT880 is suitable when you need thermal monitoring, leakage current monitoring, data printing, data records, software upgrade, 18 languages, and 12V/24V lead-acid battery testing. BT960 is the better choice if lithium battery testing is required.
包含哪些配件？
Package contents: BT880 main unit, retail box or carrying case, user manual, thermal paper, leakage-test clamp cable, battery clamp cable, and the listed accessories.
保固期有多長？
主機：三年保固。標準配件：一年保固。保固政策。
