AUTOOL V82 四向鉸接式內視鏡
原價為：299.00 美元。US$195.00目前價格為：195.00 美元。
主要特色
- 6.25毫米四向探針
- 2MP + 4.3-Inch Display
- Adjustable Probe Lighting
- Photo, Video + Playback
- 6.25 毫米四向探針： Use a 6.25 mm probe, 1 m hose, and four-way control to change viewing direction in suitable access paths.
- 2MP + 4.3-Inch Display: View 2MP, 1920×1080 images on the 4.3-inch display within the 15–100 mm viewing range.
- Adjustable Probe Lighting: Six LEDs provide three brightness levels plus a light-off setting.
- Photo, Video + Playback: Capture JPG photos or AVI video, review them on the device, and export files through removable TF storage up to 32 GB.
- Approximately 6 Hours: The 3500 mAh rechargeable battery supports approximately six hours of continuous use.
- 3 年保用期 主機保固 3 年，配件保固 1 年
- 90日返回 符合條件的退貨可在 90 天內進行
- 官方店鋪 正品 · 直接支持

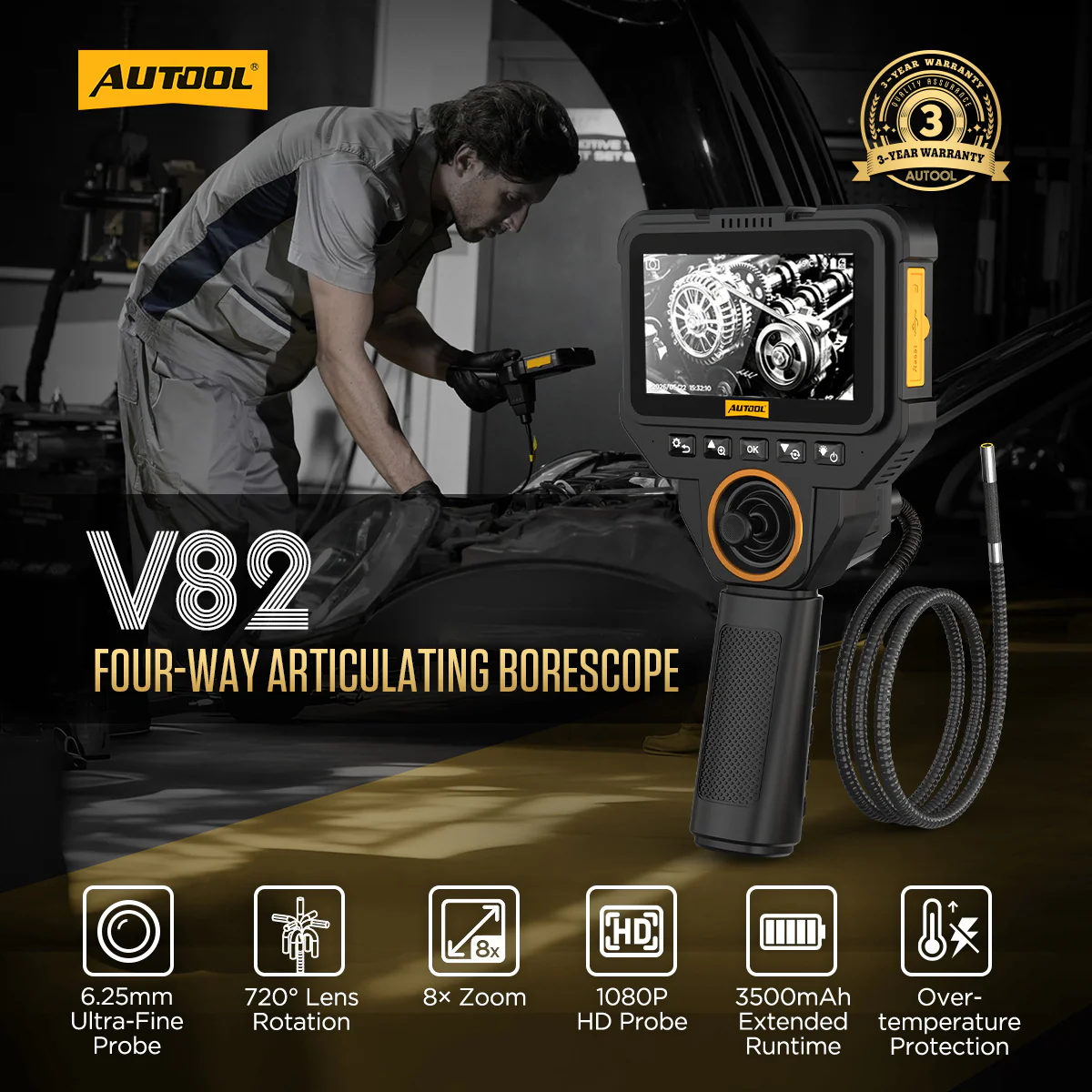

AUTOOL V82 · 6.25 mm Four-Way 2MP Articulating Borescope
Steer a 2MP Probe in Four Directions
Use this automotive borescope to change viewing direction inside suitable curved access paths with the V82’s four-way probe control. The 6.25 mm probe sends 2MP images to a built-in 4.3-inch display, keeping inspection independent of a phone. Adjust cavity lighting, record photos or video, and use the magnetic base for steadier positioning.
- 6.25毫米四向探針
- 2 MP Imaging
- 4.3吋獨立螢幕
- 15–100 毫米可視範圍
- Photo And Video Recording
主要特色
Four-Way Engine Inspection Camera with a 6.25 mm Probe
Match The Probe To The Opening
The 6.25 mm probe and 1 m flexible hose provide a defined access size and reach. Check the complete tip and turning space against the actual entry path.
Four-way Articulation
Guide the probe using four-way control. The 720° product designation does not mean continuous rotation or guaranteed coverage of every surface.
Standalone 4.3-Inch Display
View the live inspection on the integrated color screen without installing a phone app or using a separate mobile display.
2 MP Imaging
The camera specification is 1920×1080 with a 2 MP sensor. Image quality still depends on target distance, lighting and surface conditions.
15–100 毫米可視範圍
A 90° viewing angle and 15–100 mm depth-of-field specification help match the optics to the target. Keep the surface within a clear viewing range.
Adjustable Probe Lighting
6 LEDs provide three brightness levels, plus a light-off setting. Adjust illumination to reduce dark areas or reflections.
Up To 8× Digital Zoom
Enlarge the displayed image to review a detail. Digital magnification does not increase the optical information captured by the camera.
Photo, Video And Playback
Use the handle capture button to record photos or video, then review the files with playback and image-rotation functions.
Removable TF Storage
The removable TF card slot supports up to 32 GB. Keep original JPG photos and AVI recordings, and confirm the supplied card with the selected package.
磁定位
Attach the magnetic base to a suitable ferrous surface to support positioning while guiding the probe.
Braided Flexible Hose
The 1 m stainless-steel-braided hose and approximately 32 mm articulation radius define the probe assembly. Avoid coiled operation or forced bending.
Articulation Service-Life Specification
The articulation specification is approximately 20,000 cycles. Actual life depends on conditions and handling; it is not a guarantee of a fixed number of vehicle inspections.
充電電源
A 3.7 V / 3500 mAh battery supports approximately six hours of continuous use under the manual’s stated conditions. Charge with DC 5 V / 1 A; fast charging is not supported.
14-Language Menu
Select English, Chinese (simplified or traditional), French, Spanish, German, Czech, Portuguese, Japanese, Korean, Russian, Dutch, Turkish or Polish.
Probe Protection And Heat Shutdown
The probe is rated IP67, and the device shuts down when its temperature exceeds the 85°C protection threshold. Keep the main unit dry and follow the manual’s separate operating conditions.
3年保固支持
主機：三年保固。標準配件：一年保固。保固政策。
如何使用
Plan Entry, Insert, Steer, Record, Center, and Withdraw
步驟進展1 / 6
01
定義檢查目標
Identify the vehicle, symptom, entry point and surface you need to see. Confirm that the V82 probe and viewing range suit that path.
02
檢查設備
檢查筆尖和線纜，為設備充電，檢查轉向和照明，並確認照片或影片可以保存。
03
準備車輛
依照車輛維修程序隔離運動部件和帶電部件，冷卻檢查區域，並準備一個乾淨的檢修點。
04
引導與啟迪
觀察即時影像，輕輕插入。使用轉向控制和照明裝置將目標調整到指定的清晰可視範圍內；切勿強行彎曲。
05
記錄調查結果
從合適的角度拍攝目標，並識別組件、入射點和觀察方向。將不確定的觀察結果與已確認的結論區分開來。
06
提取和儲存
按照說明將探針尖端放回原位，輕輕拔出並檢查探針是否完好無損。依照車型手冊清潔、乾燥並存放探針，然後查閱車輛診斷記錄文件。
安全性和相容性
Confirm Opening, Bend Path, Heat, and Probe Protection
匹配訪問路徑
Match the probe tip and articulation path to the narrowest opening and available turning space.
檢查一輛冷卻、隔離的車輛
Prevent unintended engine movement and electrical operation. Wait for components to cool to the limits in the V82 manual before inserting the probe; a heat alarm is a protection event, not a working-temperature rating.
保護探頭和主機
IP67 防護等級僅適用於指定的探頭，不適用於濾網或手把。請另行確認允許使用的液體和接觸條件；請勿根據 IP 防護等級推斷其與油、燃料或溶劑的兼容性。
不費力撤退
使用轉向控制裝置將鏟鬥尖端調整到能夠清理入口通道的位置。若感到阻力，請停止操作；請遵循車型手冊和車輛操作規程，切勿用力拉動。
保留檢查證據
Record the entry point, component, viewing direction and any uninspected area so the next check can target the remaining coverage.
Charge At The Specified Voltage
Use DC 5 V / 1 A charging. Do not use a fast-charge mode, and follow the manual for cable and battery handling.
檢查結果
Read Borescope Photos and Videos with Location and Supporting Tests
記錄可見狀況
Record the visible condition and viewing direction, then use the image to target the next inspection or test.
重新檢查對焦、光線和方向
如果影像不清晰，請調整目標距離和亮度，按照指示清潔鏡頭，並從另一個角度觀察。反射或陰影可能看起來像缺陷。
Document Inspection Coverage
Save the original image or video with the component and viewing direction, and capture additional angles where coverage is incomplete.
選擇下一個測試
請使用原廠參考圖片並依照對應的診斷程序進行。如果圖片無法得出結論，可能仍需進行壓縮測試、洩漏測試或其他測量，或進行拆卸檢查。
比較型號
Compare Four-Way Probe Diameter and Image Capture
模型指南
Choose one or more models. V82 is selected by default.
已選擇 1 個模型
未選擇任何型號。請選擇一個型號進行比較。
| 產品名稱 | V80 | V81 | V82 | V83 | V85 | V86 |
|---|---|---|---|---|---|---|
| 顯示器和攝像頭 | ||||||
| 顯示屏 | 4.3吋獨立顯示器 | 4.3吋獨立顯示器 | 4.3吋獨立顯示器 | 4.3吋獨立顯示器 | 4.3吋獨立顯示器 | 4.3英寸 |
| 相機解析度 | 1920×1080 | 1280×720 | 1920×1080 | 1280×720 | 1920×1080 | 720x720P |
| Storage, articulation, and hose | ||||||
| 記憶卡 | Removable TF card, up to 32 GB | Removable TF card, up to 32 GB | Removable TF card, up to 32 GB | Removable TF card, up to 32 GB | Removable TF card, up to 32 GB | 32GB |
| Articulation radius | 約 32 毫米 | 約 32 毫米 | 約 32 毫米 | 約 32 毫米 | 約 32 毫米 | 約 32 毫米 |
| Articulation lifespan | 大約20,000個循環 | 大約20,000個循環 | 大約20,000個循環 | 大約20,000個循環 | 大約20,000個循環 | 大約20,000個循環 |
| Steering directions | 雙向 | 雙向 | 四方 | 四方 | 四方 | 雙向 |
| Flexible hose material | Stainless steel braided flexible hose | Stainless steel braided flexible hose | Stainless steel braided flexible hose | Stainless steel braided flexible hose | Stainless steel braided flexible hose | Tungsten wire flexible hose |
| Flexible hose length | 1米軟管 | 1米軟管 | 1米軟管 | 1米軟管 | 1米軟管 | 1m |
| Optics and protection | ||||||
| 鏡片直徑 | 6.25 mm | 5 mm | 6.25 mm | 5 mm | 3.95 mm | 2.8mm |
| 圖像傳感器 | 1/9″CMOS | 1/9″CMOS | 1/9″CMOS | 1/9″CMOS | 1/9″CMOS | OCHFA10 |
| 解析度 | 2百萬像素 | 1萬像素 | 2百萬像素 | 1萬像素 | 2百萬像素 | 520,000 |
| 可視角度 | 90° | 90° | 90° | 90° | 90° | 90° |
| 景深 | 15-100 毫米 | 15-100 毫米 | 15-100 毫米 | 15-100 毫米 | 15-100 毫米 | 15-100 毫米 |
| Lens overtemperatureprotection | The device will automatically shut downwhen the temperature exceeds 85°C. | The device will automatically shut downwhen the temperature exceeds 85°C. | The device will automatically shut downwhen the temperature exceeds 85°C. | The device will automatically shut downwhen the temperature exceeds 85°C. | The device will automatically shut downwhen the temperature exceeds 85°C. | The device will automatically shut downwhen the temperature exceeds 85°C. |
| 可調式LED燈 | 6 | 8 | 6 | 8 | 6 | 4 |
| Lens waterproof rating | IP67 | IP67 | IP67 | IP67 | IP67 | IP67 |
| Language, power, and convenience features | ||||||
| 語言 | 14類型 | 14類型 | 14類型 | 14類型 | 14類型 | 14類型 |
| 電池容量 | 3.7V / 3500mAh | 3.7V / 3500mAh | 3.7V / 3500mAh | 3.7V / 3500mAh | 3.7V / 3500mAh | 3.7V / 3500mAh |
| 充電電壓 | DC5V*1A | DC5V*1A | DC5V*1A | DC5V*1A | DC5V*1A | DC5V*1A |
| 磁性設計 | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| 8×數碼變焦 | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
使用者手冊及下載
使用操作手冊進行操控和安全撤離

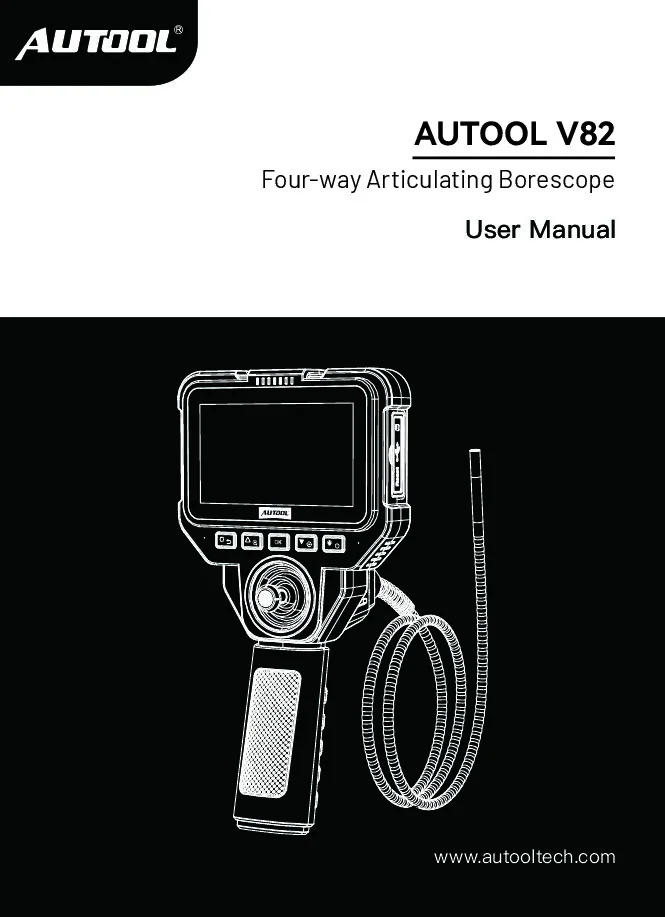

AUTOOL V82 User Manual
開啟PDF手冊 AUTOOL V82 four-way probe steering, display and lighting controls, photo and video recording, safe withdrawal, charging and troubleshooting support.
小包裝
產品包括
- 主機AUTOOL V82 borescope with its 6.25 mm articulating probe and integrated screen.
- 手提箱AUTOOL storage case.
- 充電線USB 充電線。
- 用戶手冊V82 instructions.
- 零售包裝盒AUTOOL V82 retail packaging.
常見問題
Four-Way Probe and Recording Questions
Does V82 need a phone or app?
No. The integrated 4.3-inch screen provides live viewing, recording playback and device controls.
Will the probe fit every engine opening?
The probe diameter is 6.25 mm; confirm the tip geometry, entry path, turning space, and target distance for the inspection point.
What does the articulation specification mean?
Four-way describes the available steering directions. The 720° product name does not mean the tip continuously rotates through two complete turns or sees every surface.
Can I inspect a hot engine?
Cool and isolate the vehicle according to the applicable procedure. The 85°C shutdown is a protective threshold, not a continuous operating-temperature rating.
Is the entire device waterproof or oil-proof?
No. IP67 is a probe rating. Keep the main unit dry and confirm permitted liquids and contact conditions in the manual.
Does 8× zoom reveal more optical detail?
Digital zoom enlarges the captured image. It cannot restore an out-of-focus image or add information that the camera did not capture.
How do I keep inspection evidence?
Save the original JPG photo or AVI recording on compatible TF storage and export it for review. Record the vehicle or work order, component, entry point, viewing direction and any limits.
What should I do if the probe resists withdrawal?
Stop pulling. Return the tip using the control as instructed and follow the model and vehicle procedures. Do not restart the engine with the probe inserted.
Can the image diagnose the root cause by itself?
Use the recorded view with reference images and the prescribed supporting tests to plan the repair.
What should I confirm with the order?
Confirm the exact model, supplied storage card and accessories, charging requirements, regional warranty and repair arrangements.
