AUTOOL PT650 數位變速箱油壓表

額定 5.00 基於5 3 客戶評級

(3 顧客評價）

US$119.00

主要特色

0–30 Bar ATF Pressure
0.5% FS Accuracy / 0.01 Resolution
Max / Min / Differential
Three Pressure Units

出貨倉庫

重設

☰ 請求批次/B2B報價

3 年保用期 主機保固 3 年，配件保固 1 年
90日返回 符合條件的退貨可在 90 天內進行
官方店鋪 正品 · 直接支持

AUTOOL PT650 · Transmission Pressure Gauge Kit

Read Transmission Pressure Through the Correct Port

Measure automatic-transmission fluid pressure through the correct service port with this transmission pressure tester, then compare the result with the transmission procedure. PT650 covers 0–30 bar and shows current, maximum, minimum, and differential pressure with measurement time. Switchable units, riveted copper adapters, and an oil-resistant hose support varied compatible connections.

0–30 Bar ATF Range
標稱精度為0.5% FS
Current / Max / Min / Differential
PSI / Bar / kg/cm² Units
Oil-Resistant Hose

AUTOOL PT650 transmission oil pressure gauge main product image with feature icons

主要特色

Live, Min/Max, and Differential Transmission Pressure

數位壓力測量

Measures transmission oil pressure with a manual-listed 0-30 bar range, 0.5% FS accuracy, and 0.01 display resolution for workshop diagnosis.

2.8″ Backlit Display

The screen shows current pressure, measurement time, pressure unit, maximum pressure, minimum pressure, and differential pressure in a clear layout.

多單元交換

Switch between PSI, Bar, and Kg/cm² to match different service habits and test references.

Data Holding And Zeroing

Supports interface lock, data holding, clear data, test time reset, and pressure zeroing before measurement.

鉚接銅適配器

The included adapter set uses riveted copper fittings with high hardness, wear resistance, and oxidation resistance.

Oil-Resistant Transfer Hose

The hose and connector set supports transmission-pressure connection work.

四顆 AAA 電池

PT650 uses four AAA batteries and 6V operating voltage. Install batteries with correct polarity and close the battery cover securely.

3年保固支持

主機：三年保固。標準配件：一年保固。保固政策。

服務工作流程

Connect at the Specified Transmission Port

步驟進展1 / 7

Remove The Main Oil Pressure Plug

Remove the main oil pressure plug on the automatic transmission housing according to the vehicle service procedure.

安全使用

Control Hot ATF and Hose Placement

Use Four AAA Batteries

PT650 uses four AAA batteries and 6V operating voltage. Install batteries with correct polarity and close the battery cover securely.

零測試前

Perform pressure zero setting before measurement. The real-time pressure should display as 0 before testing begins.

不要超載

The manual lists 40 bar overload pressure. Do not use PT650 beyond its intended pressure range or in unsuitable systems.

Use The Correct Tool

PT650 is for transmission pressure testing. Use PT610, PT620, PT630 / PT635, PT640, or PT660 for cylinder, engine oil, fuel, GDI fuel, or brake pressure systems.

Power Off Correctly

After measurement, long press the power button for 2 seconds to shut down, and do this under atmospheric pressure.

乾燥保存

Check tightened and connected parts regularly, avoid corrosive liquids, and store the product in a dry, ventilated place when not in use.

結合上下文解讀結果

Use the transmission-specific port, oil-rated hose and matching adapter, then read pressure at the gear, temperature and engine-speed condition required by the service procedure.

Inspect and Maintain the Tester

Avoid rubbing the housing against rough surfaces. Maintain parts that contact chemical media to improve corrosion resistance, and replace aging wires or worn parts if they affect safe use.

模型比較

選擇合適的壓力測試套件

模型指南

選擇一個或多個型號。預設選擇 PT650。

已選擇 1 個模型

PT610 汽缸壓力表汽缸壓力 / 10 個連接器 / 6 筆記錄PT620 機油壓力表套件引擎機油壓力/18個介面/0–29.4巴範圍PT630燃油壓力表燃油壓力 / 17 個介面 / 0–29.4 巴範圍PT635燃油壓力表（高階版）燃油壓力 / 31 個介面 / 0–29.4 巴範圍PT640 GDI燃油壓力表GDI燃油噴射/3個介面/0-360巴壓力範圍PT650變速箱油壓表傳動壓力/12個介面/0–29.4巴範圍當前模型PT660煞車系統壓力測試儀煞車壓力/雙通道/0–210 巴

AUTOOL PT650 Transmission Oil Pressure Gauge is selected. Choose another model for a side-by-side comparison.

相對比 AUTOOL 引擎壓力測試儀
產品描述*	PT610 汽缸壓力表	PT620 機油壓力表套件	PT630燃油壓力表	PT635燃油壓力表（高階版）	PT640 GDI燃油壓力表	PT650變速箱油壓表	PT660煞車系統壓力測試儀
測量與讀數
顯示屏	2.8英寸	2.8英寸	2.8英寸	2.8英寸	2.8英寸	2.8英寸	3英寸
資料存儲	6組數據	×	×	×	×	×	鎖定目前讀數；請檢查目前多記錄儲存規格。
壓力範圍	0-426.6磅/平方英寸 0-30公斤/平方厘米 0-29.4bar	0-426.6磅/平方英寸 0-30公斤/平方厘米 0-29.4bar	0-426.6磅/平方英寸 0-30公斤/平方厘米 0-29.4bar	0-426.6磅/平方英寸 0-30公斤/平方厘米 0-29.4bar	0-5221.3磅/平方英寸 0-367公斤/平方厘米 0-360bar	0-426.6磅/平方英寸 0-30公斤/平方厘米 0-29.4bar	0–210 巴
雙聲道壓力測試	×	×	×	×	×	×	透過 L/R 通道實現兩個煞車位置/卡鉗
資料鎖定/清除/記錄	✓	✓	✓	✓	✓	✓	✓
多參數顯示	目前溫度測量時間即時壓力值平均壓力值各汽缸的壓力值	測量時間壓力最大壓力最小壓力高頻差動式測試棒	最大值最低值壓力差值測量時間即時壓力值	最大值最低值平均值溫度值測量時間即時壓力值	最大值最低值壓力差值測量時間即時壓力值	最大值最低值壓力差值測量時間即時壓力值	左右即時壓力、最小壓力、最大壓力和前後壓力差
壓力單位	幽酒吧公斤/平方厘米	幽酒吧公斤/平方厘米	幽酒吧公斤/平方厘米	幽酒吧公斤/平方厘米	幽酒吧公斤/平方厘米	幽酒吧公斤/平方厘米	psi / bar / kg/cm²
連接和應用
配件連接器	10類型	18類型	17類型	31類型	3類型	12類型	檢查所選包裝內容，確認其中包含的適配器類型和數量。
配備工具箱	✓	✓	✓	✓	✓	✓	✓
適用場景	引擎汽缸	引擎機油循環系統	汽車燃油系統	汽車燃油系統	汽車直噴系統中的燃油噴射幫浦壓力	汽車變速器壓力	內部煞車系統液壓；雙位置/卡鉗對比

手冊和支持

尋找手冊和適配器指南

手冊/PDF

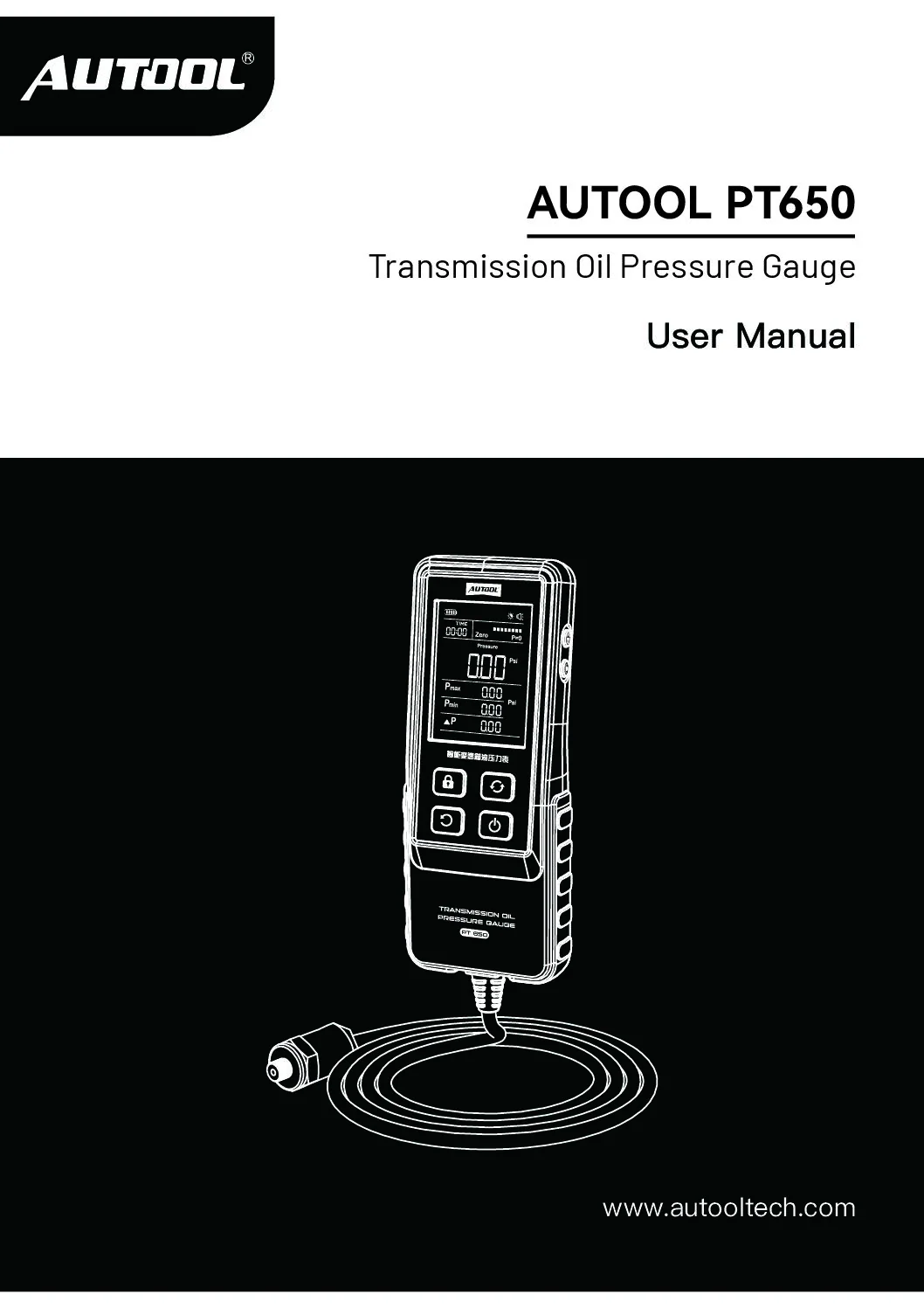

AUTOOL PT650 使用手冊

開啟PDF手冊 AUTOOL PT650 digital pressure measurement, unit selection, adapter and oil-resistant hose setup, data hold, zeroing, safety and troubleshooting support.

快速入門指南

AUTOOL PT650 packing list with main unit carrying case manual hose connector set and retail box

包裝內容

看看盒子裡裝了什麼

主機AUTOOL PT650 transmission oil pressure gauge with measuring probe
工具箱Equipped carrying case
項目手動操作 AUTOOL PT650 使用手冊
輸送軟管Oil-resistant transfer hose
連接器組12-type accessory connector set
零售包裝盒AUTOOL PT650 product packaging

買家問題

壓力連結和閱讀問題

什麼是 AUTOOL PT650 的用途是什麼？

AUTOOL PT650 is an automatic transmission pressure tester for transmission oil pressure diagnosis. It should not be used as a substitute for cylinder, engine oil, fuel, GDI fuel, or brake pressure testers.

PT650 支援哪些壓力範圍和單位？

The manual lists a 0-30 bar range, 0.5% FS accuracy, 0.01 bar / 0.01 kg/cm² / 0.01 PSI resolution, and Bar, Kg/cm², and PSI units. The product feature image also presents equivalent display ranges of 0-426.6 psi, 0-30 kg/cm², and 0-29.4 bar.

Does PT650 Store 6 Sets Of Test Data?

No. PT650 supports data holding, interface lock, data clearing, and pressure zeroing, but it does not store data. Six-set data storage is a PT610 feature.

PT650 使用什麼電池？

PT650 uses four AAA batteries and has a 6V operating voltage. Open the battery cover on the back of the device, insert four 1.5V AAA batteries with correct polarity, and close the cover securely before use.

How Do I Zero The PT650 Before Testing?

Long press the zero / clear button for pressure zero setting before measurement. The real-time pressure display should show 0 before you begin the transmission pressure test.

What Accessories Are Included With PT650?

Package contents: PT650 main unit, carrying case, retail box, user manual, oil-resistant transfer hose, and connector set. The PT650 comparison lists 12 types of accessory connectors.

Can PT650 Be Used For Fuel, GDI, Cylinder, Or Brake Pressure Testing?

PT650 is for automotive transmission pressure testing. For other systems, choose the corresponding PT series model: PT610 for cylinder pressure, PT620 for engine oil pressure, PT630 / PT635 for fuel pressure, PT640 for GDI fuel pressure, and PT660 for brake system pressure.

How Should I Turn Off PT650 After Measurement?

After measurement is complete, long press the power button for 2 seconds to shut down. The manual states that shutdown should be conducted under atmospheric pressure. The device also automatically powers off after 5 minutes of inactivity when no pressure is applied.

保固期有多長？
