AUTOOL 升級版 OBD2 分線盒
US$109.00
主要特色
- Selected-Point Voltage Display
- Color-Coded Pin LEDs
- 16-Pin Test Access
- 12 V Temporary ECU Backup
- Selected-Point Voltage Display: View the selected OBD interface voltage on the built-in display.
- Color-Coded Pin LEDs: Use red pin-16 power, green pin-4/5 ground, and yellow communication LEDs as status cues.
- 16-Pin Test Access: Reach all 16 OBD2 pin access points with 4 mm leads, a multimeter, or an oscilloscope while the scanner remains connected.
- 12 V Temporary ECU Backup: Use a suitable backup battery only for an approved vehicle procedure; external load devices must not exceed 1 A.
- 45 cm TPU Cable: Move the test point away from the vehicle port with the 45 cm flexible TPU cable.
- 3 年保用期 主機保固 3 年，配件保固 1 年
- 90日返回 符合條件的退貨可在 90 天內進行
- 官方店鋪 正品 · 直接支持

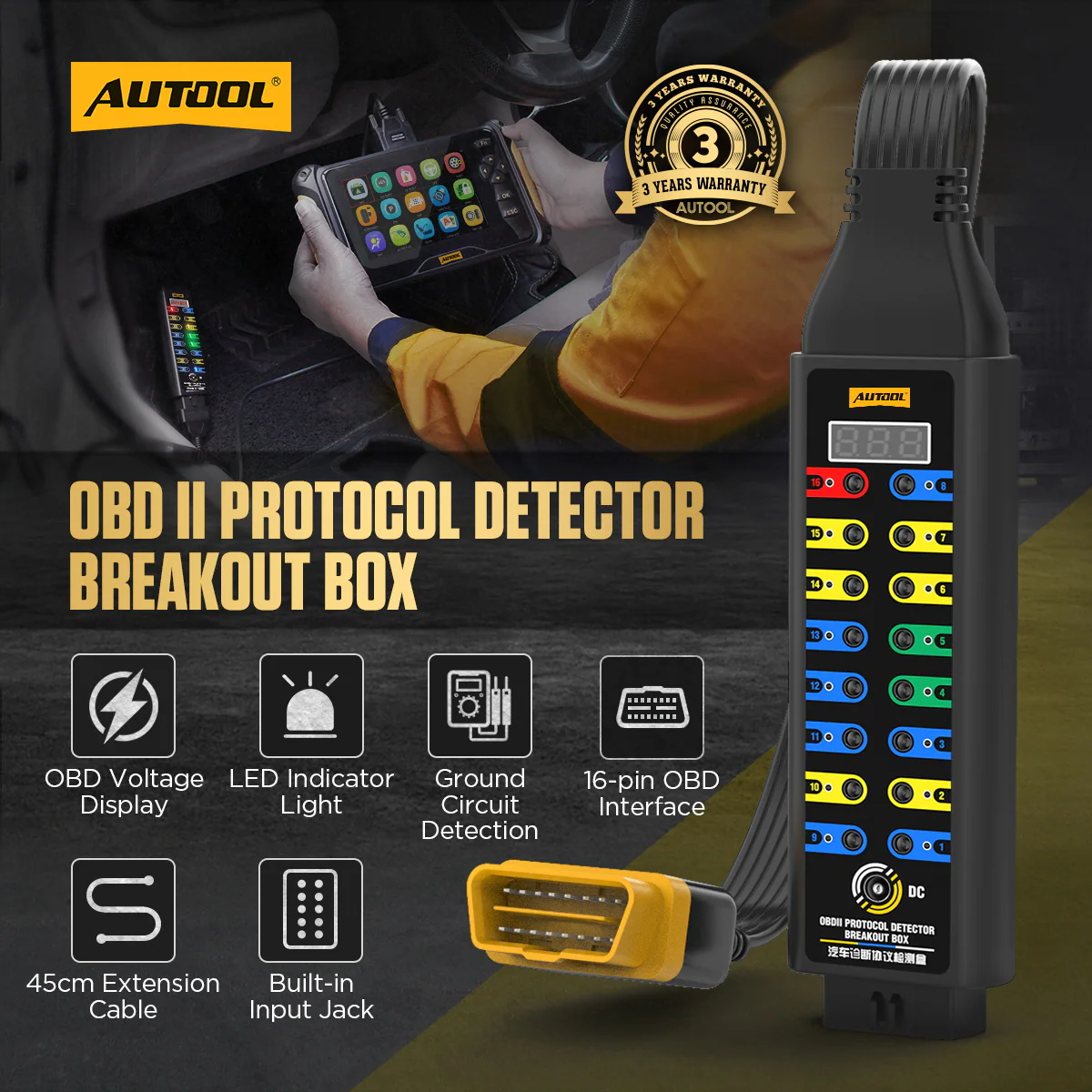

OBD2 Breakout Box Upgraded · Voltage Display, LED Cues & 16-Pin Access
Add Voltage and LED Cues to Pin Access
Keep a compatible scanner inline while viewing selected-point voltage, reading color-coded LED state cues, and accessing all 16 DLC pins with a multimeter, oscilloscope, or compatible 4 mm leads. The Upgraded breakout box also provides an external input for approved temporary ECU backup procedures.

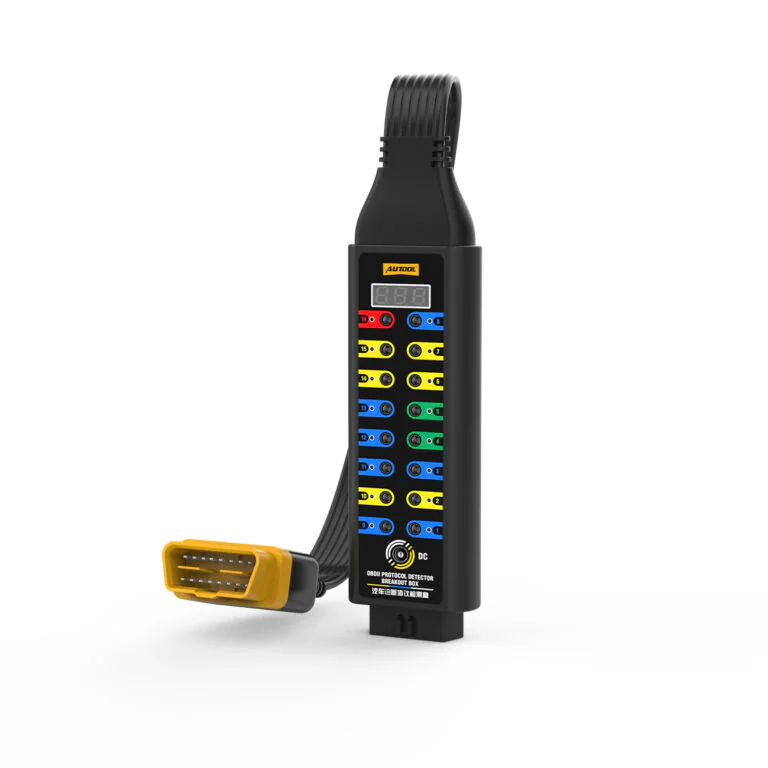

- 16-Pin DLC Breakout
- Selected-Point Voltage Display
- Color-Coded LED Cues
- 12 V Temporary Input
- 45 cm Connection
主要特色
View Selected Voltage and Access All 16 Pins
OBD Voltage Display

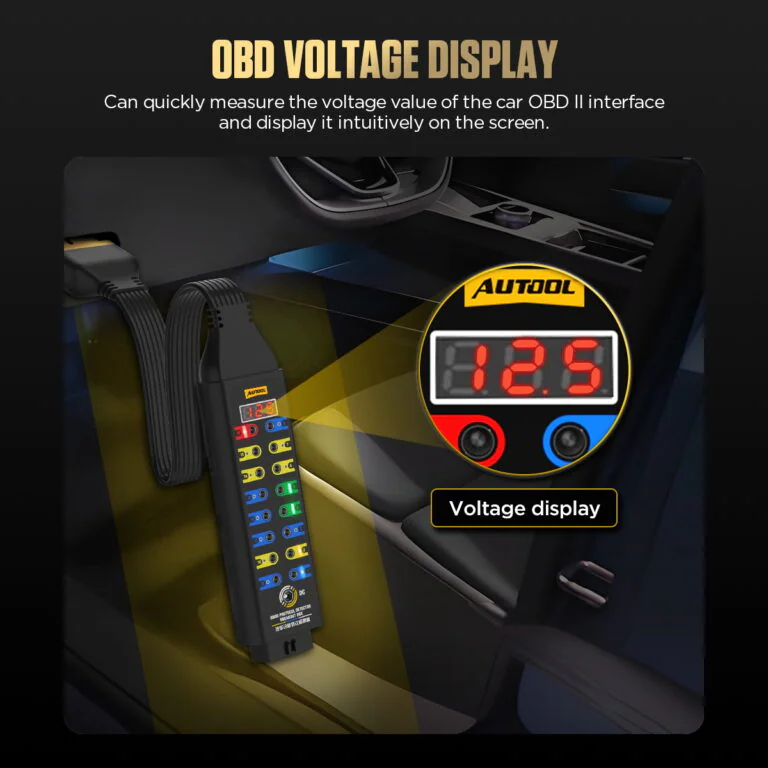

Select an OBD interface point and view its live voltage on the built-in display.
Compare the value with the correct pin, reference point, vehicle state, and a suitable meter before judging the circuit.
LED指示燈

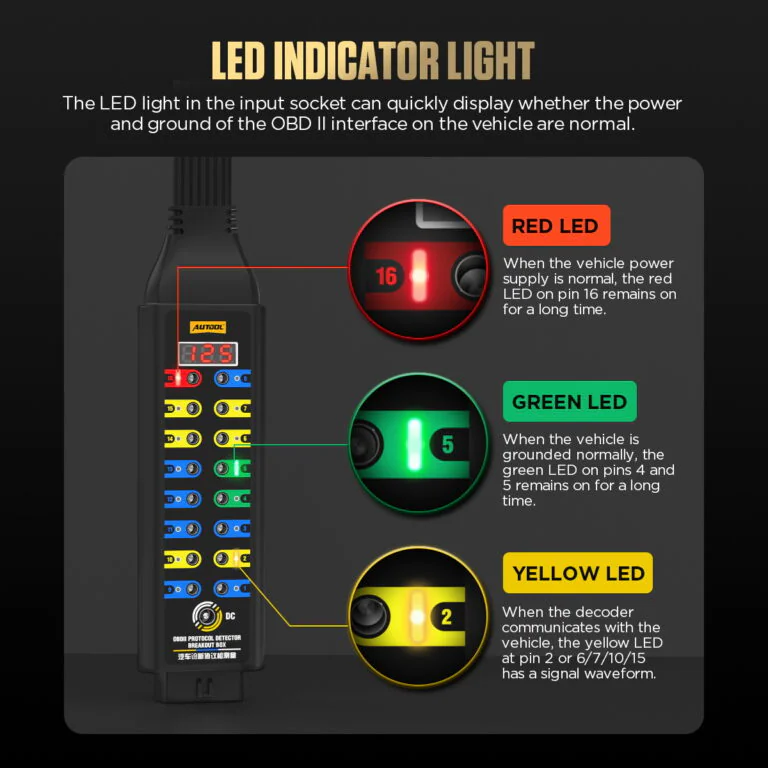

Use red for pin 16 power, green for pins 4/5 ground, and yellow for communication-line activity cues.
Treat each LED as a connection or activity cue, then verify voltage, loaded ground, waveform, and protocol behavior with the correct diagram and instrument.
16-Pin Input Jack

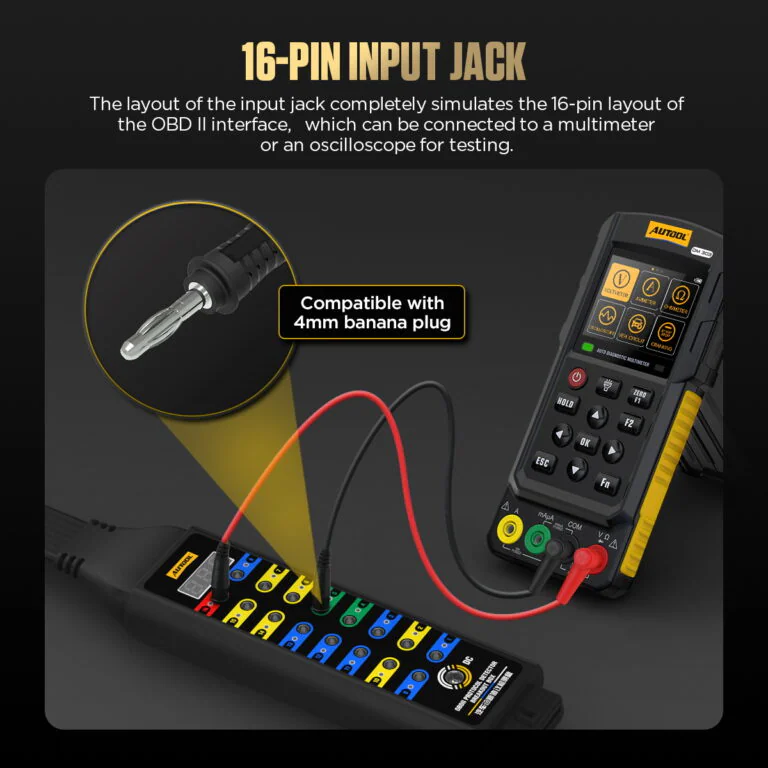

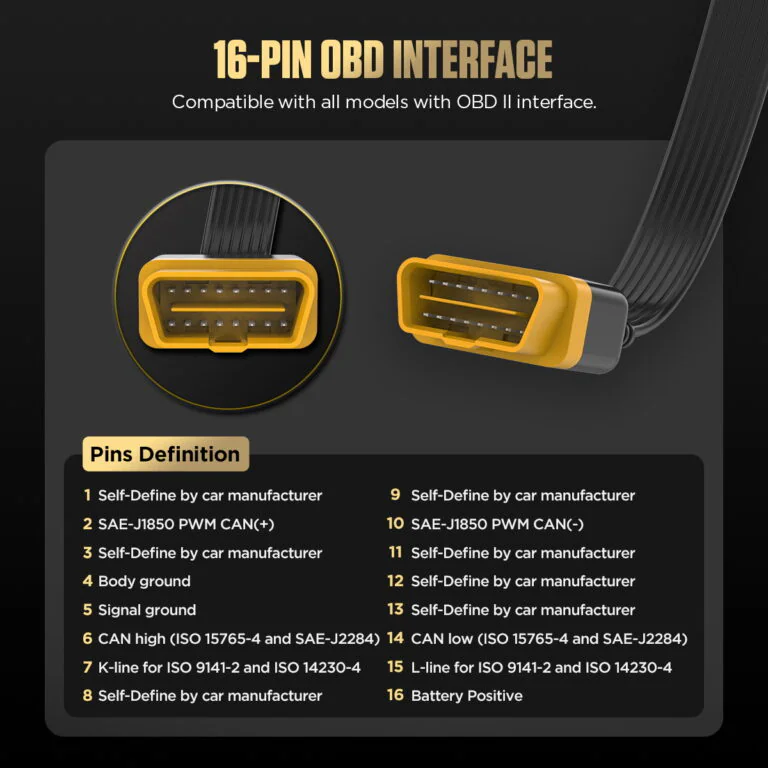

The built-in input jack fully emulates the OBDII 16-pin layout and can be used with a 4mm banana plug, multimeter or oscilloscope for pin-level testing.
Diagnostic Instrument Interface

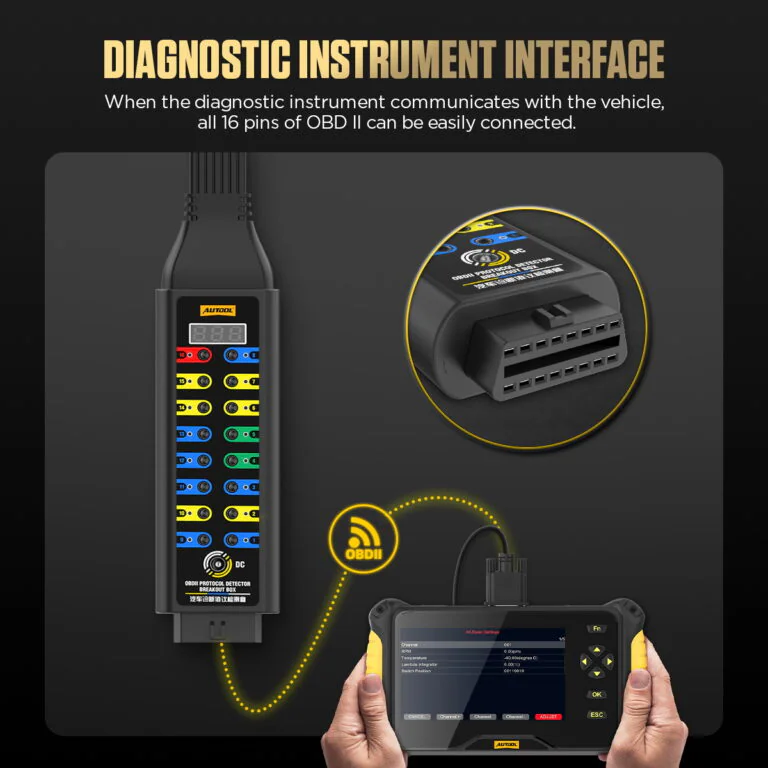

When the diagnostic instrument communicates with the vehicle, the breakout box allows quick access to the OBD2 16 pins for monitoring and diagnosis.
直流電源插孔

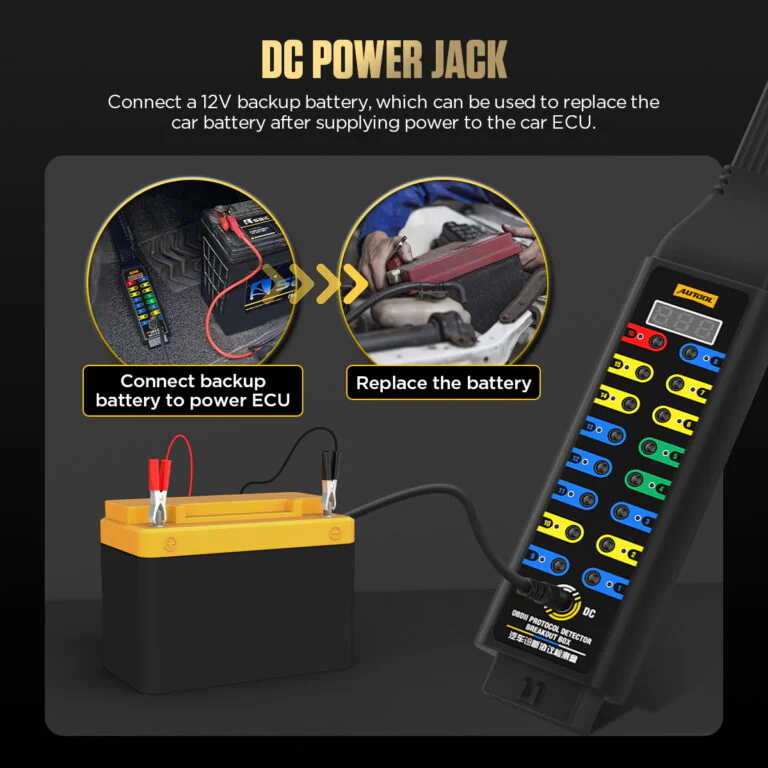

The DC interface can connect to a 12V backup battery, helping supply temporary ECU power and support battery replacement or ECU power maintenance scenarios.
45cm TPU Extension Cable

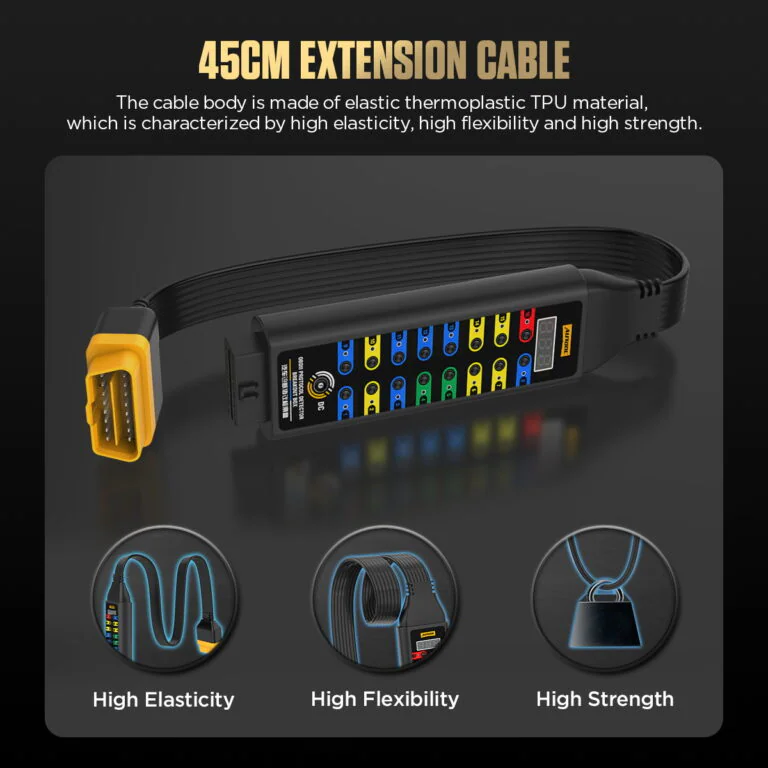

The 45cm TPU cable is designed with high elasticity, high flexibility and high strength for easier use around vehicle OBD2 ports.
Voltage and LED Readings
Status LEDs show power, ground, or line activity only. Use the correct diagram and instrument to identify voltage, waveform, bus state, and root cause.
3年保固支持
主機：三年保固。標準配件：一年保固。保固政策。
如何使用
Connect the Scanner and External Test Tools
步驟進展1 / 5
01
Identify The Circuit
Use the correct vehicle wiring diagram to identify DLC pin functions, expected voltage, ground, network, and safe test method.
02
Inspect And Connect
With the vehicle in the required state, inspect the DLC and connect the breakout box without forcing or back-feeding pins.
03
Check Power And Grounds
Verify connector supply and grounds with a suitable meter before interpreting communication activity.
04
Observe And Measure
Keep the scanner inline when required and use test jacks with the appropriate multimeter or oscilloscope.
05
Record The Result
Save vehicle state, pin, reference, voltage or waveform, scanner result, and any changes when the box is removed.
安全性和相容性
Check Voltage, Load and Pin Connections
Qualified Pin-Level Testing
Incorrect jumpers, back-feeding, loads, or probe connections can damage vehicle networks and modules.
No Direct Shorts
Do not directly short pin 16 to pins 4 or 5, or bridge unknown test jacks.
External Load Limit
External load devices must not exceed 1 A.
LED Interpretation
Use each LED as a quick supply, ground or activity cue, then use the circuit reference and diagnostic instrument for protocol or ECU checks.
後備電源
Use the 12 V temporary backup function only with confirmed circuit compatibility, polarity and the approved service procedure.
No 120 Ω Mode
Upgraded version does not include the switchable 120 Ω series-resistor mode.
保養與維護
This product connects directly to the vehicle data link, so read the safety notes before using jumpers, load devices, multimeters, oscilloscopes, or ECU backup power. Improper use may damage data communication, related circuits, or vehicle systems; stop immediately if the effect of an operation is uncertain.
成績
Turn Pin Access into Measured Evidence
Power And Ground
Record measured supply and voltage-drop/ground results under the defined load and vehicle state.
溝通活動
Use LEDs as location cues, then capture the relevant waveform or scanner behavior before reaching a conclusion.
Pass-Through Comparison
Compare scanner communication with direct connection and with the breakout box inline to detect setup-induced changes.
網路診斷
Interpret resistance, bias voltage, waveform, termination, and module isolation only through the vehicle-specific network procedure.
模型比較
Choose Access, Display and Indicator Features
模型指南
Choose one or more models. Upgraded Version is selected by default.
已選擇 1 個模型
未選擇任何型號。請選擇一個型號進行比較。
| 產品描述* | 基本版本 | 升級版 | 高級版 |
|---|---|---|---|
| Connection & Operating Limits | |||
| 診斷端口 | OBD2 | OBD2 | OBD2 |
| 工作電壓 | DC 8V〜30V | DC 8V〜16V | DC 6V-30V |
| 加載 | 2.0 A rated; external load must not exceed 1 A | 2.0 A rated; external load must not exceed 1 A | 2.0 A rated; external load must not exceed 1 A |
| 工作溫度 | -20℃~70℃（-4°F~158°F） | -20℃~70℃（-4°F~158°F） | -20℃~70℃（-4°F~158°F） |
| OBD2 Extension Cable Length | 45CM | 45CM | 45CM |
| Display & Power Hardware | |||
| OBD Voltage Display | × | ✓ | ✓ |
| LED指示燈 | × | ✓ | ✓ |
| 電力電纜 | × | ✓ | ✓ |
| Built-in Input Jack | ✓ | ✓ | ✓ |
| Test Access & Circuit Checks | |||
| Protocol Signal Test Access | ✓ | ✓ | ✓ |
| 電源檢測 | ✓ | ✓ | ✓ |
| Ground Circuit Detection | ✓ | ✓ | ✓ |
| 16-pin OBD Interface | ✓ | ✓ | ✓ |
| 120Ω Series Resistor Mode | × | × | ✓ |
手冊和支持
確認連接埠、引腳排列和工具適配性
AUTOOL OBD2 Breakout Box Upgraded User Manual
Open the PDF manual for Upgraded breakout-box connection, voltage display, LED cues and pin testing, with measurement safety and troubleshooting support.
包裝內容
Check the Upgraded Breakout Box Package

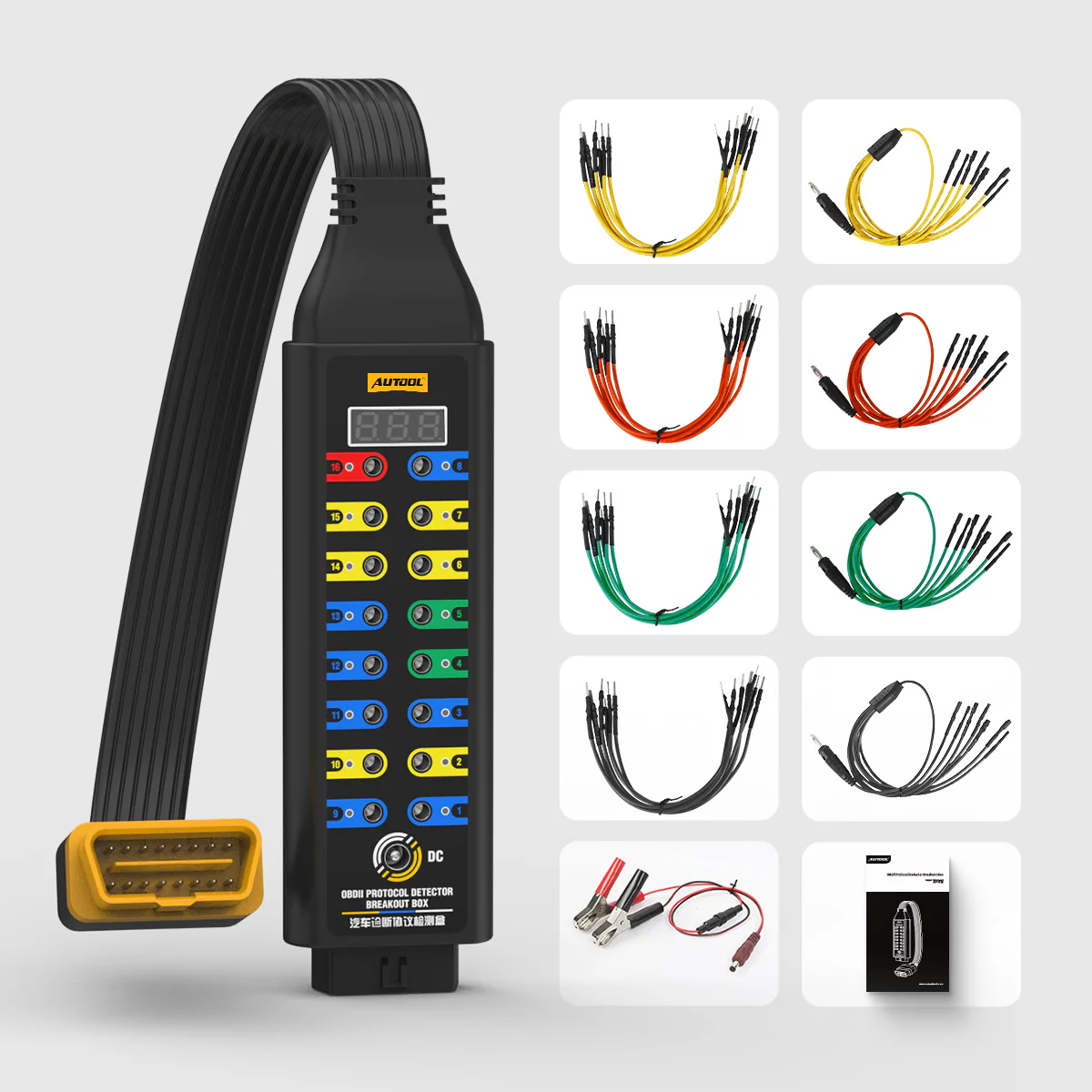

- Upgraded Breakout BoxMain device and 45 cm diagnostic connection.
- 配件Only the leads, power cable, and documentation shown for the selected version are included; confirm the option before ordering.
常見問題
Upgraded OBDII Breakout Box Fit and Function Questions
What Is An OBD2 Breakout Box Used For?
An OBD2 breakout box provides access to the OBD2 diagnostic link connector so users can monitor power, ground, protocol signals and voltage, while also making it easier to connect a diagnostic tool, multimeter or oscilloscope to the 16 OBD2 pins.
What Is The Difference Between Basic And Upgraded Version?
The Upgraded Version adds OBD voltage display, LED indicator and power cable support. The Basic Version is mainly for basic protocol, power, ground, 16-pin access and built-in input jack testing without these upgraded display and indicator functions.
Upgraded adds an OBD voltage display, LED indicators and 12 V temporary ECU backup support to the pin-access layout. Premium adds the 120 Ω mode; ask AUTOOL for the current specification and package list before purchase.
Does The Upgraded Version Support 120 Ω Series Resistor Mode?
No. The Upgraded Version does not support 120 Ω series resistor mode. The comparison chart identifies this function as a Premium Version feature.
Can I Use the Diagnostic Breakout Box with a Multimeter or Oscilloscope?
Yes. The built-in input jack fully emulates the 16-pin OBDII layout and can be used with a 4mm banana plug, multimeter or oscilloscope when you understand the vehicle circuit and pin function.
What Do The LED Indicators Mean?
The red indicator shows the pin 16 supply state. The green indicators show the pin 4 and pin 5 ground states. The yellow indicators show signal activity on the related communication pins.
Use the red, green and yellow LEDs as quick cues on the identified power, ground and communication pins, then use the circuit reference and an appropriate meter or oscilloscope for measurements.
Can It Supply Power To The ECU During Battery Replacement?
Yes. The DC power jack can connect to a 12V backup battery to provide temporary ECU power support during battery replacement or related service work.
What Should I Avoid When Using This Product?
- Do not directly short-circuit pin 16, pin 4 or pin 5.
- Do not use a jumper to short-circuit the input jack if you are not sure about the vehicle electrical circuit.
- Do not connect external load devices exceeding 1A, even though the product specification image lists a 2.0A load rating.
What Vehicles Is It Compatible With?
The OBD2 Breakout Box can be adapted to vehicles with an OBD2 interface and is designed for OBDII diagnostic link connector access.
Is The Breakout Box A Diagnostic Scanner?
No. It provides access and status indications. A compatible scanner, meter, oscilloscope, circuit information, and diagnostic method remain separate.
客戶評價
留言
還沒有評論率先分享您使用此產品的體驗。
