AUTOOL 基本型 OBD2 分線盒
US$59.00
主要特色
- Inline 16-Pin Access
- External Instrument Test Jacks
- 8–30 V Temporary ECU Backup
- 45 cm TPU Connection
- Inline 16-Pin Access: Keep a compatible scanner inline while exposing all 16 DLC pins for testing.
- External Instrument Test Jacks: Connect 4 mm leads, a multimeter, or an oscilloscope to the pin-level access points.
- 8–30 V Temporary ECU Backup: Use the DC input only with confirmed vehicle-circuit compatibility and polarity during an approved procedure; external load devices must not exceed 1 A.
- 45 cm TPU Connection: Move the breakout point away from the vehicle socket with the 45 cm flexible TPU cable.
- 3 年保用期 主機保固 3 年，配件保固 1 年
- 90日返回 符合條件的退貨可在 90 天內進行
- 官方店鋪 正品 · 直接支持

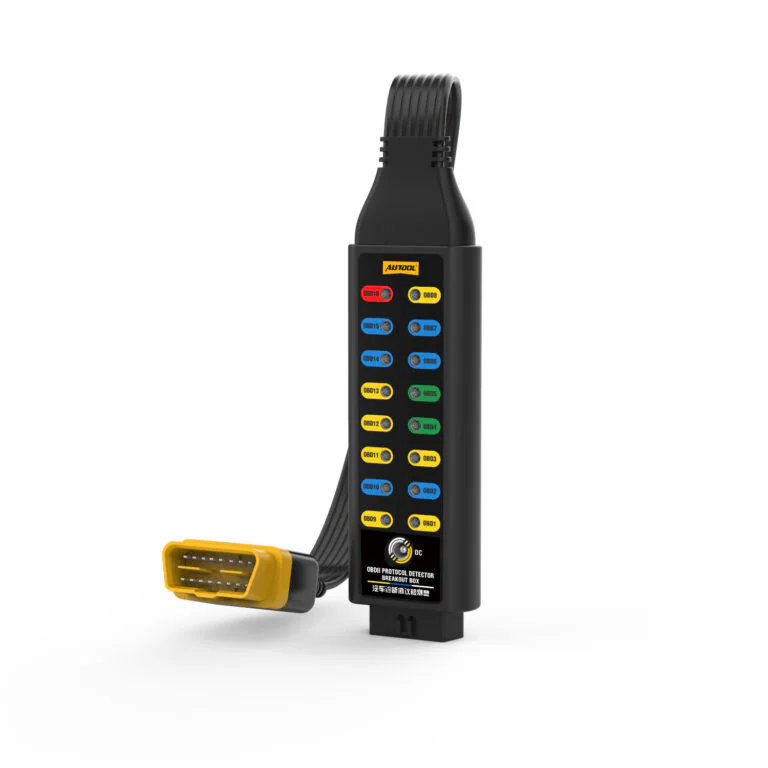

OBD2 Breakout Box Basic · Passive 16-Pin Test Access
Keep a Scanner Inline While Accessing Pins
Keep a compatible scanner inline while accessing all 16 DLC pins with a multimeter, oscilloscope, or compatible 4 mm leads through the Basic breakout box. Its flexible cable moves the test point away from the vehicle socket, and the external input supports approved temporary ECU backup procedures.
- 16-Pin DLC Breakout
- Inline Scanner Pass-Through
- 4 mm External Test Access
- 8–30 V Temporary Input
- 45 cm Connection
主要特色

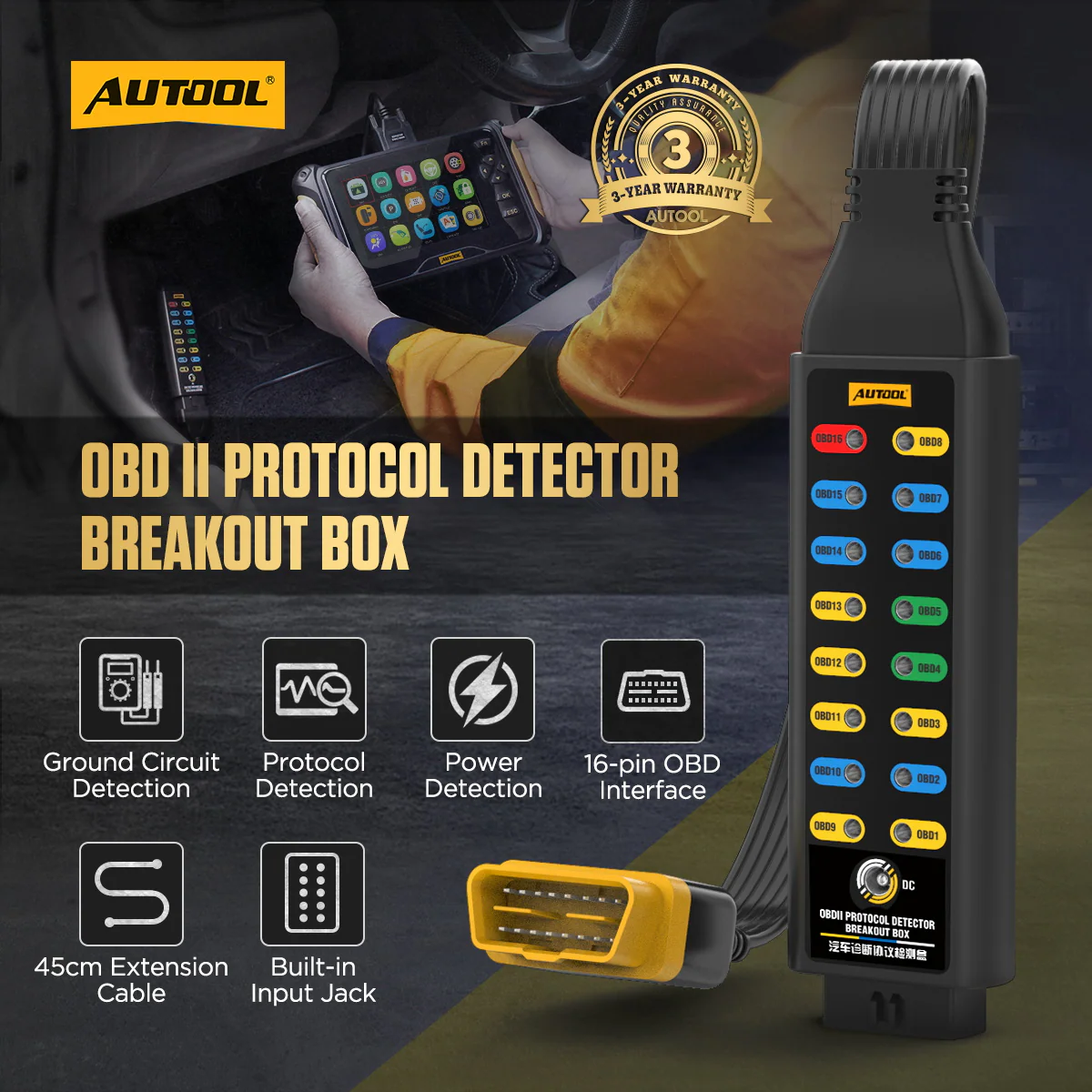

Expose All 16 Pins to External Test Equipment

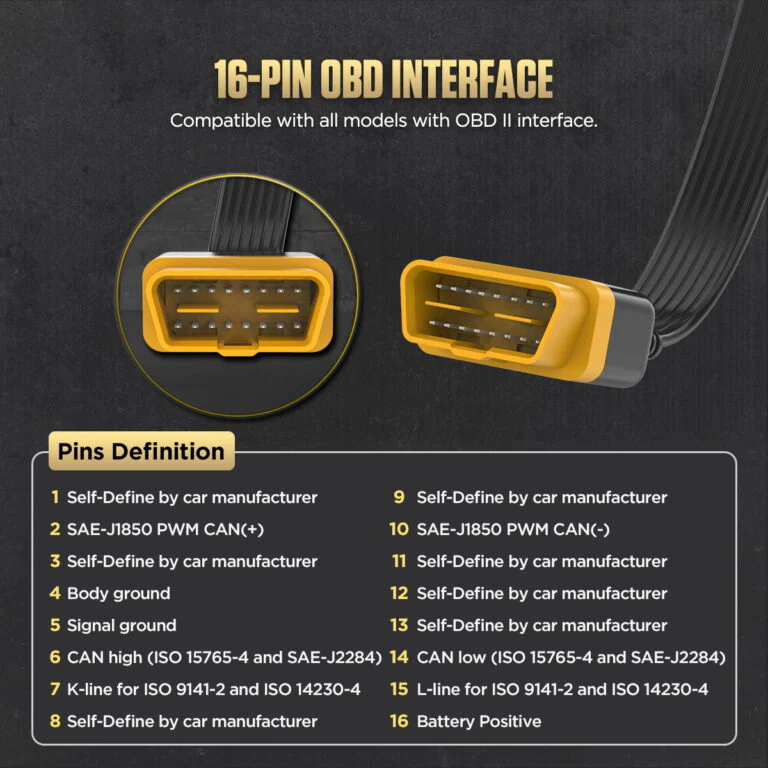

16-pin OBD Interface
Compatible with vehicles equipped with an OBD II interface, giving users access to the full 16-pin diagnostic connector and pin definition.

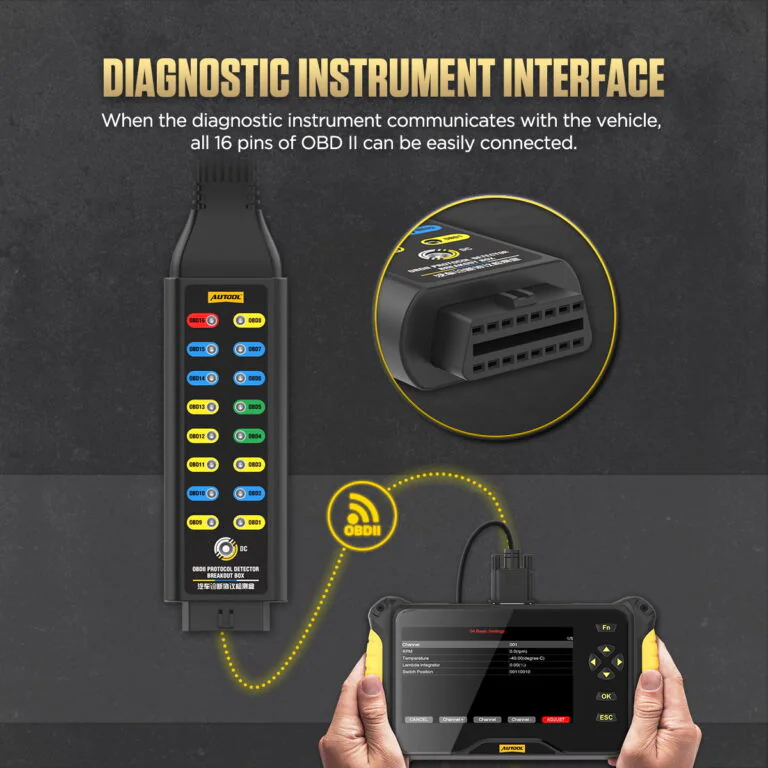

Diagnostic Instrument Interface
Allows the diagnostic instrument to communicate through the breakout box while making the OBD II pins easier to access for testing.
Built-in 16-pin Input Jack
The breakout layout mirrors the OBD II 16-pin connector, providing accessible 4 mm test jacks for compatible multimeter, oscilloscope, or banana-plug leads when a signal is uncertain.

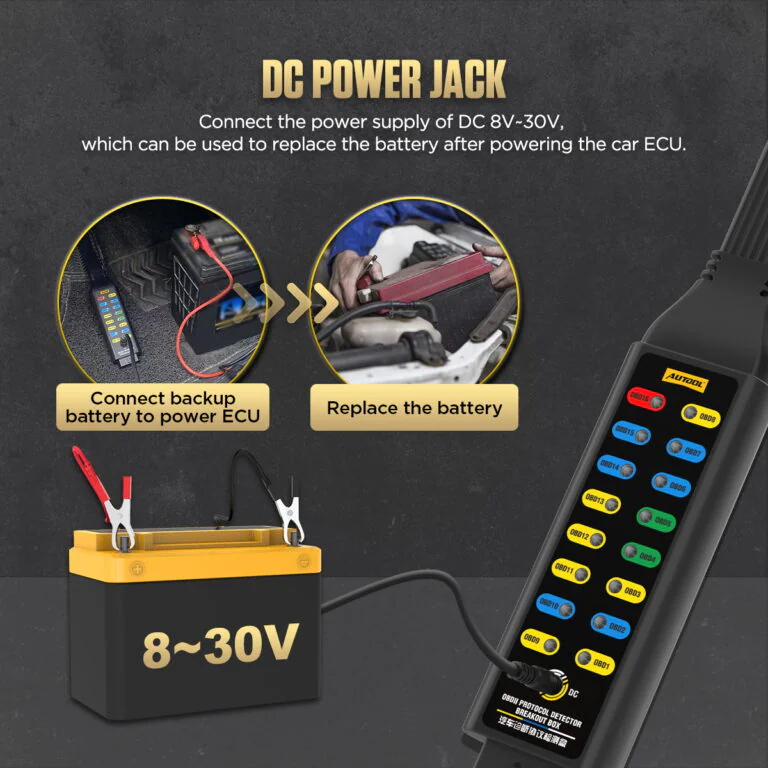

DC 8-30V Power Jack
The DC power jack can connect to an 8-30V power supply, making the breakout box useful for ECU backup power support during battery replacement when the circuit is confirmed safe.

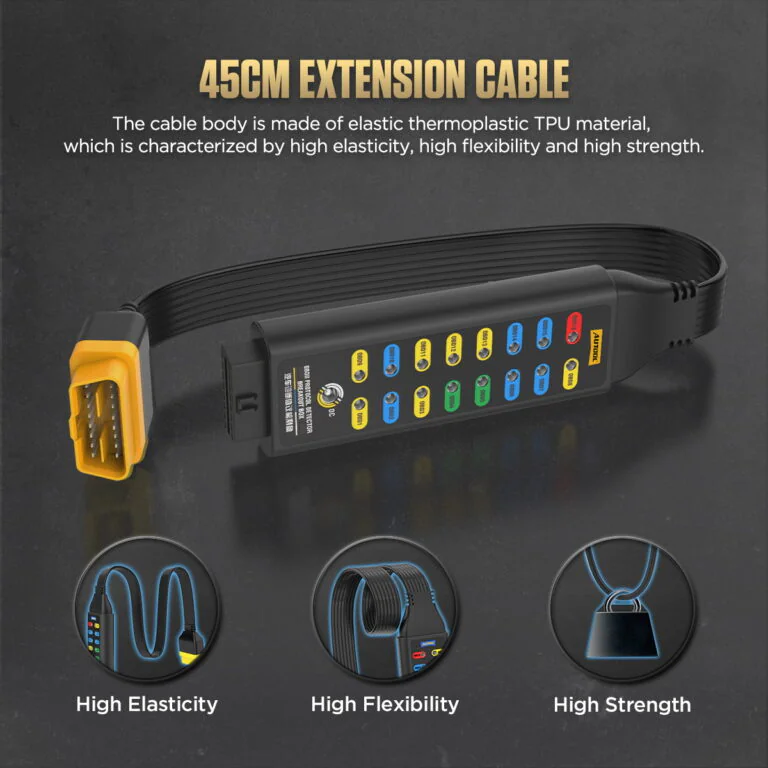

45cm TPU Extension Cable
The OBD II extension cable is made of elastic thermoplastic TPU material for high elasticity, flexibility, and strength.
Protocol / Power / Ground Access
Exposes the relevant DLC pins so a compatible scanner, multimeter or oscilloscope can observe communication behavior, supply voltage and ground voltage drop under the defined vehicle state. The Basic box does not perform those measurements itself.
External Instrument Pin Access
The Basic version provides direct access to signal, supply and ground pins. Use the vehicle diagram and external test equipment to measure and interpret the circuit.
Measurement Boundary
Use the Basic box’s accessible 16-pin breakout jacks with an external meter or oscilloscope to check voltage, waveforms, ground loading, and bus activity; Basic has no built-in LED indicators or voltage display.
3年保固支持
主機：三年保固。標準配件：一年保固。保固政策。
如何使用
Connect the Scanner and External Test Tools
步驟進展1 / 5
01
Identify The Circuit
Use the correct vehicle wiring diagram to identify DLC pin functions, expected voltage, ground, network, and safe test method.
02
Inspect And Connect
With the vehicle in the required state, inspect the DLC and connect the breakout box without forcing or back-feeding pins.
03
Check Power And Grounds
Verify connector supply and grounds with a suitable meter before interpreting communication activity.
04
Observe And Measure
Keep the scanner inline when required and use test jacks with the appropriate multimeter or oscilloscope.
05
Record The Result
Save vehicle state, pin, reference, voltage or waveform, scanner result, and any changes when the box is removed.
安全性和相容性
Check Voltage, Load and Pin Connections
Qualified Pin-Level Testing
Incorrect jumpers, back-feeding, loads, or probe connections can damage vehicle networks and modules.
No Direct Shorts
Do not directly short pin 16 to pins 4 or 5, or bridge unknown test jacks.
External Load Limit
External load devices must not exceed 1 A.
External Measurement Required
The Basic variant provides pin access without built-in LED or voltage display. Electrical conclusions require the correct diagram, meter or oscilloscope, reference point and vehicle state.
後備電源
Use external power only with a confirmed circuit and vehicle procedure; it is not a universal programming supply.
No 120 Ω Mode
Basic version does not include the switchable 120 Ω series-resistor mode.
護理與安全須知
This product connects directly to the vehicle data link. Improper use may damage the communication system or related circuits, so stop if the target circuit or operation is not understood. Do not jumper an unknown circuit or directly short pins 16, 4, and 5.
成績
Turn Pin Access into Measured Evidence
Power And Ground
Record measured supply and voltage-drop/ground results under the defined load and vehicle state.
溝通活動
Record compatible scanner behavior and capture the relevant external meter or oscilloscope measurement at the identified pin before reaching a communication conclusion.
Pass-Through Comparison
Compare scanner communication with direct connection and with the breakout box inline to detect setup-induced changes.
網路診斷
Interpret resistance, bias voltage, waveform, termination, and module isolation only through the vehicle-specific network procedure.
模型比較
Choose Access, Display and Indicator Features
模型指南
Choose one or more models. Basic Version is selected by default.
已選擇 1 個模型
未選擇任何型號。請選擇一個型號進行比較。

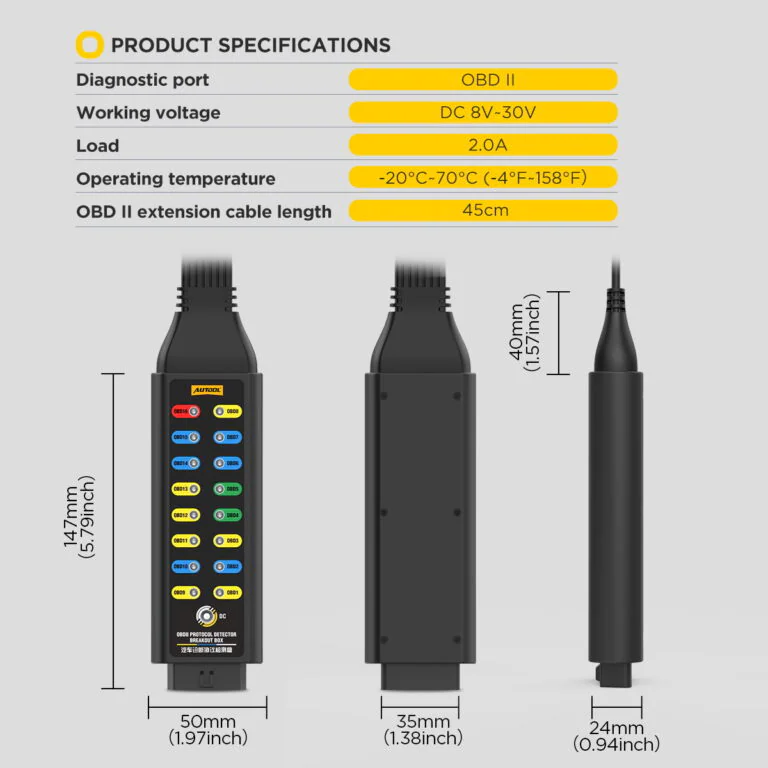

| 產品描述* | 基本版本 | 升級版 | 高級版 |
|---|---|---|---|
| Connection & Operating Limits | |||
| 診斷端口 | OBD2 | OBD2 | OBD2 |
| 工作電壓 | DC 8V〜30V | DC 8V〜16V | DC 6V-30V |
| 加載 | 2.0 A rated; external load must not exceed 1 A | 2.0 A rated; external load must not exceed 1 A | 2.0 A rated; external load must not exceed 1 A |
| 工作溫度 | -20℃~70℃（-4°F~158°F） | -20℃~70℃（-4°F~158°F） | -20℃~70℃（-4°F~158°F） |
| OBD2 Extension Cable Length | 45CM | 45CM | 45CM |
| Display & Power Hardware | |||
| OBD Voltage Display | × | ✓ | ✓ |
| LED指示燈 | × | ✓ | ✓ |
| 電力電纜 | × | ✓ | ✓ |
| Built-in Input Jack | ✓ | ✓ | ✓ |
| Test Access & Circuit Checks | |||
| Protocol Signal Test Access | ✓ | ✓ | ✓ |
| 電源檢測 | ✓ | ✓ | ✓ |
| Ground Circuit Detection | ✓ | ✓ | ✓ |
| 16-pin OBD Interface | ✓ | ✓ | ✓ |
| 120Ω Series Resistor Mode | × | × | ✓ |
手冊和支持
確認連接埠、引腳排列和工具適配性
AUTOOL OBD2 Breakout Box Basic User Manual
Open the PDF manual for Basic breakout-box connection, inline scanner access and 16-pin testing, with external-instrument safety and troubleshooting support.

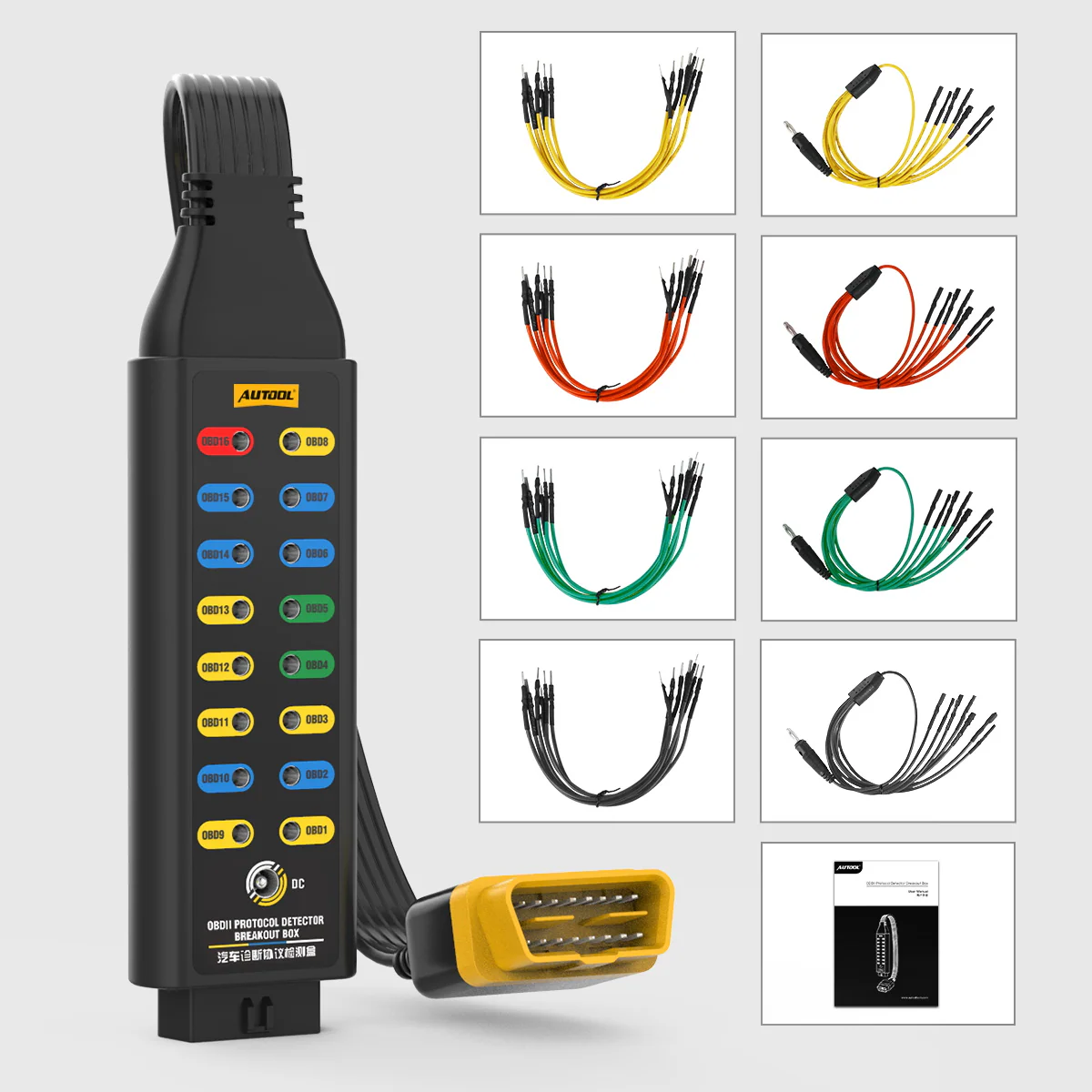

包裝內容
Check the Basic Breakout Box and Included Accessories
- Basic Breakout BoxMain device and 45 cm diagnostic connection.
- 配件Only the leads, power cable, and documentation shown for the selected version are included; confirm the option before ordering.
常見問題
連接器、適配器和功能問題
是什麼 AUTOOL OBD2 Breakout Box Used For?
It provides access to the OBD2 diagnostic link connector so a compatible scanner, multimeter or oscilloscope can observe communication behavior, power and ground conditions. The Basic box itself has no LED indicator or voltage display.
Can I Use the Diagnostic Breakout Box with a Multimeter or Oscilloscope?
Yes. The built-in test interface exposes the 16 connector pins for compatible multimeter or oscilloscope leads when an unconfirmed signal needs to be checked.
Does The Basic Version Have OBD Voltage Display Or LED Indicator?
No. According to the comparison chart, the Basic Version does not include OBD voltage display or LED indicator light. These features are available on the Upgraded and Premium versions.
What Is The Working Voltage Of The Basic Version?
The Basic Version works with DC 8V-30V.
Can I Use It For ECU Backup Power During Battery Replacement?
Yes. The DC power jack supports DC 8V-30V power input for ECU backup power. Use this function only when the vehicle circuit and operation are confirmed safe.
What Should I Avoid During Use?
Do not use jumpers to short-circuit unknown circuits, do not connect a load device exceeding 1A, and do not directly short-circuit pin 16, pin 4, or pin 5. If you are not sure whether an operation may cause damage, stop using the product immediately.
What Is The Difference Between Basic, Upgraded And Premium?
Basic provides direct access to the 16 OBD2 pins without built-in LED indicators or a voltage display. Check the exact part number and current package contents for the version you choose before purchase.
Is The Breakout Box A Diagnostic Scanner?
The Basic box provides direct DLC-pin access for measurements with a compatible scanner, multimeter, or oscilloscope. Interpret the readings with the vehicle circuit information and test method.
