AUTOOL DM301 Automotive Oscilloscope Multimeter
US$109.00
主要特色
- Multimeter + 500 kHz Scope
- 1000 伏直流 / 700 伏交流
- 20 A Max / 10 A Continuous
- 1 Hz–1 MHz Frequency
- Multimeter + 500 kHz Scope: Combine voltage, current, resistance, frequency, diode, and ignition-pulse checks with a single-channel oscilloscope.
- 1000 V DC / 700 V AC: Measure up to 1000 V DC or 700 V AC within the selected terminal and probe ratings.
- 20 A Max / 10 A Continuous: Measure 0–200 mA in its dedicated mode, with 20 A maximum and 10 A continuous-current limits.
- 1 Hz–1 MHz Frequency: Measure supported automotive frequency signals from 1 Hz to 1 MHz.
- Vehicle Waveform Checks: Observe ignition, camshaft, crankshaft, wheel-speed, and oxygen-sensor signals with the proper probes.
- 3 年保用期 主機保固 3 年，配件保固 1 年
- 90日返回 符合條件的退貨可在 90 天內進行
- 官方店鋪 正品 · 直接支持
AUTOOL DM301 · Automotive Multimeter and 500 kHz Oscilloscope
Measure the Circuit and View Its Waveform
Measure automotive electrical values and view a single-channel waveform from one handheld tool. DM301 combines True RMS multimeter functions with a 500 kHz oscilloscope for ignition, camshaft, crankshaft, wheel-speed, and oxygen-sensor signal checks using the proper probes. Use its rated terminals and limits for high-voltage or current work.
- 500 kHz Single-Channel Scope
- DC 1000 V / AC 700 V DMM
- 1 Hz–1 MHz Frequency
- 2.8吋彩色顯示屏
- 可選鋰電池
主要特色
True-RMS Meter with Single-Channel Scope
500 kHz Scope + Automotive DMM
Combine voltage, current, resistance, frequency, diode, continuity-related, ignition-pulse, and basic waveform checks with a single-channel oscilloscope. The scope has stated 500 kHz analog bandwidth, a 1mS update rate, practical sweep-time and vertical-scale ranges, and one-button automatic waveform display.
DC / AC Voltage
Measure automotive-circuit voltage up to DC 1000V and AC 700V within the selected input, probe, and CAT conditions.
DC / AC Current
Measure 0-200mA current; the comparison range also lists 0-20A. The feature states 20 A maximum current and 10 A continuous current. Use the specified terminal, fuse, and lead for the selected mode.
Resistance + Diode
Measure resistance across the listed 0–1MΩ range and test diodes; the meter gives an audible alert when detected resistance is too low.
頻率測量
Measure frequency signals from 1Hz to 1MHz for common automotive electrical-signal checks.
Auto Range + True RMS
Select the measurement mode and connect the test leads; DM301 automatically selects a suitable range and supports True RMS readings.
2.8-Inch Adjustable Display
Adjust the brightness of the 2.8-inch color screen for clear, intuitive viewing in different workshop and vehicle-side environments.
多語言界面
Supports English, French, Portuguese, Polish, Spanish, Japanese, Russian, Italian, German, Dutch, Korean, Chinese, and Traditional Chinese.
SD Card Software Upgrade
Copy the application update file to an SD card and upgrade the instrument through the card.
可選鋰電池
DM301 accepts a compatible optional lithium battery. Batteries are purchased separately, and dry batteries must not be charged through the device.
Controls, Connections + Stand
Front-panel keys, the marked button area, labeled measurement and accessory connections, connector-position reference, and rear bracket keep operation accessible and support upright viewing.
Automotive Signals + Safety Boundary
Select engine cylinder type and ignition mode to help calculate engine speed, and use the scope or measurement modes to observe ignition, camshaft, crankshaft, wheel-speed sensor, oxygen-sensor, and other fuel-engine or low-voltage signals. Use only documented low-voltage or properly isolated measurements within the selected input, probe, and CAT conditions; do not probe an EV traction circuit or motor power bus without separately rated HV procedures and equipment.
Workshop Circuit Testing
Use voltage, current, resistance, frequency, diode, and continuity-related checks for vehicle electrical-circuit troubleshooting.
Portable Field Kit
The handheld 85 × 190 × 33mm body, flashlight, rear bracket, and plastic toolbox support field diagnosis on trucks, sedans, buses, electric vehicles, and other vehicle types while storing the unit and accessories and helping protect them from drops and impacts.
3年保固支持
主機：三年保固。標準配件：一年保固。保固政策。
服務工作流程
Choose Meter or Scope for the Signal
步驟進展1 / 5
01
Define the Measurement
Use the wiring diagram to identify the expected signal, reference point and safe measurement mode.
02
Inspect Leads and Ratings
Confirm the instrument, terminal, fuse, lead and probe ratings for the selected task before connecting.
03
選擇模式
Choose the supported voltage, current, resistance, continuity, frequency or other model-specific function and start on a safe range.
04
Probe the Circuit
Connect to the correct reference and test point without bridging terminals; use back-probing accessories only where appropriate.
05
Save and Compare the Reading
Save the value and operating state, then compare the reading with the vehicle specification.
安全使用
Protect the Input and Ground Reference
Dry Battery Option
DM301 can use 4 × 1.5V dry batteries according to the battery compartment requirement.
Do Not Charge Dry Batteries
Only a compatible rechargeable lithium battery can be charged through the device. Do not charge dry batteries.
不含電池
DM301 / DM303 are shipped without batteries. Please purchase compatible batteries separately before use.
可選鋰電池
A compatible lithium battery can also be installed by the user. Use the battery style shown as a reference before purchasing.
Interpret Multimeter and Waveform Results in Context
Use the input limit, terminal, fuse, lead and probe specified for the selected mode. Display counts, voltage range or waveform bandwidth do not extend the meter to an unlisted CAT or EV high-voltage task.
模型比較
Choose the Right Electrical Test Tool
模型指南
Choose one or more models. DM301 is selected by default.
已選擇 1 個模型
未選擇任何型號。請選擇一個型號進行比較。
| 產品描述* | DM301 | DM303 | DM208 |
|---|---|---|---|
| Measurement & Readout | |||
| 顯示屏 | 2.8吋彩屏 | 2.8吋彩屏 | 2.4-inch, 320 × 240 |
| 語言 | 13類型 | 13類型 | 沒有說明 |
| 電壓測量範圍 | AC: 0-700V DC: 0-1000V | AC: 0-700V DC: 0-1000V | 沒有說明 |
| 電流測量範圍 | 0–20 A (20 A maximum; 10 A continuous); 0–200 mA | 0–20 A (20 A maximum; 10 A continuous); 0–200 mA | 沒有說明 |
| 電阻測量範圍 | 0-1MΩ | 0-1MΩ | 沒有說明 |
| 頻率測量範圍 | 0-1MHz | 0-1MHz | 沒有說明 |
| Data Lock/Clear | ✓ | ✓ | 沒有說明 |
| Automotive Functions & Fit | |||
| 基本功能 | 6類型 | 12類型 | 沒有說明 |
| Automotive Circuit Drive Current | × | Maximum Output: 5A Maximum Input: 5A | 沒有說明 |
| Fuel Injector Drive Signal Output | × | X | 沒有說明 |
| 檢測方式 | Voltage Measurement Current Measurement Resistance Measurement Frequency Measurement Oscilloscope Mode Ignition Pulse Signal Testing | Current Measurement Resistance Measurement Frequency Measurement Oscilloscope Mode Fuel Injector Testing Relay Testing Automotive Circuit Testing Automotive Starting Testing Signal Simulation Testing CAN Line Data Reading Ignition Pulse Signal Testing K/LIN Line Data Reading | 沒有說明 |
| 適用車型 | Trucks, Sedans, Buses, Electric Vehicles, and Other Vehicle Types | Trucks, Sedans, Buses, Electric Vehicles, and Other Vehicle Types | 沒有說明 |
| Power & Equipment | |||
| 供電方式 | Dry Battery TYPE-C [Optional] Lithium Battery | Dry Battery TYPE-C 12V Rechargeable Battery [Optional] Lithium Battery | 內置2000 mAh鋰電池 |
| 配件 | 2 Types of Test Leads | 6 Types of Test Leads | 沒有說明 |
| 手電筒功能 | ✓ | ✓ | 沒有說明 |
| 配備工具箱 | ✓ | ✓ | 沒有說明 |
| 產品詳情 | |||
| 紅外線分辨率 | 沒有說明 | 沒有說明 | 32×32 |
| 幀速率 | 沒有說明 | 沒有說明 | 7 幀/秒 |
| 溫度範圍 | 沒有說明 | 沒有說明 | -20°C到550°C |
| Thermal accuracy | 沒有說明 | 沒有說明 | ±2°C or 2% (maker specification) |
| 發射率 | 沒有說明 | 沒有說明 | 0.10 to 1.00 adjustable |
手冊和支持
Find the Manual and Measurement Guidance

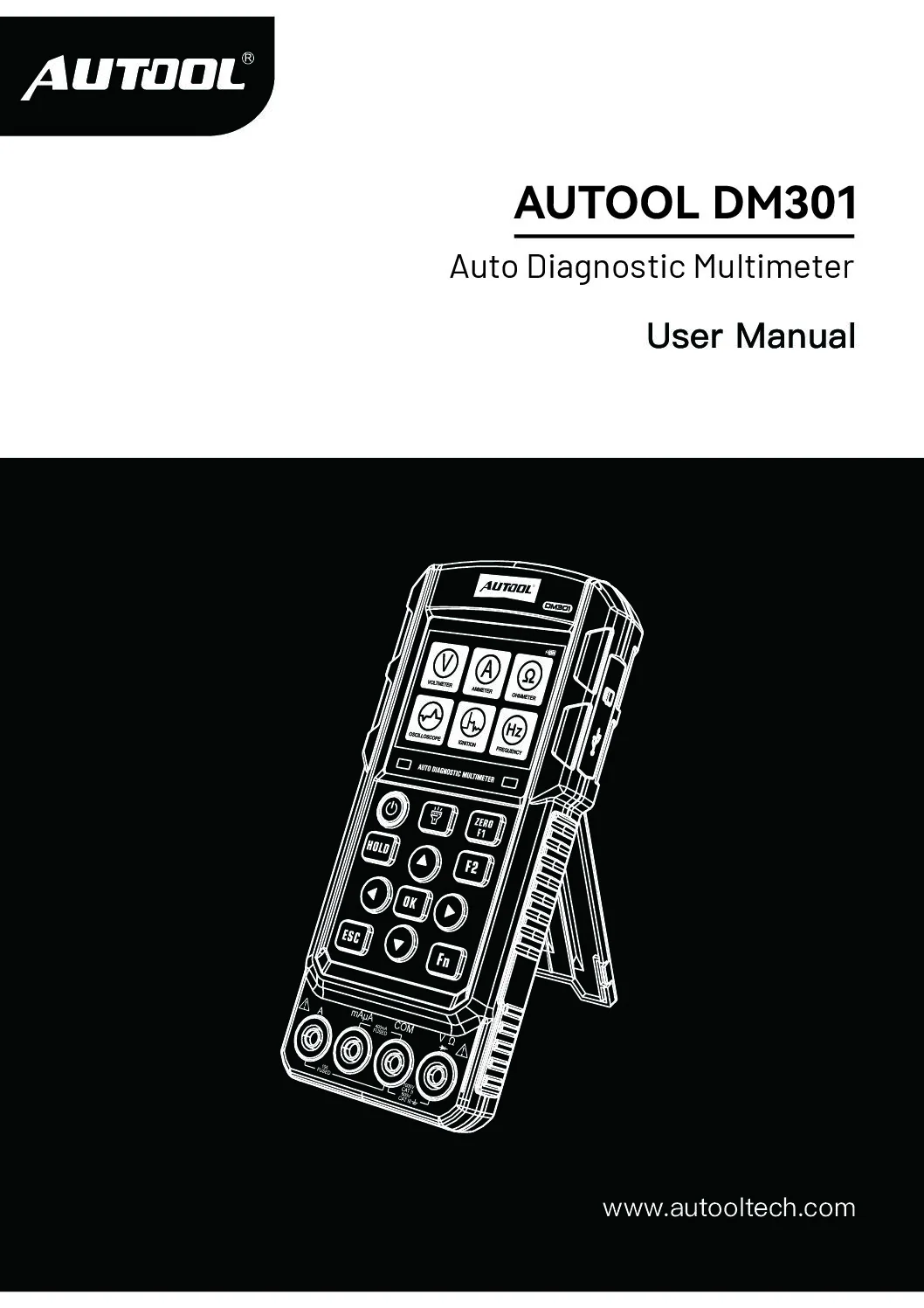

AUTOOL DM301 User Manual
開啟PDF手冊 AUTOOL DM301 multimeter measurements, single-channel waveform checks, probe and terminal selection, ignition and sensor diagnosis, electrical safety and troubleshooting support.
包裝內容
看看盒子裡裝了什麼
- 主機AUTOOL DM301 auto diagnostic multimeter
- 儲存Portable toolbox
- 測試線2 types of test leads
- 連接線DB-style connector cable
- 文档User manual and retail box
- 電池不包括電池
買家問題
Electrical Connection and Measurement Questions
是否 AUTOOL DM301 Include Batteries?
No. DM301 / DM303 are shipped without batteries. You need to purchase compatible batteries separately before use.
What Battery Can I Use For DM301?
DM301 can use 4 × 1.5V dry batteries according to the battery compartment requirement. A compatible lithium battery can also be installed by the user. Check the lithium battery reference image and confirm compatibility before purchasing.
Can I Charge Dry Batteries Through The Type-C Port?
No. Do not charge dry batteries. Only a compatible rechargeable lithium battery can be charged through the device.
What Is The Difference Between DM301 And DM303?
DM301 focuses on core automotive multimeter and oscilloscope functions, including voltage, current, resistance, frequency, oscilloscope, diode, and ignition pulse signal testing. DM303 adds more automotive-specific diagnostic modes, including fuel injector testing, relay testing, automotive circuit testing, starting testing, signal simulation testing, CAN line data reading, and K/LIN line data reading. DM303 also includes more test leads.
What Measurements Does DM301 Support?
DM301 lists DC/AC voltage and current, resistance, diode, frequency, ignition-pulse and single-channel waveform functions. The stated 500 kHz figure is analog bandwidth, not sampling rate; use the mode-specific input and probe limits.
What Accessories Are Included With DM301?
Package contents: DM301 main unit, portable toolbox, user manual, retail box, two types of test leads, and connector cable. Batteries are not included.
Can DM301 Software Be Updated?
Yes. The DM301 application software can be updated by copying the update file to an SD card and using the instrument’s SD card slot / data interface according to the manual instructions.
Where Can I Download The DM301 Manual?
Use the Download section in this Description page to open the AUTOOL DM301 Manual PDF. The manual covers setup, operation, measurement modes, oscilloscope use, settings, software update, and safety guidance.
客戶評價
留言
Zebulon Yeates ✓ 已驗證購買 -
我買了 AUTOOL automotive diagnostic multimeter finally received the goods…
我買了 AUTOOL automotive diagnostic multimeter finally received the goods, this brand of diagnostic instrument products a lot of very good, I will also buy other instruments!
Choo huatlim ✓ 已驗證購買 -
易於使用
Easy install 2A battery then can use it. Must at least charge 2 hours for first time
Lionel Crofts ✓ 已驗證購買 -
The test function is very comprehensive, it can be used as a multimeter, but…
The test function is very comprehensive, it can be used as a multimeter, but also can measure the ignition pulse, diode signal, and also can be used as an oscilloscope, it is really so convenient!
