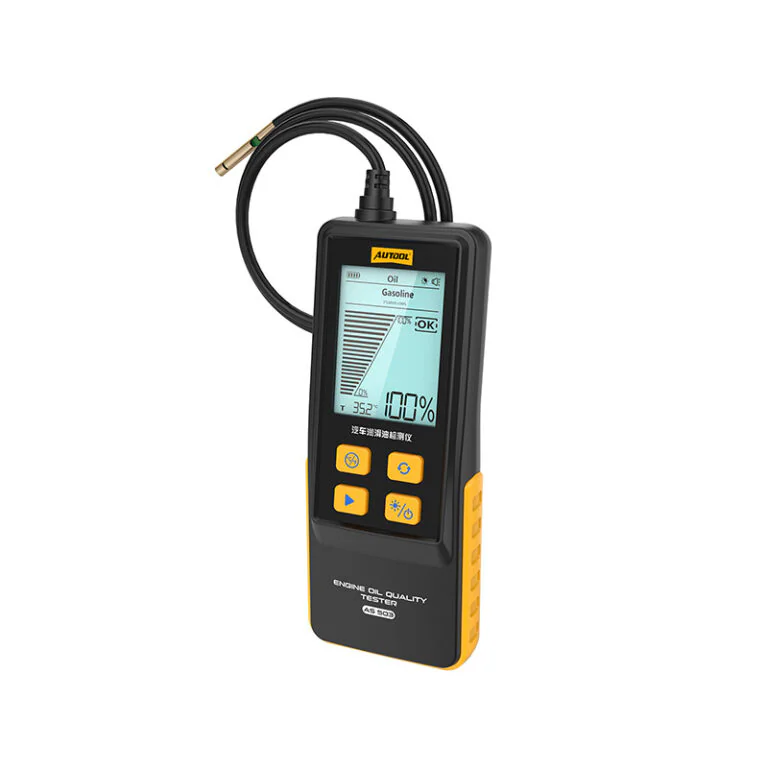

AUTOOL AS503 光學機油品質偵測儀
原價為：66.00 美元。US$39.00目前價格為：39.00 美元。
主要特色
- Optical Engine-Oil Screening
- Gasoline + Diesel Oil Modes
- 800 mm PTFE Probe
- Oil Temperature Display
- Optical Engine-Oil Screening: Measure engine-oil transmittance to screen for contamination and suspended particles that reduce transparency.
- Gasoline + Diesel Oil Modes: Choose separate gasoline or diesel engine-oil modes for the intended lubricant check.
- 800 mm PTFE Probe: Reach oil around the engine bay with the flexible, oil-resistant hose probe.
- Oil Temperature Display: View current oil temperature in °C or °F alongside the screening result.
- Status + Sound Prompts: Use screen symbols and sound reminders to distinguish acceptable, attention, and replacement guidance.
- 3 年保用期 主機保固 3 年，配件保固 1 年
- 90日返回 符合條件的退貨可在 90 天內進行
- 官方店鋪 正品 · 直接支持
AUTOOL AS503 · Engine Oil Tester with Transmittance Readout
Screen Engine Oil with Temperature Context
Use AS503 to screen engine-oil transmittance and temperature during maintenance. Separate gasoline and diesel modes, an 800 mm PTFE probe, and combined status prompts support quick comparisons under consistent sampling conditions.
- Optical Oil-Transmittance Screen
- Gasoline And Diesel Modes
- 800 mm PTFE Probe
- Oil Temperature Context
- 2.8-Inch Backlit Display
主要特色
Optical Engine Oil Reading with Gasoline and Diesel Modes
High-Precision Optical Probe
The integrated photoelectric transceiver sensor detects engine oil transmittance to help evaluate oil contamination and impurity level.
800mm Flexible PTFE Hose
The 800mm hose probe makes sampling easier around the engine bay. PTFE material resists oil, oxidation, and corrosion for longer service life.
Gasoline And Diesel Modes
Separate gasoline and diesel engine oil modes help users check different lubricant oil standards more accurately.
Oil Temperature Measurement
The built-in temperature sensor displays the actual oil temperature and supports °C / °F switching for easier reading.
2.8-Inch Backlit LCD
The backlit 2.8-inch screen shows battery level, selected engine type, transmittance, oil temperature, and result symbols clearly.
Sound Alarm And Result Reminder
The tester uses screen icons and sound reminders to help users decide whether the oil is acceptable, needs attention, or should be replaced.
Silicone Handheld Grip
The silicone grip supports single-handed operation when checking engine oil.
Battery-Powered Tester
The 175 × 72 × 29mm tester operates on 6V from four 1.5V batteries.
Engine Oil Transmittance
AS503 measures engine oil transmittance in gasoline and diesel modes to support oil condition checks.
Optical Probe Reading
The probe reads light transmission through engine oil and reflects contamination or suspended particles that affect transparency.
3年保固支持
主機：三年保固。標準配件：一年保固。保固政策。
服務工作流程
Select the Engine Mode and Sample Correctly
步驟進展1 / 7
01
Wipe The Probe
Wipe the test probe clean before use to reduce residue interference.
02
Remove The Dipstick
Remove the engine oil dipstick or access the engine oil testing point according to vehicle service requirements.
03
Select Engine Type
Press the engine type selection button to choose gasoline or diesel engine oil mode.
04
Submerge The Probe
Place the testing probe into the engine oil and make sure the sensing area is properly submerged.
05
Start The Test
Press the test button and allow the tester to complete the reading process.
06
Read The Result
The display shows the transmittance percentage, result symbol, and current oil temperature.
07
Probe-Based Oil Check
Clean the probe, select gasoline or diesel mode, then immerse the probe in the oil and start the test. Read the transmittance and temperature on the display.
安全使用
Treat the Score as a Screening Result
Engine Oil Only
AS503 is intended for gasoline and diesel engine lubricating oil. It is not a brake fluid, transmission fluid, or power steering fluid tester.
Optical Detection Limit
Because AS503 uses an optical detection probe, it is not suitable for engine oils containing molybdenum disulfide (MoS₂), organic molybdenum, graphene, or similar additives.
Suzuki J20A Not Supported
AS503 does not support the Suzuki J20A engine. Contact AUTOOL Store before ordering if this engine is your intended application.
Check Oil Additives
Do not use AS503 with oils containing molybdenum disulfide, organic molybdenum or graphene additives.
建議檢查間隔
Use AS503 as a reference check every 5,000-10,000 km, depending on engine condition, oil type, driving environment, and maintenance schedule.
Interpret Engine Oil Transmittance in Context
Select only a listed fluid and use a clean, representative sample. The condition score is the tester’s screening output, not a direct measurement of viscosity, wear metal, contamination species or remaining service life.
模型比較
Choose the Right Fluid Test Method
模型指南
Choose one or more models. AS503 is selected by default.
已選擇 1 個模型
未選擇任何型號。請選擇一個型號進行比較。
| 產品名稱 | AS501 Brake Fluid Tester | AS502 Brake Fluid Tester | AS503 Engine Oil Quality Tester | AS505 Transmission Fluid Tester | AS506 煞車油沸點測試儀 | AS507 Power Steering Fluid Tester | AS509 Coolant Boiling Point Tester |
|---|---|---|---|---|---|---|---|
| Test Method & Application | |||||||
| 檢測技術 | Pressure Boost Detection Technology | Water-content screening; no hydraulic pressure generation or measurement | Optical Probe Technology | Optical Probe Technology | Sample Heating Technology | Optical Probe Technology | Sample Heating Technology |
| 工作原理 | Brake Fluid (Water Content) | Brake Fluid (Water Content) | Engine Oil (Transmittance) | Transmission Fluid(Transmittance) | Brake Fluid (Boiling Point) | Steering Fluid (Transmittance) | 冷卻液 |
| Test Mode Selection | 正常模式 | Normal Mode/Expert Mode | Gasoline Engine/Diesel Engine | Automotive Transmission Fluid | Normal Mode/Brand Mode | Automotive Steering Gear | Normal Mode/Brand Mode |
| Boiling Point Reference Value | × | × | × | × | ✓ | × | ✓ |
| 正常模式 | 6類型 ENV-4、ENV-6 DOT3、DOT4、DOT5、DOT5.1 | 3類型 DOT3、DOT4、DOT5.1 | × | × | DOT3, DOT4 and DOT5.1 (procedure-confirmed selections) | × | 23 Coolant Brands For ACDELCO、BASF、BOSCH、CASTROL、ENGINE_ICE、EVANS、FORD、HONDA、JOHN_DEERE、KUNLUN、MOBIL、MOPAR、NISSAN、OMTECH、PEAK、PRESTONE、RECOCHEM、SHELL、SKI-DOO、ZEREX、STAR_BRITE、TOTAL、TOYOTA |
| Measurement & Response | |||||||
| Temperature Unit Switching | × | × | ℃/℉ | ℃/℉ | ℃/℉ | ℃/℉ | ℃/℉ |
| 溫度測量範圍 | × | × | 0-85℃ 0-185°F | 0-85℃ 0-185°F | 0-320℃ 0-608°F | 0-85℃ 0-185°F | Diluted Coolant Boiling Point Range： 100°C~120°C（212°F~248°F） Original Manufacturer Coolant Boiling Point Reference Range 106°C~191°C（221°F~376°F） |
| 測試時間 | 10s Response | 10s Response | 10s Response | 10s Response | 16s Response | 10s Response | 20~40s Response |
| Display, Probe & Power | |||||||
| Backlit Display Screen | 1.8英寸 | 2.8英寸 | 2.8英寸 | 2.8英寸 | 1.54英寸 | 2.8英寸 | 1.6英寸 |
| Test Cable Length | 26cm | 26cm | 80cm | 80cm | 4cm | 80cm | 130cm |
| 電源電壓 | 3V | 6V | 6V | 6V | 12V | 6V | 10-14V |
| 軟管材質 | 氧化鐵 | 304不銹鋼 | 鐵氟龍 | 鐵氟龍 | × | 鐵氟龍 | × |
手冊和支持
Find the Manual and Fluid-Test Guidance

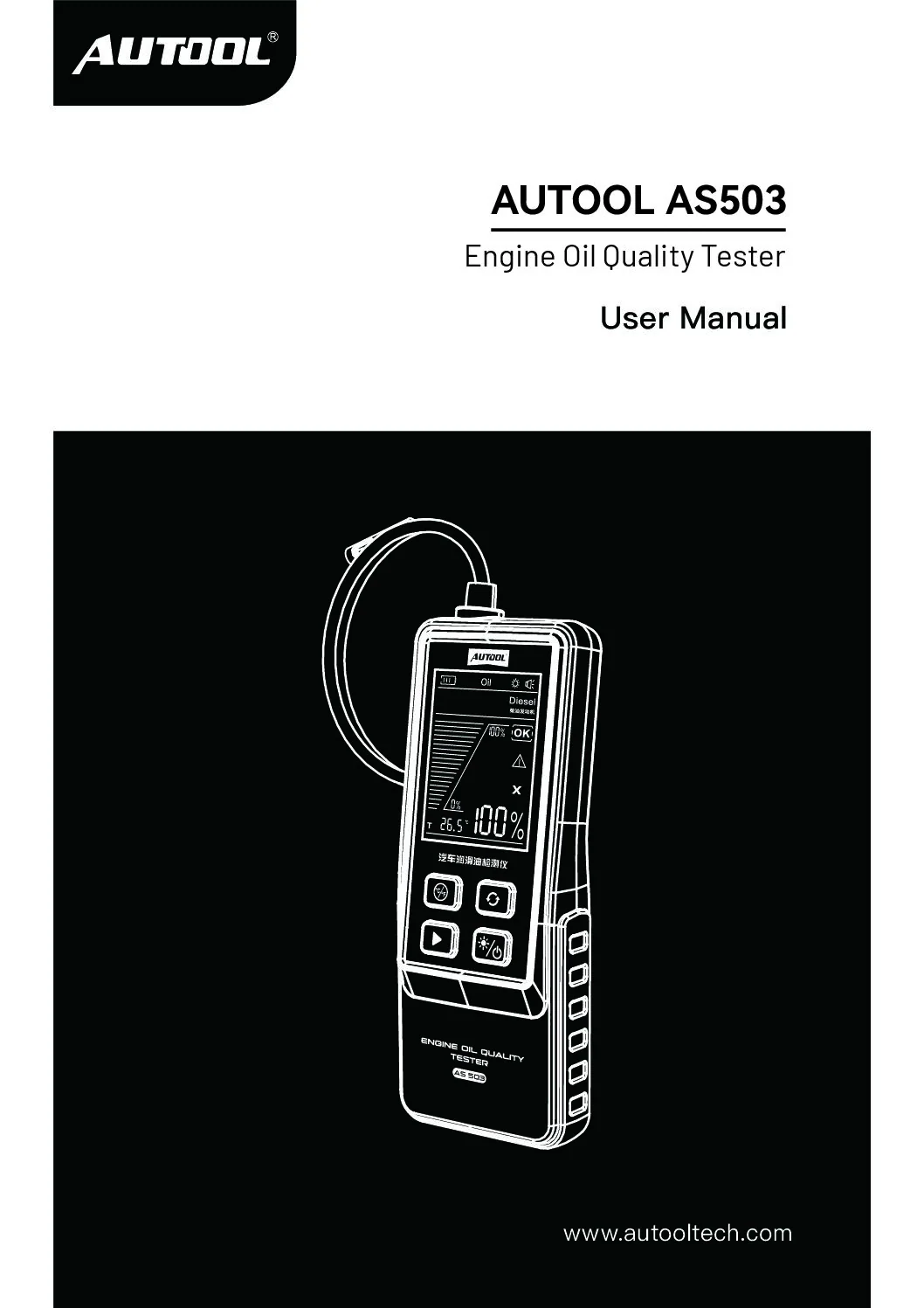

AUTOOL AS503 User Manual
開啟PDF手冊 AUTOOL AS503 gasoline and diesel oil testing, optical-probe use, temperature measurement, result interpretation, cleaning, safety and troubleshooting support.
包裝內容
看看盒子裡裝了什麼
- 主機AUTOOL AS503 engine oil quality tester with integrated flexible probe
- 項目Probe Built-in 800mm PTFE / Teflon hose probe
- 文档用戶手冊
- 小包裝AS503 retail box
- 項目Power Requirement Requires 4 × 1.5V batteries; inclusion should follow the final package listing
買家問題
Fluid Fit, Method and Result Questions
有什麼作用 AUTOOL AS503 Test?
AS503 tests gasoline and diesel engine lubricating oil by checking oil transmittance with an optical probe. It also displays the current oil temperature to help users evaluate engine oil condition during maintenance.
Can AS503 Test Both Gasoline And Diesel Engine Oil?
Yes. AS503 supports separate gasoline engine and diesel engine oil mode selection. Select the correct engine type before starting the test.
How Should I Read The Transmittance Result?
- When transmittance is between 100% and 50%, oil replacement is generally not required.
- When it is between 50% and 30%, the screen shows a warning symbol.
- When it drops below 30%, the tester beeps and suggests immediate oil replacement.
- Use the result together with actual vehicle service requirements.
Which Engine Oils Are Not Suitable For AS503?
AS503 relies on optical detection, so it is not suitable for engine oils containing molybdenum disulfide (MoS₂), organic molybdenum, graphene, or similar substances. These additives may affect optical analysis results.
Does AS503 Support Suzuki J20A Engine Testing?
No. AS503 does not support the Suzuki J20A engine. Contact AUTOOL Store for compatibility help with another model or engine.
How Often Should I Test Engine Oil?
A practical reference is to check engine oil every 5,000-10,000 km, depending on oil type, driving conditions, vehicle age, engine condition, and the maintenance schedule recommended for the vehicle.
What Batteries Does AS503 Use?
AS503 uses 6V power from 4 × 1.5V batteries. Battery inclusion should follow the final package listing, so do not assume batteries are included unless confirmed.
What Should I Do If The Hose Or Probe Gets Stuck?
Do not force the hose or probe out if it becomes jammed. Stop operation, check the surrounding position carefully, and contact support if you are unsure how to remove it safely.
What Is Included In The Box?
Package contents: AS503 main unit with integrated flexible probe, user manual, and retail box. AS503 requires 4 × 1.5 V batteries; battery inclusion follows the selected package listing.
What Is The Difference Between AS503 And Other AUTOOL Fluid Testers?
- AS503 is for gasoline and diesel engine oil transmittance testing.
- AS501 and AS502 are brake fluid water content testers.
- AS505 is for transmission fluid transmittance.
- AS506 is a brake fluid boiling point tester.
- AS507 is for power steering fluid transmittance.
保固期有多長？
主機：三年保固。標準配件：一年保固。保固政策。
Can AS503 Replace Professional Oil Laboratory Analysis?
AS503 provides quick oil-transmittance and temperature checks for maintenance screening. Use professional oil analysis when chemical composition or wear-metal data is required.
