AUTOOL SDT208 Dual-Pressure Automotive Smoke Machine

(66 Müşteri yorumları)

US$429.00

Ana Özellikler
  • EVAP / Standard Pressure Modes
  • 12/24 V Vehicle Power
  • Pressure + Flow Monitoring
  • Air + Smoke Modes
Ana Özellikler
☰ TOPLU / B2B TEKLİFİ İSTEYİNResmi Teklif Talebi
  • 3-Yıl Garanti Ana ünite 3 yıl · Aksesuarlar 1 yıl
  • 90 Günü İadesi 90 gün içinde iade edilebilir.
  • Resmi Mağaza Orijinal ürünler · Doğrudan destek

AUTOOL SDT208 · 12/24 V Dual-Pressure Smoke Leak Detector

Select EVAP or Standard Pressure Before Smoke Tracing

Choose EVAP or Standard mode only after confirming the vehicle or component procedure and its permitted test pressure. From compatible 12 V or 24 V power, watch pressure and airflow in Air Mode, adjust delivery, then switch to Smoke Mode to trace the visible leak path.

  • EVAP And Standard Mode Selection
  • 12 V / 24 V Power
  • Pressure And Flow Feedback
  • Adjustable Test Delivery
  • Air Check, Then Smoke Trace
AUTOOL SDT208 duman kaçağı dedektörü

Ana Özellikler

Dedicated EVAP and Standard Pressure Controls

Standard and EVAP Pressure Modes

Standard Mode is rated at 35 psi, while EVAP Mode is rated at 10 psi to better protect EVAP lines during testing. Standard Mode supports output up to 35 psi, while EVAP Mode stays below 10 psi. Select either mode only when the vehicle or component service procedure permits that pressure.

Tiny-Leak Checks

EVAP Mode supports controlled repair-shop EVAP checks, including tiny leaks down to about 0.5 mm, while pressure protection helps protect the system under test. After connecting and isolating the system at a permitted pressure, use visible smoke to inspect accessible joints, hoses, and seals for an escape path.

Hava Akışı Ölçer

The airflow meter helps identify possible leaks by showing changes in airflow.

Akış Kontrol Vanası

The airflow control valve lets you adjust airflow into the test line.

Basınç ölçer

The pressure gauge helps identify a possible leak by showing pressure changes.

Air Mode and Smoke Mode

The smoke generator supports Air Mode for pressure monitoring and Smoke Mode for visual leak location.

Dahili Hava Pompası

No external air supply is required. The built-in pump simplifies setup for workshop and mobile repair use.

Duman yaklaşık 5 saniye içinde çıkmaya başlar.

The smoke generator produces smoke in about 5 seconds after the power, oil, and test-line setup is complete.

EVAP, Intake and Vacuum-Line Checks

Use this evaporative emission system tester in EVAP Mode, with EVAP tools that match the vehicle test port, to check for leaks. It also helps locate leaks in intake lines, throttle-related lines, vacuum lines, and engine-sealing areas.

Exhaust, Crankcase, Fuel-Tank, Line and Turbo Checks

Supports visual leak checks on exhaust sections, crankcase systems, and line fittings. It can also assist with low-pressure checks around fuel-tank sealing areas and automotive line connections. Use it for selected low-pressure turbo, intercooler, and air-path leak checks within the stated pressure limits.

Visible Oil Level Gauge

The SDT208 interface includes an oil level gauge together with the airflow meter, pressure gauge, power indicator, and alarm indicator.

Aşırı Isınma ve Düşük Sıcaklık Koruması

Automatic overheat protection shuts off power above 75°C, and the unit supports operation down to -20°C.

3 Yıl Garanti Desteği

Ana ünite: 3 yıl garanti. Standart aksesuarlar: 1 yıl garanti. Garanti Politikası.

Nasıl Kullanılır?

Confirm the System, Select Mode, Seal, Test, and Inspect

Adım ilerleme1 / 7
01

Test Yağı Ekleyin

Fill 10–15 mL baby oil or liquid paraffin into the detector before use. Do not overfill.

Güvenlik ve Uyumluluk

Never Apply Standard Mode to a Low-Pressure EVAP Task

12V / 24V Power and Built-In Air Pump

Connect SDT208 to a 12V or 24V DC battery before use. The built-in air pump provides the test airflow, so you do not need an external compressor.

Choose the Pressure Mode Before Testing

Use EVAP Mode for EVAP-focused testing below 10 psi. Standard Mode is available up to 35 psi, but select it only when the vehicle or component service procedure permits that pressure range.

Use the Oil-Level Gauge, but Keep the 10–15 mL Fill Limit

Testing oil is not included. Use liquid paraffin or baby oil, add 10–15 mL before use, and use the oil-level gauge to check the current oil volume without overfilling.

Sürekli kullanımı 8 dakika ile sınırlayın.

Do not run SDT208 continuously for more than 8 minutes. Automatic overheat protection shuts the unit down above 75°C. Let the unit cool before restarting.

Çalışma Sıcaklığı ve Sıcak Yüzeyler

SDT208, -20°C'ye kadar düşük sıcaklıklarda çalışmayı destekler. Yuvarlak metal gövde kullanım sırasında ısınabilir, bu nedenle sıcak yüzeylere doğrudan temas ettirmekten kaçının.

Do Not Use for Direct High-Pressure A/C Testing

Standard Mode can reach up to 35 psi, but SDT208 still cannot directly pressure-test an automotive A/C high-pressure system. If a service procedure permits smoke on an isolated A/C line section, use smoke only as an indirect visual aid.

Match the Adapter and Test Procedure to the System

Use the correct adapter and pressure mode for the selected system. Follow the vehicle or component service procedure, and do not introduce smoke or pressure where the procedure does not permit it.

Trace the Leak with Smoke

Use visible smoke to trace the leak area. If no smoke appears, recheck isolation, flow, and the test setup before continuing.

Çalışır haldeyken asla yakıt doldurmayın.

SDT208 çalışırken test yağı doldurmayın.

Respect Selected Mode Limits

Use pressure and airflow controls only within the selected mode’s permitted range.

Cool Before Restarting

Let the unit cool before restarting after overheat protection is triggered.

Test Sonuçları

Interpret Pressure, Flow, and Smoke by Selected Mode

Use Pressure and Flow to Guide Inspection

Use the pressure gauge and flow meter to assess system behavior and guide the next leak-inspection step.

Visible Smoke Escape

Check that the outlet is not an intentional opening, then inspect, repair and retest the exact area.

No Visible Smoke

Verify access, isolation, valve state and smoke delivery before moving to functional diagnosis or another test method.

Modelleri Karşılaştır

Compare Pressure Modes and Vehicle Power

Model Rehberi

Bir veya daha fazla model seçin. Varsayılan olarak SDT208 seçilidir.

1 model seçildi

AUTOOL SDT208 seçildi. Yan yana karşılaştırma için başka bir model seçin.

SDT208 karşılaştırması

Karşılaştırılması AUTOOL Duman Kaçağı Dedektörleri
Ürün adıSDT208
Duman Çıkışı ve Koruma
Çalışma prensibi
Düşük Oksijenli Yanma
Yağ Dolum Hacmi Testi
10-15ml
Nominal Çıkış Basıncı
<10 psi / 35 psi machine modes; select by the vehicle procedure.
Nominal Çıkış Akışı
<15 L/dak
Yüksek Sıcaklık Koruması
75°C'nin üzerinde çalışmayı durdurur.
Tepki Süresi
5 saniyede duman çıkarır.
Güç ve Fiziksel Boyut
Giriş gücü
DC12V / 24V
Artan güç
80W
Net Ağırlık (Ana Ünite)
4.2kg
Ana Ünite Boyutları
350mm * 250mm * 300mm
İzleme ve Kontroller
Akış Ölçer Penceresi
✓
Basınç ölçer
✓
Hava Kaynağı Türü
Dahili Hava Pompası
Mod Çıkışı
Hava Modu
Duman Modu
Çift Basınç Modu
Standart 35 psi / EVAP 10 psi makine modları; araç prosedürünü kullanın.
Akış Ayar Düğmesi
✓
Yağ Tahliye Vanası
✓
Arıza Gösterge Işığı
✓
Yağ seviye göstergesi
✓

Kullanım Kılavuzu ve İndirmeler

Kurulum ve basınç testi için kullanım kılavuzuna bakın.

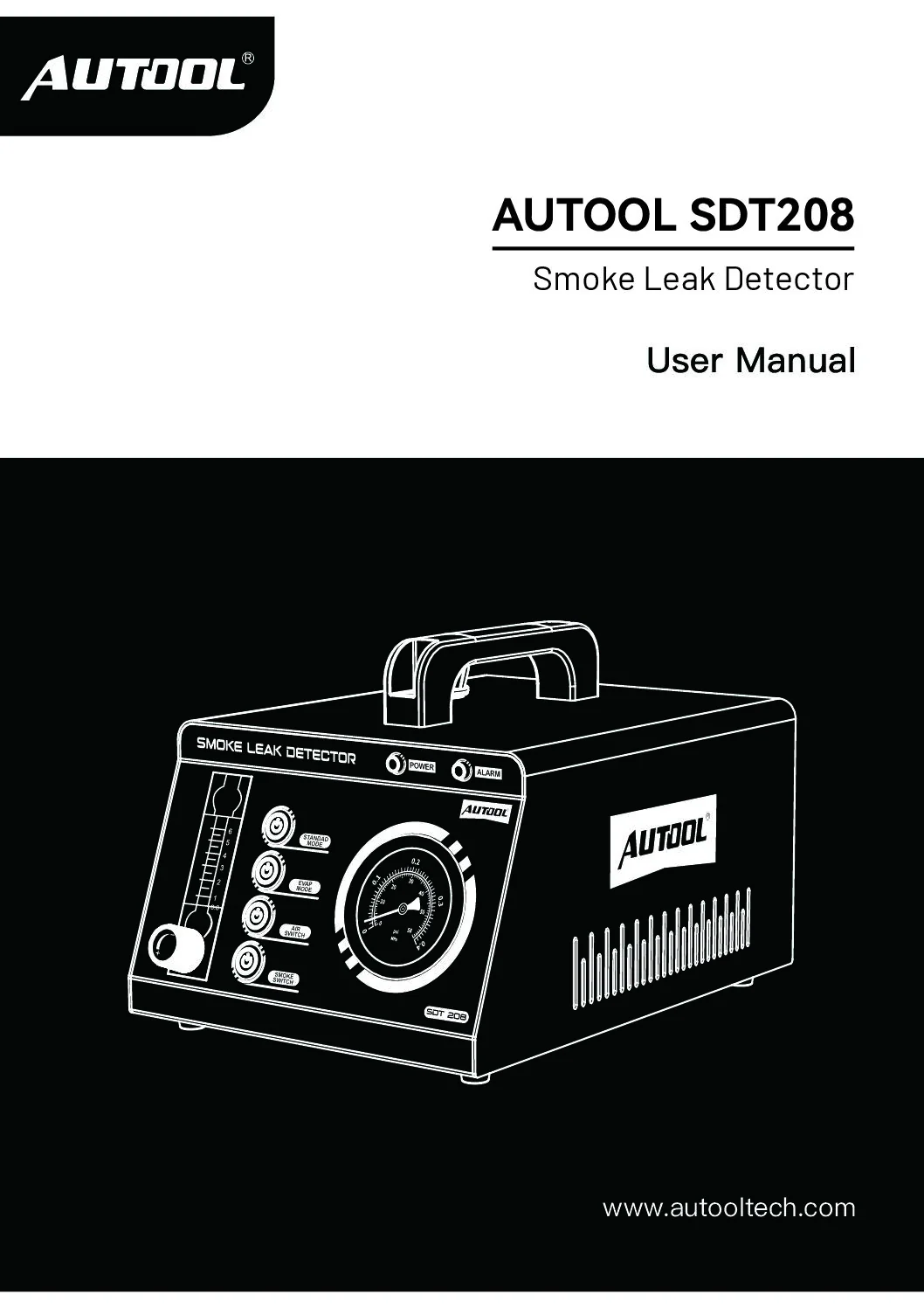

AUTOOL SDT208 kullanım kılavuzu kapağı
Kullanım Kılavuzu / PDF

AUTOOL SDT208 Kullanım Kılavuzu

Open the PDF manual for SDT208 EVAP and Standard pressure modes, 12/24 V setup, pressure and flow control, test safety, and troubleshooting.

İNDİR KILAVUZ
AUTOOL SDT208 paket içeriği

paket

Neler Dahil?

  • Ana ÜniteAUTOOL SDT208 duman kaçağı dedektörü
  • Güç kablosu12V / 24V battery power cable
  • Duman HortumuSmoke output hose for leak testing
  • AdaptörlerCone adapter, rubber caps, adapter set, and accessories
  • Yağ şişesiEmpty oil bottle included; testing oil is not included
  • DökümanlarUser manual, warranty information, certificate, and retail box

SSS

EVAP Mode, 12/24 V, and Pressure Questions

SDT208 için hangi test yağını kullanmalıyım?

Testing oil is not included. If dedicated smoke-testing oil is unavailable, use liquid paraffin or baby oil.

Ne Kadar Test Yağı Eklemeliyim?

Add 10–15 mL testing oil before use. Do not add more than 15 mL each time. Refill only when the smoke becomes thin, and drain the remaining testing oil before adding fresh oil. If too much oil is added accidentally, drain some oil out before operation.

What Power Supply Does SDT208 Need?

SDT208 requires a 12V or 24V DC battery. Connect the detector to the battery correctly before turning on the unit.

Can SDT208 Detect EVAP Leaks?

Yes. SDT208 can be used for EVAP leak checks. Use EVAP Mode with the EVAP adapter or service tool that matches the vehicle test port.

What Is the Difference Between Standard Mode and EVAP Mode?

Standard Mode supports testing up to 35 psi. Use it only for systems whose service procedure allows that pressure range. EVAP Mode is limited below 10 psi to help protect EVAP lines during testing. Always select the mode according to the system being tested.

Can SDT208 Directly Test Automotive A/C System Leaks?

No. The automotive A/C system operates at about 1.7–3.0 MPa output pressure, while smoke leak detectors generate much lower pressure. SDT208 cannot directly pressure-test the automotive A/C system for leaks. Use smoke only to help inspect an A/C line section after isolating and pressurizing it according to the service procedure.

How Can Smoke Help Locate a Leak in an Isolated A/C Line Section?

First isolate and pressurize the A/C line segment according to the vehicle or A/C service procedure. Then apply smoke near the test section and observe whether escaping airflow disturbs the smoke. If escaping air moves the smoke, inspect that area for a possible leak.

What Systems Can SDT208 Test?

SDT208 supports low-pressure leak checks on EVAP, intake, exhaust, crankcase, fuel-tank, vacuum-line, vehicle-sealing, and line-fitting systems. For selected turbo or intercooler paths, SDT208 can also be used as a turbo smoke tester. Standard Mode is available up to 35 psi, but use it only when the vehicle or component service procedure allows that pressure range.

How Do I Read the Pressure Gauge and Flow Meter?

Use the pressure gauge and flow meter to monitor pressure and airflow during the test. In general, if the pressure gauge continues to rise and stabilize, the test line may have no obvious leak. If the pressure continues to decrease, the line may have a leak that needs further inspection and repair.

Can I Adjust the Pressure on SDT208?

SDT208 provides Standard Mode and EVAP Mode, plus airflow adjustment through the regulator. It is not designed as an unrestricted high-pressure tester. Use the pressure mode specified for the selected system, and do not apply smoke pressure where the vehicle or component service procedure excludes smoke testing.

Pakete hangi aksesuarlar dahildir?

Check the product listing or your selected package option for the exact items included. The package includes the main unit, power cable, smoke hose, adapters, rubber caps, oil bottle, manual, warranty information, certificate, retail box, and other listed accessories. Testing oil is not included.

What Should I Check If the Smoke Becomes Thin or No Smoke Appears?

First check that the detector contains 10–15 mL of testing oil. Confirm that the power supply is connected, the airflow regulator is open, and the correct switch and mode are selected. If smoke becomes thin, drain the remaining oil and add fresh testing oil. If the detector has overheated, let it cool before restarting. Contact support if the issue remains.

Nasıl AUTOOL Smoke Leak Detector Models Differ?
  • External-air EVAP: SDT101/103 — 3.2 kPa (0.46 psi).
  • Built-in pump: SDT106 <12 psi; SDT203/205/205S <15 psi; SDT206 dual pumps <18 psi.
  • SDT208: 35 psi Standard / 10 psi EVAP.

Also compare power supply, flow monitoring, oil drainage, and accessories.

Garanti süresi ne kadar?

Ana ünite: 3 yıl garanti. Standart aksesuarlar: 1 yıl garanti. Garanti Politikası.
