AUTOOL กล้องตรวจสอบภายในแบบปรับมุมได้สี่ทิศทาง SVB308
ราคาเดิมคือ: US$319.00US$205.00ราคาปัจจุบันคือ: 205.00 เหรียญสหรัฐ
Key Features
- 6.2 mm Four-Way Probe
- 1080P + 4.3-Inch Screen
- 20–100 mm Viewing Range
- Detachable Screen + Hose
- 6.2 mm Four-Way Probe: Guide the 6.2 mm probe through narrow curved spaces with joystick-controlled 360° four-way articulation.
- 1080P + 4.3-Inch Screen: View 1080P inspection images on the built-in 4.3-inch screen with six adjustable LEDs.
- 20–100 mm Viewing Range: Match the 20–100 mm viewing range to the target distance for a focused view.
- Detachable Screen + Hose: Remove the screen and flexible hose for storage, portability, and easier accessory replacement.
- Magnetic Base + 2600 mAh: A magnetic base, 2600 mAh battery, onboard storage, and 10-language interface support portable work.
- 3- รับประกันปี ตัวเครื่องหลัก 3 ปี · อุปกรณ์เสริม 1 ปี
- 90-Day Returns สินค้าที่ส่งคืนต้องอยู่ในสภาพสมบูรณ์ภายใน 90 วัน
- ร้านค้าอย่างเป็นทางการ สินค้าแท้ · การสนับสนุนโดยตรง
AUTOOL SVB308 · Detachable Four-Way 1080P Borescope
Steer in Four Directions and Detach the Probe Assembly
Use this automotive inspection camera to steer around hidden components and document the view without a phone. SVB308 pairs a 6.2 mm four-way probe with 1080P imaging and a built-in 4.3-inch screen, then lets you detach the screen and hose for transport or service. Magnetic positioning and onboard recording support practical inspections in tight workshop spaces.
- 6.2 mm Four-Way Probe
- 1080P Imaging
- 4.3-Inch Standalone Screen
- Detachable Screen And Hose
- ตำแหน่งแม่เหล็ก
Key Features
Four-Way Steering with a Detachable Probe
360° Four-Way Articulation
The joystick provides 360° four-way articulation, helping the probe enter narrow, curved, and hard-to-reach spaces inside engines, pipes, combustion chambers, and hidden structures.
1080P HD Inspection Camera With 6 LED Lights
1080P imaging, 6 LED lights, and adjustable brightness improve visibility in dark engine compartments, wet pipes, internal passages, and low-light inspection areas.
Detachable Screen And Hose Design
The screen and flexible hose are detachable for storage, portability, and easier accessory replacement. The flexible hose can be removed by unscrewing the screw near the AUTOOL เครื่องหมาย
Magnetic Base And Portable Storage
A strong magnetic base helps attach the device to magnetic surfaces during inspection, improving hands-free convenience and storage after use.
IP67 Probe Protection
Only the probe / camera side is IP67 waterproof and oil-resistant for wet-pipe inspection. The IP67-rated probe supports inspection within the model’s permitted conditions, but the screen and main unit are not waterproof and must stay dry; confirm liquid compatibility separately.
การป้องกันอุณหภูมิสูง
SVB308 includes high-temperature protection, but users should still wait until the engine fully cools before inspection to avoid camera and hose damage.
การป้องกันที่เหนือกว่า
Built-in temperature protection helps protect the probe, while inspection should begin only after the engine has cooled.
Four-Way Inspection Control
Guide the 6.2 mm probe in four directions and view the inspection on the built-in 4.3-inch screen.
ระยะการมองเห็น
Position the target within the 20–100 mm viewing range for a focused image.
Recording And Operating Configuration
The 6.2 mm probe has a 20–100 mm viewing range, while the 2600 mAh battery, onboard storage and 10-language interface support portable use. Confirm the compatible replacement hose or screen before ordering a spare. Keep the main unit dry and use the thermal protection as a warning to stop, not permission to inspect a hot engine.
รับประกัน 3 ปี
ตัวเครื่องหลัก: รับประกัน 3 ปี อุปกรณ์เสริมมาตรฐาน: รับประกัน 1 ปีนโยบายการรับประกัน
วิธีใช้
Plan Entry, Inspect, Record, Center, and Detach Safely
ความคืบหน้าทีละขั้นตอน1 / 6
01
Define The Inspection Target
Identify the vehicle, symptom, entry point and surface you need to see. Confirm that the SVB308 probe and viewing range suit that path.
02
Check The Equipment
Inspect the tip and cable, charge the device, check steering and lighting, and verify that photos or video can be saved.
Press and hold the power button, then open the camera protective cover before inspection.
03
เตรียมรถให้พร้อม
Follow the vehicle service procedure to isolate moving and live parts, cool the inspection area and prepare a clean access point.
04
Guide And Illuminate
Insert gently while watching the live image. Use the steering control and lighting to bring the target into the specified clear viewing range; never force a bend.
05
Record The Findings
Capture the target from useful angles and identify the component, entry point and viewing direction. Keep uncertain observations separate from confirmed conclusions.
06
Withdraw And Store
Return the tip as instructed, withdraw gently and check that the probe is intact. Clean, dry and store it according to the model manual, then review the files with the vehicle diagnostic evidence.
ความปลอดภัยและความเข้ากันได้
Verify Probe Connection, Access, Heat, and Liquid Exposure
Match The Access Path
Match the complete probe tip and bend path to the narrowest opening and available turning space.
Inspect A Cooled, Isolated Vehicle
Prevent unintended engine movement and electrical operation. Wait for components to cool to the limits in the SVB308 manual before inserting the probe; a heat alarm is a protection event, not a working-temperature rating.
Protect The Probe And Main Unit
IP67 applies to the specified probe, not the screen or handle. Confirm permitted liquids and contact conditions separately; do not infer oil, fuel or solvent compatibility from the IP rating.
Withdraw Without Force
Use the steering control to return the tip to a position that can clear the entry path. Stop if resistance is felt; follow the model manual and vehicle procedure rather than pulling harder.
Keep The Inspection Evidence
Record the entry point, component, viewing direction and any areas you could not inspect. Use the vehicle procedure and supporting tests before making a repair decision.
Heat-Damage Replacement Cost
If high-temperature damage occurs, replacement of the snake tube / camera kit may require extra cost.
Replaceable Flexible Hose
The flexible hose is removable and can be replaced by unscrewing the screw near the AUTOOL เครื่องหมาย
Use Joystick for Bending
Do not force the camera probe by hand; use the joystick to control bending.
Avoid Prolonged Maximum Bend
Do not keep the joystick at maximum bending angle for a long time.
No Human or Animal Use
Do not use this device to inspect humans or animals.
หลีกเลี่ยงสภาพแวดล้อมที่เป็นอันตราย
Do not use or store it in explosive, flammable, corrosive, or strong electromagnetic environments.
ผลการตรวจสอบ
Review Images with Location and Supporting Tests
Record the Visible Condition
Record the location and visible deposits, marks, liquid, or foreign material, then compare the image with the applicable service information.
Recheck Focus, Light And Direction
If the image is unclear, adjust target distance and brightness, clean the lens as instructed and compare another viewing angle. A reflection or shadow can resemble a defect.
Save the Inspection View
Save the original image or video with the component and viewing direction, and inspect additional angles where coverage is incomplete.
Choose The Next Test
Use OEM reference images and the applicable diagnostic procedure. Compression, leak-down, other measurements or disassembly may still be required when the picture is inconclusive.
เปรียบเทียบรุ่น
Compare Probe Serviceability and Steering
คู่มือรุ่น
Choose one or more models. SVB308 is selected by default.
เลือก 1 รุ่น
ยังไม่ได้เลือกโมเดล โปรดเลือกโมเดลเพื่อเปรียบเทียบ
| ชื่อสินค้า | เอสวีบี208 | เอสวีบี302 | เอสวีบี303 | เอสวีบี305 | เอสวีบี308 | เอสวีบี403 | เอสวีบี405 | เอสวีบี408 | THINKCAR ES401 |
|---|---|---|---|---|---|---|---|---|---|
| Imaging, Display & Workflow | |||||||||
| Number of Lenses | 1 | 1 | 1 | 1 | 1 | 2 | 1 | 1 | 2 |
| ความละเอียด | 1920 × 1080 | 1280 × 720 | 1280 × 720 | 1280 × 720 | 1920 × 1080 | Front lens 1280×720 Side lens 1280×720 | 1920 × 1080 | 1280 × 720 | ไม่ระบุ |
| พิกเซล | 1 ล้าน | 1 ล้าน | 1 ล้าน | 1 ล้าน | 1 ล้าน | 2 ล้าน | 2 ล้าน | 1 ล้าน | ไม่ระบุ |
| แสดงหน้าจอ | 4.3-inch Display Screen | No built-in display; uses a compatible phone or tablet. | No built-in display; uses a compatible phone or tablet. | 4.3-inch Display Screen | 4.3-inch Display Screen | 4.3-inch Display Screen | หน้าจอ IPS 4.5 นิ้ว | หน้าจอ IPS 4.5 นิ้ว | IPS 5 นิ้ว |
| มุมมอง | ° 90 | ° 70 | ° 90 | ° 70 | ° 90 | ° 70 | ° 80 | ° 70 | ° 70 |
| ความชัดลึก | 15-100mm | 30-100mm | 20-100mm | 25-100mm | 20-100mm | Front lens 25-100mm Side lens 15-60mm | 20-100mm | 25-100mm | 20-100mm |
| ไฟ LED | Six High-Intensity Lights | Six High-Intensity Lights | Six High-Intensity Lights | Six High-Intensity Lights | Six High-Intensity Lights | 6 LEDs for main view 1 LED for side view | 6 Ceramic LEDs | 6 Ceramic LEDs | ไม่ระบุ |
| Manual Light Adjustment | Three Adjustable Levels | Three Adjustable Levels | Three Adjustable Levels | Three Adjustable Levels | Three Adjustable Levels | Three Adjustable Levels | Three Adjustable Levels | Three Adjustable Levels | ไม่ระบุ |
| 8× Digital Zoom | ✓ | × | × | × | × | ✓ | ✓ | ✓ | ไม่ระบุ |
| Viewing Workflow | Built-in display; no phone required. | Compatible phone or tablet; confirm the exact iOS, Android or HarmonyOS device, cable and software. | Compatible phone or tablet; confirm the exact iOS, Android or HarmonyOS device, cable and software. | Built-in display; no phone required. | Built-in display; no phone required. | Built-in display; no phone required. | Built-in display; no phone required. | Built-in display; no phone required. | ไม่ระบุ |
| Probe Access, Form & Durability | |||||||||
| มุมพวงมาลัย | Maximum:210° | Maximum:210° | Four-Way 360° | Maximum:210° | Four-Way 360° | Maximum:210° | Four-Way 360° | Four-Way 360° | Maximum:210° |
| เส้นผ่าศูนย์กลางเลนส์ | 6.25mm | 6.45mm | 6.2mm | 5.5mm | 6.2mm | Dual-lens 6.5mm | 6.45mm | 3.9mm | ไม่ระบุ |
| การป้องกันอุณหภูมิสูง | Automatic Alarm Above 85°C | Automatic Alarm Above 80°C | Automatic Alarm Above 90°C | Automatic Alarm Above 80°C | Automatic Alarm Above 90°C | Automatic Alarm Above 80°C | Automatic Alarm Above 80°C | Automatic Alarm Above 80°C | ไม่ระบุ |
| อุณหภูมิในการทำงาน | （It is recommended that the temperature of the camera’s operating environment is -10℃~50℃.） | （It is recommended that the temperature of the camera’s operating environment is -10℃~50℃.） | （It is recommended that the temperature of the camera’s operating environment is -10℃~50℃.） | （It is recommended that the temperature of the camera’s operating environment is -10℃~50℃.） | （It is recommended that the temperature of the camera’s operating environment is -10℃~50℃.） | （It is recommended that the temperature of the camera’s operating environment is -10℃~50℃.） | （It is recommended that the temperature of the camera’s operating environment is -10℃~50℃.） | （It is recommended that the temperature of the camera’s operating environment is -10℃~50℃.） | ไม่ระบุ |
| รัศมีการดัด | 32mm | 35mm | 35mm | 35mm | 35mm | 35mm | 47mm | 37mm | 35mm |
| Flexible Tube Length | 1m | 1m | 1m | 1m | 1m | 1m | 1m | 1m | 1m |
| Probe Protection Rating | IP67 | IP67 | IP67 | IP67 | IP67 | IP67 | IP67 | IP67 | ไม่ระบุ |
| การออกแบบสนามแม่เหล็ก | ✓ | × | ✓ | × | ✓ | × | × | × | ไม่ระบุ |
| การออกแบบที่ถอดออกได้ | × | × | ✓ | × | ✓ | × | × | × | ไม่ระบุ |
| Power, Languages & Storage | |||||||||
| ภาษา | ประเภท 14 | ประเภท 7 | ประเภท 10 | ประเภท 8 | ประเภท 10 | ประเภท 8 | ประเภท 8 | ประเภท 8 | ไม่ระบุ |
| Battery / Power Interface | แบตเตอรี่ลิเธียม 2000mAh | USB 2.0 interface; no battery capacity is listed. | แบตเตอรี่ลิเธียม 2600mAh | แบตเตอรี่ลิเธียม 2000mAh | แบตเตอรี่ลิเธียม 2600mAh | แบตเตอรี่ลิเธียม 2000mAh | แบตเตอรี่ลิเธียม 2000mAh | แบตเตอรี่ลิเธียม 2000mAh | ไม่ระบุ |
| พื้นที่เก็บข้อมูลบนเครื่องบิน | 32GB | No onboard storage listed; files save through the connected-device workflow. | No onboard storage listed; files save through the connected-device workflow. | 32GB | 32GB | 32GB | 32GB | 32GB | 8GB |
คู่มือและไฟล์ดาวน์โหลด
Use the Manual for Steering and Safe Withdrawal

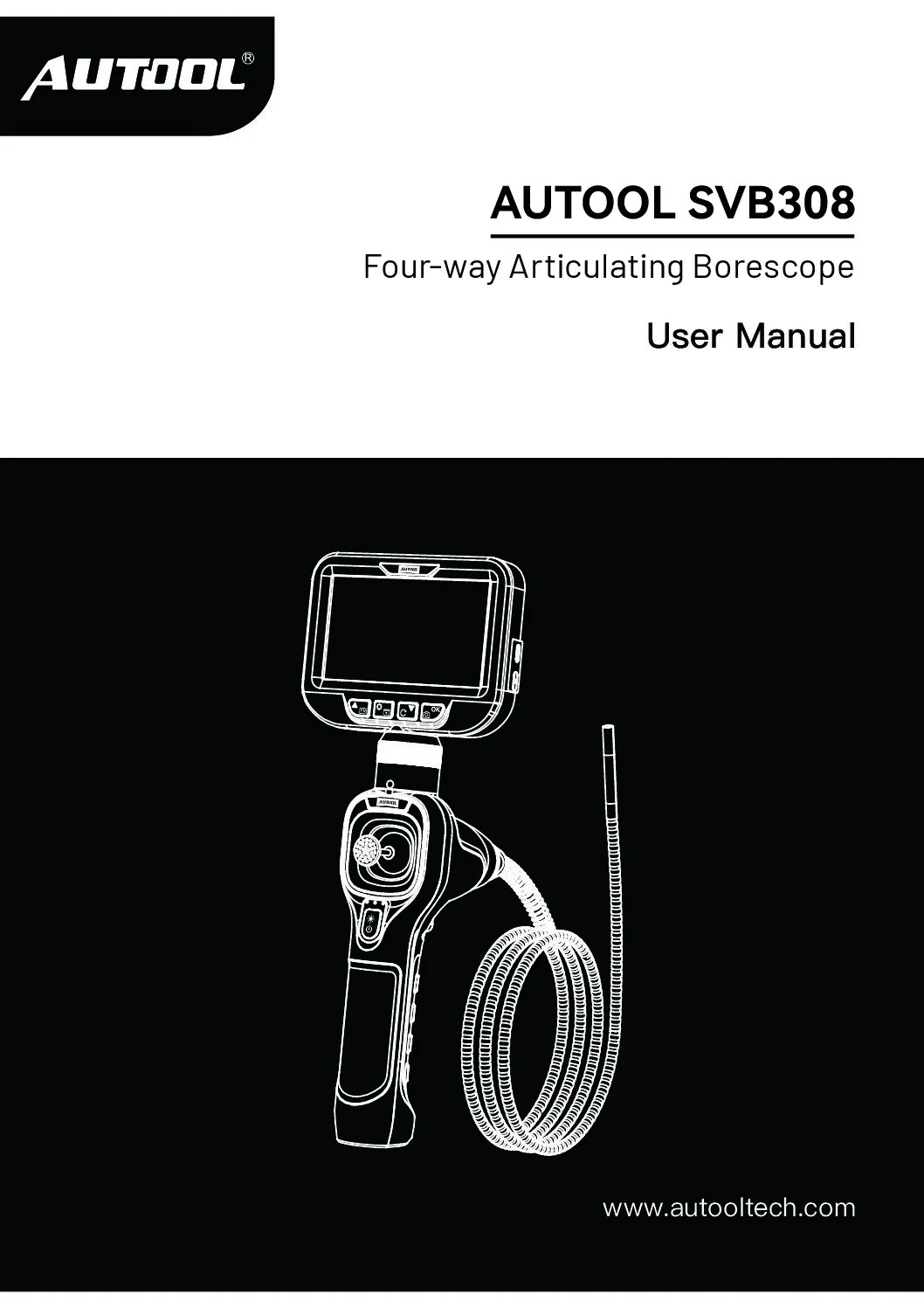

AUTOOL SVB308 User Manual
เปิดคู่มือฉบับ PDF สำหรับ AUTOOL SVB308 four-way probe control, detachable screen and hose setup, recording, temperature protection, cleaning and troubleshooting support.

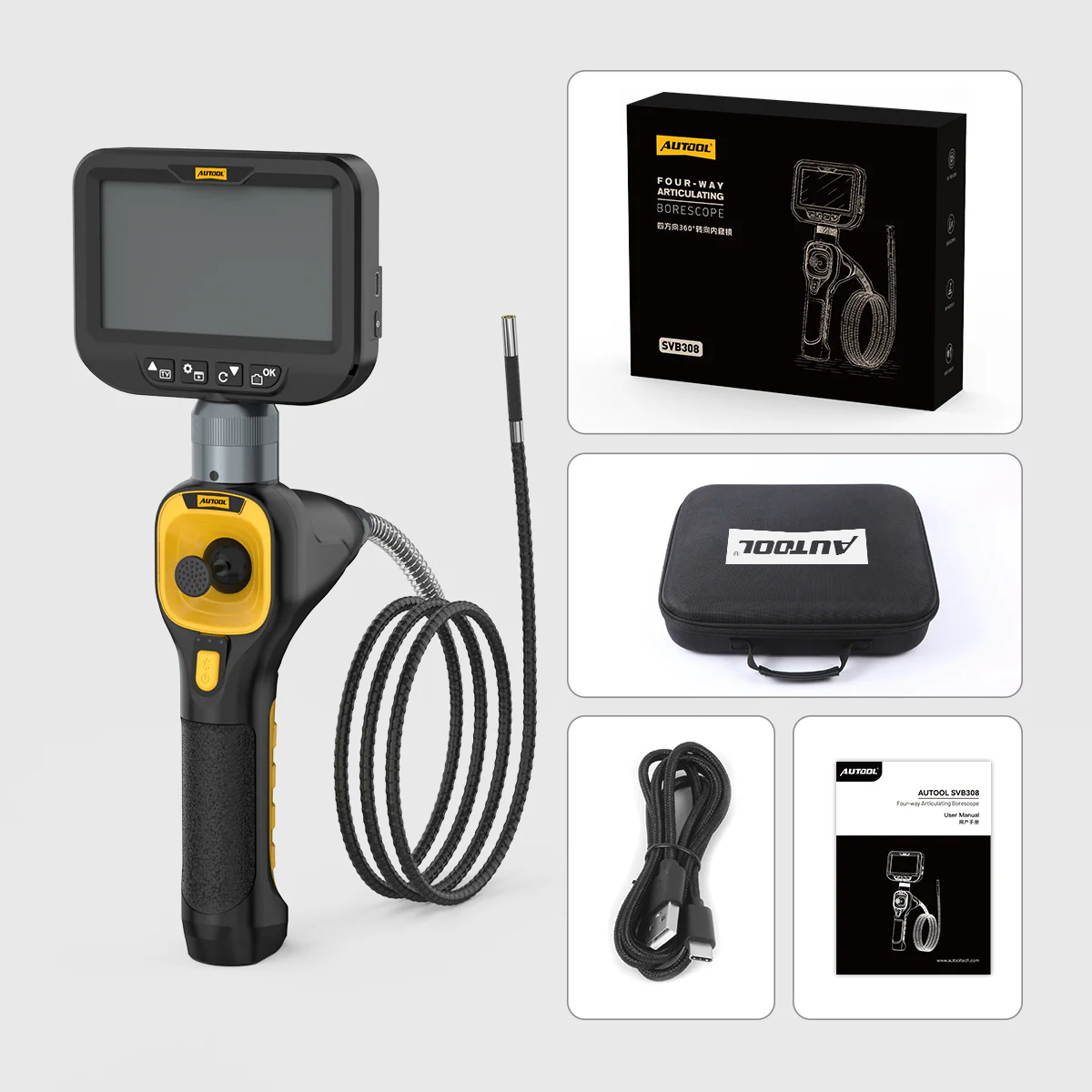

แพ็คเกจ
มีอะไรบ้าง
- หน่วยงานหลักAUTOOL SVB308 inspection camera with its model-specific probe.
- Selected PackageConfirm the supplied cable, storage card, case and documentation for the selected version before ordering.
คำถามที่พบบ่อย
Detachable Probe and Recording Questions
What Is The Difference Between SVB305 And SVB308?
SVB305 has 210° two-way articulation and a 2000 mAh battery. SVB308 has 360° four-way articulation, a 6.2 mm probe, 2600 mAh battery, 10-language support, magnetic base, and detachable screen / handle design.
Is SVB308 Waterproof?
The camera probe is IP67 waterproof and oil-resistant for permitted wet-pipe inspection; keep the display, handle, and main unit dry. Confirm the liquid, contact time, and cleaning method before exposing the probe to oil, fuel, coolant, or solvent.
Can I Use SVB308 On A Hot Engine?
No. Wait until the engine and target area have cooled to the permitted operating conditions; engine temperatures may reach 80–100°C or higher after shutdown. Use the camera only within its stated -10°C to 50°C operating environment, and treat the 90°C protection value as an alarm or shutdown event rather than permission for continuous hot-engine inspection.
What Is The Safe Temperature Limit?
Use the camera only within its stated -10°C to 50°C operating environment, do not expose the flexible hose above 70°C, and avoid environments above 75°C. The 90°C value is a protection alarm or shutdown threshold rather than a continuous-use rating; wait until the engine and target area have cooled before inspection.
Can The Flexible Hose Be Replaced?
Yes. The flexible hose is removable. Unscrew the screw near the AUTOOL logo to replace it.
What Storage Card Does SVB308 Use?
The current specification lists a standard 32 GB TF card. Confirm the card included with the selected package before ordering.
What Is The Difference Between SVB403, SVB405, And SVB408?
SVB403 has two lenses and 210° bidirectional articulation. SVB405 and SVB408 are four-way 360° models. SVB405 has a 2-megapixel camera and 4.5-inch screen, while SVB408 has a thinner 3.9mm probe and four-way articulation.
What Is The Difference Between SVB302 And SVB303?
SVB302 is a phone / tablet compatible borescope model, while SVB303 is a four-way articulating borescope with a handheld structure and magnetic / detachable-style advantages. Compare steering angle, lens diameter, depth of field, language support, and device structure before ordering.
Can a picture confirm the cause of an engine fault?
Use the image to document the inspected location and compare visible conditions with the vehicle procedure, reference images, and any required supporting tests.
What should I check before choosing this probe?
Confirm the entry diameter, tip and cable path, turning space, target distance, temperature, likely liquid contact and whether you need front or side views. For connected models, also confirm your device, cable and software.
