AUTOOL OD760 Pneumatic Oil Drainer and Extractor Station
US$2,499.00
Key Features
- 6–8 Bar Vacuum + Gravity Recovery
- 80 L Storage Tank
- 10 L Measuring Cup
- Five Extraction Wands
- 6–8 Bar Vacuum + Gravity Recovery: Use 6–8 bar compressed air for vacuum extraction through five wands, or collect oil from below with the 41 cm, 20 L catch pan.
- 80 L Storage Tank: Store recovered waste oil in the 80 L, 1.5 mm-thick steel tank.
- 10 L Measuring Cup: View extracted oil in the transparent 10 L tempered measuring cup before transfer.
- Five Extraction Wands: Choose among five wand sizes to reach different oil-service access points.
- 61-Piece Tool Station: Keep the included 61-piece mechanic tool set organized in the integrated drawers.
- 3- รับประกันปี ตัวเครื่องหลัก 3 ปี · อุปกรณ์เสริม 1 ปี
- 90-Day Returns สินค้าที่ส่งคืนต้องอยู่ในสภาพสมบูรณ์ภายใน 90 วัน
- ร้านค้าอย่างเป็นทางการ สินค้าแท้ · การสนับสนุนโดยตรง
AUTOOL OD760 · 80 L Pneumatic Oil Extractor & 61-Piece Tool Station
Keep Oil Service and Tools Together
Combine probe extraction, gravity collection, visible oil measurement, and organized service tools in one mobile workstation. The AUTOOL OD760 routes recovered oil through a transparent measuring cup into a high-capacity storage tank, while integrated drawers keep the supplied mechanic tool set beside the service position.
- Vacuum + Gravity Recovery
- 80 L Storage Tank
- 10 L Measuring Cup
- Five Sized Extraction Probes
- 61-Piece Tool Station
Key Features
Combine Five Probes with Organized Tools
Rapid Vacuum Extraction
Uses pressurized air and a vacuum generator for rapid pneumatic oil extraction. With 6-8bar air supply pressure, oil extraction can be completed in about 3 minutes under suitable conditions.
10L Tempered Measuring Cup
The 10L explosion-proof tempered glass measuring cup has scale markings, high-temperature resistance, corrosion resistance, and clear visibility for checking waste oil quality and quantity.
5 Vacuum Suction Tubes
Includes five oil extraction wands for different vehicle applications: 5mm × 880mm, 6mm × 880mm, 6mm × 1090mm, 8mm × 880mm, and 8mm × 1090mm.
20L Large Oil Receiving Tray
The 20L oil catch pan has a 41cm diameter, providing a larger collection area for bottom oil drainage and helping reduce spills during service.
80L Thickened Oil Tank
The 80L storage tank and 1.5mm thickened body support leak-resistant and air-tight operation, improving durability for workshop use.
Multi-Layer Storage Cabinet
Drawer storage helps organize wrenches, bottom covers, screwdrivers, suction tubes, and daily maintenance accessories in one mobile workstation.
80 L Recovery + 61-Piece Tool Station
Multi-layer drawers and the 61-piece tool set keep common oil-service tools and extraction accessories together in one mobile station.
ขับเคลื่อนด้วยอากาศ
Driven by compressed air and a vacuum generator.
ตรวจสอบด้วยสายตา
The 10L measuring cup helps observe oil quantity and condition.
Air and Vacuum Controls
Press valve, pressure gauge, vacuum generator / inlet.
Oil Measuring
Tempered glass measuring cup, oil extraction hose, oil level sight glass.
Storage and Service Access
Storage drawer, oil storage tank, drawer-style maintenance tool area.
Drain / Mobility
Oil catch pan, lifting rod, drain device, drain hose, handle, casters, evacuation wands.
รับประกัน 3 ปี
ตัวเครื่องหลัก: รับประกัน 3 ปี อุปกรณ์เสริมมาตรฐาน: รับประกัน 1 ปีนโยบายการรับประกัน
วิธีใช้
Collect, Extract and Discharge Used Oil
ความคืบหน้าทีละขั้นตอน1 / 5
01
เตรียมระบบจ่ายอากาศ
Connect the specified compressed-air supply and inspect hoses, valves, tank level and the selected recovery path.
02
Choose Probe or Pan Recovery
Select a compatible extraction probe for suction removal or position the catch pan for gravity draining.
03
Collect and Monitor Oil
Build vacuum or begin gravity collection as directed, then watch the pre-chamber, tank level and every connection.
04
Transfer to the Main Tank
Close the recovery path and transfer collected oil into the storage tank using the machine controls.
05
Discharge and Vent
Secure the outlet in an approved waste container, use the separate controlled-discharge procedure and release tank pressure after transfer.
ความปลอดภัยและความเข้ากันได้
Match the Oil Path, Probe and Air Supply
Separate the Air Functions
Compressed-air input, extraction vacuum and pressurized tank discharge are separate operating conditions; use the model instructions for each.
Confirm the Probe Route
Choose a probe that fits the vehicle access path without forcing, kinking or detaching.
ควบคุมอุณหภูมิของเหลว
Work only within the conservative model-specific temperature condition and protect against hot oil and surfaces.
Use Approved Waste Oil
Do not collect gasoline, diesel, brake fluid, methanol- or ketone-containing liquids, or other flammable fluids in the unit.
Release Pressure After Use
Vent the tank through the instructed procedure before service, storage or opening a connection.
Hot Oil and Air Safety
OD760 handles hot waste oil and uses compressed air. Review these safety and operation notes before using the equipment.
Fire and Area Safety
No smoking or open flames during operation.
Keep away from high-temperature, high-pressure, flammable, and explosive areas.
Leak Response
If leakage occurs, shut off the air supply and inspect hoses or components immediately.
Burn and Eye Protection
Waste oil temperature is between 40-60°C; be cautious of burns.
During operation, protect your eyes and hands. Gloves and safety goggles are recommended.
Keep Engine Off
The engine must remain turned off throughout the operation.
Pressure Release and Cleaning
After completing the equipment operation, release the internal pressure and clean the equipment to avoid damage and personal injury caused by improper operation.
เปรียบเทียบรุ่น
Choose the Right Oil-Recovery Workflow
คู่มือรุ่น
Choose one or more models. OD760 is selected by default.
เลือก 1 รุ่น
ยังไม่ได้เลือกโมเดล โปรดเลือกโมเดลเพื่อเปรียบเทียบ
| ชื่อสินค้า | OD710 | OD720 | OD760 |
|---|---|---|---|
| Collection & Workshop Features | |||
| Large-size Oil Pan | ✓ | ✓ | ✓ |
| สามารถปรับความสูง | ✓ | ✓ | ✓ |
| Thickened Tank Construction | ✓ | ✓ | ✓ |
| Oil Level Sight Window | ✓ | ✓ | ✓ |
| ลูกล้อหมุนได้ 360° | ✓ | ✓ | ✓ |
| Rapid Vacuum Extraction Technology | ✓ | ✓ | ✓ |
| Tempered Glass Measuring Cup | ✓ | ✓ | ✓ |
| With Or Without Toolbox | × | × | ✓ |
| Air & Vacuum Requirements | |||
| แรงดันอากาศ | 6-8bar | 6-8bar | 6-8bar |
| Oil Discharge Pressure | 0.6-0.8bar | 0.6-0.8bar | 0.6-0.8bar |
| ปริมาณลม | 150L / นาที | 150L / นาที | 150L / นาที |
| ระดับสุญญากาศ | 0-65cmHg | 0-65cmHg | 0-65cmHg |
| Capacity, Temperature & Setup | |||
| ความจุถัง | 30 ลิตร (7.93 แกลลอน) | 70 ลิตร (18.5 แกลลอน) | 80 ลิตร (21.1 แกลลอน) |
| Measuring Cup Capacity | 10 ลิตร (2.6 แกลลอน) | 10 ลิตร (2.6 แกลลอน) | 10 ลิตร (2.6 แกลลอน) |
| Oil Catch Pan Size / Capacity | 45 * * * * * * * * 35 19cm | 45 * * * * * * * * 35 19cm | 20 ลิตร (5.3 แกลลอน) |
| Working Oil Temperature | 40 60-℃ | 40 60-℃ | 40 60-℃ |
| Evacuation Wands Qty | 5 PCS | 5 PCS | 5PCS |
| Lift Required for Suitable Suction Extraction? | × | × | × |
คู่มือและฝ่ายสนับสนุน
Find Operating and Air-Supply Guidance

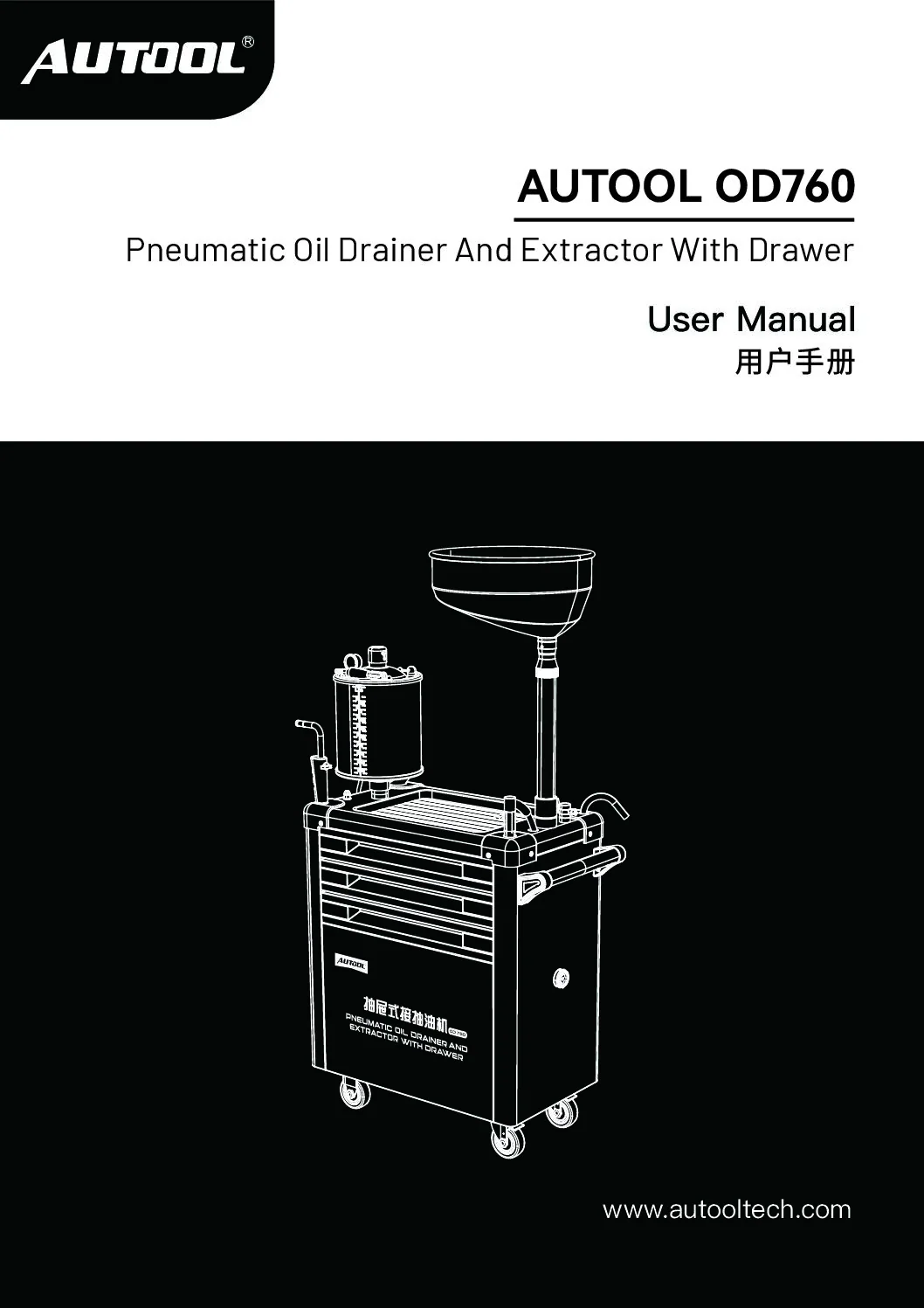

AUTOOL OD760 User Manual
Open the PDF manual for OD760 vacuum extraction, gravity collection, visible oil measurement and tool-station organization, with operating safety and troubleshooting support.
บรรจุภัณฑ์
Check Tanks, Probes and Included Parts
- Oil Filter Cap Wrenchชิ้น 32
- Cuff Oil Filter Wrenchชิ้น 2
- Square Screwdriver Bitsชิ้น 9
- Hex Screwdriver Bitsชิ้น 7
- Torx Screwdriver Bitsชิ้น 4
- 1/2 Wrenchชิ้น 3
- 3/8 Extension Barชิ้น 3
- ประแจ Torx1 PC
คำถามที่พบบ่อย
Oil Recovery and Air-Supply Questions
What Air Supply Pressure Does OD760 Need?
OD760 requires 6-8bar air supply pressure for pneumatic vacuum extraction. Oil discharge pressure is 0.6-0.8bar, and air consumption is listed as 150L/min.
How Fast Can OD760 Extract Oil?
OD760 uses vacuum extraction technology and can achieve rapid oil extraction in about 3 minutes under suitable air supply and operating conditions.
What Is The Measuring Cup Capacity?
The OD760 has a 10L explosion-proof tempered glass measuring cup. After extracting waste oil, promptly empty the oil from the measuring cup into the storage tank to protect the cup and extend its service life.
Do I Need To Close The Measuring Cup Drain Valve After Emptying It?
No. After emptying the waste oil from the measuring cup, there is no need to close the measuring cup drain valve.
Can OD760 Be Used With Brake Oil, Gasoline, Or Diesel?
No. OD760 is strictly prohibited for use with brake oil, gasoline, diesel, and other liquids containing methanol, ketones, or flammable liquids.
What Is The Difference Between OD710, OD720, And OD760?
OD710 is the basic oil drain / oil catcher model without vacuum extraction or measuring cup. OD720 adds a 10L measuring cup, 5 evacuation wands, and 6-8bar pneumatic extraction. OD760 is the high-end model with an 80L tank, 10L measuring cup, 20L catch pan, 5 evacuation wands, toolbox / drawer storage, and integrated workshop station design.
What Is Included In The 61-Piece Tool Set?
The 61-piece tool set includes 32 oil filter cap wrenches, 2 cuff oil filter wrenches, 9 square screwdriver bits, 7 hex screwdriver bits, 4 torx screwdriver bits, 3 pieces of 1/2 wrench, 3 pieces of 3/8 extension bar, and 1 torx wrench.
Where Can I Download The OD760 Manual?
The OD760 manual can be downloaded from the Download section of this Description. The correct manual file is AUTOOL-OD760-Manual-A4-版本20240727.pdf.
การรับประกันนานแค่ไหน?
ตัวเครื่องหลัก: รับประกัน 3 ปี อุปกรณ์เสริมมาตรฐาน: รับประกัน 1 ปีนโยบายการรับประกัน
ความคิดเห็นของลูกค้า
เขียนรีวิว
Greg_fan ✓ การซื้อที่ได้รับการยืนยัน -
น่ากลัว!
This thing is excellent! Works like it should and very sturdy.
