AUTOOL OD720 Pneumatic Oil Drainer and Extractor
US$799.00
Key Features
- Vacuum + Gravity Recovery
- 10 L Measuring Cup
- 70 L Storage Tank
- Five Extraction Wands
- Vacuum + Gravity Recovery: Extract oil through a probe or collect it from below with the 41 cm, 20 L catch pan.
- 10 L Measuring Cup: View recovered volume in the transparent 10 L tempered-glass measuring cup.
- 70 L Storage Tank: Hold recovered oil in the 70 L main tank for multi-vehicle workshop use.
- Five Extraction Wands: Choose from five extraction wands to reach different oil-service access points.
- 6–8 Bar Pneumatic System: Supply 6–8 bar compressed air to generate extraction vacuum and discharge the storage tank.
- 3- รับประกันปี ตัวเครื่องหลัก 3 ปี · อุปกรณ์เสริม 1 ปี
- 90-Day Returns สินค้าที่ส่งคืนต้องอยู่ในสภาพสมบูรณ์ภายใน 90 วัน
- ร้านค้าอย่างเป็นทางการ สินค้าแท้ · การสนับสนุนโดยตรง
AUTOOL OD720 · 70 L Vacuum Oil Extractor & Drainer
Extract or Gravity-Collect Used Oil
Recover used oil through vacuum probes or a height-adjustable catch pan with the AUTOOL OD720. Extracted oil can enter a transparent measuring cup for visible quantity and condition checks before transfer to the mobile storage tank, while controlled pneumatic discharge supports workshop handling after collection.
- Vacuum + Gravity Recovery
- 70 L Storage Tank
- 10 L Measuring Cup
- 20 L / 41 cm Catch Pan
- Five Extraction Probes
Key Features
Combine Probe Extraction with Gravity Recovery
Fast Air-Powered Oil Extractor
Using pressurized air and a vacuum generator, OD720 creates strong negative pressure for fast waste oil extraction through the evacuation wand.
10L Tempered Measuring Cup
The transparent hardened measuring cup is designed for strength, clarity, heat resistance, weather durability, and corrosion resistance. Its scale marks help observe oil quality and quantity.
70L Thickened Storage Tank
The 70L storage tank uses 1.5mm thickened material to help reduce oil leakage and air leakage during waste oil recovery.
20L Large Oil Catch Pan
The 41cm large-size oil catch pan provides a wider oil-catching area and a 20L capacity for gravity waste oil recovery.
Adjustable Height To 1.5m
The height-adjustable lifting rod mechanism allows the oil pan height to be adjusted up to 1.5m for different working conditions.
5 Evacuation Wands
OD720 includes 5 corrosion-resistant evacuation wands of different diameters for different vehicle oil inlets and service needs.
ลูกล้อหมุนได้ 360°
The machine is equipped with 360° swivel casters for easier movement. The casters include locking devices for more stable workshop positioning.
Sight Window And Tool Tray
The oil level sight window helps monitor waste oil recovery, while the tool tray provides a convenient area for small tools during service.
70 L Vacuum + Gravity Recovery Station
OD720 combines vacuum extraction and catch-pan recovery with a 70L storage tank made from 1.5mm thickened material.
Move, Lock And Monitor
Swivel casters with locks and a handle support workshop positioning. The oil sight window and tool tray keep the tank level and small tools accessible.
อากาศอัดเข้า
Connect the air supply to the vacuum generator or tank inlet valve according to the required operation. The specified air supply range is 6-8bar.
การสร้างสุญญากาศ
The vacuum generator evacuates the tempered measuring cup or oil storage tank, creating negative pressure for suction extraction.
การสกัดน้ำมันเครื่องยนต์
External air pressure draws waste oil through the selected oil evacuation wand and oil extraction hose into the measuring cup or storage tank.
Oil Recovery Through Pan
For gravity recovery, lift the vehicle, align the oil catch pan with the engine drain hole, and allow waste oil to flow into the storage tank.
Tank Discharge
When discharging the storage tank, pressurize the tank through the oil tank inlet valve, then slowly open the drain valve after pressure builds.
การควบคุมความปลอดภัย
The oil tank safety valve releases pressure when tank pressure exceeds 1.0bar. Always cut off the air supply after discharging oil.
รับประกัน 3 ปี
ตัวเครื่องหลัก: รับประกัน 3 ปี อุปกรณ์เสริมมาตรฐาน: รับประกัน 1 ปีนโยบายการรับประกัน
วิธีใช้
Collect, Extract and Discharge Used Oil
ความคืบหน้าทีละขั้นตอน1 / 5
1. Install The Main Assemblies
Rotate the measuring cup assembly clockwise to secure it onto the positioning seat of the oil storage tank. Fix the lifting rod and oil pan funnel by rotating clockwise. Confirm the measuring cup assembly direction, lock it in place, and keep the lifting rod vertical to the equipment.
Turn the lifting rod adjustment device counterclockwise to adjust the oil pan height.
Turn it clockwise to tighten after adjustment.
2. Extract Oil Through The Measuring Cup
Set the measuring cup valve to the middle slot position so the valve is closed. Close the oil extraction hose valve and connect the correct vehicle-specific oil evacuation wand.
Connect the air supply to the vacuum generator inlet and open the air supply valve.
Adjust the vacuum pressure gauge needle to the rated negative pressure of 50-65cmHg.
Insert the oil evacuation wand into the engine compartment, then open the oil extraction hose valve to start extracting waste oil.
03
3. Drain The Measuring Cup Into The Tank
When the oil level in the measuring cup reaches the warning line, drain the waste oil in the measuring cup into the oil storage tank below.
4. Recover Waste Oil Through The Oil Pan
Use lifting equipment to raise the vehicle to a suitable height before oil pan recovery. In a safe workplace, move OD720 under the vehicle engine and align the oil pan funnel with the engine oil drain hole.
Unscrew the vehicle engine oil drain plug.
Waste oil will discharge into the storage tank through the oil pan funnel.
Suction extraction may support no-lift or trench working conditions when suitable. Oil pan recovery still requires lifting the vehicle to align the pan safely.
05
5. Discharge Waste Oil From The Storage Tank
Close the measuring cup push-button valve, close the oil discharge pipe valve, and close the oil tank inlet valve. Connect the air supply to the oil tank inlet valve.
ความปลอดภัยและความเข้ากันได้
Match the Oil Path, Probe and Air Supply
Use 6-8bar Air Supply
The air source pressure must stay within the specified range. Do not operate below or above the required pressure, otherwise normal operation and safety may be affected.
Do Not Use With Flammable Liquids
OD720 is strictly prohibited for brake oil, gasoline, diesel, methanol, ketone, and other flammable liquids. Use it only for functions listed in the manual.
Engine Must Stay Off
The engine must remain turned off throughout the operation. Do not operate the equipment around smoking, open flames, high-temperature, high-pressure, flammable, or explosive areas.
40-60°C Waste Oil Range
Waste oil is handled at 40-60°C. Be careful of burns. Waste oil above 60°C may damage equipment components.
Wear Eye And Hand Protection
Wear gloves and safety goggles during operation to protect your hands and eyes from hot waste oil and splashes.
หมายเหตุเกี่ยวกับการดูแลและความปลอดภัย
After completing operation, release internal pressure and clean the equipment to reduce equipment damage and personnel injury caused by improper operation.
Pre-Use Safety Review
Review the air pressure range, oil temperature limit, prohibited liquids, engine-off rule, pressure release, and personal protection requirements before using the OD720 waste oil extractor.
Leak Response
If hoses or components leak during operation, immediately shut off the air supply and inspect the equipment carefully.
Safe Machine Movement
Do not use the height-adjustable lifting rod as a handle for moving the machine. Tighten adjustment screws if they become loose.
Measuring Cup Care
Promptly empty waste oil from the measuring cup into the storage tank after extraction to better protect the measuring cup and extend its service life.
After emptying the measuring cup, there is no need to close the measuring cup drain valve unless required by the specific operation step.
การกำจัดน้ำมันเสีย
Dispose of or recycle waste oil according to local regulations and relevant authorities.
Authorized Service Only
Do not attempt unauthorized disassembly, modification, or self-repair. Contact authorized service support when maintenance is needed.
เปรียบเทียบรุ่น
Choose the Right Oil-Recovery Workflow
คู่มือรุ่น
Choose one or more models. OD720 is selected by default.
เลือก 1 รุ่น
ยังไม่ได้เลือกโมเดล โปรดเลือกโมเดลเพื่อเปรียบเทียบ
| ชื่อสินค้า | OD710 | OD720 | OD760 |
|---|---|---|---|
| Collection & Workshop Features | |||
| Large-size Oil Pan | ✓ | ✓ | ✓ |
| สามารถปรับความสูง | ✓ | ✓ | ✓ |
| Thickened Tank Construction | ✓ | ✓ | ✓ |
| Oil Level Sight Window | ✓ | ✓ | ✓ |
| ลูกล้อหมุนได้ 360° | ✓ | ✓ | ✓ |
| Rapid Vacuum Extraction Technology | ✓ | ✓ | ✓ |
| Tempered Glass Measuring Cup | ✓ | ✓ | ✓ |
| With Or Without Toolbox | × | × | ✓ |
| Air & Vacuum Requirements | |||
| แรงดันอากาศ | 6-8bar | 6-8bar | 6-8bar |
| Oil Discharge Pressure | 0.6-0.8bar | 0.6-0.8bar | 0.6-0.8bar |
| ปริมาณลม | 150L / นาที | 150L / นาที | 150L / นาที |
| ระดับสุญญากาศ | 0-65cmHg | 0-65cmHg | 0-65cmHg |
| Capacity, Temperature & Setup | |||
| ความจุถัง | 30 ลิตร (7.93 แกลลอน) | 70 ลิตร (18.5 แกลลอน) | 80 ลิตร (21.1 แกลลอน) |
| Measuring Cup Capacity | 10 ลิตร (2.6 แกลลอน) | 10 ลิตร (2.6 แกลลอน) | 10 ลิตร (2.6 แกลลอน) |
| Oil Catch Pan Capacity | ไม่ได้ระบุ | 20 L | 20 ลิตร (5.3 แกลลอน) |
| Oil Catch Pan Dimensions | 45X35X19 ซม. | 45X35X19 ซม. | ไม่ได้ระบุ |
| Working Oil Temperature | 40 60-℃ | 40 60-℃ | 40 60-℃ |
| Evacuation Wands Qty | 5 PCS | 5 PCS | 5PCS |
| Lift Required for Suitable Suction Extraction? | × | × | × |
คู่มือและฝ่ายสนับสนุน
Find Operating and Air-Supply Guidance

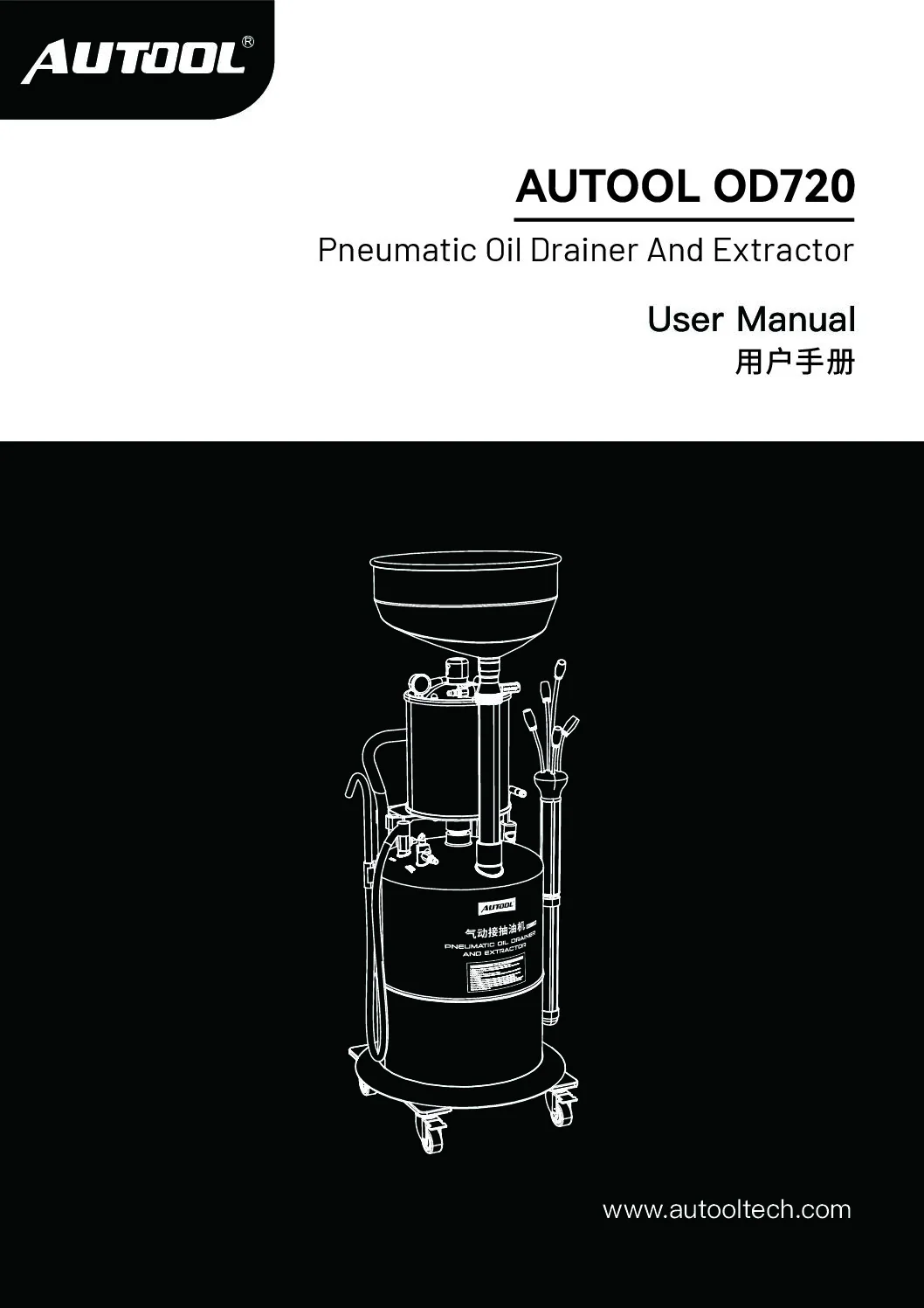

AUTOOL OD720 User Manual
Open the PDF manual for OD720 vacuum extraction, gravity collection, visible oil measurement and tank discharge, with operating safety and troubleshooting support.
บรรจุภัณฑ์
Check Tanks, Probes and Included Parts
- ตัวหลักOD720 oil storage tank assembly with drain hose and tank valves
- ถ้วยตวงTempered glass measuring cup assembly with related hose component
- Oil Pan And RodOil catch pan and height-adjustable lifting rod mechanism
- Evacuation WandsOil evacuation wand set and wands holder
- ชิ้นส่วนการเคลื่อนไหวSwivel caster set with brakes and handle/tool tray parts
- Tools And ManualSmall tools and AUTOOL OD720 user manual
คำถามที่พบบ่อย
Oil Recovery and Air-Supply Questions
What Air Supply Pressure Does OD720 Need?
OD720 requires 6-8bar air supply pressure. The air source pressure must not be lower or higher than the specified range to ensure proper equipment operation.
Can OD720 Be Used Without Lifting Equipment?
OD720 can be used for suitable suction extraction work without lifting equipment or in trench working conditions. However, when using the oil catch pan for gravity waste oil recovery, the vehicle must be lifted to a suitable height and the oil pan must be aligned with the engine drain hole.
Can OD720 Extract Brake Oil, Gasoline, Or Diesel?
No. OD720 is strictly prohibited for brake oil, gasoline, diesel, methanol, ketone, and other flammable liquids. Do not use the equipment for functions not listed in the manual.
What Is The Working Oil Temperature Range?
The working waste oil temperature range is 40-60°C. Be careful of burns when handling waste oil. If the waste oil temperature exceeds 60°C, equipment components may be damaged.
What Is The Difference Between OD710, OD720, And OD760?
OD710 is a basic 70L pneumatic waste oil drainer without vacuum extraction, measuring cup, or evacuation wands. OD720 adds rapid vacuum extraction, a 10L tempered measuring cup, 5 evacuation wands, 6-8bar air supply, 150L/min air consumption, and 0-65cmHg vacuum level. OD760 is the higher-end model with drawer storage, an 80L tank, measuring cup, vacuum extraction, and 5 evacuation wands.
When Should I Drain The Measuring Cup?
Drain the measuring cup when the oil level reaches the warning line. Press and rotate the measuring cup valve to the top left or right slot position so the valve is open, and waste oil will automatically flow into the oil storage tank.
How Do I Discharge Waste Oil From The Storage Tank?
- Close the measuring cup push-button valve, oil discharge pipe valve, and oil tank inlet valve first.
- Connect the air supply to the oil tank inlet valve, open the inlet valve, and pressurize the tank.
- After about 5 seconds, slowly open the oil drain valve.
- After discharging oil, cut off the air supply.
What Happens If Tank Pressure Exceeds 1.0bar?
When the pressure inside the oil tank exceeds 1.0bar, the oil tank safety valve automatically releases pressure. Always follow the tank discharge steps and cut off the air supply after discharging oil.
มีอุปกรณ์เสริมอะไรบ้างที่รวมอยู่ในชุด?
The OD720 package includes the oil storage tank assembly, tempered measuring cup assembly, oil catch pan, lifting rod, evacuation wands and holder, hose components, caster set, handle and tool-tray parts, small tools, and user manual.
การรับประกันนานแค่ไหน?
ตัวเครื่องหลัก: รับประกัน 3 ปี อุปกรณ์เสริมมาตรฐาน: รับประกัน 1 ปีนโยบายการรับประกัน
How Should I Maintain OD720 After Use?
Release internal pressure, clean the equipment, avoid rubbing the housing against rough surfaces, regularly check tightened and connected parts, treat parts exposed to chemical media with anti-corrosion maintenance, replace worn parts when needed, and store the product in a dry place away from hot, humid, or non-ventilated environments.
