AUTOOL ชุดท่อร่วมดิจิทัลอัจฉริยะ LM160
US$209.00
Key Features
- Live Pressure & Temperature
- 95-Refrigerant Database
- Vacuum & Retention Results
- Guided Menus + Result Screens
- Live Pressure & Temperature: View live gauge pressure and temperature with connected probes.
- 95-Refrigerant Database: Select from 95 standard refrigerants, including R134a, R22, H2O, R401C, and 1234zeE.
- Vacuum & Retention Results: Follow pressure and elapsed time during evacuation, then track starting pressure, current pressure, and ΔP to assess system tightness.
- Guided Menus + Result Screens: Use guided menus and detailed result screens to select modes and review readings.
- 8 Languages / 5 Pressure + 5 Vacuum Units: Choose among eight interface languages, five pressure units, five vacuum units, and °C/°F.
- 3- รับประกันปี ตัวเครื่องหลัก 3 ปี · อุปกรณ์เสริม 1 ปี
- 90-Day Returns สินค้าที่ส่งคืนต้องอยู่ในสภาพสมบูรณ์ภายใน 90 วัน
- ร้านค้าอย่างเป็นทางการ สินค้าแท้ · การสนับสนุนโดยตรง
AUTOOL LM160 · Program-Controlled AC Manifold Gauge
Guide Refrigerant Service from One Interface
Use guided menus to measure refrigeration-system pressure across 0–60 bar and temperature with compatible probes, monitor relative vacuum, and review timed pressure-retention results. Select from 95 refrigerant profiles and eight interface languages, with switchable pressure, vacuum and temperature units. The 2.8-inch backlit display, high/low valves and sight window keep readings and flow control together.
- 0–60 bar Gauge Pressure
- 95 โปรไฟล์สารทำความเย็น
- 8 Interface Languages
- Guided Test Menus
- การคงแรงดันตามเวลาที่กำหนด
Key Features
Programmed Controls with a 95-Refrigerant Library
Program-Controlled Workflow
Choose test modes and review detailed results through guided menus, keeping setup and measurement review in one interface.
95-Refrigerant Database
The internal refrigerant database covers 95 standard refrigerants, including examples such as R134a, R22, H2O, R401C, and 1234zeE.
Live Pressure And Temperature
Displays real-time refrigeration-system gauge pressure and temperature readings with correctly connected probes.
การตรวจสอบสุญญากาศ
Follow pressure and elapsed time during an approved evacuation procedure.
Timed Pressure-Retention Results
Track starting pressure, current pressure and ΔP to assess system tightness, then use an approved leak-location method if the pressure changes.
Eight Languages
Supports pressure, temperature, and vacuum unit switching, plus English, French, German, Italian, Spanish, Portuguese, Chinese, and Japanese.
Choose Your Units
Choose pressure, vacuum and temperature units to suit your service procedure.
Pressure Unit Options
Read pressure in psi, kPa, MPa, bar or kg·cm⁻² to match the service specification.
Vacuum Unit Options
Select Micron, hPa, mbar, mTorr or Torr for vacuum readings.
ตัวเลือกหน่วยอุณหภูมิ
Display temperature in °C or °F to match the service procedure.
Backlit Responsive Display
Read changing measurements on the 2.8-inch backlit screen, with updates in about 0.5 seconds, including in darker work areas.
Complete Control Hardware
High- and low-pressure valves, a refrigerant sight window, foldable hook, and two side handles support service-bay operation and handling.
Two Clamp And Hose Kit
The selected kit includes two wired temperature clamps, three-color hoses, and red/blue couplers or adapters; confirm the selected package.
รับประกัน 3 ปี
ตัวเครื่องหลัก: รับประกัน 3 ปี อุปกรณ์เสริมมาตรฐาน: รับประกัน 1 ปีนโยบายการรับประกัน
วิธีใช้
Connect, Select the Program, Stabilize, and Review
ความคืบหน้าทีละขั้นตอน1 / 5
01
Confirm Refrigerant And Procedure
Identify the refrigerant independently, verify it appears in the database and review the equipment instructions.
02
Inspect Ratings And Connections
Check hoses, couplers, valves and system rating against the LM160 measuring range and hose working pressure.
03
Choose Language, Units And Mode
Set the interface and measurement units, then select refrigeration, vacuum or pressure-retention mode.
04
Connect Probes And Read
Attach high/low hoses correctly and seat the wired clamps when temperature data is needed; follow the guided display.
05
Verify And Diagnose
Review the final values against the equipment procedure and use separate tests for leak location or other A/C faults.
ความปลอดภัยและความเข้ากันได้
Confirm Refrigerant, Service Ports, and Limits
Assess System Tightness
Assess system tightness from pressure change, then use an approved leak-location method when the result calls for inspection.
Stay Within Working Ratings
Normal coverage is up to 6 MPa / 60 bar and about -101 kPa vacuum; the 10 MPa device maximum and 3000 PSI hose maximum are not working targets.
Confirm Hose Suitability
The standard hose working rating is 600 PSI; substitute a properly rated hose when required.
ใช้ชุดอุปกรณ์ป้องกันส่วนบุคคล (PPE) และระบบระบายอากาศ
Wear protection and ventilate the area; avoid heat, humidity, flammable/explosive areas and strong electromagnetic fields.
Do Not Modify Circuitry
Use the current manual and do not alter internal electronics.
Wear Approved Protection
Wear approved protective equipment during testing to protect the user.
ตรวจสอบให้แน่ใจว่ามีการระบายอากาศเพียงพอ
Use LM160 in a well-ventilated environment to help prevent inhalation of toxic gases.
Verify Test Requirements
Confirm refrigerant, pressure, hose, and connection requirements before starting a test.
Maximum Device Pressure
The maximum device pressure / overload limit is 10 MPa / 100 bar. This is not the normal measuring range and does not permit exceeding the rated pressure of the tested system.
ผลการทดสอบ
Use Guided Pressure and Temperature Checks for A/C Diagnosis
Live Refrigeration Values
Compare pressure and temperature with the known refrigerant and operating condition to select the next A/C check.
Pressure-Retention ΔP
If ΔP changes, verify the connections and continue with an approved leak-location method.
สถานะสุญญากาศ
Compare the achieved level and stability with the service specification.
Use the Guided Readings
Program control guides measurement setup and result display. Select the known refrigerant and compare readings with the equipment procedure.
เปรียบเทียบรุ่น
Compare Refrigerant Coverage and Controls
คู่มือรุ่น
เลือกโมเดลอย่างน้อยหนึ่งรุ่น โดยค่าเริ่มต้นจะเลือก LM160 ไว้แล้ว
เลือก 1 รุ่น
ยังไม่ได้เลือกโมเดล โปรดเลือกโมเดลเพื่อเปรียบเทียบ
| เลือกให้เหมาะสมกับงานของคุณ | LM70 | LM150 | LM160 |
|---|---|---|---|
| เกณฑ์การคัดเลือก | |||
| จุดเด่นหลัก | Explicit SH/SC and dual-pressure focus | 93 refrigerants with two clamps | Program control, 95 refrigerants, 8 languages |
| Leak-point location | ไม่ | ไม่ | ไม่ |
| SH/SC support | Explicitly supported | Supported with probes | โปรดยืนยันก่อนสั่งซื้อ |
คู่มือและไฟล์ดาวน์โหลด
โปรดใช้คู่มือในการติดตั้งและบำรุงรักษา

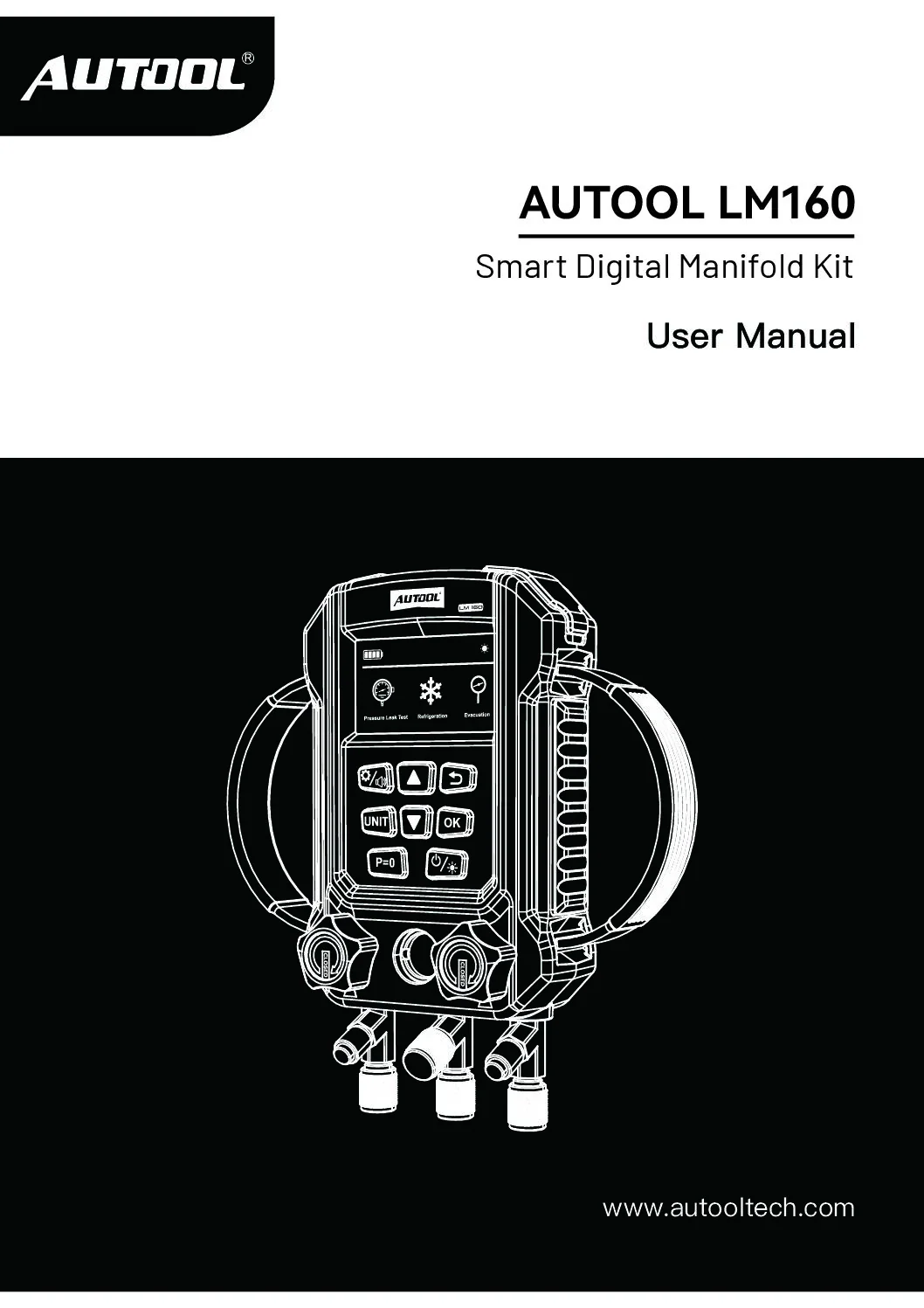

AUTOOL คู่มือผู้ใช้ LM160
Open the PDF manual for LM160 guided menus, refrigerant selection, pressure and temperature readings, vacuum and retention tests, safe operation, and troubleshooting.
แพ็คเกจ
มีอะไรบ้าง
- ยูนิตหลัก LM160Smart digital manifold kit.
- Hard Storage Caseเคสป้องกัน
- Three-Color HosesService hose set; verify working rating for the application.
- Two Wired Temperature ClampsPipe probes.
- Red/Blue Couplers Or AdaptersConnection pieces; confirm the exact selected-package pieces.
- คู่มือและกล่องบรรจุภัณฑ์สำหรับขายปลีกDocumentation and packaging.
คำถามที่พบบ่อย
Program, Refrigerant, and Connection Questions
Is LM160 a refrigerant sniffer?
No. Pressure-retention mode assesses system tightness from pressure change. Use a refrigerant detector or another approved method to locate a leak.
Does it identify refrigerant?
No. Select only refrigerant already identified from reliable system information.
How many refrigerants are listed?
95 selectable profiles.
Which Units And Languages Are Supported?
- Pressure units include psi, kPa, MPa, bar, and kg/cm²;
- temperature units include °F and °C;
- vacuum units include Micron, hPa, mbar, mTorr, and Torr.
The interface supports English, French, German, Italian, Spanish, Portuguese, Chinese, and Japanese.
Which modes are available?
Live refrigeration readings, vacuum monitoring and timed pressure-retention testing.
What pressure figures govern use?
Stay within the measuring range and the lowest working rating among system, gauge and hose; do not use maximum/limit figures as targets.
Are temperature clamps included?
The selected kit includes two wired clamps; confirm their inclusion before ordering.
Should I choose LM160 for SH/SC?
If subcooling or superheat calculation is required, confirm that function for the selected LM160 package before ordering; LM70 is listed with SH/SC support.
What does program control change?
It guides mode selection and result display; the technician selects the refrigerant, verifies connections and ratings, and applies the service criteria.
คืออะไร AUTOOL LM160 ใช้สำหรับอะไร?
LM160 is a smart digital manifold kit used for refrigeration and A/C system pressure leak testing, vacuuming mode monitoring, and refrigerant mode data measurement. It is designed to help simplify traditional manifold gauge operation with intelligent program control and clear on-screen data.
What Does Gauge Pressure Mean On LM160?
Pressure measured with a digital manifold pressure tester is gauge pressure. Always compare the LM160 reading with the rated pressure and test requirements of the device or system being tested.
What Pressure And Vacuum Range Can LM160 Measure?
The specification range is 0-870psi / 0-60bar for relative pressure and -14.7-0psi / -1-0bar for relative vacuum. The warm-tip guidance also describes a pressure test span from about -101kPa to 6MPa. Do not use the device beyond the measuring range or beyond the rated pressure of the system under test.
What Is The Standard Hose Pressure Limit?
The standard hose maximum working pressure is 600 PSI, approximately 4.13MPa / 41.3bar. The standard hose burst pressure is 3000 PSI, approximately 20.68MPa / 206.8bar. If the packaged hose does not meet your test requirement, use a suitable rated alternative.
LM160 รองรับสารทำความเย็นได้กี่ชนิด?
LM160 has a built-in database of 95 standard refrigerants, including R134a, R22, H2O, R401C, and 1234zeE.
Which Modes Does LM160 Support?
LM160 supports pressure leak test, vacuuming mode, and refrigeration mode. Pressure leak test checks system tightness, vacuuming mode monitors pressure while drawing a vacuum, and refrigeration mode displays real-time pressure and temperature data.
What Should I Check Before Testing?
Check the rated pressure value of the device under test, confirm that LM160 and the hose are within the required measuring range, use suitable rated hoses when necessary, and confirm that the refrigerant and connection method match the system being tested.
What Safety Precautions Should I Follow?
Do not use or store LM160 in high temperature, high humidity, flammable, explosive, or strong electromagnetic field environments. Do not modify the internal circuitry. Wear approved protective equipment and use the device in a well-ventilated environment to help prevent inhalation of toxic gases.
What Is Included In The LM160 Package?
Package contents include the LM160 main unit, storage case, trichromatic refrigerant hoses, two wired temperature clamps, red and blue adapters or couplers, user manual, and retail box.
How Is LM160 Different From LM120, LM120+, And LM150?
According to the comparison chart, LM160 adds program control, 8 interface languages, a 95-refrigerant database, high/low pressure valves, two wired temperature clamps, a foldable hook, two side handles, and a refrigerant sight window.
Should I Choose LM160 For Subcooling / Superheat Or Dual-Channel Real-Time Pressure Monitoring?
If subcooling/superheat or dual-channel real-time pressure monitoring is required, ask AUTOOL to confirm the suitable model and current package before ordering.
การรับประกันนานแค่ไหน?
ตัวเครื่องหลัก: รับประกัน 3 ปี อุปกรณ์เสริมมาตรฐาน: รับประกัน 1 ปีนโยบายการรับประกัน
