AUTOOL EM385 ECU Programming Power Supply and Battery Charger
US$629.00
Key Features
- 9–16 V Programming, 150 A for Approximately 3 Minutes
- Lead-Acid + Lithium Charging
- Adjustable DC Power Output
- 400 A / 12 V Start Support
- 9–16 V Programming, 150 A for Approximately 3 Minutes: Set programming support from 9 V to 16 V or fixed 14 V on the 4.3-inch touchscreen, with up to 150 A available for approximately 3 minutes.
- Lead-Acid + Lithium Charging: Charge supported lead-acid batteries plus removed LFP and NCM lithium batteries, with up to 20 A for lithium charging.
- Adjustable DC Power Output: Set 3.0–8.9 V at 1–20 A or 9.0–16.0 V at 1–100 A for compatible electrical equipment.
- 400 A / 12 V Start Support: Provide 400 A / 12 V momentary starting support for a compatible vehicle.
- Up to 40 A Vehicle Display Support: Maintain float-charge support for vehicle display work, with up to 40 A available as battery discharge rises.
- 3- รับประกันปี ตัวเครื่องหลัก 3 ปี · อุปกรณ์เสริม 1 ปี
- 90-Day Returns สินค้าที่ส่งคืนต้องอยู่ในสภาพสมบูรณ์ภายใน 90 วัน
- ร้านค้าอย่างเป็นทางการ สินค้าแท้ · การสนับสนุนโดยตรง
AUTOOL EM385 · Touchscreen ECU Programming Power Supply & Battery Charger
Charge Lead-Acid and Lithium Batteries or Set DC Output
การขอ AUTOOL EM385 combines ECU programming power support, lead-acid and lithium battery charging, battery restoration, vehicle display power, and momentary starting support. Its 4.3-inch touchscreen puts mode selection and output readings in view, while a separate adjustable power supply option lets you set voltage and current for compatible electrical equipment.
- 9–16 V Programming Supply
- Up to 150 A for About 3 Minutes
- Lead-Acid + Lithium Charging
- 3–16 V Adjustable DC Output
- 400 A Momentary Start
Key Features
Control Programming Power, Charging and DC Output by Touchscreen
Adjust Programming Voltage From 9V To 16V
Select Adjustable Mode for 9V–16V programming power or Fixed Mode for 14V. Match output to the vehicle procedure and follow voltage and current on screen while using your separate programming equipment.
Programming Output With Live Readings
Programming Power Supply mode reaches up to 150A for approximately 3 minutes. Live voltage and current readings help you follow output during the job; thermal protection reduces available current as the unit heats up.
Lead-Acid Charging With Battery-Type Selection
Choose In-car or External Charging and select standard lead-acid, AGM flat plate, AGM spiral, or GEL. EFB uses External Charging with the battery removed. The display shows voltage, current, progress, and charging completion.
LFP And NCM Lithium Battery Charging
Fast Charging includes a dedicated lithium charging option for LFP (LiFePO4) and NCM batteries, with up to 20A. Remove the battery from the vehicle and select its chemistry before starting.
3–16 V Adjustable Equipment Supply
The separate Adjustable Power Supply option provides 3.0V–8.9V at 1A–20A or 9.0V–16.0V at 1A–100A. Set both values for the connected equipment. Thermal and power-duration limits apply to this mode.
Vehicle Display Power That Responds To Load
Vehicle Display Mode maintains a float charge and increases output when battery discharge is detected, with up to 40A in this mode. This gives vehicle display work its own power-support setting.
400A / 12V Momentary Starting Support
Forced Start provides momentary support for compatible vehicle starting requirements. Select the mode, confirm the prompts, and start the vehicle when the screen instructs you to do so.
Battery Restoration For Battery Service
Battery Restoration provides a treatment option for discharged or long-idle lead-acid batteries. Remove the battery from the vehicle before use; results depend on battery condition and sulfation.
Touchscreen And Physical Button Control
Use the 4.3-inch color touchscreen or the physical arrow and OK keys to select functions. Adjustable brightness and multilingual settings let operators adapt the display, with cooling and output protection built into the unit.
รับประกัน 3 ปี
ตัวเครื่องหลัก: รับประกัน 3 ปี อุปกรณ์เสริมมาตรฐาน: รับประกัน 1 ปีนโยบายการรับประกัน
วิธีใช้
Select, Connect and Monitor the Power Mode
ความคืบหน้าทีละขั้นตอน1 / 6
01
เตรียมรถให้พร้อม
Step 1 Check the vehicle procedure for its required support voltage and make sure the 12V battery is fully charged before programming.
02
Connect The Power Supply
Step 2 Use the correct, grounded AC supply for your unit and keep the ventilation clear. Follow the manual’s connection prompts, with red to battery positive and black to negative.
03
Select Programming Power
Step 3 Tap Programmable Power Supply, or use the arrow keys and OK, then follow the battery and connection prompts.
04
Set The Output Voltage
Step 4 Choose Adjustable Mode, enter 9V–16V using the touchscreen or arrow keys, and confirm with OK. Fixed Mode supplies 14V when that matches the vehicle procedure.
05
Run And Monitor The Job
Step 5 Confirm the displayed voltage and current, then carry out the vehicle procedure with your programming tool. Keep the power supply operating and monitor its readings until the procedure is complete.
06
Finish Before Changing Modes
Step 6 After the vehicle procedure is complete, stop output using the unit’s controls before changing settings or moving to another task. Follow the manual and vehicle procedure when disconnecting.
ความปลอดภัยและความเข้ากันได้
Match Battery Chemistry, Voltage and Task
Choose The Battery Type
Use the correct charging option for the battery label. EFB charging and Battery Restoration require the battery to be removed from the vehicle. Lithium charging also requires removal from the vehicle.
Match The Vehicle Procedure
For programming, start with a fully charged 12V battery and set the support voltage required by the vehicle procedure. Use the supplied manual to match the unit’s AC input version and connections.
Keep The Unit Ready To Work
Keep ventilation openings clear and use the unit in a dry, ventilated location. Stop output before changing settings; when ending charging, stop charging before removing the clamps.
Verify Polarity and Clamp Contact
Connect the clamps with correct polarity on clean, secure terminals before enabling output; stop output before removing them.
Size the Programming Session
Confirm that the selected mode, voltage range and available output match the vehicle procedure and expected transient load for the full programming event.
การดูแลและบำรุงรักษา
A few setup essentials for the selected task.
เปรียบเทียบรุ่น
Choose the Required Power-Support Modes
คู่มือรุ่น
Choose one or more models. EM385 is selected by default.
เลือก 1 รุ่น
ยังไม่ได้เลือกโมเดล โปรดเลือกโมเดลเพื่อเปรียบเทียบ
| ชื่อสินค้า | EM355 | EM365 | EM385 |
|---|---|---|---|
| Power Input, Protection & Hardware | |||
| เวอร์ชั่นอินพุต AC | 110V or 220V version | 110V or 220V version | 110V or 220V version |
| ความถี่ขาเข้า | 50Hz / 60Hz | 50Hz / 60Hz | 50Hz / 60Hz |
| จัดอันดับอินพุตปัจจุบัน | |||
| ความยาวของสาย | 2m | ||
| พัดลมระบายความร้อนความเร็วสูง | ✓ | ✓ | ✓ |
| การป้องกันการส่งออก | Reverse polarity; short circuit; overcurrent; temperature protection | Reverse polarity; short circuit; overcurrent; temperature protection | Reverse polarity; short circuit; overcurrent; temperature protection |
| กำลังไฟฟ้าเข้าจัดอันดับ | 1200W | 1500W | |
| ระดับการป้องกันตู้หุ้ม | IP21S | IP21S | IP21S |
| ระดับฉนวน | F | F | F |
| Modes, Interface & Battery Support | |||
| ภาษาอินเทอร์เฟซ | อังกฤษ, ฝรั่งเศส, เยอรมัน, รัสเซีย, สเปน | พูดได้หลายภาษา | พูดได้หลายภาษา |
| โหมดการทำงาน | Programming power; battery charging; battery restoration | Programming power; battery charging; battery restoration; vehicle display; forced start | Programming power; fast charging; battery restoration; vehicle display; forced start |
| หน้าจอสัมผัส | × | × | ✓ |
| ขนาดหน้าจอ | ไม่ระบุ | 2.8 นิ้ว | 4.3 นิ้ว |
| Multi-Level Intelligent Charging | ✓ | ✓ | ✓ |
| Car Exhibition Mode | × | ✓ | ✓ |
| Battery Restoration Function | ✓ | ✓ | ✓ |
| Charging Battery Types | Standard lead-acid; AGM flat plate; AGM spiral; GEL; EFB (external charging) | Standard lead-acid; AGM flat plate; AGM spiral; GEL; EFB (external charging) | Standard lead-acid; AGM flat plate; AGM spiral; GEL; EFB (external); LFP and NCM (removed from vehicle) |
| Programming & Output Ranges | |||
| Separate Adjustable Power Supply | × | × | ✓ |
| Adjustable Programming Voltage | ✓ | ✓ | ✓ |
| Programming Voltage Range | 10.8V – 16V | 10.8–15 V page / 12–14.8 V manual — confirm supplied version | 9V – 16V |
| Lead-Acid Charging Current | Up to 40A in-car / 20A external | ||
| Lithium Charging Current | × | × | สูงถึง 20A |
| Separate Adjustable Supply Range | × | × | 3V–8.9V / 1A–20A; 9V–16V / 1A–100A |
| Momentary Starting Support | × | 400A/12V | 400A/12V |
| Maximum Programming Current | Up to 120A / approx. 3 min | Up to 150A / approx. 3 min | Up to 150A / approx. 3 min |
คู่มือและฝ่ายสนับสนุน
Confirm Power Mode and Battery Fit

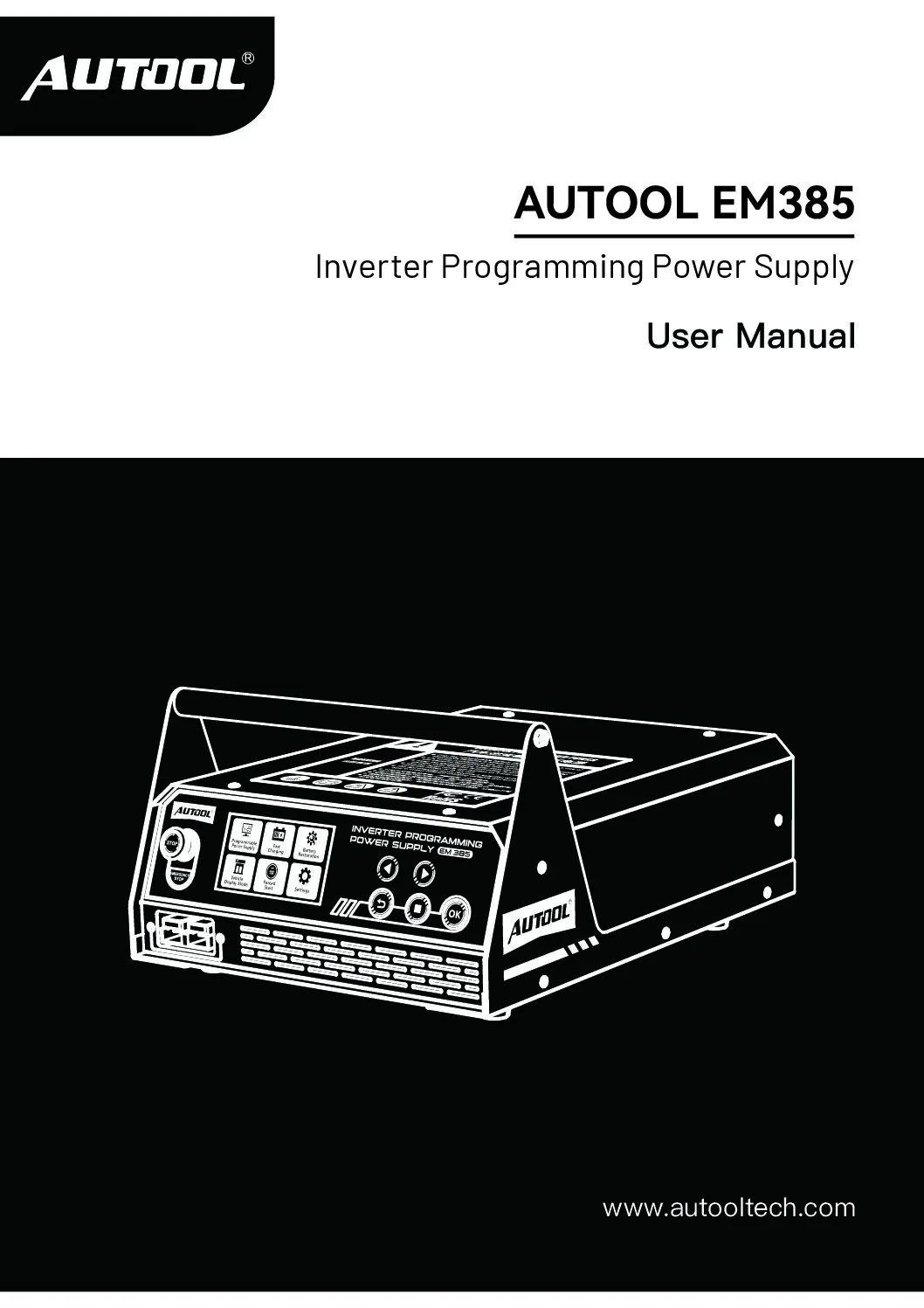

AUTOOL EM385 User Manual
Open the PDF manual for EM385 programming power, battery charging, adjustable DC output and touchscreen operation, with operating safety and troubleshooting support.
บรรจุภัณฑ์
Check Cables and Included Accessories
- หน่วยงานหลักAUTOOL EM385 Auto Power Inverter ECU Programming Power Supply
- สายแคลมป์แบตเตอรี่รวม
- สายไฟรวม
- คู่มือการใช้รวม
- กล่องบรรจุภัณฑ์รวม
- ส่วนประกอบที่รวมThe packing list uses the most relevant package image only, showing the EM385 main unit, battery clamp cable, power cable, user manual, and package box.
คำถามที่พบบ่อย
Programming-Power and Charging Questions
Does EM385 Program The ECU Itself?
EM385 supplies battery power support during ECU programming. You use separate programming or diagnostic equipment and follow the vehicle procedure to carry out the ECU work.
Why Use Programming Mode Instead Of Battery Charging?
Programming mode lets you choose a support voltage for the vehicle procedure. Battery Charging follows a charging process that adjusts output as the battery charges. Choose the mode for the job you are doing.
Which Programming Voltage Should I Select?
Use the voltage specified in the vehicle procedure. Adjustable Mode lets you select the required setting; Fixed Mode supplies 14V when that value is appropriate.
How Long Is The Maximum 150A Output Available?
The manual specifies up to 150A for approximately 3 minutes in programming mode. At an internal temperature of 70°C, maximum current is reduced to 50A; it returns to the maximum when the unit cools to 50°C. Match the job to its output and duration requirements.
How Do I Follow Battery Charging?
Select the correct battery type and charging location, then follow voltage, current, and charging progress on the screen. The unit indicates when charging is complete.
Can Battery Restoration Help A Long-Idle Battery?
It provides a treatment option for discharged or long-idle lead-acid batteries. Results depend on condition and sulfation. Use Battery Restoration with the battery removed from the vehicle.
Is The Adjustable Power Supply The Same As Programming Mode?
They are separate options. Programming mode offers 9V–16V adjustment or fixed 14V. Under Fast Charging, Adjustable Power Supply lets you set voltage and current: 3V–8.9V at 1A–20A or 9V–16V at 1A–100A. Output above 1200W for 3 minutes or internal temperature reaching 70°C triggers a 50A limit; cooling below 50°C restores the set current.
Which Lithium Batteries Can EM385 Charge?
The lithium charging option supports LFP (LiFePO4) and NCM batteries at up to 20A. Remove the battery from the vehicle and select the matching chemistry before charging.
What Are Vehicle Display And Forced Start Used For?
Vehicle Display Mode maintains a float charge and responds to vehicle battery discharge with up to 40A. Forced Start provides separate 400A/12V momentary starting support for compatible starting requirements.
Where Can I Check Accessories And Setup?
See Package Contents for the supplied items. Open Manual & Download for the model-specific guide to menus, connections, and operating instructions.
What Warranty Support Is Available?
ตัวเครื่องหลัก: รับประกัน 3 ปี อุปกรณ์เสริมมาตรฐาน: รับประกัน 1 ปีนโยบายการรับประกัน
ความคิดเห็นของลูกค้า
เขียนรีวิว
Porter Mackintosh ✓ การซื้อที่ได้รับการยืนยัน -
This tool is better than most of the programming on the market, it's very…
This tool is better than most of the programming on the market, it’s very compact, it provides a very stable power supply, I sometimes have to do several hours of good diagnostic work and it’s all stable and has helped me tremendously!
กองทุน ✓ การซื้อที่ได้รับการยืนยัน -
Great product. AAA++
The device works well and I would consider purchasing the diagnostic cart if I could!
ไซม่อน ✓ การซื้อที่ได้รับการยืนยัน -
This is what a good programming power supply should look like
I bought it because it supports lithium batteries! Multi-stage smart charging mode allows you to charge optimally.
It makes me happy that it can provide me with a stable power supply when I do ECU programming.
I will continue to see how it works. And come back with feedback on the results
