AUTOOL CT450 เครื่องทำความสะอาดและทดสอบหัวฉีดแบบให้ความร้อนสำหรับเครื่องยนต์ 6 สูบ
US$549.00
Key Features
- GDI / EFI / FSI Drive
- Six 110 mL Cylinders
- 28 kHz Heating to 50°C
- 13 Cleaning/Test Functions
- GDI / EFI / FSI Drive: Select the matched 12 V, 70 V, or 120 V drive for compatible standard gasoline, EFI, FSI, and selected GDI injectors.
- Six 110 mL Cylinders: Compare spray appearance and collected volume across up to six compatible injectors under one controlled setup.
- 28 kHz Heating to 50°C: Clean compatible injectors with 28 kHz ultrasound and controlled heating up to 50°C.
- 13 Cleaning/Test Functions: Use 3 cleaning and 10 testing functions for heated ultrasonic cleaning, reverse flushing, leakage, spray, preset cycles and pulse-injection observation.
- Pulse-Injection Observation: Run intermittent injection at supported pulse settings to compare relative response and atomization behavior.
- 3- รับประกันปี ตัวเครื่องหลัก 3 ปี · อุปกรณ์เสริม 1 ปี
- 90-Day Returns สินค้าที่ส่งคืนต้องอยู่ในสภาพสมบูรณ์ภายใน 90 วัน
- ร้านค้าอย่างเป็นทางการ สินค้าแท้ · การสนับสนุนโดยตรง

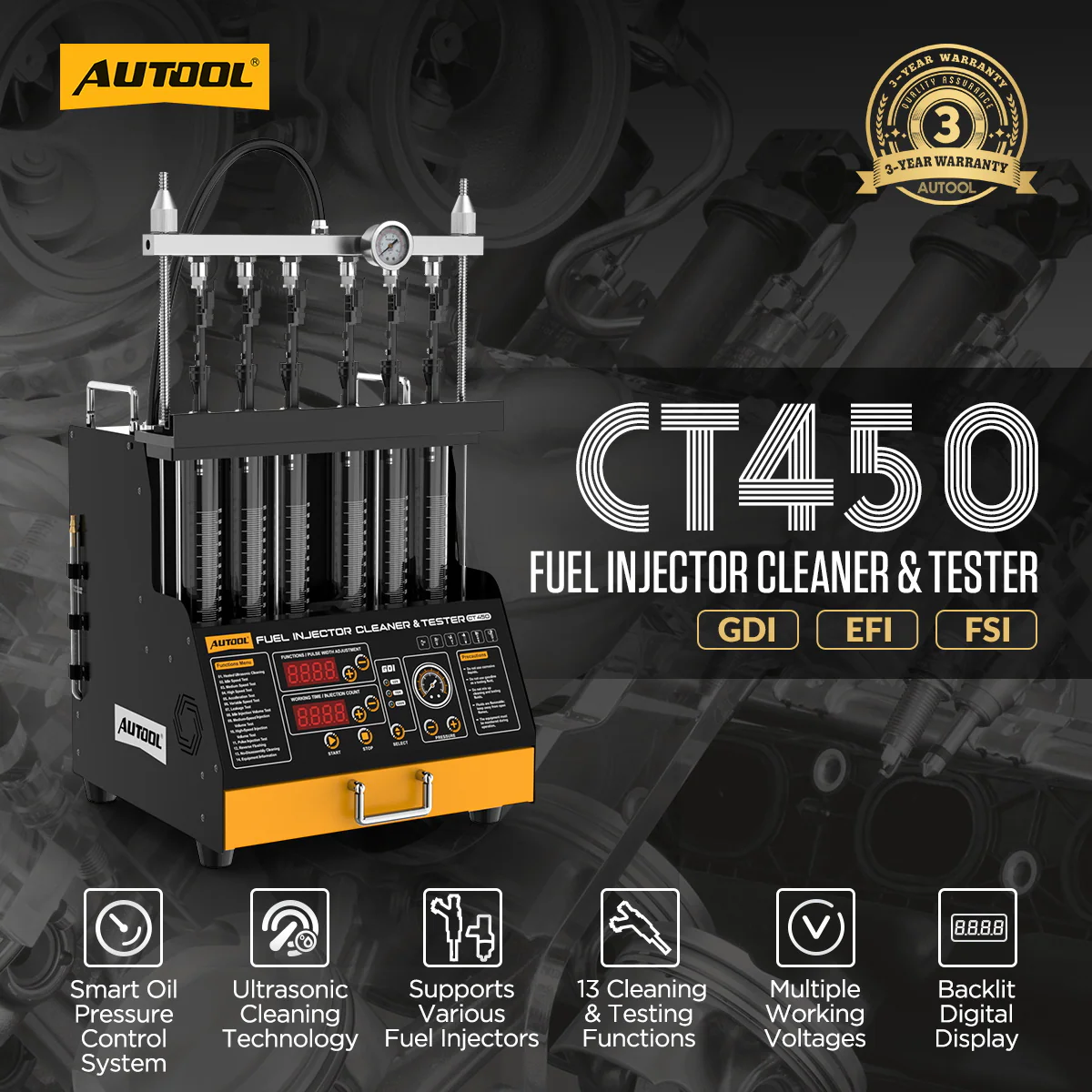

AUTOOL CT450 · Heated Multi-Drive Low-Pressure Injector Test Bench
Combine Heated Cleaning with Selectable Injector Drive
Clean compatible standard gasoline, EFI, FSI and selected GDI injectors in a 2 L, 28 kHz ultrasonic tank with heat up to 50°C when the fluid and injector permit. Select 12 V, 70 V or 120 V drive, then compare up to six injectors for spray, leakage, collected volume and pulse response under matched low-pressure settings. Three cleaning and ten test functions support the clean-and-retest cycle.
- EFI / FSI / Selected GDI
- 6 × 110 mL Measuring Cylinders
- 12 / 70 / 120 V Drive
- 2 L / 28 kHz / Up to 50°C
- 3 Cleaning + 10 Test Functions
Key Features
12, 70, and 120 V Drive with a Heated Bath

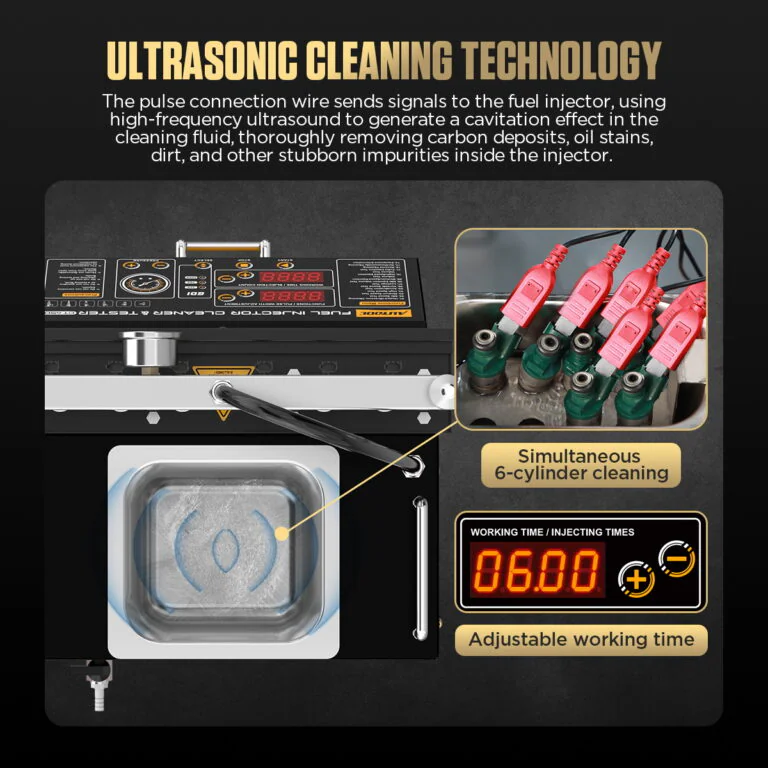

28 kHz Heated Ultrasonic Injector Cleaning
Combine ultrasonic energy with controlled heating up to 50 °C when the approved cleaning chemistry, injector material, and service procedure permit heat.

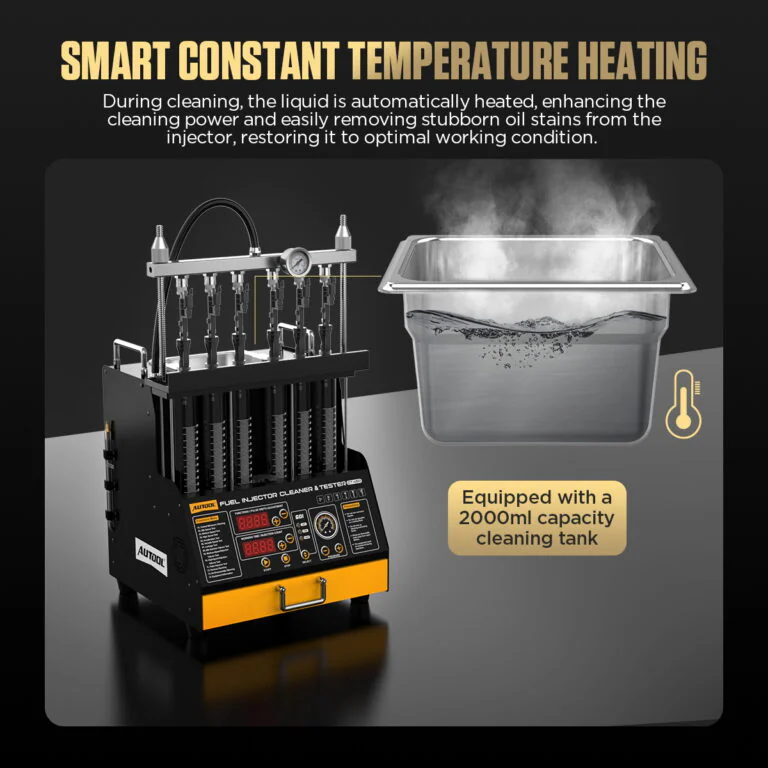

2,000 mL Cleaning Tank
The 2,000 mL ultrasonic cleaning tank provides thermostatic control up to 50 °C; use the fill level and operating limits in the supplied manual.

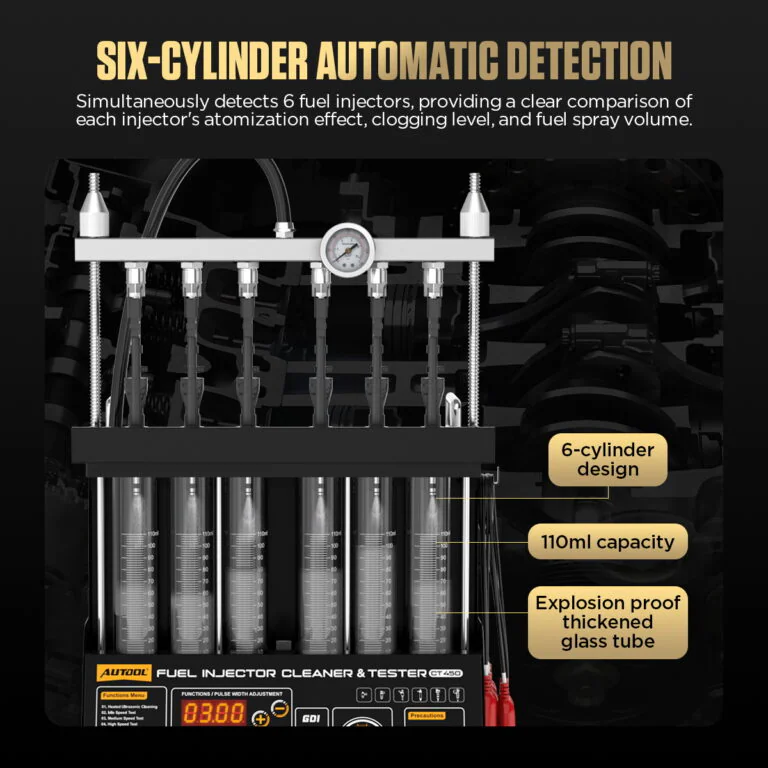

Six 110 mL Measuring Cylinders
Observe up to six compatible injectors side by side for relative spray and collected-volume differences under one controlled setup.

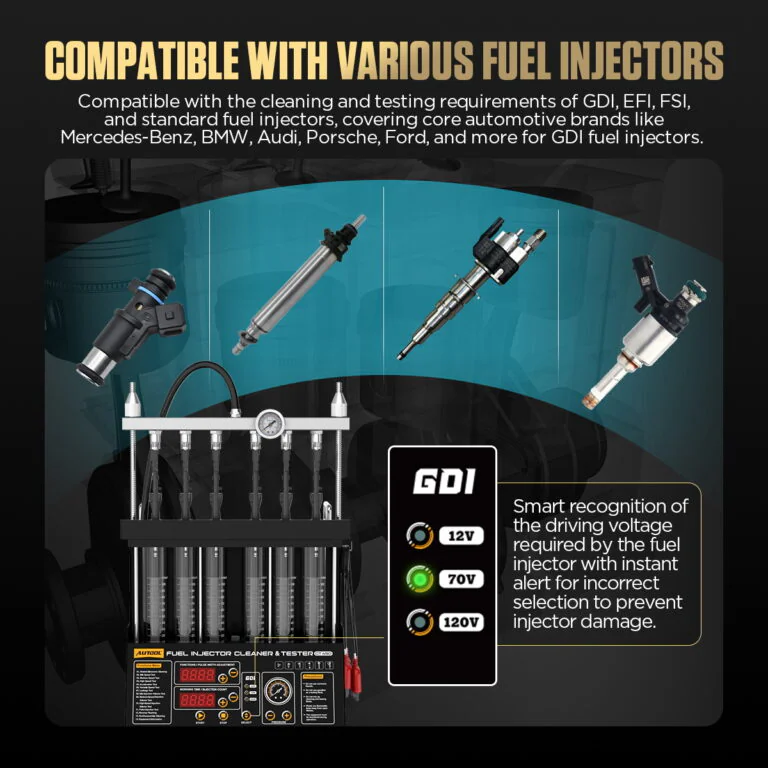

Compatible Standard and Direct-Injection Service
Support compatible standard gasoline, EFI, FSI, and selected GDI injectors with the correct adapters, connectors, seals, electrical drive, and low-pressure procedure.
12 V / 70 V / 120 V Selection
Select 12 V, 70 V or 120 V drive to match supported injector requirements, using verified part-number and manufacturer information.

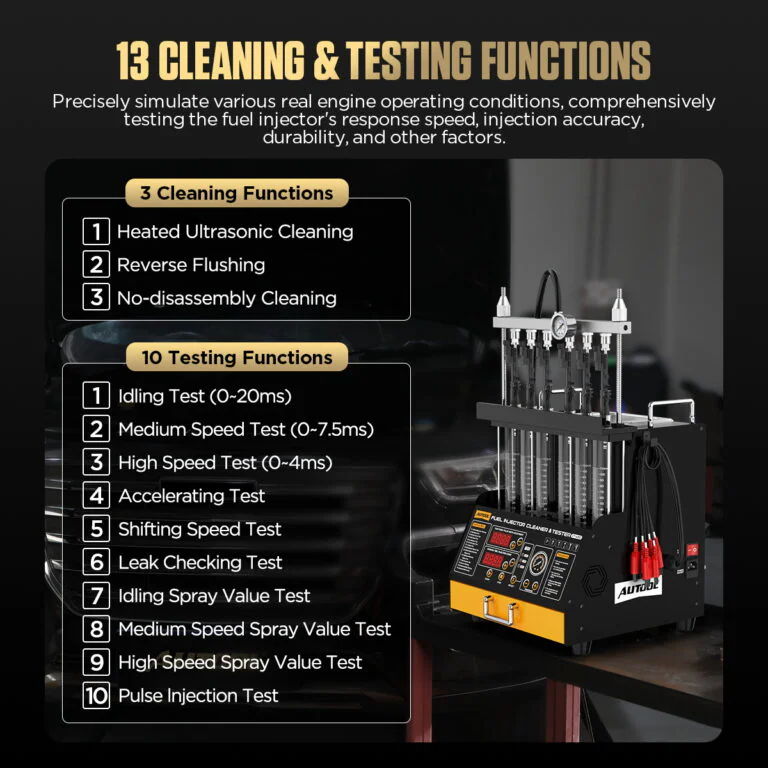

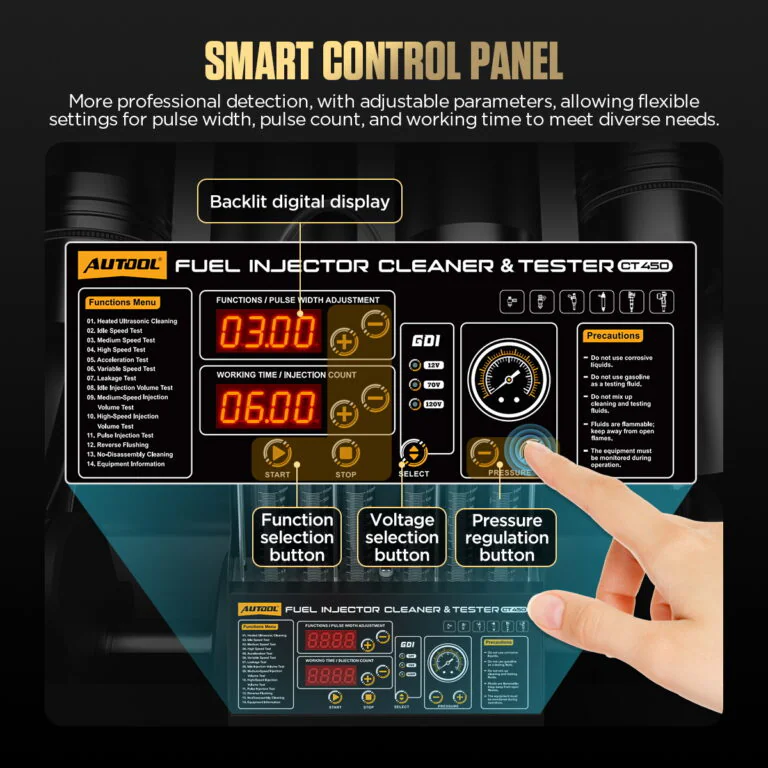

3 Cleaning and 10 Testing Functions
Use heated ultrasonic cleaning, reverse flushing where allowed, optional on-vehicle cleaning with special adapters, leakage and spray checks, preset operating cycles, and pulse-injection observation.
Pulse-Injection Observation
Run intermittent injection at supported pulse settings to compare response and spray behavior under the same low-pressure bench conditions.
Leak, Spray, and Collected-Volume Checks
Use the glass tubes and illuminated test area to identify comparative leakage, spray-shape, and volume differences after checking fixture sealing and channel consistency.
Injector Reverse Flushing for Applicable Designs
Apply reverse flow only where the injector feed design and manufacturer procedure permit it.

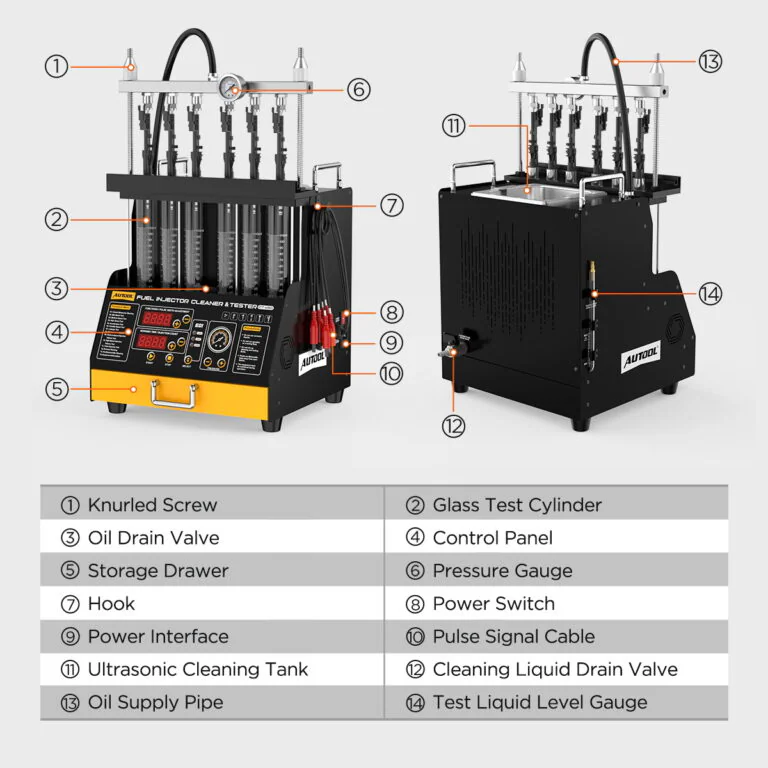

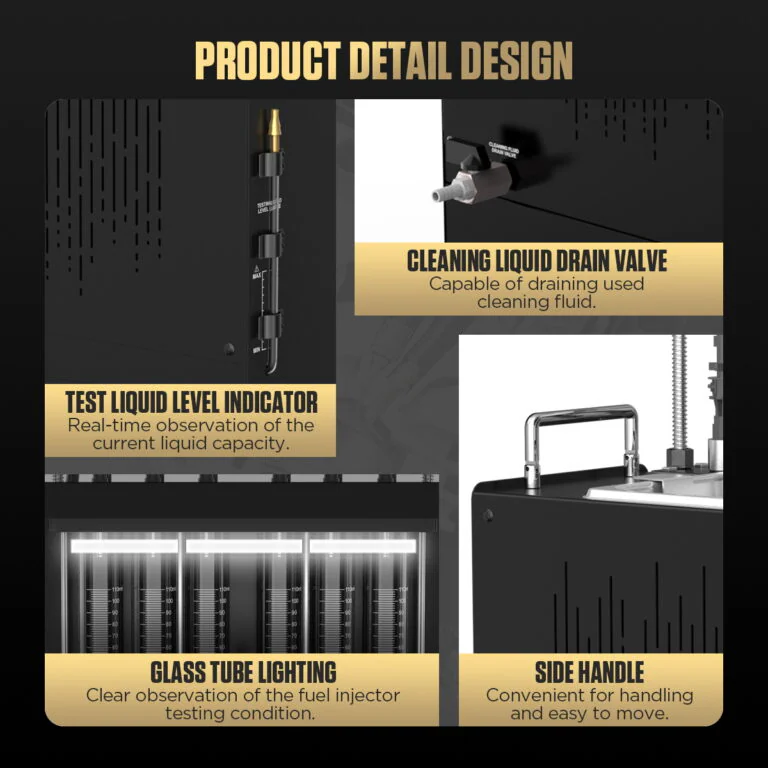

Practical Workshop Controls
A fluid-level indicator, drain valves, glass-tube lighting, foldable grip, and side handle assist setup, observation, transport, and cleanup.

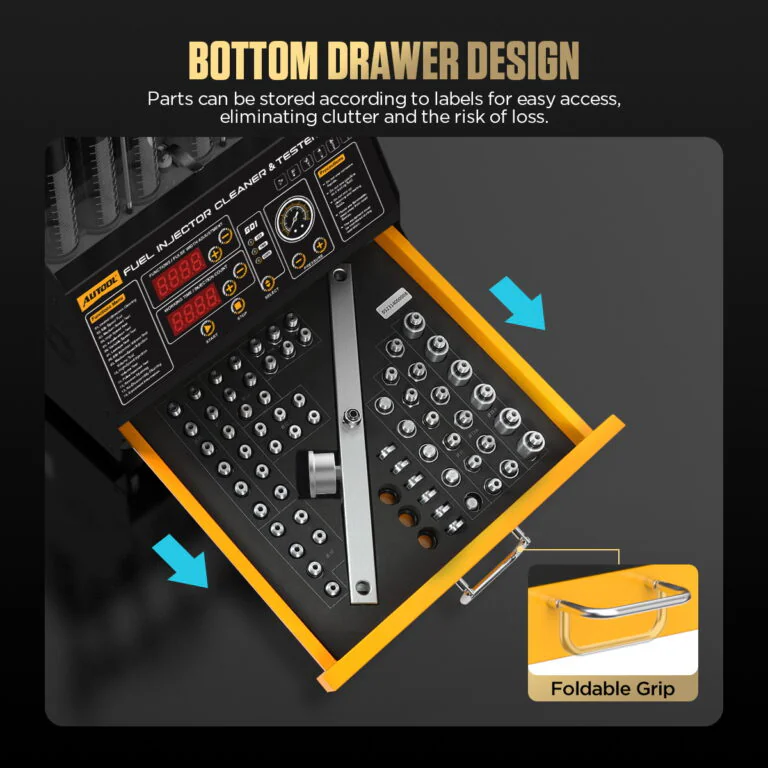

Accessory Storage Drawer
Keep the stated nine adapter types, plugs, cables, seals, and fittings organized close to the bench.
รับประกัน 3 ปี
ตัวเครื่องหลัก: รับประกัน 3 ปี อุปกรณ์เสริมมาตรฐาน: รับประกัน 1 ปีนโยบายการรับประกัน
วิธีใช้
Identify, Select Drive, Heat, Clean, Test, and Compare
ความคืบหน้าทีละขั้นตอน1 / 7
01
Identify the Injector and Required Test
Record the injector manufacturer and part number; confirm service permission, electrical drive, feed direction, adapter, seals, replacement parts, temperature limit, and whether a low-pressure comparison can answer the job.
02
Select the Adapter and Documented Voltage
Choose the correct connector, rail adapter, and 12 V, 70 V, or 120 V setting from verified injector and CT450 information. Stop and obtain guidance if the drive is unknown.
03
Add Approved Cleaning Fluid and Set Heat
Fill the ultrasonic tank to the manual’s operating level with an approved cleaning fluid. Set a permitted temperature up to 50 °C; never heat or ultrasonically clean a fluid or injector that is not approved for the process.
04
Run the Heated Ultrasonic Cycle
Secure and connect the injectors, then run the selected ultrasonic and pulse-cleaning cycle. Do not operate the tank dry, and monitor the process according to the manual.
05
Mount and Seal Up to Six Injectors
Install compatible injectors with the correct fittings and new seals where required. Check the fixture for leaks and plug every unused test position before pressure is applied.
06
Add Approved Test Fluid and Configure
Use only a test fluid confirmed by the current manual, product materials, SDS, and local requirements. Set the documented voltage, pressure, pulse, time, and selected test mode; do not put cleaning liquid in the test circuit.
07
Test, Compare, and Drain
Run leakage, spray, collected-volume, preset-cycle, or pulse-injection checks under identical conditions. Swap channels when necessary, repeat after cleaning, then drain or recover each fluid through its assigned path.
ความปลอดภัยและความเข้ากันได้
Confirm Injector Type, Drive, Temperature, and Fixture
Verify Injector and Adapter Compatibility
Confirm part number, drive type, connector, adapter, feed direction, seals, permitted pressure, cleaning method, and temperature before ordering or use. A vehicle-brand example does not establish fitment.
Low-Pressure GDI Boundary
CT450 supports specified cleaning and relative comparison tasks on selected GDI injectors at bench pressure; it is not a high-pressure GDI characterization, coding, or calibration machine.
Use Heat Only When Permitted
Heating up to 50 °C is available, but the chosen temperature must be compatible with the injector, seals, cleaning chemistry, tank instructions, and local handling rules.
Use Approved Test Fluid
Use professional injector test fluid approved for the CT450 and injector application. Follow the supplied manual, the fluid SDS, material limits, and regional handling rules.
Keep Cleaning Fluid Out of the Test Circuit
Do not use corrosive cleaning liquid as test fluid. Keep the two fluid paths separate and follow ventilation, ignition-control, PPE, storage, and disposal requirements.
Never Dry-Run the Ultrasonic Tank
Add the approved liquid to the specified level before enabling ultrasonic cleaning or heating, and monitor the machine during operation.
Seal and Secure Every Position
Use the correct fittings and seals, check clamping and leaks, and plug all unused positions before pressurizing the rail.
Diesel Service Limit
Compatible diesel injectors may be cleaned when their approved procedure permits it, but CT450 does not test them. Diesel opening-pressure, spray, common-rail, return-flow, coding, and calibration tests require dedicated equipment and procedures.
Drain Fluid for Long Storage
If CT450 will not be used for a long period, recover or drain the test fluid through the specified path.
ผลการทดสอบ
Compare Spray, Leakage, and Volume Under Matched Conditions
Closed Injector Drips
Rule out adapter, seal, rail, and channel leakage first. If the injector still drips after an approved cleaning and controlled retest, internal seat wear or damage may require specialist service or replacement.
One Measuring Cylinder Collects Less
A restriction is possible, but mounting leakage, channel error, or unstable pressure can produce the same pattern. Check sealing and setup, swap channels, and repeat before judging the injector.
Irregular Injector Spray Pattern
A coarse, split, deflected, or dripping pattern can be consistent with deposits or mechanical damage. Repeat the same test after permitted cleaning and escalate if the abnormality remains.
Pulse Response Differs
Repeat a lagging or inconsistent response under the same settings, then continue with the applicable electrical or calibrated injector test if the difference remains.
Improvement After Heated Cleaning
Record temperature and test settings, then compare the cleaned injector under the same conditions and verify the repair on the vehicle.
ไม่มีการปรับปรุง
The injector may already be clean, the deposit may not respond to the permitted process, or an electrical or mechanical fault may remain. Stop repeated uncontrolled cycles and continue diagnosis.
Use the Bench Result
Use CT450 for matched low-pressure comparison. Apply injector-specific data, high-pressure equipment and vehicle diagnosis for original-pressure GDI performance, calibration, coding or a remaining misfire.
เปรียบเทียบรุ่น
Compare Drive, Heating, and Bench Capacity
คู่มือรุ่น
Choose one or more models. CT450 is selected by default.
เลือก 1 รุ่น
ยังไม่ได้เลือกโมเดล โปรดเลือกโมเดลเพื่อเปรียบเทียบ

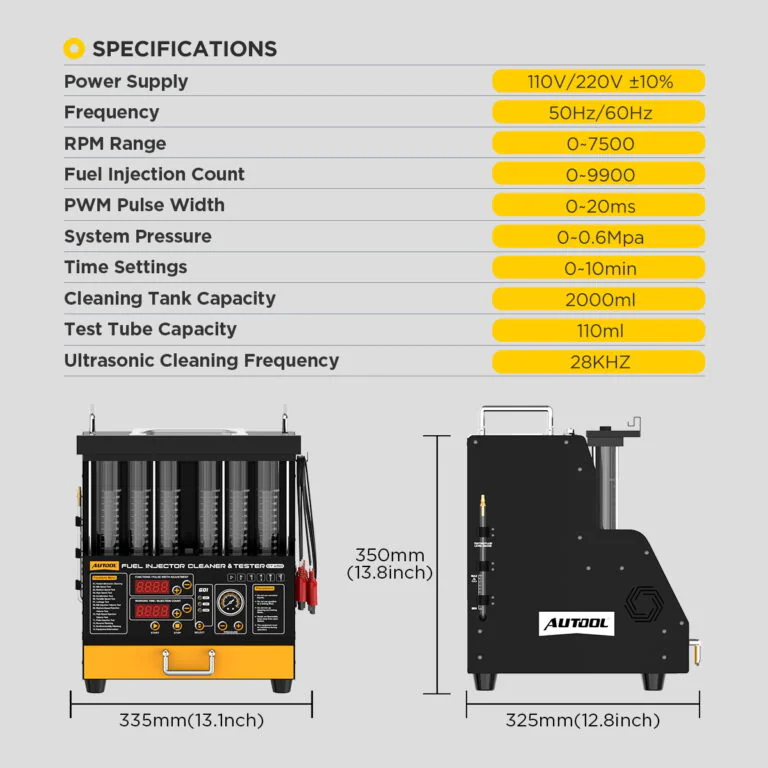

| ชื่อสินค้า | CT150 | CT160 | CT200 | CT400 | CT450 | CT500 | FN602 | FN603 | FN606 | FN608 |
|---|---|---|---|---|---|---|---|---|---|---|
| Setup & Control | ||||||||||
| แรงดันไฟฟ้าอินพุต | ฮิต / 110V | ฮิต / 110V | ฮิต / 110V | ฮิต / 110V | ฮิต / 110V | ฮิต / 110V | ฮิต / 110V | ฮิต / 110V | ฮิต / 110V | ฮิต / 110V |
| การตั้งค่าพัลส์ | 0-20ms | 0-20ms | 0-20ms | 0-20ms | 0-20ms | 0-40ms, Step Size 0.1ms | 0-20ms | 0-20ms | 0-40ms, Step Size 0.1ms | 0-40ms, Step Size 0.1ms |
| ช่วงการตั้งค่าเวลา | 0-10min | 0-10min | 0-10min | 0-10min | 0-10min | 0-10min | 0-10min | 0-10min | 0-10min | 0-10min |
| Simulated RPM Range | 0-7500rpm | 0-7500rpm | 0-7500rpm | 0-7500rpm | 0-7500rpm | 0-7500rpm | 0-7500rpm | 0-7500rpm | 0-7500rpm | 0-7500rpm |
| Supported Voltage Settings | Fixed 12 V drive; no selectable 12 / 70 / 120 V modes | Fixed 12 V drive; no selectable 12 / 70 / 120 V modes | Fixed 12 V drive; no selectable 12 / 70 / 120 V modes | 12V 70V 120V | 12V 70V 120V | 12V 70V 120V | 12V 70V 120V | 12V 70V 120V | 12V 12V-70V 120V-180V | 12V 12V-70V 120V-180V |
| ตั้งค่าภาษา | × | × | × | × | × | 2 Types (Chinese, English) | × | × | 2 Types (Chinese, English) | 2 Types (Chinese, English) |
| Pressure Gauge Display | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| จอแสดงผล LCD | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Cleaning & Fluid System | ||||||||||
| Test Tube Volume | 110ml | 100ml | 110ml | 110ml | 110ml | 110ml | 100ml | 110ml | 110ml | 110ml |
| Cleaning Tank Volume | 1000ml | 2000ml | 1700ml | 2000ml | 2000ml | Confirm tank capacity for your order | 2000ml | 2000ml | 550ml | 550ml |
| Ultrasonic Cleaning Power | 70w | 70w | 70w | 70w | 70w | 70w | 70w | 70w | 70w | 70w |
| ปั๊มในตัว | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 2 |
| Cleaning Fluid Heating | × | ✓ (45℃) | × | × | ✓ (50℃) | × | ✓ (45℃) | ✓ (45℃) | ✓ (50℃) | ✓ (50℃) |
| Test Liquid Level Gauge | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Cleaning Fluid Recovery Valve | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Removable Cleaning Tank | × | × | × | × | × | × | ✓ | × | ✓ | ✓ |
| Number of Fuel Pumps | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 2 |
| Functions & Injector Coverage | ||||||||||
| ฟังก์ชั่นพื้นฐาน | 3 ฟังก์ชันการทำความสะอาด 9 Testing Functions | 3 ฟังก์ชันการทำความสะอาด 9 Testing Functions | 3 ฟังก์ชันการทำความสะอาด 9 Testing Functions | 3 ฟังก์ชันการทำความสะอาด 9 Testing Functions | 3 ฟังก์ชันการทำความสะอาด 10 Testing Functions | 3 ฟังก์ชันการทำความสะอาด 12 Testing Functions | 3 ฟังก์ชันการทำความสะอาด 10 Testing Functions | 3 ฟังก์ชันการทำความสะอาด 10 Testing Functions | 3 ฟังก์ชันการทำความสะอาด 12 Testing Functions | 3 ฟังก์ชันการทำความสะอาด 12 Testing Functions |
| Adapter Connectors | ประเภท 3 | ประเภท 5 | ประเภท 3 | ประเภท 9 | ประเภท 9 | ประเภท 9 | ประเภท 9 | ประเภท 9 | ประเภท 9 | ประเภท 9 |
| Injector Test Positions | 4 หัวฉีดน้ำมันเชื้อเพลิง | 4 หัวฉีดน้ำมันเชื้อเพลิง | 6 หัวฉีดน้ำมันเชื้อเพลิง | 6 หัวฉีดน้ำมันเชื้อเพลิง | 6 หัวฉีดน้ำมันเชื้อเพลิง | 6 หัวฉีดน้ำมันเชื้อเพลิง | 4 หัวฉีดน้ำมันเชื้อเพลิง | 6 หัวฉีดน้ำมันเชื้อเพลิง | 6 หัวฉีดน้ำมันเชื้อเพลิง | 8 หัวฉีดน้ำมันเชื้อเพลิง |
| Fuel Injector Cleaning Type | Standard Fuel Injector | Standard Fuel Injector | Standard Fuel Injector | Standard Fuel Injector GDI, EFI, FSI Long Fuel Injectors | Standard Fuel Injector GDI, EFI, FSI Long Fuel Injectors | Standard Fuel Injector GDI, EFI, FSI Long Fuel Injectors | Standard Fuel Injector GDI, EFI, FSI Long Fuel Injectors | Standard Fuel Injector GDI, EFI, FSI Long Fuel Injectors | Standard Fuel Injector GDI, EFI, FSI Long Fuel Injectors | Standard Fuel Injector GDI, EFI, FSI Long Fuel Injectors |
| Low Impedance Injectors Supported | Compatible units only; confirm injector part number and drive requirements | Compatible units only; confirm injector part number and drive requirements | Compatible units only; confirm injector part number and drive requirements | Compatible units only; confirm injector part number and drive requirements | Compatible units only; confirm injector part number and drive requirements | Compatible units only; confirm injector part number and drive requirements | Compatible units only; confirm injector part number and drive requirements | Compatible units only; confirm injector part number and drive requirements | Compatible units only; confirm injector part number and drive requirements | Compatible units only; confirm injector part number and drive requirements |
| Operation & Equipment | ||||||||||
| Oil Baffle Design | × | × | × | × | × | ✓ | ✓ | ✓ | ✓ | ✓ |
| Operating Condition Simulation Test | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| ลิ้นชักเก็บของ | × | × | × | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
คู่มือและไฟล์ดาวน์โหลด
Use the Manual for Setup and Test Modes

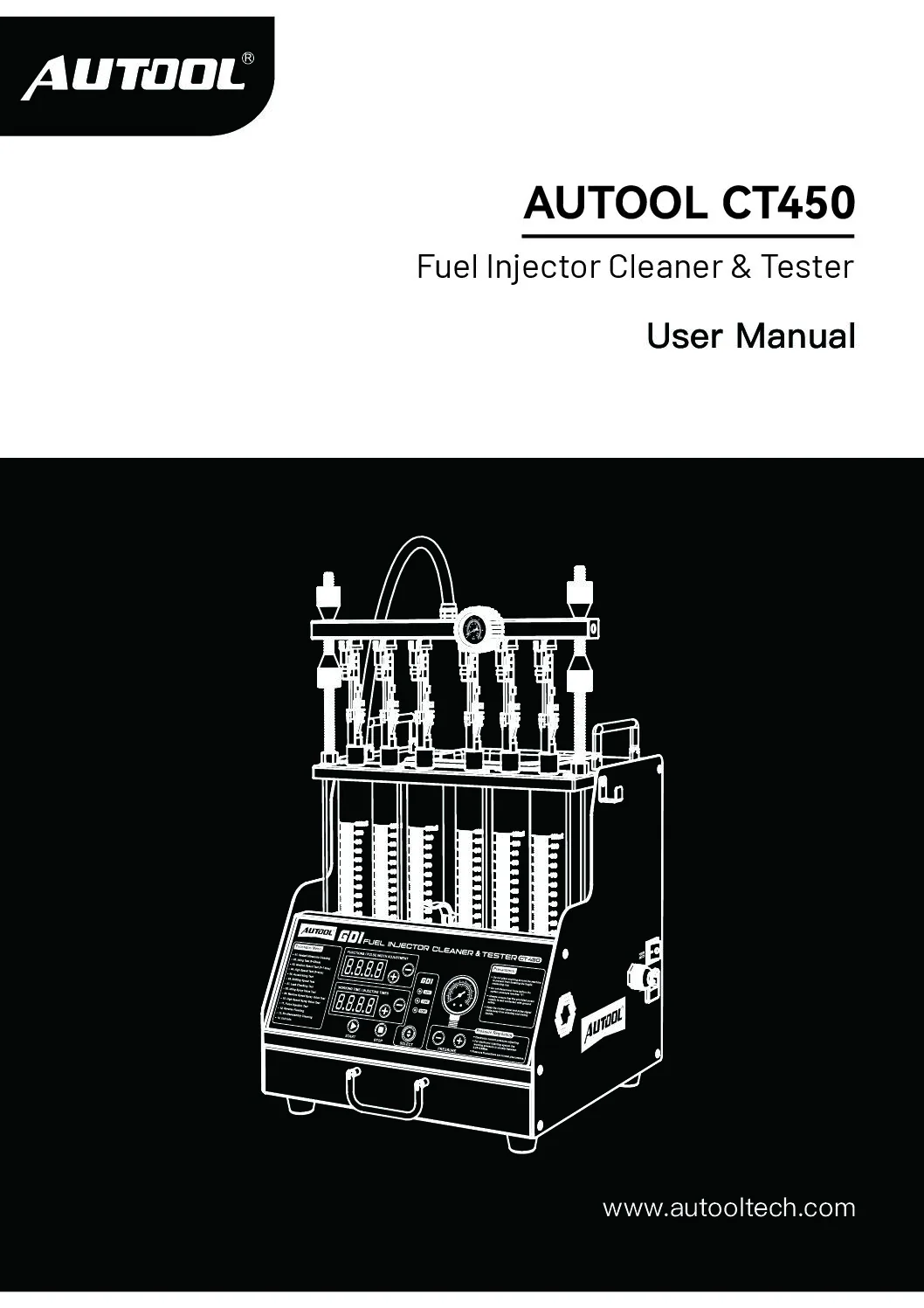

AUTOOL CT450 EN-DE Manual
Open the PDF manual for CT450 injector cleaning, testing, fluid use, voltage selection, safety instructions and troubleshooting support during workshop service.

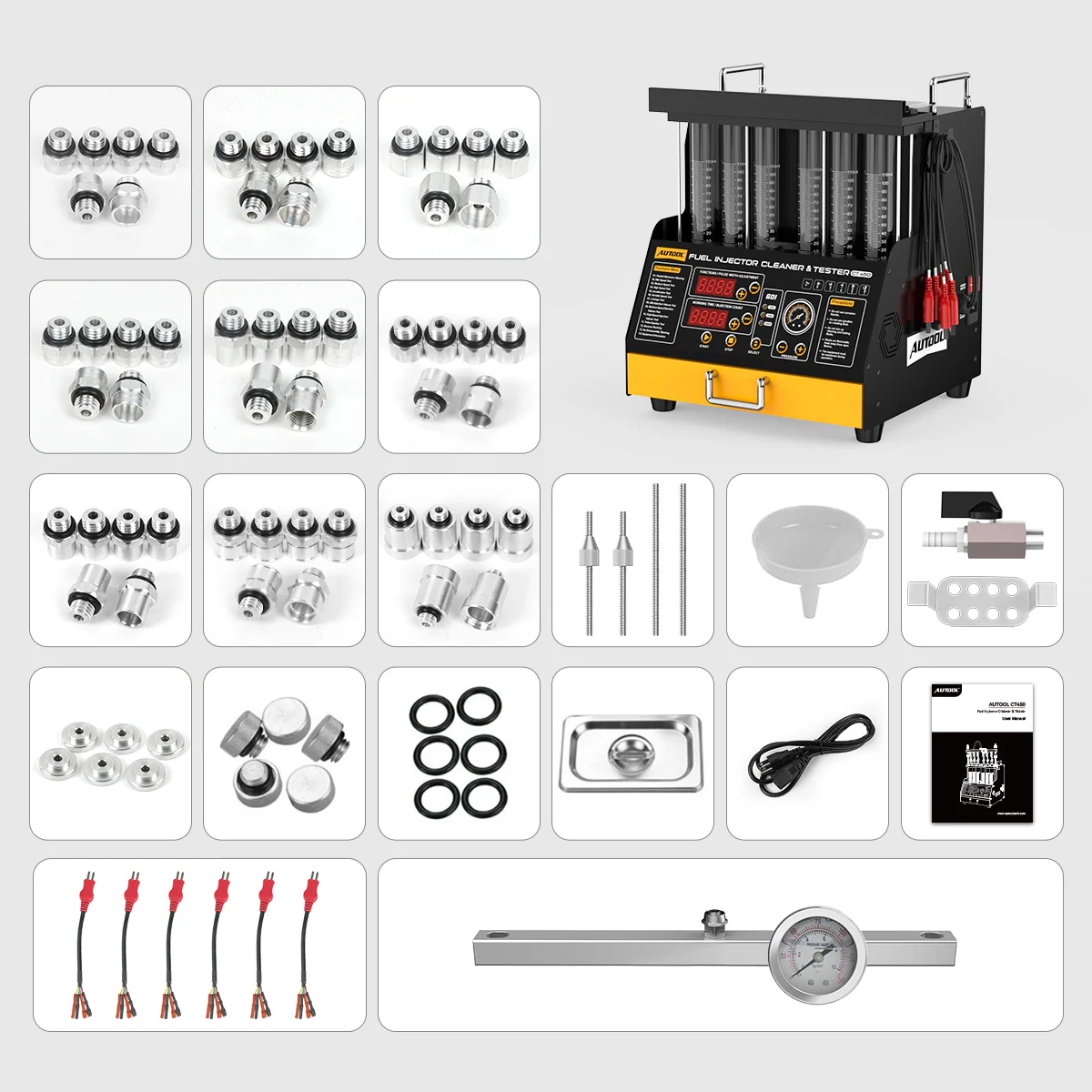

แพ็คเกจ
มีอะไรบ้าง
- หน่วยงานหลักAUTOOL CT450 six-position heated injector cleaner and tester.
- อะแดปเตอร์เก้าประเภทNine adapter types, including adapters described for supported BMW injector applications; confirm exact part-number fitment.
- Six 110 mL Glass Test TubesSix measuring cylinders for side-by-side visual and collected-volume comparison.
- Connectors and Signal CablesInjector signal cables and related connector parts shown in the current packing list.
- Sealing and Fixture PartsO-rings, plugs, caps, and fittings for the included configurations; vehicle-specific one-time seals may still be required.
- Fluid, Power, and Documentation AccessoriesFunnel, drain-valve parts, metal tray cover, power cable, and user manual; exact quantities and regional power version follow the current package.
คำถามที่พบบ่อย
Heating, Drive, and Fit Questions
What does heating add on CT450?
CT450 can heat approved ultrasonic cleaning fluid up to 50 °C. Heat is a controllable process variable and may assist an approved cleaning chemistry, but results still need to be checked with the same before-and-after test conditions.
Can CT450 test GDI injectors at original pressure?
No. It can drive and comparatively observe selected compatible GDI injectors under its low-pressure bench conditions; it is not an original-pressure GDI characterization, coding, or calibration system.
How many injectors can it test?
CT450 provides six test positions and six 110 mL cylinders. Plug every unused position when testing fewer than six injectors.
What is the pulse-injection test for?
It lets you compare injector response and spray behavior at supported pulse settings. It does not create an OEM dynamic-flow calibration or identify every electrical fault.
What Cleaning Fluid Should I Use?
For ultrasonic cleaning, use professional engine carbon cleaning fluid or professional injector cleaning fluid. Add the cleaning fluid before turning on the ultrasonic cleaning function. Do not run the ultrasonic tank dry; doing so may damage the ultrasonic system.
- Use professional injector test fluid approved for the CT450 and injector application. Follow the supplied manual, the fluid SDS, material limits, and local handling requirements.
Can I use cleaning fluid in the test circuit?
No. Keep approved cleaning fluid in the ultrasonic tank and approved non-corrosive test fluid in the test circuit. Never use gasoline or a corrosive cleaner for testing.
Can CT450 Test Diesel Injectors?
No. Diesel injectors are supported for cleaning only, not testing.
- No. Compatible diesel injectors may be cleaned when their approved procedure permits it, but diesel testing requires equipment matched to the injector technology and required measurements.
How is CT450 different from CT400?
CT450 adds heated ultrasonic cleaning up to 50 °C and a pulse-injection test while retaining six positions and 12 / 70 / 120 V selections.
How is CT450 different from CT500?
CT450’s main distinction is the heated 28 kHz cleaning tank. CT500 emphasizes broader pulse modes, a color display, and electronic pressure controls but is described without cleaning heat.
Do the BMW adapters fit every BMW injector?
Confirm the injector part number, dimensions, feed direction, connector, drive requirements, seal kit, and current adapter list before ordering.
การรับประกันคืออะไร?
ตัวเครื่องหลัก: รับประกัน 3 ปี อุปกรณ์เสริมมาตรฐาน: รับประกัน 1 ปีนโยบายการรับประกัน
What Is The Difference Between CT400, CT450, And CT500?
Compared with CT400, CT450 adds the Pulse Injection Test and 50°C ultrasonic heating, making it more effective for heated injector cleaning. Compared with CT450, CT500 adds Wide Pulse Injection Test and Continuous Injection Test for more advanced testing functions. However, CT450 has the heated cleaning advantage over CT500 because CT500 does not support heating.
What Is The Difference Between CT200 And CT400?
CT200 supports 12V standard fuel injectors only. CT400 supports both 12V standard injectors and GDI injectors, making it compatible with a wider range of injector types and vehicles. CT400 also includes a drawer for injector adapters and accessories, while CT200 does not have dedicated accessory storage.
What Is The Difference Between CT150, CT160, And CT200?
- Four standard 12 V injectors: CT150; CT160 adds ultrasonic heating.
- Six standard injectors: CT200 adds two positions.
- GDI/high-pressure injector service: Compare CT400, CT450, CT500, FN606, and FN608 by supported injector type and test functions.
What Is The Difference Between FN608 And FN606?
FN608 supports testing for 8 cylinders, while FN606 supports testing for 6 cylinders. FN608 also has two independent fuel pumps, each corresponding to a separate fuel rail on the left and right sides. If one pump fails, only the corresponding fuel rail is affected, while the other can continue working. FN606 has a single fuel pump, so if the pump fails, the whole system stops working until the pump is replaced.
What Is The Difference Between FN608 And CT500?
FN608 supports 8 cylinders, while CT500 supports 6 cylinders. FN608 features a heating cleaning tank that maintains up to 50°C, while CT500 does not support heating. FN608 also supports wider voltage ranges, including 12V, 12-70V, and 120-180V, while CT500 supports 12V, 70V, and 120V. FN608 has an independent cleaning tank design and dual fuel pumps, while CT500 has an integrated cleaning tank and a single fuel pump.
