AUTOOL Измеритель толщины автомобильного покрытия TG501
US$89.00
Ключевые особенности
- Automatic Fe / NFe Selection
- 0–2000 µm Measurement Range
- 0.1 / 1 µm Resolution
- 80-Reading Memory
- Automatic Fe / NFe Selection: Automatically select magnetic-induction measurement for supported ferrous metal or eddy-current measurement for non-ferrous metal.
- 0–2000 µm Measurement Range: Measure total coating thickness from 0 to 2000 µm.
- 0.1 / 1 µm Resolution: Read 0.1 µm resolution through 100 µm and 1 µm resolution above 100 µm.
- 80-Reading Memory: Store up to 80 readings for comparison across panels or workpieces.
- Rotating Display + References: Rotate the display for angled positions and use the included metal substrates and films for zero and reference checks.
☰ ЗАПРОСИТЬ ОПТОВОЕ ПРЕДЛОЖЕНИЕ / B2BОфициальный запрос на коммерческое предложение
Форма запроса на загрузку...
- 3-летнюю гарантию Основной блок: 3 года · Аксессуары: 1 год
- 90-Day Returns Возврат возможен в течение 90 дней.
- Официальный магазин Оригинальная продукция · Прямая поддержка
AUTOOL TG501 · 0–2000 μm Fe/NFe Coating Thickness Gauge
Map Coating Differences Across Metal Panels
Map coating differences across supported ferrous and non-ferrous metal panels with the AUTOOL TG501. Automatic Fe/NFe measurement, a 0–2000 µm range, 80-reading memory, a rotating display, and included zero/calibration references support systematic comparisons across vehicle panels and metal workpieces.
- Automatic Fe / NFe Selection
- 0–2000 μm Measurement Range
- 0.1 μm Resolution to 100 μm
- 80-Reading Memory
- Zero + Reference Check Plates
Ключевые особенности
Measure Fe/NFe Coatings and Store 80 Readings
Automatic Fe And NFe Recognition
Automatically select magnetic-induction measurement on supported ferrous substrates or eddy-current measurement on supported non-ferrous substrates.
This reduces manual substrate switching when mapping coating differences across mixed metal vehicle panels or workpieces.
0–2000 μm Measurement
Measure total coating thickness across the stated 0–2000 μm range.
Displayed resolution is 0.1 μm through 100 μm and 1 μm above 100 μm.
80-Reading Memory
Store up to 80 readings so comparable points can be reviewed across panels or workpieces.
Автоматический поворот экрана
Rotate the displayed reading with instrument orientation so the value remains readable on angled or confined measurement points.
Read the value at different panel orientations without treating display rotation as a change to probe placement or measurement method.
Несколько единиц
Switch among the units provided by the instrument to match the inspection record.
Zero and Reference Check Plates
Use the included metal substrates and thickness films for zero and reference checks before measurement.
Two-Minute Auto-Off
The gauge powers down automatically after about two minutes without operation to conserve battery power.
Многоединичное преобразование
Supports multiple measurement units for different reference standards, usage habits, and inspection workflows.
Гарантийное обслуживание в течение 3 лет
Основной блок: 3-летняя гарантия. Стандартные аксессуары: 1-летняя гарантия. Гарантийные условия.
Как использовать
Set Up the Tool, Record and Verify
Шаг вперед1 / 5
Inspect The Surface
Suitable for coating thickness measurement on ferrous substrates such as iron and steel panels.
Confirm the underlying metal substrate type, adequate area and curvature, and a clean, dry measurement point.
Suitable for coating thickness measurement on non-ferrous substrates such as aluminum, copper, zinc, and alloy surfaces.
Check The Gauge
Helps inspect vehicle paint thickness and supports used-car checks, refinishing evaluation, repaint identification, and abnormal thickness comparison.
Use the supplied substrate and thickness references for the required zero/reference check.
03
Map Comparable Points
Hold the probe perpendicular and steady; measure several comparable points on each panel rather than one isolated spot.
04
Record Context
Save the reading with panel, position, substrate, unit, and any edge, curvature, contamination, or repair context.
05
Investigate The Pattern
Repeat unexpected readings and combine the map with body, history, structural, mechanical, and professional inspection evidence.
Безопасность и совместимость
Keep Screening Results Within Their Limits
Поддерживаемые субстраты
Magnetic induction and eddy current require compatible ferrous or non-ferrous metal. Plastic and composite panels need another measurement method.
Perpendicular Contact
Keep the probe stable and perpendicular; edges, tight curves, small areas, dirt and unstable contact can affect results.
Minimum Geometry
The published limits include a 15 mm minimum measurement area diameter, 5 mm minimum convex radius and 25 mm minimum concave radius.
Минимальная толщина основания
Published minimum base thickness is 0.30 mm for Fe and 0.05 mm for NFe.
Условия эксплуатации
Published conditions are -10 to 50 °C and 20–90% RH.
Use the Reading to Target Inspection
Use the thickness reading to compare panels and identify areas for closer inspection; assess repair quality or originality with the applicable body-inspection methods.
Multi-Point Paint Assessment
Measure multiple points on the same panel for a more reliable paint thickness assessment.
If readings vary widely, compare several nearby locations rather than relying on one single measurement.
Calibration Plate Storage
Store the calibration plates properly to avoid scratches or deformation.
Характеристики
Coverage, Range and Power Details
| Параметр | Значение |
|---|---|
| Методы измерения | Magnetic induction (Fe) and eddy current (NFe) |
| Диапазон | 0 – 2000 мкм |
| Разрешение | 0.1 μm at 0–100 μm; 1 μm above 100 μm |
| Заявленная точность | ±(3% of reading + 1 μm) |
| Минимальная зона измерения | Диаметр 15 мм |
| Минимальная толщина основания | Fe 0.30 mm; NFe 0.05 mm |
| Минимальный радиус кривизны | Convex 5 mm; concave 25 mm |
| Скорость чтения | Up to 2 readings per second |
| Условия эксплуатации | -10 to 50 °C; 20–90% RH |
| Память | До показаний 80 |
Руководство и поддержка
Use the Gauge Manual for Setup and Measurement

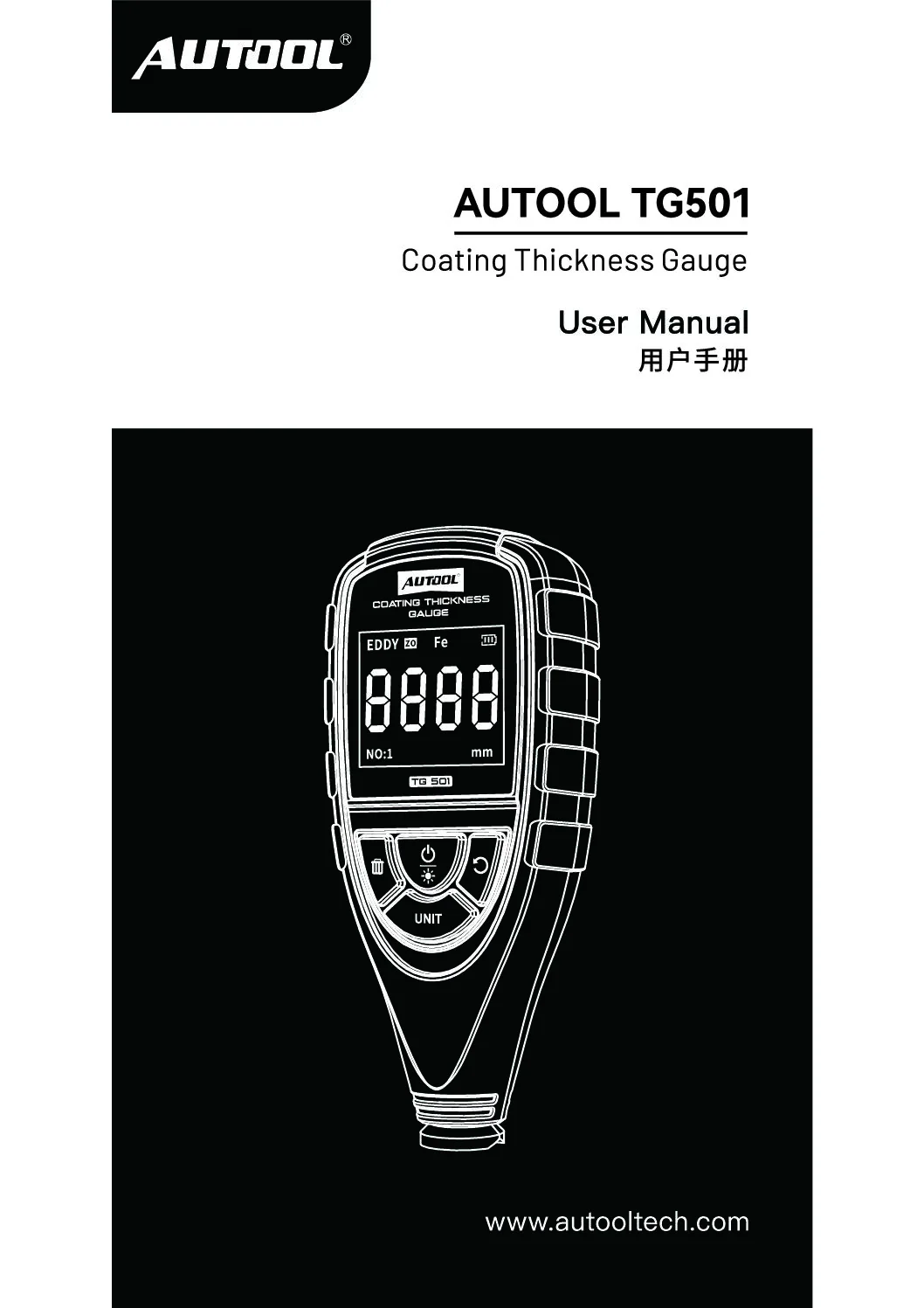

AUTOOL TG501 User Manual
Open the PDF manual for TG501 Fe/NFe measurement, calibration, memory review and panel comparison, with operating safety and troubleshooting support.
Комплектация
Check the Tool and Included Accessories
- TG501 GaugeHandheld coating thickness gauge.
- АккумуляторыPower cells.
- Calibration ReferencesMetal substrate and thickness reference pieces.
- РемешокHand strap for portable inspection.
- User Manual And BoxOperating instructions and retail package.
Часто задаваемые вопросы (FAQ)
Вопросы, касающиеся охвата, результатов и применения.
What Surfaces Can TG501 Measure?
TG501 is designed for coating thickness measurement on ferrous and non-ferrous metal substrates, such as steel, iron, aluminum, copper, zinc, and alloy surfaces. It is especially useful for vehicle paint inspection and coating thickness comparison.
TG501 measures coating thickness over supported ferrous and non-ferrous metal substrates using magnetic induction and eddy-current methods. It does not measure coatings over plastic or composite panels with these sensor methods.
What Is The Measuring Range Of TG501?
TG501 measures coating thickness from 0 to 2000 μm for detailed paint and coating inspection, with 0.1 μm resolution up to 100 μm.
The range is 0–2000 μm. Resolution is 0.1 μm from 0–100 μm and 1 μm above 100 μm; stated accuracy is ±(3% of reading + 1 μm) under the specified conditions.
Does TG501 Identify Fe And NFe Substrates Automatically?
Yes. TG501 automatically distinguishes between ferrous and non-ferrous substrates, helping users measure paint thickness across different vehicle panels and metal surfaces more efficiently.
How Many Data Records Can TG501 Store?
TG501 can store up to 80 sets of measurement data, making it easier to compare paint thickness across multiple areas of a vehicle or coating surface.
What Calibration Tools Are Included?
The package includes calibration metal substrate and thickness plates, which provide calibration references for more reliable measurement results.
Does TG501 Support Unit Switching?
Yes. TG501 supports multi-unit conversion to match different reference standards and user preferences during coating thickness measurement.
Does TG501 Turn Off Automatically?
Yes. TG501 automatically powers off after about two minutes of inactivity to help save power.
Как долго гарантия?
Основной блок: 3-летняя гарантия. Стандартные аксессуары: 1-летняя гарантия. Гарантийные условия.
Can TG501 Measure Paint On Plastic Panels?
No. Its magnetic-induction and eddy-current methods require compatible ferrous or non-ferrous metal substrates.
Can One Reading Prove A Vehicle Had An Accident?
No. Compare repeated readings at mapped points and consider substrate, geometry, surface condition, records, and a full body and mechanical inspection. Thickness alone does not establish accident cause or structural condition.
