AUTOOL BT160 Automotive Power Circuit Tester
US$33.00
Ключевые особенности
- 6–24V Circuit States
- Continuity + Ground Checks
- Controlled Component Activation
- Harness Short Tracing
- 6–24V Circuit States: Identify positive, negative, and open conditions in 6–24 V DC vehicle circuits with red and green LED feedback.
- Continuity + Ground Checks: Check wires, fuses, relays, switches, and component ground paths for continuity or open conditions.
- Controlled Component Activation: Apply power or ground to selected components for in-vehicle or bench checks.
- Harness Short Tracing: Probe successive harness sections after removing a blown fuse to narrow the side carrying a short or overload condition.
- 4 m Working Reach: Reach test points from the vehicle battery with the integrated 4 m lead.
☰ ЗАПРОСИТЬ ОПТОВОЕ ПРЕДЛОЖЕНИЕ / B2BОфициальный запрос на коммерческое предложение
Форма запроса на загрузку...
- 3-летнюю гарантию Основной блок: 3 года · Аксессуары: 1 год
- 90-Day Returns Возврат возможен в течение 90 дней.
- Официальный магазин Оригинальная продукция · Прямая поддержка
AUTOOL BT160 · 6–24V Powered Circuit Probe
Probe and Activate Compatible DC Circuits
Trace common faults from the battery to distant test points with this automotive electrical circuit tester for compatible 6–24V DC vehicle circuits. BT160 identifies positive, negative, and open states, checks continuity and ground paths, and can apply controlled power or ground to selected components. Its long integrated lead supports front-to-rear harness work on larger vehicles.
- 6–24 V DC Circuits
- Polarity / Continuity / Ground Checks
- Selected Component Activation
- Manual Short-Circuit Tracing
- 4 m Test Lead
Ключевые особенности
Power and Ground Checks with a Circuit Test Probe
Проверка полярности
Probe an unknown contact to identify circuit polarity. The red LED indicates positive voltage, and the green LED indicates negative voltage.
Continuity And Open Circuit Test
Check whether a tested wire, fuse, relay, switch, or circuit path is continuous or open by using the auxiliary ground lead and probe tip.
Режим проверки диодов
Quickly test the working status of a diode assembly and determine whether the circuit is open or continuous.
Тест заземления
Check whether the negative grounding of a component is good. Green LED with buzzer feedback indicates good grounding under the correct test setup.
Short Circuit Following
After removing the blown fuse, probe successive harness sections to narrow which side still shows the short or overload condition.
Защита от перегрузки по току
When overload or excessive current is detected, BT160 automatically opens circuit protection and beeps to reduce unnecessary losses.
6–24V DC Testing
Use BT160 only with 6-24V DC automotive electrical systems, including common 12V cars and 24V heavy trucks.
4m Test Lead
The 4m lead extends working reach from the battery, while the 220 × 30 × 30mm probe body fits in one hand.
Активация компонента
Supports component testing both outside the vehicle and in the vehicle electrical system. Follow the specified wiring and activation procedure for the component under test. Apply output only in the documented polarity/current mode; do not inject power or ground into an ECU, SRS, sensor or data line without a specific authorized procedure.
Гарантийное обслуживание в течение 3 лет
Основной блок: 3-летняя гарантия. Стандартные аксессуары: 1-летняя гарантия. Гарантийные условия.
Сервисный рабочий процесс
Connect, Identify and Test the Circuit
Шаг вперед1 / 10
01
Подключить к аккумулятору
Unroll the leads. Connect the red clip to the positive terminal of the vehicle battery and the black clip to the negative terminal.
02
Run A Quick Self-Test
Press the switch to confirm LED feedback. Red indicates positive voltage and green indicates negative voltage.
03
Probe The Circuit
Touch the probe tip to the circuit contact, wire, fuse, relay, diode, or component terminal according to the selected test mode.
04
Read LED And Buzzer Feedback
Use LED color, buzzer behavior, and circuit response to identify positive, negative, open, continuous, grounded, overloaded, or shorted conditions.
05
Проверка полярности
Contact the probe tip to the tested point. A positive contact lights the red LED, while a negative contact lights the green LED.
06
Проверка непрерывности
Connect the auxiliary ground lead to one side of the tested wire and the probe tip to the other side. Green LED means continuity is present.
07
Активация компонента
Use the power switch to apply positive or negative output under the correct setup. Stop immediately if the LED changes color with buzzer feedback.
08
Jumper Lead Operation
The black clip and auxiliary ground lead are directly connected through the unit, allowing BT160 to work as a long jumper test lead in suitable checks.
09
Тестирование заземления
Use grounding test mode to check whether the negative grounding of a component is good when high current flow requires reliable grounding.
10
Short Circuit Locating
Remove the blown fuse, start from the fuse socket, follow the wiring harness, and check the wire side where green LED with buzzer appears.
Безопасное использование
Limit Powered Tests to Approved Circuits
6-24V DC Only
Use BT160 only with 6-24V DC automotive electrical systems, including common 12V cars and 24V heavy trucks.
Do Not Use On AC Power
BT160 is not designed for 110V / 220V AC household current or any system above 24V DC.
Spark Warning
Sparks may occur at the probe tip during use. Do not operate in areas with combustible gas, dust, or explosive conditions.
Осмотрите перед использованием
Check the case, probe tip, clips, and leads before use. Do not use the tester if cracks, exposed wires, or visible damage are found.
Sharp Probe Tip
The probe is sharp. Use and store it carefully, and keep the tool away from children.
Do Not Open The Tool
Do not disassemble BT160. Opening the tool voids the warranty, and repairs should be handled by authorized service support.
Interpret the Result in Context
Verify the circuit, mode, polarity and permitted load before applying power or ground. Protection in the tester does not prove that an ECU, sensor, SRS circuit or other sensitive module can accept an active output.
Stop on an Overload Alert
During component activation, an overload can disconnect output and trigger an LED change with a beeping alarm. Stop the test, then check the circuit, component condition, and rated current before continuing.
Сравнение моделей
Choose the Right Circuit Test Tool
Руководство по модели
Choose one or more models. BT160 is selected by default.
Выбрана 1 модель
Модель не выбрана. Выберите модель для сравнения.
| Наименование | BT160 | BT210 | BT250 | BT260 | BT280 |
|---|---|---|---|---|---|
| Диапазоны измерений | |||||
| Диапазон измерения напряжения постоянного тока | × | 9 ~ 30V | 0 ~ 65V | 0 ~ 65V | 0.1 ~ 100V |
| Диапазон измерения переменного напряжения | × | 9 ~ 30V | 0 ~ 65V | 0 ~ 65V | 0.1 ~ 100V |
| Диапазон измерения сопротивления | × | × | 0 ~ 200 кОм | 0 ~ 200 кОм | 1 ~ 200 кОм |
| Диапазон измерения тока | 0 ~ 10A | 0 ~ 10A | 1 ~ 10A | The 1–10 A figure is a rated-current/protection limit. Choose a model with a documented ammeter mode when current measurement is required. | 0 ~ 18A |
| Core Tests & Protection | |||||
| DC Voltage Detection Mode | ✓ | ✓ | ✓ | ✓ | ✓ |
| Тест заземления | ✓ | × | ✓ | ✓ | ✓ |
| Температурный тест | × | ✓ | × | × | × |
| Проверка полярности | ✓ | ✓ | ✓ | ✓ | ✓ |
| Защита от перегрузки по току | ✓ | ✓ | ✓ | ✓ | ✓ |
| Тест на непрерывность | ✓ | ✓ | ✓ | ✓ | ✓ |
| Режим проверки диодов | ✓ | × | ✓ | ✓ | ✓ |
| Resistance Detection Mode | × | × | ✓ | ✓ | ✓ |
| Advanced Diagnostics & Output | |||||
| Проверка форсунки | × | × | × | × | ✓ |
| 0~5V Power Supply | × | × | × | × | ✓ |
| Тест реле | × | × | × | × | ✓ |
| Активация компонента | × | × | × | × | ✓ |
| Режим осциллографа | × | × | × | × | ✓ |
| Режим мультиметра | × | × | × | × | ✓ |
| Умный тест | × | × | × | × | ✓ |
| Hardware, Power, Interface & Updates | |||||
| Рабочее напряжение | 6 ~ 24V | 9 ~ 30V | 9 ~ 30V | 9 ~ 30V | 9 ~ 30V |
| Длина силового кабеля | 4m | 1.1m | 1.5m | 12m | 6m |
| Многоязычный | × | × | 9 | 9 | 14 |
| Размер экрана | × | × | 1.65 дюйма | 1.65 дюйма | 2.8 дюйма |
| TFT цветной дисплей | × | × | ✓ | ✓ | ✓ |
| Светодиодные | × | ✓ | ✓ | ✓ | ✓ |
| Онлайн обновление | × | × | × | × | ✓ |
Руководство и поддержка
Find the Manual and Connection Guidance

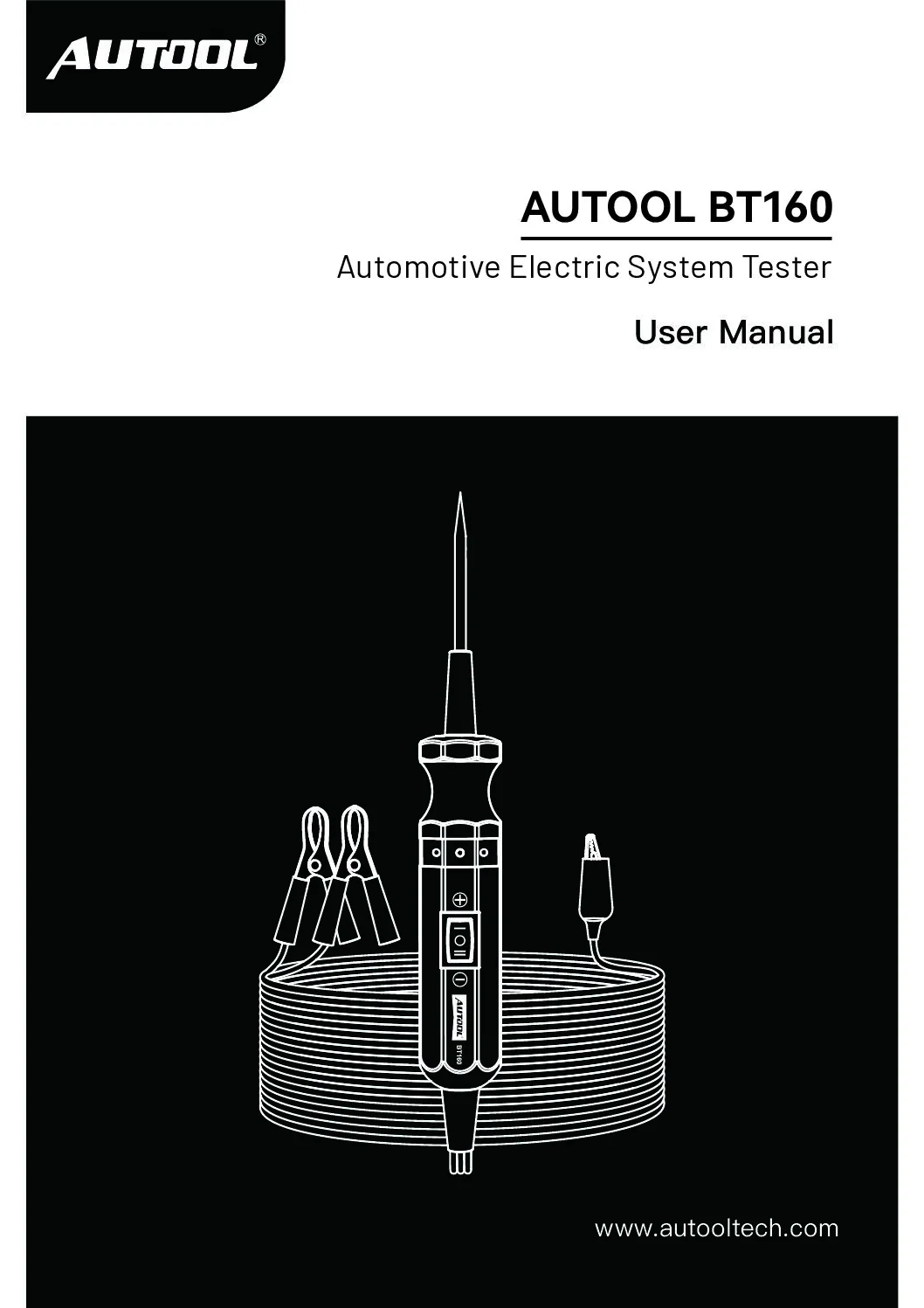

AUTOOL BT160 User Manual
Откройте руководство в формате PDF для AUTOOL BT160 voltage, polarity, continuity, diode and grounding checks, short-circuit tracing, component activation, overload protection and troubleshooting support.
Комплектация
Посмотрите, что входит в комплект.
- Основной блокAUTOOL BT160 automotive electrical system tester
- Силовой кабельIntegrated 4m / 13ft lead with red and black battery clips
- Вспомогательное заземлениеAuxiliary ground clamp
- ДокументацияBT160 user manual
- Розничная коробкаAUTOOL BT160 retail package
- Окончательная проверкаAccessories follow the listed package configuration.
Вопросы покупателя
Circuit Connection and Measurement Questions
Can BT160 Be Used On 12V Cars And 24V Trucks?
Yes. BT160 is designed for 6-24V DC systems, so it is suitable for common 12V car electrical checks and 24V heavy truck electrical checks when used within the specified range.
Can BT160 Be Used On 110V Or 220V AC Circuits?
No. BT160 is not designed for 110V / 220V AC household current or any over-24V DC system. Use it only on 6-24V DC automotive electrical systems.
Does BT160 Measure Exact Voltage Values?
BT160 does not have a screen and is not the right choice for reading exact voltage values. It is intended for quick DC circuit presence, polarity, continuity, diode, grounding, and overload checks. Choose BT210, BT250, BT260, or BT280 if you need numerical voltage display or more measurement functions.
What Do The Red And Green LEDs Mean?
Red LED indicates positive voltage supplied or detected. Green LED indicates negative voltage supplied or detected. In continuity testing, green LED feedback indicates continuity is present.
Does BT160 Support Temperature Test Or LED Light?
BT160 is positioned as a simple 6-24V DC circuit tester and does not list temperature test or LED light as BT160 functions in the model comparison. Choose BT210 if you need temperature test and LED light support.
How Does The Power Switch Work?
The power switch can be used to output voltage during suitable tests.
- Press the “-” side to output positive voltage and press the “=” side to output negative voltage.
- Follow the manual and stop if the LED changes color with buzzer feedback during component testing.
- Use only the documented polarity/current mode and never inject power or ground into an ECU, SRS, sensor or data line without a specific procedure.
What Should I Do If Overload Protection Is Triggered?
If BT160 beeps or the LED changes unexpectedly during a powered test, stop testing immediately. Check whether the tested component is defective, whether the circuit is shorted, or whether the rated current of the component is higher than the tester can support.
What Is Included In The BT160 Package?
Package contents: BT160 main unit, integrated lead with red and black battery clips, auxiliary ground clamp, user manual, and retail box.
Который AUTOOL Circuit Tester Should I Choose?
- Choose BT160 if you need a compact no-screen 6-24V DC tester for polarity, open circuit, diode, grounding, and overload protection checks.
- Choose BT210 for a simple digital display, temperature test, and LED light.
- Choose BT250 or BT260 for TFT screen, AC / DC voltage, resistance, and multi-language support.
- Choose BT280 for smart test, multimeter, oscilloscope, relay, injector, component activation, online update, and higher-end diagnostic functions.
Как долго гарантия?
Основной блок: 3-летняя гарантия. Стандартные аксессуары: 1-летняя гарантия. Гарантийные условия.
