AUTOOL Набор автомобильных тестовых проводов из 48 предметов
US$69.00
Ключевые особенности
- 48-Piece Connection Kit
- Back-Probe Access
- No-Cut Current Connections
- Meter + Scope Extension
- 48-Piece Connection Kit: Add color-coded terminal leads, probes, clips, and banana adapters to compatible automotive test instruments.
- Back-Probe Access: Reach the back of fitted terminals for sensor, actuator, connector, and wiring checks.
- No-Cut Current Connections: Insert the appropriate lead into a supported current-test path without cutting or stripping the original wire.
- Meter + Scope Extension: Extend compatible multimeter, current-meter, and oscilloscope probe setups.
- 105 cm Leads + EVA Case: Add working reach with the extension leads and keep the 48-piece set organized in the portable case.
☰ ЗАПРОСИТЬ ОПТОВОЕ ПРЕДЛОЖЕНИЕ / B2BОфициальный запрос на коммерческое предложение
Форма запроса на загрузку...
- 3-летнюю гарантию Основной блок: 3 года · Аксессуары: 1 год
- 90-Day Returns Возврат возможен в течение 90 дней.
- Официальный магазин Оригинальная продукция · Прямая поддержка
AUTOOL 48-Piece Automotive Test Lead Kit · Back-Probe Set
Reach Vehicle Circuits Without Cutting Wires
Extend compatible meters and scopes into fitted vehicle connectors without unnecessary wire cutting. This 48-piece kit combines back probes, terminal leads, clips, and banana adapters for sensor, actuator, wiring, and supported current-path checks, with longer leads and an EVA case for organized workshop use.
- 48-Piece Connection Set
- 23 cm Back-Probe Leads
- 105 cm Banana Extensions
- Meter + Scope Connections
- Кейс для хранения EVA
Ключевые особенности
48 Organized Leads, Clips and Adapters
Back-Probe Access
Use the back probe test leads at the rear of compatible fitted connectors for circuit checks, helping avoid wire cuts that can introduce damage, corrosion, or added impedance.
Без перерезания проводов
When checking current or circuit continuity, connect the circuit through the test lead kit without cutting, stripping, or removing the original wire.
Meter + Scope Extension Set
Suitable for multimeters, current meters, and oscilloscope probe extension during automotive electrical diagnosis.
Portable EVA Carrying Case
The compact case protects the measuring leads, keeps tools organized, and makes the kit easier to carry for indoor, outdoor, workshop, and field use.
Multiple Terminal Sizes
Color-coded jumper wire groups provide different terminal sizes for matching automotive connectors during electrical diagnosis.
Alligator Clip Connections
Red and black multimeter alligator clips provide clip-on connections for compatible circuit tests.
Переходники типа «банан»
Yellow and black banana plug adapters support flexible connections between compatible meters and test leads.
LED Test Lead
The kit includes an LED test lead for circuit checking alongside its probes and adapters.
23cm Probe Leads
Red and black probe leads support terminal testing, back-probing, and contact testing in narrow areas.
Potentiometer Test Leads
The 15cm potentiometer test leads use red, blue, and black wires for sensor, actuator, or variable-resistance circuit work.
105cm Extension Leads
Red and black male-to-female 4mm banana plug leads extend compatible meter or oscilloscope connections.
Jumper Wire Length
The jumper wires are 20.6 cm long.
Гарантийное обслуживание в течение 3 лет
Основной блок: 3-летняя гарантия. Стандартные аксессуары: 1-летняя гарантия. Гарантийные условия.
Сервисный рабочий процесс
Match the Terminal Before Back-Probing
Шаг вперед1 / 5
01
Choose the Adapter
Match the connector, terminal size and probe style to the intended test point without forcing or spreading the vehicle terminal.
02
Проверьте рейтинги
Use the lowest input and CAT limit in the complete meter-lead-probe path and confirm the circuit is within that rating.
03
Inspect the Lead
Do not use a lead with damaged insulation, loose metal, contamination or a bent connector.
04
Connect in a Safe State
De-energize or place the circuit in the condition required by the vehicle procedure before changing adapters; keep fingers behind guards.
05
Measure and Restore
Make the supported measurement, then remove the adapters and check that the vehicle terminal and seal are restored without damage.
Безопасное использование
Protect Connector Tension and Meter Category
The Lowest Rating Governs
The complete path is limited by the lowest rating of the meter, input terminal, fuse, lead, probe and adapter. The kit does not add a CAT or high-voltage rating.
Protect the Vehicle Terminal
Choose the matching terminal size and never force a probe into a connector; spreading or scratching a terminal can create a new intermittent fault.
Inspect Insulation and Metalwork
Do not use a lead with damaged insulation, loose exposed metal, contamination, heat damage or a bent connector.
Change Connections Safely
De-energize or place the circuit in the state required by the vehicle procedure before changing adapters, and keep fingers behind the probe guards.
Характеристики
Test Lead and Adapter Specifications
| Параметр | Значение |
|---|---|
| Размер комплекта | 48 штук |
| Тип продукта | Multimeter test-lead and probe adapter set |
Руководство и поддержка
Найдите руководство и инструкции по измерениям.
AUTOOL 48-Piece Test Lead Kit Manual & Guides
Visit the manual download center to find compatible meter or oscilloscope host guides, then confirm terminal size, probe fit, lead routing and safe back-probing connections.
Комплектация
Комплект поставки адаптера

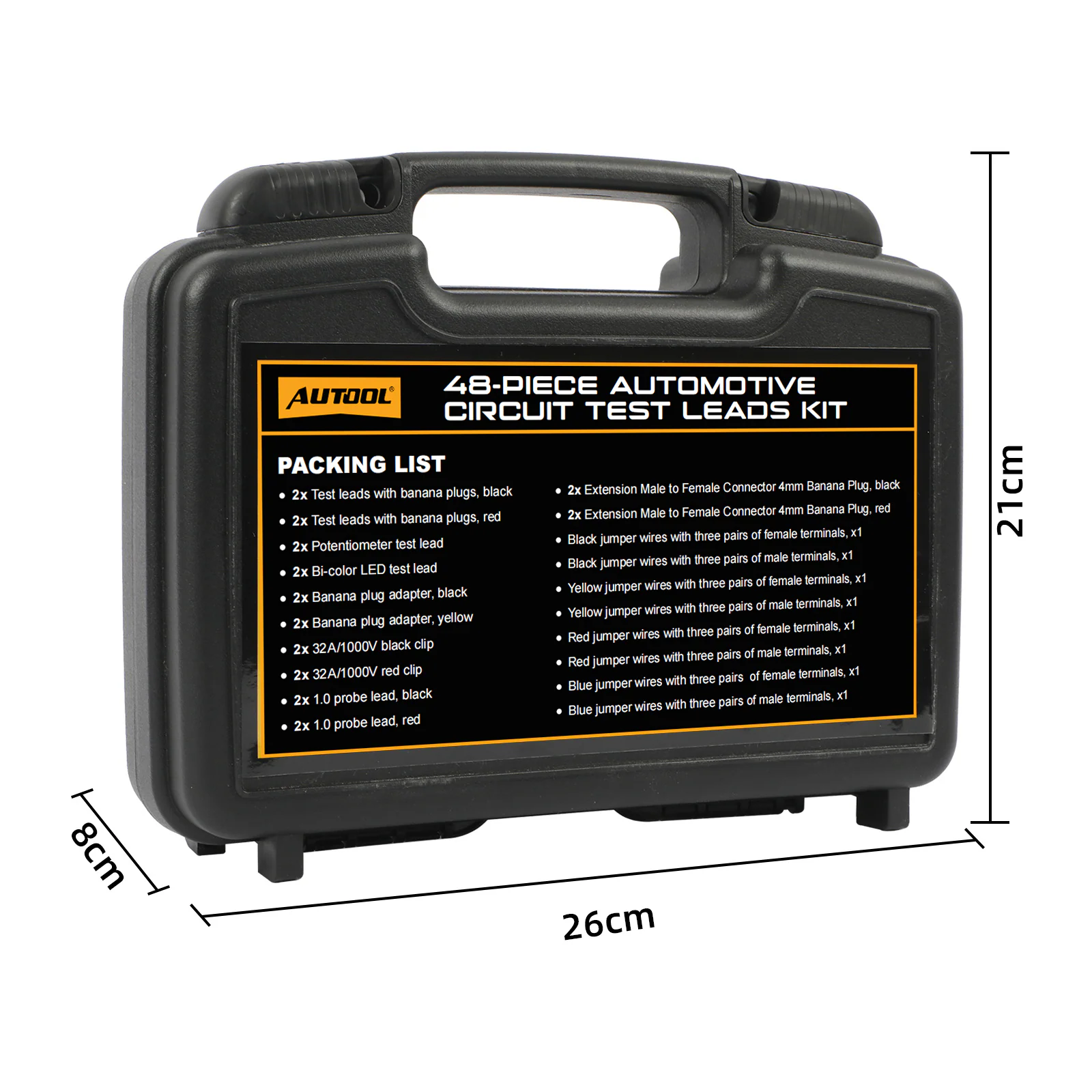

- Включенный элементCase Size 26cm × 21cm × 8cm
- Включенный элементMain Leads Black and red test leads with banana plugs
- Включенный элементSpecial Leads Potentiometer test leads and bi-color LED test leads
- Включенный элементAdapters And Clips Banana plug adapters plus red / black 32A / 1000V clips
- Включенный элементProbe Leads Red and black 1.0 probe leads shown in the package list
- Включенный элементExtension Leads Male-to-female 4mm banana plug extension leads in black and red
- Включенный элементJumper Wires Black, yellow, red, and blue jumper wire groups with male and female terminal pairs
Вопросы покупателя
Вопросы по электрическим соединениям и измерениям
Что это AUTOOL 48PCS Test Lead Set Used For?
It is used for automotive circuit diagnosis, sensor and actuator testing, electronic circuit troubleshooting, and multimeter / oscilloscope extension. It helps users track, check, measure, and repair complex vehicle circuits.
Can It Be Used On 12V And 24V Vehicles?
Yes. The kit is listed as suitable for 12V and 24V cars, RVs, trucks, ships, and other related applications.
Do I Need To Cut Wires During Testing?
No. The kit is designed to connect to compatible terminals without cutting wires; the correct adapter size and careful insertion are still required to avoid terminal damage.
Can I Use It With A Multimeter Or Oscilloscope?
Yes. It can be used as a measuring lead set or probe extension for multimeters, current meters, and oscilloscopes when the connection and circuit conditions are suitable.
Does It Come With A Carrying Case?
Yes. The 48-piece kit includes a 26 × 21 × 8 cm carrying case and a printed packing list.
What Is The Difference Between 48PCS, 68PCS, And 92PCS Kits?
The 48PCS kit is a compact professional automotive circuit test lead set. Choose the 68PCS or 92PCS kits if you need more adapters, probes, terminal coverage, or accessory options for wider diagnostic scenarios.
