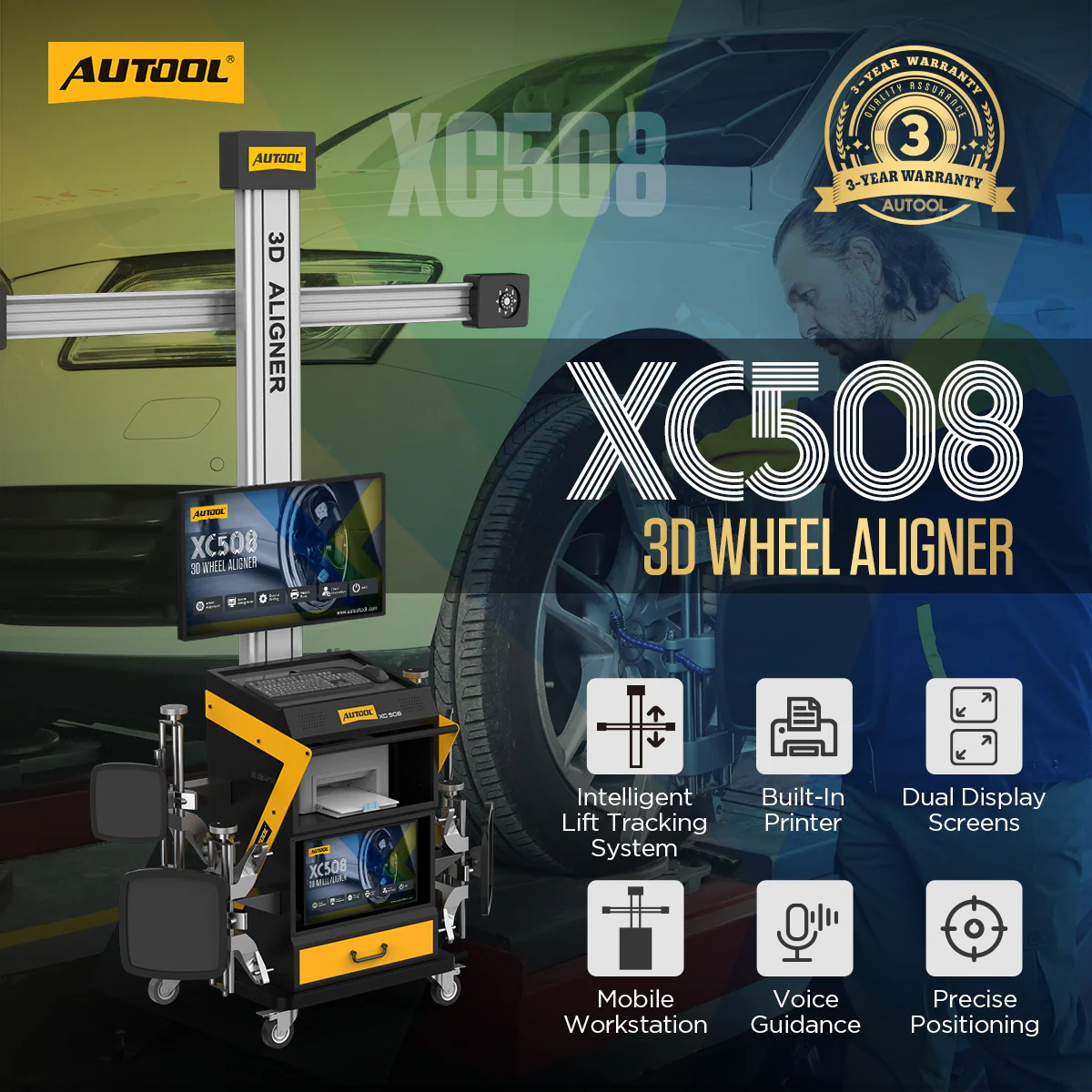

AUTOOL Máquina automática de alinhamento de rodas 3D XC508
O preço original era: US$ 7,999.00.US$6,999.00O preço atual é: US$ 6,999.00.
Principais funcionalidades
- 5MP Auto-Tracking Cameras
- 10–23 Inch Rims / ±0.01° Toe-Camber
- Telas duplas de 19 polegadas
- Built-In Report Printer
- 5MP Auto-Tracking Cameras: Use 5-megapixel industrial cameras with a beam that follows wheel-target height during supported lift movement.
- 10–23 Inch Rims / ±0.01° Toe-Camber: Match 10–23 inch rims and measure toe and camber with ±0.01° precision.
- Telas duplas de 19 polegadas: Work from two 19-inch color displays, including a movable multi-angle screen for alignment guidance around the vehicle.
- Built-In Report Printer: Print alignment test reports immediately from the integrated workstation.
- Wheel + Body Geometry: Measure toe, camber, caster, thrust angle, track width, wheelbase, and diagonal body dimensions.
- Compensação de Rolagem Curta: Collect run-out compensation data with an 8–12 cm vehicle roll.
☰ SOLICITE UM ORÇAMENTO PARA COMPRAS EM GRANDE QUANTIDADE / B2BSolicitação de Cotação Oficial
Carregando formulário de solicitação...
- Garantia de 3 Anos Unidade principal: 3 anos · Acessórios: 1 ano
- Devoluções 90-Day Devoluções elegíveis dentro de 90 dias
- Loja Oficial Produtos genuínos · Suporte direto
AUTOOL XC508 · Auto-Tracking 3D Wheel Aligner
Keep Cameras Aligned with Lift Height
Keep the camera beam aligned with wheel-target height as a compatible lift moves through supported positions. Automatic height tracking, dual 19-inch displays, voice prompts, and LED indicators guide the 3D alignment workflow, while the built-in printer produces immediate service reports.
- Automatic Camera-Height Tracking
- Sistema de câmera de 5 MP
- Dual Displays + Built-In Printer
- Compensação de rolamento de 8 a 12 cm
- 10–23 Inch Listed Rim Range
Principais funcionalidades
Automatically Track Lift Height and Print Wheel Alignment Reports In-Bay
Latest 3D Camera Measurement
The four-wheel alignment optical system uses a 5-megapixel industrial-grade HD lens. The distance from camera to turntable can reach 1500–2800mm, so the camera does not need to be moved during use.
Compensação de desvio de curto alcance
Push the vehicle 8–12 cm / 3.2–4.7 in to collect measurement data and perform rolling runout compensation without stopping; adjust the rolling distance for the workshop and vehicle situation.
Global Vehicle Database
The software supports more than 100 car brands and more than 50,000 vehicle models. Users can add custom models, and the built-in help system supports vehicle adjustment-plan lookup.
Design de tela dupla
XC508 includes dual 19-inch color LCD monitors. The movable screen can be adjusted at multiple angles to make workshop operation more convenient.
Impressora integrada
The built-in printer can print an alignment test report immediately after measurement for customer communication and workshop records.
Sistema de Medição do Tamanho Corporal
The system supports toe, camber, caster, thrust angle, track, track difference, wheelbase, wheelbase difference, and accident vehicle measurement functions.
Waterproof Drop-Resistant Wheel Alignment Targets
The high-precision passive targets are waterproof and drop-resistant, require no regular calibration, and avoid issues from cables, charging, battery replacement, or signal failure.
Voice And LED Operation Guidance
Synchronized voice prompts and intelligent LED indicators guide technicians through the measurement workflow.
Expert Mode And Multi-Language Support
Expert mode is designed for simple, fast, time-saving operation. The system supports Chinese, English, Spanish, Russian, German, Farsi, Arabic, Lithuanian, Japanese, French, Thai, Portuguese, and Korean.
Wheel And Body Geometry
Measure toe, camber, caster, thrust angle, track width, and wheelbase, with additional diagonal measurements for body-dimension checks.
Automatic Camera-Height Tracking
The camera beam automatically tracks lift-height changes to follow the wheel targets during supported alignment work.
Mobile Alignment Workstation
The cabinet and crossbar design supports wheel alignment from different angles and helps workshops reduce dependence on a fixed dedicated alignment station.
The mobile wheel alignment machine brings cameras, screens, and report printing together on a wheeled workstation. Plan the bay around the specified machine footprint and lift layout before installation.
Calibração de fábrica
The wheel alignment machine is calibrated before leaving the factory, so it can be installed and used directly after delivery according to the setup guidance.
Automatic Beam Movement
Choose XC508 if you want the camera beam to move automatically according to target height. During height adjustment, the crossbeam can stop if an obstacle or person is detected.
Power Voltage Selection
XC508 offers 110V and 220V options. Choose the correct voltage before payment to match your local power environment.
Warehouse and Shipping Choice
Select the correct warehouse before payment. EU users choosing Germany stock should review the product page, cart, and checkout for the available shipping option and any duty-related notes before payment.
Workshop Purchase Fit
Check available space, vehicle type, technician skill level, expected ROI, and the features needed for your shop before choosing a wheel aligner.
Rim Size Limits
The specification table lists 10–23 inch rim diameter. If you need 24-inch wheel calibration, contact support with your rim and vehicle information before ordering.
Toe and Camber Precision
Toe and camber precision: ±0.01°.
Suporte de garantia de 3 anos
Unidade principal: garantia de 3 anos. Acessórios padrão: garantia de 1 ano. Política de garantia.
Como usar
Defina metas, meça e verifique o alinhamento.
Progresso passo a passo1 / 7
01
Qualificar a Baía de Alinhamento
Confirme a geometria do elevador ou fosso, as plataformas giratórias e deslizantes, o espaço de rolamento, a linha de visão do alvo, a alimentação elétrica, a iluminação e as dimensões de instalação.
02
Inspecione e identifique o veículo.
Verifique o estado e a pressão dos pneus, o estado das rodas e da suspensão, a altura da carroceria e a carga necessária e, em seguida, selecione o veículo, o ano e as especificações exatas.
Braçadeiras de montagem e alvos
The 5MP 3D camera system captures wheel and target data without requiring camera movement, reducing bumps and helping extend equipment service life.
Centralize e fixe as braçadeiras e alvos compatíveis em superfícies de roda limpas e certifique-se de que todos os alvos estejam visíveis para as câmeras.
04
Compensação total por derrapagem
Execute o procedimento de compensação de rolamento ou excentricidade do equipamento e do veículo antes de usar a geometria exibida.
05
Medir e interpretar
Leia as medidas de convergência, cambagem, caster, impulso e carroceria aplicáveis ao veículo selecionado e distinga a geometria ajustável das peças danificadas ou não ajustáveis.
06
Ajuste e conclusão dos procedimentos do veículo
Faça os ajustes mecânicos permitidos e execute qualquer procedimento SAS, EPAS ou ADAS específico do veículo com o equipamento de diagnóstico ou calibração separado necessário.
07
Medir novamente e relatar.
Repita a medição com a mesma configuração, verifique a posição do volante e salve ou imprima o relatório de antes e depois.
Segurança e compatibilidade
Verificar geometria da baía, linhas de visão e calibração.
Utilize uma baia de alinhamento qualificada.
Instale o sistema no compartimento estável e nivelado especificado, com a elevação, altura livre, iluminação, energia e linha de visão do alvo necessárias.
Inspecione as braçadeiras e os alvos.
Verifique o contato da braçadeira, a condição do alvo e a segurança da montagem antes de cada medição.
Validar o sistema de medição
Siga as instruções de instalação, movimentação, impacto, reparo e verificação programada ou calibração para as câmeras e todo o sistema.
Bloquear veículo e identidade do banco de dados
Select the exact vehicle, year, load condition, units, and current database before measurement.
Mantenha o Liquidação Eletrônica separada
After wheel alignment, complete any required SAS, EPAS, or ADAS calibration with the specified equipment.
Verifique o resultado final.
Repita a medição, revise o relatório e conclua as verificações especificadas para o volante, offset, teste de estrada ou outras verificações do veículo.
Lift Height Difference
Confirm the permitted left-to-right lift height difference and unit with AUTOOL support when planning installation.
Infrared Light Control
Do not allow strong infrared light to directly illuminate the targets or camera area, because this can affect optical measurement conditions.
Consistentes
Verificar leituras antes da liberação do veículo
Verifique o resultado
Analise as leituras finais em tempo real, a posição do volante e a impressão após todos os ajustes estarem concluídos.
Comparação de modelos
Selecione a configuração da câmera, da estação de trabalho e do relatório.
Guia de modelos
Selecione um ou mais modelos. O modelo XC508 é selecionado por padrão.
1 modelo selecionado
Nenhum modelo foi selecionado. Escolha um modelo para comparar.
| Nome do Produto | XC503 | XC505 | XC508 |
|---|---|---|---|
| Adequação do veículo e condições do local | |||
| Requisitos de luz | Não direcione a luz infravermelha diretamente para os alvos. | Não direcione a luz infravermelha diretamente para os alvos. | Não direcione a luz infravermelha diretamente para os alvos. |
| Tamanho do aro mensurável | 13 ″ -23 ″ | 13 ″ -23 ″ | 13 ″ -23 ″ |
| Diferença de altura da plataforma elevatória | <5mm | <5mm | <5mm |
| Medição e orientação | |||
| High-Precision Waterproof and Drop-Proof Targets | ✓ | ✓ | ✓ |
| Guia de Operação da Luz de Voz | ✓ | ✓ | ✓ |
| Tecnologia de medição de câmera 3D de última geração | ✓ | ✓ | ✓ |
| Compensação de desvio de curto alcance | ✓ | ✓ | ✓ |
| Nível profissional | ✓ | ✓ | ✓ |
| Sistema de Medição do Tamanho Corporal | ✓ | ✓ | ✓ |
| Revise os dados de teste | ✓ | ✓ | ✓ |
| Hardware de estação de trabalho | |||
| Estação de trabalho móvel | ✓ | ✓ | ✓ |
| Recursos da impressora | ✓ | ✓ | ✓ |
| Impressora integrada | × | × | ✓ |
| Sistema inteligente de rastreamento de elevadores | × | × | ✓ |
| Ecrã | 1 (32 polegadas) | 1 (32 polegadas) | 2 (32 polegadas) + (20 polegadas) |
| Gaveta | × | ✓ | ✓ |
| Software, Banco de Dados e Linguagens | |||
| Banco de Dados Global Muito Grande | Confirm supplied database version and representative vehicle coverage | Confirm supplied database version and representative vehicle coverage | Confirm supplied database version and representative vehicle coverage |
| Atualizações de software gratuitas | ✓ | ✓ | ✓ |
| Atualizações gratuitas do banco de dados | ✓ | ✓ | ✓ |
| Vários idiomas suportados | Chinês, inglês, espanhol, russo, alemão, farsi, árabe, lituano, japonês, francês, tailandês, português, coreano | Chinês, inglês, espanhol, russo, alemão, farsi, árabe, lituano, japonês, francês, tailandês, português, coreano | Chinês, inglês, espanhol, russo, alemão, farsi, árabe, lituano, japonês, francês, tailandês, português, coreano |
Manual e suporte
Confirme a configuração do compartimento, software e hardware.

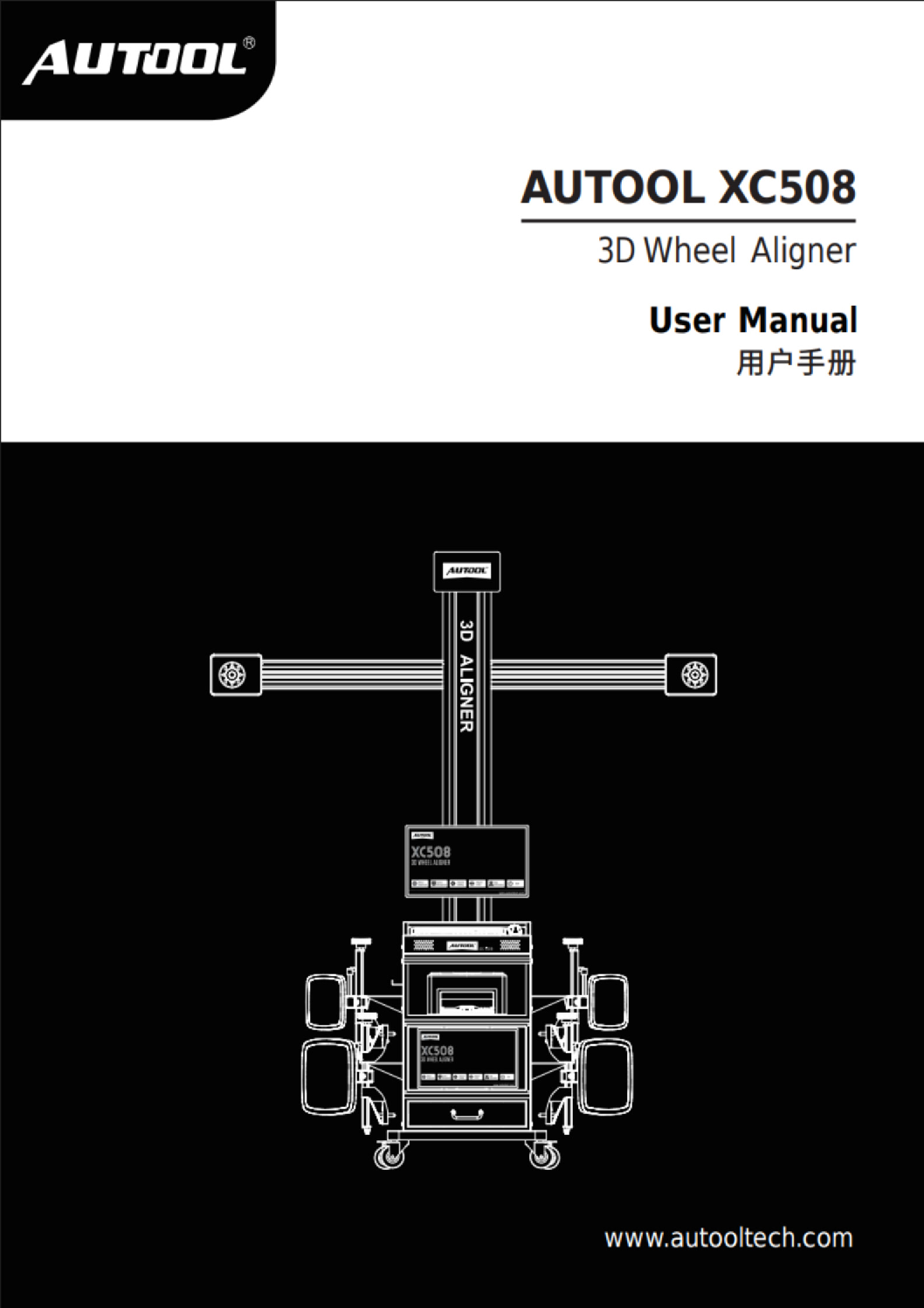

AUTOOL Manual do Usuário XC508
Open the PDF manual for XC508 height tracking, target setup, alignment measurement and built-in reporting, with calibration safety and troubleshooting support.
conteúdo do pacote
Verifique o pacote de hardware selecionado.
- Máquina principalXC508 integrated mobile cabinet with monitor area, computer host area, keyboard area, printer area, drawer, and wheels.
- Camera And Beam AssemblyColumn, lateral beam, camera units, and related structure.
- Targets And ClampsWheel targets, clamps, clamp hangers, and target-related accessories.
- Acessórios de alinhamentoTurntables, pedals, fixtures, cables, and other accessories.
- Documents And SupportUser manual and online setup support are available for installation, operation, and troubleshooting.
Perguntas Frequentes
Questões sobre configuração e cobertura de alinhamento
Are 23-Inch And 24-Inch Wheels Supported?
Published XC508 specifications list a 10–23-inch rim range, while fitment guidance also discusses 24-inch wheels for SUVs, off-road vehicles, and light trucks. Confirm the exact clamp, rim range, and vehicle package before ordering for a 24-inch application.
Workshop Floor Is Not Perfectly Level. Will This Affect Calibration?
Utilize uma plataforma de alinhamento estável e nivelada e verifique o elevador em cada altura de trabalho. O campo de diferença de plataforma publicado é inferior a 5 mm; obtenha o desenho de instalação e o método de aceitação para a plataforma real, em vez de confiar na compensação do software para uma superfície inadequada.
Do You Have Local Technicians For On-Site Training Or Repair?
Currently, local on-site repair service is not offered. AUTOOL provides online technical support, including detailed video tutorials for installation and proper use. If an issue occurs, support will respond online. Main unit: 3-year warranty. Standard accessories: 1-year warranty. Política de garantia. The wheel alignment machine is calibrated before leaving the factory, so after delivery you can install and use it directly according to the setup guidance.
Before ordering, confirm local installation, calibration or verification, operator training, and service support for the XC508.
Does The Order Of Vehicle Adjustment Matter?
Yes. Start the proper wheel alignment at the rear. Establish a properly aligned geometric centerline from the rear and move forward before making other wheel adjustments. This is known as thrust adjustment. Incorrect thrust can affect other measurements and lead to an improperly aligned vehicle.
Siga o procedimento selecionado para o veículo e a sequência do software de alinhamento. Estabeleça a referência de empuxo do veículo, inspecione as peças danificadas ou não ajustáveis e meça novamente após os ajustes permitidos; qualquer fechamento de SAS, EPAS ou ADAS permanece um procedimento separado para o veículo.
How Do Caster, Camber, And Toe Affect Tire Wear?
Caster may not directly cause tire wear, but it affects driving feel. Incorrect camber can cause premature wear on the inside or outside of the tire, usually as a slower wear process. Incorrect toe may show only slight symptoms such as pulling or wandering, but tire wear can occur quickly. A comprehensive alignment helps set caster, camber, and toe to factory-recommended specifications for even tire wear.
What Should Be The Distance Between The XC508 And The Car?
Depending on the vehicle model, the distance between the wheel aligner and the measuring vehicle can be adjusted to 1700mm–2500mm. This is different from the camera-to-turntable measurement distance described in the feature section.
What Should I Check If the Computer Does Not Start?
- Check the power supply of the computer.
- Check whether the power button on both the computer host and monitor has been pressed, and check whether any indicator LED is flashing.
- Check the brightness and contrast of the monitor.
What If the Computer Does Not Reach the Desktop?
- The computer boot file may be missing.
- There may be a BIOS error.
- There may be a hardware failure.
- If the issue remains after basic checks, contact AUTOOL support for guided diagnosis.
Mouse / Keyboard Not Functional
- The mouse or keyboard connection to the computer host may be faulty.
- The mouse or keyboard may not be compatible with the computer host.
- The mouse or keyboard itself may be faulty.
What If the Printer Does Not Work?
- Check the printer power supply, signal cable connection to the computer host, and whether the printer is in linked mode.
- Check the installation and setting of the printer driver.
- Check whether the computer has a virus.
Can Not Run Wheel Aligner Software
Contact support for software file, database update, or registry troubleshooting guidance before attempting advanced changes.
Utilize o pacote de software listado para o modelo XC exato e a versão instalada. Faça backup da instalação atual, confirme a cobertura do veículo e siga as instruções. AUTOOL Atualize as instruções antes de substituir o banco de dados ou os arquivos do programa.
Computer Can Not Boot
Can Not Enter Windows 7 Desktop
If the issue remains after basic checks, contact AUTOOL support for guided diagnosis.
Printer Not Functional
