AUTOOL DM303 Automotive Diagnostic Multimeter
US$190.00
주요 특징
- True RMS DMM + Oscilloscope
- Cranking, Ignition + Vehicle Signals
- Injector + Relay Testing
- 5 V / 12 V Signals + K/CAN View
- True RMS DMM + Oscilloscope: Combine True RMS auto-ranging electrical measurements with oscilloscope waveform observation.
- Cranking, Ignition + Vehicle Signals: Check cranking behavior, ignition pulses, and dedicated vehicle signals from one handheld unit.
- Injector + Relay Testing: Use the supported drive and observation modes for electromagnetic injectors, excluding 120 V injectors, plus compatible relays.
- 5 V / 12 V Signals + K/CAN View: Generate 5 V square, 5 Vpp sine, or 12 V square signals and observe K/CAN line data in the dedicated modes.
- 2.8-Inch Multi-Language Screen: Read menus on the brightness-adjustable color screen and carry the tester with its leads in the toolbox.
- 3 - 년 보증 본체 3년, 부속품 1년
- 90- 일 반품 90일 이내 반품 가능
- 공식 스토어 정품 · 직접 지원
AUTOOL DM303 · Automotive Multimeter and Oscilloscope
Bring Vehicle-Focused Electrical Tests Together
Bring vehicle-focused electrical measurements, waveform observation, and selected component tests into one handheld kit. DM303 supports cranking and ignition checks, compatible injector and relay tests, signal output, and K/CAN line viewing in dedicated modes for broader vehicle-circuit work across workshop and mobile service tasks.
- DMM + Automotive Scope
- Cranking + Ignition Modes
- Injector + Relay Test Modes
- 5 V / 12 V Signal Outputs
- K / CAN Line Observation
주요 특징
Meter, Scope and Automotive Signal Tools
True RMS Auto-Ranging Multimeter
Measures DC / AC voltage, current, resistance, diode, and frequency. Auto range helps reduce manual range selection, while True RMS improves reading reliability for electrical testing.
오실로스코프 모드
The product page lists 500 kHz analog bandwidth, while the current model PDF lists 200 kHz. Confirm the delivered hardware, firmware and manual version before choosing DM303 for a bandwidth-dependent task; neither figure is the sampling rate.
Automotive Circuit Test
Supports automotive circuit voltage and drive-current checks. It can help check battery voltage, vehicle circuits, ECU-related wiring, and other electrical parts through the proper test leads.
Injector And Relay Test
DM303 lists drive and observation modes for supported electromagnetic injectors, excluding 120 V injectors, plus relay testing. Confirm component type, pinout, supply, current and permitted output mode; never drive an ECU output, SRS, data line or unknown module.
Analog Signal And K/CAN Line Data
The listed outputs are 5 V square, 5 Vpp sine and 12 V square. Use them only on a documented permitted load and pin after confirming source impedance/current limits for the delivered version; do not inject into powered data lines, ECU outputs, SRS or unknown modules. K/CAN observation is not a full vehicle scan.
Dedicated Automotive Test Modes
DM303 adds injector, relay, cranking, signal simulation, and K/CAN line checks to multimeter and oscilloscope functions. Injector testing does not support 120V injectors.
Color Screen, Multiple Languages
The brightness-adjustable 2.8-inch color screen presents test menus in multiple supported languages, including English, French, Spanish, German, and Chinese.
Portable Electrical Test Kit
The toolbox stores DM303 and its test leads together for transport and organized storage.
Flexible Battery Setup
Use compatible dry batteries or an optional compatible lithium battery, purchased separately. Only the rechargeable lithium battery option may be charged through the device.
Handheld Controls And Connections
DM303 brings its display, navigation keys, and separate measurement inputs into one handheld unit with a rear stand.
3년 보증 지원
본체: 3년 보증. 표준 부속품: 1년 보증. 보증 정책.
서비스 워크플로
Select the Vehicle Test and Verify Connections
단계별 진행 상황1 / 6
01
Define the Measurement
Use the wiring diagram to identify the expected signal, reference point and safe measurement mode.
02
Inspect Leads and Ratings
Confirm the instrument, terminal, fuse, lead and probe ratings for the selected task before connecting.
03
모드 선택
Choose the supported voltage, current, resistance, continuity, frequency or other model-specific function and start on a safe range.
04
Qualify Active Output
Before injector, relay or signal output, confirm component type, pinout, supply, permitted mode, current and source-impedance limits. Keep output off ECU outputs, SRS circuits, powered data lines and unknown modules.
05
Probe the Circuit
Connect to the correct reference and test point without bridging terminals; use back-probing accessories only where appropriate.
06
Record and Verify
Save or note the value and operating state, then compare it with the vehicle specification and a second check before assigning a root cause.
안전한 사용
Control Output, Bus and Input Connections
Limit Active Output
Injector drive and 5 V square, 5 Vpp sine or 12 V square outputs require a documented permitted pin and load. Output amplitude alone does not define safe current, impedance or duty for an unknown circuit.
Dry Battery Option
You can install 4pcs 1.5V dry batteries for normal use. Do not charge dry batteries through the device.
Charge Only Lithium Setup
If a compatible rechargeable lithium battery is installed, it can be charged. Dry batteries must not be charged.
배터리는 포함되어 있지 않습니다
DM303 / DM301 is shipped without batteries due to shipping and battery restrictions. Batteries need to be purchased separately.
리튬 배터리 옵션
You may install a compatible lithium battery by yourself. The reference image shows a 503450 3.7V 1000mAh lithium battery style.
Interpret the Result in Context
Keep measurement, waveform, protocol observation and active output as separate modes. A meter fuse or input rating does not authorize power or signal injection into an ECU, SRS circuit, sensor or data line.
결과 안내
Read the Result Before Deciding the Next Step
크랭킹 테스트
During vehicle starting, a minimum battery voltage above 9.6V is generally considered normal. If the value drops below 9.6V, the battery may be aging or weak.
모델 비교
Choose the Right Electrical Test Tool
모델 가이드
Choose one or more models. DM303 is selected by default.
1개 모델이 선택되었습니다.
선택된 모델이 없습니다. 비교할 모델을 선택하세요.
| 제품명 | DM301 | DM303 | DM208 |
|---|---|---|---|
| Measurement & Readout | |||
| 화면을 표시 | 2.8인치 컬러 스크린 | 2.8인치 컬러 스크린 | 2.4-inch, 320 × 240 |
| 언어 | 13 유형 | 13 유형 | 명시되지 않음 |
| 전압 측정 범위 | AC: 0-700V DC: 0-1000V | AC: 0-700V DC: 0-1000V | 명시되지 않음 |
| 현재 측정 범위 | 0–20 A (20 A maximum; 10 A continuous); 0–200 mA | 0–20 A (20 A maximum; 10 A continuous); 0–200 mA | 명시되지 않음 |
| 저항 측정 범위 | 0-1MΩ | 0-1MΩ | 명시되지 않음 |
| 주파수 측정 범위 | 0 - 1MHz | 0 - 1MHz | 명시되지 않음 |
| Data Lock/Clear | ✓ | ✓ | 명시되지 않음 |
| Automotive Functions & Fit | |||
| 기본 기능 | 6 유형 | 12 유형 | 명시되지 않음 |
| Automotive Circuit Drive Current | × | Maximum Output: 5A Maximum Input: 5A | 명시되지 않음 |
| Fuel Injector Drive Signal Output | × | X | 명시되지 않음 |
| 감지 모드 | Voltage Measurement Current Measurement Resistance Measurement Frequency Measurement Oscilloscope Mode Ignition Pulse Signal Testing | Current Measurement Resistance Measurement Frequency Measurement Oscilloscope Mode Fuel Injector Testing Relay Testing Automotive Circuit Testing Automotive Starting Testing Signal Simulation Testing CAN Line Data Reading Ignition Pulse Signal Testing K/LIN Line Data Reading | 명시되지 않음 |
| 적용 차량 모델 | Trucks, Sedans, Buses, Electric Vehicles, and Other Vehicle Types | Trucks, Sedans, Buses, Electric Vehicles, and Other Vehicle Types | 명시되지 않음 |
| Power & Equipment | |||
| 전원 공급 방식 | Dry Battery TYPE-C [Optional] Lithium Battery | Dry Battery TYPE-C 12V Rechargeable Battery [Optional] Lithium Battery | 내장 2000 mAh 리튬 배터리 |
| 엑세서리 | 2 Types of Test Leads | 6 Types of Test Leads | 명시되지 않음 |
| 손전등 기능 | ✓ | ✓ | 명시되지 않음 |
| Equipped Toolbox | ✓ | ✓ | 명시되지 않음 |
| 제품 상세 정보 | |||
| 적외선 해상도 | 명시되지 않음 | 명시되지 않음 | 32 × 32 |
| 프레임 속도 | 명시되지 않음 | 명시되지 않음 | 7 프레임 / 초 |
| 온도 범위 | 명시되지 않음 | 명시되지 않음 | -20 ° C는 ° C를 550하기 |
| Thermal accuracy | 명시되지 않음 | 명시되지 않음 | ±2°C or 2% (maker specification) |
| Emissivity | 명시되지 않음 | 명시되지 않음 | 0.10 to 1.00 adjustable |
사용 설명서 및 지원
Find the Manual and Measurement Guidance

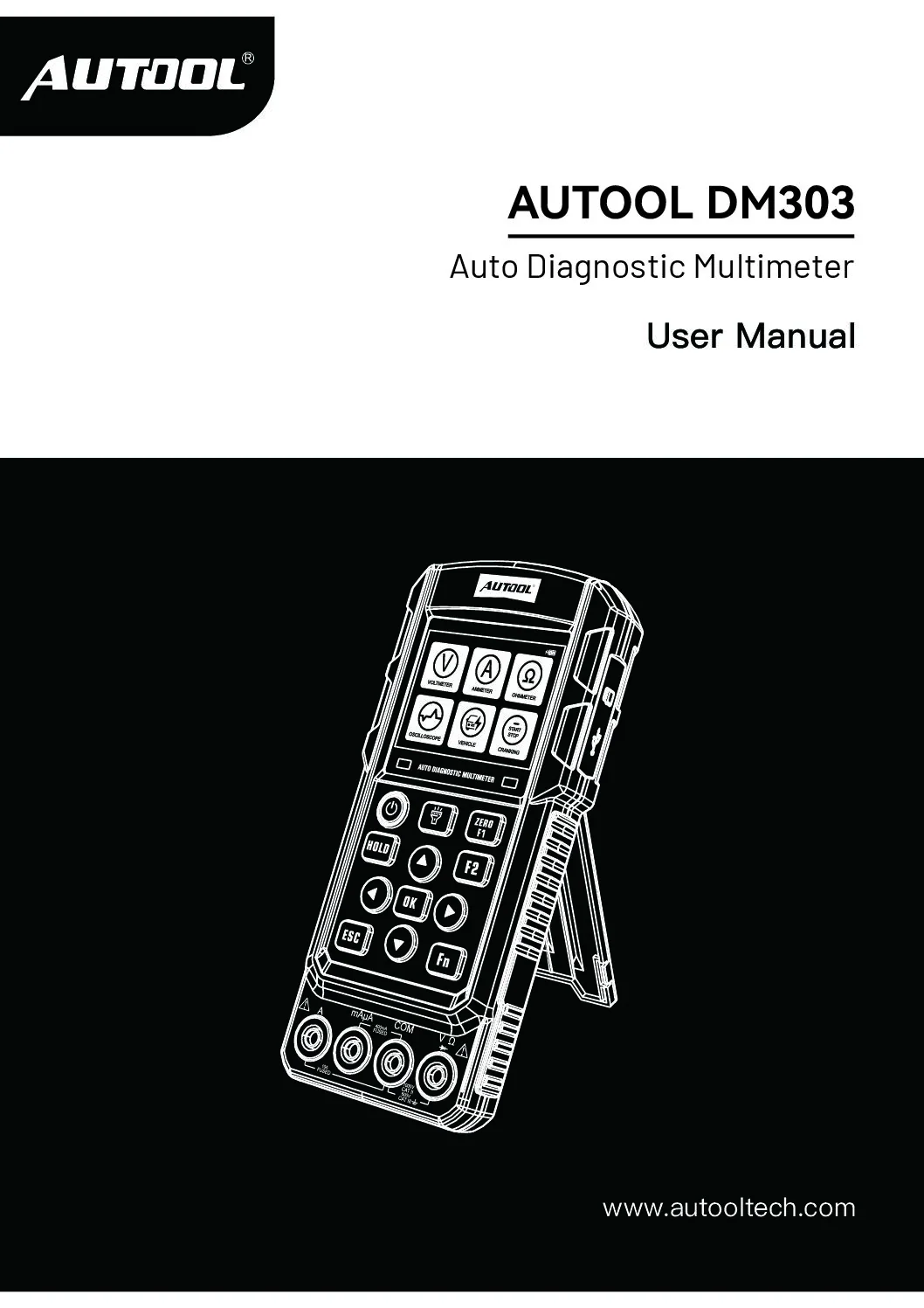

AUTOOL DM303 User Manual
PDF 설명서를 열어보세요 AUTOOL DM303 multimeter and oscilloscope modes, cranking and ignition checks, injector and relay tests, signal output, safety and troubleshooting support.
패키지 내용물
상자 안에 무엇이 들어 있는지 확인해 보세요
- 본체AUTOOL DM303 auto diagnostic multimeter
- 스토리지Portable protective toolbox and retail box
- 문서사용자 설명서
- 테스트 리드Multifunction test lead, battery clip cable, multimeter probes, jumper / adapter cables, and additional test leads
- 배터리Notice Batteries are not included. Use 4pcs 1.5V dry batteries or a compatible lithium battery setup according to the battery rules.
구매자 질문
Electrical Connection and Measurement Questions
가요 AUTOOL DM303 Include Batteries?
No. DM303 / DM301 is shipped without batteries. You need to buy batteries separately. You can use 4pcs 1.5V dry batteries, or install a compatible lithium battery setup by yourself.
Can I Charge Dry Batteries Inside DM303?
No. Do not charge dry batteries. Only a compatible rechargeable lithium battery setup can be charged. If you are not sure whether your battery is rechargeable or compatible, contact AUTOOL Store before charging.
What Lithium Battery Style Is Shown For DM303?
The reference image shows a 503450 3.7V 1000mAh lithium battery style. Confirm the connector, size, and compatibility before installing a lithium battery.
What Is The Difference Between DM301 And DM303?
DM301 focuses on basic measurement functions such as voltage, current, resistance, frequency, oscilloscope, and ignition pulse signal testing. DM303 adds more automotive diagnostic functions, including fuel injector testing, relay testing, automotive circuit testing, cranking test, signal simulation, CAN line data reading, and K/LIN-related line data reading.
Does DM303 Support Injector Testing?
Yes. DM303 can drive supported electromagnetic injectors, including supported GDI injectors, and can detect real-time injector signals; it does not support 120V injectors. Confirm injector type, pinout, supply, current, and the vehicle procedure before output. A drive response does not by itself prove spray pattern, flow, or root cause, and active output must stay off ECU outputs, SRS circuits, powered data lines, and unknown modules.
What Does The Cranking Test Result Mean?
During vehicle startup, DM303 records the minimum battery voltage and uses 9.6V as a general reference. A lower reading can indicate a weak or aging battery or a starting-system issue that needs further inspection. Apply the battery maker or vehicle procedure for the battery type, temperature, and state of charge.
What Measurement Ranges Does DM303 Support?
The page lists DC 0–1000V and AC 0–700V voltage, 0–20A and 0–200mA current, 0–1MΩ resistance and 1Hz–1MHz frequency ranges. The manual distinguishes 20A maximum from 10A continuous current. These values remain subject to the selected terminal, mode, probe and CAT conditions.
Can DM303 Replace A Full Vehicle Diagnostic Scanner?
No. DM303 is an automotive diagnostic multimeter and circuit / signal testing tool. K/CAN line data reading helps with circuit-level diagnosis, but it should not be described as a complete vehicle diagnostic scanner.
어떤 액세서리가 포함되어 있나요?
Package contents: DM303 main unit, user manual, retail box, portable toolbox, multifunction test lead, battery clip cable, multimeter probes, jumper / adapter cables, and additional test leads. Batteries are not included.
Which Languages Does DM303 Support?
DM303 supports a multi-language interface, including English, French, Portuguese, Polish, Spanish, Japanese, Russian, Italian, German, Dutch, Korean, Chinese, and other supported firmware options. If a specific language is required, confirm before ordering.
보증 기간은 얼마나 되나요?
본체: 3년 보증. 표준 부속품: 1년 보증. 보증 정책.
