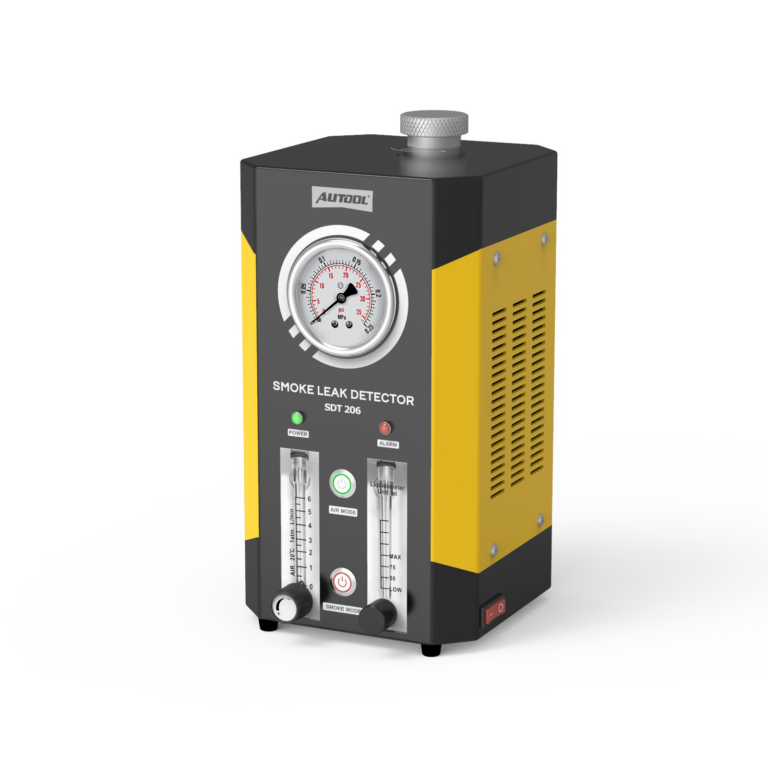

AUTOOL SDT206 듀얼 펌프 자동차용 연기 발생기
US$299.00
주요 특징
- Dual Built-In Air Pumps
- Pressure + Adjustable Flow
- EVAP + Low-Pressure Systems
- Visible Oil Level + Drain
- Dual Built-In Air Pumps: Two built-in pumps run separate Air and Smoke modes without an external air source.
- Pressure + Adjustable Flow: Monitor line pressure and airflow, then adjust flow for the connected test setup.
- EVAP + Low-Pressure Systems: Trace leaks in permitted EVAP, fuel-tank, intake, exhaust, crankcase, sealing, line-fitting, and low-pressure turbo checks.
- Visible Oil Level + Drain: View testing-oil volume on the gauge and drain excess oil through the outlet.
- Handle + Hook Body: Carry, hang, connect, and store the compact unit with its handle, hook, cone adapter, and airbag adapter.
- 3 - 년 보증 본체 3년, 부속품 1년
- 90- 일 반품 90일 이내 반품 가능
- 공식 스토어 정품 · 직접 지원
AUTOOL SDT206 · Dual-Pump Automotive Smoke Leak Detector with Flow Control
Monitor Pressure and Control Flow with Separate Built-In Pumps
Use separate built-in pumps for Air and Smoke modes without an external air source. Watch line pressure and airflow, adjust delivery for the connected permitted low-pressure test, then use smoke to trace the visible path; the oil-level gauge and drain outlet simplify testing-oil checks and excess-oil removal.
- Separate Air And Smoke Pumps
- Pressure And Flow Feedback
- Adjustable Test Delivery
- Oil-Level Gauge And Drain
- About 5-Second Smoke Start
주요 특징
Dual Built-In Pumps with Pressure and Flow Monitoring

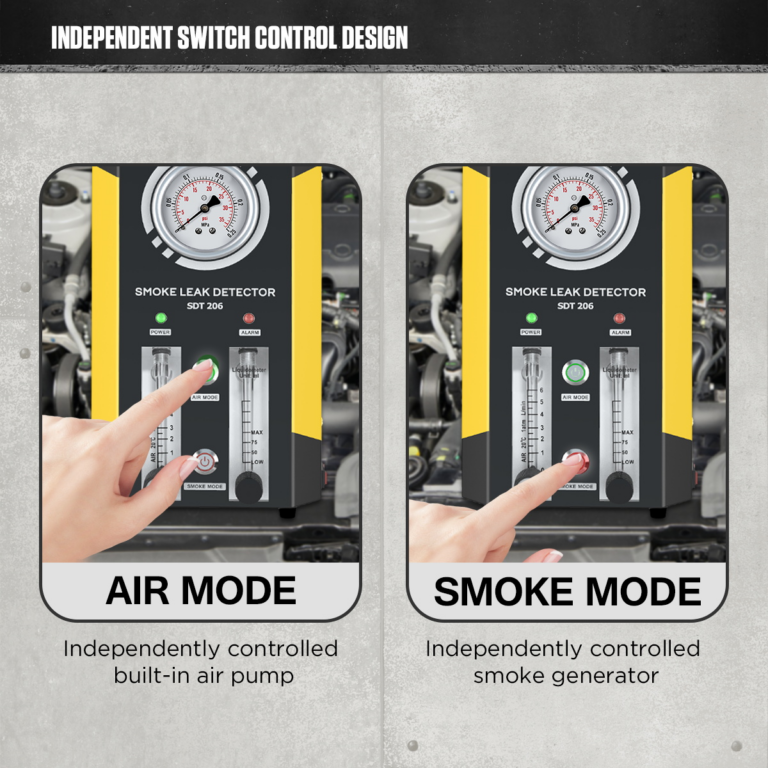

Air Mode and Smoke Mode
Independent switches let you use Air Mode for pressure and airflow checks, then switch to Smoke Mode for visual leak location.

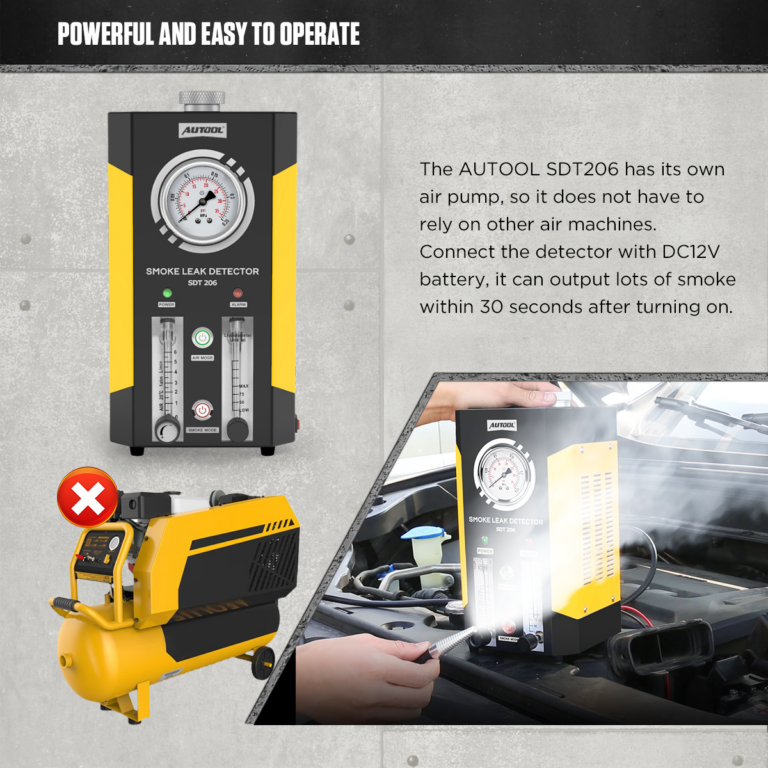

Dual Built-In Air Pumps
Two built-in air pumps eliminate the need for an external air source during normal smoke leak testing.

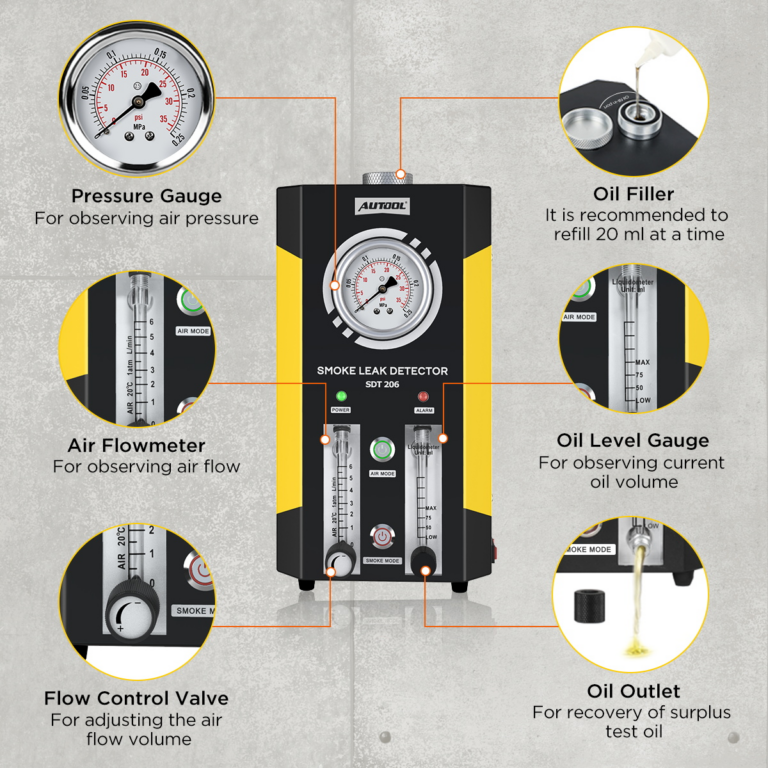

압력 게이지 모니터링
Use the pressure gauge to observe line pressure. If pressure keeps dropping, the line may have a leak that requires further inspection.
Airflow Meter
The airflow meter lets you monitor airflow through the connected test line.
유량 조절 밸브
Use the flow control valve to adjust airflow for the connected test line and test setup.
Smoke Starts in About 5 Seconds
The unit starts producing smoke quickly. The connected test line can fill in about 30 seconds, depending on system volume.
EVAP and Fuel-Tank Checks
Use the EVAP tool or adapter that matches the vehicle test port, then check the EVAP or fuel-tank system for leaks.
Intake and Exhaust Checks
Use it for low-pressure intake and exhaust leak checks when the test section is sealed and connected with an adapter that matches the opening.
Crankcase and Vehicle-Sealing Checks
Helps locate smoke escape points in crankcase and vehicle sealing checks; do not smoke-test any component that the vehicle or component service procedure excludes.
Low-Pressure Turbo Checks
Can assist with low-pressure turbo system leak checks. Do not use it as a high-pressure boost system tester beyond its rated pressure.
Line-Fitting Adapter Support
The smoke hose, adapters, rubber kits, and airbag adapter help connect the unit to different line openings and fittings.
Visible Oil Level Gauge
The oil level gauge helps you observe the current oil volume.
기름 출구
The oil outlet lets you drain excess testing oil when needed.
Handle + Hook Portable Design
The compact body, handle, hook, cone adapter, and airbag adapter make SDT206 easier to carry, position, connect, and store.

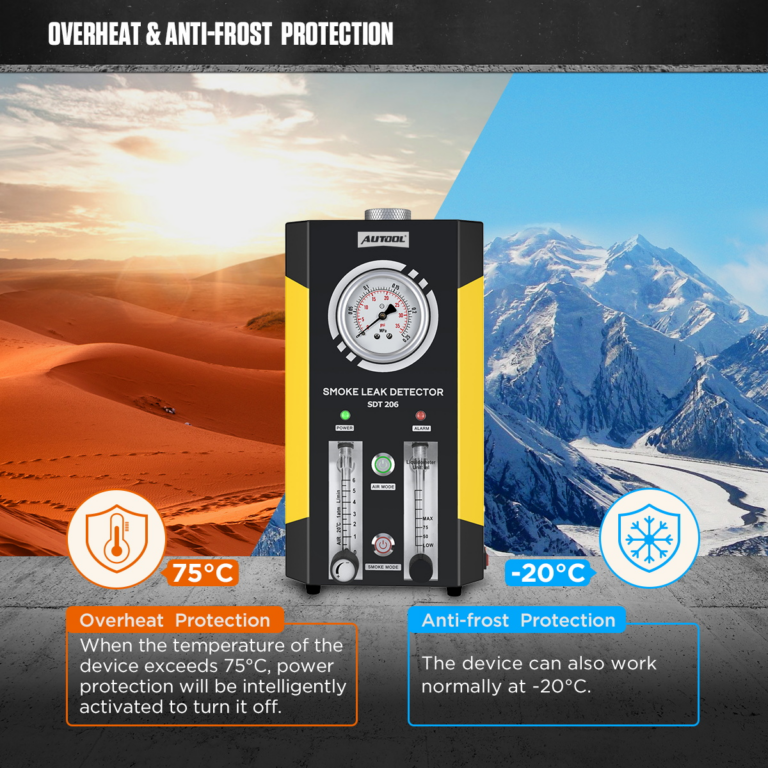

Overheat and Low-Temperature Protection
The unit turns off when the temperature exceeds 75°C and supports operation down to -20°C.
3년 보증 지원
본체: 3년 보증. 표준 부속품: 1년 보증. 보증 정책.

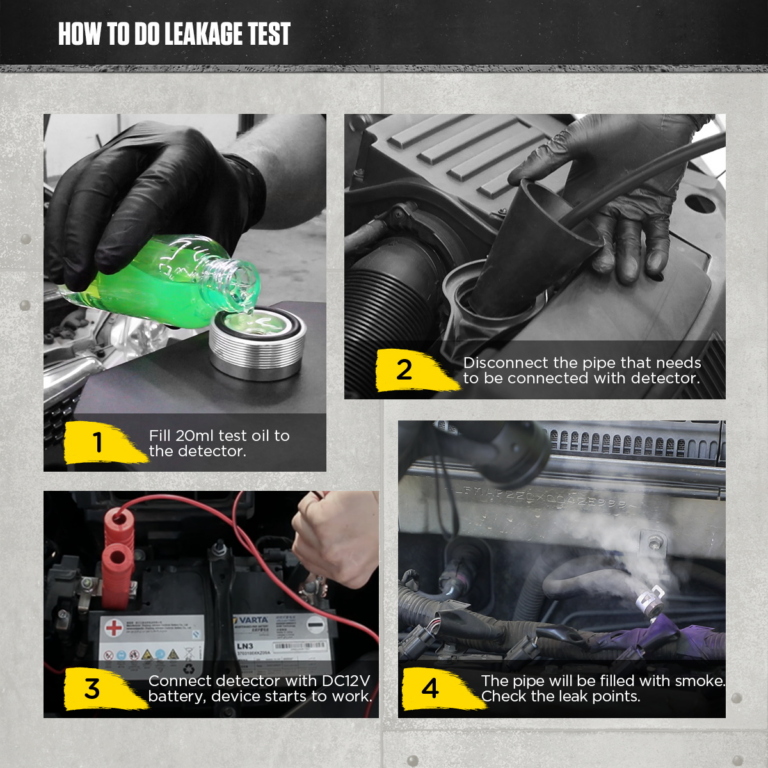

이용 방법
Seal, Select Output, Watch Flow, Add Smoke, and Inspect
단계별 진행 상황1 / 6
01
Add Testing Oil
Fill 10–15 mL baby oil or liquid paraffin into the detector before use. Do not add more than 15 mL at one time.
02
Connect the Test Line
Access the system to be tested and position the detector near the test area. Disconnect the line you want to test, then connect that line to the smoke output hose.
03
Connect 12V Power
Connect the detector to a 12V DC battery, then turn on the power switch to start the detector.
04
Use Air or Smoke Mode
Use Air Mode to monitor pressure and airflow. Switch to Smoke Mode to fill the connected test line and locate the leak visually.
05
Locate Leaks
Check where smoke escapes from the connected test line or sealed area. Use a headlamp if necessary to see small leaks more clearly.
06
Confirm and Retest
Confirm any visible escape path against the system layout, repair the verified leak, and repeat the same controlled test. Continue with the vehicle procedure if no smoke is visible or the fault is intermittent or functional.
안전성 및 호환성
Match Output to the Exact System and Procedure
12V Power and Dual Built-In Air Pumps
Connect SDT206 to a 12V DC vehicle battery before use. Two built-in air pumps provide the test airflow, so you do not need an external compressor.
Watch Pressure and Airflow Within Service Limits

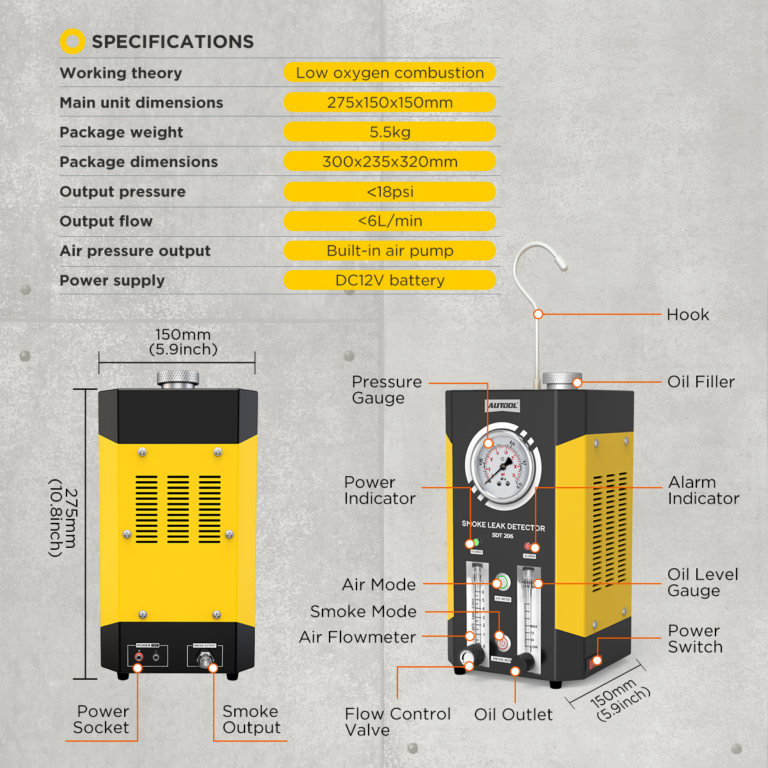

SDT206 outputs less than 18 psi and less than 6 L/min. Use the pressure gauge, airflow meter, and flow control valve to watch and adjust the test within the vehicle or component service limits.
Use the Oil-Level Gauge, but Keep the 10–15 mL Fill Limit
Testing oil is not included. Use liquid paraffin or baby oil, add 10–15 mL before use, and use the oil-level gauge to check the current oil volume without overfilling.
Limit Continuous Use to 8 Minutes
Do not run SDT206 continuously for more than 8 minutes. Automatic overheat protection shuts off power above 75°C. Let the unit cool before restarting.
Operating Temperature and Hot Surfaces
SDT206 supports operation down to -20°C. The round metal housing can become hot during use, so avoid touching hot surfaces directly.
Use Only for Permitted Low-Pressure Automotive Tests
Use SDT206 for permitted low-pressure automotive leak checks, including low-pressure turbo paths within the stated limits. Do not use it for direct high-pressure A/C pressure testing or high-pressure boost-system testing.
Trace the Leak with Smoke
Use visible smoke to trace the leak area. If no smoke appears, recheck isolation, flow, and the test setup before continuing.
Never Refill While Running
Do not refill testing oil while SDT206 is running.
Check Procedure Before Smoke Testing
Follow the vehicle or component service procedure before introducing smoke into a system.
Keep Controls Within Pressure Range
Use the pressure and airflow controls within the permitted test-pressure range.
Cool Before Restarting
Let the unit cool before restarting after overheat protection is triggered.
시험 결과
Read Pressure, Flow, and Smoke Separately
Use Pressure and Flow to Guide Inspection
Use the pressure gauge and airflow meter to assess line pressure and airflow, then guide the next leak-inspection step.
Visible Smoke Escape
Check that the outlet is not an intentional opening, then inspect, repair and retest the exact area.
No Visible Smoke
Verify access, isolation, valve state and smoke delivery before moving to functional diagnosis or another test method.
모델 비교
Compare Pump Capacity and Monitoring
모델 가이드
Choose one or more models. SDT206 is selected by default.
1개 모델이 선택되었습니다.
선택된 모델이 없습니다. 비교할 모델을 선택하세요.
| 제품명 | SDT50 | SDT60 | SDT100 | SDT101 | SDT102 | SDT103 | SDT106 | SDT203 | SDT205 | SDT205S | SDT206 | SDT208 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Smoke Output & Protection | ||||||||||||
| 작동 원리 | Low Oxygen Combustion | Low Oxygen Combustion | Low Oxygen Combustion | Low Oxygen Combustion | Low Oxygen Combustion | Low Oxygen Combustion | Low Oxygen Combustion | Low Oxygen Combustion | Low Oxygen Combustion | Low Oxygen Combustion | Low Oxygen Combustion | Low Oxygen Combustion |
| Test Oil Filling Volume | 10-15ml | 10-15ml | 10-15ml | 10-15ml | 10-15ml | 10-15ml | 10-15ml | 10-15ml | 10-15ml | 10-15ml | 10-15ml | 10-15ml |
| 정격 출력 압력 | ＜10psi | ＜10psi | ＜10psi | 3.2Kpa(0.46psi) | ＜10psi | 3.2Kpa(0.46psi) | ＜12psi | ＜15psi | ＜15psi | ＜15psi | <18 psi machine-rated output; use the target-system procedure. | <10psi/35psi |
| Rated Output Flow | ＜5L/min | ＜5L/min | ＜5L/min | > 10L / 분 | ＞ 6L / 분 | > 10L / 분 | ＜5L/min | ＜6L/min | ＜6L/min | ＜6L/min | ＜6L/min | ＜15L/min |
| 고온 보호 | Stops working above 75°C | Stops working above 75°C | Stops working above 75°C | Stops working above 75°C | Stops working above 75°C | Stops working above 75°C | Stops working above 75°C | Stops working above 75°C | Stops working above 75°C | Stops working above 75°C | Stops working above 75°C | Stops working above 75°C |
| 평균응답시간 | Produces smoke in 5 seconds | Produces smoke in 5 seconds | Produces smoke in 5 seconds | Produces smoke in 5 seconds | Produces smoke in 5 seconds | Produces smoke in 5 seconds | Produces smoke in 5 seconds | Produces smoke in 5 seconds | Produces smoke in 5 seconds | Produces smoke in 5 seconds | Produces smoke in 5 seconds | Produces smoke in 5 seconds |
| Power & Physical Size | ||||||||||||
| 입력 전원 | DC12V | DC12V | DC12V | DC12V / 5A | DC12V | DC12V / 5A | DC12V | DC12V | DC12V | DC12V | DC12V | DC12V / 24V |
| 정격 전력 | 50W | 50W | 50W | 48W | 48W | 48W | 50W | 65W | 65W | 65W | 70W | 80W |
| Net Weight (Main Unit) | 1.5kg | 1.6kg | 1.6kg | 1.6kg | 1.6kg | 1.15kg | 3.5kg | 1.7kg | 3.2kg | 3.2kg | 3.5kg | 4.2kg |
| 본체 치수 | 145mm * 80mm * 200mm | 145mm * 80mm * 200mm | 180mm * 102mm * 143mm | 180mm * 100mm * 135mm | 180mm * 102mm * 143mm | 180mm * 100mm * 135mm | 110mm * 135mm * 210mm | 145mm * 80mm * 200mm | 295mm * 295mm * 207mm | 295mm * 295mm * 207mm | 150mm * 150mm * 275mm | 350mm * 250mm * 300mm |
| 모니터링 및 제어 | ||||||||||||
| Flow Meter Window | × | × | × | × | × | ✓ | × | ✓ | × | ✓ | ✓ | ✓ |
| 압력계 | × | ✓ | × | × | ✓ | × | × | ✓ | ✓ | ✓ | ✓ | ✓ |
| Air Source Type | Built-in Air Pump | Built-in Air Pump | Built-in Air Pump | 외부 공기 공급원 | Built-in Air Pump | 외부 공기 공급원 | Built-in Air Pump | Built-in Air Pump | Built-in Air Pump | Built-in Air Pump | Built-in 2 Air Pump | Built-in Air Pump |
| Mode Output | Smoke Mode | Smoke Mode | Smoke Mode | Smoke Mode | Smoke Mode | Smoke Mode | Smoke Mode | Smoke Mode | 에어 모드 Smoke Mode | 에어 모드 Smoke Mode | 에어 모드 Smoke Mode | 에어 모드 Smoke Mode |
| Dual Pressure Mode | × | × | × | × | × | × | × | × | × | × | × | Standard 35 psi / EVAP 10 psi machine modes; use the vehicle procedure. |
| Flow Adjustment Knob | × | × | × | × | × | ✓ | × | ✓ | × | ✓ | ✓ | ✓ |
| 오일 드레인 밸브 | × | × | × | × | × | × | × | × | ✓ | ✓ | ✓ | ✓ |
| 오류 표시등 | × | × | ✓ | × | ✓ | × | × | ✓ | ✓ | ✓ | ✓ | ✓ |
| 오일 레벨 게이지 | × | × | × | × | × | × | × | × | × | × | ✓ | ✓ |
사용 설명서 및 다운로드
Use the Manual for Setup and Test Pressure

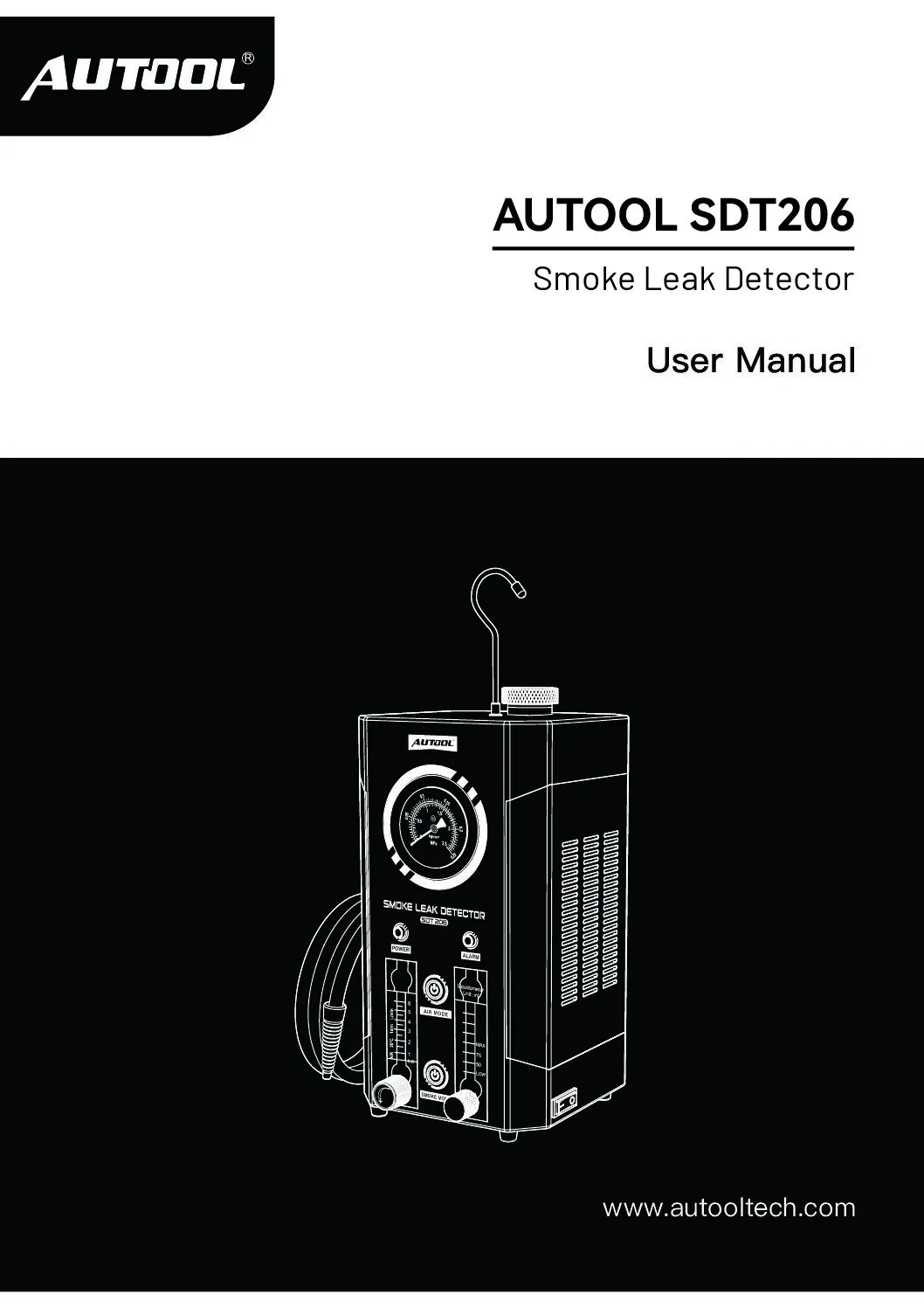

AUTOOL SDT206 User Manual
Open the PDF manual for SDT206 dual-pump Air and Smoke modes, pressure and flow control, oil-level care, operating safety, and troubleshooting.
묶음

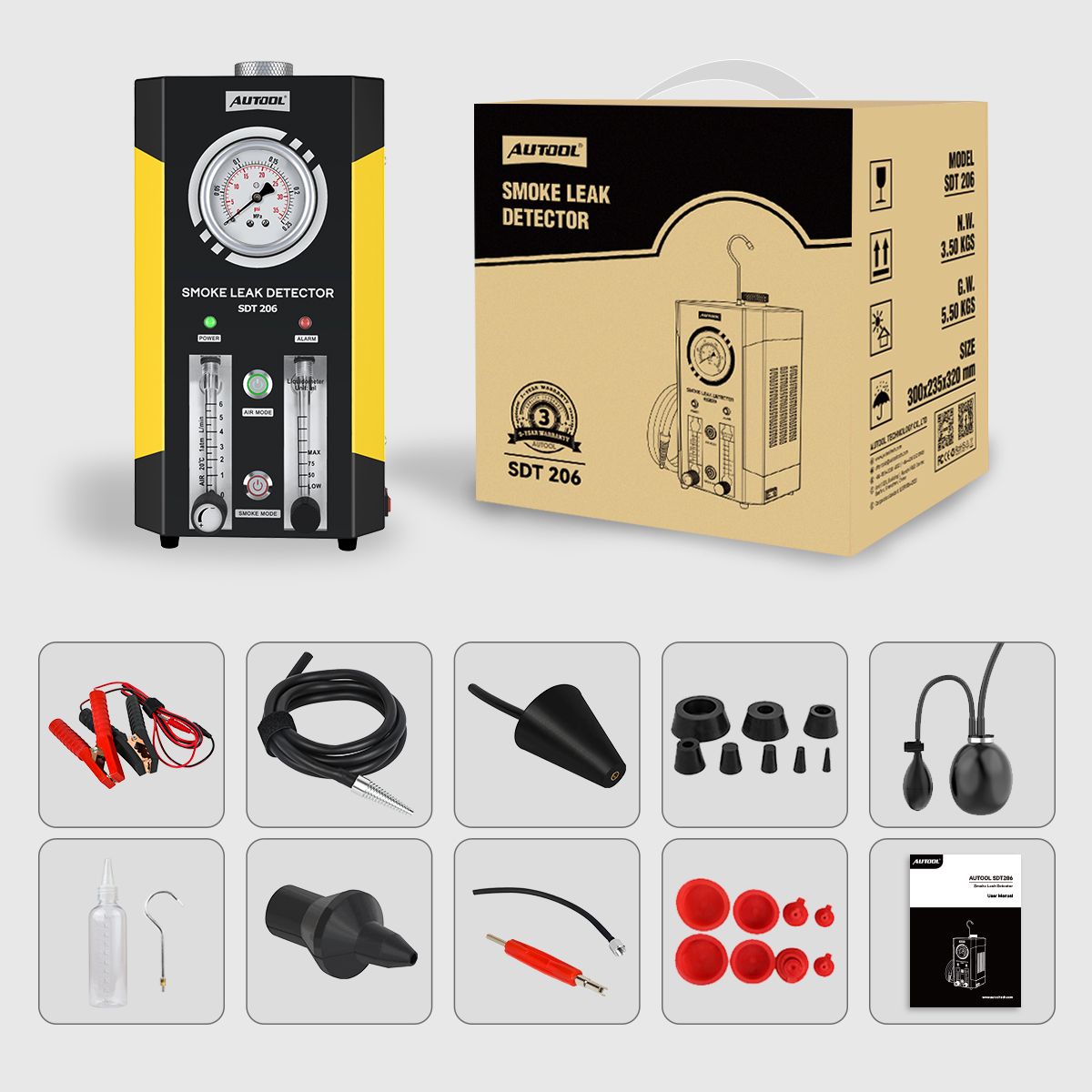

포함 된 것
- 본체AUTOOL SDT206 smoke leak detector
- 전원 케이블12V battery clamp power cable
- 연기 호스Smoke output hose
- 어댑터Cone adapter, airbag adapter, and rubber adapter set
- EVAP AccessoriesEVAP-related connectors, caps, and thin hose
- 오일 병Empty testing oil bottle included; testing oil is not included
- 후크걸이 걸이
- 문서User manual and SDT206 retail box
자주 묻는 질문
Pump, Flow, and System Questions
What Testing Oil Should I Use for SDT206?
Testing oil is not included. Use dedicated smoke-testing oil if available; otherwise use liquid paraffin or baby oil as specified for this model.
How Much Testing Oil Should I Add?
Add 10–15 mL testing oil before use. Do not add more than 15 mL at a time. Refill only when the smoke becomes thin, and drain remaining testing oil before adding fresh testing oil. If too much oil is added accidentally, drain some oil out before operation.
Can SDT206 Detect EVAP Leaks?
Yes. This EVAP smoke machine supports permitted low-pressure leak checks in the EVAP system. Use the EVAP adapter or service tool that matches the vehicle test port.
Can SDT206 Directly Test Automotive A/C System Leaks?
No. The automotive A/C system operates at about 1.7–3.0 MPa output pressure, while AUTOOL smoke leak detectors generate much lower pressure. SDT206 cannot directly pressure-test the automotive A/C system for leaks. Use smoke only to help inspect an A/C line section after isolating and pressurizing it according to the service procedure.
How Can Smoke Help Locate a Leak in an Isolated A/C Line Section?
First isolate and pressurize the A/C line segment according to the vehicle or A/C service procedure. Then apply smoke near the test section and observe whether escaping airflow disturbs the smoke. If escaping air moves the smoke, inspect that area for a possible leak. This method can help locate a leak in an isolated A/C line section, but it is not a direct high-pressure A/C test.

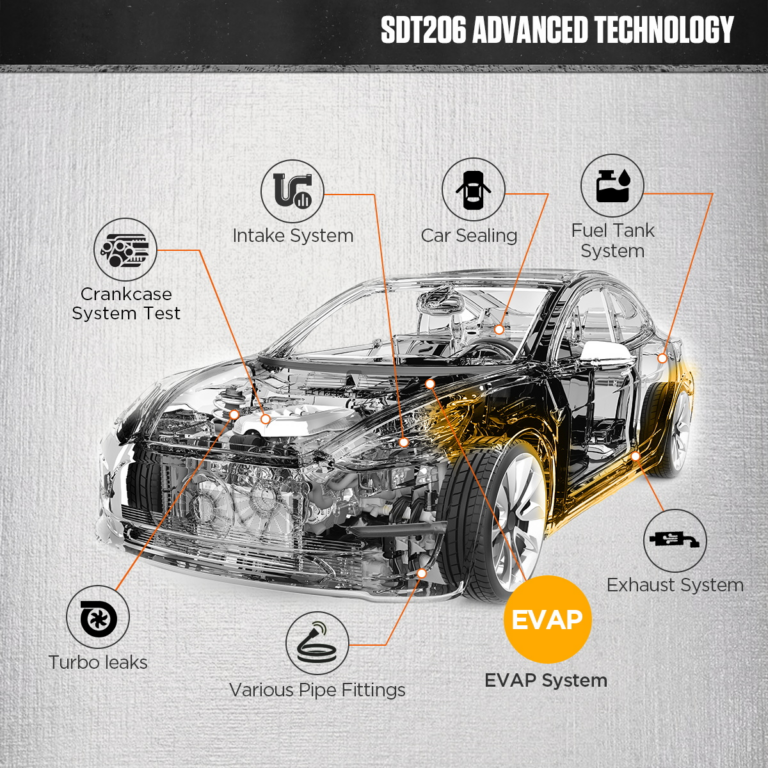

What Systems Can SDT206 Test?
SDT206 supports low-pressure leak checks for EVAP, intake, exhaust, crankcase, fuel-tank, vehicle-sealing, turbo, and line-fitting systems. Use an adapter that matches the test opening, and seal the test section before inspection.
What Power Supply Does SDT206 Need?
SDT206 runs on a 12V DC vehicle battery. Connect it to a 12V vehicle battery before operation.
Can I Adjust the Pressure on SDT206?
SDT206 uses fixed output below 18 psi. Its airflow meter and flow control valve monitor and adjust airflow; they do not change the pressure mode. If separate Standard and EVAP pressure modes are required, compare SDT208.
What Accessories Are Included with SDT206?
Check the product listing or your selected package option for the exact items included. The package includes the main unit, retail box, 12V power cable, smoke hose, cone adapter, hard rubber kits, airbag adapter, empty oil bottle, and hanging hook. EVAP-related accessories, red caps, the user manual, and other listed accessories are also included. Testing oil is not included.
어떻게해야합니까? AUTOOL Smoke Leak Detector Models Differ?
- SDT206: Two built-in pumps, separate Air/Smoke modes, pressure gauge, flow meter/control, oil drain, fault light, and oil-level gauge.
- SDT208 alternative: 35 psi Standard / 10 psi EVAP.
The series also includes external-air EVAP, built-in-pump Smoke, Air/Smoke, and dual-pressure options; compare air source, pressure, flow, modes, and accessories.
How Long Is the Warranty for SDT206?
본체: 3년 보증. 표준 부속품: 1년 보증. 보증 정책.
