AUTOOL C350 휴대용 전기차 충전기
US$169.00
주요 특징
- 8–16 A Adjustable Charging
- Live Charging Display
- Up to 8-Hour Start Delay
- 5 m Portable Cable Kit
- 8–16 A Adjustable Charging: Select 8, 10, 12, 14, or 16 A to match the approved outlet, circuit, and vehicle.
- Live Charging Display: View voltage, current, energy, time, temperature, charging status, and fault indicators.
- Up to 8-Hour Start Delay: Schedule charging in 30-minute steps up to 480 minutes for a later start.
- 5 m Portable Cable Kit: Store the 5 m charging cable and control unit in the included carrying bag.
- IP65 Control Enclosure: Use the IP65-rated control enclosure within its -25°C to 55°C operating range.
- 3 - 년 보증 본체 3년, 부속품 1년
- 90- 일 반품 90일 이내 반품 가능
- 공식 스토어 정품 · 직접 지원
AUTOOL C350 · 8–16 A Portable AC EV Charger
Match Portable Charging to the Approved Outlet
운반 AUTOOL C350 charging kit between approved outlets and choose from five current settings across its 8–16 A range to match the socket, circuit, and vehicle. View live session data on the display, delay charging for an off-peak start, and order the plug and vehicle connector that match local requirements.
- Listed 8 / 10 / 12 / 14 / 16 A Settings
- 5 m Vehicle Cable
- Live Session Display
- 예약 충전
- IP65 Control Enclosure
주요 특징
Set Current, Delay and Monitor the Session
HD 디지털 디스플레이
The high-definition display shows charging voltage, current, energy, time, temperature, and charging status. Power, State, FLT1, and FLT2 indicators help users quickly understand charging conditions.
Five Adjustable Current Levels
Select 8 A, 10 A, 12 A, 14 A, or 16 A to suit the socket, circuit capacity, charging speed, and vehicle requirement; confirm the regional voltage and plug configuration before use.
예정된 충전 시간
Schedule charging start time within an 8-hour window. The timer setting supports 30-minute intervals up to 480 minutes, helping users charge during off-peak hours.
Insulated Charging Connector
The charging connector uses high-strength fire-resistant material with leakage protection and flame-retardant protection for safer daily charging.
Oxygen-Free Pure Copper Cable
The thickened oxygen-free pure copper cable supports stable 16A current output and uses a durable outer layer designed for wear resistance, rain protection, and dust protection.
Charging Protection Functions
The control unit monitors several electrical, grounding, leakage, and temperature fault conditions. It still requires a compliant outlet, circuit, grounding arrangement, and correct connector version.
IP65 실외 보호
The C350 control enclosure is rated IP65 and supports operation from -25°C to 55°C for outdoor charging conditions. Use and store the cable, plug, and vehicle connector within the conditions in the matching manual.
Confirm Both Connectors
Match the ordered input plug, vehicle connector, voltage, and regional version to the intended outlet and vehicle before purchase.
가볍고 휴대용
The included storage bag makes the charger easy to store, carry, and keep in the trunk without taking up unnecessary space.
Regional Documentation Check
Match the exact ordered electrical and connector configuration to the declarations and installation requirements for the destination market.
Safe Housing Material
The charger shell uses high-strength ABS and PC materials for durability, flame resistance, and safe daily handling.
13 Charging Protections
Built-in protection includes leakage, overvoltage, undervoltage, short circuit, waterproof, emergency stop, lightning, overtemperature, moisture, reverse connection, grounding, overcurrent, and flame-retardant protection.
다양한 차량 호환성
The C350 is suitable for EVs using the European standard 7-pin AC connector and vehicles compliant with IEC 62196-2. Confirm your vehicle charging port and regional plug version before ordering.
인증 마크
The certification image lists MD, LVD, FCC, CE, and RoHS marks for the C350 portable EV charger.
Charging Functions and Fit
The C350 Mode 2 EV charger combines clear charging data, adjustable current, scheduled charging, weather protection, wide connector compatibility, and portable storage for everyday EV charging needs.
Protection and Certification Details
The C350 product content highlights multiple certification marks and protection design details, supporting safer portable charging for daily use.
3년 보증 지원
본체: 3년 보증. 표준 부속품: 1년 보증. 보증 정책.
이용 방법
Connect, Set and Monitor the Charge
단계별 진행 상황1 / 5
01
Check The Charging Chain
Confirm the ordered input plug and vehicle connector, then inspect the outlet, circuit, grounding, cable, control box, connector, and vehicle inlet for damage, heat, moisture, or debris.
02
Connect The Supply
Insert the power plug into a compliant AC outlet that is approved for the selected current. Confirm normal power status before connecting the vehicle.
03
Connect The Vehicle
Seat the vehicle connector fully and verify the connection status on the display.
Set Current Or Delay
Choose 8A, 10A, 12A, 14A, or 16A only when allowed by the outlet, circuit, charger version, and vehicle. Use the SET / OK workflow to select current and schedule charging for an off-peak tariff or load window when appropriate.
Use a compliant, stable power supply and connector for the ordered regional version.
05
Monitor And Disconnect
Watch the displayed status and fault indicators. Stop if a fault, abnormal heat, damage, or unstable connection appears, and disconnect by holding the connector rather than pulling the cable.
안전성 및 호환성
Match the Circuit, Plug and Vehicle Connector
Verify Power and Vehicle Requirements
Ensure the power supply is stable and meets vehicle charging requirements.
Use a Compliant Socket
Do not use non-compliant sockets.
Inspect the Connector and Vehicle Inlet
Check the charging gun and vehicle socket for foreign objects or damage before each use.
Schedule Charging for an Off-Peak Window
Use scheduled charging to charge during off-peak hours when possible.
Protect the Cable from Stress
Avoid excessive bending, pulling, or stressing the cable during charging.
Unplug by the Connector Handle
Hold the charging gun handle when unplugging; do not pull the cable.
Power Off Before Disconnecting
Turn off the power before unplugging after charging is complete.
Match the Connector and Regional Plug
Confirm the connector type and regional plug version before ordering.
Confirm the Ordered Voltage Version
Confirm AC 110V / 220V version requirements before use.
Check Fault Indicators and Grounding
If fault indicators appear, check socket power, grounding, vehicle connection, and charger status.
Use A Qualified Outlet
Use a correctly rated outlet, wiring, grounding, protective device and plug for the selected current and continuous EV charging load.
기술 사양
Current, Cable and Protection Details
C350
C350 — 8–16 A / 3.3 kW / Portable
C701
C701 — 10–32 A / 7 kW / Wall-mounted
| 스펙 | 가치관 |
|---|---|
| 입력 | AC 110 / 220 V ±20%, 50 / 60 Hz; ordered plug and version must match the region |
| 현재 설정 | 8 A / 10 A / 12 A / 14 A / 16 A; 14 A manual default |
| 정격 전력 | 3.3 kW manual value; actual charging is limited by supply and vehicle |
| 케이블 길이 | 5 m |
| 인클로저 등급 | IP65 |
| 작동 온도 | -25 ~ 55 ° C |
| 지연 타이머 | 30-minute steps up to 480 minutes |
사용 설명서 및 지원
Confirm Installation, Plug and Vehicle Fit

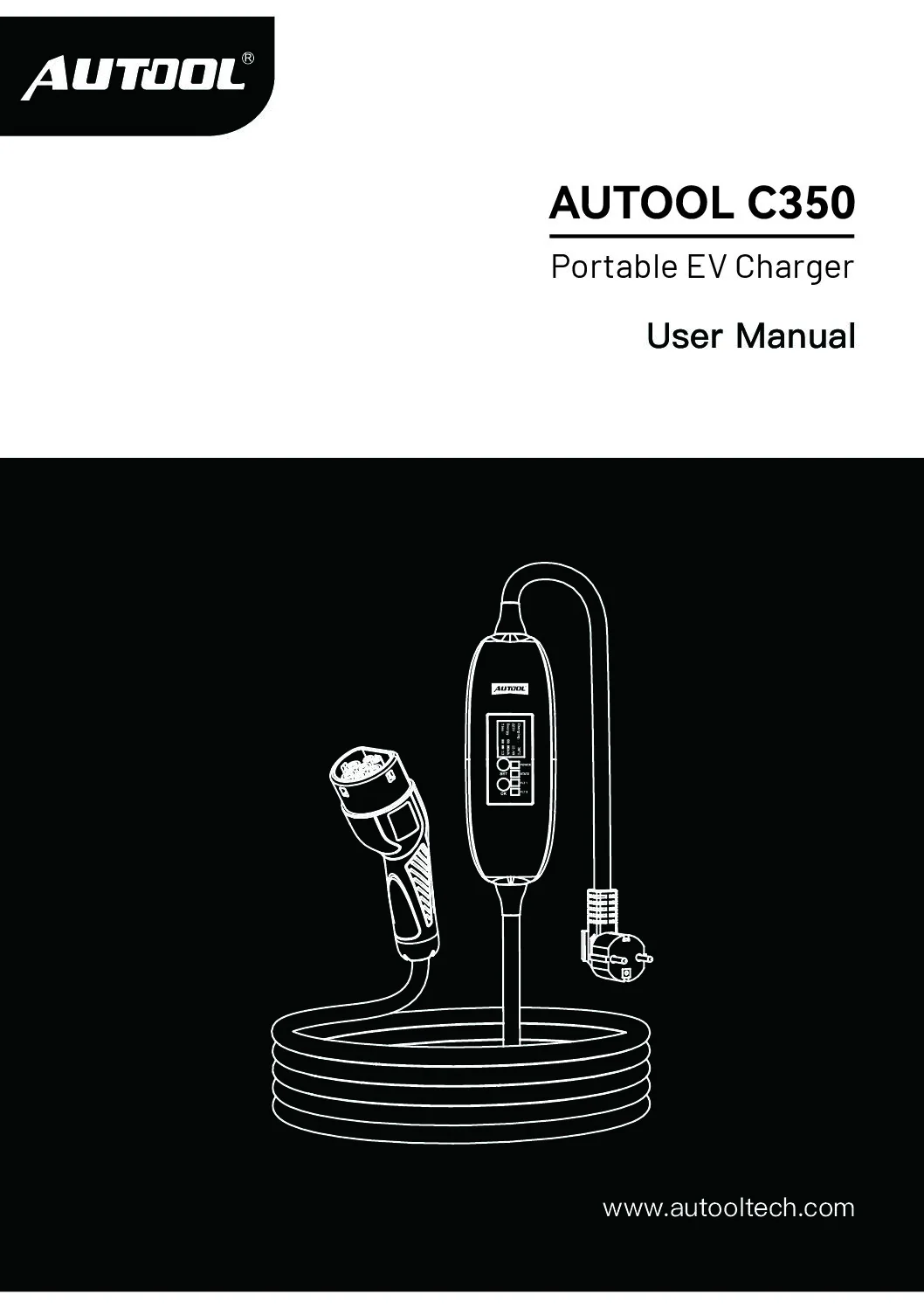

AUTOOL C350 사용자 설명서
Open the PDF manual for C350 connector matching, current selection and delayed charging, with outlet and circuit safety plus troubleshooting support.
패키지 내용물
Check the Charging Unit, Cable, Plug and Storage Bag
- Portable Charging UnitAUTOOL C350 in-cable control unit with attached vehicle-side cable and connector.
- 전원 단자Input plug for the ordered regional version.
- 충전 케이블5 m cable assembly.
- 보관 용 가방Portable carrying and storage bag.
- 사용 설명서AUTOOL C350 operating manual.
자주 묻는 질문
Connector, Circuit and Charging Questions
What Current Levels Does C350 Support?
C350 supports five current levels: 8A, 10A, 12A, 14A, and 16A. The default current setting is 14A.
How Long Can I Schedule Charging?
The timer setting supports 30-minute intervals up to 480 minutes, equal to 8 hours. Use scheduled charging to charge during off-peak electricity hours when possible.
What Vehicles Is C350 Compatible With?
C350 is suitable for EVs using the European standard 7-pin AC connector and vehicles compliant with IEC 62196-2. Confirm your vehicle charging port, regional plug version, and input voltage requirements before ordering.
Match the ordered vehicle connector and input plug to the vehicle, outlet voltage and region before purchase.
Is C350 Suitable For Outdoor Charging?
Yes. C350 is rated IP65 and supports operation from -25°C to 55°C. Users should still avoid unsafe sockets, damaged ports, unstable power supply, excessive cable stress, and improper connection.
What Should I Check If Charging Does Not Start?
Check whether the socket is powered, the plug is secure, the vehicle connector is fully inserted, the vehicle port is free from foreign objects or damage, and whether any fault indicator is on.
What Do Fault Indicators Mean?
Fault 1 may indicate overcurrent, leakage, self-test failure, over-voltage, under-voltage, or over-temperature protection. Fault 2 may indicate self-test failure, communication abnormality, missing ground wire, or leakage current. Stop charging and check socket power, grounding, vehicle connection, and charger condition.
패키지 구성품은 무엇인가요?
The AUTOOL C350 charger, charging cable, charging connector, power plug, portable storage bag, and user manual.
