AUTOOL TCA403 Swing-Arm Tire Changer
US$2,199.00
주요 특징
- 12–24 Inch Swing-Arm Service
- Daily Tire Changing
- Protected Rim Contact
- Pneumatic Bead + Return Actions
- 12–24 Inch Swing-Arm Service: Mount and demount tires on supported 12–24 inch rims, 4–13 inch tire widths, and up to 1,100 mm tire outside diameter.
- Daily Tire Changing: Designed for routine tire mounting and demounting in automotive workshops and tire service environments.
- Protected Rim Contact: Use sleeved alloy-steel jaws and a stainless mounting head with anti-scratch washers.
- Pneumatic Bead + Return Actions: Drive bead-breaking and machine return through a bidirectional cylinder and dual-exhaust structure using the required 8–10 bar shop air.
- Digital Inflation Gauge: Read tire inflation pressure on the integrated digital gauge during service.
- 3 - 년 보증 본체 3년, 부속품 1년
- 90- 일 반품 90일 이내 반품 가능
- 공식 스토어 정품 · 직접 지원

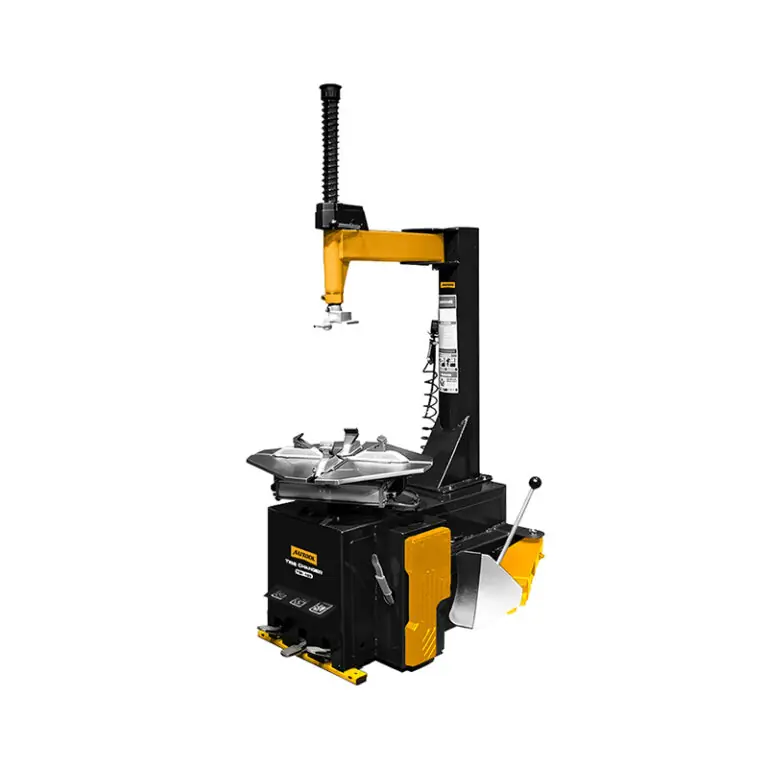

AUTOOL TCA403 · 12–24 in Swing-Arm Tire Changer
Standard Low-Profile Tire Service
Service 12–24 in rims, 4–13 in tire widths and tires up to 1100 mm outside diameter with the TCA403 tire changer. Protected contact points support wheel handling, while the digital inflation gauge keeps pressure visible during the approved procedure. The machine requires 8–10 bar shop air.
- 12–24 in Rim Range
- 4–13 in Tire Width
- 8–10 bar Shop Air
- Protected Rim Contact
주요 특징
Control Rim Contact During Clamping and Demounting
Inflation Gauge
Read tire pressure directly on the digital gauge while following the approved inflation procedure.
Monitor inflation pressure on the machine-side display during the seating and inflation workflow.
Stable Composite Housing
The reinforced composite housing enhances overall machine strength and reduces vibration of the working head for more stable operation.
Pull-Out Foot Valve Assembly
The foot valve assembly uses a pull-out design, making maintenance and servicing easier for workshop users.
Alloy Steel Jaws With Protection Sleeves
Alloy steel jaws with quenched tips and jaw protection sleeves help improve clamping strength while protecting the rim surface.
Stainless Steel Tire Changer Mounting Head
The tire dismounting head is made of stainless steel and is equipped with anti-scratch washers to reduce rim damage during operation.
Bidirectional Large Cylinder and Dual Exhaust
The pneumatic system uses a bidirectional large cylinder and dual-exhaust structure for the machine’s return and bead-breaker actions.
3년 보증 지원
본체: 3년 보증. 표준 부속품: 1년 보증. 보증 정책.
이용 방법
Deflate, Clamp, Demount and Seat the Tire
단계별 진행 상황1 / 8
01
Confirm Wheel and TCA403 Range
Check rim diameter and width, tire outside diameter, profile and condition, wheel weight and the approved machine clamping arrangement.
02
Deflate Before Bead Service
Remove the valve core and verify the tire is fully deflated before using the bead breaker or demounting tool.
03
Break the Bead with Clearance
Lubricate the bead area, keep the bead-breaker shoe clear of the rim and keep hands and body outside the moving zone.
04
Center and Clamp the Wheel
Use the clamping arrangement approved for the machine and wheel, center the rim and confirm all jaws engage evenly.
05
Set the Swing Arm and Head
Position the TCA403 swing arm and mounting head with the required rim clearance, protectors and approved tire lubricant.
06
Demount or Mount with Bead Control
Keep the bead in the drop center.
07
Seat and Inflate by Procedure
Use the approved restraint and tire/rim inflation procedure, keep clear of the trajectory zone and never exceed the applicable seating or service pressure.
08
Inspect the Finished Assembly
Check bead seating, valve condition, rim contact and tire condition before removing the wheel from the turntable.
안전성 및 호환성
Protect the Rim, Bead, Sensor and Operator
Fully Deflate First
Remove the valve core and confirm zero pressure before bead breaking or demounting.
Stay Clear of Pinch Zones
Keep hands and body clear of the bead breaker, jaws, turntable and mounting head whenever controls are operated.
Match the Published Wheel Range
Confirm rim diameter, tire width, tire outside diameter, wheel condition and machine configuration as separate fields; one dimension does not qualify every wheel.
Protect Bead, Rim and Sensors
Use approved lubricant, jaw and head protectors, correct drop-center technique and the vehicle procedure for TPMS-equipped wheels.
Control Inflation and Bead Seating
Use the tire and rim manufacturer’s pressure limits and required restraint; never stand in the tire trajectory zone during inflation.
Separate Shop Air from Tire Pressure
The listed 8–10 bar is the machine air-supply requirement. It is not a tire bead-seating pressure or final vehicle tire pressure.
기술 사양
Wheel Range, Motor and Air Requirements
| 스펙 | 가치관 |
|---|---|
| 림 지름 | 12–24인치 |
| 타이어 폭 | 4–13 in; confirm how tire width is measured for your wheel and machine configuration |
| Maximum Tire Outside Diameter | 1100 mm |
| Machine Air Supply | 8–10 bar; not tire inflation pressure |
| Power Supply / Motor Power | AC 220 / 380 V; 1.1 / 0.75 kW — confirm model and regional mapping |
사용 설명서 및 지원
Confirm Wheel Range and Shop Setup
AUTOOL TCA403 Manual & Guides
Visit the manual download center to find TCA403 guidance for tire mounting, bead breaking and rim protection, plus inflation safety and troubleshooting support.
패키지 내용물
Check Tire Changer Tools and Included Parts
- TCA403 PackageMain tire-changer unit with standard tire bead clamps; published package weight 231 kg
- 패키지 크기Confirm the final TCA403 main-unit package dimensions in millimetres on the order
- Contact Protection PartsConfirm jaw sleeves, mounting-head protection pieces and other wear parts in the selected package
- Match the motor and supply voltage to your order. Provide 8–10 bar compressed air before installation.
- 문서Obtain the packing list, installation instructions and operating procedure for the selected TCA403
- TCA403 PackageTCA403 includes the main tire changer, with a published package weight of 231 kg. Confirm the final package dimensions in millimetres on the order.
- 패키지 크기TCA403 main unit: 115 × 95 × 98. Confirm the dimension unit before shipment.
자주 묻는 질문
Wheel Range and Tire-Service Questions
What Is The TCA403?
TCA403 is the standard low-profile tire changer with the main unit package.
TCA403 is the base swing-arm tire changer.
What Rim Size Does The Machine Support?
The TCA403 specification information shows a rim size range of 12-24″. Confirm your tire and rim requirements before ordering.
The published rim-diameter field is 12–24 inches. Also confirm the separate 4–13 inch width field, 1100 mm maximum tire outside diameter, clamping method, wheel condition and required protectors.
What Air Pressure Is Required?
The machine requires 8-10bar air source pressure. Confirm your workshop air supply before ordering or installation.
The machine requires an 8–10 bar shop-air supply. This is not the tire bead-seating pressure or final vehicle tire pressure; use the approved tire and rim procedure for inflation.
What Power Supply Should I Prepare?
The TCA403 specification information shows AC 220V / 380V power supply support. Confirm your workshop power supply and order requirements before purchase.
Supply and motor options: AC 220 V / 380 V and 1.1 / 0.75 kW. Match the voltage, phase, motor rating, and nameplate to the selected TCA403 before installation.
Can It Handle Low-Profile Tires?
Yes. The product is positioned as a low-profile tire changer.
How Does The Machine Help Protect Rims?
The machine uses alloy steel jaws with quenched tips and jaw protection sleeves. The stainless steel tire dismounting head also includes anti-scratch washers to help reduce rim damage during tire service.
The machine lists jaw sleeves and mounting-head protectors. Correct centering, clamping, clearance, lubrication and tool placement still determine actual rim and bead contact.
What Should I Confirm Before Ordering?
Confirm AC 220V / 380V power supply, 8-10bar air pressure, 12-24″ rim size range, 4-13″ tire width range, shipping, installation, and workshop setup requirements before ordering.
