AUTOOL SPT105 조절식 이중 구멍 점화 플러그 테스터
US$33.00
주요 특징
- 듀얼 플러그 비교
- 최대 6000RPM
- Adjustable Hole Height
- 110 V / 220 V Choice
- 듀얼 플러그 비교: Compare two spark plugs at the same adjustable air-bench firing setting.
- 최대 6000RPM: Adjust the simulated firing rate up to 6000 rpm.
- Adjustable Hole Height: Raise or lower the test sockets to accommodate some longer spark-plug ends.
- 110 V / 220 V Choice: Select the correct 110 V or 220 V input version before ordering.
- Transparent Safety Cover: Watch comparative firing continuity through the closed transparent cover.
- 3 - 년 보증 본체 3년, 부속품 1년
- 90- 일 반품 90일 이내 반품 가능
- 공식 스토어 정품 · 직접 지원
AUTOOL SPT105 · Height-Adjustable Dual Spark Plug Tester
Compare Longer Spark Plugs Side by Side
Compare two spark plugs at the same adjustable bench setting, including compatible plugs with longer terminal ends. SPT105 raises or lowers the socket height, keeps visible firing behavior behind a transparent cover, and supports simulated rates up to 6000 rpm. Choose the correct 110 V or 220 V version for the workshop supply.
- 2구 플러그 나란히 연결 테스트
- 높이 조절 가능한 콘센트
- 투명 보호 커버
- 110 V / 220 V Versions
- Rotary Bench-Speed Control
주요 특징
Adjustable Height with Dual Firing Positions
두 개의 플러그를 나란히 비교하기
Test two spark plugs at the same time to compare spark status more quickly during basic 12V vehicle spark plug checks.
조절 가능한 시험공 높이
The adjustable height design improves compatibility with longer spark plug ends used by BMW, Volkswagen, Audi, and other models.
0-6000rpm Simulation
Adjust the simulated engine working speed from a page-stated 0–6000 rpm range; the current manual procedure states 1000–6000 rpm/min, so confirm the delivered version to observe spark plug performance under different test conditions.
Visual Spark Observation
The tester helps users visually check ignition strength, spark continuity, and comparative working status through the transparent cover.
Protective Safety Cover
Close the protective cover before testing to reduce direct exposure to sparks and improve operational safety.
3년 보증 지원
본체: 3년 보증. 표준 부속품: 1년 보증. 보증 정책.
서비스 워크플로
Confirm Fit, Set Height and Compare
단계별 진행 상황1 / 4
01
Place Spark Plug
Place the spark plug securely into the test hole. Use the adjustable test height when testing longer spark plug ends.
02
Close Safety Cover
Close the transparent protective cover before starting the test to reduce direct spark exposure.
03
Connect Power And Adjust RPM
Connect the correct 110V / 220V power supply option, then adjust the working frequency or simulated RPM with the control knob.
04
Observe And Compare Spark Status
Observe the spark plug test status through the protective cover and compare performance if two plugs are tested together.
안전한 사용
Resolve the Speed Range by Delivered Version
Close Cover Before Testing
Always close the transparent protective cover before testing to reduce direct spark exposure.
Spark Plug Test Scope
SPT105 is intended for spark plug testing and comparison. It is not a full ignition system diagnostic tool.
Confirm Input Voltage
Confirm the correct 110V / 220V input option before ordering or connecting power.
Spark 결과를 비교해 보세요
탈거한 두 개의 점화 플러그를 동일한 조건에서 공기 중에서 비교한 다음, 차량 점검 절차를 통해 점화 관련 결함이 있는지 확인하십시오.
모델 비교
적합한 점화 플러그 테스터를 선택하세요
모델 가이드
하나 이상의 모델을 선택하세요. SPT105이 기본값으로 선택되어 있습니다.
1개 모델이 선택되었습니다.
선택된 모델이 없습니다. 비교할 모델을 선택하세요.
| 제품명 | SPT101 | SPT105 | SPT301 | SPT360 |
|---|---|---|---|---|
| 테스트 설정 및 용량 | ||||
| 조절 가능한 구멍 위치 높이 | × | ✓ | ✓ | ✓ |
| 작동 원리 | 디지털 센싱 | 디지털 센싱 | 디지털 센싱 | 디지털 센싱 |
| 시뮬레이션된 RPM | X | 페이지 회전 속도: 0~6000rpm; 수동 작동 속도: 1000~6000rpm/분 (제공된 버전을 확인하십시오) | X | 200–9000rpm |
| 시험 구멍 위치 | 2 | 2 | 3 | 5 |
| 에어벤치 스파크 관찰 | ✓ | ✓ | ✓ | ✓ |
| 조절 가능한 벤치 사격 속도 | ✓ | ✓ | ✓ | ✓ |
| 긴 점화 플러그 테스트를 지원합니다. | × | ✓ | ✓ | ✓ |
| 전력 및 작동 조건 | ||||
| 입력 전압 | 110V / 220V | 110V / 220V | 110V / 220V | 110V / 220V |
| 주위 온도 | 0-45 ℃ | 0-45 ℃ | 0-45 ℃ | 0-45 ℃ |
| 안전 및 디스플레이 | ||||
| 안전 보호 커버 | ✓ | ✓ | ✓ | ✓ |
| LCD 디지털 백라이트 스크린 | × | × | ✓ | ✓ |
사용 설명서 및 지원
설명서 및 설치 안내를 찾아보세요

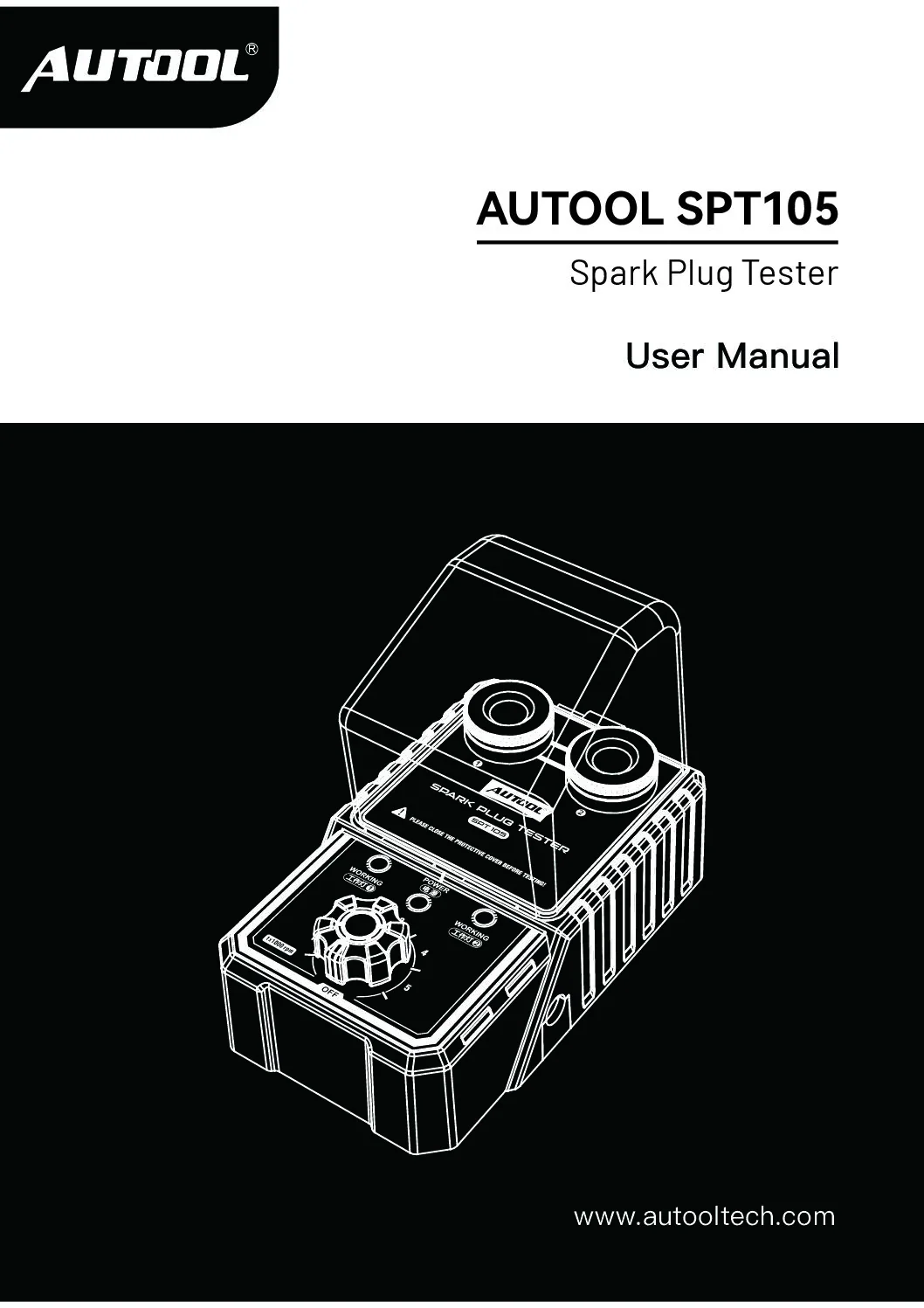

AUTOOL SPT105 사용자 설명서
PDF 설명서를 열어보세요 AUTOOL SPT105 dual-hole spark-plug comparison, test-height adjustment, speed simulation, visual result assessment, protective-cover use, safety and troubleshooting support.

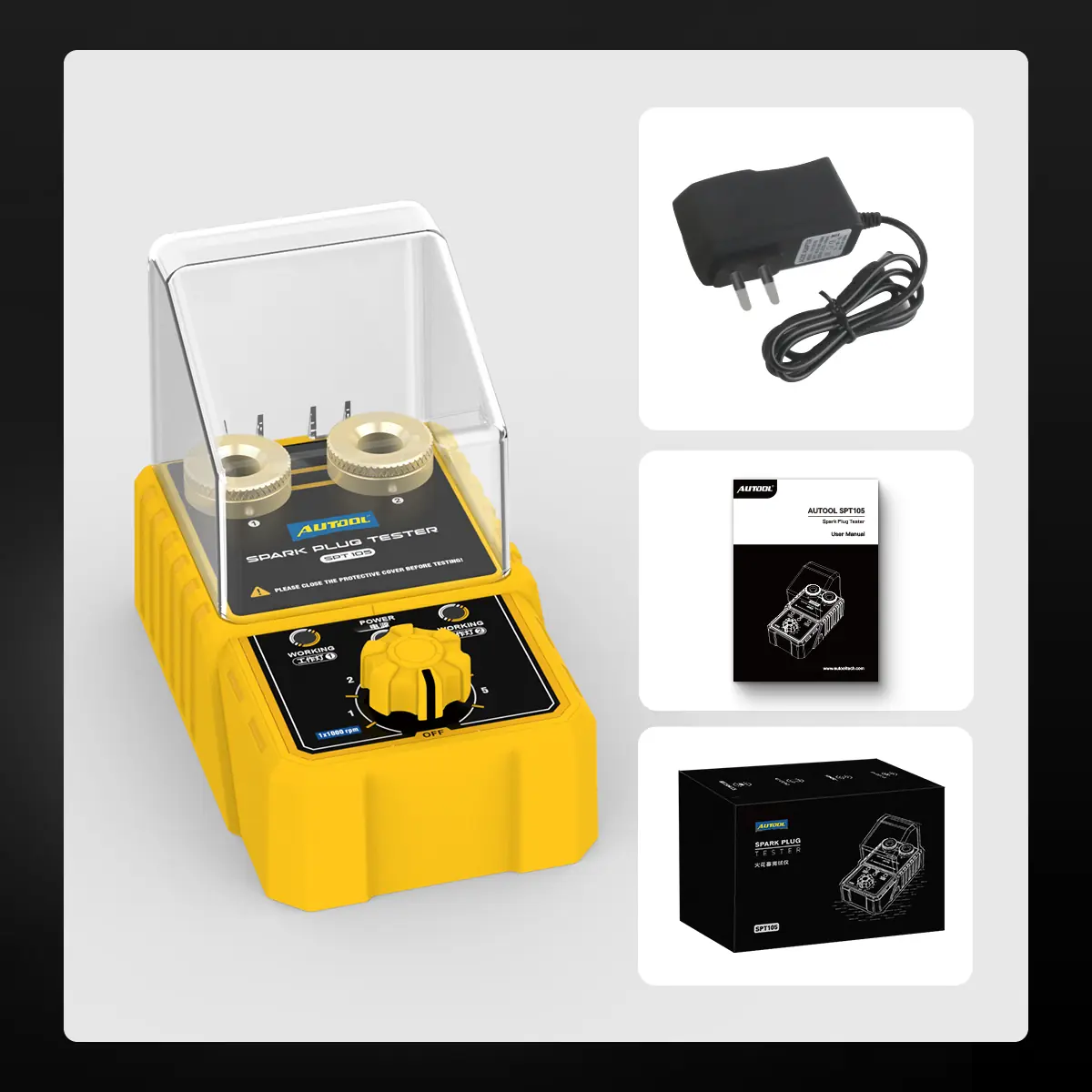

패키지 내용물
상자 안에 무엇이 들어 있는지 확인해 보세요
- 주문 범위주문하기 전에 선택하신 패키지에 포함된 정확한 품목을 확인하세요.
구매자 질문
점화 플러그 장착 및 비교 관련 질문
사용 방법 AUTOOL SPT105?
Place the spark plug in the test hole, close the protective cover, connect the correct power supply, adjust the working frequency, and observe the spark plug status through the transparent cover.
SPT105로 스파크 플러그 두 개를 동시에 테스트할 수 있나요?
Yes. SPT105 has a dual-hole design and can test two spark plugs simultaneously, which helps users compare spark plug performance more quickly.
What Is The Simulated RPM Range Of SPT105?
Use the control as a repeatable bench firing-rate setting. Ask AUTOOL to confirm the delivered hardware and current operating range before ordering when the exact minimum is critical.
Does SPT105 Support Long Spark Plugs?
Yes. SPT105 has adjustable test-hole height for longer spark plug ends, including compatible plugs used by BMW, Volkswagen, Audi, and other vehicles. Confirm the exact plug thread, seat, reach, terminal shape, and cover clearance before testing.
Which Voltage Option Should I Choose?
SPT105 has 110V / 220V input options. Confirm the correct voltage option for your local power supply before ordering or connecting power.
Does SPT105 Have A Digital Display?
No. SPT105 does not include an LCD digital backlit screen. Choose SPT301 or SPT360 if a digital display is required.
SPT105과 SPT101의 차이점은 무엇인가요?
Both provide two air-bench comparison positions and a protective cover. SPT105 adds adjustable socket height. Its lower firing-rate label differs between the page and manual, so do not use a single 0-rpm figure without version confirmation.
What Is The Difference Between SPT105 And SPT301 / SPT360?
SPT105 provides two positions and no digital setting display. SPT301 provides one reference and two test positions; SPT360 provides one reference and four test positions. SPT301 and SPT360 list 200–9000 rpm simulated settings, which are bench firing-rate labels rather than real engine load.
Should I Close The Protective Cover Before Testing?
Yes. Close the protective cover before testing to reduce direct exposure to sparks and improve operational safety. Keep hands away from the test hole area while the tester is working.
