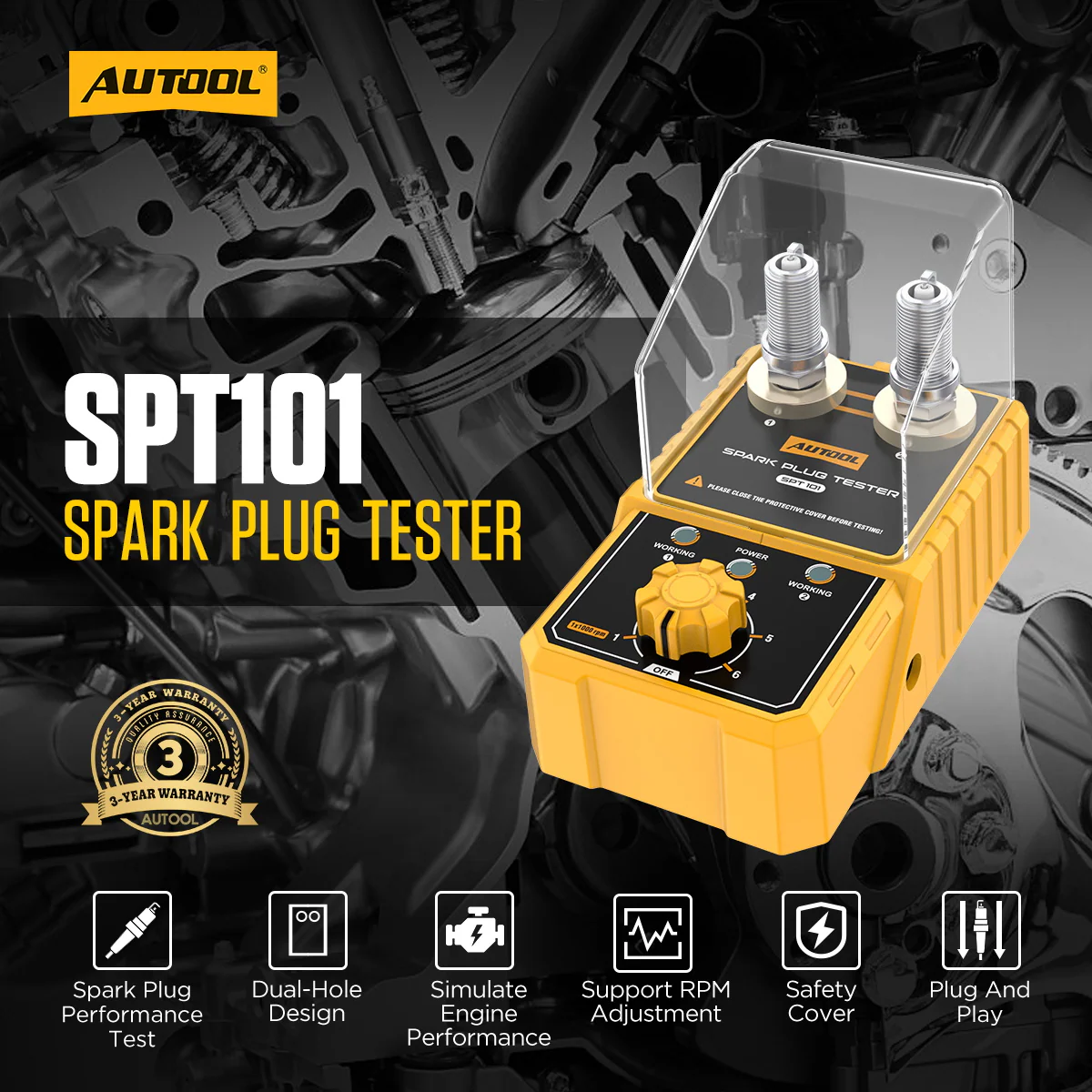

AUTOOL SPT101 Dual-Hole Spark Plug Tester
US$40.00
주요 특징
- Dual-Plug Comparison
- 최대 6000RPM
- 100–240 V AC to 12 V / 1 A
- Visible Protective Cover
- Dual-Plug Comparison: Test two spark plugs together and compare their visible firing behavior at the same bench setting.
- Up to 6000 RPM: Adjust the simulated firing rate with the rotary control up to 6000 rpm.
- 100–240 V AC to 12 V / 1 A: Use the specified adapter with 100–240 V AC input and 12 V / 1 A DC output.
- Visible Protective Cover: Observe spark behavior through the transparent cover while reducing direct exposure to the test area.
- 3 - 년 보증 본체 3년, 부속품 1년
- 90- 일 반품 90일 이내 반품 가능
- 공식 스토어 정품 · 직접 지원

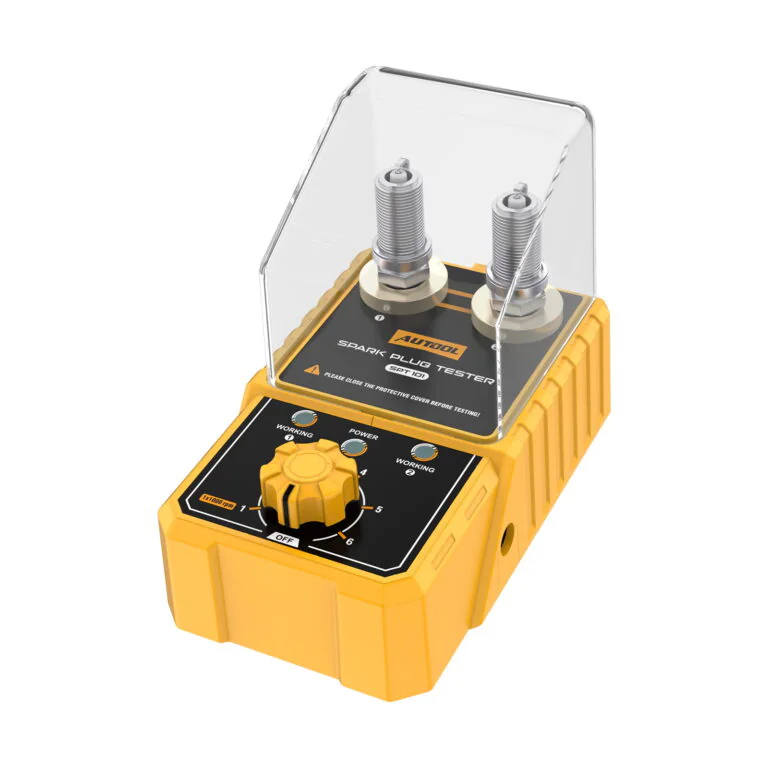

AUTOOL SPT101 · Dual Spark Plug Tester
Compare Two Spark Plugs at One Bench Setting
Compare two spark plugs at the same adjustable bench setting and observe visible firing differences side by side. SPT101 simulates rates up to 6000 rpm, while the transparent cover keeps the test area visible during operation. The supplied wide-input adapter supports the specified bench power connection across common mains regions.
- 2-Plug Side-by-Side Test
- Up to 6000 rpm Bench Setting
- Transparent Safety Cover
- 100–240 V Adapter Input
- Gasoline-Car / Motorcycle Plugs
주요 특징
Visible Dual Spark Plug Comparison with Adjustable Firing Rate

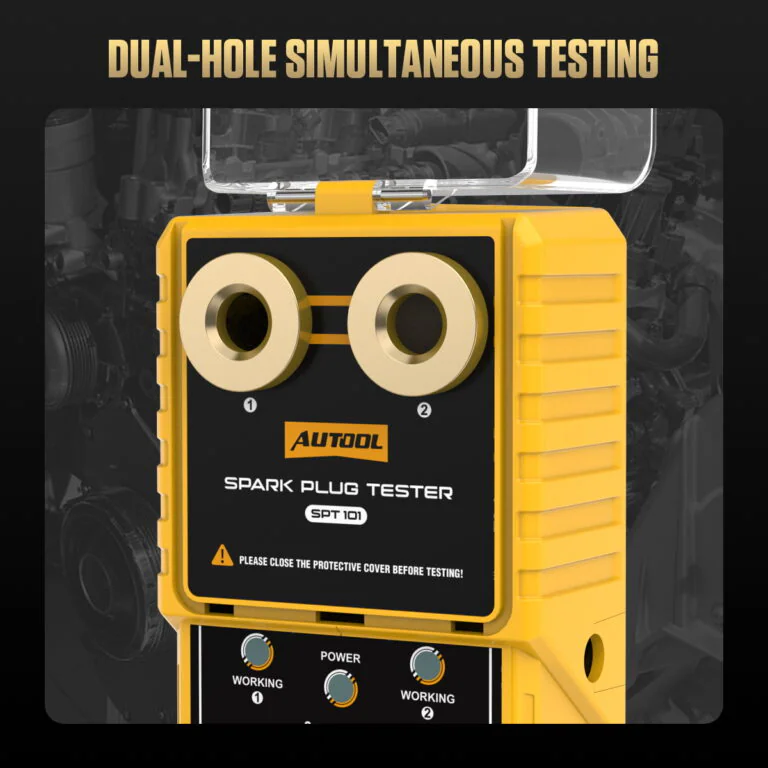

Two-Plug Side-by-Side Comparison
Test two spark plugs at the same time and compare spark performance more efficiently than single-plug inspection.

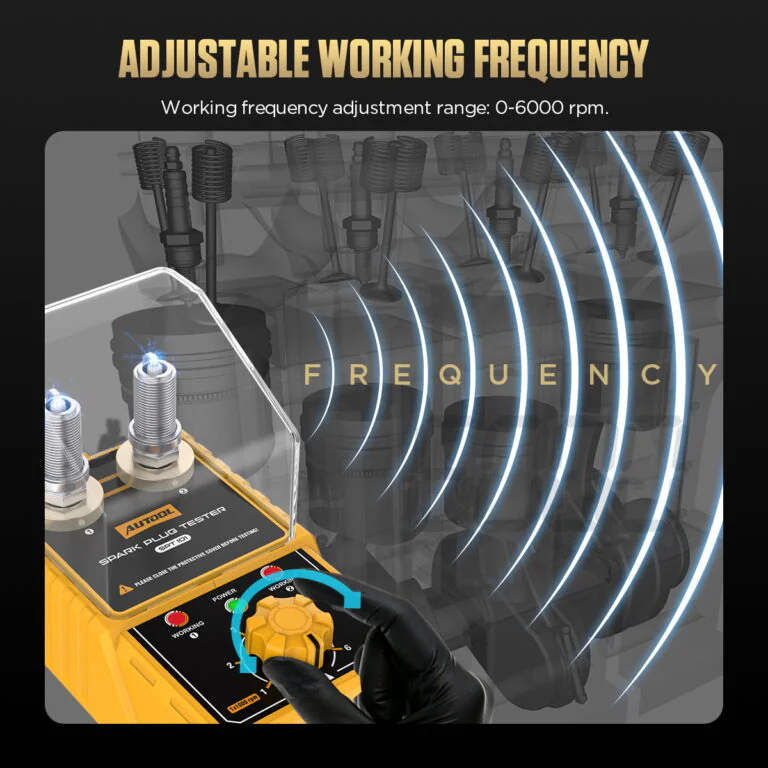

Adjustable Working Frequency
Turn the rotary switch to adjust the simulated working frequency. The tester supports engine simulation up to 6000 RPM.
Adjustable Engine-Speed Simulation
At the selected simulated engine-speed setting, users can evaluate visible spark strength and plug performance side by side.

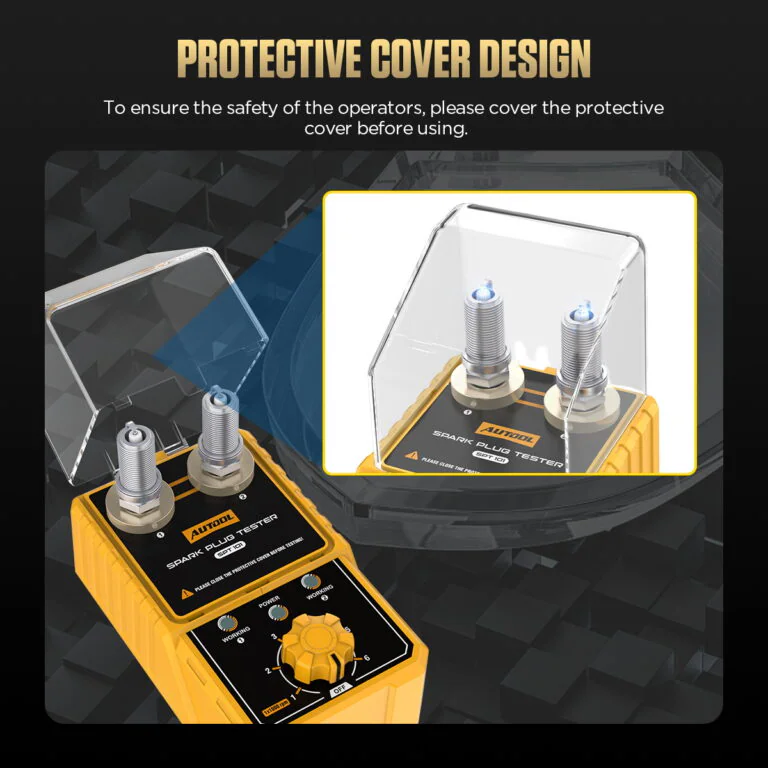

Protective Cover Design
The transparent cover helps protect maintenance personnel while still allowing clear observation of the spark plug test status.
Rotary Test Control
Use the rotary switch to adjust the simulated operating speed while checking spark plug performance.

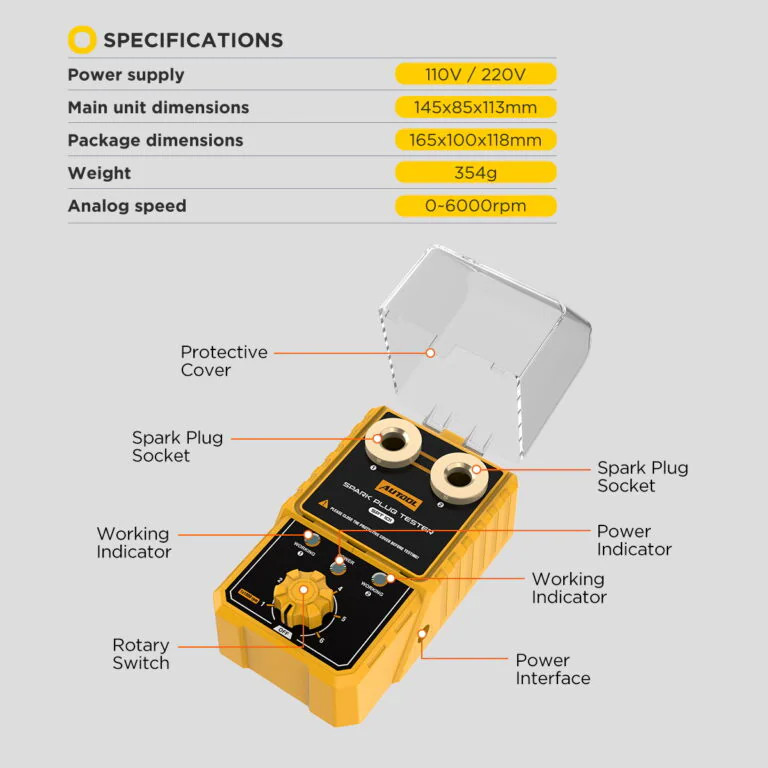

Body Size and Weight
Body dimensions: 145 × 85 × 113 mm. Weight: 354 g.
3년 보증 지원
본체: 3년 보증. 표준 부속품: 1년 보증. 보증 정책.

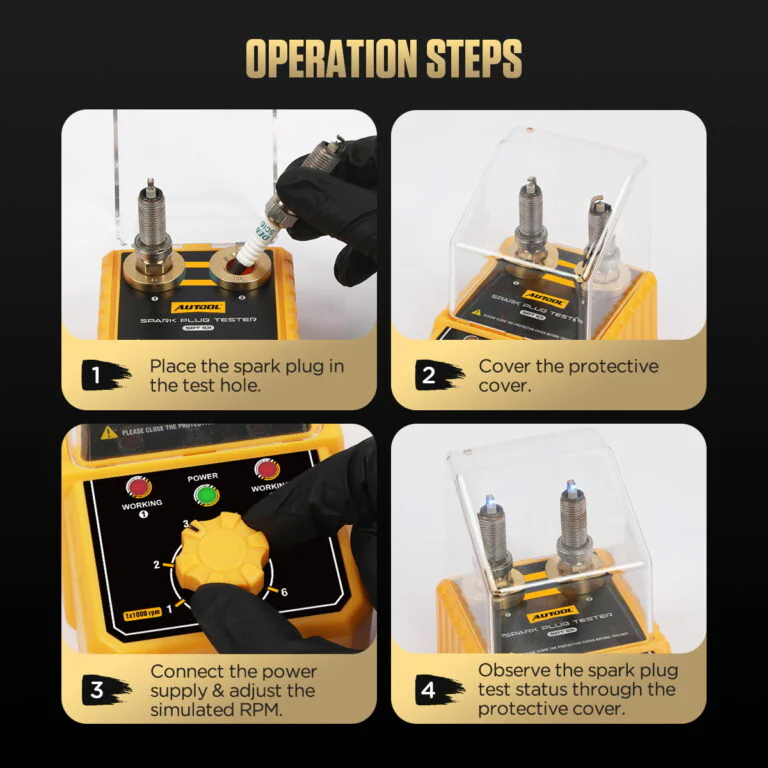

서비스 워크플로
Fit, Cover and Compare Both Plugs
단계별 진행 상황1 / 5
01
Place The Spark Plug
Place the spark plug into tester socket A or B. Use both sockets when you need side-by-side comparison testing.
02
Close The Protective Cover
Cover the transparent protective cover before testing to help keep the operator safer during spark observation.
03
Connect Power And Start
Plug the power adapter into the side power interface, connect power, and turn the rotary switch clockwise to power on the tester.
04
Adjust RPM And Observe
Continue turning the switch clockwise to adjust simulated RPM. Observe spark plug status through the protective cover.
05
Plug-And-Play Operation
Place the spark plug, close the cover, connect power, adjust the switch, and observe the spark condition through the cover.
안전한 사용
Keep the Cover Closed During High Voltage
Close The Protective Cover
Always close the transparent protective cover before testing. The tester is designed for observation through the cover, not open-cover operation.
고전압 경고
Up to 1000V voltage may be generated during testing. Do not touch the spark plug, socket, or exposed test area while the tester is powered.
취급 전 전원을 끄세요
Do not insert or remove a spark plug while the power supply is connected. Turn off the tester first, then place or remove the spark plug.
Use The Correct Adapter
Use a compatible power adapter. The manual specifies 100-240V AC input and 12V 1A DC output for the SPT101 tester.
Supported Spark Plugs
SPT101 is suitable for most 12V gasoline vehicle and motorcycle spark plugs. Confirm fitment before testing unusual or non-standard spark plugs.
Dry Storage Recommended
Store the tester in a dry place when not in use. Avoid hot, humid, non-ventilated, or corrosive environments.
Compare the Spark Results
Compare both removed spark plugs in air under the same setting, then confirm any suspected ignition fault with the vehicle procedure.
모델 비교
Choose the Right Spark Plug Tester
모델 가이드
Choose one or more models. SPT101 is selected by default.
1개 모델이 선택되었습니다.
선택된 모델이 없습니다. 비교할 모델을 선택하세요.
| 제품명 | SPT101 | SPT105 | SPT301 | SPT360 |
|---|---|---|---|---|
| Test Setup & Capacity | ||||
| Adjustable Hole Position Height | × | ✓ | ✓ | ✓ |
| 작동 원리 | 디지털 센싱 | 디지털 센싱 | 디지털 센싱 | 디지털 센싱 |
| Simulated RPM | X | Page: 0–6000 rpm; manual operation: 1000–6000 rpm/min (confirm delivered version) | X | 200–9000rpm |
| Test Hole Position | 2 | 2 | 3 | 5 |
| Air-Bench Spark Observation | ✓ | ✓ | ✓ | ✓ |
| Adjustable Bench Firing Rate | ✓ | ✓ | ✓ | ✓ |
| Supports Testing of Long Spark Plugs | × | ✓ | ✓ | ✓ |
| Power & Operating Conditions | ||||
| 입력 전압 | 110V / 220V | 110V / 220V | 110V / 220V | 110V / 220V |
| 주위 온도 | 0-45 ℃ | 0-45 ℃ | 0-45 ℃ | 0-45 ℃ |
| Safety & Display | ||||
| 안전 보호 커버 | ✓ | ✓ | ✓ | ✓ |
| LCD Digital Backlit Screen | × | × | ✓ | ✓ |
사용 설명서 및 지원
Find the Manual and Setup Guidance

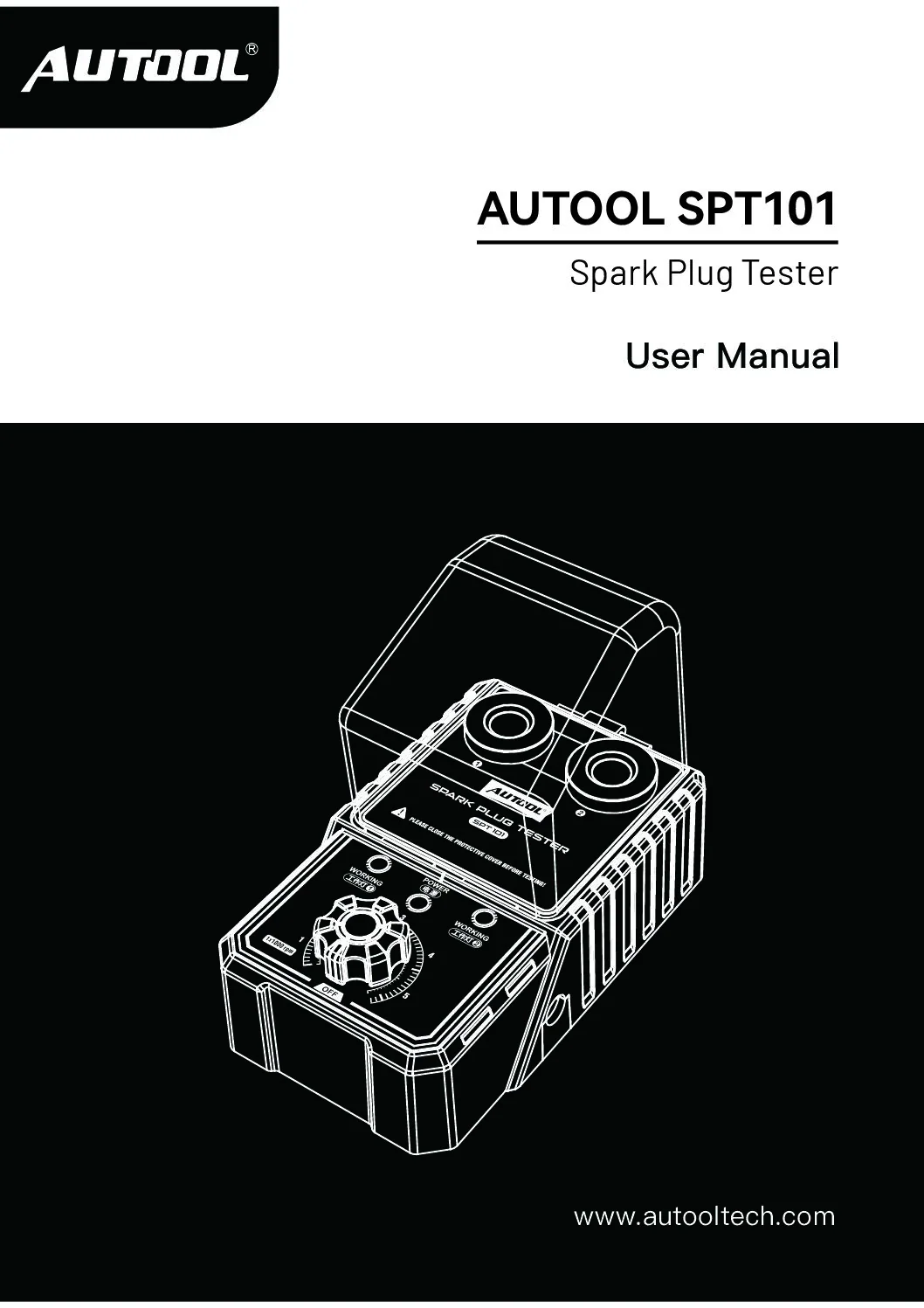

AUTOOL SPT101 User Manual
PDF 설명서를 열어보세요 AUTOOL SPT101 dual-hole spark-plug comparison, frequency adjustment, engine-speed simulation, protective-cover use, adapter setup, safety and troubleshooting support.

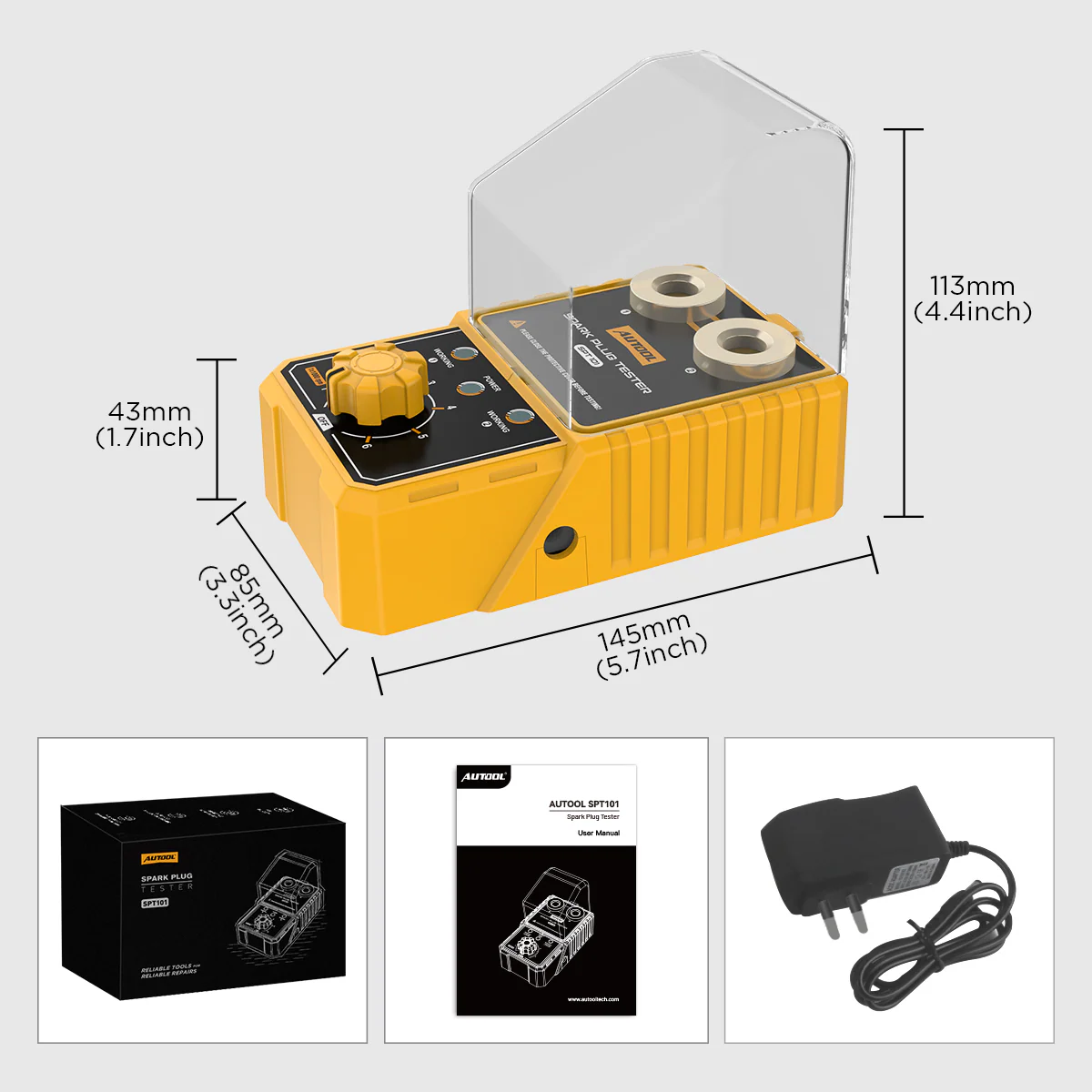

패키지 내용물
상자 안에 무엇이 들어 있는지 확인해 보세요
- 본체AUTOOL SPT101 spark plug tester
- 전원 어댑터Adapter; version may vary by plug option or region
- 문서사용자 설명서
- 소매 박스AUTOOL SPT101 package box
- 알림Additional accessories depend on the selected product option.
구매자 질문
Spark Plug Fit and Comparison Questions
무엇인가 AUTOOL SPT101 Used For?
SPT101 compares the visible spark behavior of two removed plugs in air at the same adjustable firing-rate setting. Confirm suspected faults under the applicable vehicle procedure.
Which Spark Plugs Can SPT101 Test?
SPT101 is suitable for most 12V gasoline vehicle and motorcycle spark plugs. For unusual, modified, or non-standard spark plugs, confirm fitment before testing.
How Do I Use The SPT101 Spark Plug Tester?
Place the spark plug in tester socket A or B, close the protective cover, plug the adapter into the side power interface, connect power, turn the rotary switch clockwise, adjust the simulated RPM, and observe the spark condition through the cover.
Can SPT101 Test Two Spark Plugs At The Same Time?
Yes. SPT101 supports dual-hole simultaneous testing, which lets you compare two spark plugs side by side and observe differences in spark strength more efficiently.
What Is The Working Frequency Range?
The tester’s control is marked with a simulated speed up to 6000 rpm. Treat this as the bench firing-rate setting and compare plugs at the same position; it is not the engine’s real speed or load.
What Power Supply Does SPT101 Need?
The SPT101 manual specifies a power adapter input of 100-240V AC and output of 12V 1A DC. Use a compatible adapter and confirm the plug type for your region before ordering.
Is SPT101 Safe To Use?
Use it carefully. Up to 1000V voltage may be generated during testing. Always close the protective cover before testing, do not touch the spark plug or test socket during operation, and power off the tester before inserting or removing spark plugs.
Can I Insert Or Remove Spark Plugs While Power Is Connected?
No. Do not pull out or insert the spark plug while the power supply is connected. Turn off the power first, then insert or remove the spark plug.
패키지 구성품은 무엇인가요?
Package contents: SPT101 main unit, retail box, user manual, and power adapter. Plug type or adapter version may vary by selected option or destination.
What Is The Difference Between SPT101, SPT105, SPT301, And SPT360?
- SPT101 is a compact dual-hole model with rotary RPM adjustment.
- SPT105 adds adjustable test hole height.
- SPT301 uses three-hole comparative testing with a digital display.
- SPT360 uses five-hole comparative testing with a digital display for users who need to compare more plugs at once.
How Should I Maintain And Store SPT101?
Check connected parts regularly and tighten loose parts in time. Avoid rough surface wear, corrosive liquids, hot or humid storage, and non-ventilated storage areas. Keep the circuit and wires in safe condition and replace aging wires when needed.
보증 기간은 얼마나 되나요?
본체: 3년 보증. 표준 부속품: 1년 보증. 보증 정책.
