AUTOOL PT610 Digital Cylinder Compression Tester
US$119.00
주요 특징
- 디지털 압축 테스트
- 0–426.6 psi Range
- Six-Cylinder Data Review
- Pressure, Temperature + Test Time
- Digital Compression Testing: Measure cylinder compression pressure on compatible motorcycles, cars, and trucks.
- 0–426.6 psi Range: Measure up to 426.6 psi / 29.4 bar and switch among PSI, bar, and kg/cm², with °C/°F temperature display.
- Six-Cylinder Data Review: Save and compare up to six sets of cylinder pressure data.
- Pressure, Temperature + Test Time: View real-time and average pressure, cylinder temperature, and measuring time on the 2.8-inch backlit display.
- 78.7-Inch Reinforced Hose: Reach cylinder test points with the long hose and multiple threaded, rigid, flexible, and cone connections.
- 3 - 년 보증 본체 3년, 부속품 1년
- 90- 일 반품 90일 이내 반품 가능
- 공식 스토어 정품 · 직접 지원
AUTOOL PT610 · Digital Compression Gauge
Compare Cylinder Compression with Stored Sets
Measure cylinder compression and compare results across up to six stored data sets with the PT610 digital compression tester. It shows live and average pressure with cylinder temperature and measuring time, while switchable units simplify matching the engine service reference. A long reinforced hose and varied connections help reach compatible motorcycle, car, and truck test points.
- Cylinder Compression Testing
- Live / Average / Temperature / Time
- Stores Six Data Sets
- 78.7-Inch Reinforced Hose
- PSI / Bar / kg/cm² Units
주요 특징
Pressure, Temperature and Six-Set Storage
Digital Compression Readings
View cylinder-pressure readings to two decimal places when comparing cylinders or repeated tests.
2.8″ Backlit Display
The 2.8-inch HD backlit display shows clear pressure, average pressure, temperature, measuring time, and cylinder pressure data even in dimly lit conditions.
6 Sets Of Data Storage
The data saving and interface locking function allows you to save up to 6 sets of cylinder test data for recording, querying, and comparing during diagnosis.
Multi-Unit Switching
Pressure units can be switched among PSI, Bar, and kg/cm². Temperature units can be switched between Celsius and Fahrenheit.
Riveted Copper Adapters
The included fittings use selected riveted copper material for hardness, wear resistance, oxidation resistance, and corrosion resistance.
Long Reinforced Hose
The extra-long 78.7-inch reinforced rubber hose helps resist pressure, temperature, and twisting during cylinder pressure testing.
다중 연결 옵션
Threaded adapters, flexible and rigid tubes, and rubber cone fittings provide different connection options for cylinder pressure testing.
Handheld Digital Gauge
The 175 × 72 × 29mm body places the test controls below the digital display and connects to an external pressure probe.
3년 보증 지원
본체: 3년 보증. 표준 부속품: 1년 보증. 보증 정책.
서비스 워크플로
Prepare, Crank and Compare Cylinders
단계별 진행 상황1 / 6
01
Remove The Spark Plug
Remove the spark plug from the cylinder that needs to be tested.
02
Connect The Adapter
Select the correct adapter for the vehicle model and connect it to the measuring probe.
03
Reset To Zero
Reset the pressure value to zero before testing to prepare the gauge for a new measurement.
04
Install The Probe
Connect the measuring probe to the engine securely before cranking.
05
Crank The Engine
Start the engine to rotate the crankshaft according to the test requirement.
06
Read And Save Data
The pressure gauge displays the measured pressure. Save cylinder pressure data when comparison is needed.
안전한 사용
Use the Correct Adapter and Disable Procedure
Use the Result for the Next Check
Use the matching adapter and the engine’s compression-test procedure, then compare cylinders under the same conditions. Treat display resolution separately from measurement accuracy, and recheck a low reading with the specified follow-up test.
모델 비교
Choose the Right Pressure Test Kit
모델 가이드
Choose one or more models. PT610 is selected by default.
1개 모델이 선택되었습니다.
선택된 모델이 없습니다. 비교할 모델을 선택하세요.
| 제품명 | PT610 Cylinder Pressure Gauge | PT620 Oil Pressure Gauge Kit | PT630 Fuel Pressure Gauge | PT635 Fuel Pressure Gauge(High-end version) | PT640 GDI Fuel Pressure Gauge | PT650 Transmission Oil Pressure Gauge | PT660 Brake System Pressure Tester |
|---|---|---|---|---|---|---|---|
| Measurement & Readout | |||||||
| 화면을 표시 | 2.8 인치 | 2.8 인치 | 2.8 인치 | 2.8 인치 | 2.8 인치 | 2.8 인치 | 3 인치 |
| 데이터 저장매체 | 6 개의 데이터 세트 | × | × | × | × | × | Locks the current reading; check the current specification for multi-record storage. |
| 압력 범위 | 0 ~ 426.6psi 0-30kg / cm² 0-29.4bar | 0 ~ 426.6psi 0-30kg / cm² 0-29.4bar | 0 ~ 426.6psi 0-30kg / cm² 0-29.4bar | 0 ~ 426.6psi 0-30kg / cm² 0-29.4bar | 0 ~ 5221.3psi 0-367kg / cm² 0-360bar | 0 ~ 426.6psi 0-30kg / cm² 0-29.4bar | 0–210 바 |
| Dual-Channel Pressure Testing | × | × | × | × | × | × | Two brake positions/calipers via L/R channels |
| Data Lock/Clear/Record | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| 다중 매개변수 디스플레이 | Current Temp 측정 시간 Real-Time Pressure Value Average Pressure Value Pressure value of each cylinder | 측정 시간 압력 최대 압력 최소 압력 차동 | 최대 값 최소값 차압 값 측정 시간 Real-Time Pressure Value | 최대 값 최소값 평균값 Temperature Value 측정 시간 Real-Time Pressure Value | 최대 값 최소값 차압 값 측정 시간 Real-Time Pressure Value | 최대 값 최소값 차압 값 측정 시간 Real-Time Pressure Value | Left/right real-time pressure, minimum, maximum, and front/rear pressure difference |
| 압력 단위 | PSI 바 Kg / cm² | PSI 바 Kg / cm² | PSI 바 Kg / cm² | PSI 바 Kg / cm² | PSI 바 Kg / cm² | PSI 바 Kg / cm² | psi / bar / kg/cm² |
| Connections & Applications | |||||||
| 액세서리 커넥터 | 10 유형 | 18 유형 | 17 유형 | 31 유형 | 3 유형 | 12 유형 | Check the selected package contents for included adapter types and quantities. |
| Equipped Toolbox | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| 적용 가능한 시나리오 | 엔진 실린더 | Engine Oil Circulation System | 자동차 연료 시스템 | 자동차 연료 시스템 | Fuel Injection Pump Pressure in the Automotive Direct Injection System | Automotive Transmission Pressure | Internal brake-system fluid pressure; two-position/caliper comparison |
사용 설명서 및 지원
Find the Manual and Adapter Guidance

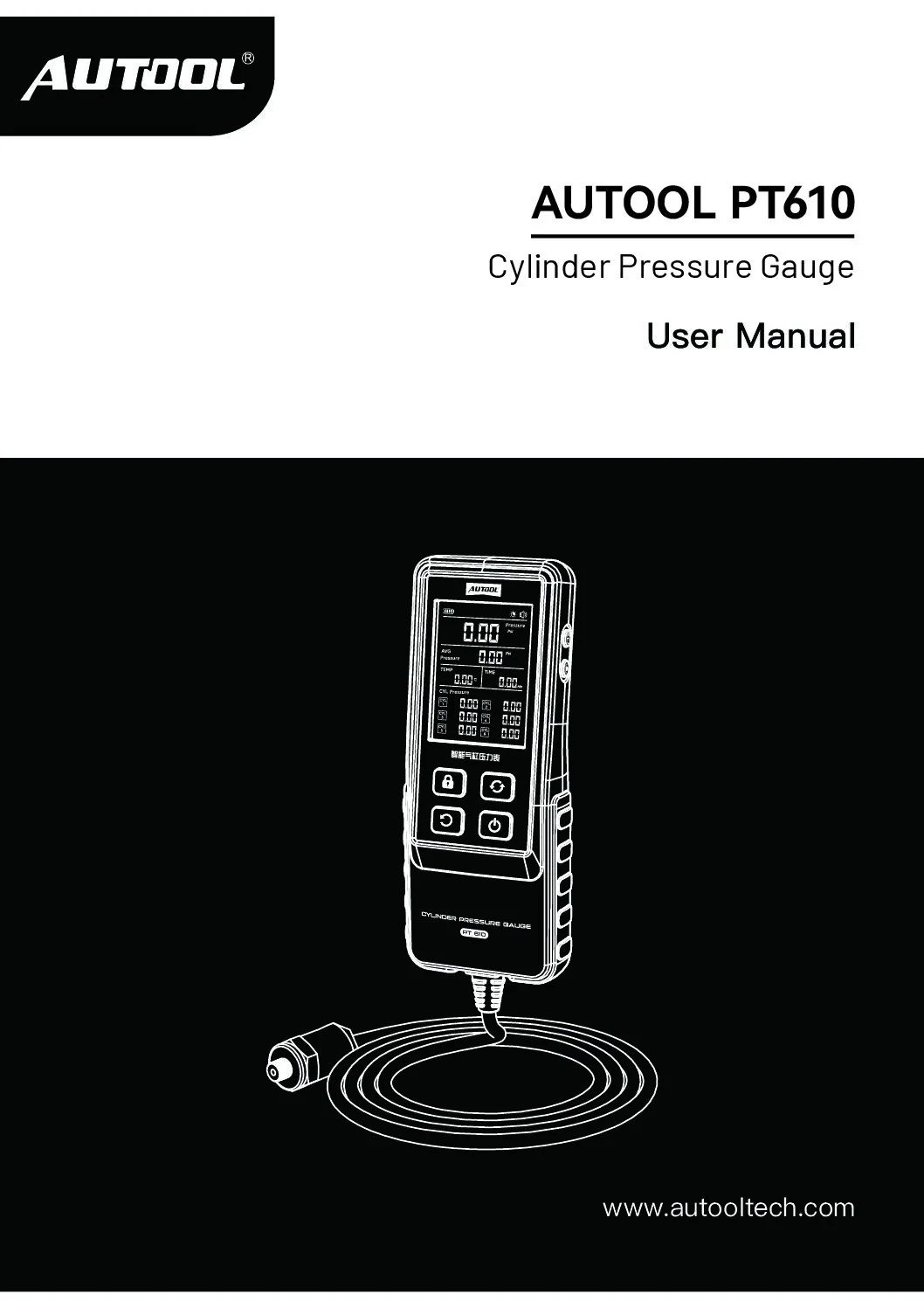

AUTOOL PT610 사용 설명서
PDF 설명서를 열어보세요 AUTOOL PT610 digital pressure measurement, unit selection, adapter and hose connections, saved readings, safe setup and troubleshooting support.
패키지 내용물
상자 안에 무엇이 들어 있는지 확인해 보세요
- 본체AUTOOL PT610 digital cylinder pressure gauge
- 스토리지Carrying case and retail box
- 문서사용자 설명서
- 연결선HP connecting line with safety lock, rubber connecting line with safety lock, and related hose accessories
- 어댑터M18×1.5, M16×1.5, M14×1.25, M12×1.25, and M10×1.0 adapters
- 항목Test Lines Bent test line with rubber stopper and straight test line with rubber stopper
구매자 질문
Pressure Connection and Reading Questions
무엇을합니까 AUTOOL PT610 Measure?
PT610 is designed for engine cylinder compression pressure testing. It helps display real-time pressure value, average pressure value, cylinder current temperature, measuring time, and cylinder pressure values for comparison.
What Vehicles Is PT610 Suitable For?
PT610 can be used for motorcycle, car, and truck cylinder pressure testing when the correct adapter is selected for the vehicle model and test port.
What Pressure Range And Units Does PT610 Support?
The pressure range is 0-426.6 PSI, 0-29.4 Bar, and 0-30 kg/cm². Pressure units can be switched among PSI, Bar, and kg/cm². Temperature units can be switched between °C and °F.
How Many Cylinder Pressure Records Can PT610 Save?
PT610 can save up to 6 sets of cylinder pressure data. This helps users record, query, and compare pressure values cylinder by cylinder during diagnosis.
What Accessories Are Included With PT610?
Package contents: PT610 main unit, retail box, carrying case, user manual, HP connecting line, rubber connecting line, M18×1.5, M16×1.5, M14×1.25, M12×1.25, and M10×1.0 adapters, plus bent and straight test lines with rubber stoppers.
How Do I Use The PT610 Cylinder Pressure Gauge?
Remove the spark plug, connect the correct adapter to the measuring probe, reset the pressure value to zero, connect the measuring probe to the engine, crank the engine, and read the measured pressure on the display. Save cylinder data when comparison is needed.
What Is The Difference Between PT610 And Other AUTOOL Pressure Testers?
- PT610 is for engine cylinder compression testing.
- PT620 is for engine oil circulation system pressure testing.
- PT630 and PT635 are for automotive fuel system pressure testing.
- PT640 is for GDI direct injection fuel pressure testing.
- PT650 is for automotive transmission pressure testing.
- PT660 is for internal fluid pressure testing of the brake system.
What Warranty Support Does PT610 Include?
본체: 3년 보증. 표준 부속품: 1년 보증. 보증 정책.
고객 리뷰
리뷰 남기기
Ted Valentine ✓ 구매 확인 완료 -
This kit contains several accessories and adapters for a wide range of…
This kit contains several accessories and adapters for a wide range of applications.
Henning Schwiese ✓ 구매 확인 완료 -
Very fast and very good .
Very fast and very good .
Nelly Raleign ✓ 구매 확인 완료 -
꽤 잘 작동합니다.
So far this works pretty well. Very easy to read and after spending a lot of time figured everything out and reading the manual a few times, I was able to get it to do everything I needed from it.
Compared to a very expensive name brand set that I have, it’s pretty close to accurate.
