AUTOOL OD710 Pneumatic Waste Oil Drainer
US$499.00
주요 특징
- 20 L Wide Catch Pan
- 30 L Storage Tank
- 1.5 m Adjustable Height
- Pneumatic Tank Discharge
- 20 L Wide Catch Pan: Collect waste engine oil beneath a raised vehicle with a 41 cm, 20 L catch pan.
- 30 L Storage Tank: Collect drained engine oil in the 30 L tank with 1.5 mm-thick construction before controlled discharge.
- 1.5 m Adjustable Height: Raise the collection pan up to 1.5 m to reach service points on lifted vehicles.
- Pneumatic Tank Discharge: Use pneumatic tank discharge to transfer collected waste oil after recovery.
- Visible Oil Level: Check the collected-oil level through the integrated sight window.
- 3 - 년 보증 본체 3년, 부속품 1년
- 90- 일 반품 90일 이내 반품 가능
- 공식 스토어 정품 · 직접 지원
AUTOOL OD710 · Pneumatic Waste-Oil Drainer
Collect Waste Oil Beneath the Lift
Collect used engine oil beneath a raised vehicle, monitor the recovered level, and transfer it from the tank after service. OD710 combines a wide 20 L catch pan with height adjustment up to 1.5 m, a sight window, and a mobile caster base. Pneumatic discharge reduces manual handling of collected oil.
- 30 L Waste-Oil Tank
- 20 L / 41 cm Catch Pan
- Up to 1.5 m Collection Height
- Oil-Level Sight Window
- Pneumatic Tank Discharge
주요 특징
Position the 20 L Pan Where Oil Drains
20 L / 41 cm Gravity Catch Pan
The 41cm oil catch pan provides a wide oil receiving area and 20L capacity for collecting waste engine oil during vehicle service.
Height-Adjustable Lifting Rod
The lifting rod mechanism adjusts up to 1.5m. Rotate counterclockwise to release and adjust, then rotate clockwise to lock the height.
30L Thickened Tank
The 30L oil storage tank uses 1.5mm thickened material to help reduce oil leakage and air leakage during use.
360° 회전 캐스터
Swivel casters help move the unit around the workshop, while locking devices improve stability during operation.
Oil Level Sight Window
The oil level sight window helps monitor waste oil recovery and decide when to discharge waste oil from the tank.
Tool Tray And Handle
The built-in tool tray supports small tool placement, and the handle helps move the machine more comfortably.
Adjustable Collection Height
The lifting rod adjusts the catch pan up to 1.5m. Release the height lock to position the pan, then tighten it before collecting oil.
30L Waste-Oil Storage
OD710 collects drained engine oil in a 30L oil drain tank with 1.5mm thickened construction. It is designed for oil draining and tank discharge.
Mobile Service-Bay Design
Swivel casters and a handle help move the unit, while wheel locks hold it in position. A built-in tray keeps small tools close by.
3년 보증 지원
본체: 3년 보증. 표준 부속품: 1년 보증. 보증 정책.
이용 방법
Collect by Gravity and Discharge the Tank
단계별 진행 상황1 / 4
Position the Catch Pan
Fix the lifting rod and oil pan funnel in place by rotating in the clockwise direction.
After installation, make sure the lifting pole is vertical relative to the equipment.
Turn the lifting rod device counterclockwise to adjust the oil pan funnel height.
Turn the lifting rod device clockwise to tighten and lock the selected height.
Roll the unit beneath the lifted vehicle on a clear, level route, lock the casters, and adjust the 20 L pan beneath the drain point without using the lift rod as a handle.
02
Collect by Gravity
With the engine off and waste oil within the stated 40–60°C range, drain into the pan and monitor the tank level without exceeding the rated configuration.
03
Prepare the Discharge Path
Direct the discharge hose to the approved waste-oil container, inspect the hose and fittings for leaks, and connect only the specified air pressure for tank discharge.
Discharge and Depressurize
Close the oil discharge pipe valve and close the oil tank inlet valve.
Connect the air supply to the oil tank inlet valve.
Open the oil tank inlet valve and pressurize it; the check valve will automatically close after reaching pressure.
When tank pressure exceeds 1.0bar, the safety valve will automatically release pressure.
After 5 seconds, slowly open the oil drain valve.
After discharging the oil, cut off the air supply.
Transfer the collected oil under controlled air pressure, shut off the air if any leak appears, then release internal pressure and clean the equipment before storage.
안전성 및 호환성
Match the Oil Path, Probe and Air Supply
화염 없음
Do not smoke or use open flames during operation. Keep the equipment away from high-temperature, high-pressure, flammable, and explosive areas.
Engine Off During Operation
The vehicle engine must remain turned off throughout the oil recovery operation.
40-60°C Waste Oil
The working waste oil temperature is 40-60°C. Be cautious of burns when draining or discharging oil.
Protect Eyes And Hands
Wear gloves and safety goggles during operation to reduce the risk of burns, splashing oil, or accidental contact.
Forbidden Liquids
Do not use the OD710 with brake oil, gasoline, diesel, liquids containing methanol or ketones, or any flammable liquids.
Check Hose Leaks Immediately
If any hose or component leaks during operation, immediately shut off the air supply and inspect the equipment before continuing.
Use Correct Pressure
The air source pressure for oil tank discharge must not be lower or higher than the specified pressure required for normal equipment operation.
Do Not Use Rod As Handle
Do not use the height-adjustable lifting rod as a handle for moving the machine. Tighten adjustment screws if they become loose.
Release Internal Pressure
After completing operation, release internal pressure, clean the equipment, and avoid damage or personal injury caused by improper pressure handling.
과부하하지 마십시오
Follow safe operating procedures, do not overload the equipment, and keep safety guards complete and reliable.
Protect the Housing
Avoid rubbing the product against rough surfaces or wearing the sheet metal housing during use and movement.
느슨한 연결 조이기
Regularly inspect parts that need tightening or connection. If loose parts are found, tighten them in time for safe operation.
Treat Corrosion
External and internal parts that contact chemical media should be treated with rust removal and painting when needed.
마모된 부품 교체
Adjust clearance as needed, replace worn or damaged parts in time, and avoid contact with corrosive liquids.
Clean and Dry Storage
When not in use, store the OD710 in a dry place. Do not store it in hot, humid, or non-ventilated areas.
Keep the OD710 clean, dry, properly tightened, and protected from corrosion to maintain performance and service life.
Permitted Waste-Oil Tasks
Read these safety rules before using the OD710. The machine is for waste engine oil draining and tank discharge only; do not use it for unlisted liquids or functions.
No Unauthorized Modifications
Do not make unauthorized changes or disassemble the equipment.
Follow Listed Functions
Do not use the equipment for functions not listed in the manual.
폐유 처리
Dispose of or recycle waste oil according to applicable local regulations.
Instruction Compliance
If damage or personnel accidents occur due to non-compliance with the instructions, warranty support may not apply.
모델 비교
Choose the Right Oil-Recovery Workflow
모델 가이드
Choose one or more models. OD710 is selected by default.
1개 모델이 선택되었습니다.
선택된 모델이 없습니다. 비교할 모델을 선택하세요.
| 제품명 | OD710 | OD720 | OD760 |
|---|---|---|---|
| Collection & Workshop Features | |||
| Large-size Oil Pan | ✓ | ✓ | ✓ |
| 높이 조절 가능 | ✓ | ✓ | ✓ |
| Thickened Tank Construction | ✓ | ✓ | ✓ |
| Oil Level Sight Window | ✓ | ✓ | ✓ |
| 360° 회전 캐스터 | ✓ | ✓ | ✓ |
| Rapid Vacuum Extraction Technology | ✓ | ✓ | ✓ |
| Tempered Glass Measuring Cup | ✓ | ✓ | ✓ |
| With Or Without Toolbox | × | × | ✓ |
| Air & Vacuum Requirements | |||
| 공기 공급 압력 | 6-8bar | 6-8bar | 6-8bar |
| Oil Discharge Pressure | 0.6-0.8bar | 0.6-0.8bar | 0.6-0.8bar |
| 공기 소비 | 150L / 분 | 150L / 분 | 150L / 분 |
| 진공 레벨 | 0-65cmHg | 0-65cmHg | 0-65cmHg |
| Capacity, Temperature & Setup | |||
| 탱크 용량 | 30L (7.93gal) | 70L (18.5gal) | 80L (21.1gal) |
| 계량컵 용량 | 10L (2.6gal) | 10L (2.6gal) | 10L (2.6gal) |
| Oil Catch Pan Size / Capacity | 45 * 35 * 19cm | 45 * 35 * 19cm | 20L (5.3gal) |
| Working Oil Temperature | 40-60 ℃ | 40-60 ℃ | 40-60 ℃ |
| Evacuation Wands Qty | 5 PCS | 5 PCS | 5PCS |
| Is Lifting Equipment Required? | × | × | × |
사용 설명서 및 지원
Find Operating and Air-Supply Guidance

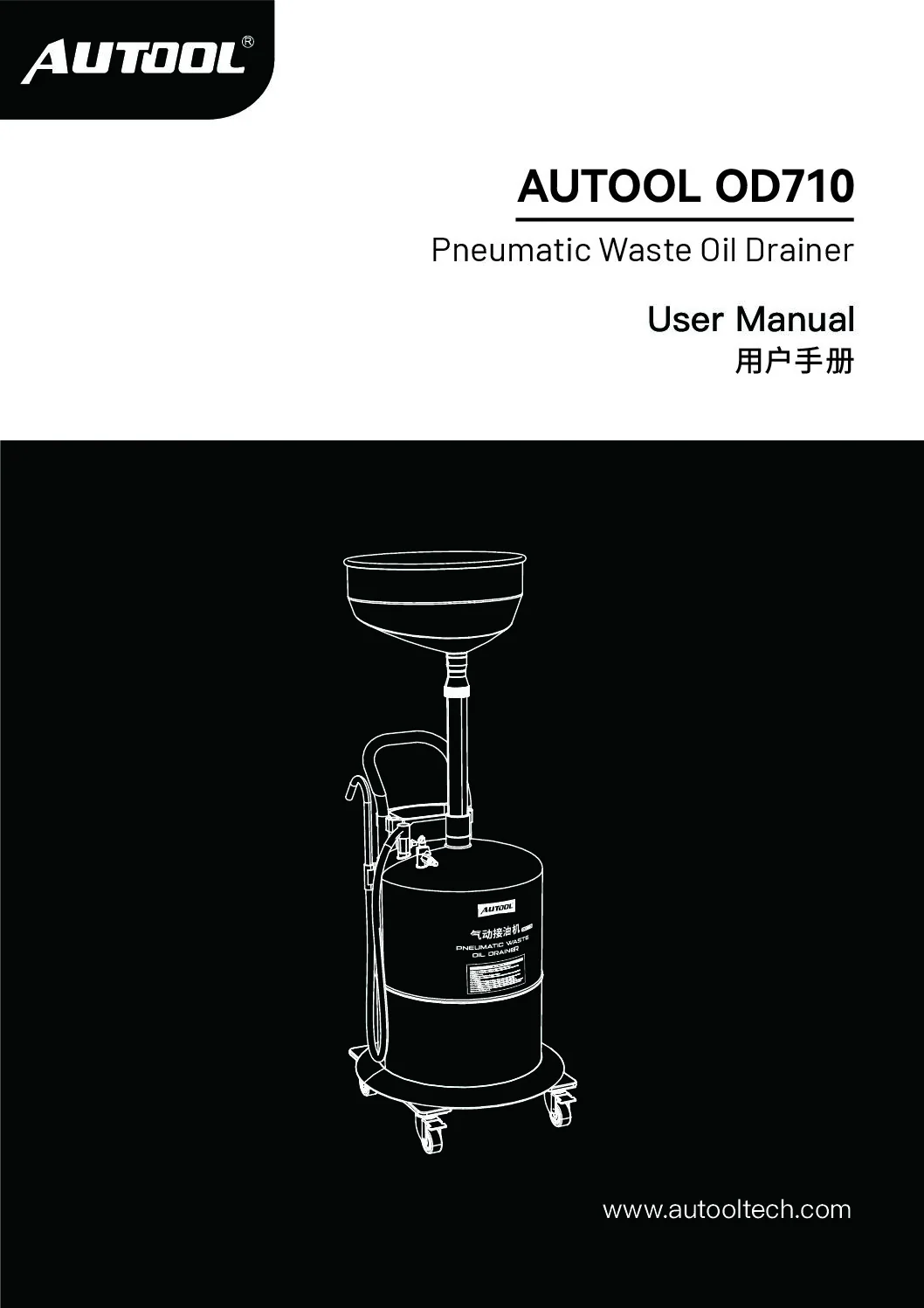

AUTOOL OD710 User Manual
PDF 설명서를 열어보세요 AUTOOL OD710 waste-oil collection, catch-pan height adjustment, tank-level monitoring, pneumatic discharge, mobile positioning, service safety and troubleshooting support.
패키지 내용물
Check Tanks, Probes and Included Parts
- 본체OD710 oil storage tank assembly with drain hose and valve components
- 오일 컬렉션Oil catch pan and height-adjustable lifting rod
- Mobility PartsHandle, tool tray, and swivel casters
- 도구도구
- 문서AUTOOL OD710 user manual
- 포함 된 구성품OD710 main unit and the accessories listed in this package section.
자주 묻는 질문
Oil Recovery and Air-Supply Questions
무엇인가 AUTOOL OD710 Used For?
AUTOOL OD710 is used to discharge waste engine oil from vehicles into the oil storage tank through the oil catch pan. It is designed for waste engine oil recovery and tank discharge, not for functions outside the manual.
Can OD710 Be Used With Brake Oil, Gasoline, Or Diesel?
No. OD710 is strictly prohibited for use with brake oil, gasoline, diesel, liquids containing methanol or ketones, and flammable liquids.
Does The Engine Need To Stay Off During Operation?
Yes. The engine must remain turned off throughout the OD710 waste oil recovery operation.
What Waste Oil Temperature Is Recommended?
The working waste oil temperature is 40-60°C. Be cautious of burns and wear gloves and safety goggles during operation.
Does OD710 Require Vehicle Lifting Equipment?
Yes. During waste oil recovery, use a lifting device to raise the vehicle to a suitable height and align the oil pan funnel with the engine oil drain hole. In the OD series comparison, OD710 is marked as requiring lifting equipment.
What Is The Difference Between OD710, OD720, And OD760?
OD710 is a 70L waste oil drainer with a 20L oil catch pan and requires lifting equipment. OD720 adds rapid vacuum extraction, a 10L tempered glass measuring cup, 5 evacuation wands, 6-8bar air supply pressure, and 0-65cmHg vacuum level. OD760 adds similar vacuum extraction functions plus an 80L tank and toolbox structure for larger workshop needs.
What Should I Do If A Hose Or Component Leaks During Operation?
Immediately shut off the air supply and conduct a detailed inspection to eliminate the problem before continuing operation.
How Long Is The OD710 Warranty?
본체: 3년 보증. 표준 부속품: 1년 보증. 보증 정책.
고객 리뷰
리뷰 남기기
T. Schultz ✓ 구매 확인 완료 -
아주 사용하기 쉬운
Pneumatic Oil Picker Machine has a large oil receiving pan with a diameter of 41cm, which has a large oil receiving area when discharging waste oil. At the same time, the oil receiving pan has a large capacity of 20L, which can hold more waste oil.
