AUTOOL LM707 R134a Refrigerant Recovery Machine
US$4,999.00
주요 특징
- Automatic R134a Service
- Recovered R134a Cleaning
- Separate Oil Handling
- Automatic R134a Service: Preset job parameters for automatic R134a recovery, evacuation and measured recharge, with prompts and final results.
- ±10 g Refrigerant Scale: A built-in electronic scale with ±10 g accuracy tracks refrigerant recovery and charge quantities.
- Recovered R134a Cleaning: A built-in filter and separator clean recovered R134a for permitted reuse.
- Separate Oil Handling: Use dedicated 350 ml bottles to keep new and used oil separate.
- 3 - 년 보증 본체 3년, 부속품 1년
- 90- 일 반품 90일 이내 반품 가능
- 공식 스토어 정품 · 직접 지원
AUTOOL LM707 · R134a Recovery, Evacuation, and Recharge Station
Automate Core R134a Service on One Station
Recover, evacuate and recharge confirmed R134a vehicle A/C systems with one service station. Preset job parameters on the 5-inch display and run the configured automatic sequence while monitoring progress. A refrigerant scale with ±10 g stated accuracy supports weight measurement, the filter/separator prepares recovered refrigerant for permitted reuse, and two 350 mL bottles separate new and used compressor oil.
- R134a Recovery to Recharge
- Automatic Service Sequence
- ±10 g Refrigerant Scale
- 2 × 350 mL Oil Bottles
- 5-Inch Service Display
주요 특징
Integrated R134a Recovery, Evacuation, and Recharge
R134a-Only Service
LM707 is an R134a refrigerant recovery machine that combines recovery, evacuation, and refilling for vehicles that use confirmed R134a.
Automatic Recovery, Vacuum And Recharge
Preset the job parameters, then run recovery, evacuation and refilling in sequence. Monitor the prompts and check final results through the service process.
Refrigerant Recovery and Charging Scale
Measure refrigerant weight during recovery and refilling with the built-in electronic scale, which has a stated accuracy of ±10 g.
Recovered-Refrigerant Cleaning
A built-in filter and separator clean recovered R134a for permitted reuse; contamination and local-rule checks remain external.
Separate Oil Handling
Two 350 mL bottles separate new oil from used oil for compressor-oil draining and refilling according to the service procedure.
Onboard Working Tank
Keeps R134a available for repeat compatible service; confirm the exact tank rating for the selected machine.
Six-Language Interface
The interface supports English, German, Spanish, Portuguese, Arabic, and Chinese for easier operation in different workshops.
중앙 제어
5-inch display, keypad and dedicated pressure gauges keep setup and system readings together.
Scheduled Ownership Tasks
Plan filter replacement after 100 kg of recovered refrigerant, vacuum-pump oil service at 600 minutes or earlier if contaminated, and circulation purification about monthly.
Filter Reset Support
After filter replacement, use reset password 8609 only when the prescribed prompt is absent and the current manual directs that step.
12kg Internal Tank
The refrigerant tank can store up to 12kg of R134a and can continuously replace refrigerant for multiple vehicles.
정격 전력
The LM707 is rated at 800 W.
3년 보증 지원
본체: 3년 보증. 표준 부속품: 1년 보증. 보증 정책.
이용 방법
Identify, Recover, Evacuate, Recharge, and Verify
단계별 진행 상황1 / 5
01
Verify R134a And Vehicle Data
Confirm the vehicle uses R134a and obtain the correct refrigerant charge and oil information.
02
Inspect Machine And Tank
Check hoses/couplers, oil and pump-oil levels, filter status, tank safety and adequate working refrigerant.
03
Connect With Engine Off
Attach the high/low service couplers securely and keep hoses clear of heat and moving parts.
04
Preset And Run
Enter the required recovery, evacuation and recharge values, then monitor the automatic sequence.
05
Verify And Disconnect
Review recovered/charged amounts, pressures and A/C operation, then close and disconnect safely.
안전성 및 호환성
Confirm R134a, Vehicle Procedure, Oil, and Service Ports
R134a Only
Never connect LM707 to HFO-1234yf, mixed, unidentified or another refrigerant.
Keep Tank Protection Active
Never fill the working tank above 80% of its effective capacity. Confirm the installed tank rating before calculating the limit.
Maintain At Least 3 kg For Recharge
Recharge may not operate when onboard refrigerant falls below 3 kg.
Limit Recovery Starts
Do not start refrigerant recovery more than 10 times per hour.
Never Use Compressed Air
Do not use compressed air to pressure/leak-test the station or vehicle A/C circuit.
지역 권력 확인
Use grounded power matching the exact unit nameplate; do not rely on blanket 110/220 V comparison text.
Read Instructions First
Read the instruction manual carefully before using the equipment.
Avoid Flames and Heat
Do not use the equipment near open flames or hot objects.
Keep Refrigerants Separate
Do not mix R134a with other refrigerants.
Verify Refrigerant and Stop Engine
Before operation, check the refrigerant type used in the vehicle A/C system and turn off the car engine.
Internal Tank Fill Limit
The internal tank’s actual usage capacity should be 80% of its maximum capacity, which is 12kg.
80% Tank Limit Rationale
This limit helps avoid severe accidents caused by additional pressure from external factors.
Maintain 3kg Minimum
To ensure optimal recharging, the internal tank should not contain less than 3kg refrigerant.
Below 3kg May Block Charging
If refrigerant is below 3kg, recharging may not be possible.
Keep Valve Settings Unchanged
Do not modify the pressure-reducing valve or system settings.
Limit Compressor Starts
Excessive start frequency may damage the compressor.
Normal Oil Discharge Bubbles
Refrigerant oil generally bubbles when the car compressor discharges it.
Match Oil Refill Amount
The amount of oil to add depends on the discharged amount; avoid overfilling.
Maintain Vacuum Pump Oil
During daily maintenance, add vacuum pump oil to the normal level inside the equipment.
Replace Filter After 100kg
Replace the filter after 100kg use.
Run Monthly Cycle Purification
Run cycle purification about once a month.
시험 결과
Verify Each R134a Recovery, Evacuation, and Recharge Stage
Read the Scale Specification
The ±10 g value is the scale specification. Follow the complete service procedure when verifying recovered and charged amounts.
Vacuum Result
Compare the achieved/held vacuum with the vehicle procedure; the station does not locate leaks.
오일 교체
Base new-oil quantity and chemistry on removed oil and vehicle/OEM requirements, not a generic vehicle type.
Post-Service Performance
Check pressures and cooling operation; abnormal results require separate electrical, airflow, mechanical or leak diagnosis.
모델 비교
Compare Refrigerant Service Stations
모델 가이드
하나 이상의 모델을 선택하세요. LM707이 기본값으로 선택되어 있습니다.
1개 모델이 선택되었습니다.
선택된 모델이 없습니다. 비교할 모델을 선택하세요.
| 제품명 | LM707 | LM708 | LM806 |
|---|---|---|---|
| Service Scope & Compatibility | |||
| Supported Refrigerant Types | R-134a | HFO-1234yf / R-134a | R-134a |
| 기본 기능 | Refrigerant Recharge, Refrigerant Recovery, Vacuum Pumping, Filling | Refrigerant Recharge, Refrigerant Recovery, Vacuum Pumping, Filling | Refrigerant Recharge, Refrigerant Recovery, Vacuum, Pipeline Flushing |
| 자동 모드 | ✓ | ✓ | ✓ |
| 적용 차량 모델 | Fuel Vehicles, Hybrid Vehicles, New Energy Vehicles | Fuel Vehicles, Hybrid Vehicles, New Energy Vehicles | Fuel Vehicles, Hybrid Vehicles, New Energy Vehicles |
| Interface & Equipment | |||
| 입력 전압 | Regional version; confirm the exact nameplate. | Regional version; confirm the exact nameplate. | Regional version; confirm the exact nameplate. |
| 디스플레이 | 5 인치 디스플레이 | 7 인치 터치 스크린 | 10.1 인치 터치 스크린 |
| 언어 | 6 | 4 | 5 |
| 기기 외관 | Built-in Refrigerant Tank, More Compact and Aesthetic Design Added Back Panel for Direct Access to Maintenance | Built-in Refrigerant Tank, More Compact and Aesthetic Design Added Back Panel for Direct Access to Maintenance | Built-in Refrigerant Tank, More Compact and Aesthetic Design Added Back Panel for Direct Access to Maintenance |
| Fluid Handling & Capacity | |||
| Add Refrigerant Oil | Manual | Automatic | Automatic |
| Refrigerant Recovery Rate | Confirm the recovery rate and measurement conditions for your version. | 0.95 | >350 g/min |
| 냉매탱크 용량 | Confirm the selected-version tank rating and follow the manual fill limit. | 15kg (Maximum Fill 10kg) | 18kg (Maximum Fill 12kg) |
| Number of Oil Bottles | 2 (1 New oil bottle, 1 used-oil bottle) | 3 (2 New oil bottle, 1 used-oil bottle) | 3 (2 New oil bottle, 1 used-oil bottle) |
| 오일병 용량 | 350ml | 350ml | 500ml |
| Number of Electronic Scales | 1 | 5 | 4 |
| Filling Method Selection | × | HP/LP/HP+LP | HP/LP/HP+LP |
| Internal Refrigerant Circulation Purification | ✓ | ✓ | ✓ |
| Records & Diagnostics | |||
| 데이터 인쇄 | × | ✓ | ✓ |
| 내장 데이터베이스 | × | ✓ | ✓ |
| Operation Record Inquiry | × | ✓ | ✓ |
| System Automatic Leak Detection | Vacuum/pressure-hold check only; does not locate a leak. | ✓ | ✓ |
사용 설명서 및 다운로드
설치 및 서비스는 설명서를 참조하십시오.

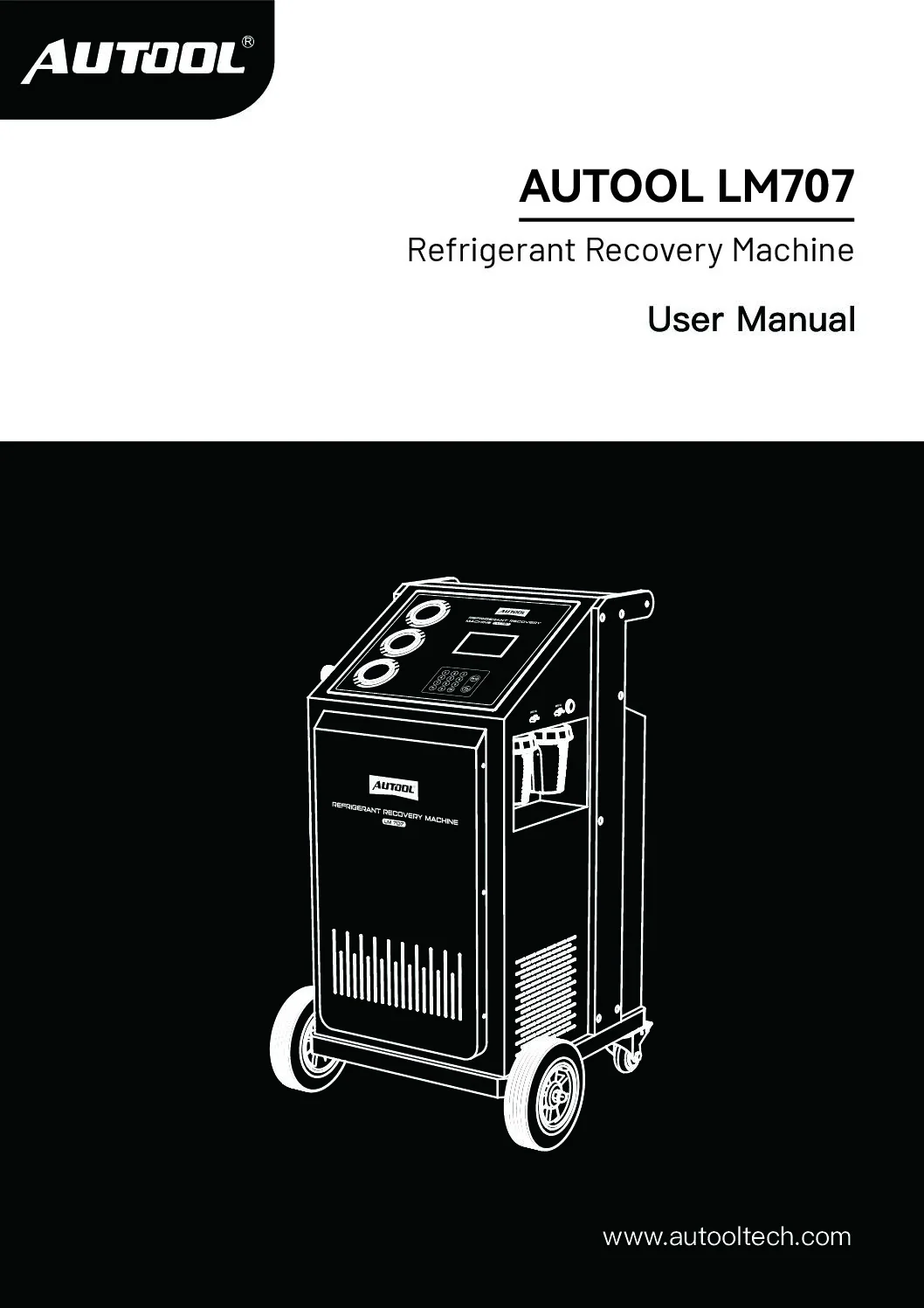

AUTOOL LM707 사용자 설명서
Open the PDF manual for LM707 R134a recovery, evacuation, recharge, oil handling, filter service, station setup, operating safety, maintenance, and troubleshooting.
묶음
포함 된 것
- LM707 본체R134a recovery machine with onboard oil bottles/tank.
- Red And Blue Service HosesService hoses.
- High/Low Connectors And AdaptersConnection hardware; exact version fit requires confirmation.
- Regional Power CableIncluded cable; confirm plug and unit nameplate.
- 사용 설명서LM707 documentation.
자주 묻는 질문
R134a Station Setup and Service Questions
What Refrigerant Does LM707 Support?
R134a only. Do not mix it with other refrigerants, and verify the vehicle A/C refrigerant before operation.
냉매를 식별할 수 있나요?
No. Identify and isolate unknown or contaminated refrigerant before connection.
What does the automatic mode do?
After setup, it runs configured recovery, evacuation and recharge steps; the technician still verifies inputs, connections and results.
What tank capacity applies?
Confirm the installed tank rating for the selected version and never exceed 80% of its effective capacity.
Why Should The Tank Keep At Least 3kg Refrigerant?
Keep at least 3 kg of refrigerant in the internal tank because recharging may not be possible below that level.
When is the filter replaced?
The service reminder is based on 100 kg of recovered refrigerant. Follow the current manual for replacement and reset.
What Is The Filter Reset Password?
After replacing the filter on the new LM707, reset it on the device page. If no prompt appears, enter the universal password “8609” to complete the operation.
- Use it after filter replacement only if the new LM707 does not display the prescribed reset prompt, following the current manual.
When should pump oil be serviced?
The reminder is set at 600 minutes; replace the oil sooner if it becomes turbid or contaminated.
Can I Use Compressed Air For Pressure Or Leak Testing?
No. Do not use compressed air for pressure or leak testing on either the LM707 machine or the vehicle A/C circuit.
How is LM707 different from LM708?
LM707 is the core R134a station. LM708 adds independent R134a/HFO-1234yf systems, touchscreen, five scales, database and printing.
Can LM707 Work With HFO-1234yf?
No. LM707 charges and recovers only R134a refrigerant. If HFO-1234yf support is required, choose LM708.
How Much Refrigerant Can The Internal Tank Use Safely?
The internal tank’s actual usage capacity should be 80% of its maximum capacity, which is 12kg. This helps avoid severe accidents caused by additional pressure from external factors.
How Often Should I Replace The Filter?
Replace the filter after 100kg of use, following the device prompt. Contact AUTOOL Store support if you need the filter replacement code or replacement-filter support.
How Often Should Vacuum Pump Oil Be Maintained?
After the vacuum pump has been used for a total of 600 minutes, the equipment prompts you to reset the vacuum pump oil data. If the vacuum pump oil contains impurities or becomes turbid, replace it promptly.
How Many Times Can I Start Recovery Per Hour?
Start the automotive refrigerant recovery procedure no more than 10 times per hour. Starting recovery too frequently may damage the compressor.
LM707과 LM708의 차이점은 무엇인가요?
LM707 supports R134a only and uses a 5-inch display. LM708 supports R134a and HFO-1234yf, has a 7-inch touch screen, 5 electronic scales, data printing, a built-in database, operation record inquiry, system automatic leak detection, and HP / LP / HP+LP filling method selection.
