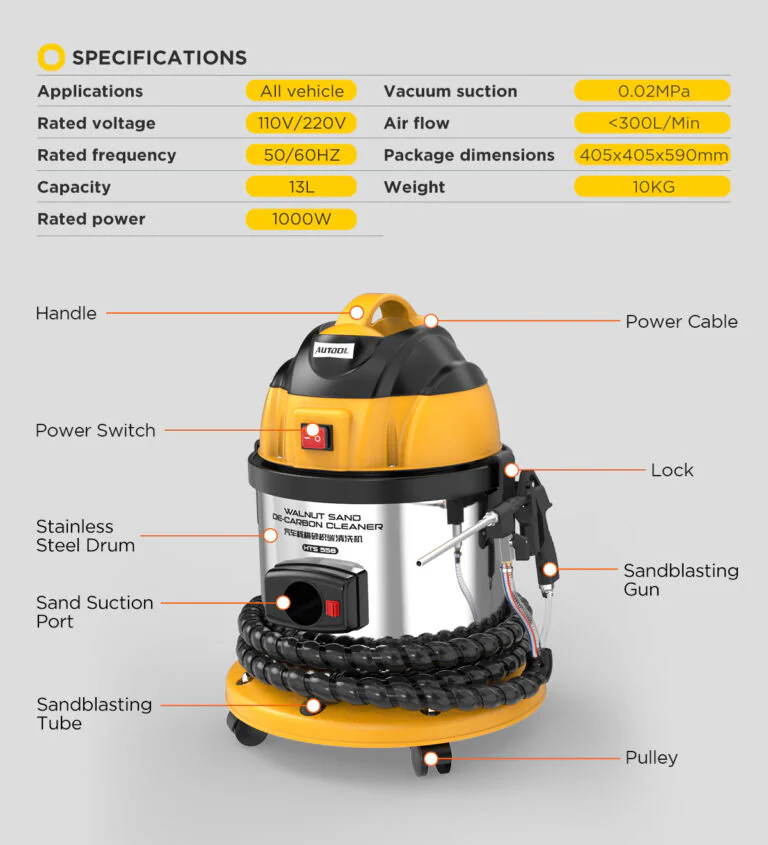

AUTOOL HTS558 Walnut Blasting Machine
원래 가격은 US$479.00입니다.US$359.00현재 가격: US$359.00.
주요 특징
- Walnut Blast + 1200 W Recovery
- Five Intake Adapters
- Built-In Dust Filtration
- Compact Mobile Body
- Walnut Blast + 1200 W Recovery: Remove accessible deposits from supported intake-manifold areas and valve backs while the 1200 W vacuum system collects loosened media and residue; an external compressor supplies blast air.
- Five Intake Adapters: Five adapter types accommodate varied intake-port shapes, with the selected profile matched to the specific engine and port.
- Built-In Dust Filtration: The built-in filter separates collected walnut abrasive from carbon residue during recovery.
- Compact Mobile Body: A 13 L body and 360° swivel casters simplify movement around the service bay.
- 3 - 년 보증 본체 3년, 부속품 1년
- 90- 일 반품 90일 이내 반품 가능
- 공식 스토어 정품 · 직접 지원
AUTOOL HTS558 · Compact Walnut Blaster with Recovery
Remove Intake Deposits with Compact Blast Recovery
Remove accessible carbon from supported intake ports and valve backs with walnut blasting and simultaneous vacuum recovery. Five intake-adapter types and a compact 13 L body suit varied port shapes and service-bay movement, while the 1200 W system recovers and filters media and residue. Blasting uses dry 0.6–1.2 mm walnut abrasive and a suitable external compressor, both supplied separately.
- 5 Intake-Adapter Types
- Compact 13 L Body
- 1200 W Vacuum Recovery
- Simultaneous Blast & Recovery
- 360° Workshop Casters
주요 특징
Five Adapters with Powered Recovery
Intake-Valve Carbon Cleaning
Use the walnut-blasting and vacuum-recovery system to remove accessible deposits from supported intake-manifold areas and valve backs, matching the adapters and cleaning process to the vehicle condition.
Integrated Vacuum Recovery
Collect walnut media and carbon residue while blasting, with integrated vacuum recovery and filtration. Suitable media may be reused 5–10 times under normal conditions only when the vehicle procedure permits; keep it dry and replace contaminated, clumped or poorly performing media.
Five Intake Adapters
Different profiles support varied port shapes, with engine-specific fit and seal checks required.
먼지 여과
The built-in dust filter manages collected walnut abrasive and carbon residue during recovery; reuse depends on media condition, moisture, and the service procedure for the vehicle.
Compact Mobile Layout
A 13 L body and swivel casters support movement around the service bay.
External-Air Blasting
An external air compressor supplies the blasting force while the 1200 W unit handles vacuum recovery and filtration during carbon removal.
5 Intake Adapters For Different Port Shapes
The machine includes 5 types of adapters to support different intake port shapes and cleaning setups. Match the adapter to the specific engine and intake-port shape before cleaning.
360° 회전 캐스터
The 360° caster design makes the walnut blasting machine easier to move around a garage or workshop.
3년 보증 지원
본체: 3년 보증. 표준 부속품: 1년 보증. 보증 정책.
이용 방법
Seal, Blast, Recover, and Inspect One Port at a Time
단계별 진행 상황1 / 7
01
Load Dry Walnut Media
Use compatible 0.6–1.2 mm abrasive and follow the HTS558 manual for the fill amount, generally about 2–4 kg.
02
Connect Spray and Recovery
Secure the gun/nozzle and recovery hose with the nozzle inside the suction path.
03
엔진 준비
Access the target port, close its intake valve and isolate other openings under the vehicle procedure.
04
Connect Air and Power
Use a suitable dry, filtered external compressor and the correct grounded power version.
05
Blast and Recover
Clean one supported port at a time and inspect progress before continuing.
The walnut blasting step takes approximately 1–3 minutes per intake port, depending on the amount of carbon buildup.
06
Final Recovery and Inspection
Use the integrated vacuum to recover remaining walnut media, then inspect with lighting or a borescope until no visible abrasive remains.
07
재조립 및 점검
Restore intake components and complete leak, diagnostic and functional checks required for the vehicle.
안전성 및 호환성
Close the Target Valve and Isolate Other Openings
청소 범위
Use for supported intake pipes, intake manifolds and intake-valve backs, not injectors, throttle valves, cylinders or combustion chambers.
External Air
Confirm dynamic pressure/flow, dry air, hose and fittings; the compressor is not included.
Valve and Adapter
Close the target valve and confirm the chosen adapter seals the exact engine port.
Dust and Allergen PPE
Use eye/respiratory protection, ventilation and the walnut-media SDS.
Remove Residual Media
Never use engine startup as the residue-removal step; vacuum and inspect first.
External Compressor Required
HTS558 requires an external high-pressure air compressor. The compressor is not included.
Dry Filtered Air And Airflow
Use an external compressor; 6 bar or more is generally recommended. Use dry, filtered air with sufficient continuous airflow, and make sure the air tank, hose, quick-connect fittings, and compressor duty cycle are suitable for continuous blasting.
Walnut Abrasive
Use about 2–4 kg of compatible 0.6–1.2 mm walnut-shell abrasive. Walnut abrasive is not included.
Adapter Fit And Sealing
The five supplied adapter types cover multiple intake-port shapes, but the adapter still needs to match the specific engine and port geometry. Before cleaning, confirm that the selected adapter fits the engine intake port and forms a secure seal.
Valve Closure And Port Isolation
Start blasting only after confirming that the target intake valve is fully closed. Clean one intake port at a time and isolate other intake openings as required by the service procedure for the specific vehicle.
Walnut Abrasive Reuse
Reuse walnut abrasive only when the service procedure for the specific vehicle permits it and the recovered media condition remains suitable for reuse.
Mechanical Cleaning and Chemical Cleaner Guidance
HTS558 is designed for mechanical removal of intake carbon deposits. Chemical cleaners vary by product and application, and no cleaning method guarantees a specific performance improvement.
모델 비교
Choose a Walnut Blasting System
모델 가이드
Choose one or more models. HTS558 is selected by default.
1개 모델이 선택되었습니다.
선택된 모델이 없습니다. 비교할 모델을 선택하세요.
| 제품명 | HTS558 | HTS559 | HTS518 | HTS678 | HTS728 |
|---|---|---|---|---|---|
| Cleaning Method & Fit | |||||
| 작동 원리 | 호두 껍질 폭파 | 호두 껍질 폭파 | 호두 껍질 폭파 | 호두 껍질 폭파 | 호두 껍질 폭파 |
| Walnut Shell Abrasive Size | 0.6 ~ 1.2mm | 0.6 ~ 1.2mm | 0.6 ~ 1.2mm | 0.6 ~ 1.2mm | 0.4 ~ 0.6mm |
| Engine Combustion Chamber Cleaning | × | × | × | × | ✓ |
| 전력 및 공기 요구 사항 | |||||
| 입력 전압 | Regional 110 V or 220 V version; confirm nameplate. | Regional 110 V or 220 V version; confirm nameplate. | Regional 110 V or 220 V version; confirm nameplate. | Regional 110 V or 220 V version; confirm nameplate. | Regional 110 V or 220 V version; confirm nameplate. |
| 정격 주파수 | 50 / 60HZ | 50 / 60HZ | 50 / 60HZ | 50 / 60HZ | 50 / 60HZ |
| 정격 전력 | 1200W | 1400W | 1400W | 1500W | 1400W |
| 진공 흡입 | 0.02MPa | 0.02MPa | 0.02MPa | 0.02MPa | 명시되지 않음 |
| External Air Supply | 명시되지 않음 | 명시되지 않음 | 명시되지 않음 | 명시되지 않음 | > 0.7MPa |
| 기류 | <300L/분 (<0.3 m³/min) | <300L/분 (<0.3 m³/min) | <300L/분 (<0.3 m³/min) | <300L/분 (<0.3 m³/min) | > 400L / 분 (>0.4m³/min) |
| External Air Compressor | 필수(포함되지 않음) | ✓ | ✓ | ✓ | ✓ |
| Capacity, Configuration & Mobility | |||||
| Main Unit Capacity | 13L | 30L | 30L | 10L | 10L |
| 제품 무게 | 10kg | 12kg | 23.5kg | 52kg | 50kg |
| Configured Connectors | 5 유형 | 5 유형 | 23 유형 | 23 유형 | 5 유형 |
| 보관함 | × | × | ✓ | ✓ | × |
| 360° Swivel Caster | ✓ | ✓ | ✓ | ✓ | ✓ |
| Three – Section Telescoping Handle Design | × | × | ✓ | ✓ | × |
| Controls & Filtration | |||||
| 압력계 | × | × | × | ✓ | ✓ |
| 압력 설정 | × | × | × | Pressure Regulation Knob | Pressure Regulation Knob |
| 모드 스위치 | × | × | High/Low Mode Low – Speed Mode | 표준 모드 전문가 모드 | 복구 모드 채우기 모드 |
| Built – in Dust Filter | ✓ | ✓ | ✓ | ✓ | ✓ |
| HEPA Filter (High Efficiency Particulate Air Filter) | × | × | × | ✓ | ✓ |
사용 설명서 및 다운로드
HTS558 Manual & Setup Help

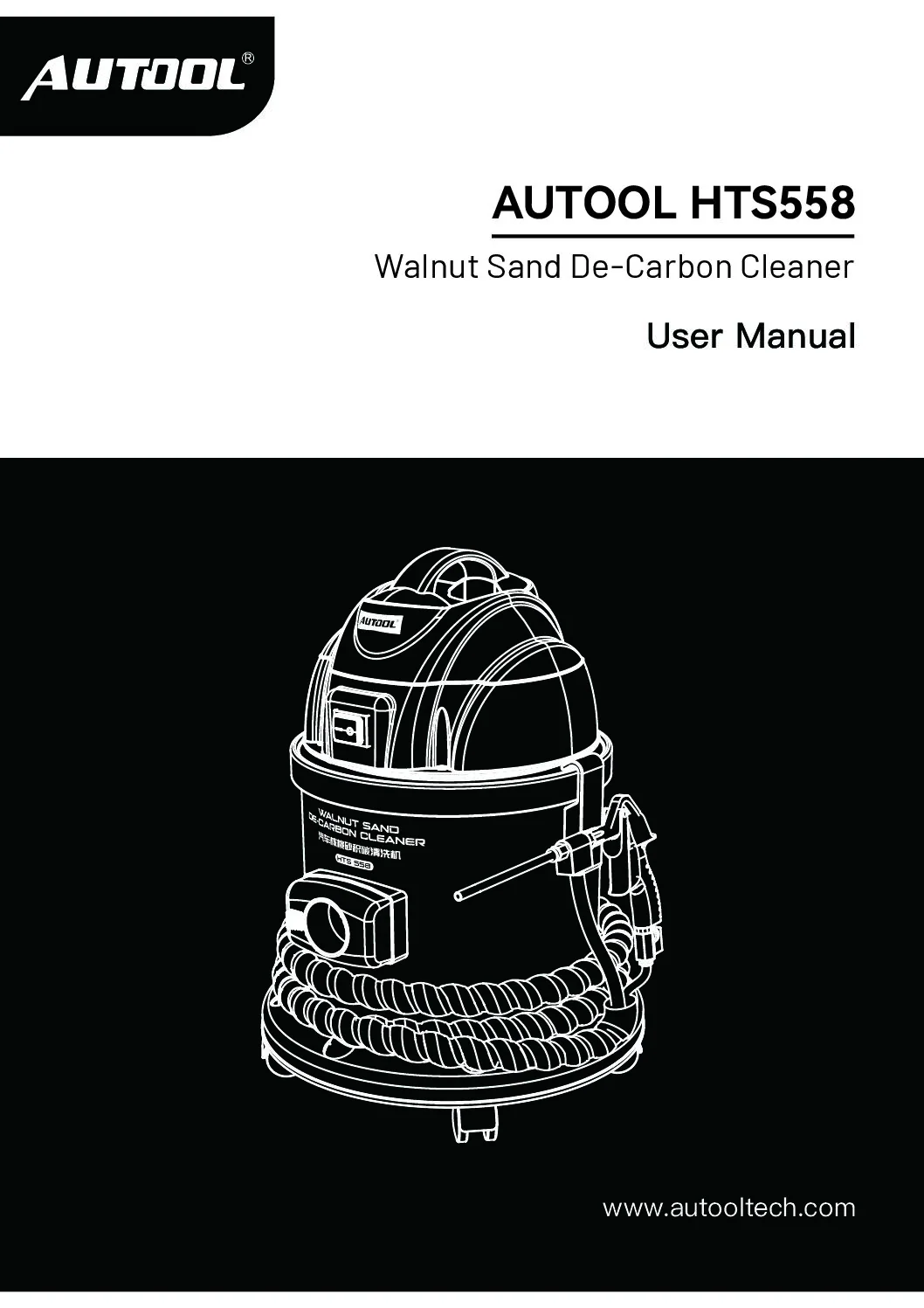

AUTOOL HTS558 User Manual
Open the PDF manual for HTS558 walnut blasting, intake-adapter fit, media recovery, external-air setup, cleaning preparation, operating safety, maintenance, and troubleshooting.
묶음

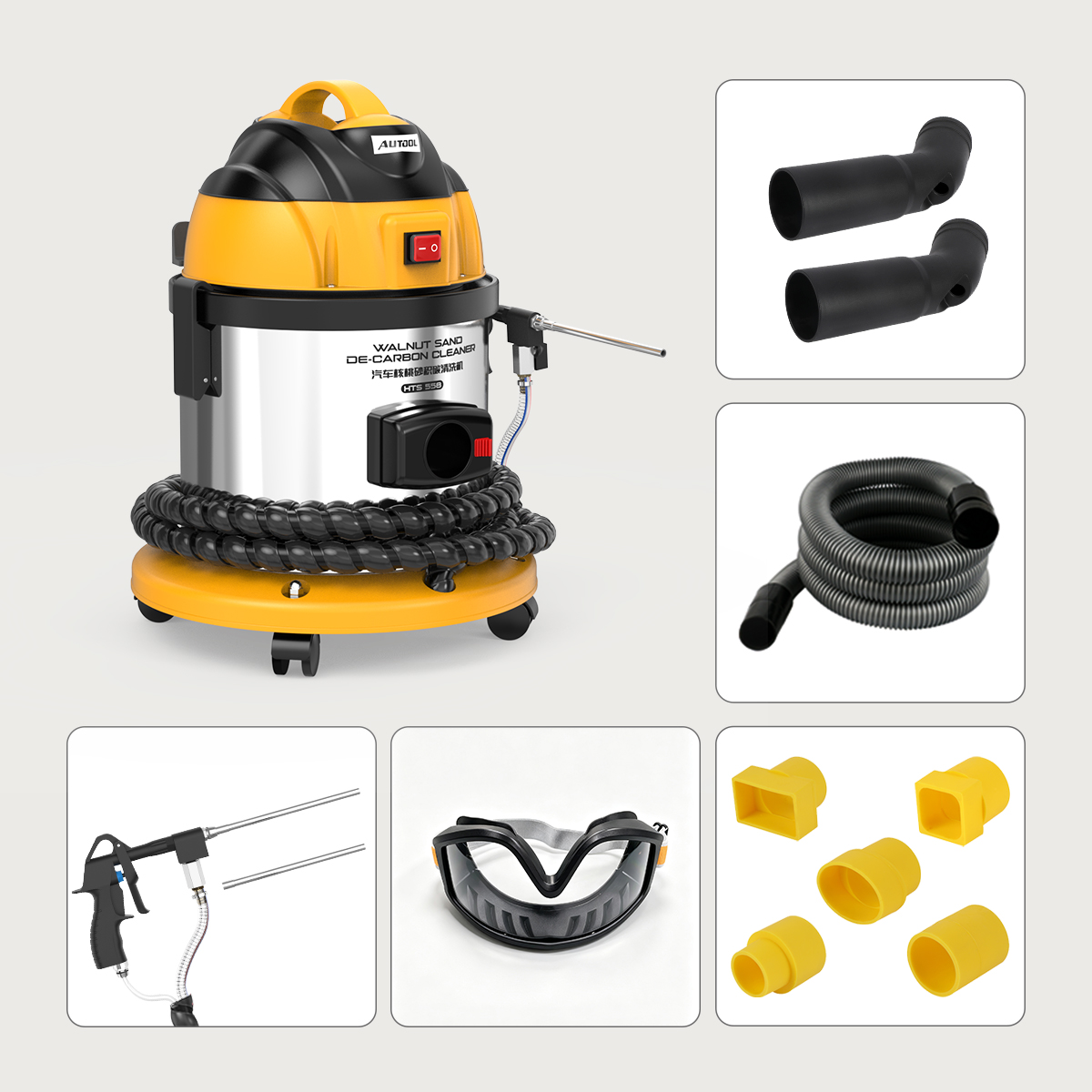

포함 된 것
- HTS558 Main UnitCompact walnut blaster with recovery and filtration.
- Blasting and Recovery PartsSpray gun/nozzle rods and recovery hose.
- 어댑터Five yellow intake adapters and black rubber adapters.
- 안전 고글포함되어 있습니다.
- 포함되지 않음Walnut abrasive and external high-pressure air compressor.
자주 묻는 질문
Walnut Blaster Setup Questions
What areas can HTS558 clean?
Supported intake pipes, intake-manifold areas and the backs of intake valves; it is not specified for injectors, throttle valves, cylinders or combustion chambers.
What Is Walnut Sand?
Walnut abrasive, often called walnut sand, is crushed and screened walnut shell. Use dry, compatible 0.6–1.2 mm media with HTS558; follow its Safety Data Sheet and use appropriate PPE because the media can create dust and present allergen concerns.
Is an air compressor included?
No. A suitable dry, filtered external compressor is required.
Are the five adapters universal?
No. Confirm the engine, port shape and seal.
Can recovered media always be reused?
No. Follow the exact vehicle procedure and use only media that remains dry and uncontaminated.
Does visible cleaning prove the fault is fixed?
No. Complete the vehicle diagnosis, reassembly, leak checks and functional verification.
How Does HTS558 Clean Intake-Valve Carbon?
HTS558 uses walnut blasting on supported intake-manifold and intake-valve surfaces to loosen carbon deposits, while integrated vacuum recovery collects spent media and residue. Follow the service procedure for the specific vehicle and confirm the target intake valve is closed before blasting.
What Walnut Shell Abrasive Size Should I Use?
Use 0.6–1.2 mm walnut-shell abrasive for HTS558.
Can Walnut Abrasive Be Reused?
Reuse walnut abrasive only when the service procedure for the specific vehicle permits it and the recovered media remains suitable for reuse.
Is Walnut Abrasive Included In The HTS558 Package?
No. Walnut abrasive and the external high-pressure air compressor are not included. Prepare compatible 0.6–1.2 mm media and an appropriate external compressor before cleaning.
What External Air Compressor Is Required?
Use an external compressor that meets the HTS558 pressure and continuous-airflow needs; 6 bar or more is generally recommended. Use dry, filtered air with sufficient continuous airflow, and make sure the air tank, hose, quick-connect fittings, and pressure settings suit the vehicle and workshop setup.
Can HTS558 Remove Carbon Buildup on Intake Valves?
HTS558 can remove carbon buildup from supported intake-valve and intake-port surfaces when inspection confirms deposits and the service procedure for the specific vehicle supports walnut blasting. Confirm access, adapter sealing, valve position, and residual-media recovery before completing the service.
How Does The HTS558 Walnut Blasting Machine Work?
After the target intake valve is closed, an external compressor drives walnut abrasive through the spray gun while HTS558 vacuum recovery collects media and carbon residue for filtration. Follow the vehicle-specific access, isolation, cleanup, and residual-check procedure.
How Much Walnut Abrasive Should I Add?
Add about 2–4 kg of compatible 0.6–1.2 mm walnut abrasive, seat the dust guard correctly, and close the cover securely before operation.
Can HTS558 Clean Injectors, Throttle Valves, Or Cylinders?
No. HTS558 is designed to clean the intake pipe, intake manifold, and the backs of the intake valves—not injectors, throttle valves, cylinders, or combustion chambers.
Is Walnut Blasting Safe For Engines?
Walnut blasting can be used for intake and valve carbon cleaning when the correct vehicle-specific procedure, media, adapter, valve-closure, isolation, dust-control, protective-equipment, and residual-recovery steps are followed.
What Are The Main Risks During Walnut Blasting?
Key risks include incorrect valve position, poor adapter sealing, inadequate recovery, residual media, wet or clumped abrasive, dust or allergen exposure, and incorrect reassembly. Use dry, filtered air and appropriate PPE, confirm adapter fit, perform a final vacuum and borescope inspection, and follow the service procedure for the specific vehicle.
How Often Should I Use A Walnut Blaster For Intake Cleaning?
There is no universal fixed mileage interval. Determine cleaning timing from inspection, diagnosis, vehicle condition, and the service guidance for the specific vehicle; clean only when deposits are confirmed and the service procedure supports mechanical cleaning.
Where Can I Compare HTS558, HTS559, HTS518, HTS678, And HTS728?
사용 AUTOOL Walnut Blaster Model Comparison table above to compare rated power, capacity, adapters, filters, modes, pressure controls, and combustion-chamber capability across HTS558, HTS559, HTS518, HTS678, and HTS728.
Are Replacement Parts And Walnut Media Available?
Replacement parts and walnut blasting media are available from AUTOOL. Use parts and media that match the HTS558 specifications, and check regional availability before purchase.
