AUTOOL BT960 리튬 및 납축전지 분석기
US$139.00
주요 특징
- Lead-Acid + Lithium Testing
- 12V/24V System Checks
- 0–10 A Current Range
- Negative-Side Drain Monitoring
- Lead-Acid + Lithium Testing: Test flooded, AGM, EFB, and GEL lead-acid batteries plus lithium iron phosphate, lithium polymer, and ternary lithium types.
- 12V/24V System Checks: Run battery, cranking, charging, and loaded-system voltage checks on supported 12V/24V systems.
- 0–10 A Current Range: Measure current across 0–10 A while following the supported 12 V or 24 V system procedure.
- Negative-Side Drain Monitoring: Monitor small total-current changes through the negative-side connection to investigate abnormal battery drain.
- Customizable Printed Reports: Print test reports with license plate numbers, dates, and serial numbers from the built-in thermal printer.
- 3 - 년 보증 본체 3년, 부속품 1년
- 90- 일 반품 90일 이내 반품 가능
- 공식 스토어 정품 · 직접 지원

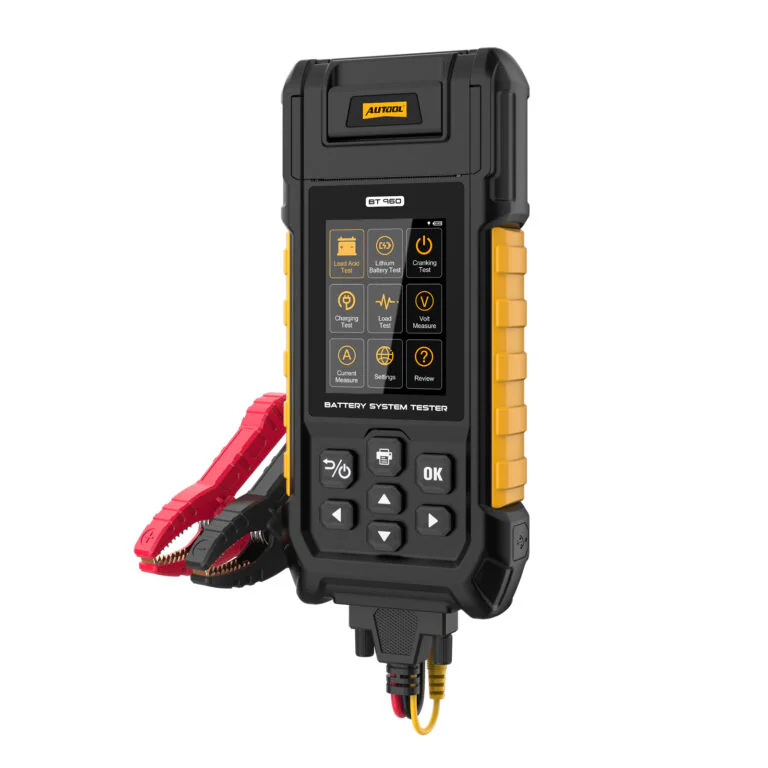

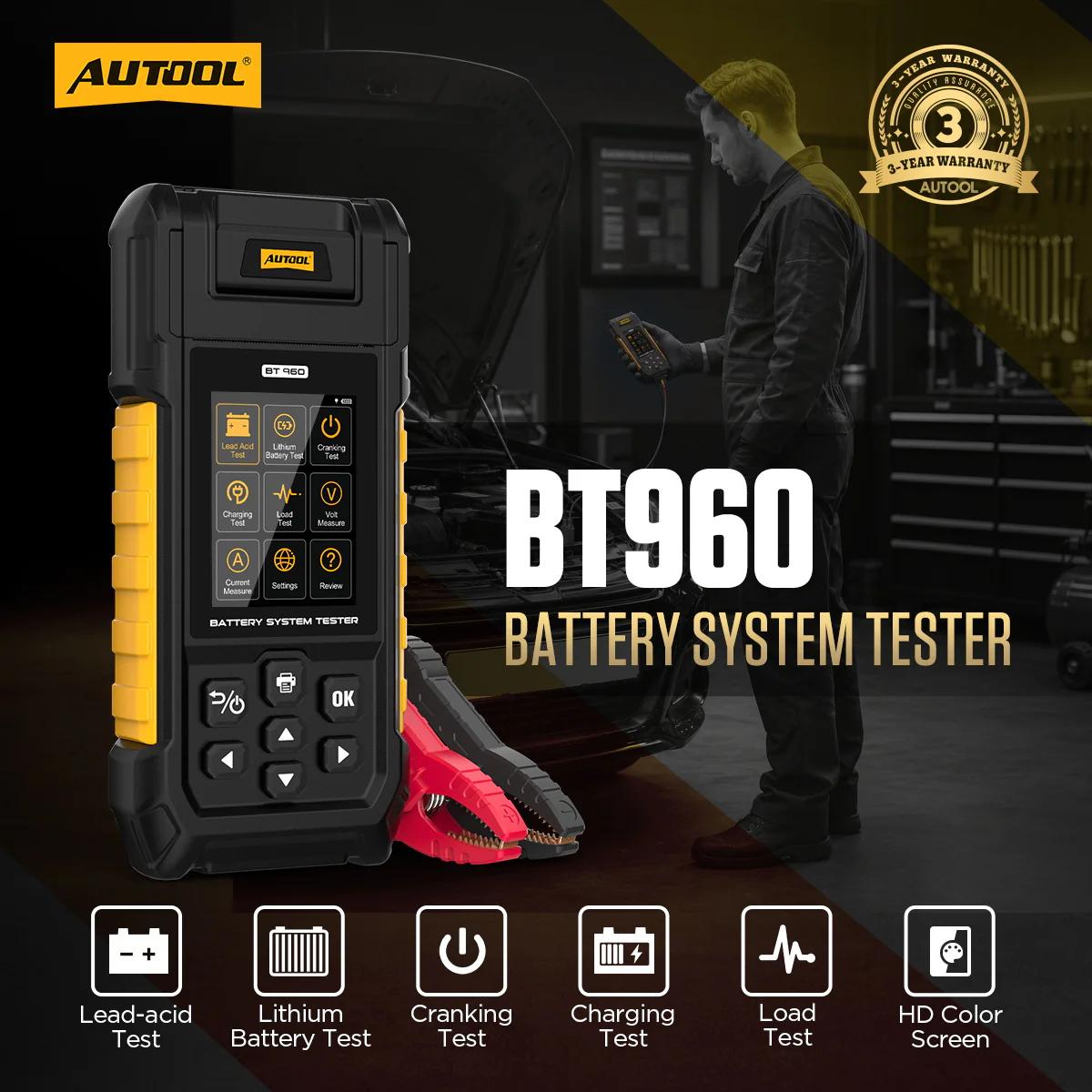

AUTOOL BT960 · Automotive Battery Tester with Printer & Leakage Monitor
Monitor Battery Condition, Leakage and Results
Test supported lead-acid and listed lithium battery types, then check cranking, charging, loaded-system voltage, current, and leakage behavior on 12V/24V systems. BT960 records small-current waveforms for drain investigations and prints customizable reports with vehicle and test details for workshop documentation.
- Lead-Acid And Listed Lithium Menus
- 12 V / 24 V System Checks
- 0–10 A Current Range
- Drain-Current Waveform Records
- Customizable Printed Reports
주요 특징
Battery Checks, Leakage Monitoring and Printout

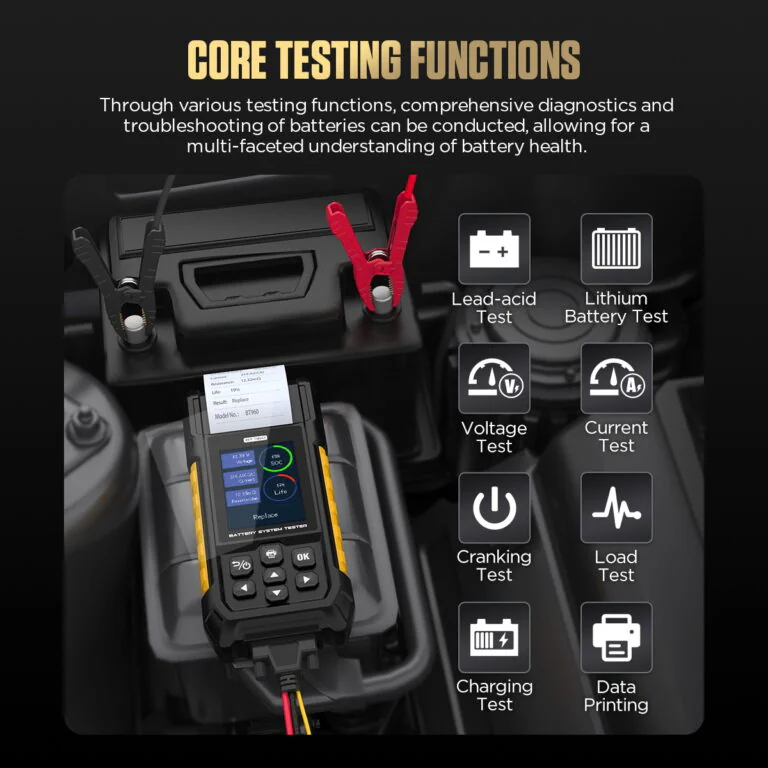

Battery & System Tests
Select the battery-test function, choose the status and mode as needed, and follow the on-screen prompts for battery, startup/cranking, charging, running system-voltage behavior with vehicle electrical loads switched on, voltage, current, leakage, and data-record checks on supported 12V and 24V battery systems. The listed current measurement range is 0–10A. The menu is not a traditional high-current resistive battery load test.

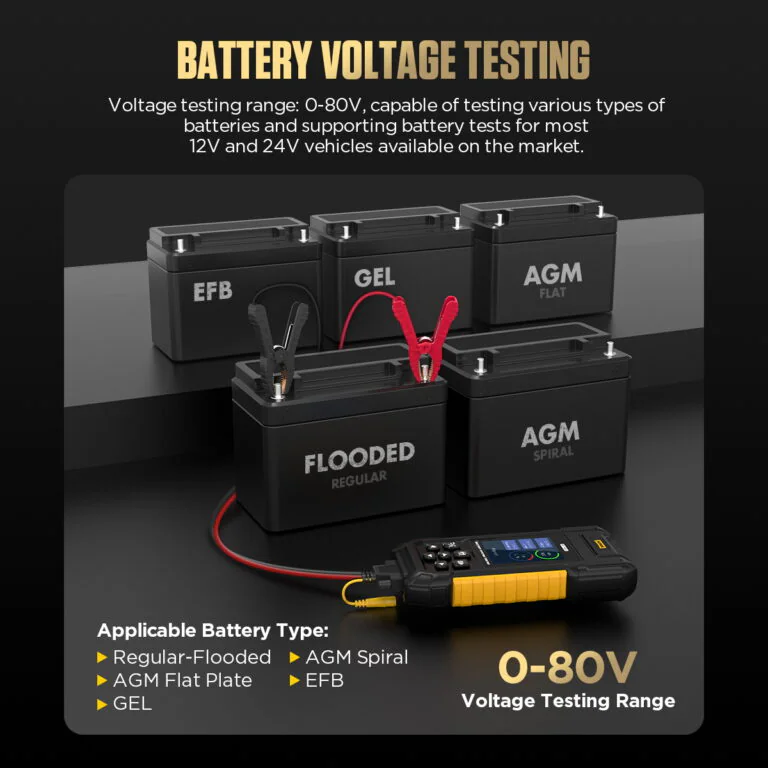

Lead-Acid Coverage + Voltage Range
Test supported Regular-Flooded, AGM Spiral, AGM Flat Plate, EFB, and GEL lead-acid battery categories. The 0–80V voltage measurement range is separate from battery health-test compatibility and does not by itself qualify a non-battery or high-voltage system for testing.

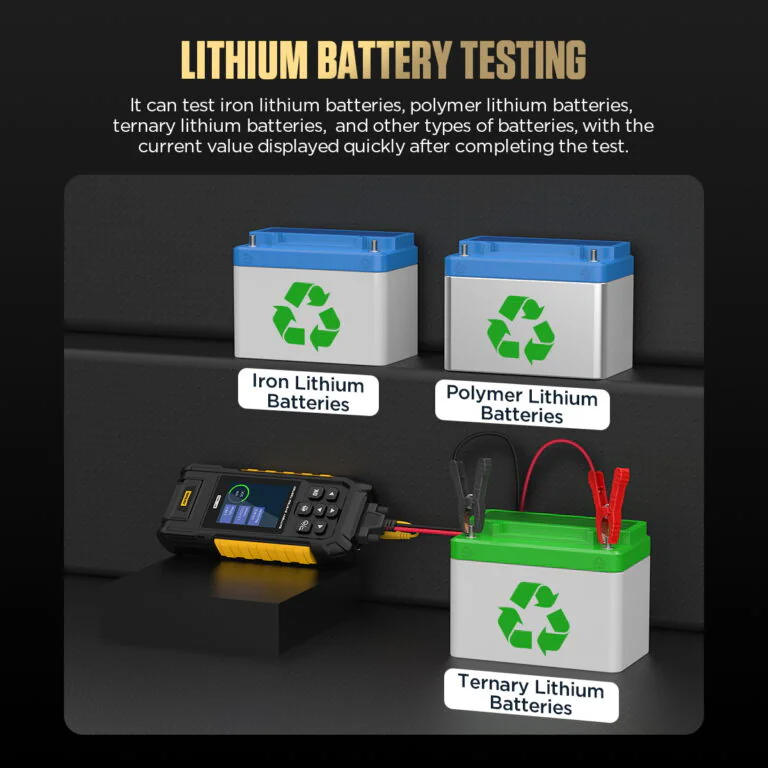

Lithium Battery Coverage
Test supported lithium iron phosphate, lithium polymer, ternary lithium, iron-lithium, polymer-lithium, and other listed lithium battery options. Match the battery to the supported test setting; the tester displays the current value after the test.

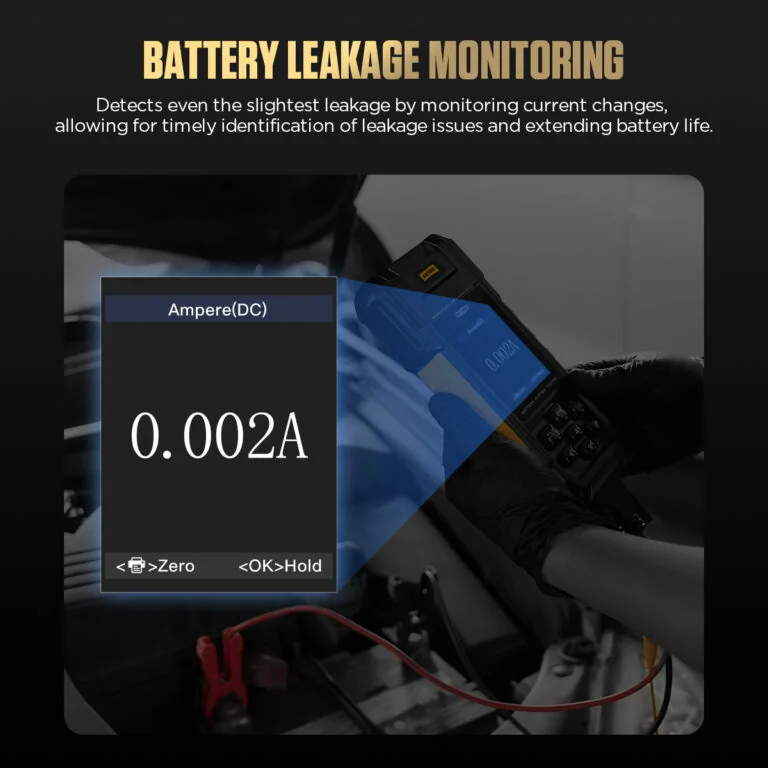

Battery Drain and Leakage-Current Monitoring
Monitor small changes in total current through the negative-side connection to investigate battery drain, abnormal standby current, and charging-related issues. Follow the vehicle sleep and power-retention procedure, then isolate circuits to identify the responsible branch or component.
실시간 온도 모니터링
The built-in sensor tracks ambient temperature to provide context for battery testing. A battery working temperature of 20°C–25°C is generally recommended; follow the actual battery procedure and do not assume the display automatically compensates results.

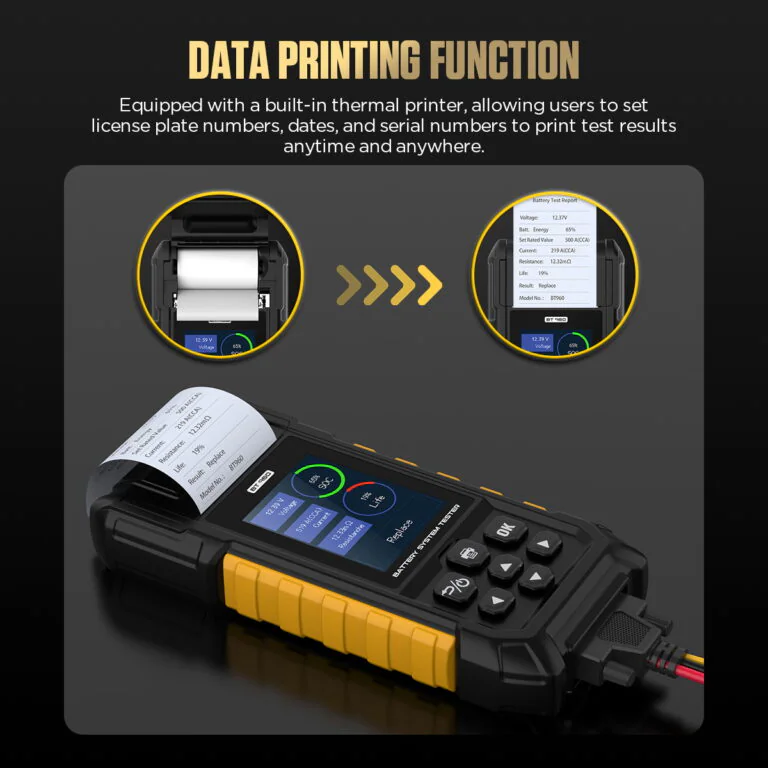

Customizable Printed Reports
Use the built-in ink-free thermal printer to print battery-test reports on site, add license plate numbers, dates, and serial numbers, and attach the record to a work order or share it with the customer.
14 언어
Supports English, Portuguese, Spanish, French, German, Italian, Russian, Turkish, Thai, Japanese, Traditional Chinese, Simplified Chinese, Korean, and Polish.

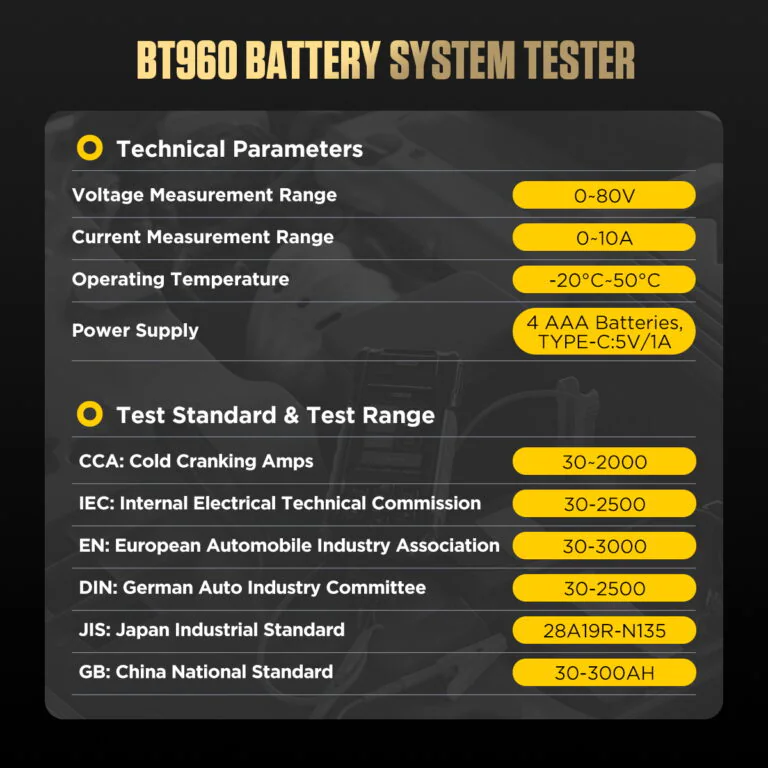

Battery Rating Systems
Select the battery rating system that matches the battery label, including BCI, SAE, CCA, IEC, EN, CA, DIN, MCA, JIS, and GB.

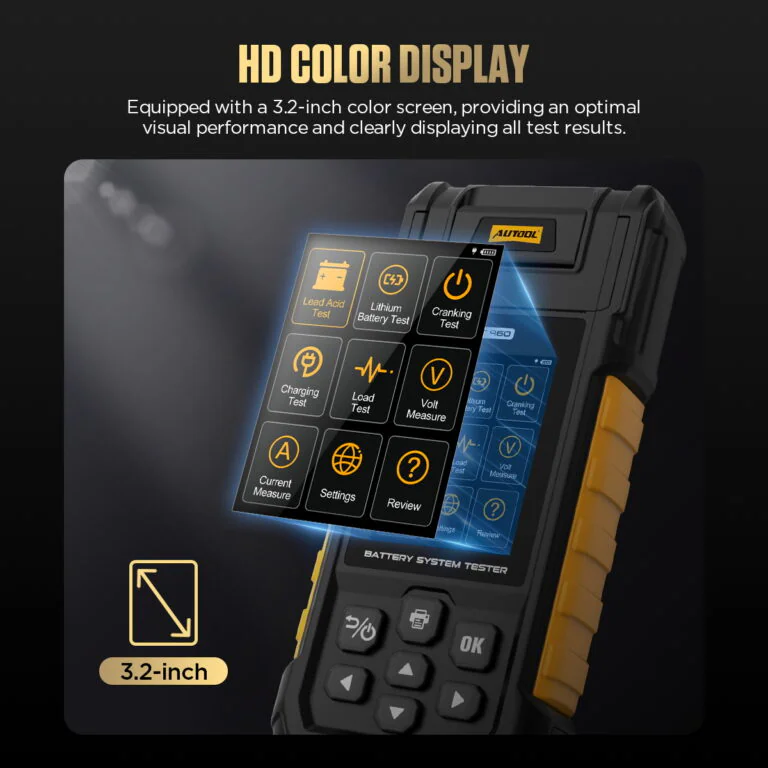

3.2인치 컬러 디스플레이
Read test results, menus, and diagnostic prompts on the 3.2-inch color screen.

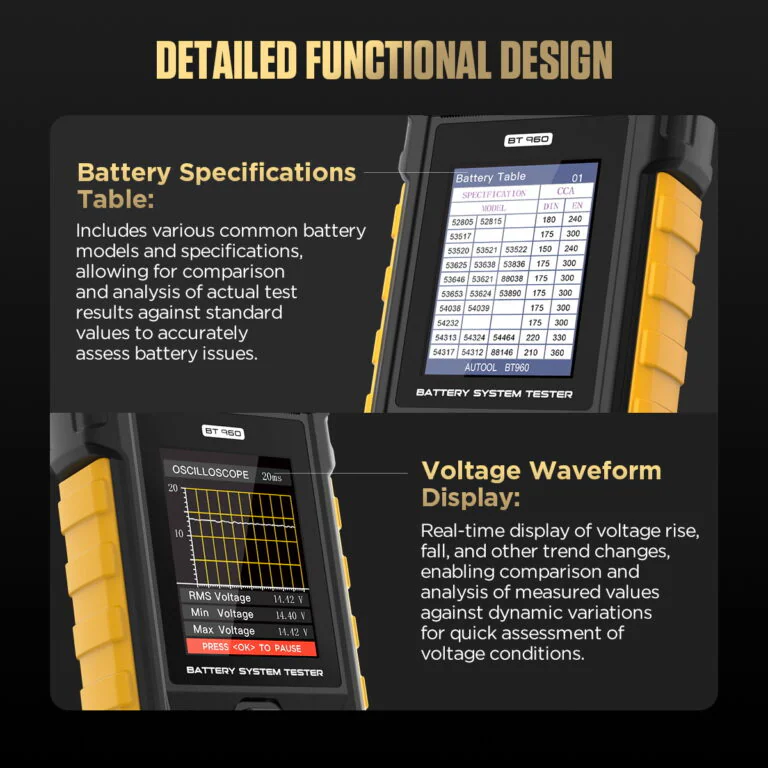

Waveform + Specification Reference
Review the voltage waveform and battery specifications table as references for more detailed checks.

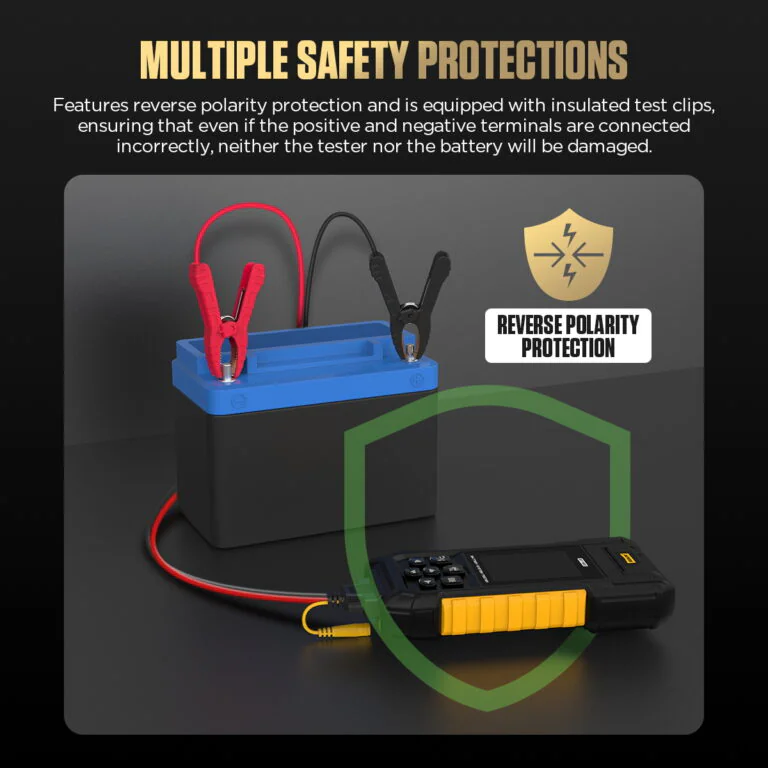

역방향 연결 보호
Reverse-polarity protection and insulated test clips help protect the battery and tester if positive and negative connections are reversed. Use the correct terminal connection and stop if the tester reports a polarity error.
유연한 전원 공급 장치
Power the tester with four AAA batteries or a Type-C 5V / 1A supply.

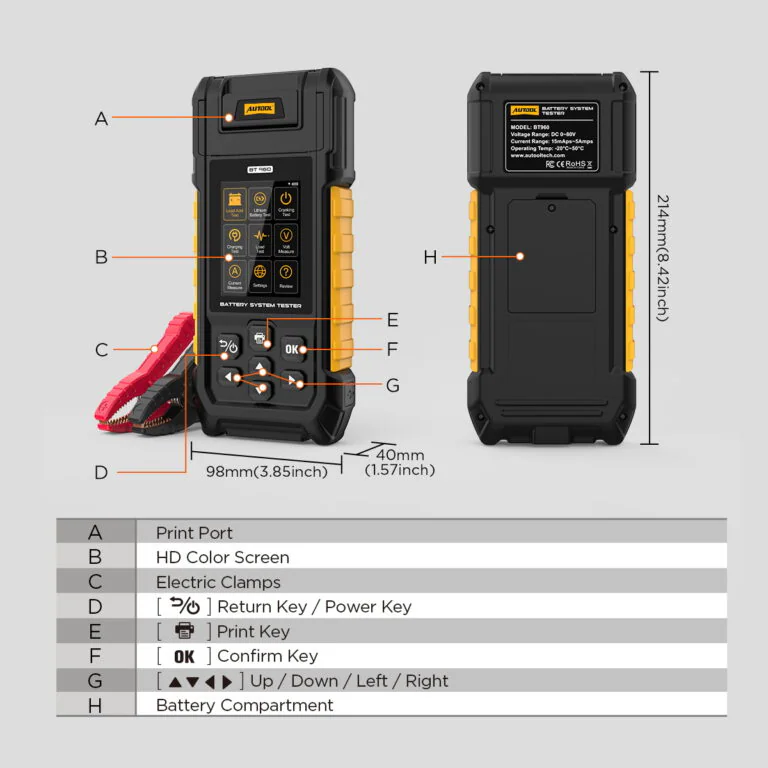

Integrated Handheld Design
The 214 × 98 × 40mm body integrates the thermal print port, 3.2-inch color screen, return/power key, print key, OK key, direction keys, electric clamps, control buttons, and battery compartment.
3년 보증 지원
본체: 3년 보증. 표준 부속품: 1년 보증. 보증 정책.
서비스 워크플로
Run Each Battery Check in Its Proper State
단계별 진행 상황1 / 6
01
Leakage Test Workflow
After correctly connecting the power clamps to the battery terminals, disconnect the negative terminal and use the special leakage test clamp on the vehicle negative bus to monitor and record real-time leakage current waveform.
02
Identify the Battery
Confirm the battery chemistry, nominal voltage and printed rating standard before choosing the tester menu.
03
올바르게 연결하세요
Switch vehicle loads off as required, place the clamps on clean terminals with correct polarity, and make sure the contact is stable.
04
Enter the Rating
Select the supported battery type and enter the rating standard and value printed on the battery; an Ah field is an input unless the procedure defines a controlled discharge test.
05
Run Separate Checks
Run the supported battery, cranking, charging or loaded-system checks separately so each result keeps its operating context.
06
Review and Record
Read measured voltage and algorithm outputs together, record the conditions, and confirm an unexpected result with terminal, charge-state and vehicle-specific checks.
안전한 사용
Match Chemistry, Voltage and Test State
Battery Fit and Leakage Test State
Match the selected menu to the exact battery chemistry, nominal voltage, series arrangement, rating standard, and BMS-permitted test state. For leakage-current monitoring, use the documented negative-side connection and the vehicle’s sleep and power-retention procedure; finding the responsible circuit requires a separate isolation workflow. Treat CCA, SOC, health/life, and capacity-like values as algorithm outputs rather than measured amp-hours or exact remaining life.
결과 안내
Interpret Battery Results in Context
측정된 전압
Assess battery health by combining voltage with state of charge, temperature, terminal contact, and the full test result.
CCA or Conductance Output
Compare the tester’s algorithm output with the rating standard and value entered from the battery label. Repeat unexpected results after checking terminal contact and charge state.
SOC and Health/Life
Treat SOC and health, life or capacity-like percentages as model-generated indicators rather than measured remaining amp-hours or an exact service-life forecast.
Cranking and Charging
Keep cranking voltage, running-system voltage and loaded-system observations separate. Use the vehicle procedure and operating state to decide the next check.
모델 비교
Choose the Right Battery System Tester
모델 가이드
하나 이상의 모델을 선택하세요. BT960이 기본값으로 선택되어 있습니다.
1개 모델이 선택되었습니다.
선택된 모델이 없습니다. 비교할 모델을 선택하세요.
| 제품명 | BT360 | BT460 | BT760 | BT880 | BT960 |
|---|---|---|---|---|---|
| Tests, Monitoring & Protection | |||||
| 배터리 테스트 | ✓ | ✓ | ✓ | ✓ | ✓ |
| 크랭킹 테스트 | ✓ | ✓ | ✓ | ✓ | ✓ |
| 충전 시스템 테스트 | ✓ | ✓ | ✓ | ✓ | ✓ |
| 배터리 충전 | × | × | × | × | × |
| 역 극성 보호 | ✓ | ✓ | ✓ | ✓ | ✓ |
| 최대 부하 시험 | × | ✓ | ✓ | ✓ | ✓ |
| 열 모니터 | × | × | × | ✓ | ✓ |
| 누설 전류 모니터링 | × | × | × | ✓ | ✓ |
| Battery Compatibility & Ranges | |||||
| Conventional Lead-acid Batteries | ✓ | ✓ | ✓ | ✓ | ✓ |
| AGM Flat Plate Batteries | ✓ | ✓ | ✓ | ✓ | ✓ |
| AGM 스파이럴 배터리 | ✓ | ✓ | ✓ | ✓ | ✓ |
| 젤 배터리 | ✓ | ✓ | ✓ | ✓ | ✓ |
| EFB Enhanced Flooded Batteries | ✓ | ✓ | ✓ | ✓ | ✓ |
| 리튬 배터리 | × | × | × | × | ✓ |
| Test Range(CCA) | 30~2000 CCA | 30~2000 CCA | 30~2000 CCA | 30~2000 CCA | 30~2000 CCA |
| Applicable Battery Rated Voltage | 12V | 12V / 24V | 12V / 24V | 12V / 24V | 12V / 24V |
| 전압 테스트 범위 | 8~20V | 8 ~ 30V | 8 ~ 30V | 8 ~ 30V | 0 ~ 80V |
| Interface, Records & Power | |||||
| 데이터 인쇄 | × | × | ✓ | ✓ | ✓ |
| 데이터 기록 | ✓ | ✓ | ✓ | ✓ | ✓ |
| 소프트웨어 업그레이드 | ✓ | ✓ | × | ✓ | ✓ |
| 컬러 스크린 | ✓ | ✓ | ✓ | ✓ | ✓ |
| 화면 크기 | 2.4 인치 | 2.8inch | 3.2 인치 | 3.2 인치 | 3.2 인치 |
| 다중 언어 | 14 | 14 | 14 | 18 | 14 |
| 전원 공급 장치 | Connect 12V Battery | Connect 12V Battery | Connect 12V Battery | Connect 12V Battery | 건전지 Type-c Power Supply Connect 12V Battery |
사용 설명서 및 지원
Find the User Manual and Product Support

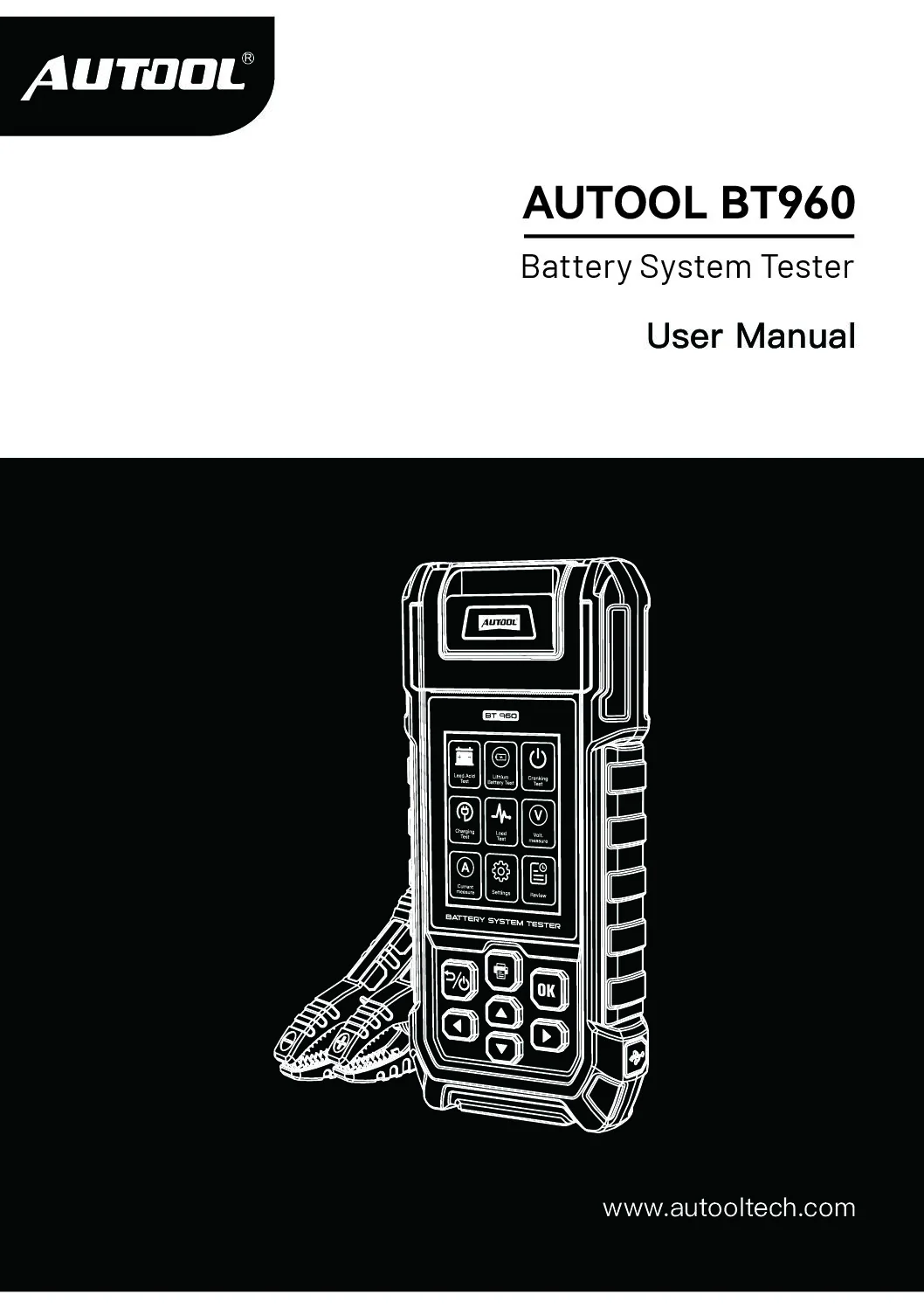

AUTOOL BT960 사용자 설명서
PDF 설명서를 열어보세요 AUTOOL BT960 lead-acid and lithium battery testing, leakage and temperature monitoring, report printing, power options, safety and troubleshooting support.

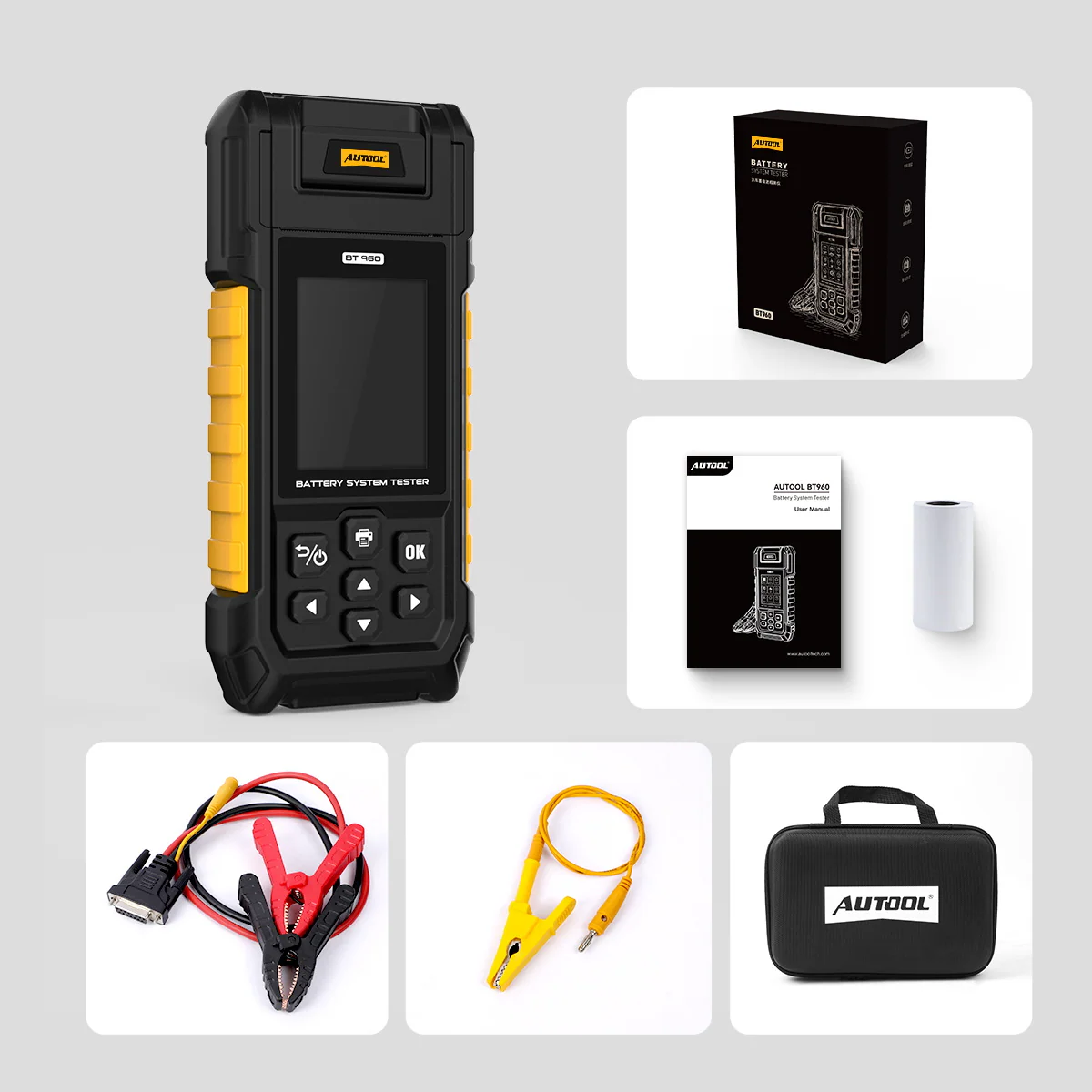

패키지 내용물
상자 안에 무엇이 들어 있는지 확인해 보세요
- 본체AUTOOL BT960 battery tester analyzer
- 문서사용자 설명서
- 항목Printing Thermal paper roll for the built-in printer
- 항목Test Cable Main clamp cable for battery testing
- 항목Leakage Test Yellow leakage test cable / special clamp
- 스토리지Storage bag and retail box
구매자 질문
Battery Test, Fit and Result Questions
Does BT960 Support Lithium Battery Testing?
Yes. BT960 supports iron lithium, polymer lithium, and ternary lithium battery test options. Select the menu that matches the battery chemistry, nominal voltage, series arrangement, and BMS-permitted test state before testing.
Can BT960 Monitor Battery Leakage Current?
Yes. BT960 monitors small changes in total current through its negative-side connection, helping technicians investigate battery drain, abnormal standby current, and charging-related issues. Follow the vehicle sleep and power-retention procedure; locating the responsible branch or component requires circuit isolation.
Does BT960 Have A Built-In Printer?
Yes. BT960 includes a built-in thermal printer. It can print test results with customizable license plate numbers, dates, and serial numbers, making it useful for work orders and customer reports.
What Voltage Range Can BT960 Measure?
BT960 supports a 0-80V voltage measurement range.
What Current Range Can BT960 Measure?
BT960 supports a 0-10A current measurement range.
Does BT960 Support 12V And 24V Battery Systems?
Yes. BT960 is suitable for 12V and 24V battery systems. Match the selected battery menu, chemistry, nominal voltage, and rating input to the battery or vehicle-system task; the 0–80V measurement range does not authorize high-voltage battery service.
What Languages Are Supported?
BT960 supports 14 languages: English, Portuguese, Spanish, French, German, Italian, Russian, Turkish, Thai, Japanese, Traditional Chinese, Simplified Chinese, Korean, and Polish.
패키지 구성품은 무엇인가요?
Package contents: BT960 main unit, retail box, user manual, thermal paper roll, main clamp cable, yellow leakage-test cable / special clamp, and storage bag.
고객 리뷰
리뷰 남기기
Chantland ✓ 구매 확인 완료 -
The AUTOOL BT960 is a lifesaver for my auto shop!
The AUTOOL BT960 is a lifesaver for my auto shop! It does battery, startup, and leakage tests perfectly. The real-time temperature monitoring makes results accurate, and the thermal printer lets me print reports for customers easily. Worth every cent!
폴 ✓ 구매 확인 완료 -
This tool is my go-to battery doctor!
This tool is my go-to battery doctor! It supports all battery rating systems, so it works with every vehicle I service. The real-time temp monitoring ensures accurate tests even in hot or cold weather. Highly recommend!
스티브 ✓ 구매 확인 완료 -
The BT960 has all the functions I need—battery, charging, load, and leakage…
The BT960 has all the functions I need—battery, charging, load, and leakage tests. The 14 languages are a big plus for my international customers, and the printer makes record-keeping a breeze. Solid tool!
